Self-Organizing Linked List

Self-Organizing Linked List. Motivation. Searching for an element in a linked list takes O(N) worst case time If we are lucky, and the element is at the beginning, then search is fast Our goal is to try to keep elements that are likely to be searched in the near future close to the head

mardi
Télécharger la présentation

Self-Organizing Linked List

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

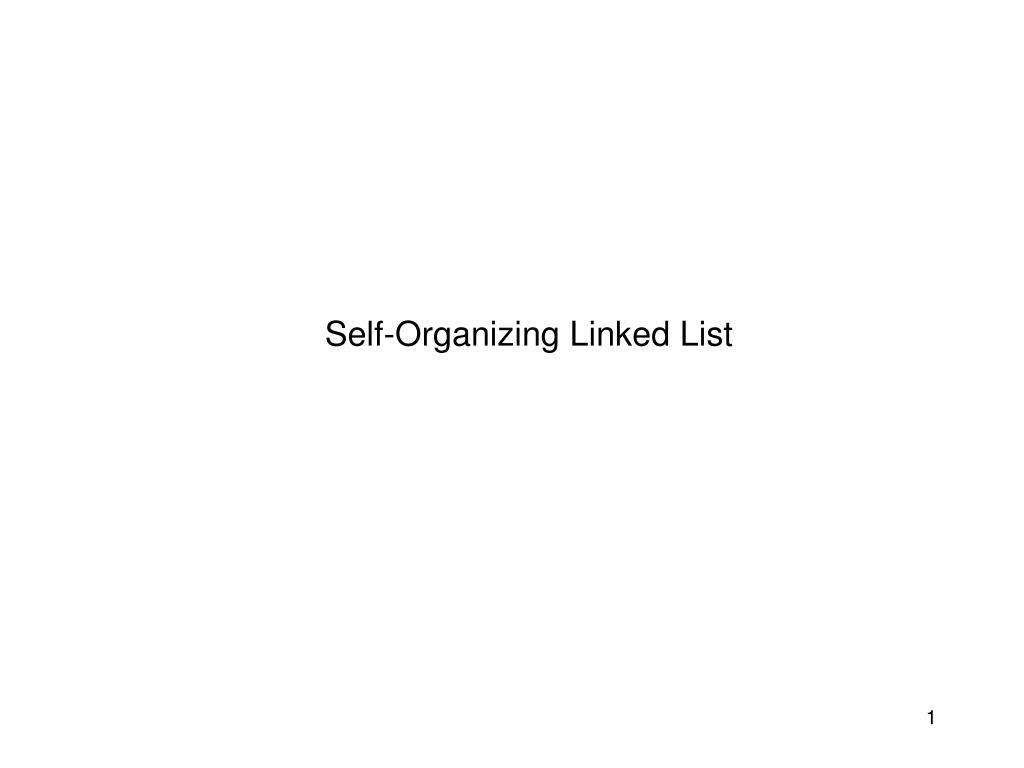

  1. Self-Organizing Linked List

  2. Motivation • Searching for an element in a linked list takes O(N) worst case time • If we are lucky, and the element is at the beginning, then search is fast • Our goal is to try to keep elements that are likely to be searched in the near future close to the head • Methods vary in how they determine the nodes that need to be close to the head • The worst case search time in still O(N), but the average time can be much better • All linked list features, except search remain unchanged

  3. Common Methods for Self-Organization Move to front After an element is found in a search, move it to the front Transpose After an element is found in a search, move it one step closer to the front Count Order the nodes by the number of times an element is searched Ordering Order by some other criterion, such as lexicographic order 3

  4. Example Next, search for the following: C, C, E, E 4

  5. Average Case Analysis Usually, the time taken is neither the worst case time nor the best case time Average case analysis assumes a probability distribution for the set of possible inputs and gives the expected time tav = input i probability(i)time(i) Average search time in a linked list tav = probability(key is not present)  n + i=1n probability(key is in node i)  i tav = n  [1 - i=1n probability(key is in node i)] + i=1n probability(key is in node i)  i 5

  6. Average Case Analysis Example - 1 Probability(i) = 1/n, 1 < i < n tav = n  [1 - i=1n probability(key is in node i)] + i=1n probability(key is in node i)  i = n  [1 - i=1n 1/n] + i=1n 1/n  i = n  [0] + (1/n) i=1n i = (1/n) n(n+1)/2 = (n+1)/2 = O(n) 6

  7. Average Case Analysis Example - 2 Probability(i) = 1/(2n), 1 < i < n tav = n  [1 - i=1n probability(key is in node i)] + i=1n probability(key is in node i)  i = n  [1 - i=1n 1/(2n)] + i=1n 1/(2n)  i = n  [1/2] + (1/(2n)) i=1n i = n/2 + (1/2n) n(n+1)/2 = n/2 + (n+1)/4 = O(n) 7

  8. Average Case Analysis Example - 3 Prob(1) = 0.5, prob(2) = 0.3, prob(3) = 0.2 tav = n  [1 - i=1n probability(key is in node i)] + i=1n probability(key is in node i)  i = n[1 - ] + 0.51 + 0.32 + 0.23 + i=4n 0i = n[0] + 0.5 + 0.6 + 0.6 + 0 = 1.7 = O(1) 8
