  1. Decision making in episodic environments • We have just looked at decision making in sequential environments • Now let’s consider the “easier” problem of episodic environments • The agent gets a series of unrelated problem instances and has to make some decision or inference about each of them • This is what most of “machine learning” is about

  2. Example: Image classification input desired output apple pear tomato cow dog horse

  3. Example: Spam Filter

  4. Example: Seismic data Earthquakes Surface wave magnitude Nuclear explosions Body wave magnitude

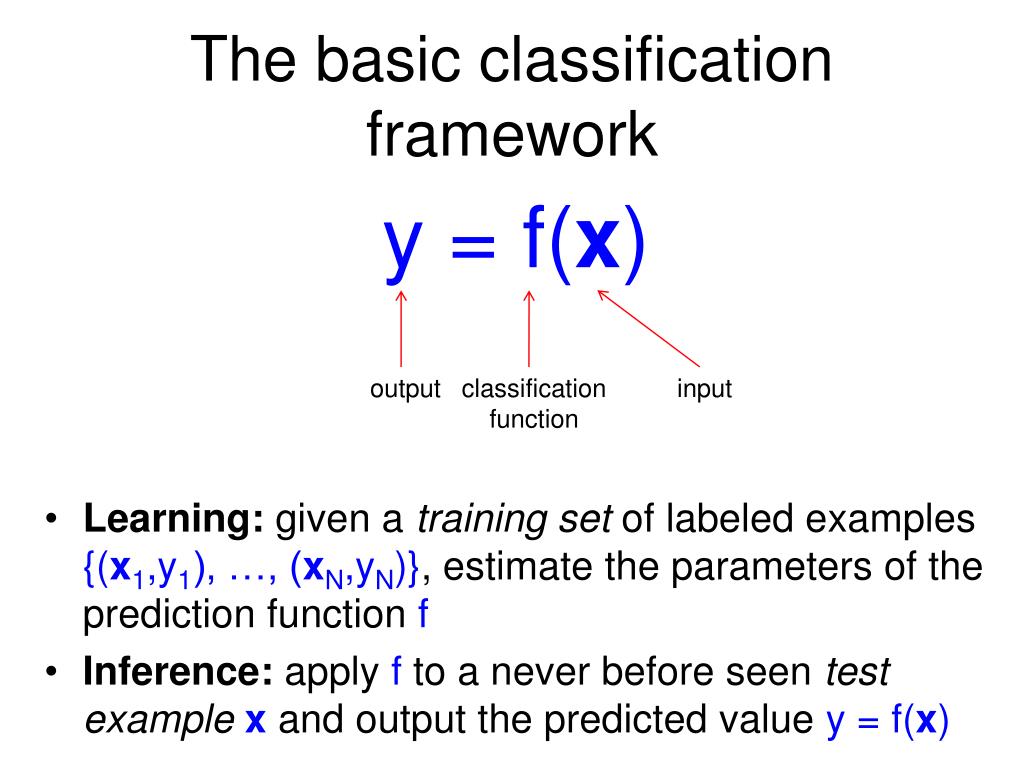

  5. The basic classification framework y = f(x) • Learning: given a training set of labeled examples{(x1,y1), …, (xN,yN)}, estimate the parameters of the prediction function f • Inference: apply f to a never before seen test examplex and output the predicted value y = f(x) output classification function input

  6. Example: Training and testing • Key challenge: generalization to unseen examples Training set (labels known) Test set (labels unknown)

  7. Naïve Bayes classifier A single dimension or attribute of x

  8. Decision tree classifier Example problem: decide whether to wait for a table at a restaurant, based on the following attributes: • Alternate: is there an alternative restaurant nearby? • Bar: is there a comfortable bar area to wait in? • Fri/Sat:is today Friday or Saturday? • Hungry: are we hungry? • Patrons: number of people in the restaurant (None, Some, Full) • Price: price range ($, $$, $$$) • Raining: is it raining outside? • Reservation: have we made a reservation? • Type: kind of restaurant (French, Italian, Thai, Burger) • WaitEstimate: estimated waiting time (0-10, 10-30, 30-60, >60)

  9. Decision tree classifier

  10. Decision tree classifier

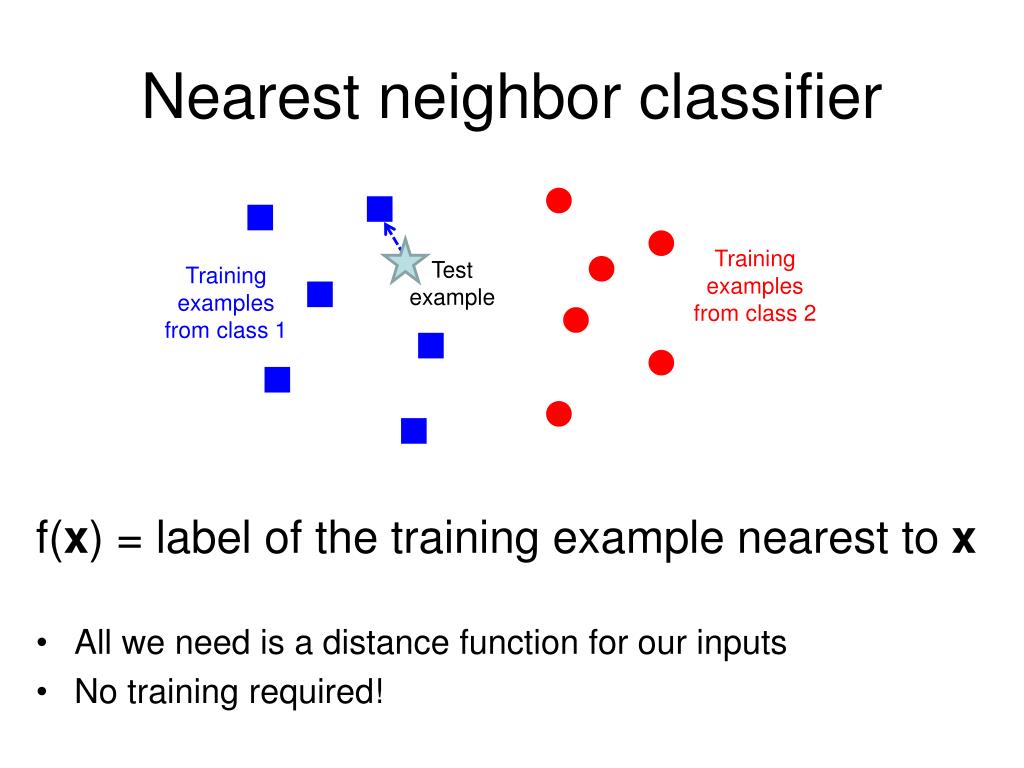

  11. Nearest neighbor classifier f(x) = label of the training example nearest to x • All we need is a distance function for our inputs • No training required! Training examples from class 2 Test example Training examples from class 1

  12. Linear classifier • Find a linear function to separate the classes f(x) = sgn(w1x1 + w2x2 + … + wDxD) = sgn(w  x)

  13. Perceptron Input Weights x1 w1 x2 w2 Output:sgn(wx+ b) x3 w3 . . . wD xD

  14. Linear separability

  15. Multi-Layer Neural Network • Can learn nonlinear functions • Training: find network weights to minimize the error between true and estimated labels of training examples: • Minimization can be done by gradient descent provided f is differentiable • This training method is called back-propagation

  16. Differentiable perceptron Input Weights x1 w1 x2 w2 Output:(wx+ b) x3 w3 . . . Sigmoid function: wd xd

  17. Review: Types of classifiers • Naïve Bayes • Decision tree • Nearest neighbor • Linear classifier • Nonlinear classifier
