  1. For the Field Surveyor COGO

  2. Tools Available • LISCAD • TCA1800 Programs

  3. LISCAD • Task “Computations” • Create Points • Create Lines • Create Polygons • Create Alignments • Move, modify, and Delete Elements • Send to TCA for Stake Out

  4. LISCAD • Task “Computations” • Create Points • Create Lines • Create Polygons • Create Alignments • Move, modify, and Delete Elements • Send to TCA for Stake Out

  5. TCA1800 Programs • COGO • File Editor • Road Plus • Stakeout

  6. COGO • Inverse • Traverse • Intersects • Offsets • 3 Point Arc

  7. Project SAMPLE

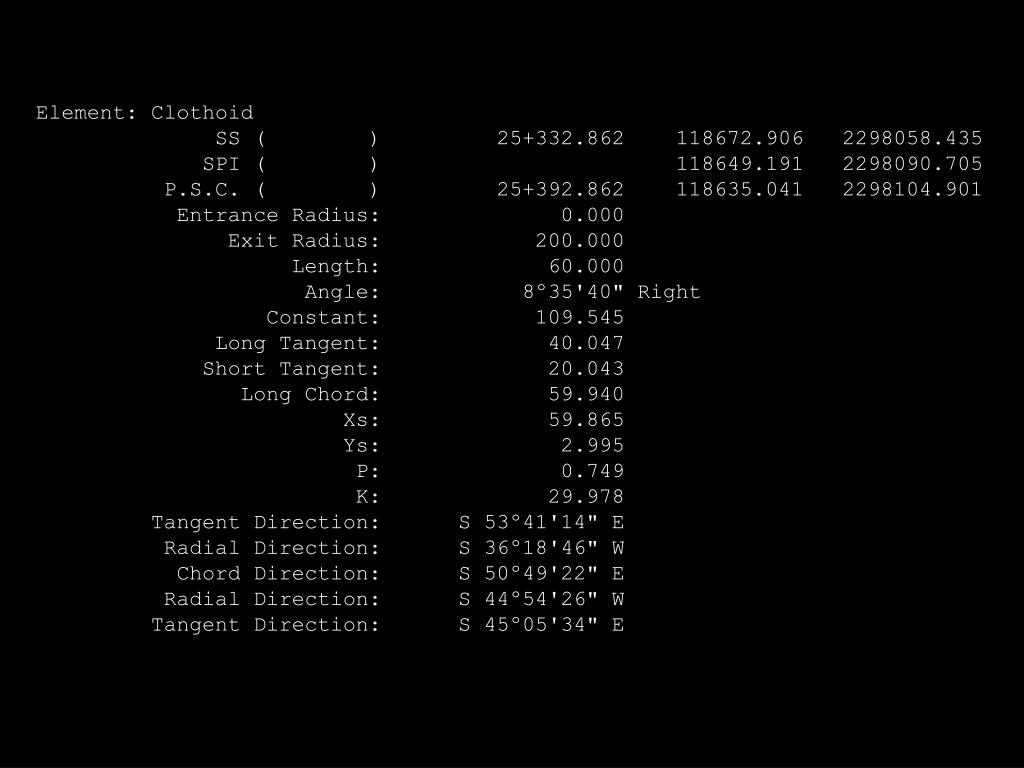

  8. Element: Clothoid SS ( ) 25+332.862 118672.906 2298058.435 SPI ( ) 118649.191 2298090.705 P.S.C. ( ) 25+392.862 118635.041 2298104.901 Entrance Radius: 0.000 Exit Radius: 200.000 Length: 60.000 Angle: 8º35'40" Right Constant: 109.545 Long Tangent: 40.047 Short Tangent: 20.043 Long Chord: 59.940 Xs: 59.865 Ys: 2.995 P: 0.749 K: 29.978 Tangent Direction: S 53º41'14" E Radial Direction: S 36º18'46" W Chord Direction: S 50º49'22" E Radial Direction: S 44º54'26" W Tangent Direction: S 45º05'34" E

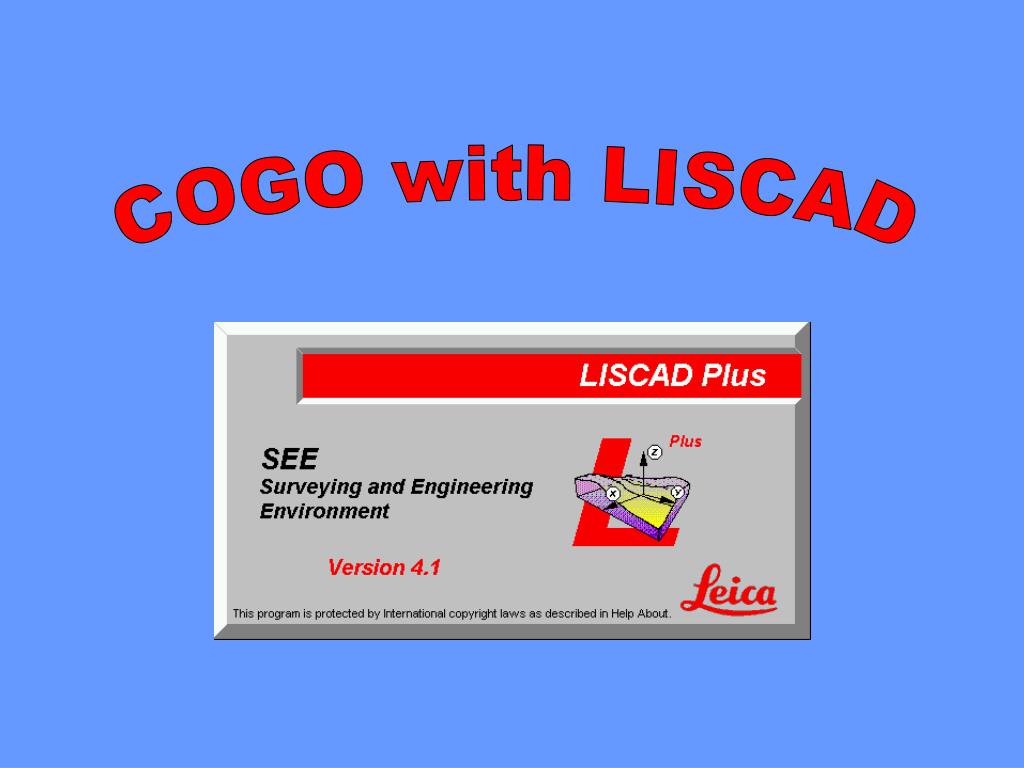

  9. COGO with LISCAD

  10. COGO with the TCA1800
