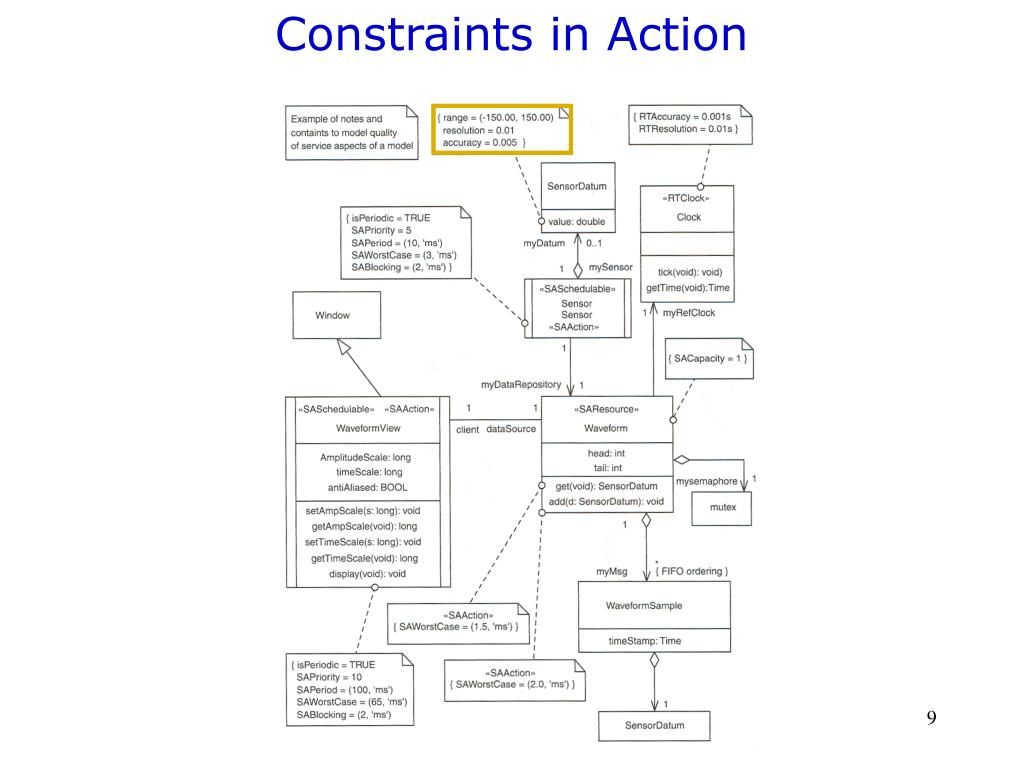

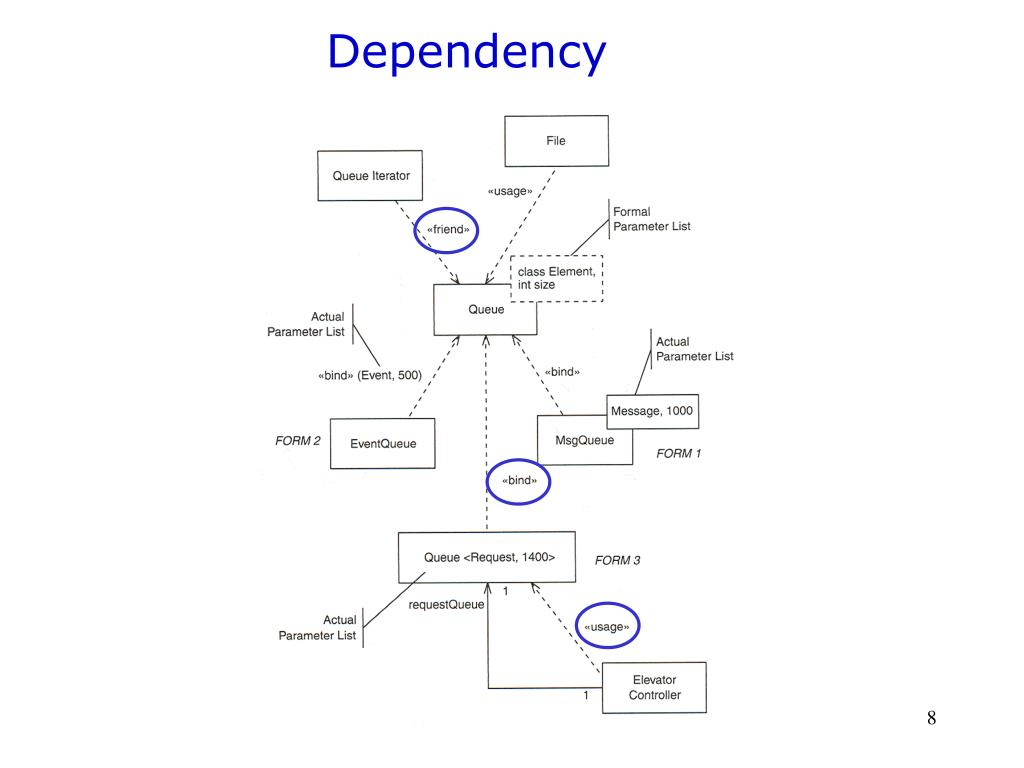

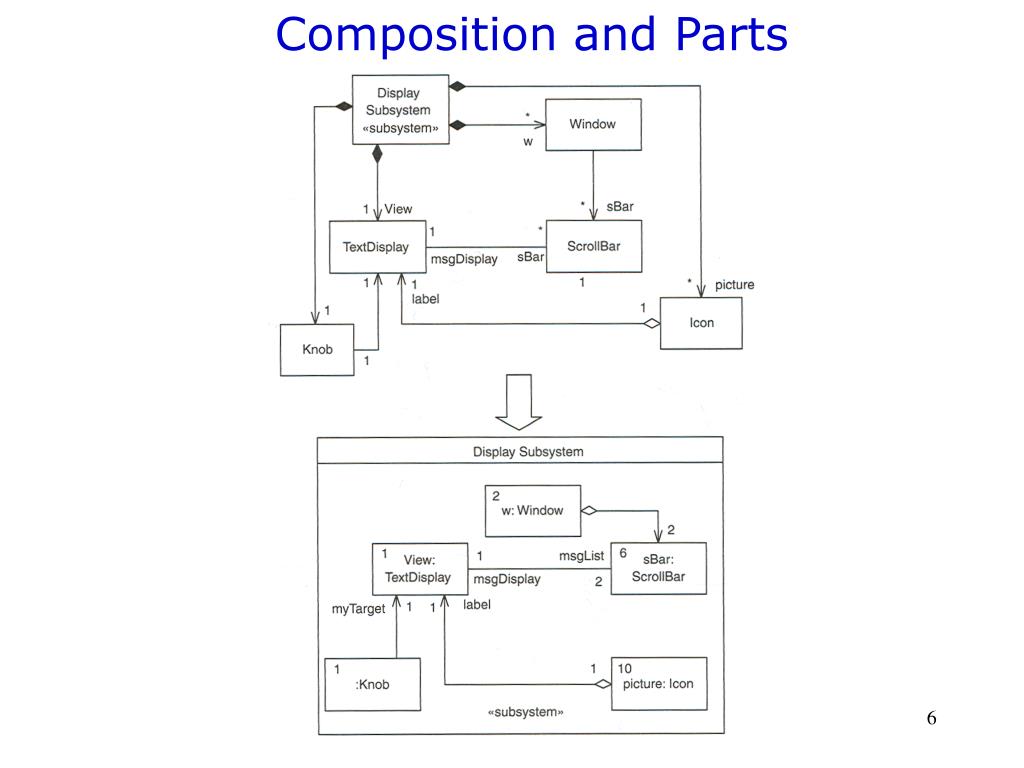

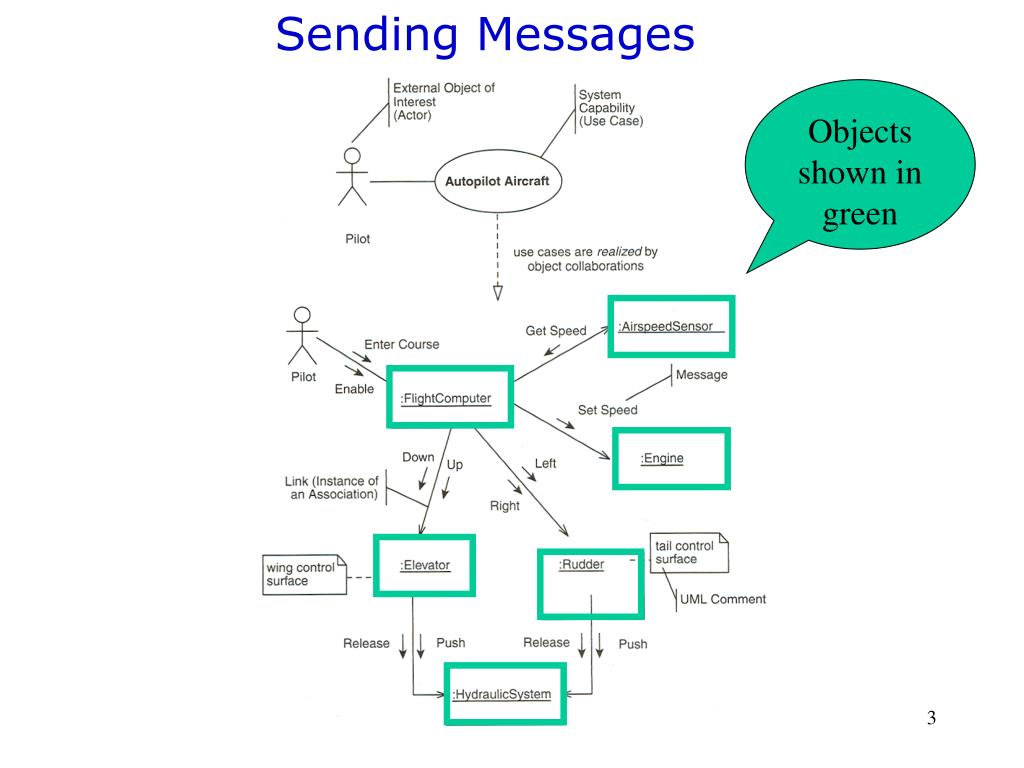

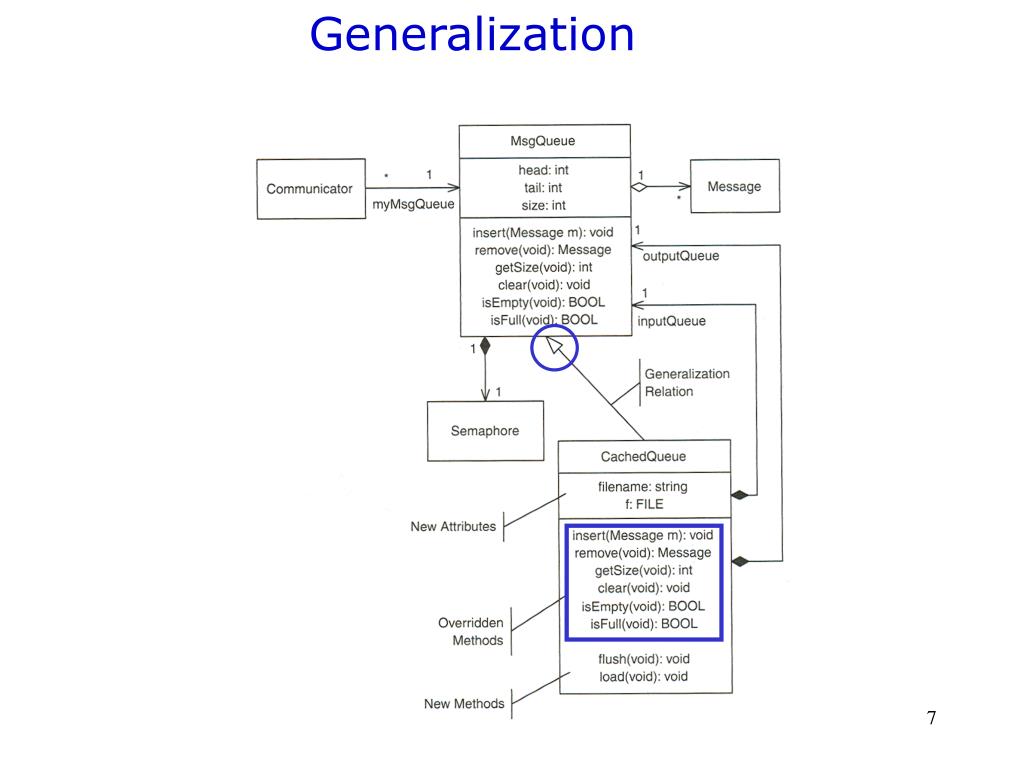

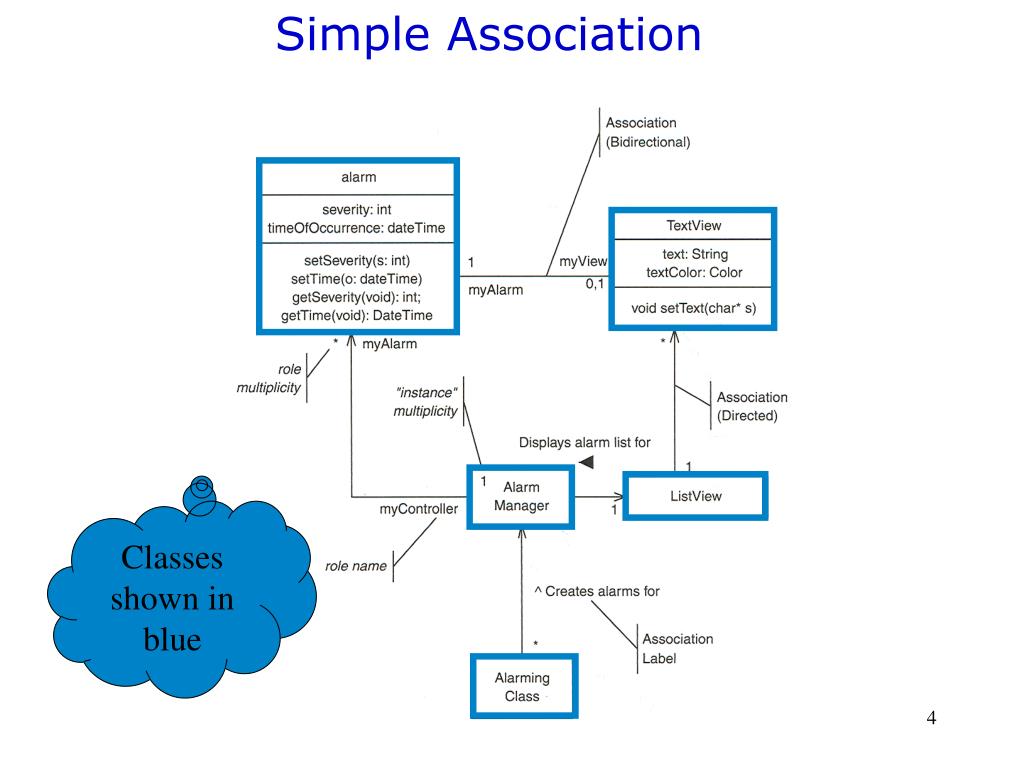

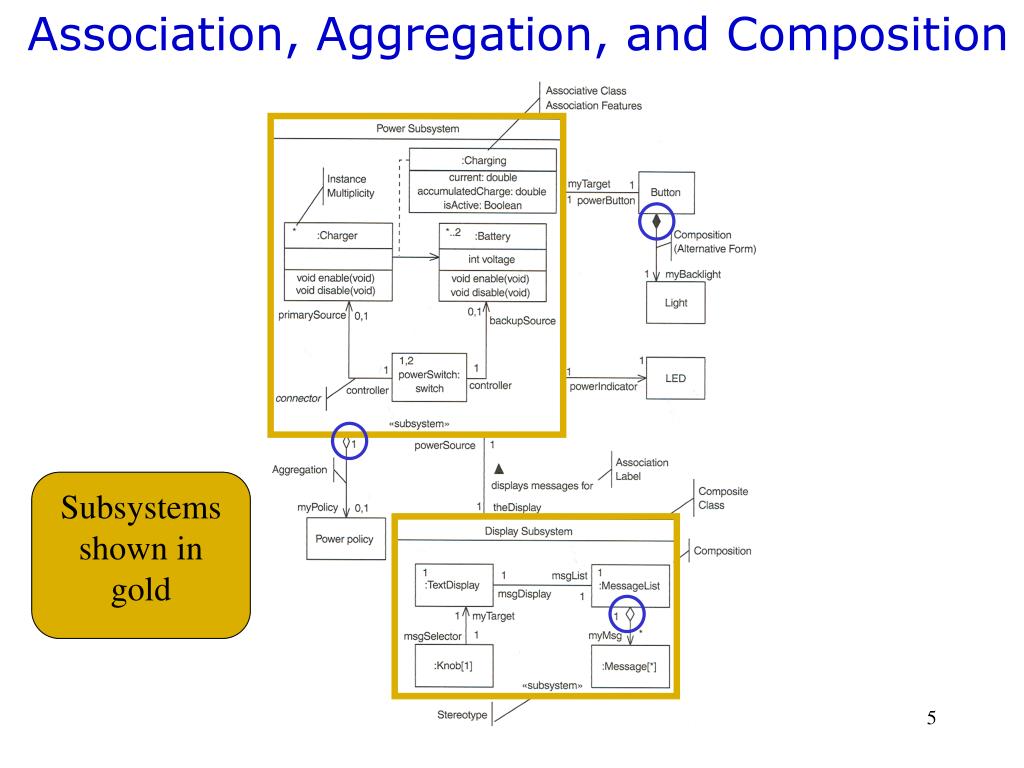

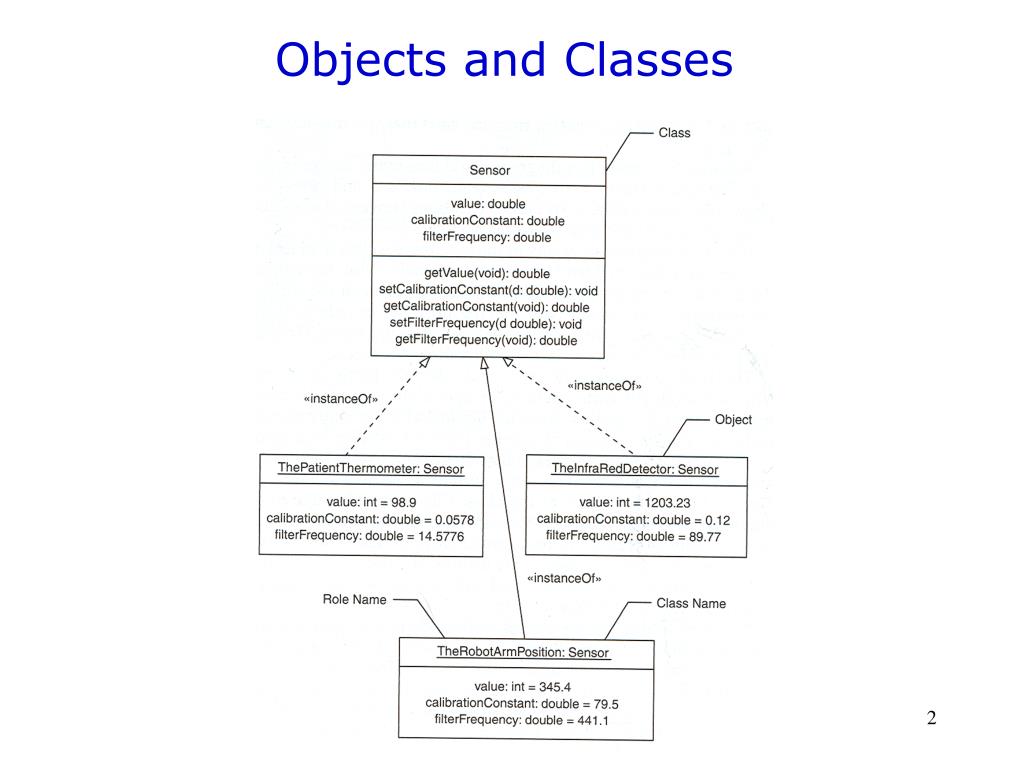

This resource delves into the structural aspects of UML as applied in real-time systems. It covers essential concepts such as objects and classes, emphasizing how messages are sent between them, with visual distinctions: objects in green, simple associations in blue, and subsystems in gold. We explore key relationships like association, aggregation, and composition, alongside generalization and dependency. Additionally, constraints in action are discussed, providing a comprehensive foundation for understanding UML in complex systems.
