星际闪烁和散射. Pulsar Workshop, Beijing, 2013.8.21. 星际介质对信号传播的影响. 星际介质分布在恒星和恒星之间,包括星际气体、星际尘埃、宇宙 射 线与星际磁场。 星际介质对地球上所接受天体辐射信号的影响: 1. 色散展宽 (DM) 2. 散射 3. 法拉第旋转 (Faraday Rotation) 4. 星际闪烁 (Scintillation) 由一定尺度上的介质非均匀性引起. 脉冲星 —— 星际介质的探针. 脉冲星辐射是动态的信号:色散展宽,电子柱密度。 散射:导致轮廓展宽

marged
Télécharger la présentation

星际闪烁和散射

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 星际闪烁和散射 Pulsar Workshop, Beijing, 2013.8.21

  2. 星际介质对信号传播的影响 星际介质分布在恒星和恒星之间,包括星际气体、星际尘埃、宇宙射线与星际磁场。 星际介质对地球上所接受天体辐射信号的影响: 1. 色散展宽(DM) 2. 散射 3. 法拉第旋转(Faraday Rotation) 4. 星际闪烁(Scintillation) 由一定尺度上的介质非均匀性引起 2013脉冲星暑期讲习班

  3. 脉冲星——星际介质的探针 脉冲星辐射是动态的信号:色散展宽,电子柱密度。 散射:导致轮廓展宽 脉冲星辐射具有偏振:法拉第旋转探测星际磁场分布。 脉冲星辐射被限制在很小的角径范围,近似点光源:星际闪烁。 2013脉冲星暑期讲习班

  4. 色 散∝ 脉冲星PSR B1933+16, DM:158.521(3) cm-3pc 2013脉冲星暑期讲习班

  5. 散射导致脉冲轮廓展宽∝ 2013脉冲星暑期讲习班

  6. 散 射 与 距 离 关 系 2013脉冲星暑期讲习班

  7. 散射导致脉冲轮廓展宽 2013脉冲星暑期讲习班

  8. 星际磁场引起的法拉第旋转量RM • For MSPs, there are little or no significant long-term variation in RM after ionosphericcorrection. • Significant Rotation Measure variations for Vela pulsar (Hamilton et al. 1985, MNRAS): Yan et al. 2011, Ap&SS 2013脉冲星暑期讲习班

  9. 星际闪烁 经过薄屏后信号的相位和幅度的变化 2013脉冲星暑期讲习班

  10. 星际闪烁 展宽角径 闪烁带宽 a: screen size 薄屏模型可以较好地符合大部分观测现象 2013脉冲星暑期讲习班

  11. 源的角径 S d D-d X=1: scattering screen midway between pulsar and observer Angular size θd: the Crab pulsar 100 milliarcs @ 100 MHz 2013脉冲星暑期讲习班

  12. 星际介质在空间的分布 空间分布理论模型 其中q=1/a为波数,湍流扰动尺度的倒数。 :视线方向电子密度平均空间湍动强度。 • β=11/3:Kolmogorov谱 • 当β≥ 4 时,陡谱模型 ( Bandford & Narayan 1985 ) 2013脉冲星暑期讲习班

  13. 散射理论:等效屏模型 • 薄屏模型:不均匀区的典型大小为a,厚度为D,各处的折射率不同,是随机分布的,平均折射率接近于1。 • 厚屏模型:弥漫于脉冲星与观测者之间 2013脉冲星暑期讲习班

  14. 衍射式闪烁 Scheuer 1968; Rickett, 1969 星际介质小空间尺度:108—1010 cm; 特征时标 : ∝ 1/D ∝ ν 几分钟到几小时, 消相干带宽 : ∝ 1/D ∝ ν 100 KHz到几十MHz; 2013脉冲星暑期讲习班

  15. 折射式闪烁 Sieber 1982; Rickett, 1984 星际介质大空间尺度:1012—1014 cm; 特征时标:几天到几月甚至年; ∝ D ∝1/ν 长期流量变化 对衍射式闪烁的有关特征量例如特征时间,特征带宽,漂移模式等有调制作用。 2013脉冲星暑期讲习班

  16. 描述DISS动态谱(薄屏模型) DISS关于闪烁参数的理论模型 β<4 β>4 Kolmogorov谱 (β=11/3): 2013脉冲星暑期讲习班

  17. 脉冲星速度 V iss: Pulsar transverse velocities derived from diffractive scintillation spectra: 脉冲星的自行为主导 地球公转速度沿视线 方向曲线变化 曲线变化 忽略介质速度 2013脉冲星暑期讲习班

  18. Gupta (1994) S d D-d Thin screen: 2013脉冲星暑期讲习班

  19. Observable scintillation parameters =11/3: Kolmogorov fluctuation spectrum =4 2013脉冲星暑期讲习班

  20. scattering strength u=sF/sd : describe the scattering strength sFisthe Fresnel scaleat the scattering disk at which the geometric phase difference is 1 radian compared to the direct path; sd is a scale at the observer at which the average phase changes is 1 radian. u<1: weak scattering u>1: strong scattering 2013脉冲星暑期讲习班

  21. Observable scintillation parameters 2013脉冲星暑期讲习班

  22. 流量变化和调制指数 2013脉冲星暑期讲习班

  23. For nearby pulsars, the modulation is weak, and DISS will be main effect. For Kolmogorov spectrum, mu5/6 → m<1 For larger DM, DISS effect is weaker, and mDM-1. But RISS is stronger, with m  u-1/3. (uD, so m  DM-1/3) 2013脉冲星暑期讲习班

  24. Oral presentation at IAUC 182 Submitted to CJAA : △: Diffractive scintillation(DISS): short narrow Refractive scintillation(RISS): long wide 2013脉冲星暑期讲习班

  25. 每9天观测一次,数据2001年1月2002年6月 积分2-6hr,子积分2-4min 被观测脉冲星: PSR B0329+54 PSR B1823+26 PSR B1929+10 PSR B2020+28 PSR B2021+51 闪烁研究 五颗脉冲星在1540 MHz的长期星际闪烁监测 Wang, N.; Manchester, R. N.; Johnston, S.; Rickett, Bet al.: 2005, MNRAS, 358, 270 2013脉冲星暑期讲习班

  26. PSR B0329+54的动态谱 • DM=26.8 pc cm-3 • D = 1.06 kpc • 3 hr 的观测 • 结果: • τd~10-30 min • Δνd~5-15 MHz 2013脉冲星暑期讲习班

  27. 二维自相关分析 二维自相关 特征时间和特征频率(拟合二维椭圆高斯方程:Bhat, Rao& Gupta 1999) 2013脉冲星暑期讲习班

  28. 闪烁二维动态谱 2013脉冲星暑期讲习班

  29. 二维自相关函数 2013脉冲星暑期讲习班

  30. 闪烁参数随时间的变化 2013脉冲星暑期讲习班

  31. Modelling ACFs for PSR B0329+54 • strong scattering • thin disk • Kolmogorov spectrum 2013脉冲星暑期讲习班

  32. 闪烁参数与频率的依赖关系 a. Bhat, Rao & Gupta 1999 b. Gupta, Rickett & Lyne 1994 c. Stinebring, Fainon & Mckinnon 1996 d. Our results 2013脉冲星暑期讲习班

  33. Modulation indices Observed > prediction !! 2013脉冲星暑期讲习班

  34. 二次谱 Secondary Spectra, Two dimensional FFT of dynamic spectrum Observing the structure of central image ! 2013脉冲星暑期讲习班

  35. 2013脉冲星暑期讲习班

  36. Kolmogorov Spectrum β=3.67 2013脉冲星暑期讲习班

  37. Daily Observations of Interstellar Scintillation in PSR B0329+54 Obs: Mar 12—31, 2004 Wang, N.; Yan, Z.; Manchetser, R. N. et al.: 2008, MNRAS 2013脉冲星暑期讲习班

  38. Variations of Scintillation Parameters 2013脉冲星暑期讲习班

  39. 调制系数 对于Kolmogorov 谱,调制系数的理论值 2013脉冲星暑期讲习班

  40. 调制系数理论和观测的对比 2013脉冲星暑期讲习班

  41. 闪烁参数的互相关Cross correlation Wang, N.; Yan, Z.; Manchetser, R. N. et al.: 2008, MNRAS, accepted 2013脉冲星暑期讲习班

  42. 折射式衍射特征时间 Theory prediction: 2013脉冲星暑期讲习班

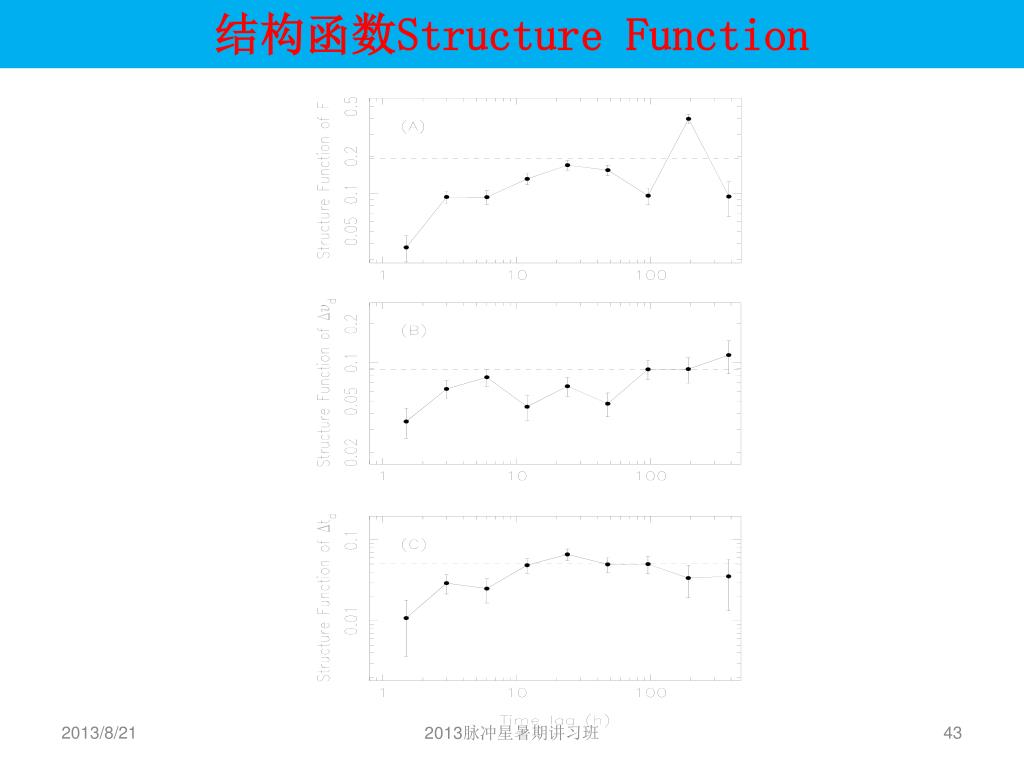

  43. 结构函数Structure Function 2013脉冲星暑期讲习班

  44. 衍射式星际闪烁的参量 2013脉冲星暑期讲习班

  45. 距离模型 TC93模型 (Taylor & Cordes 1993) NE2001模型 (Cordes & Lazio 2003 a,b) 2013脉冲星暑期讲习班

  46. 闪烁和自行速度的相关性 Harrison & Lyne 1993 Gupta 1995 2013脉冲星暑期讲习班

  47. 脉冲星速度周年变化 2013脉冲星暑期讲习班

  48. 脉冲星速度计算 脉冲星的自行速度 脉冲星闪烁速度 银河系星际电子密度模型 2013脉冲星暑期讲习班

  49. 散射屏的位置 Putney & Stinebring 2006 2013脉冲星暑期讲习班

  50. 脉冲星闪烁速度 Gupta 1995 Bogdanov et al. 2002 据已知的脉冲星速度和距离得到的脉冲星闪烁速度的期望值。 2013脉冲星暑期讲习班
