Introduction to Relational Query Languages and Basic Operations in Relational Algebra

1. Relational Algebra Chapter 4 - part I

2. Relational Query Languages • Query languages: Allow manipulation and retrieval of data from a database. • Relational model supports simple powerful QLs: • Strong formal foundation based on logic. • Allows for much optimization. • Query Languages != Programming languages! • QLs not expected to be “Turing complete”. • QLs not intended to be used for complex calculations. • QLs support easy, efficient access to large data sets.

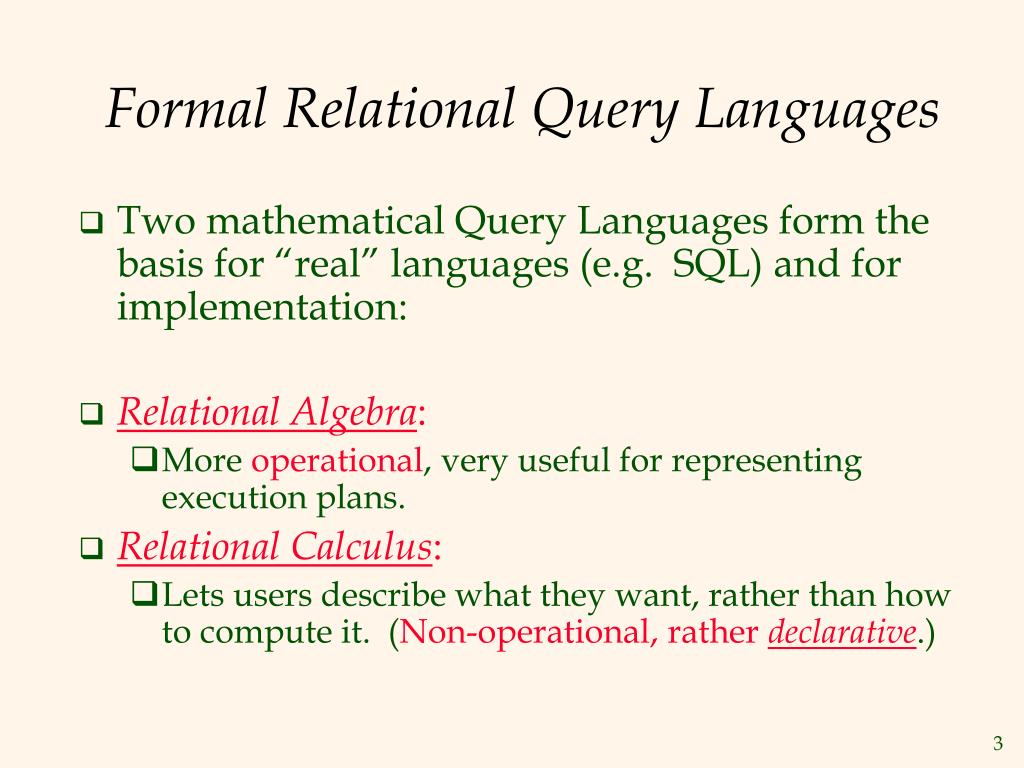

3. Formal Relational Query Languages • Two mathematical Query Languages form the basis for “real” languages (e.g. SQL) and for implementation: • Relational Algebra: • More operational, very useful for representing execution plans. • Relational Calculus: • Lets users describe what they want, rather than how to compute it. (Non-operational, rather declarative.)

4. Preliminaries • A query is applied to relation instances. • The result of a query is also a relation instance. • Schemasof input relations for a query are fixed ; (but query will run regardless of instance!) • The schema for result of given query is also fixed! Determined by definition of query language .

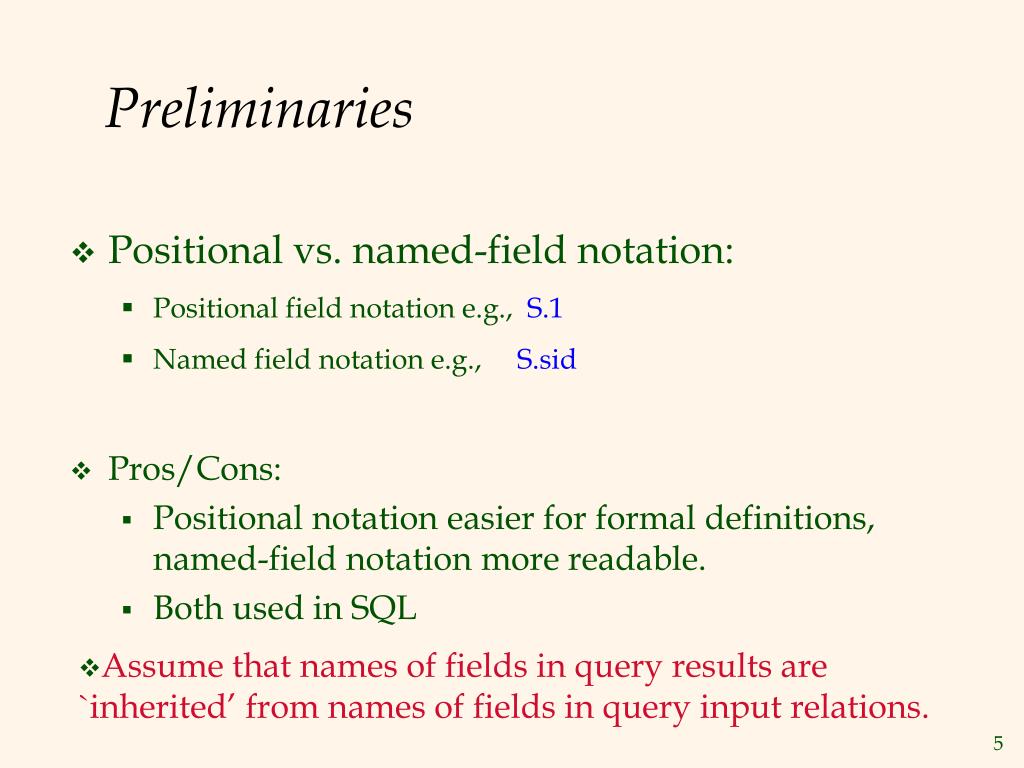

5. Preliminaries • Positional vs. named-field notation: • Positional field notation e.g., S.1 • Named field notation e.g., S.sid • Pros/Cons: • Positional notation easier for formal definitions, named-field notation more readable. • Both used in SQL • Assume that names of fields in query results are `inherited’ from names of fields in query input relations.

6. Example Instances Sailors Reserves R1 S1 Sailors S2

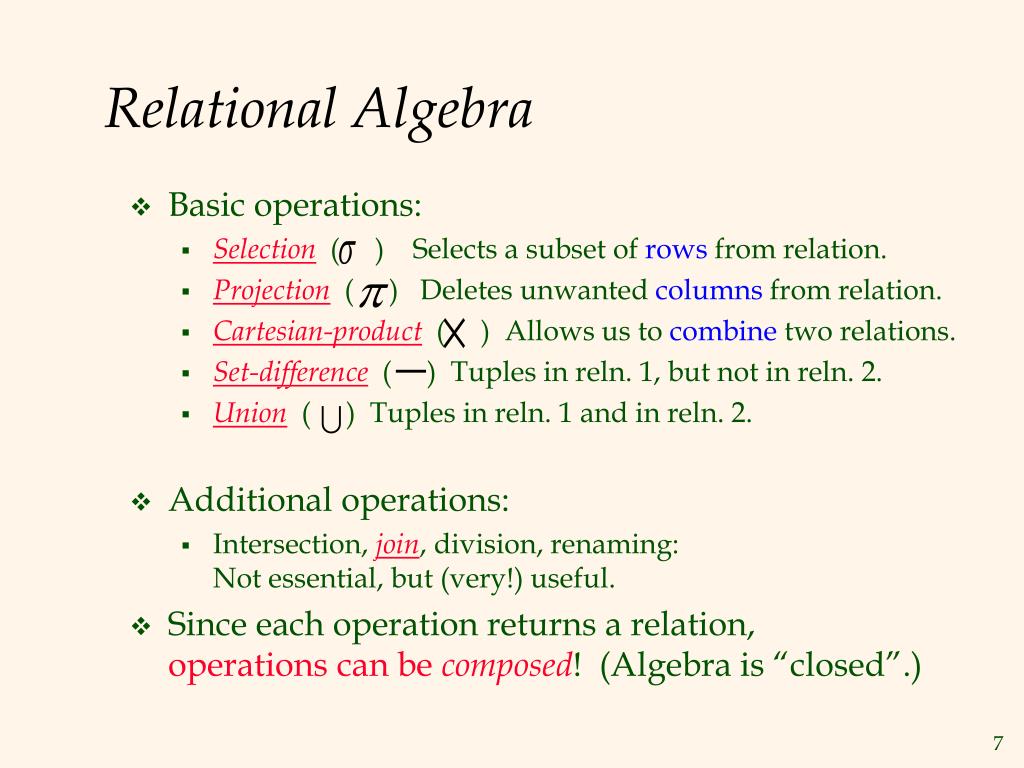

7. Relational Algebra • Basic operations: • Selection ( ) Selects a subset of rows from relation. • Projection ( ) Deletes unwanted columns from relation. • Cartesian-product( ) Allows us to combine two relations. • Set-difference ( ) Tuples in reln. 1, but not in reln. 2. • Union( ) Tuples in reln. 1 and in reln. 2. • Additional operations: • Intersection, join, division, renaming: Not essential, but (very!) useful. • Since each operation returns a relation, operationscan be composed! (Algebra is “closed”.)

8. Selection Sailors S2

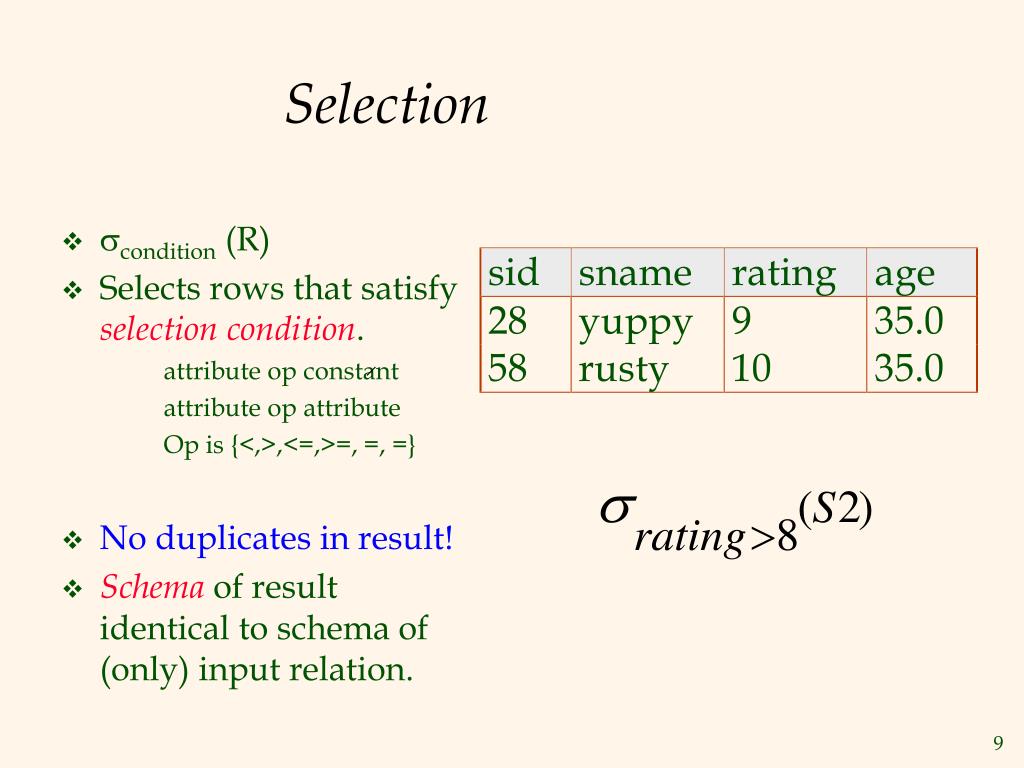

9. Selection • condition (R) • Selects rows that satisfy selection condition. attribute op constant attribute op attribute Op is {<,>,<=,>=, =, =} • No duplicates in result! • Schema of result identical to schema of (only) input relation.

10. Selection • Result relation can be input for another relational algebra operation! (Operatorcomposition.)

11. Projection Sailors S2

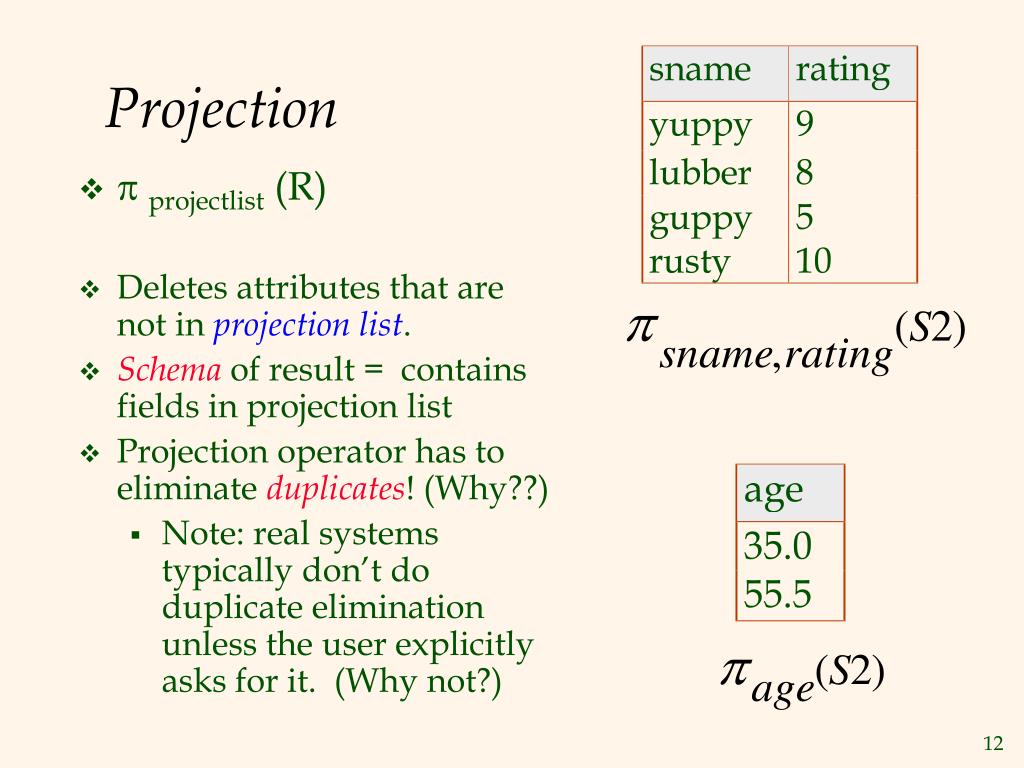

12. Projection •  projectlist (R) • Deletes attributes that are not in projection list. • Schema of result = contains fields in projection list • Projection operator has to eliminate duplicates! (Why??) • Note: real systems typically don’t do duplicate elimination unless the user explicitly asks for it. (Why not?)

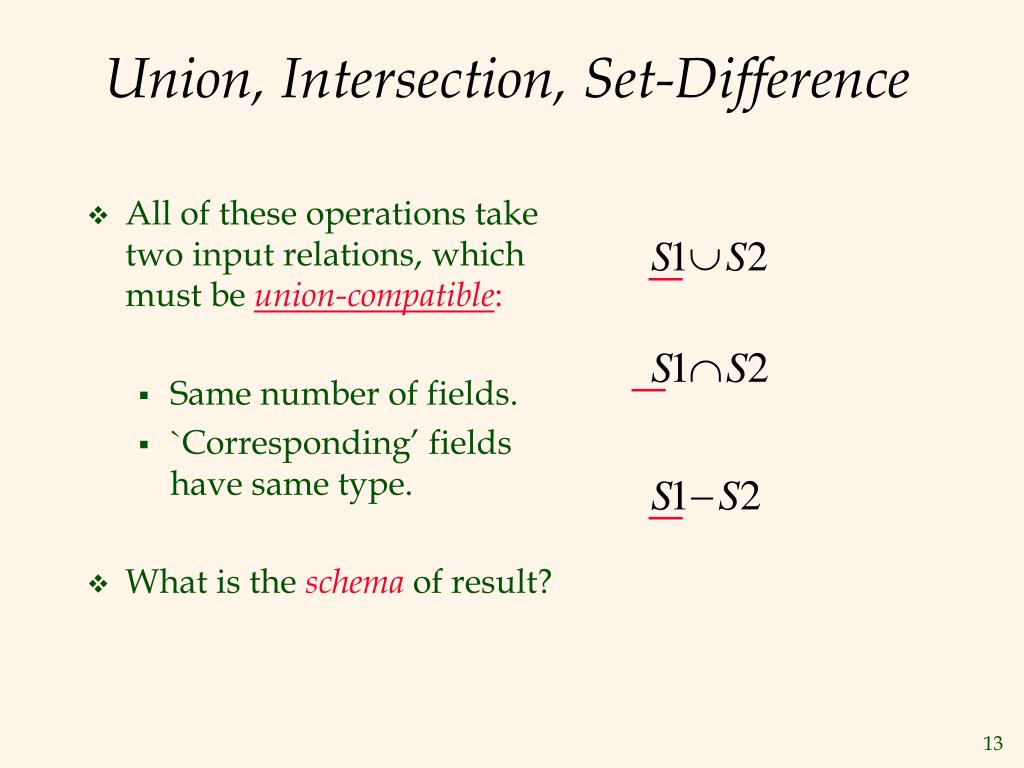

13. Union, Intersection, Set-Difference • All of these operations take two input relations, which must be union-compatible: • Same number of fields. • `Corresponding’ fields have same type. • What is the schema of result?

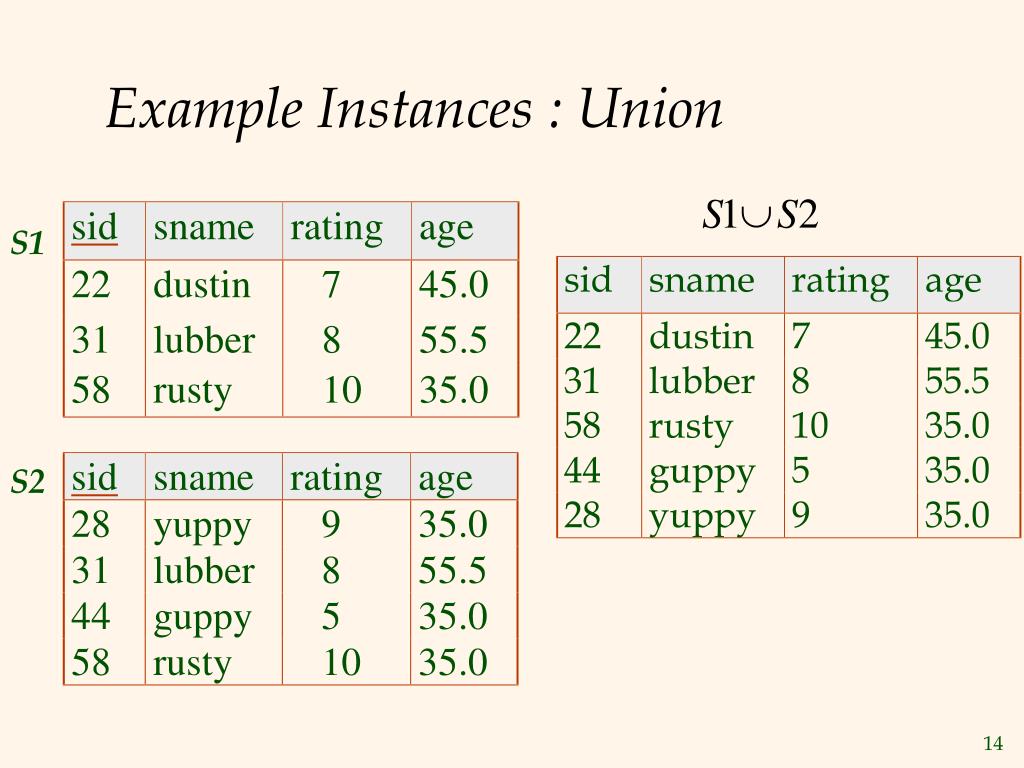

14. Example Instances : Union S1 S2

15. Difference Operation S1 S2

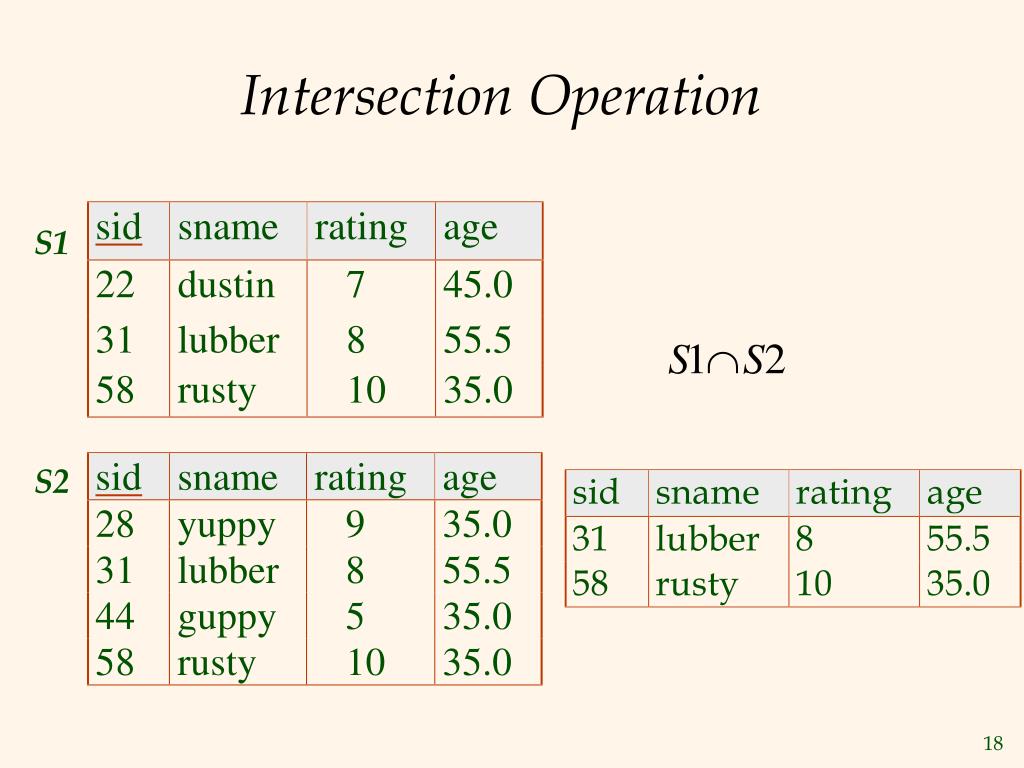

16. Intersection Operation S1 S2

17. Cross-Product (Cartesian Product) • S1 R1 : Each row of S1 is paired with each row of R1. Reserves R1 Sailors S1

18. Cross-Product (Cartesian Product) • S1 R1 : Result schema has one field per field of S1 and R1, with field names `inherited’ if possible. • Conflict: Both S1 and R1 have a field called sid. • Renaming operator:

19. Why we need a Join Operator ? In many cases, Join = Cross-Product + Select + Project However : Cross-product is too large to materialize Apply Select and Project "On-the-fly"

20. Condition Join / Theta Join • Condition Join: • Result schema same as that of cross-product. • Fewer tuples than cross-product, more efficient.

21. EquiJoin • Equi-Join: A special case of condition join where the condition c contains only equalities. • Result schema similar to cross-product, but only one copy of fields for which equality is specified. • An extra project: PROJECT ( THETA-JOIN)

22. Natural Join • Natural Join: Equijoin on all common fields.

23. Division • Not supported as a primitive operator, but useful for expressing queries like: Find sailors who have reserved allboats.

24. Division • Let A have 2 fields x and y; B have only field y: • A/B = • A/B contains all x tuples (sailors) such that for everyy tuple (boat) in B, there is an xy tuple in A. • If set of y values (boats) associated with an x value (sailor) in A contains all y values in B, then x value is in A/B. • A/B is the largest relation instance Q such that QB A.

25. Division Example e.g., A = all parts supplied by suppliers, B= relation parts A/B = suppliers who supply all parts listed in B

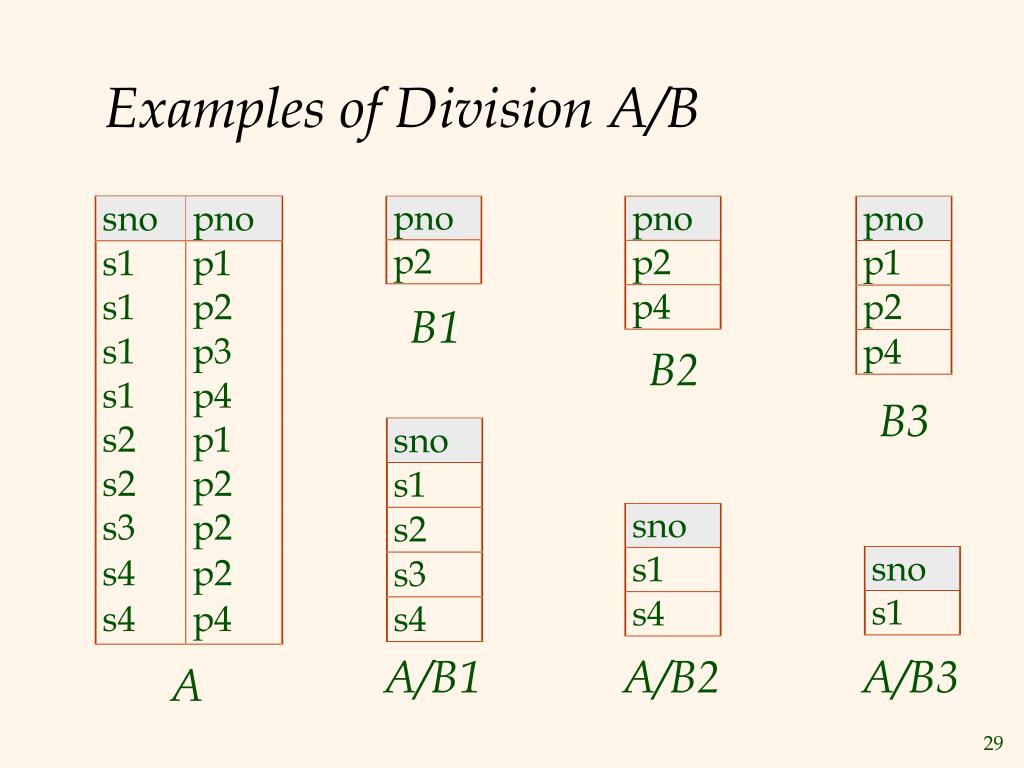

26. Examples of Division A/B B1 B2 B3 A/B1 A/B2 A/B3 A

27. Expressing A/B Using Basic Operators • Idea: For A/B, compute all x values that are not `disqualified’ by some y value in B. • x value is disqualified if by attaching y value from B, • we obtain an xy tuple that is not in A. Disqualified x values: A/B:

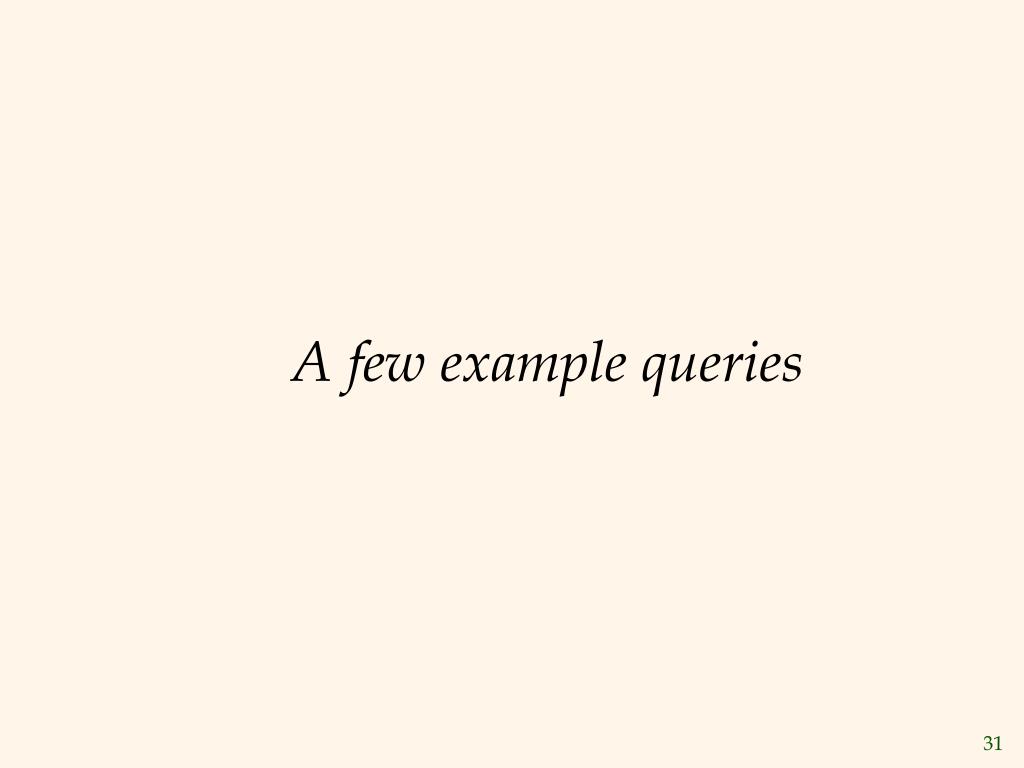

28. A few example queries

29. Solution 1 Solution 2 Solution 3 Find names of sailors who’ve reserved boat #103

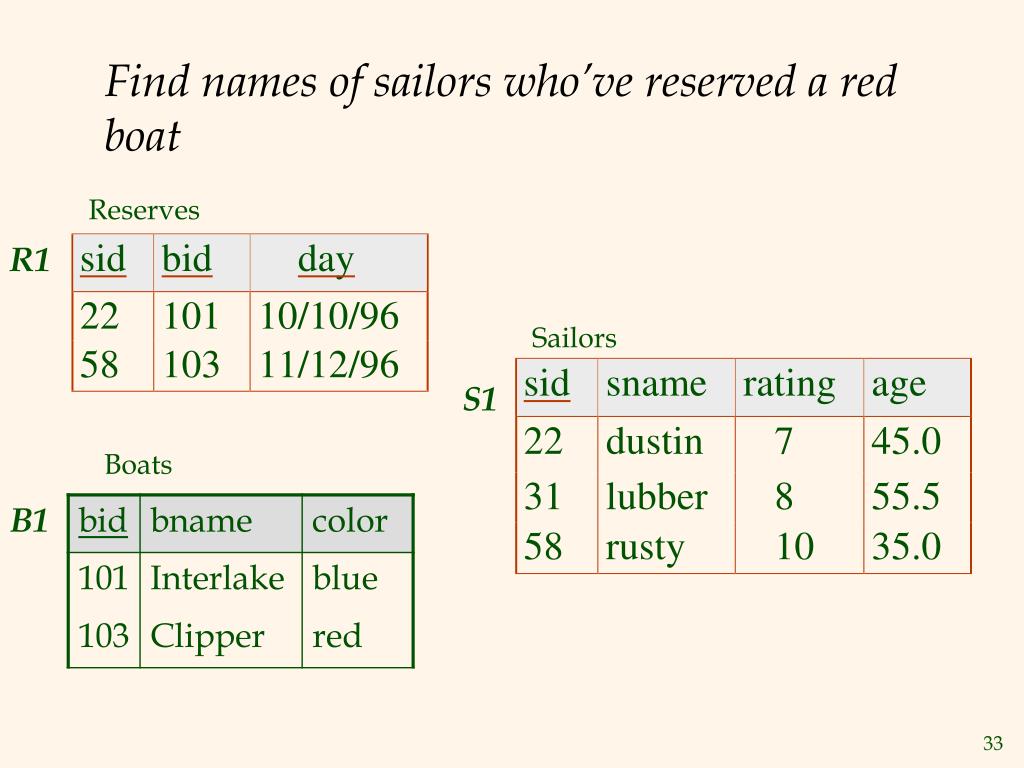

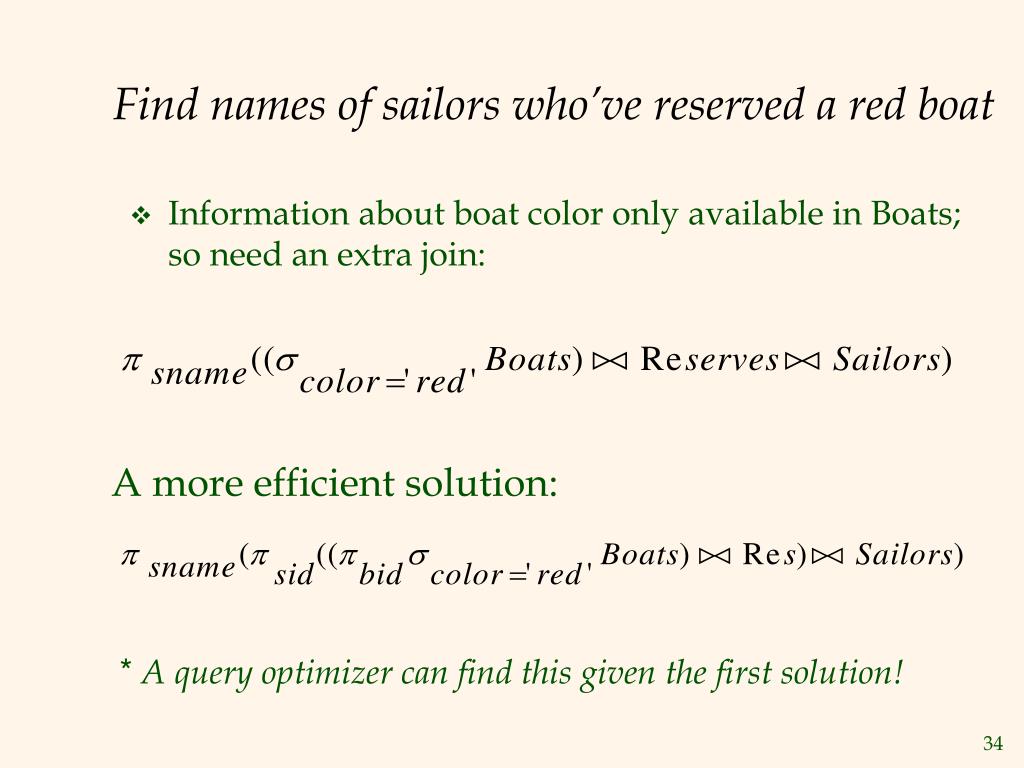

30. Find names of sailors who’ve reserved a red boat Reserves R1 Sailors S1 Boats B1

31. A more efficient solution: • A query optimizer can find this given the first solution! Find names of sailors who’ve reserved a red boat • Information about boat color only available in Boats; so need an extra join:

32. Find sailors who’ve reserved a red or a green boat • Can identify all red or green boats, then find sailors who’ve reserved one of these boats: Can also define Tempboats using union! (How?) What happens if is replaced by in this query?

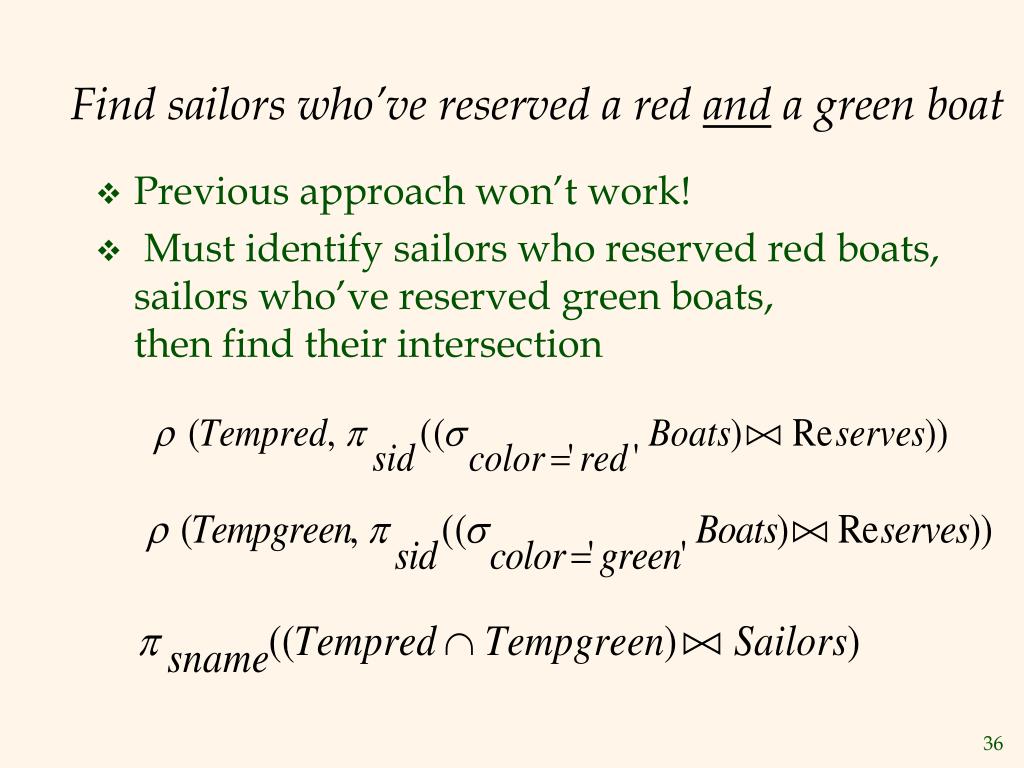

33. Find sailors who’ve reserved a red and a green boat • Previous approach won’t work! • Must identify sailors who reserved red boats, sailors who’ve reserved green boats, then find their intersection

34. ..... Find the names of sailors who’ve reserved all boats • Uses division; schemas of the input relations to / must be carefully chosen: • To find sailors who’ve reserved all ‘Interlake’ boats:

35. Relational Algebra : Some More Operators Beyond Chapter 4

36. Generalized Projection •  F1, F2, … (R)  sname, (rating*2 as myrating) (Sailors)

37. Aggregation operators • MIN, MAX, COUNT, SUM, AVG • AGGB(R) considers only non-null values of R. SUMB (R) COUNTB (R) MINB (R) R AVGB (R) COUNT* (R) MAXB (R)

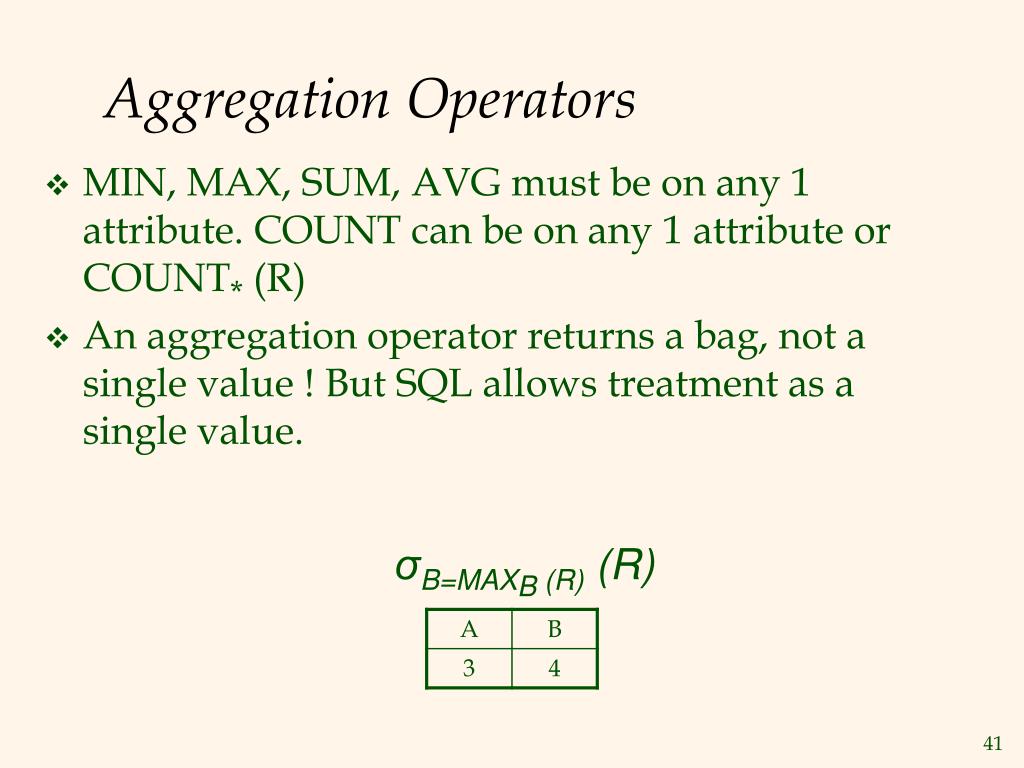

38. Aggregation Operators • MIN, MAX, SUM, AVG must be on any 1 attribute. COUNT can be on any 1 attribute or COUNT* (R) • An aggregation operator returns a bag, not a single value ! But SQL allows treatment as a single value. σB=MAXB (R) (R)

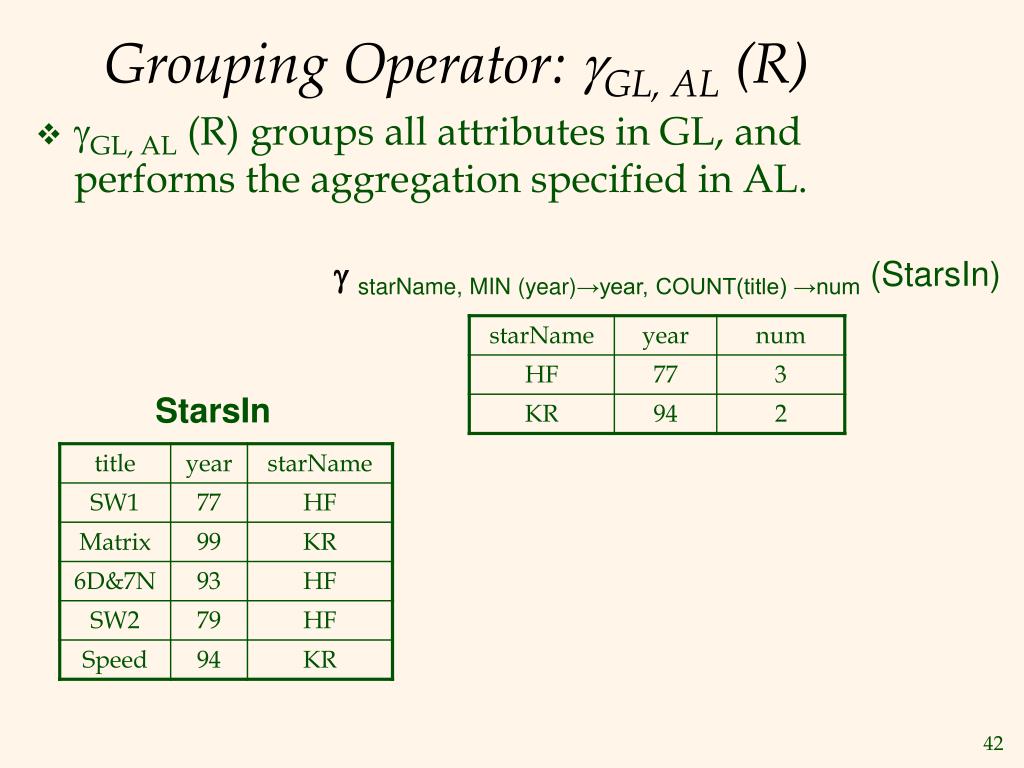

39. Grouping Operator: GL, AL (R) • GL, AL (R) groups all attributes in GL, and performs the aggregation specified in AL. starName, MIN (year)→year, COUNT(title) →num (StarsIn) StarsIn

40. Summary • The relational model has rigorously defined query languages that are simple and powerful. • Relational algebra is operational; useful as internal representation for query evaluation plans. • Several ways of expressing a given query; a query optimizer should choose most efficient version.
