  1. SQL Server Analysis Services Understanding Unified Dimension Model (UDM)

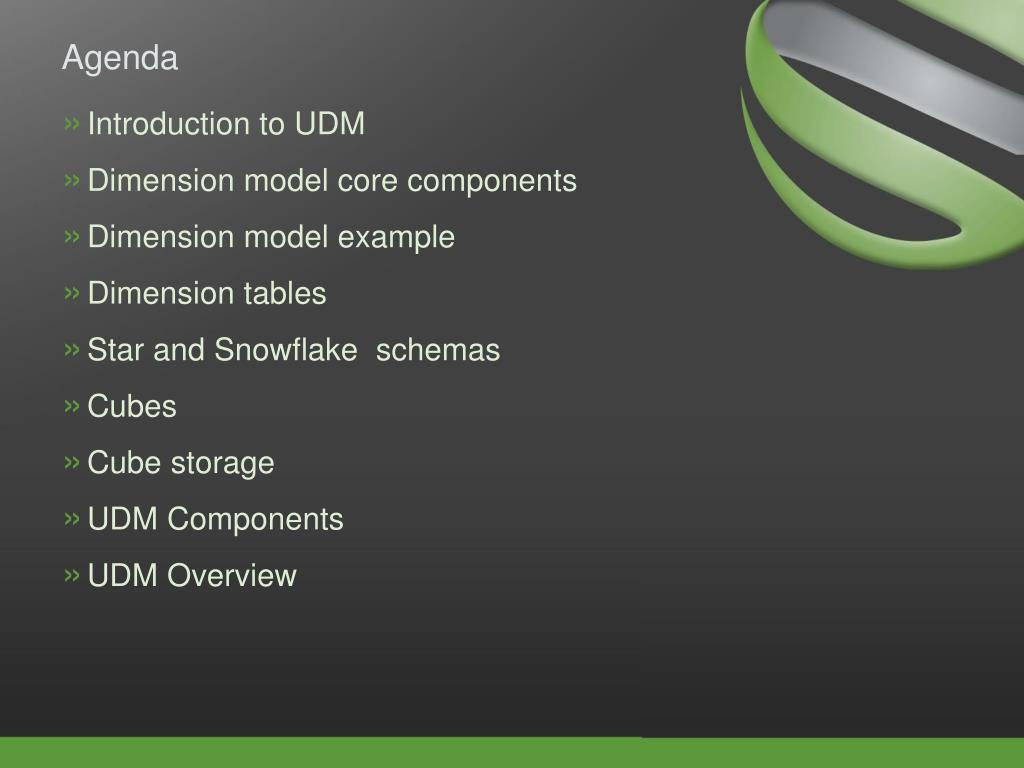

  2. Agenda • Introduction to UDM • Dimension model core components • Dimension model example • Dimension tables • Star and Snowflake schemas • Cubes • Cube storage • UDM Components • UDM Overview

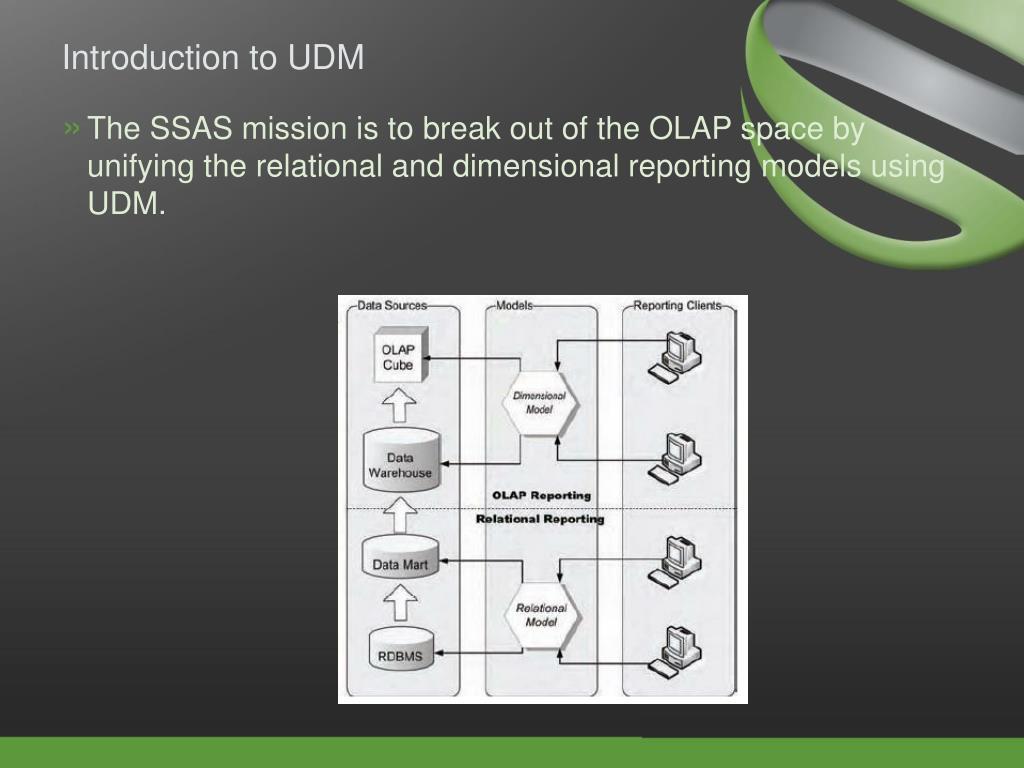

  3. Introduction to UDM • The SSAS mission is to break out of the OLAP space by unifying the relational and dimensional reporting models using UDM.

  4. Dimension model core components • Measures - represent the numerical values (facts) that are used to measure business activity. • Dimensions - the main goal of the dimensional model is to allow users to slice and dice data using different perspectives called dimensions. • Dimension hierarchies - to facilitate drilling through data, dimensions may have hierarchies. • Dimension members - the actual dimension entities that belong to each level are called dimension members.

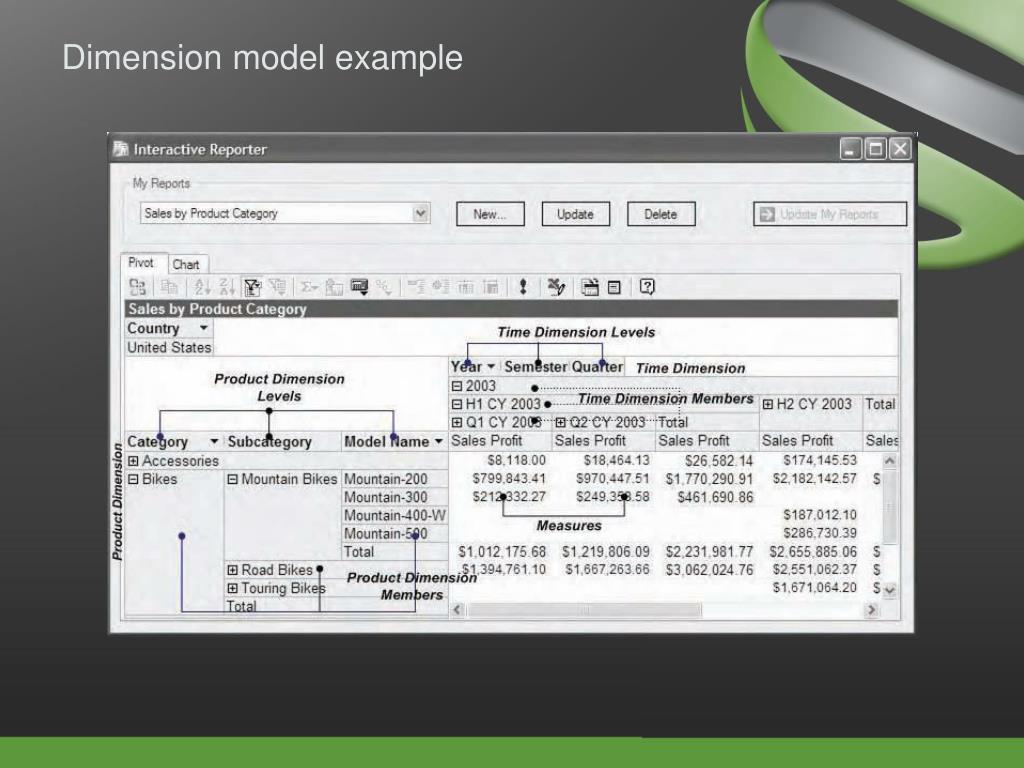

  5. Dimension model example

  6. Dimension tables • Dimension data are stored in relational tables called dimension tables. • usually wide (have many columns) but don’t have many rows • large number of columns is required to accommodate various dimension-related attributes • The classic dimensional model defines two types of relational schemas that describe the relationship between the dimension and fact tables: • Star schemas • Snowflake schemas

  7. Star and Snowflake schemas • A star schema requires that a dimension hierarchy be contained within a single table. This requires the dimensionaltableto be denormalized. • If the dimension hierarchy is left normalized, then the schema is of a snowflake type schema.

  8. Cubes • The Cube is logical storage object in SSAS. • Cube combines dimensions and measurements to provide fast multidimensional access to cube data.

  9. Cube storage • Stores all fact rows and have aggregated values for each cell • Cube aggregation options • ROLAP - the fact data and aggregations will be kept in the relational database. • MOLAP- the fact data and aggregations will be kept in the cube • HOLAP - the fact data and aggregations will be kept in the relational database and cube. • SSAS usually uses MOLAP cubes. • MOLAP storage option requires cube processing.

  10. UDM Components • Data source view (DSV) - logical data schema that seeks to present the data from the relational datastorein a standard and intuitive way. • Dimensional model – cubes • Calculations - business logic. • End-user model - provides intuitive end-user reporting and data navigation experience. (reports, KPI) • Management settings - cube configurations to meet various operational requirements, including availability, latency, and security

  11. UDM Components

  12. UDM Overview • UDM goal to unite the best of both worlds (relational and dimensional) and become a bridge between the users and data.
