Exploring Logic Gates: Understand the Basics with Drawn Diagrams

Dive into the world of logic gates by learning to draw AND, OR, NAND, and NOR gate diagrams using transistors. Understand how these gates operate and why the output comes before the gates in NAND and NOR gates. Discover how other gates are constructed using combinations of NANDs and NORs.

mariah
Télécharger la présentation

Exploring Logic Gates: Understand the Basics with Drawn Diagrams

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Woah, a Quiz!? Open Note.

  2. Quiz 1 • Draw an AND gate diagram in terms of its transistors. • Draw an OR gate diagram in terms of its transistors. • Provide an explanation as to how the diagrams you have drawn operate as AND and OR gates.

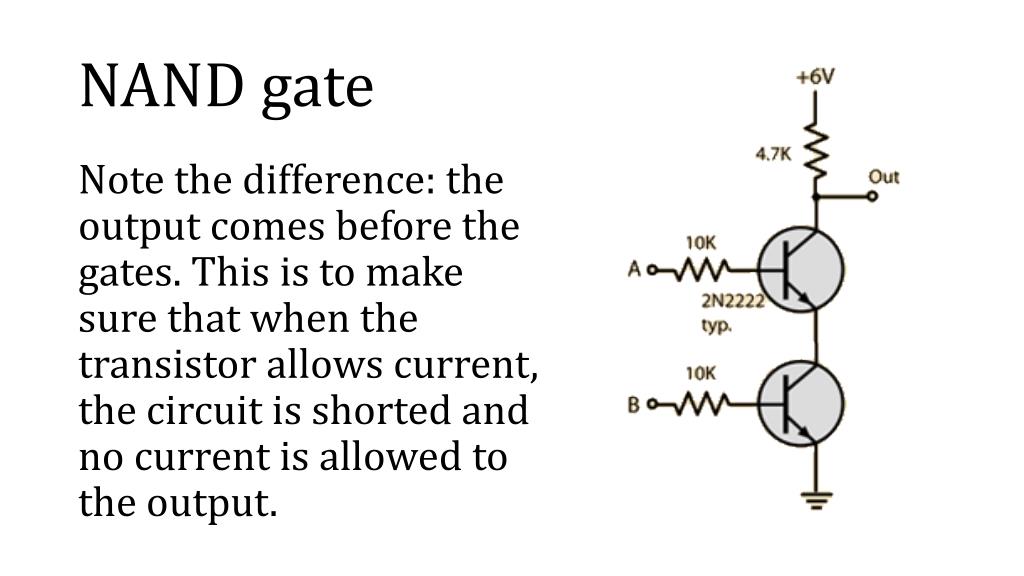

  3. NAND gate Note the difference: the output comes before the gates. This is to make sure that when the transistor allows current, the circuit is shorted and no current is allowed to the output.

  4. NOR gate Note the difference: the output comes before the gates. This is to make sure that when the transistor allows current, the circuit is shorted and no current is allowed to the output.

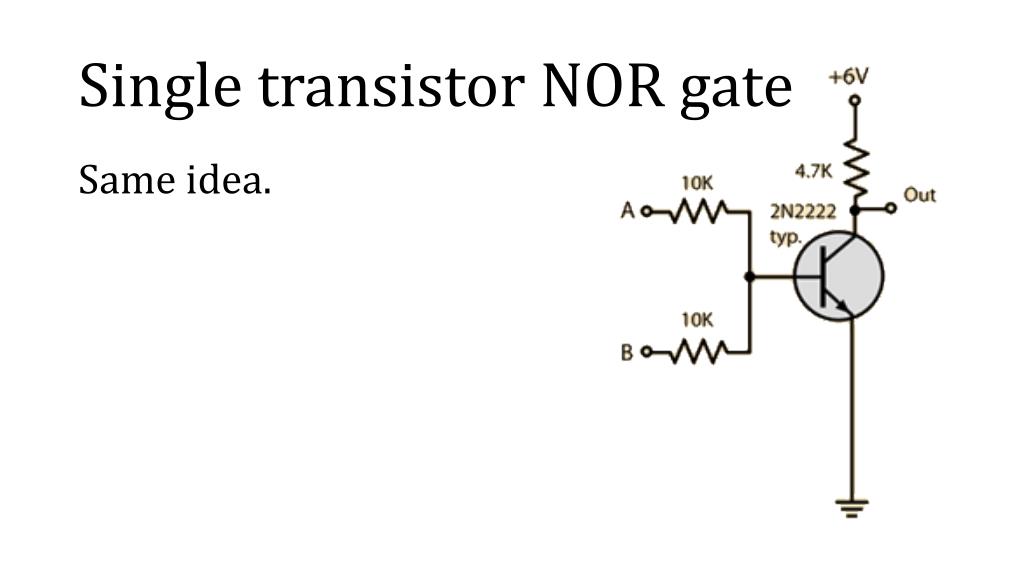

  5. Single transistor NOR gate Same idea.

  6. What about the rest of the gates? Turns out, the rest of the gates are just made from NANDs (inclusive or) NORs.
