Evaporation loss test bath 20kgs

Labotronics Evaporation Loss Test Bath ensures precise temperature control at 250u00b0C u00b1 0.5u00b0C via a touch-screen LCD. Equipped with a needle valve pressure regulator, inclined manometer display, and ASTM D5800 compliance, it is ideal for 10u00b0C-40u00b0C environments with u226485% humidity for oil testing.

mariahconner
Télécharger la présentation

Evaporation loss test bath 20kgs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

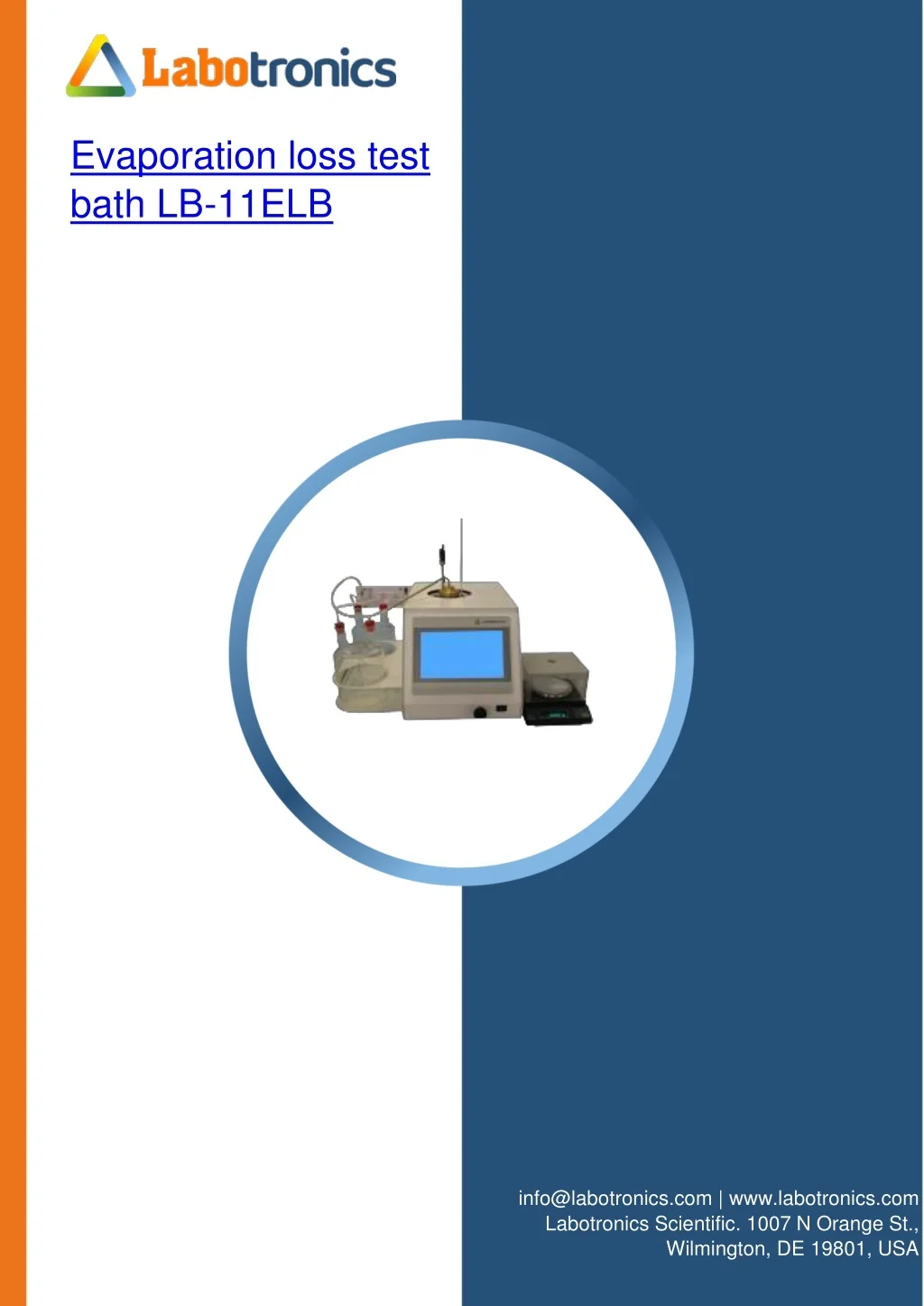

  1. Evaporation loss test bath LB-11ELB info@labotronics.com | www.labotronics.com Labotronics Scientific. 1007 N Orange St., Wilmington, DE 19801, USA

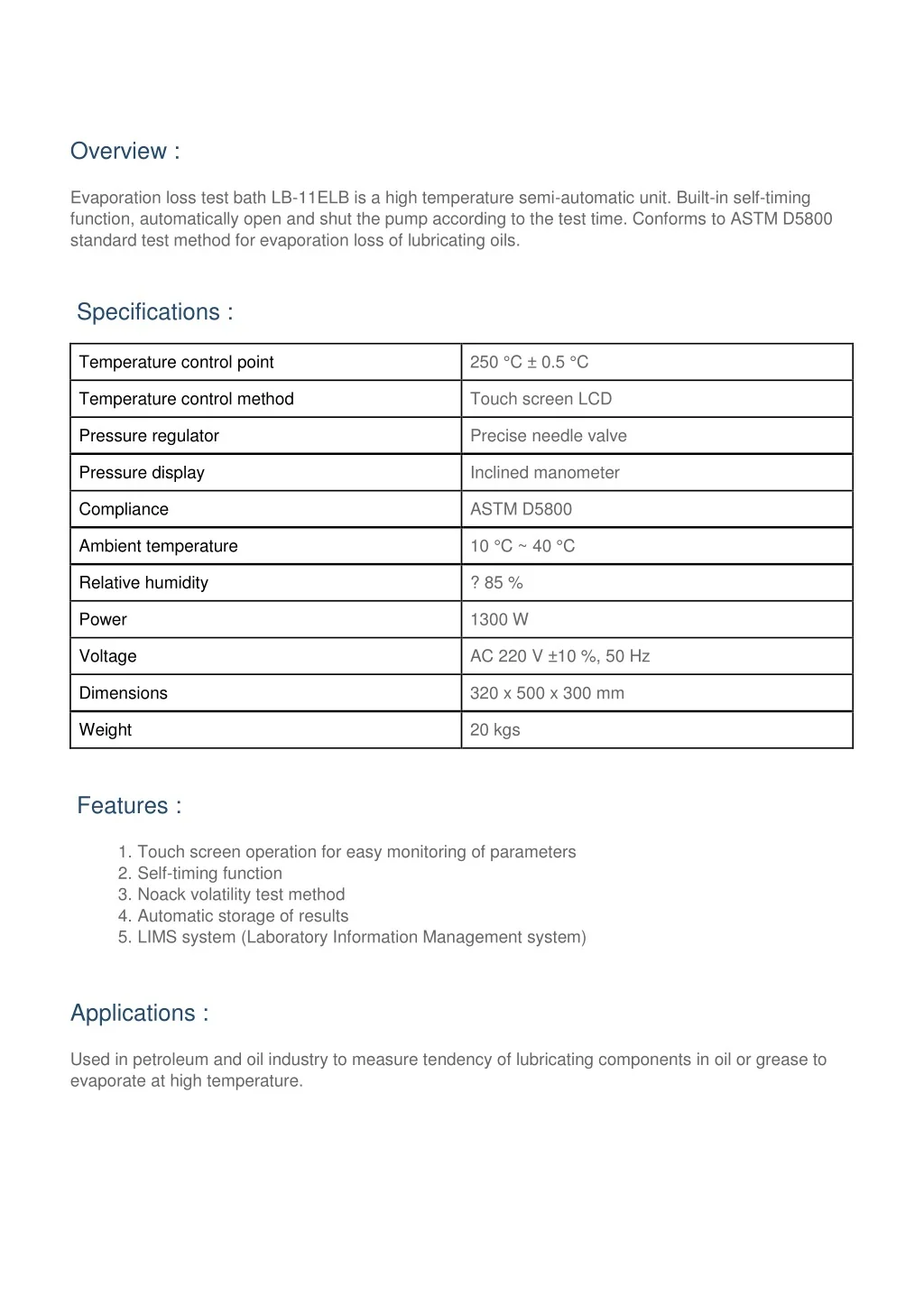

  2. Overview : Evaporation loss test bath LB-11ELB is a high temperature semi-automatic unit. Built-in self-timing function, automatically open and shut the pump according to the test time. Conforms to ASTM D5800 standard test method for evaporation loss of lubricating oils. Specifications : Temperature control point 250 °C ± 0.5 °C Temperature control method Touch screen LCD Pressure regulator Precise needle valve Pressure display Inclined manometer Compliance ASTM D5800 Ambient temperature 10 °C ~ 40 °C Relative humidity ? 85 % Power 1300 W Voltage AC 220 V ±10 %, 50 Hz Dimensions 320 x 500 x 300 mm Weight 20 kgs Features : 1. Touch screen operation for easy monitoring of parameters 2. Self-timing function 3. Noack volatility test method 4. Automatic storage of results 5. LIMS system (Laboratory Information Management system) Applications : Used in petroleum and oil industry to measure tendency of lubricating components in oil or grease to evaporate at high temperature.
