Quick Sort

The Quick Sort algorithm is a popular and efficient sorting technique that employs a divide-and-conquer strategy. It selects a pivot element and partitions the array into two sub-arrays: one with elements less than the pivot and the other with elements greater than or equal to the pivot. Each sub-array is then recursively sorted, leading to an overall sorted array. This in-place sorting algorithm has an average time complexity of O(n log n) and performs well on large data sets. Learn how to implement Quick Sort effectively with step-by-step examples.

marilu
Télécharger la présentation

Quick Sort

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Quick Sort

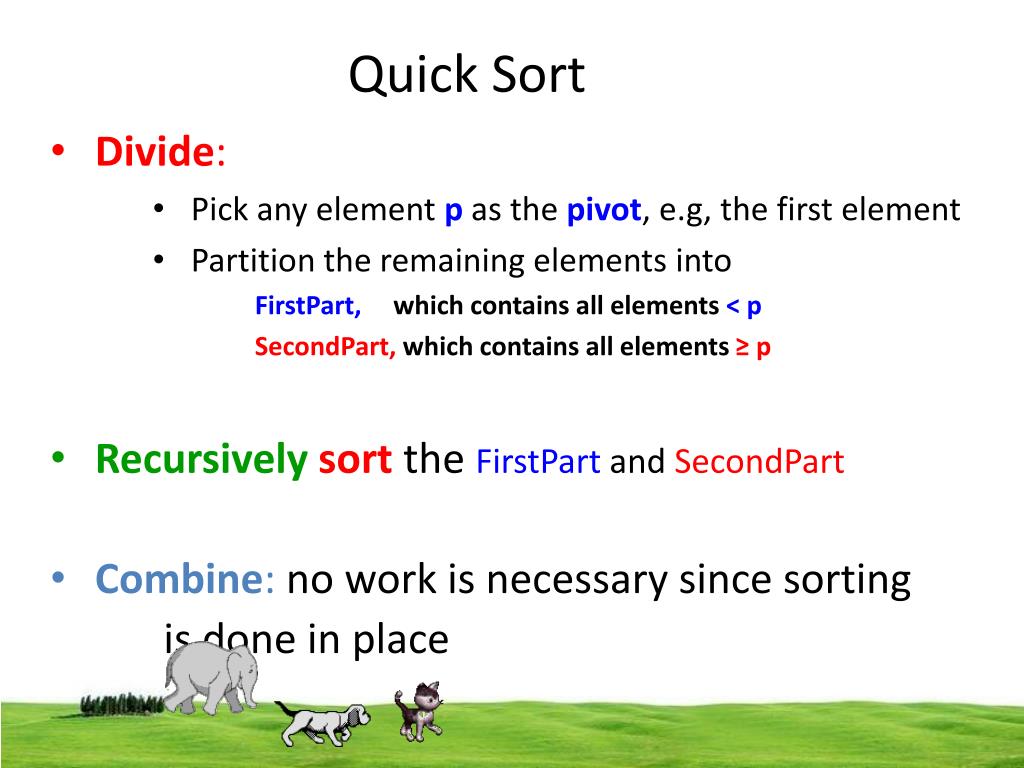

  2. Quick Sort • Divide: • Pick any element p as the pivot, e.g, the first element • Partition the remaining elements into FirstPart,which contains all elements< p SecondPart, which contains all elements ≥ p • Recursively sort the FirstPart and SecondPart • Combine: no work is necessary since sorting is done in place

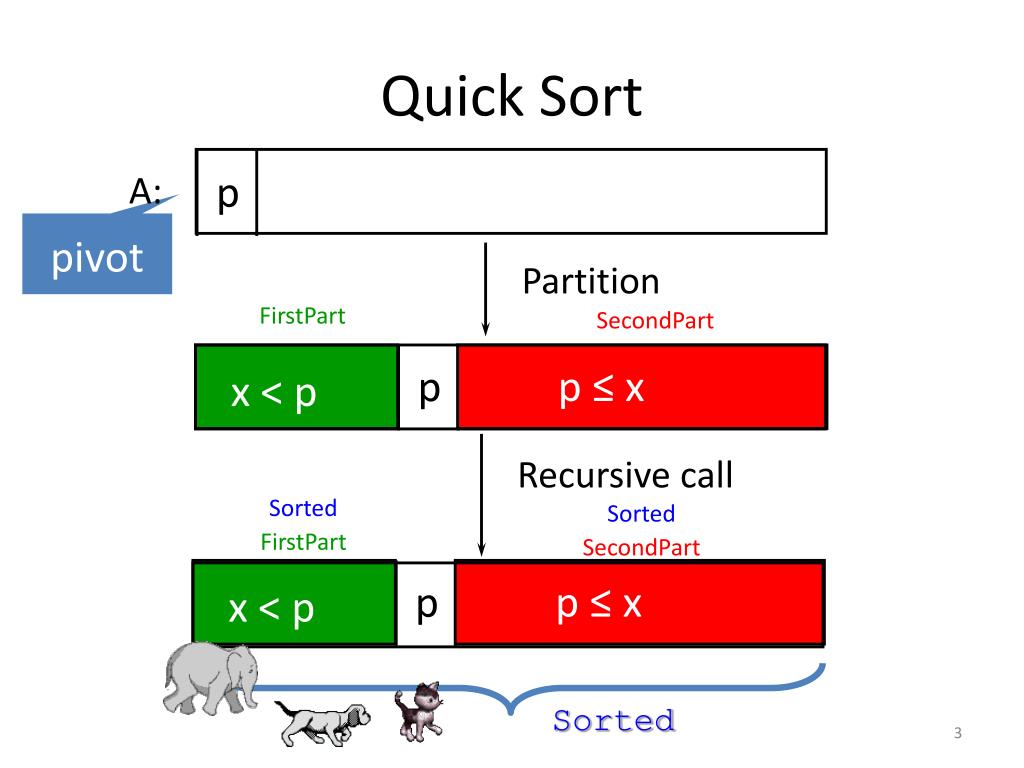

  3. Partition Recursive call p p p p ≤ x p ≤ x Sorted FirstPart Sorted SecondPart x < p Quick Sort A: pivot FirstPart SecondPart x < p Sorted

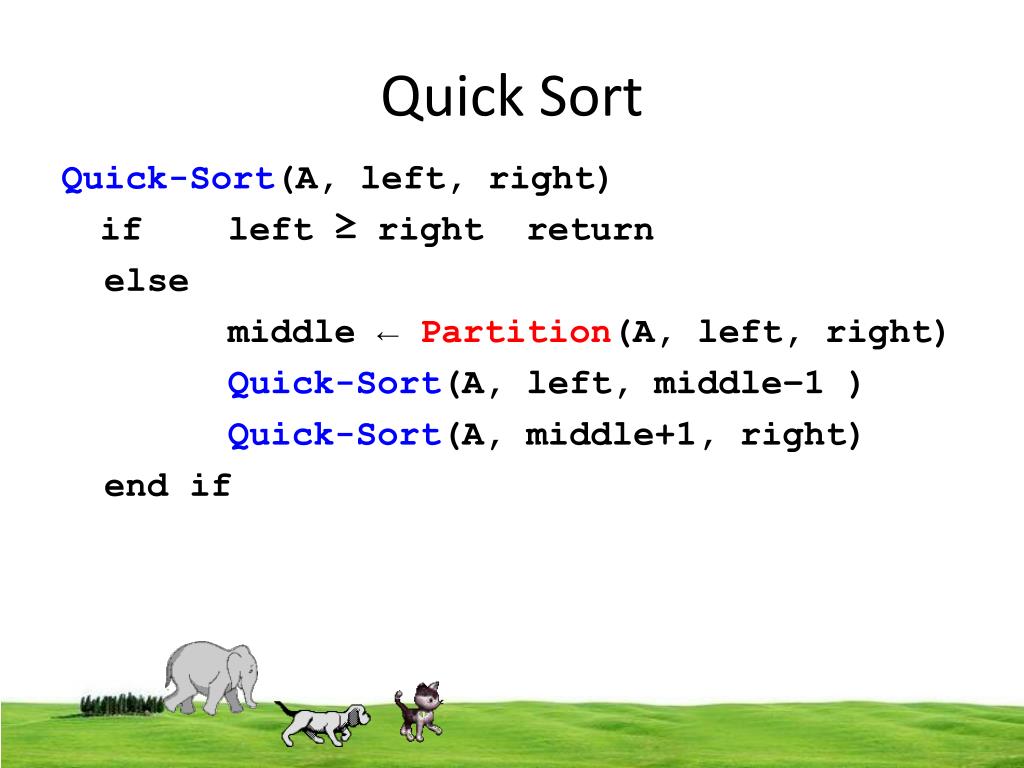

  4. Quick Sort Quick-Sort(A, left, right) ifleft ≥ right return else middle ← Partition(A, left, right) Quick-Sort(A, left, middle–1 ) Quick-Sort(A, middle+1, right) end if

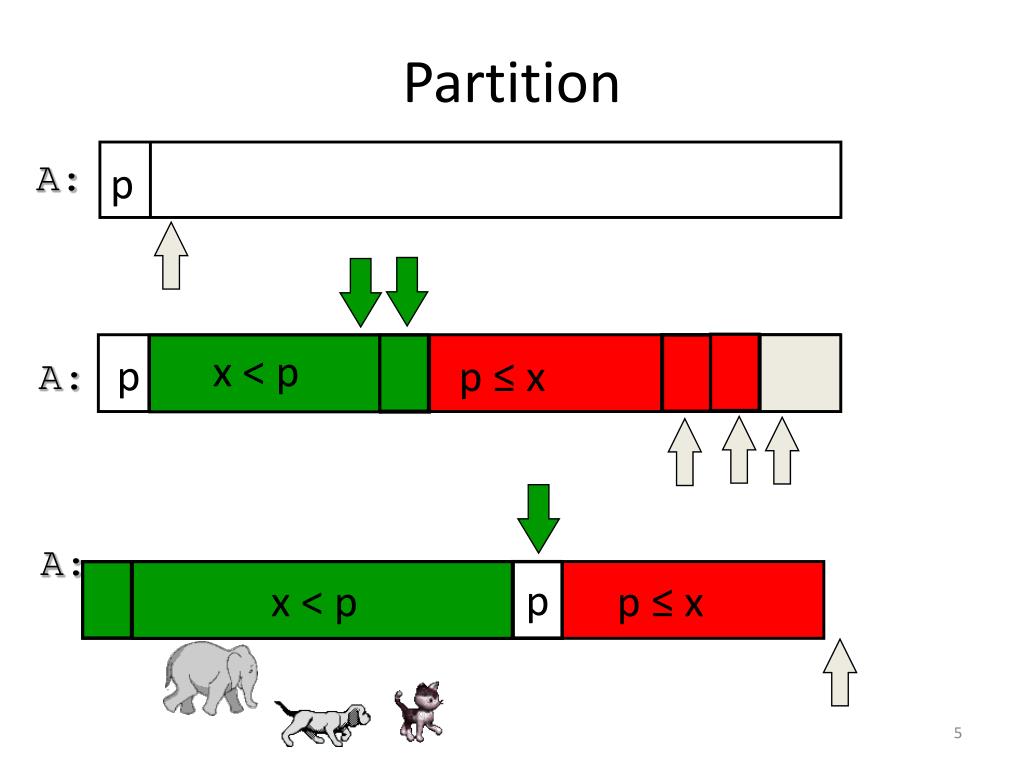

  5. p x < p p p ≤ x x < p p ≤ x p Partition A: A: A: p

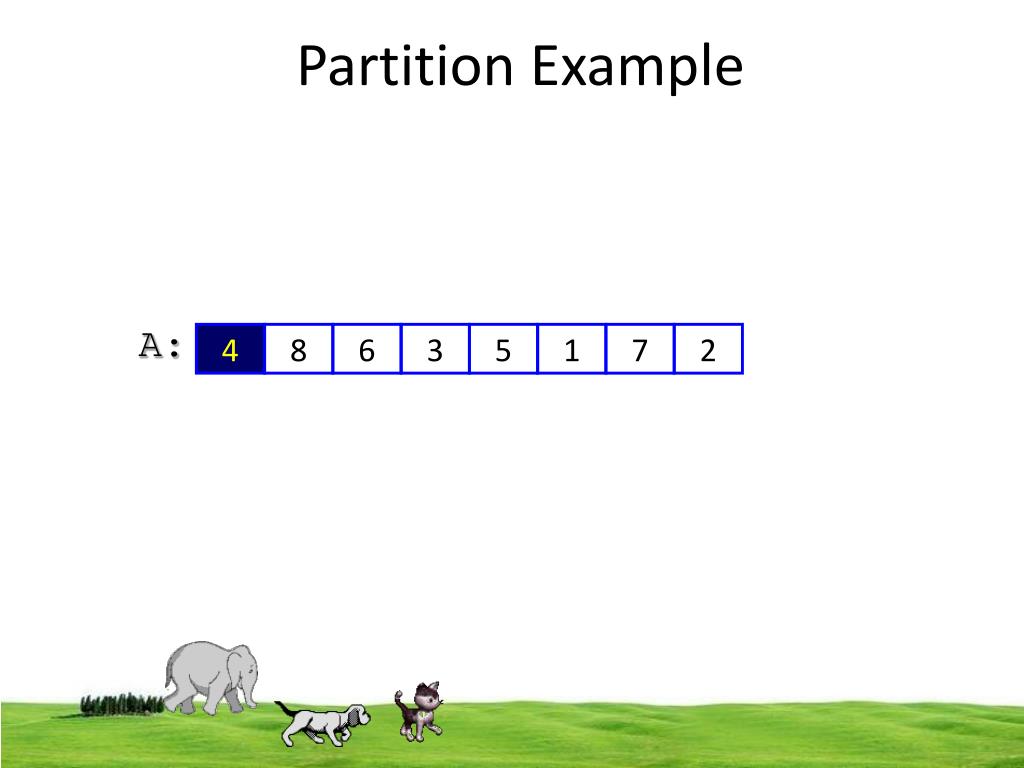

  6. Partition Example A: 4 8 6 3 5 1 7 2

  7. Partition Example i=0 A: 4 8 6 3 5 1 7 2 j=1

  8. Partition Example i=0 A: 4 8 6 3 5 1 7 2 8 j=1

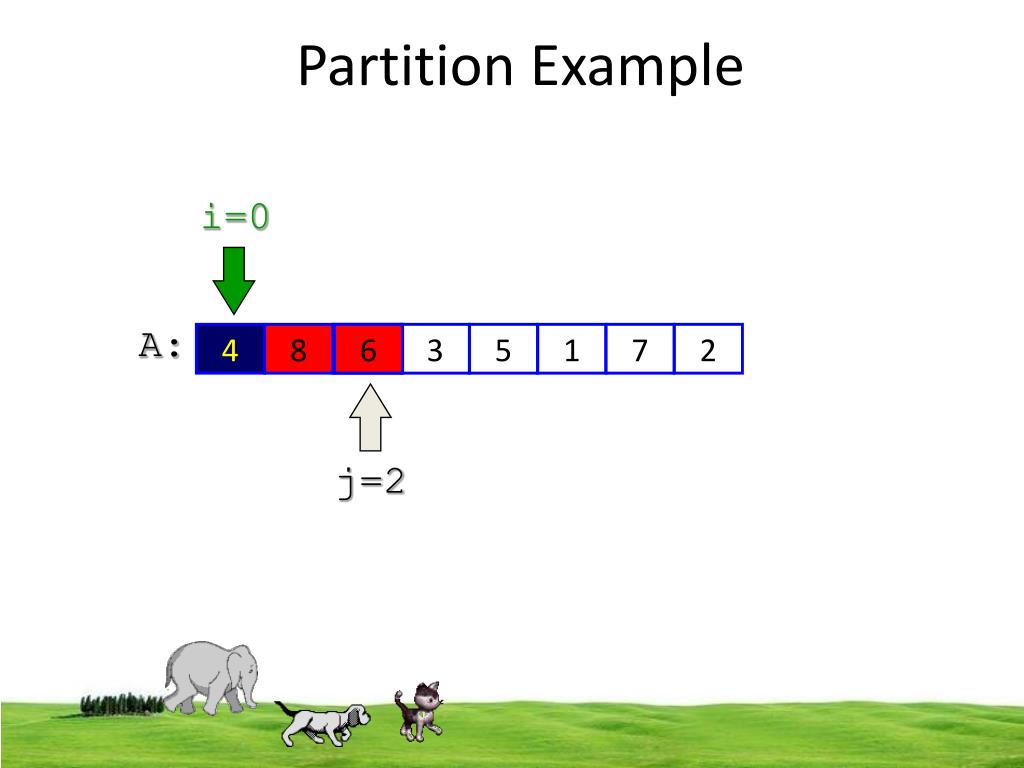

  9. Partition Example i=0 A: 4 8 6 6 3 5 1 7 2 j=2

  10. i=1 3 8 Partition Example i=0 A: 4 6 3 5 1 7 2 8 3 j=3

  11. i=1 Partition Example A: 4 3 6 8 5 1 7 2 5 j=4

  12. i=1 Partition Example A: 4 3 6 8 5 1 1 7 2 j=5

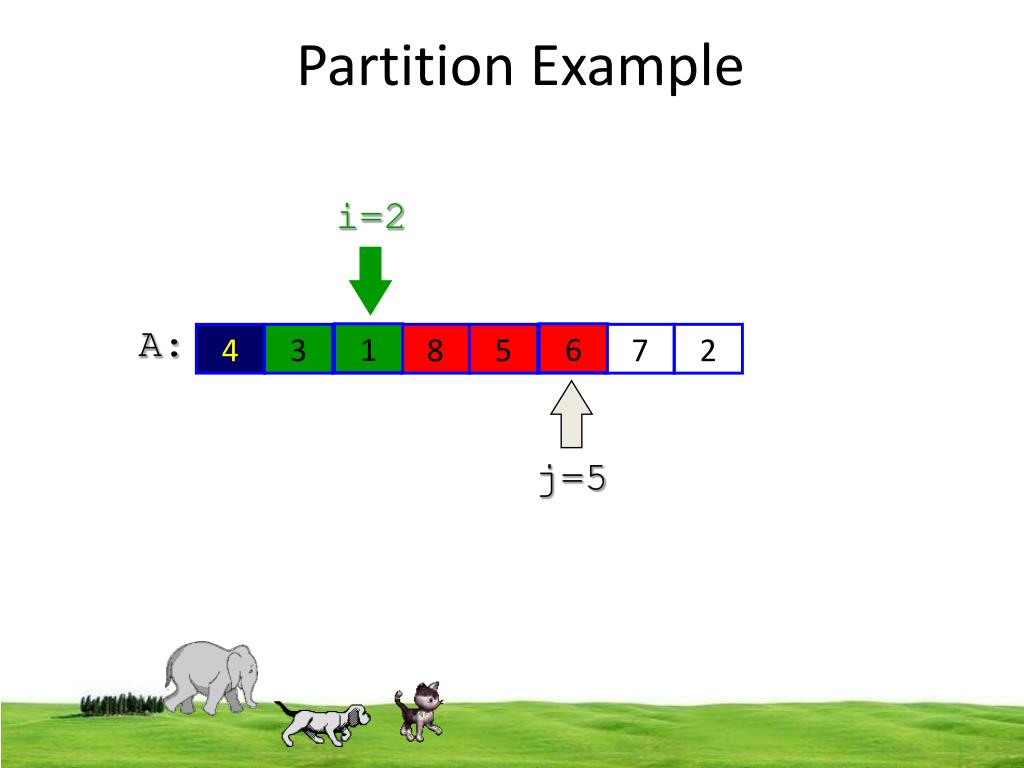

  13. i=2 1 6 Partition Example A: 4 3 6 8 5 1 7 2 j=5

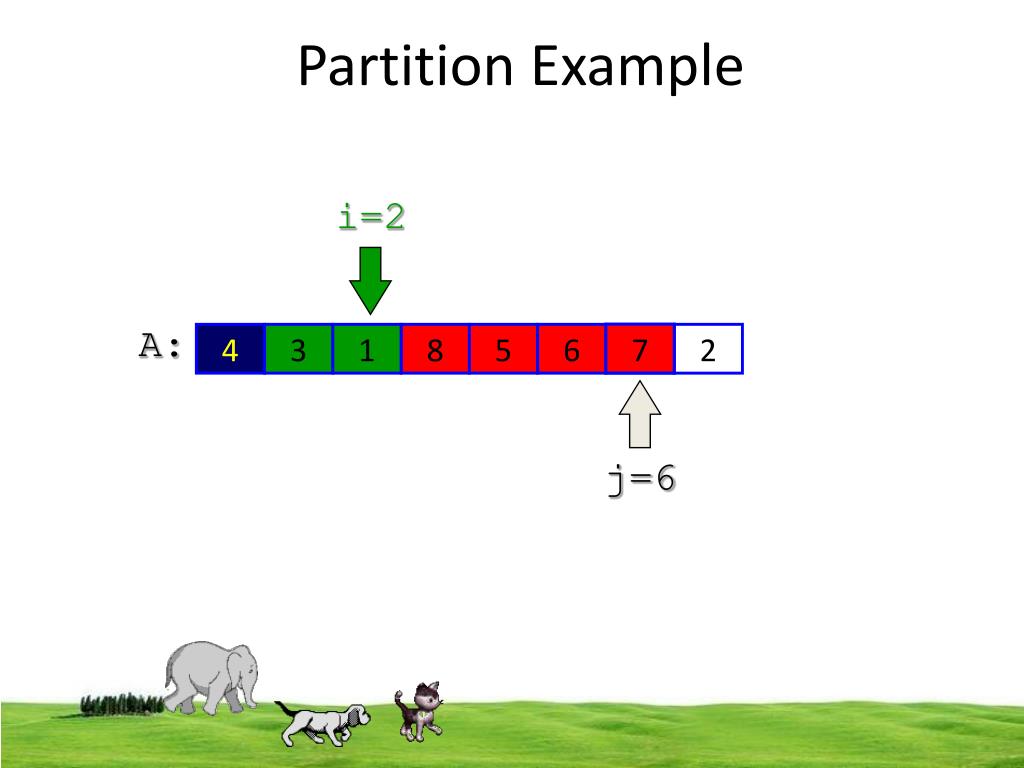

  14. i=2 Partition Example A: 7 4 3 1 8 5 6 7 2 j=6

  15. i=2 i=3 Partition Example A: 8 2 2 4 3 1 8 5 6 7 2 j=7

  16. i=3 Partition Example A: 4 3 1 2 5 6 7 8 j=8

  17. i=3 Partition Example A: 4 4 3 1 2 5 6 7 8 2

  18. x < 4 4 ≤ x Partition Example pivot in correct position A: 2 4 3 1 5 6 7 8

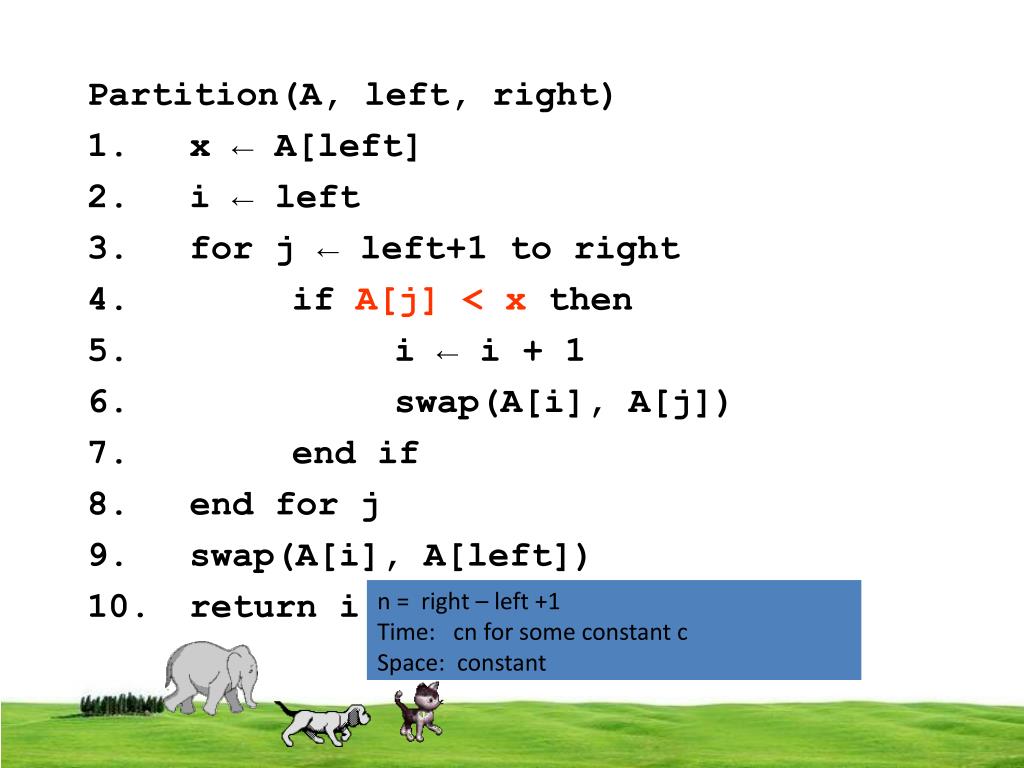

  19. Partition(A, left, right) • x ← A[left] • i ← left • for j ← left+1 to right • if A[j] < x then • i ← i + 1 • swap(A[i], A[j]) • end if • end for j • swap(A[i], A[left]) • return i n = right – left +1 Time: cn for some constant c Space: constant

  20. 2 3 1 4 5 6 7 8 Quick-Sort(A, 0, 7) Partition A: 4 8 6 3 5 1 7 2

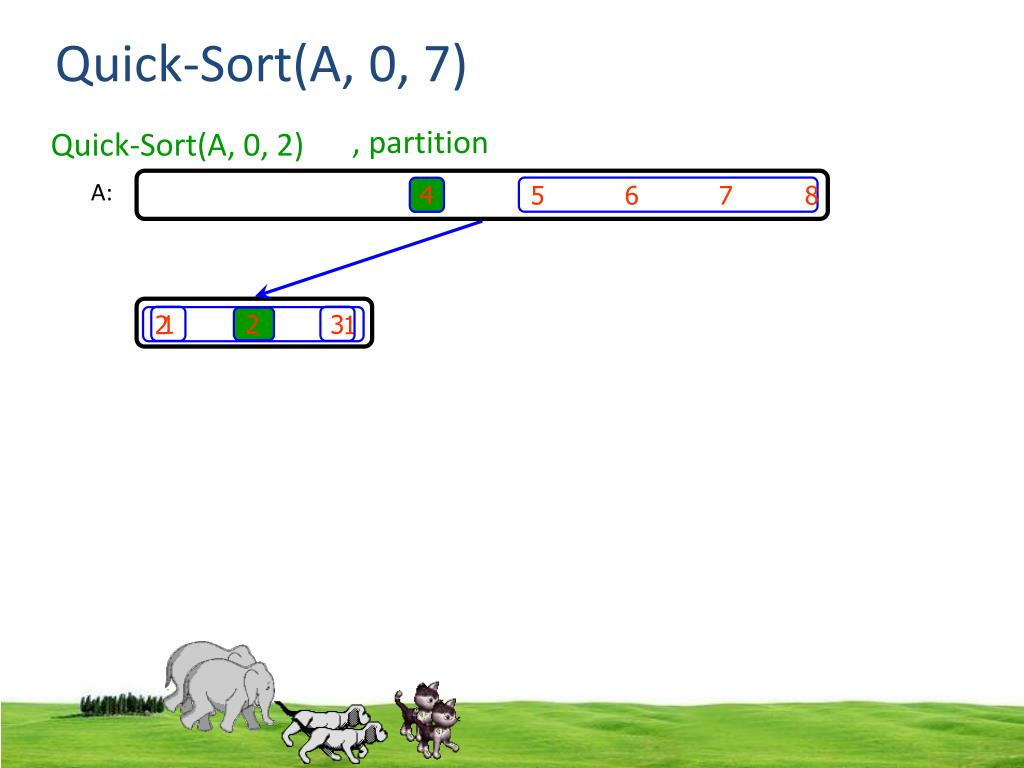

  21. 1 3 2 Quick-Sort(A, 0, 7) , partition Quick-Sort(A, 0, 2) A: 5 6 7 8 4 2 3 1

  22. Quick-Sort(A, 0, 7) Quick-Sort(A, 0, 0) , base case , return 5 6 7 8 4 3 1 2 1

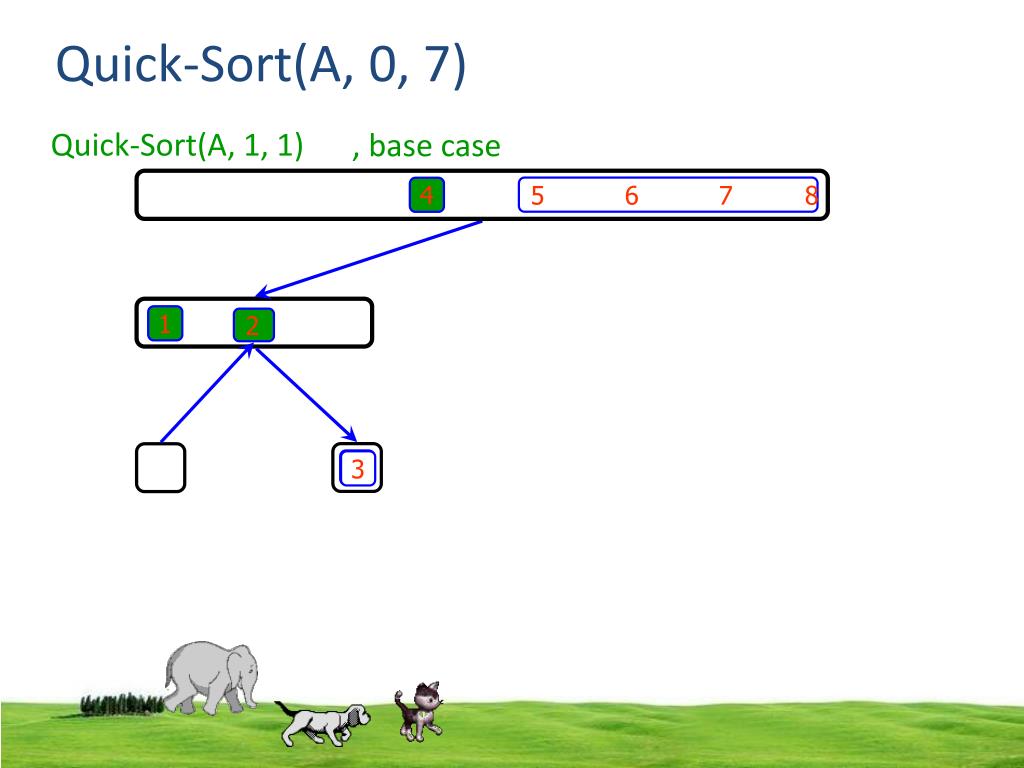

  23. 3 3 Quick-Sort(A, 0, 7) Quick-Sort(A, 1, 1) , base case 5 6 7 8 4 1 2

  24. 1 1 3 3 2 2 Quick-Sort(A, 0, 7) Quick-Sort(A, 0, 2), return Quick-Sort(A, 2, 2),return 5 6 7 8 4

  25. 5 6 7 8 6 7 8 5 1 3 2 Quick-Sort(A, 0, 7) Quick-Sort(A, 4, 7) , partition Quick-Sort(A, 2, 2),return 4

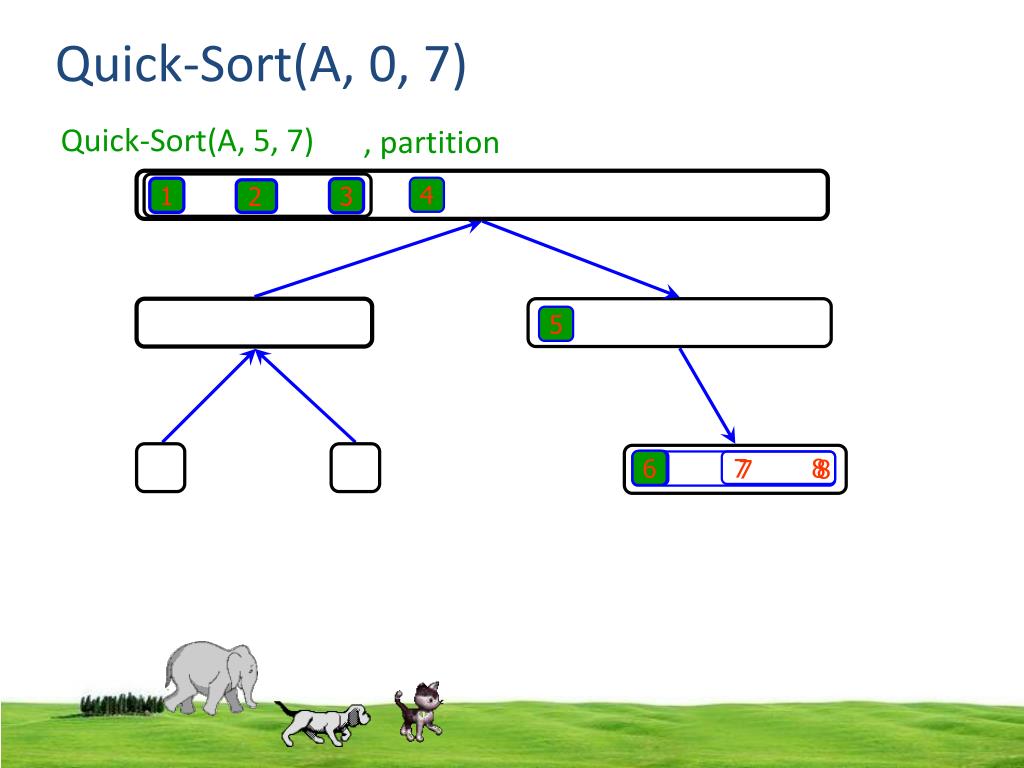

  26. 1 3 2 6 7 8 Quick-Sort(A, 0, 7) Quick-Sort(A, 5, 7) , partition 4 5 6 6 7 8

  27. 1 3 2 Quick-Sort(A, 0, 7) Quick-Sort(A, 6, 7) , partition 4 5 6 7 7 8 8

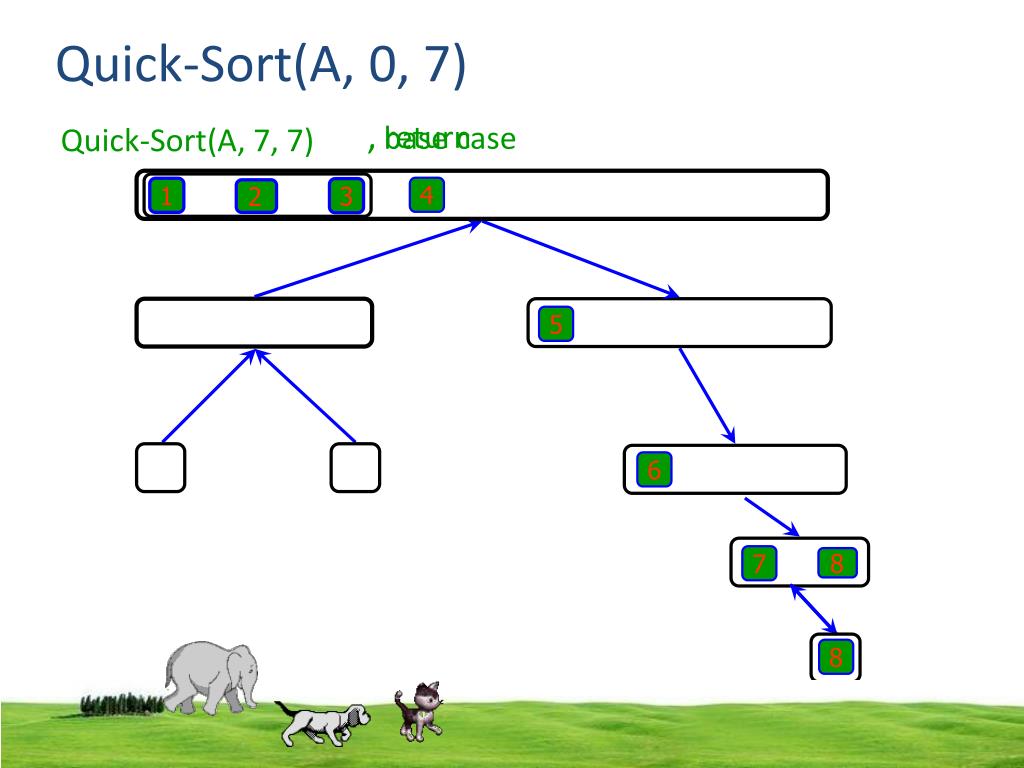

  28. 1 3 2 Quick-Sort(A, 0, 7) , return , base case Quick-Sort(A, 7, 7) 4 5 6 7 8 8

  29. 1 3 2 Quick-Sort(A, 0, 7) , return Quick-Sort(A, 6, 7) 4 5 6 7 8

  30. 1 3 2 6 7 8 Quick-Sort(A, 0, 7) , return Quick-Sort(A, 5, 7) 4 5

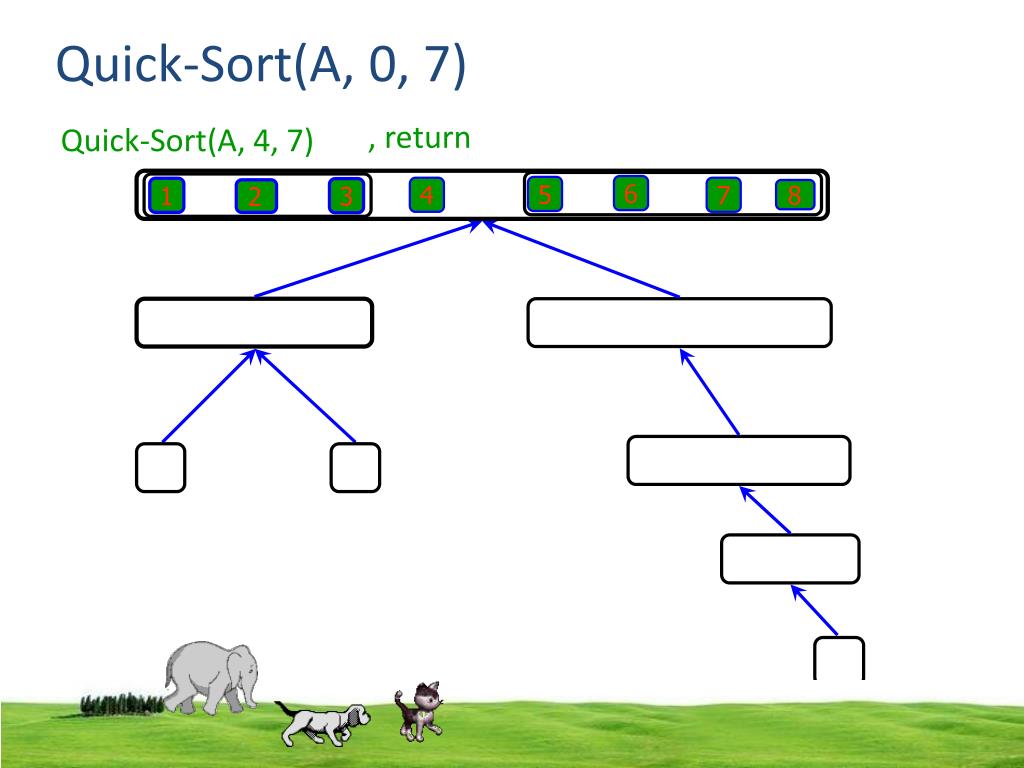

  31. 5 1 3 2 6 7 8 Quick-Sort(A, 0, 7) , return Quick-Sort(A, 4, 7) 4

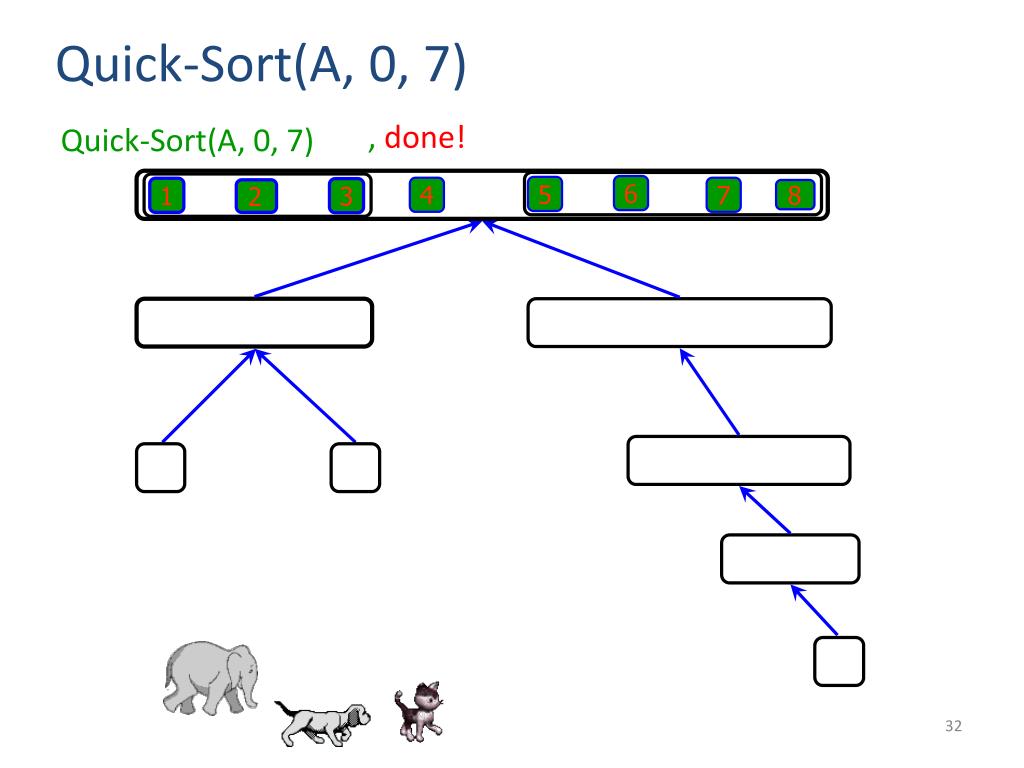

  32. 5 1 3 2 6 7 8 Quick-Sort(A, 0, 7) , done! Quick-Sort(A, 0, 7) 4
