  1. Dust Collector PresentationEnTech Industries

  2. Agenda 1. Who We Are 2. Design Theories 3. Design Configurations 4. Working With EnTech 5. Questions?

  3. Who We Are EnTech Industries, Inc. engineers, manufactures and sells the Cyclone Series of high performance dust collectors, GRS Grit Recycling Systems and a variety of custom products, developed for your specific needs. The company's commitment to its customers, the environment and to maintaining high quality standards are just a few of the reasons why they continue to grow. EnTech's reliable equipment can be found running on job sites from coast to coast.

  4. Design Theories

  5. Bag Type Limitations • Dust Particles • Area Restrictions • Cost of Maintenance

  6. Cartridge Type - Side Loaded Limitations • Caked Filters • Filter Replacement • Messy • Time Consuming • Space Saving Benefits

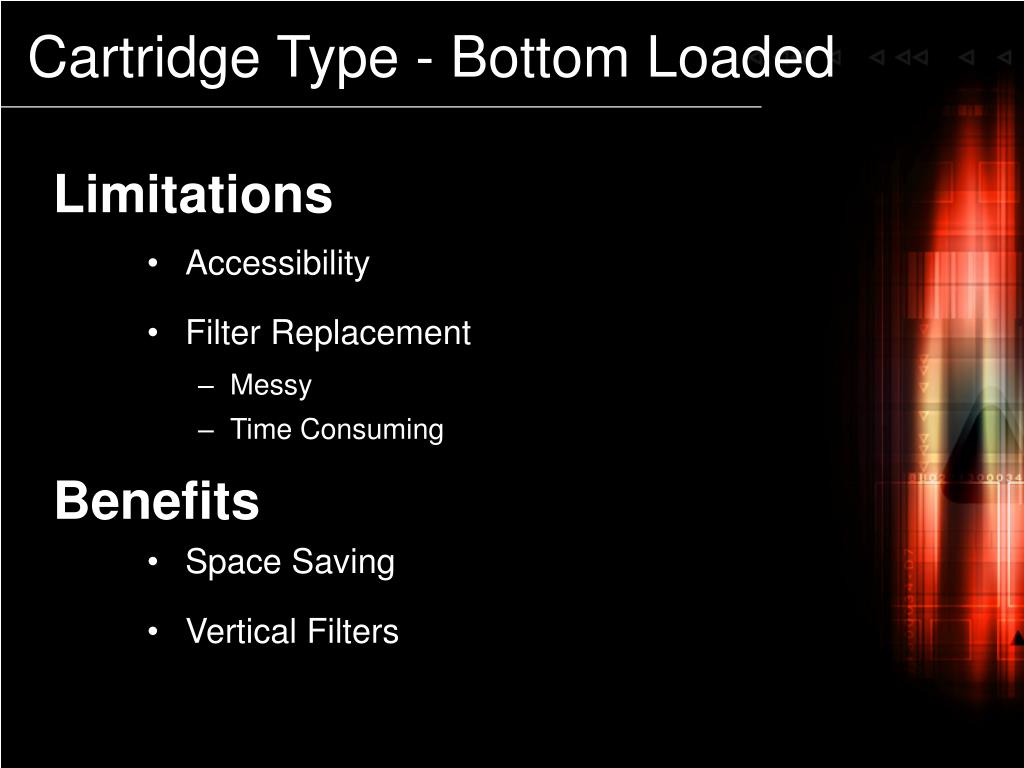

  7. Cartridge Type - Bottom Loaded • Accessibility • Filter Replacement • Messy • Time Consuming Limitations • Space Saving • Vertical Filters Benefits

  8. Cartridge Type - Top Loaded • Space Limitations • Vertical Filters • Filter Replacement • Clean • Time-saving Benefits

  9. Design Configurations

  10. Downdraft (Horizontal Filters) Inlet Jet Cleaning System Filter Filter Filter Outlet Waste Hopper • Features: • Use Fewer Filters • Problems: • Air Must Make at Least Two Radical Direction Changes

  11. Downdraft (Vertical Filters) Jet Cleaning System Outlet Inlet Filter Filter Filter Waste Hopper

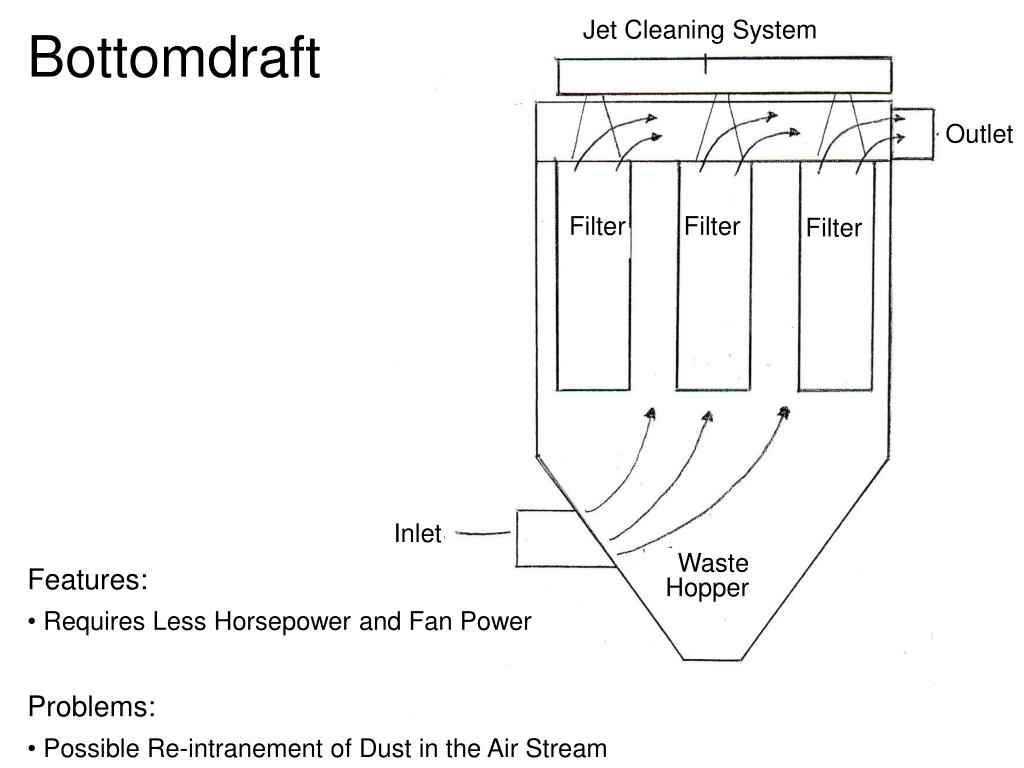

  12. Jet Cleaning System Outlet Filter Filter Filter Inlet Waste Hopper Bottomdraft • Features: • Requires Less Horsepower and Fan Power • Problems: • Possible Re-intranement of Dust in the Air Stream

  13. Jet Cleaning System Built Into Hopper Lid Outlet Filter Filter Filter Baffle Sheet Flow Through Diverter Inlet Waste Hopper Sidedraft • Features: • Requires Less Horsepower and Fan power

  14. Working With EnTech EnTech Industries is committed to customer service and strives to offer you the variety of options to fulfill the results you desire. EnTech Industries offers you the following: • Horizontal Diffuser or Diverter • Ease of Service, Ease of Maintenance • Simplicity of Design • Straight Through Airflow • Baffle Plates Between Each Row of Filters • Vertical Loaded Filters • Readily Available Parts • Quality of Finish

  15. Questions?
