Lecture_6

Lecture_6. 3.5 Nonuniform B Field Gradient-B drift. 3.5.2 Centrifugal Force: Curvature drift. 3.6 Adiabatic Invariants. 3.7 Magnetic mirrors. Magnetic bottle bounce period. The Magnetic Dipole Field. Equation of magnetic field line. Variation of B along field line.

marinel
Télécharger la présentation

Lecture_6

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lecture_6 reinisch_85.511

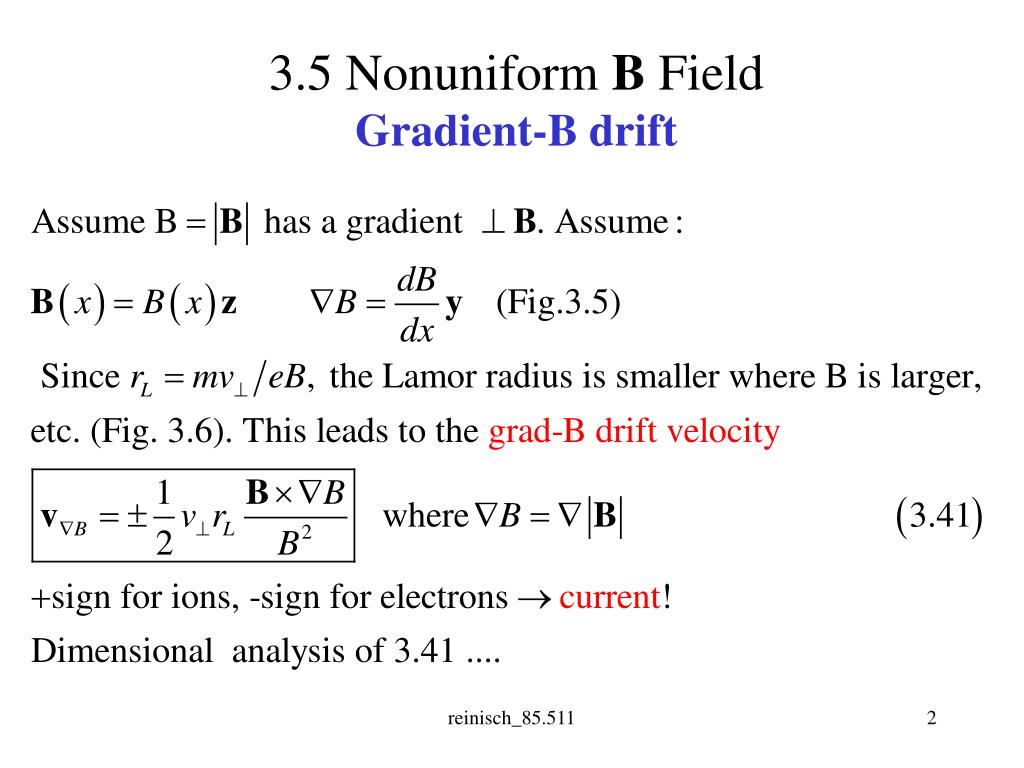

  2. 3.5 Nonuniform B FieldGradient-B drift reinisch_85.511

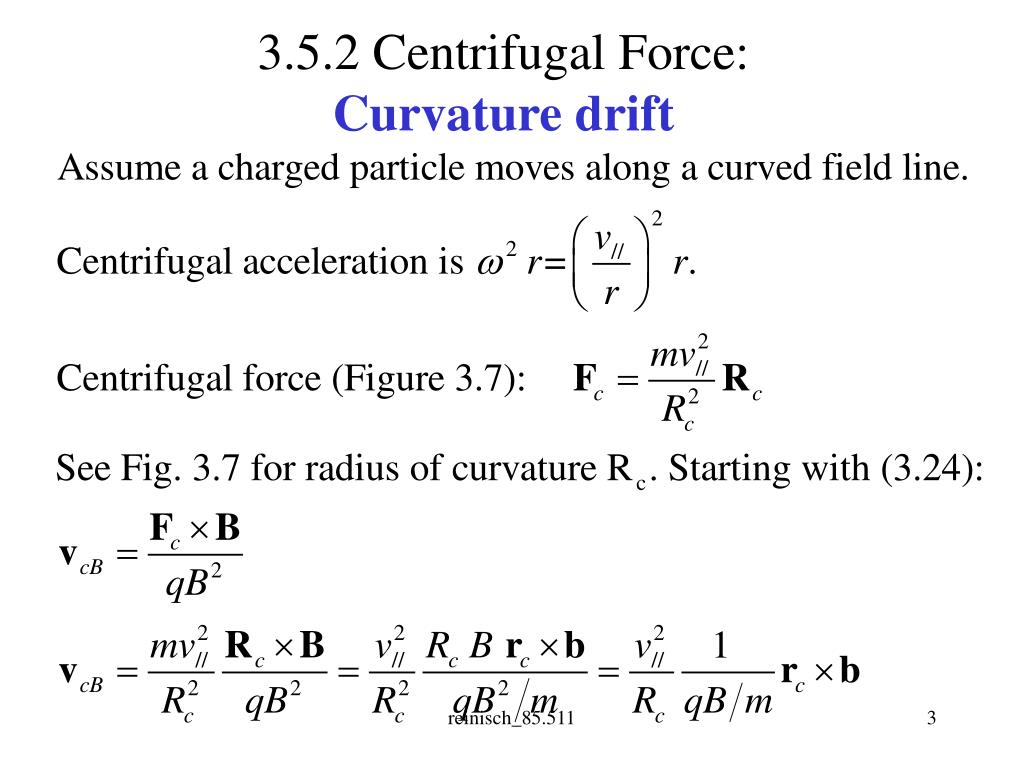

  3. 3.5.2 Centrifugal Force:Curvature drift reinisch_85.511

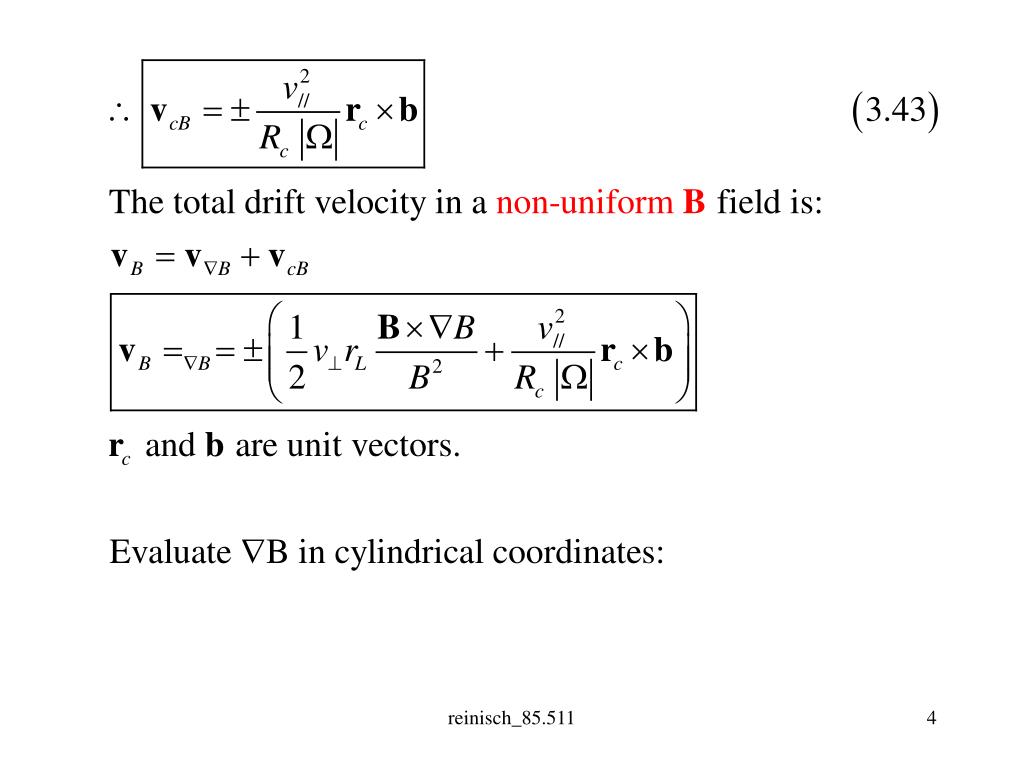

  4. reinisch_85.511

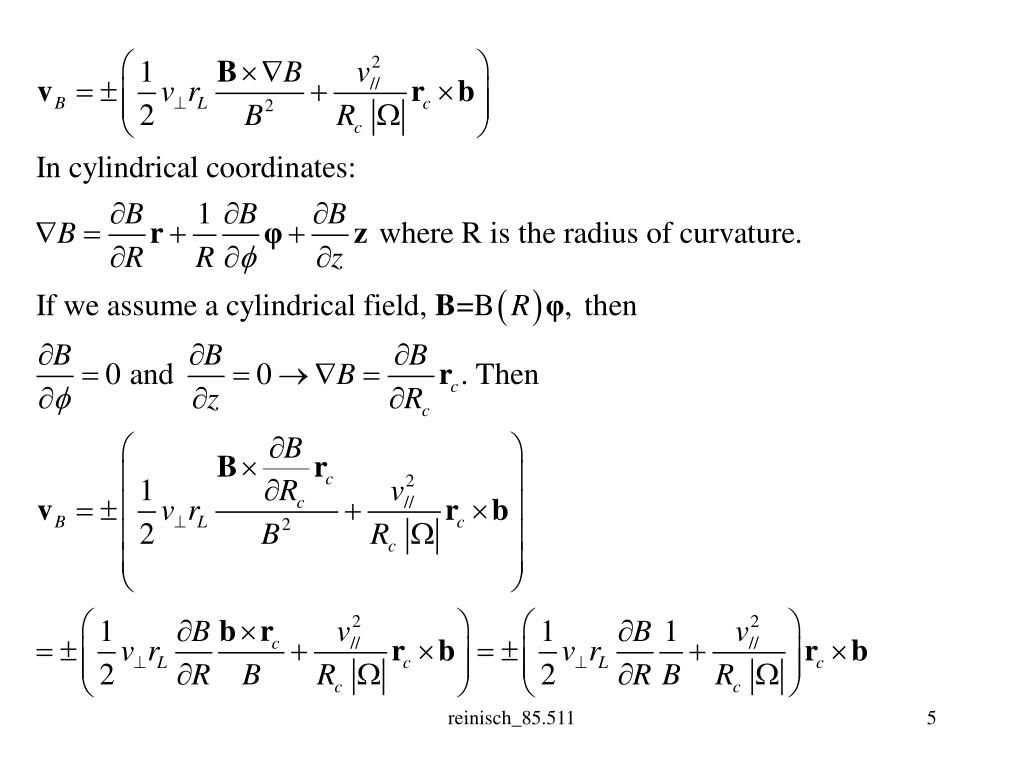

  5. reinisch_85.511

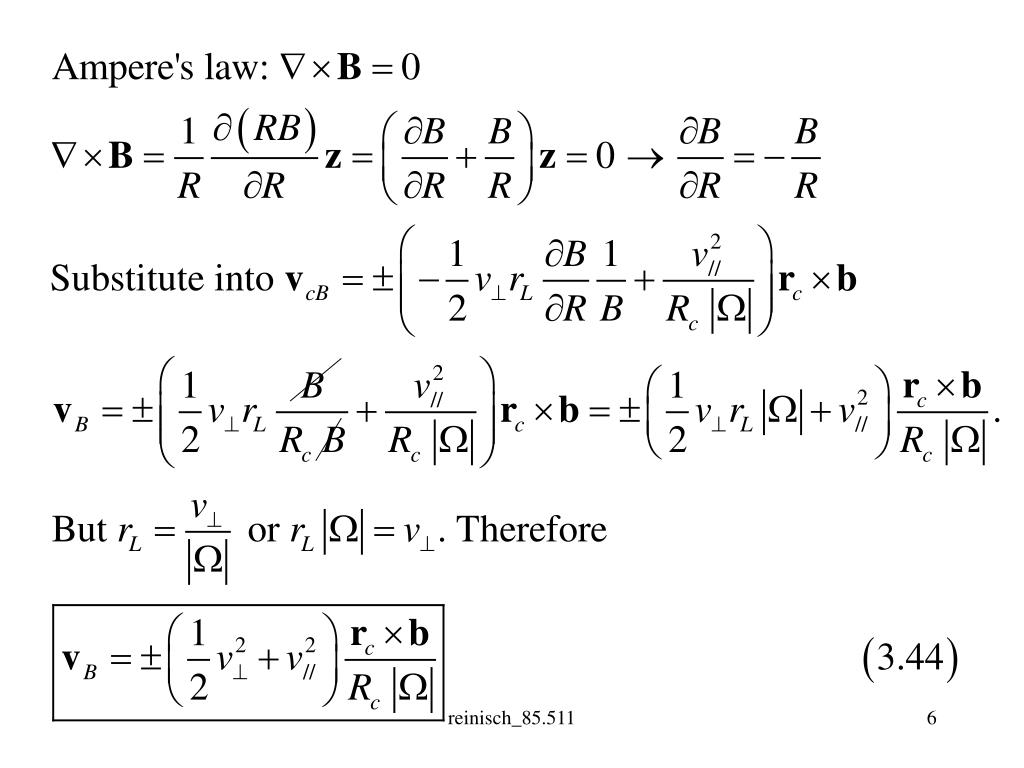

  6. reinisch_85.511

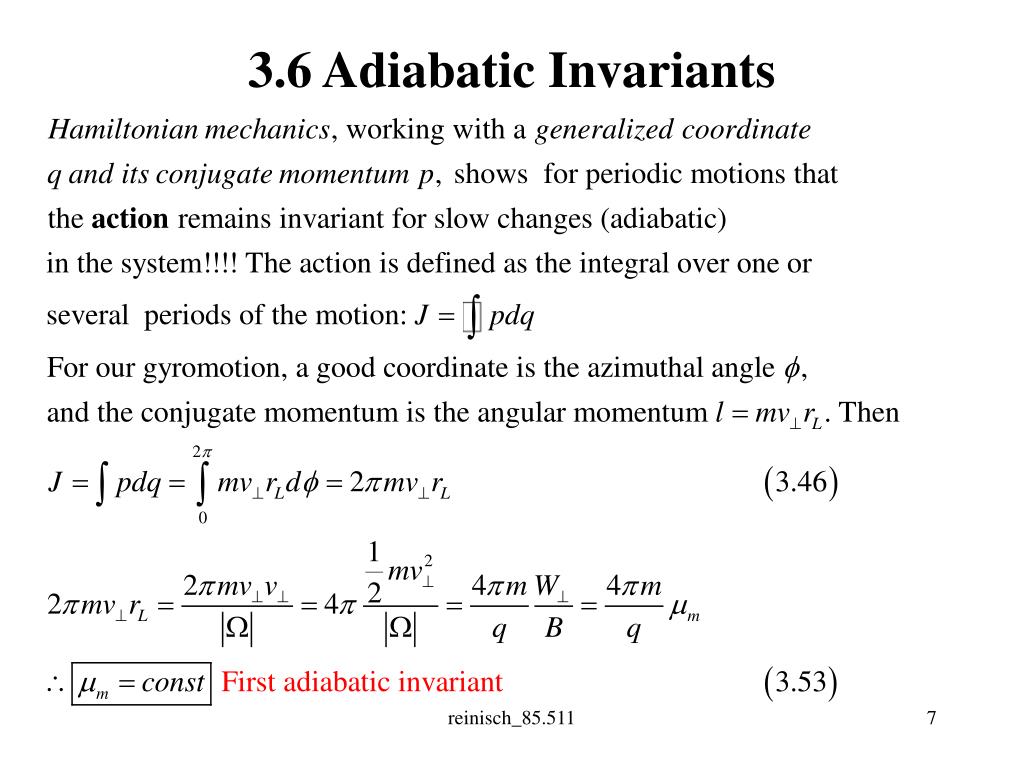

  7. 3.6 Adiabatic Invariants reinisch_85.511

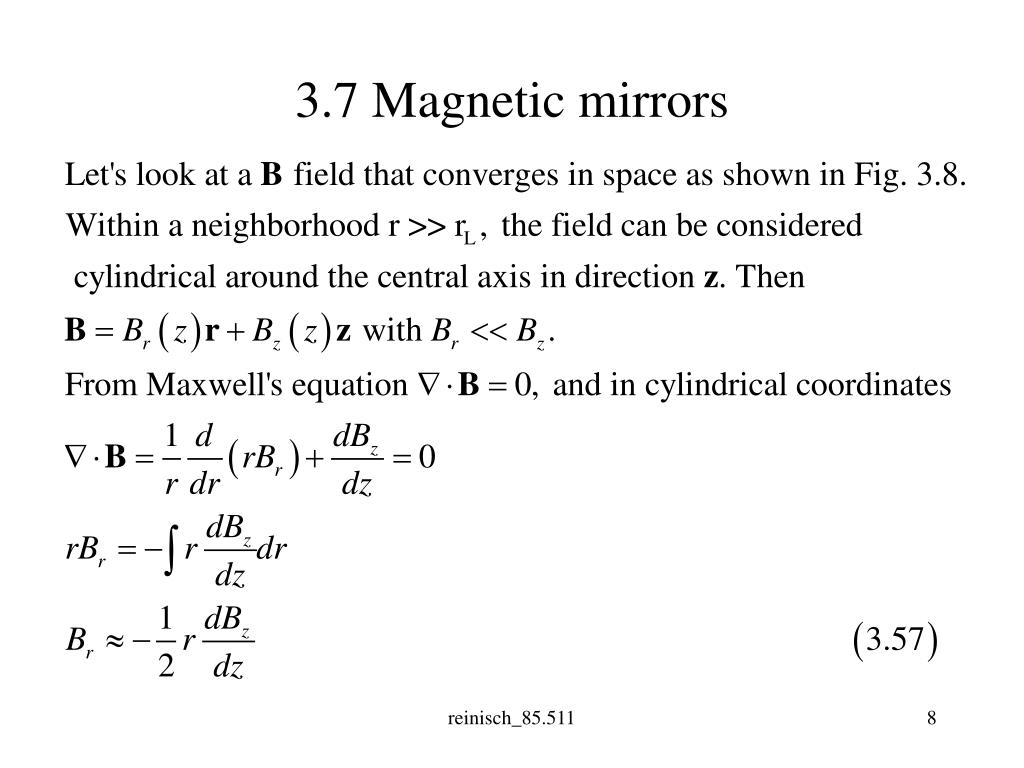

  8. 3.7 Magnetic mirrors reinisch_85.511

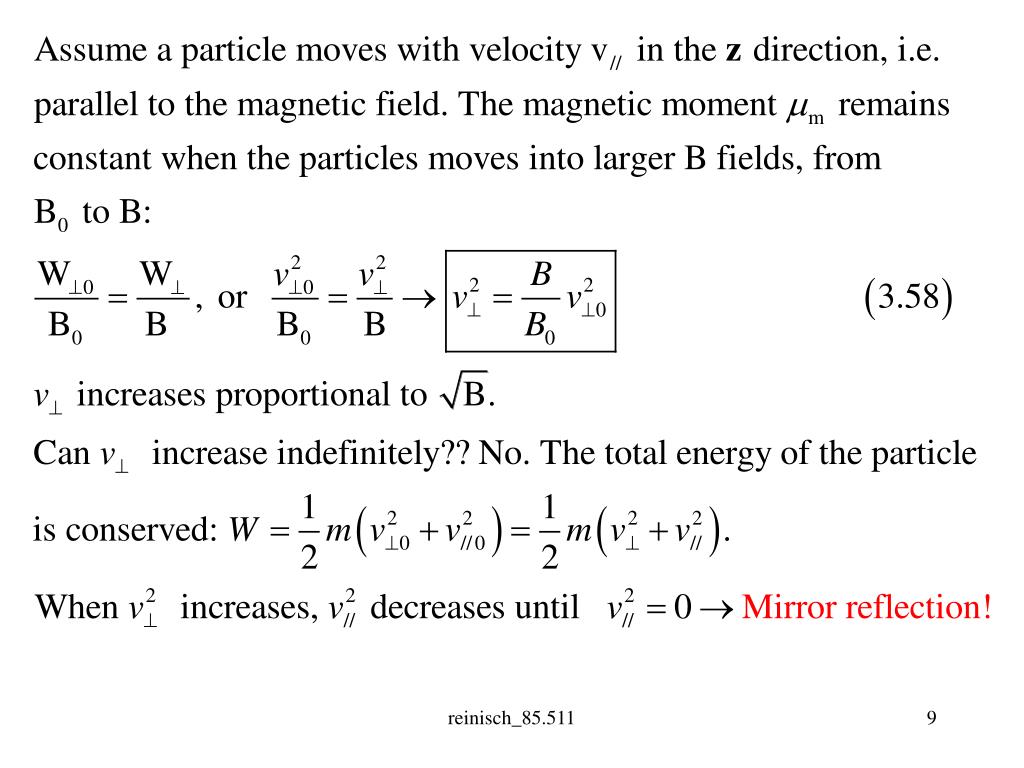

  9. reinisch_85.511

  10. reinisch_85.511

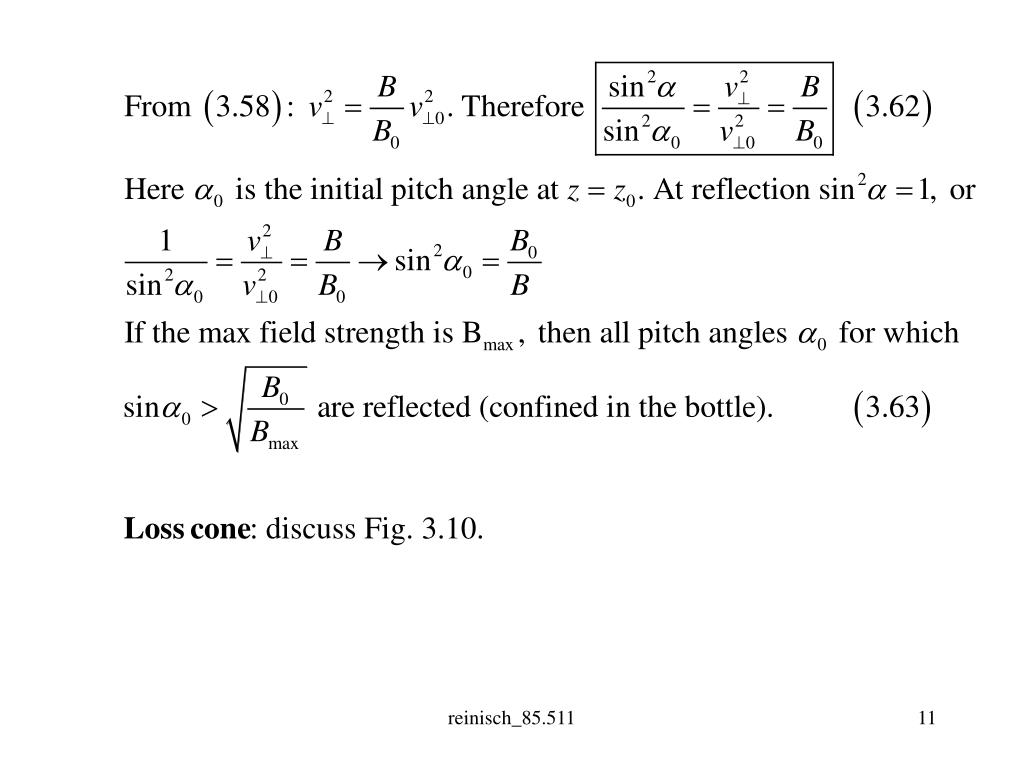

  11. reinisch_85.511

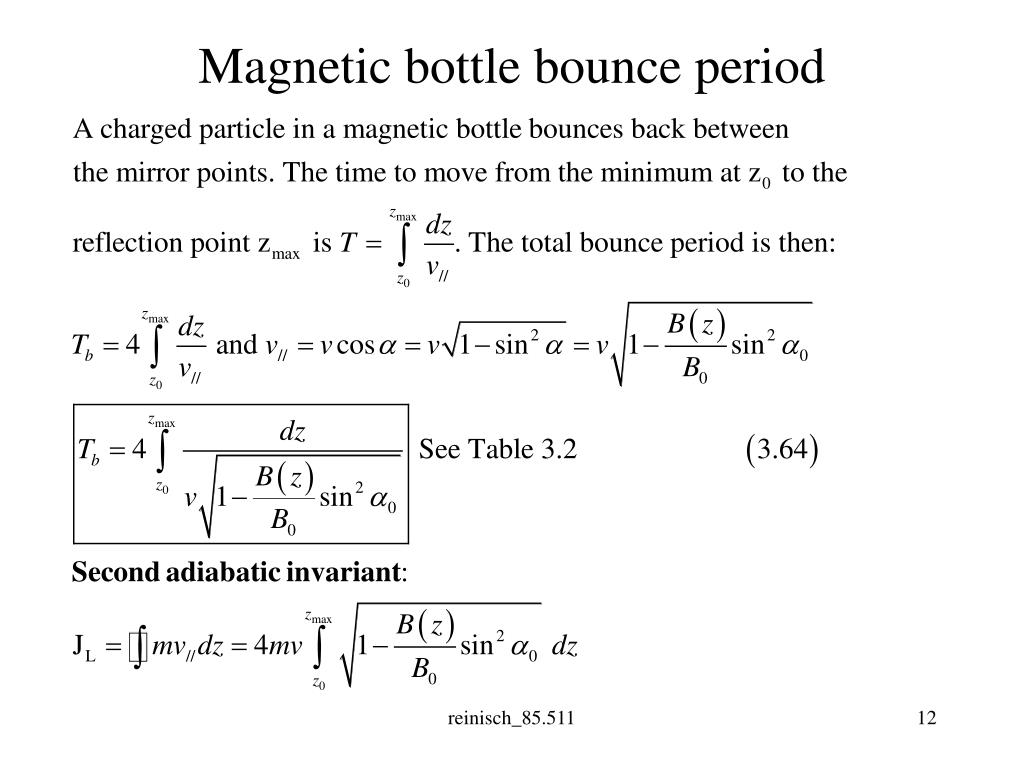

  12. Magnetic bottle bounce period reinisch_85.511

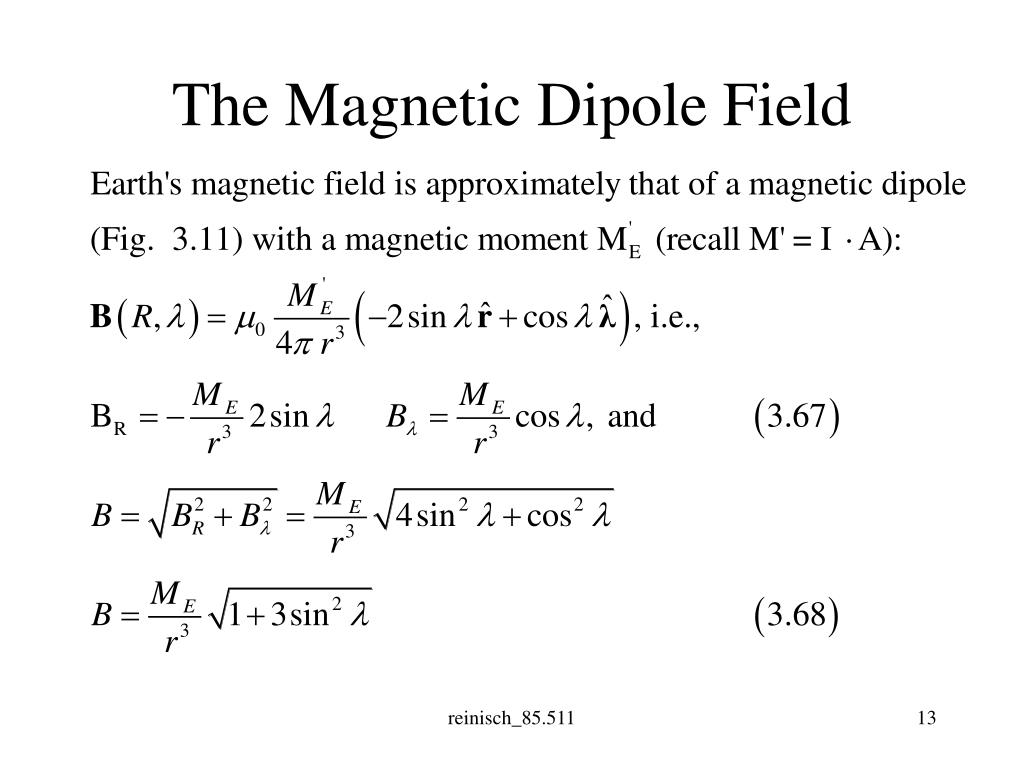

  13. The Magnetic Dipole Field reinisch_85.511

  14. Equation of magnetic field line reinisch_85.511

  15. Variation of B along field line reinisch_85.511

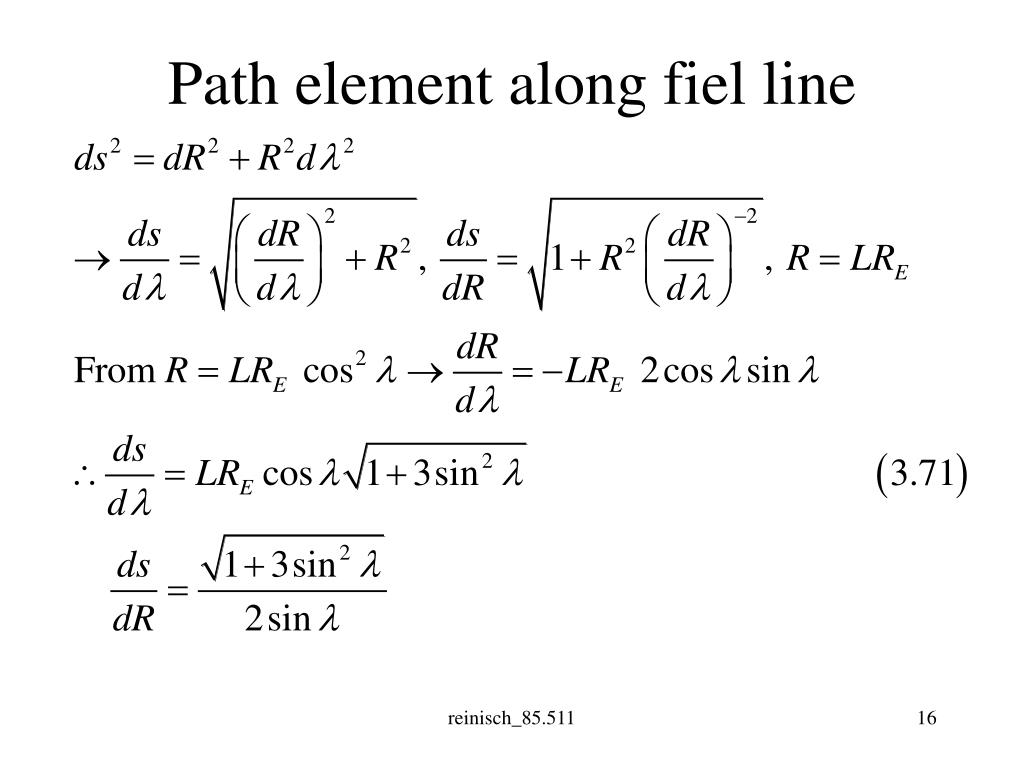

  16. Path element along fiel line reinisch_85.511
