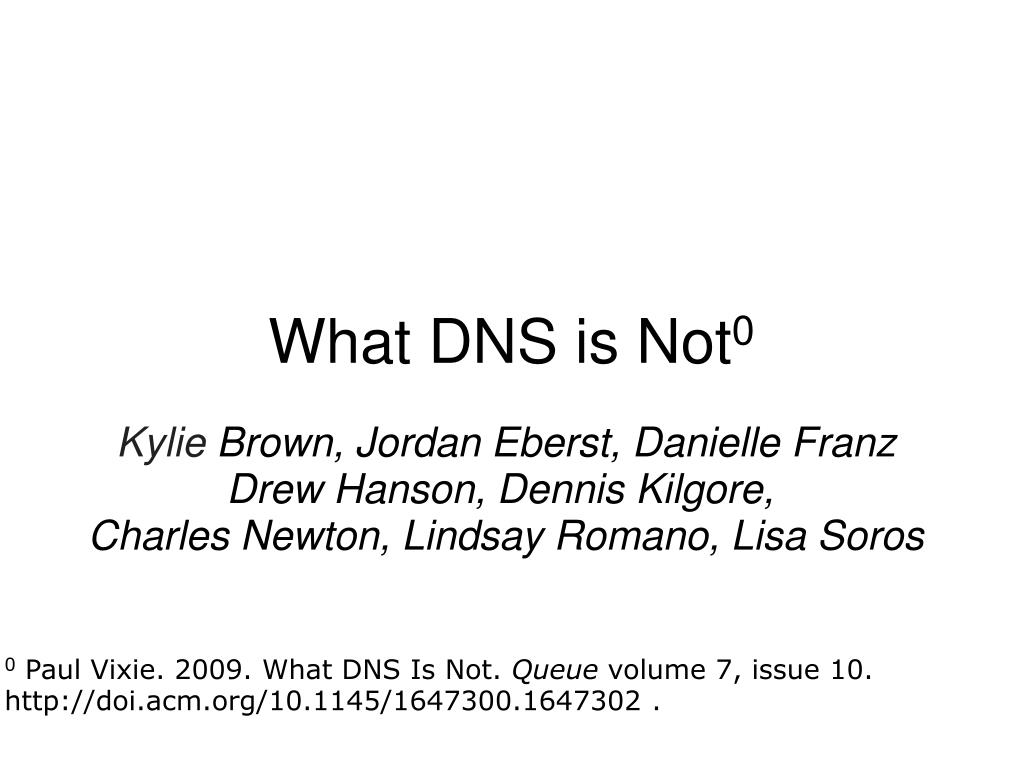

  1. What DNS is Not0 Kylie Brown, Jordan Eberst, Danielle Franz Drew Hanson, Dennis Kilgore,  Charles Newton, Lindsay Romano, Lisa Soros 0 Paul Vixie. 2009. What DNS Is Not. Queue volume 7, issue 10.  http://doi.acm.org/10.1145/1647300.1647302 .

  2. DNS: An Overview • Companion Paper • DNS Complexity - Published in ACM's Queue, Volume 5 Issue 3, April 2007. • http://eustis.eecs.ucf.edu/~ch552141/p24-vixie.pdf

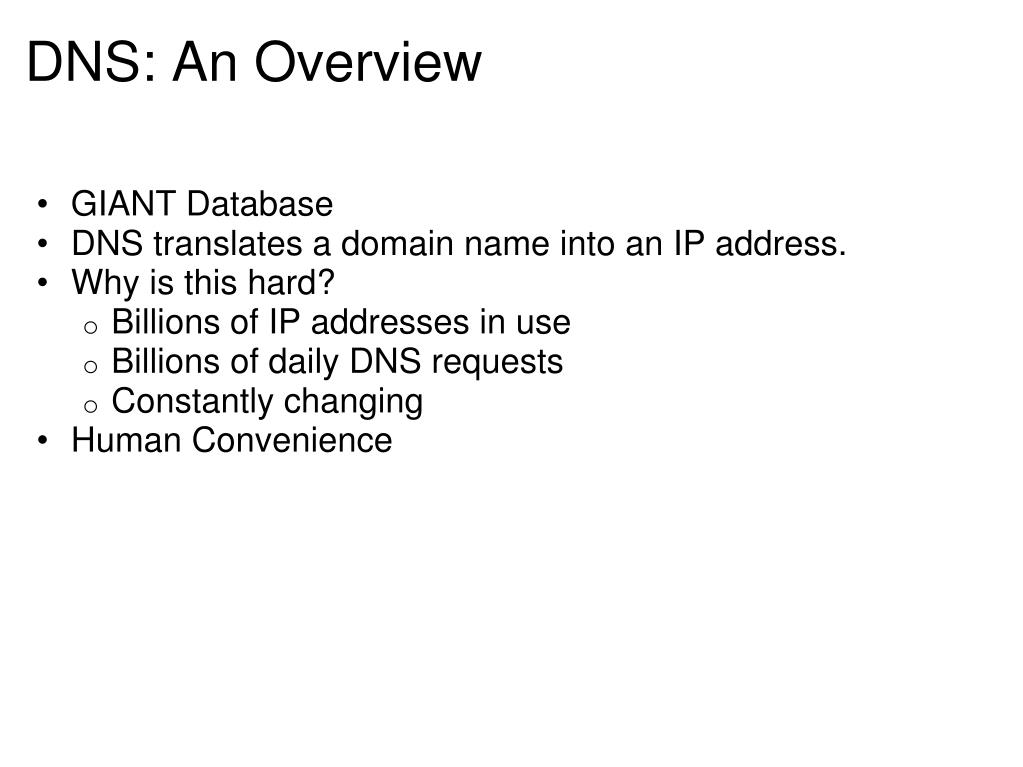

  3. DNS: An Overview • GIANT Database • DNS translates a domain name into an IP address. • Why is this hard? • Billions of IP addresses in use • Billions of daily DNS requests • Constantly changing • Human Convenience

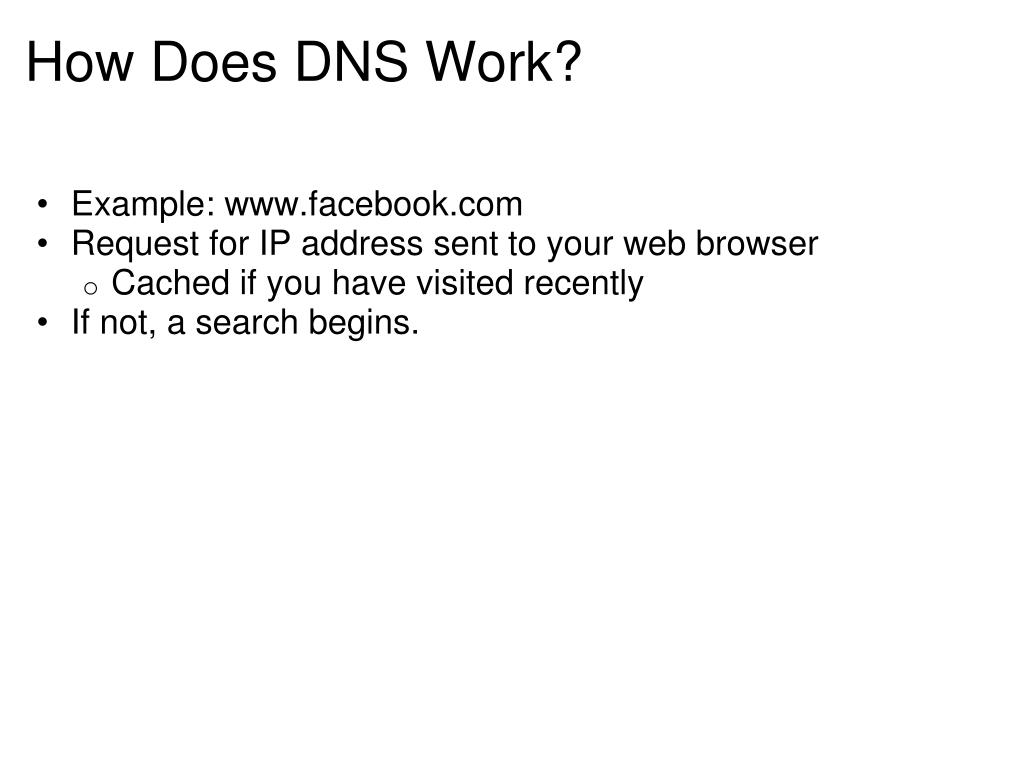

  4. How Does DNS Work? • Example: www.facebook.com • Request for IP address sent to your web browser • Cached if you have visited recently • If not, a search begins.

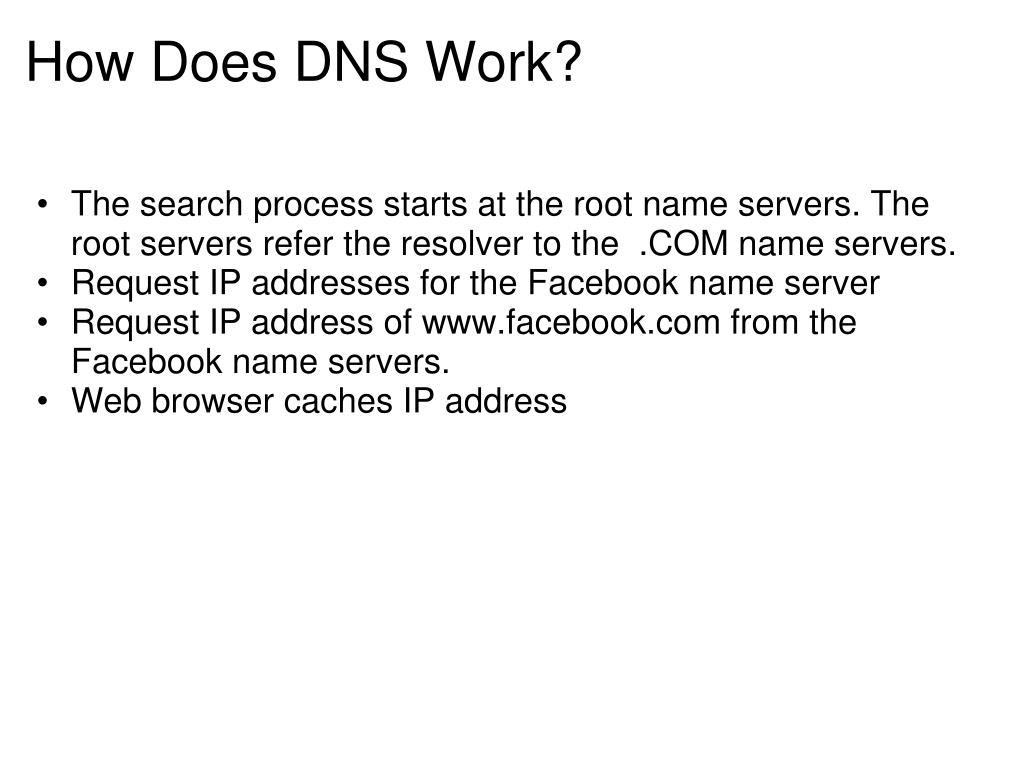

  5. How Does DNS Work? • The search process starts at the root name servers. The root servers refer the resolver to the  .COM name servers. • Request IP addresses for the Facebook name server • Request IP address of www.facebook.com from the Facebook name servers. • Web browser caches IP address

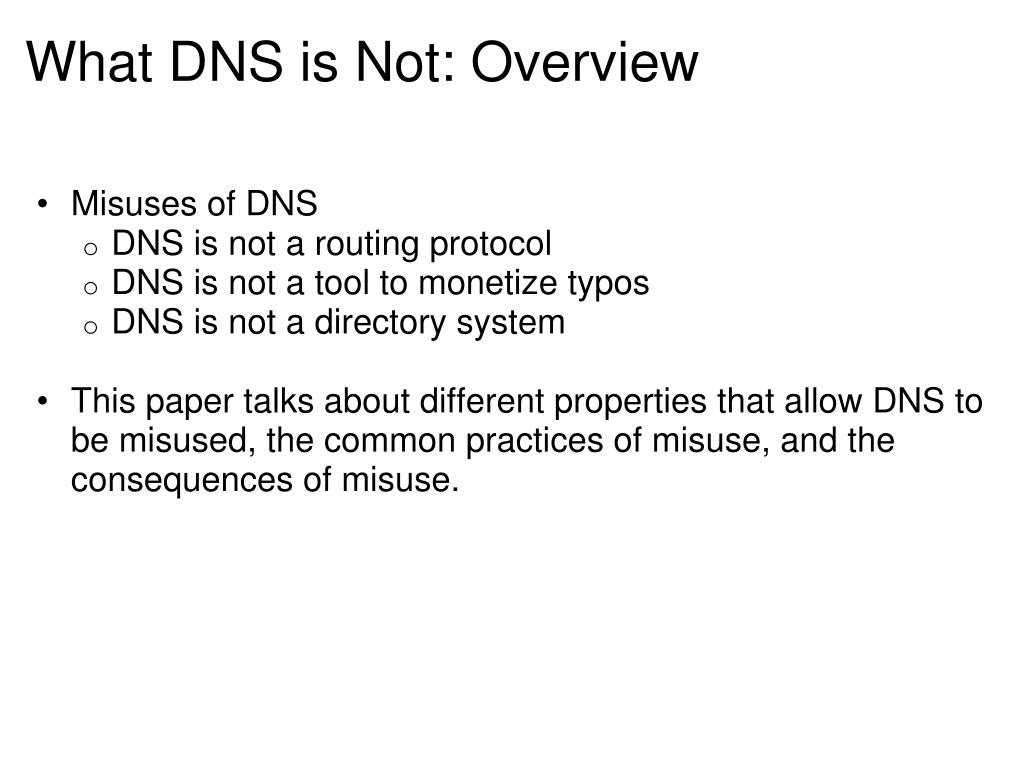

  6. What DNS is Not: Overview • Misuses of DNS • DNS is not a routing protocol • DNS is not a tool to monetize typos • DNS is not a directory system • This paper talks about different properties that allow DNS to be misused, the common practices of misuse, and the consequences of misuse.

  7. Stupid DNS Tricks

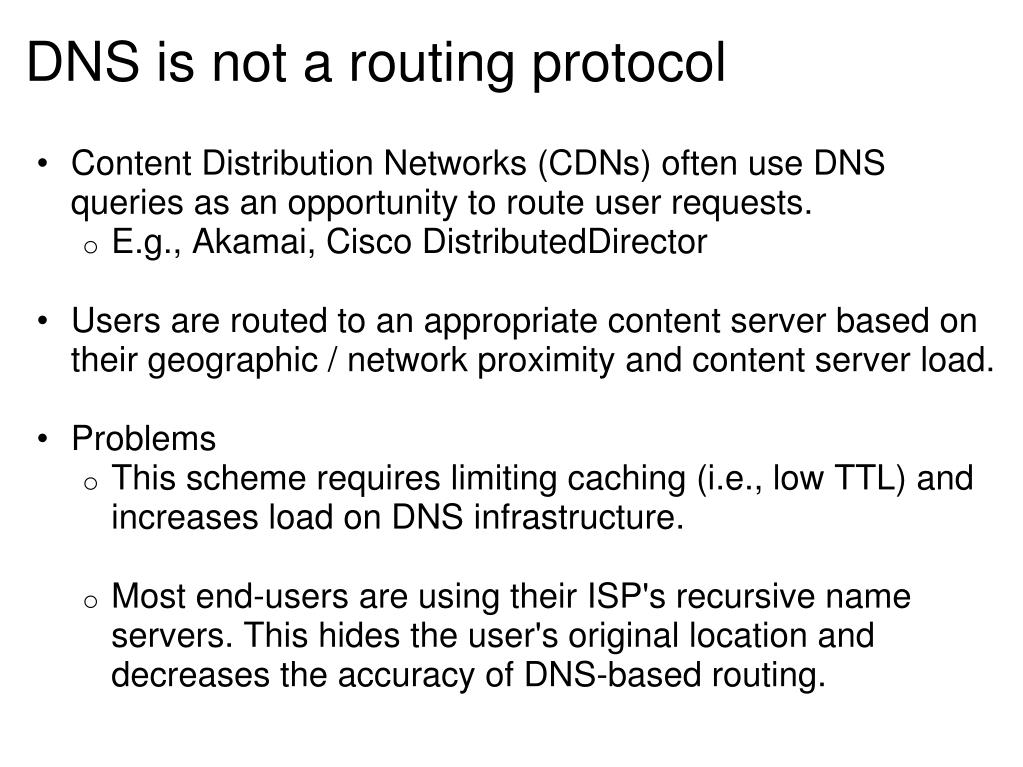

  8. DNS is not a routing protocol • Content Distribution Networks (CDNs) often use DNS queries as an opportunity to route user requests. • E.g., Akamai, Cisco DistributedDirector • Users are routed to an appropriate content server based on their geographic / network proximity and content server load. • Problems • This scheme requires limiting caching (i.e., low TTL) and increases load on DNS infrastructure. • Most end-users are using their ISP's recursive name servers. This hides the user's original location and decreases the accuracy of DNS-based routing.

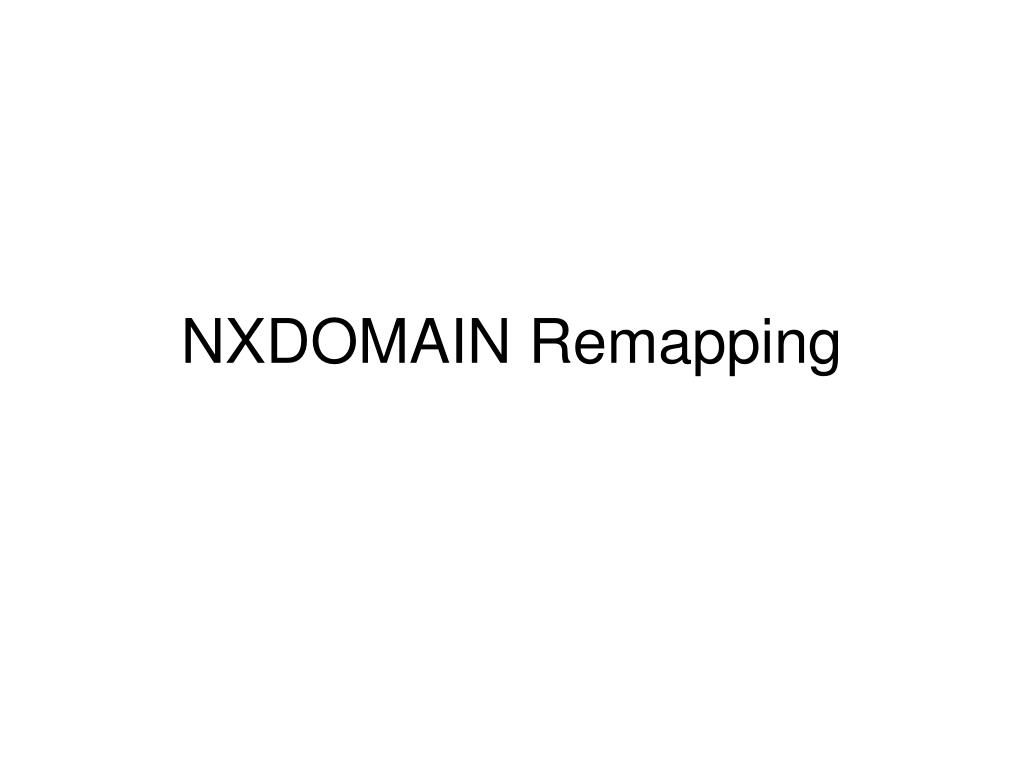

  9. NXDOMAIN Remapping

  10. NXDOMAIN Remapping Expected Causes of NXDOMAIN: • Typo (e.g., www.goglee.com) • Broken Link • Hardware or Software Error What should happen: • Browser catches bad domain name: “Error page”  • E-mail - “bounced e-mail”

  11. What you should see Googler.com

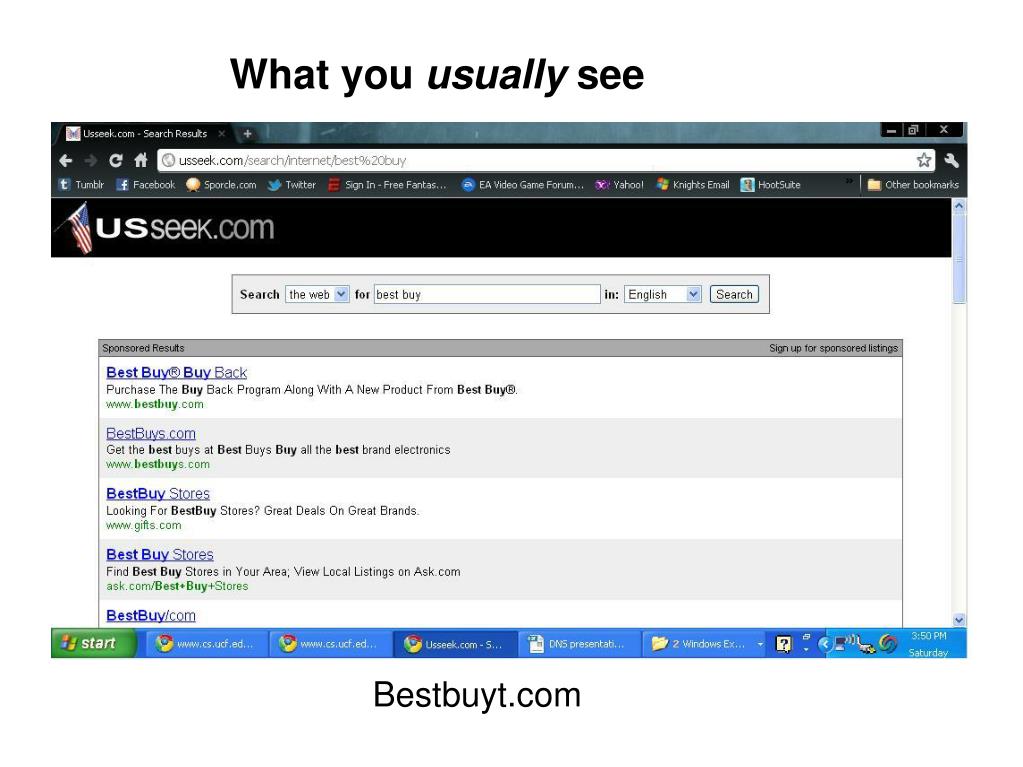

  12. What you usually see Bestbuyt.com

  13. A Growing Problem Many major ISPs' DNS servers (e.g., Comcast) and some public DNS servers (e.g., OpenDNS) redirect users to these spammy search pages. VeriSign example (2006): Added a wild card on top of the .com zone Prevented NXDOMAIN returns. Any non-existent domain, regardless of DNS servers used, was redirected to SiteFinder's website.

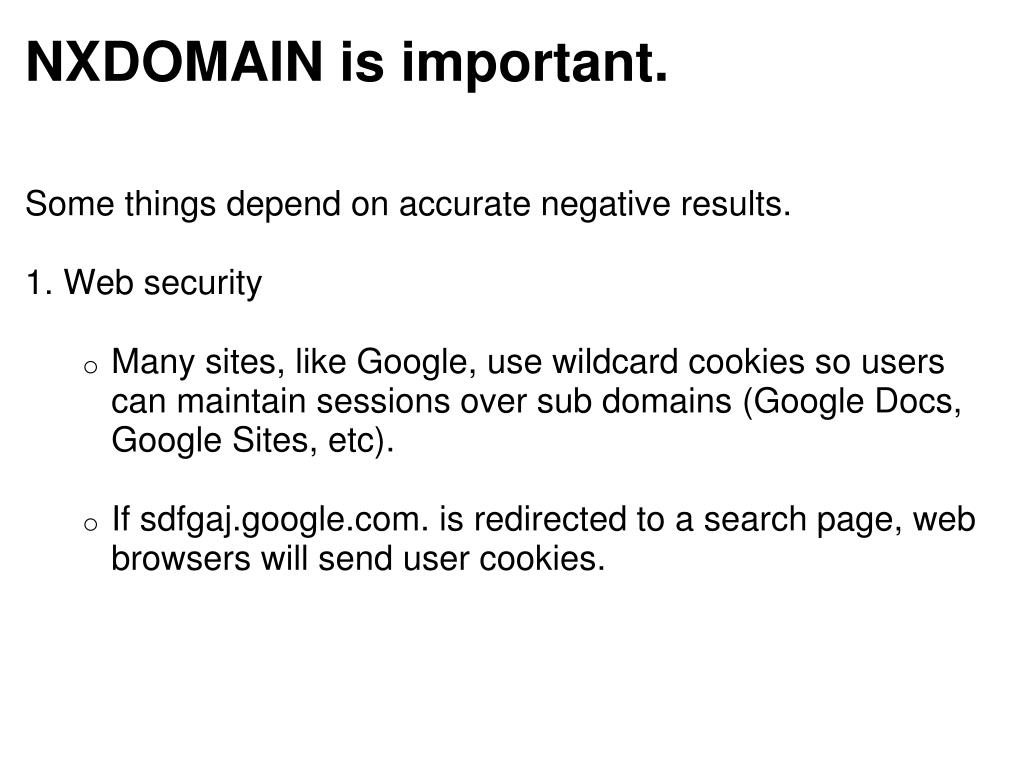

  14. NXDOMAIN is important. Some things depend on accurate negative results. 1. Web security • Many sites, like Google, use wildcard cookies so users can maintain sessions over sub domains (Google Docs, Google Sites, etc). • If sdfgaj.google.com. is redirected to a search page, web browsers will send user cookies.

  15. NXDOMAIN is important. Some things depend on accurate negative results. 1. Web security, continued • In 2008, Dan Kaminsky found a cross-site scripting vulnerability in Earthlink's search page. • Earthlink customers were vulnerable to HTML or Javascript injection on arbitrary domain names because of NXDOMAIN hijacking.

  16. NXDOMAIN is important. Some things depend on accurate negative results. 2. E-mail (SMTP) • If a MX (mail exchange) lookup returns no results, a SMTP server will fall back to a standard A record lookup.1 • These DNS requests are indistinguishable from, say, web browsers' requests. The request will be redirected to a search page. • SMTP server will attempt to send e-mail to the wrong IP address. 1 See RFC 5321, section 5.1.

  17. Standard Bad Practices In 2009, there was an effort by national cable companies to standardize DNS redirection services.2 The standard outlines an opt-out DNS redirect search engine / malware filter and a "Legally-Mandated DNS Redirect Domain List" for "illegal domains." 2"Recommended Configuration and Use of DNS Redirect by Service Providers"http://tools.ietf.org/html/draft-livingood-dns-redirect-00

  18. Solution: DNSSEC

  19. A Rescue Being Thought of DNSSEC is a set of protocol enhancements for DNS. Allows zones to be signed and verified by public-key encryption and signed using private keys by zone editors. All query responses, including NXDOMAIN, are signed. This prevents man-in-the-middle attacks. But, right now, most resolvers are configured to accept unsigned responses. DNSSEC needs wider adoption.

  20. A Rescue Being Thought of DNSSEC won't prevent CDNs' DNS-based routing schemes as it is possible to have a collection of signed, authortative responses.

  21. Directory Services

  22. Directory Services Some web browsers attempt to auto-complete DNS queries as a user types in the URL bar. If a user types "www.cnn.com":     www.cnn     www.cnn     www.cnn -> .cn is the ccTLD for China, so this is a valid domain.     www.cnn.com     www.cnn.com     www.cnn.com -> .co is the ccTLD for Columbia. This causes unnecessary traffic to www.cn and cnn.co name servers. Domains are not in an ideal format for these directory lookups.      E.g., .com.cnn.www
