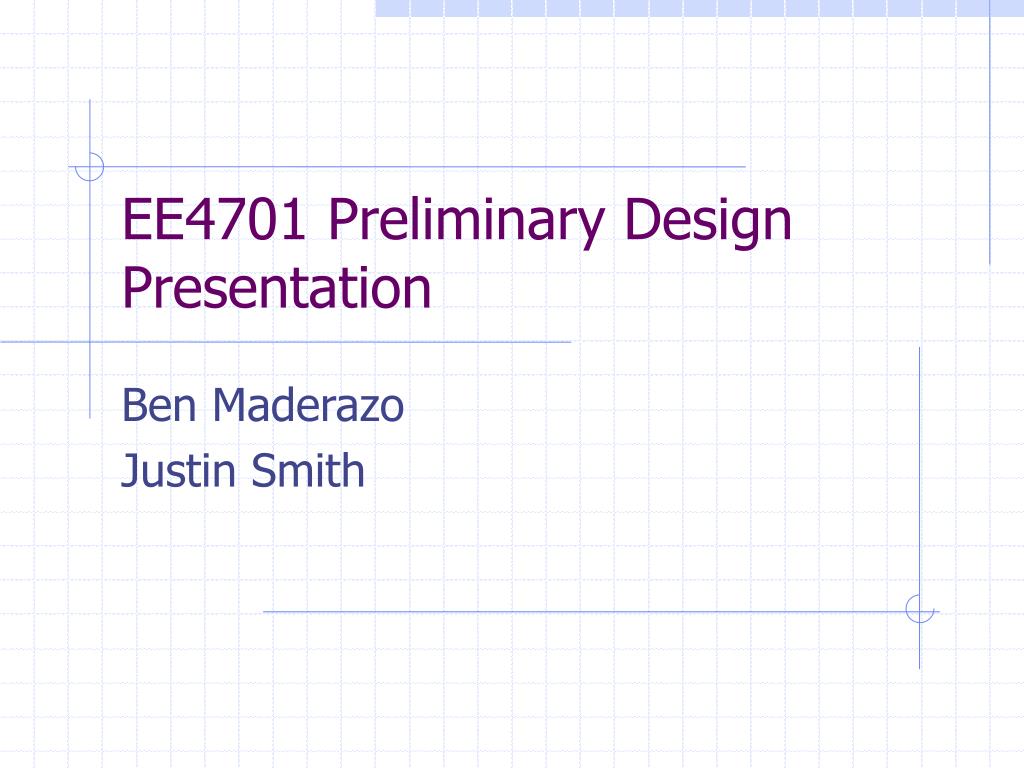

  1. EE4701 Preliminary Design Presentation Ben Maderazo Justin Smith

  2. Presentation Goals • Present our own requirements analysis and design decisions for critique • Defend our decisions and explain why our design will perform better than others • Prove that we are ready to begin assembling and testing our robot for competition

  3. Team Goals • Apply KISS principle in hardware implementation to save time • Spend more time on algorithm development and application than hardware • Win competition

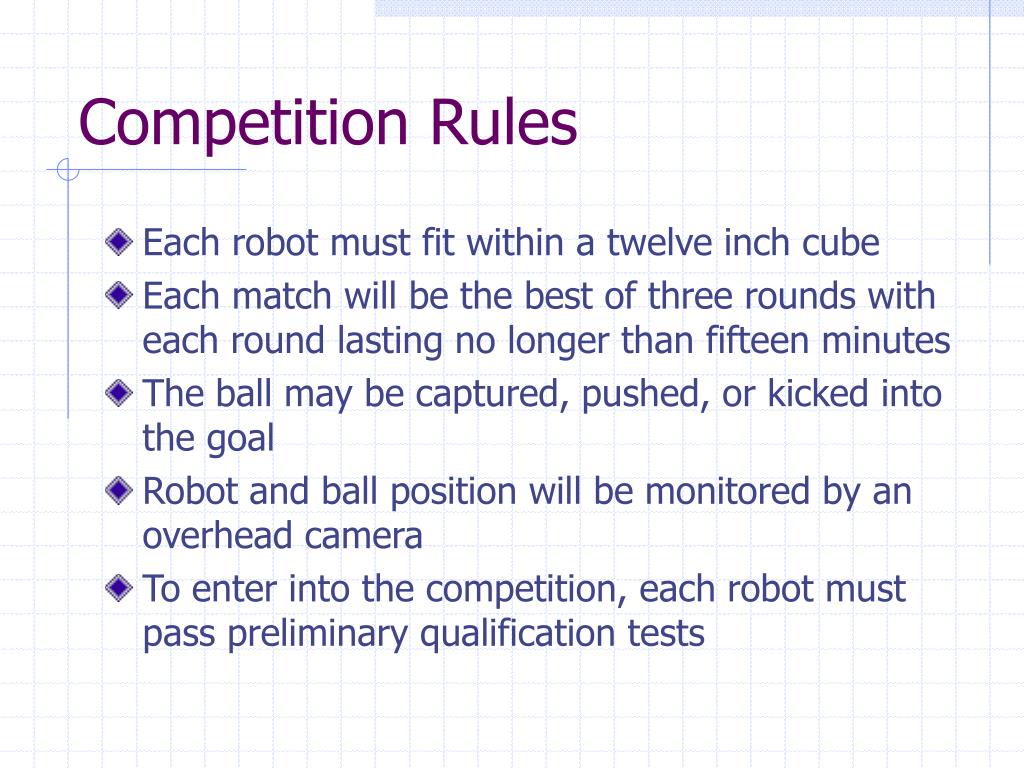

  4. Competition Rules • Each robot must fit within a twelve inch cube • Each match will be the best of three rounds with each round lasting no longer than fifteen minutes • The ball may be captured, pushed, or kicked into the goal • Robot and ball position will be monitored by an overhead camera • To enter into the competition, each robot must pass preliminary qualification tests

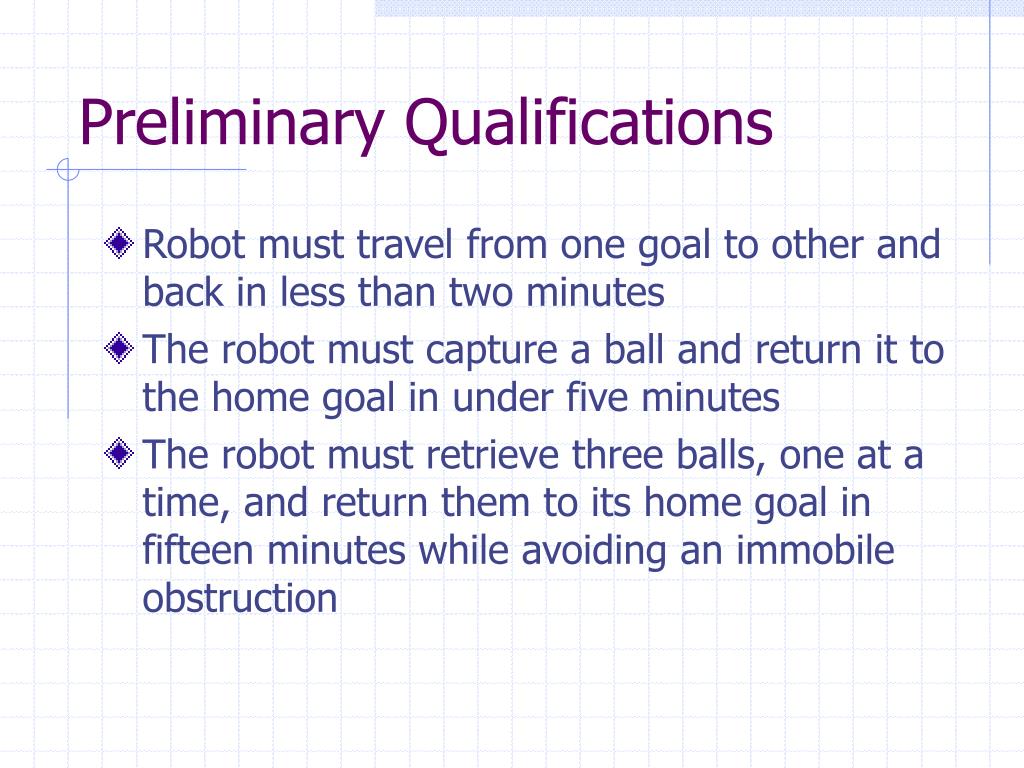

  5. Preliminary Qualifications • Robot must travel from one goal to other and back in less than two minutes • The robot must capture a ball and return it to the home goal in under five minutes • The robot must retrieve three balls, one at a time, and return them to its home goal in fifteen minutes while avoiding an immobile obstruction

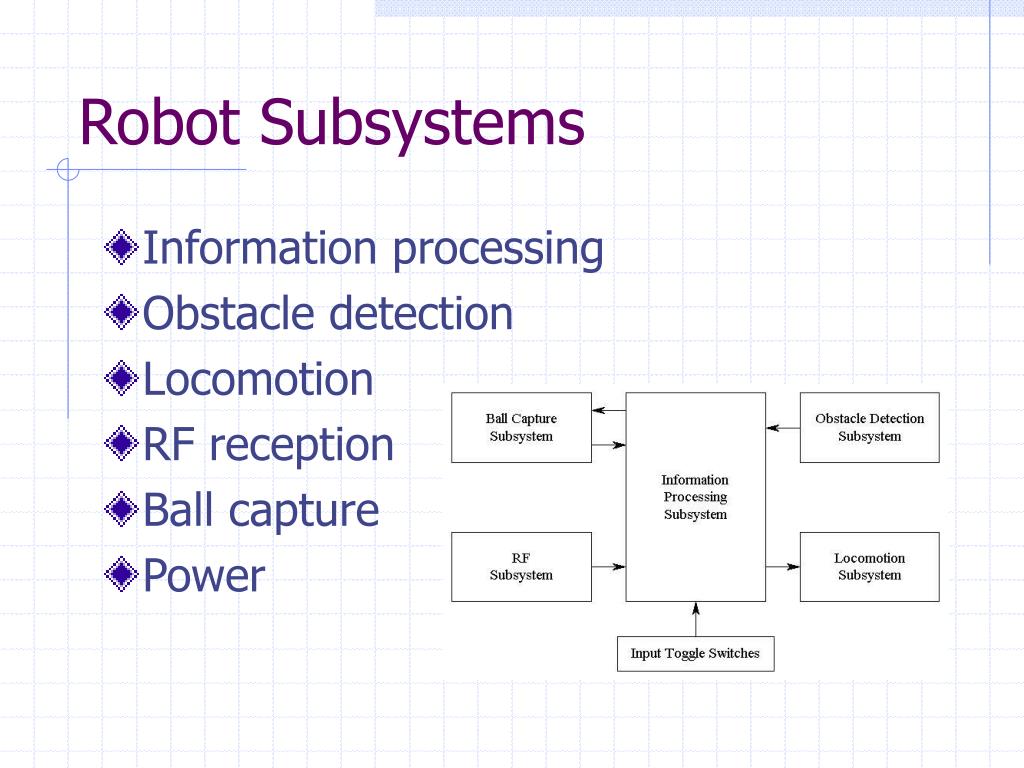

  6. Robot Subsystems • Information processing • Obstacle detection • Locomotion • RF reception • Ball capture • Power

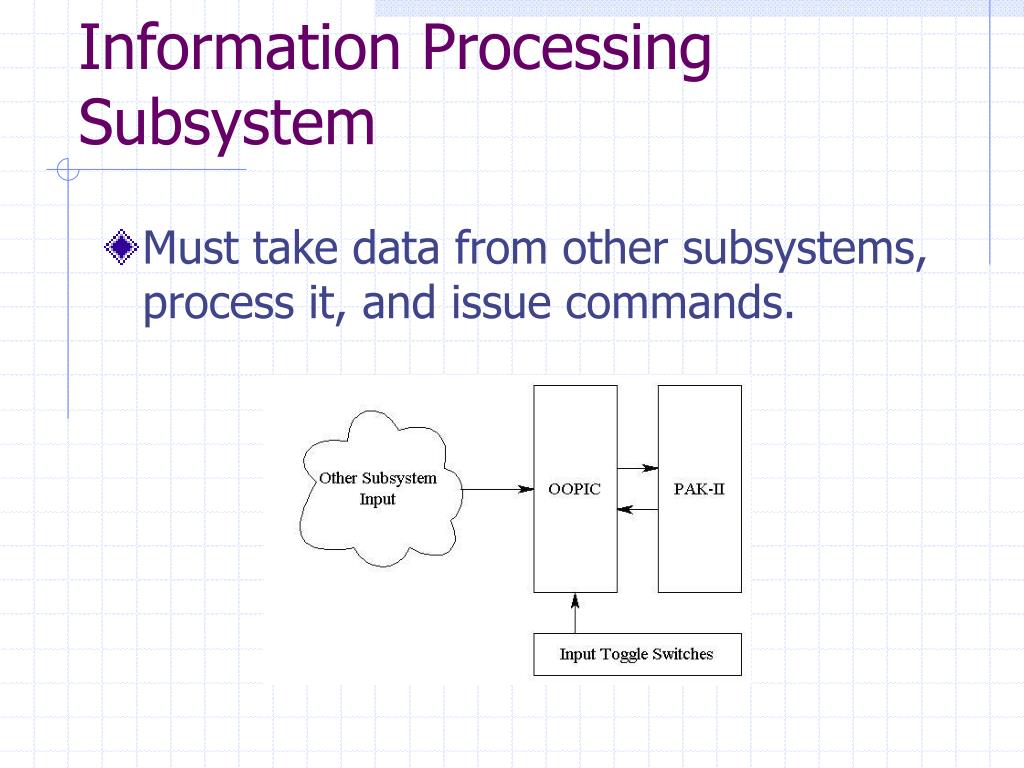

  7. Information Processing Subsystem • Must take data from other subsystems, process it, and issue commands.

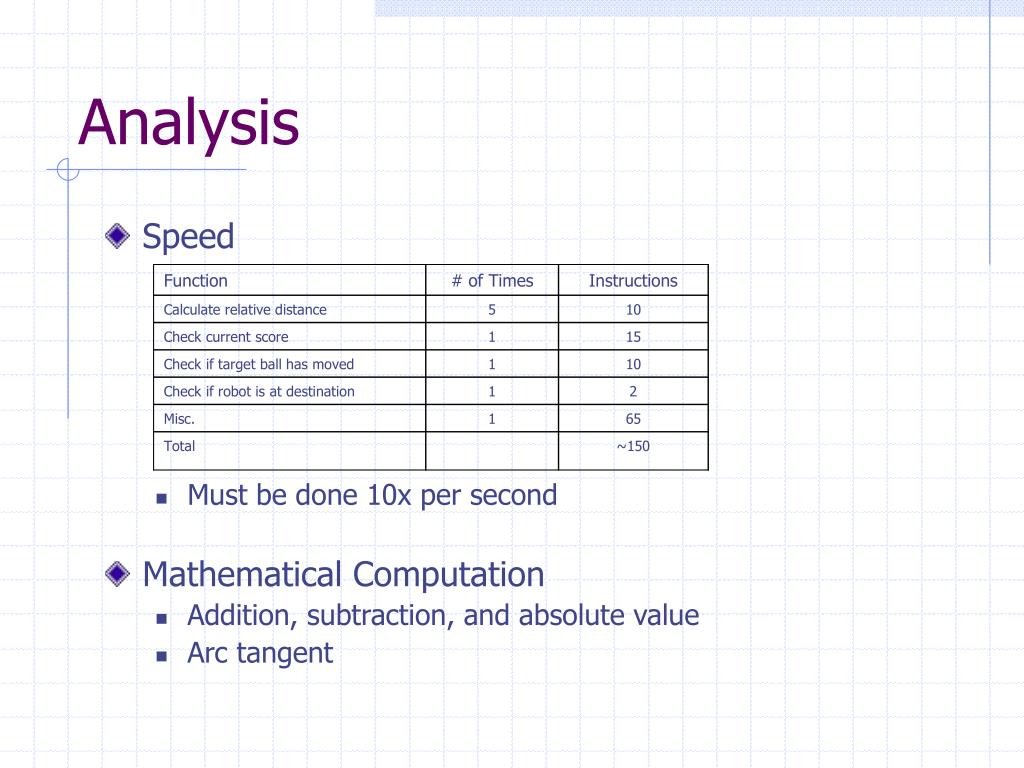

  8. Analysis • Speed • Must be done 10x per second • Mathematical Computation • Addition, subtraction, and absolute value • Arc tangent

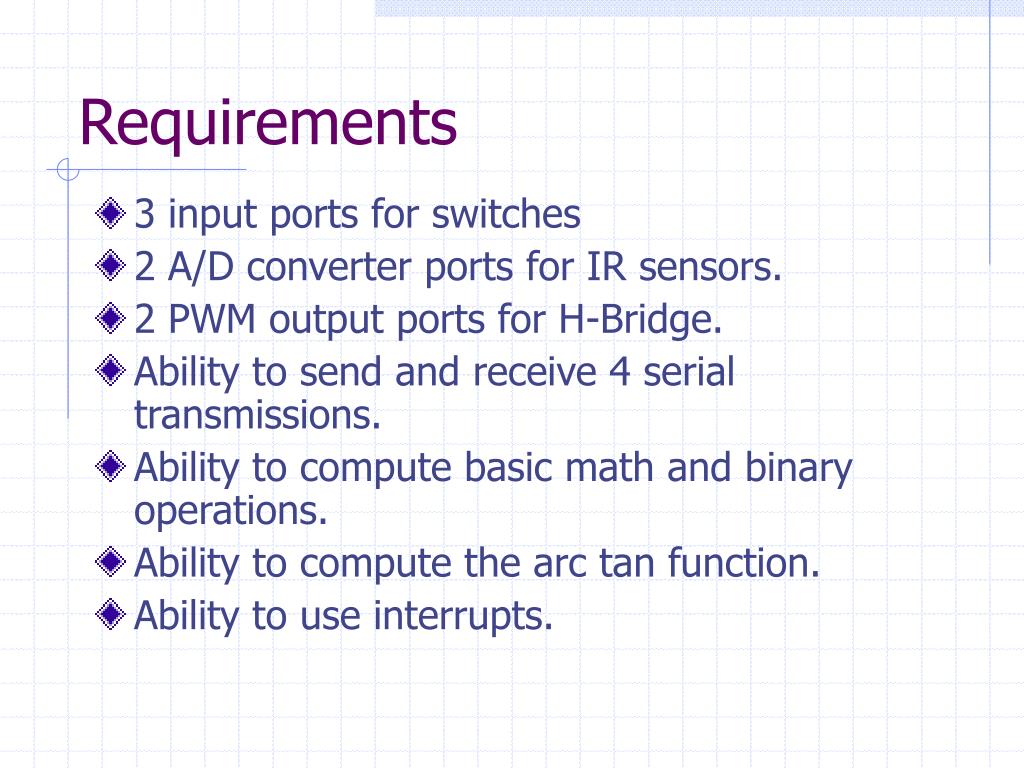

  9. Requirements • 3 input ports for switches • 2 A/D converter ports for IR sensors. • 2 PWM output ports for H-Bridge. • Ability to send and receive 4 serial transmissions. • Ability to compute basic math and binary operations. • Ability to compute the arc tan function. • Ability to use interrupts.

  10. OOPIC • Advantages • Virtual Circuits • Interrupts • Object Oriented Programming • Predefined objects • Unlimited serial ports • Disadvantages • Slower than the PIC

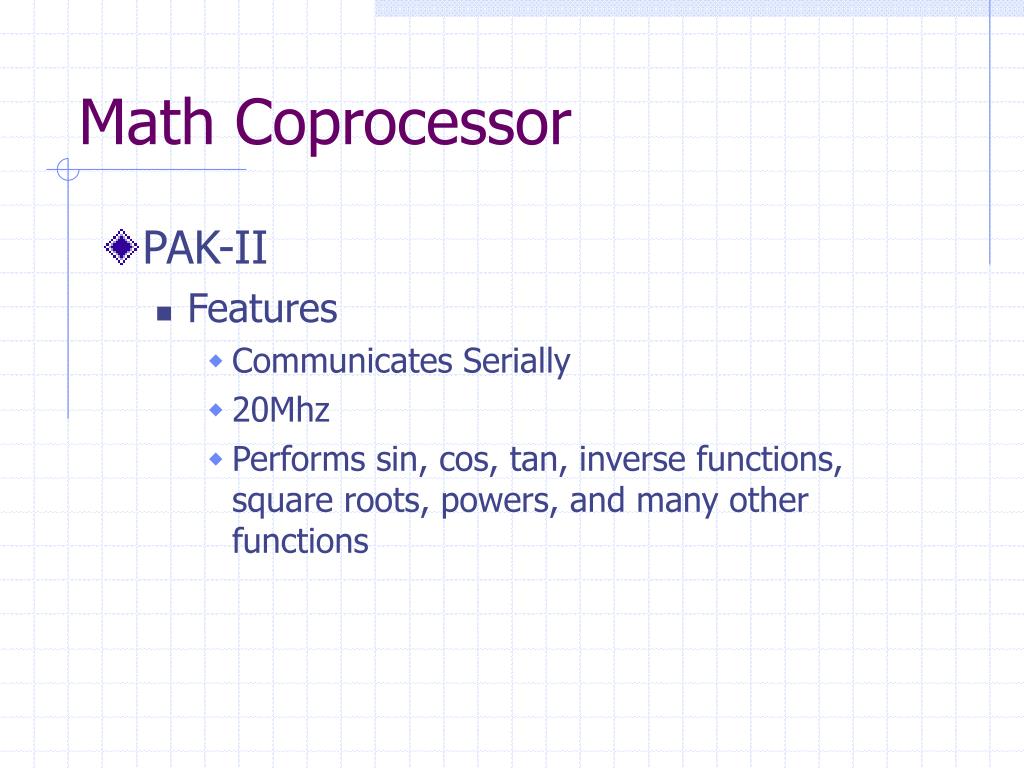

  11. Math Coprocessor • PAK-II • Features • Communicates Serially • 20Mhz • Performs sin, cos, tan, inverse functions, square roots, powers, and many other functions

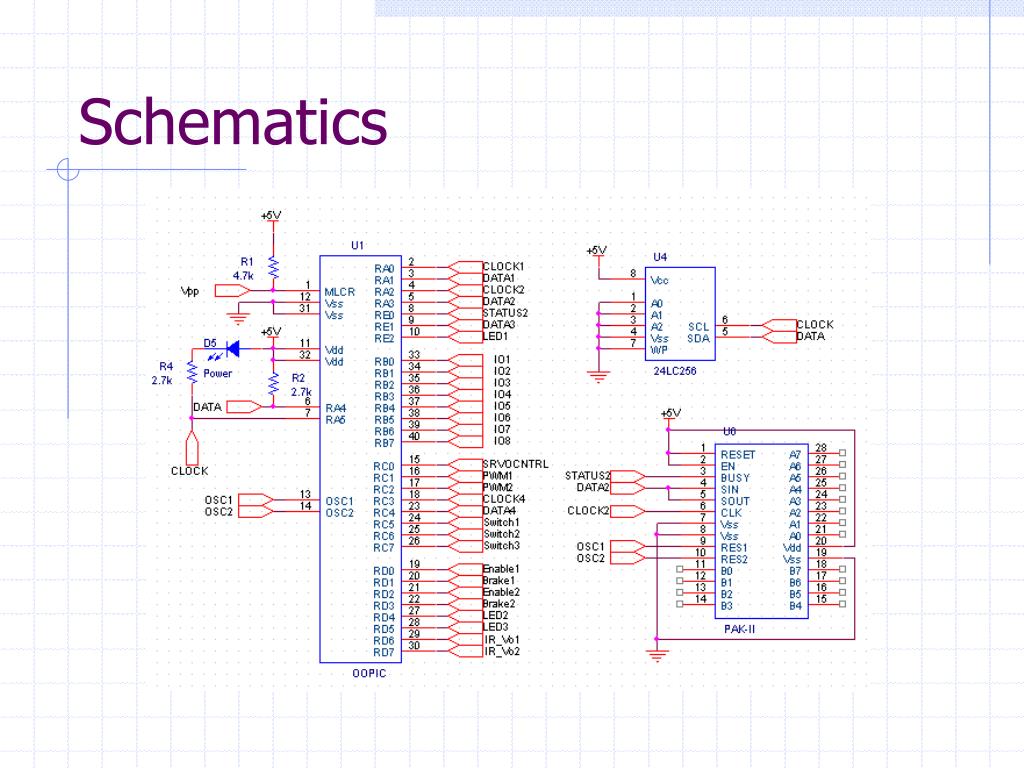

  12. Schematics

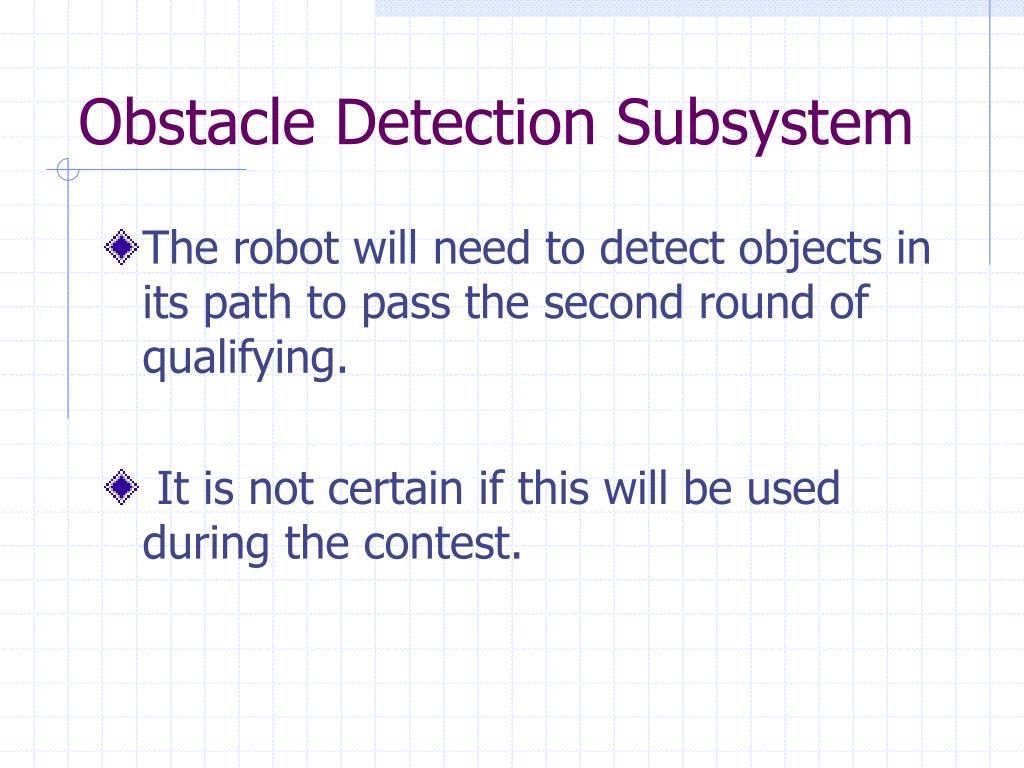

  13. Obstacle Detection Subsystem • The robot will need to detect objects in its path to pass the second round of qualifying. • It is not certain if this will be used during the contest.

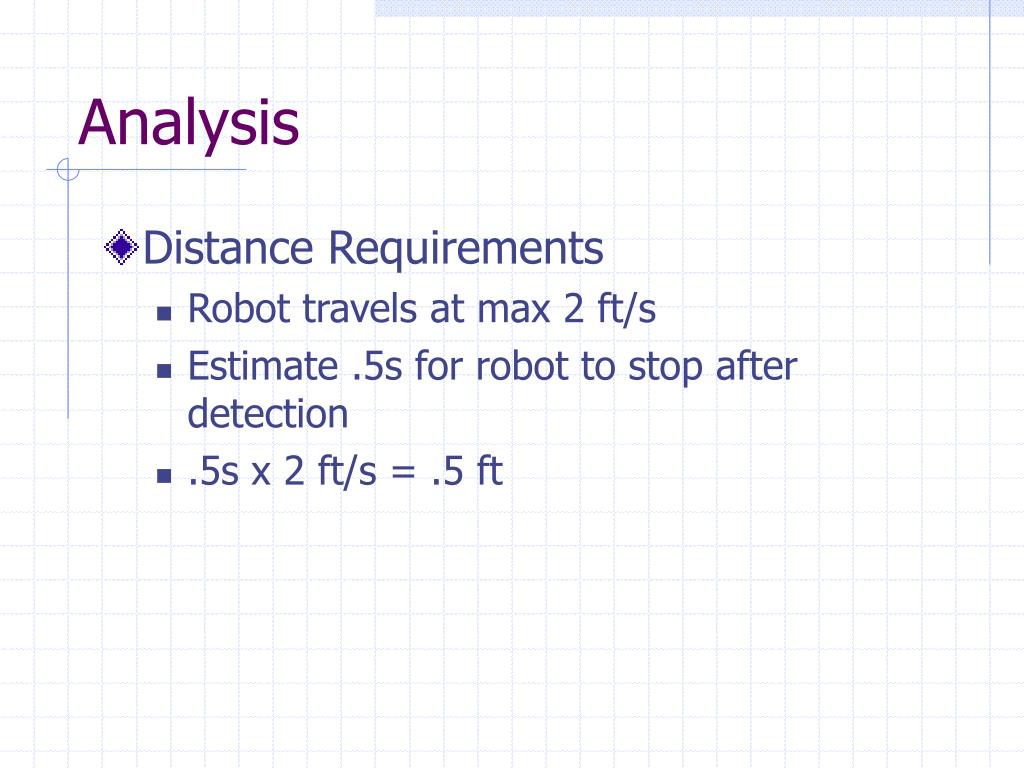

  14. Analysis • Distance Requirements • Robot travels at max 2 ft/s • Estimate .5s for robot to stop after detection • .5s x 2 ft/s = .5 ft

  15. IR Detector • Advantages • Long Distance • ~4” to 3’ • Disadvantages • Higher power • Ability to test at set times to save power

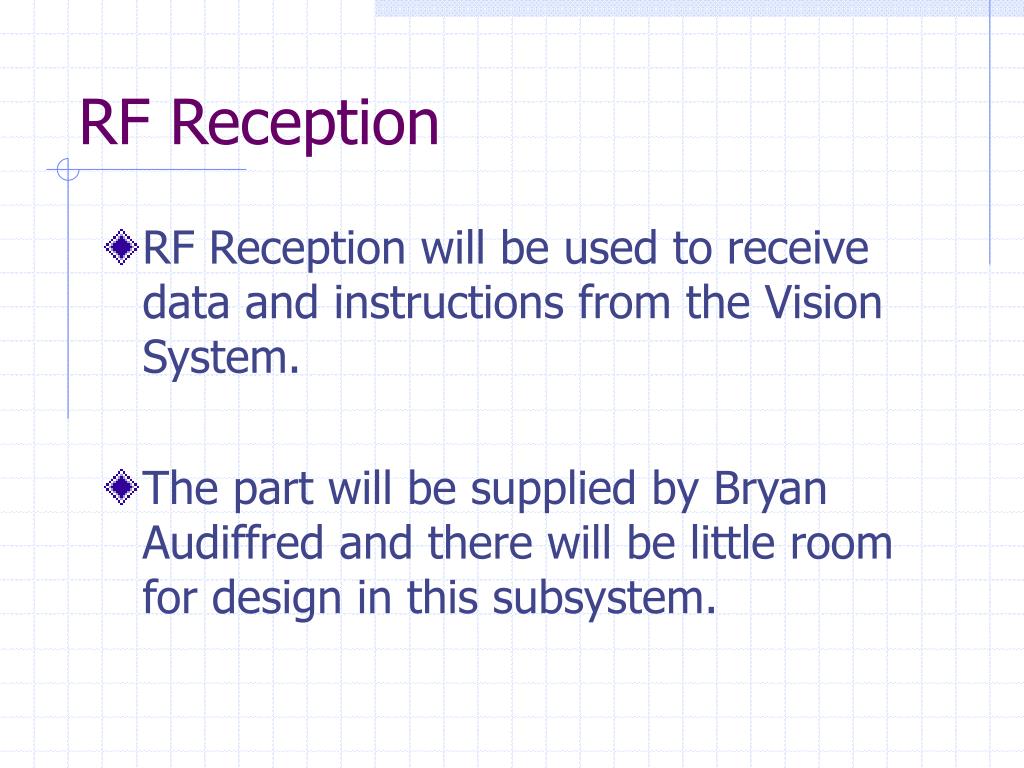

  16. RF Reception • RF Reception will be used to receive data and instructions from the Vision System. • The part will be supplied by Bryan Audiffred and there will be little room for design in this subsystem.

  17. Ball Capture • The robot will be required to capture a ball, know if the capture was successful, and secure it.

  18. Requirements • Can only control one ball at a time • Must be able to effectively capture and release balls • Must be able to provide feedback of success or failure

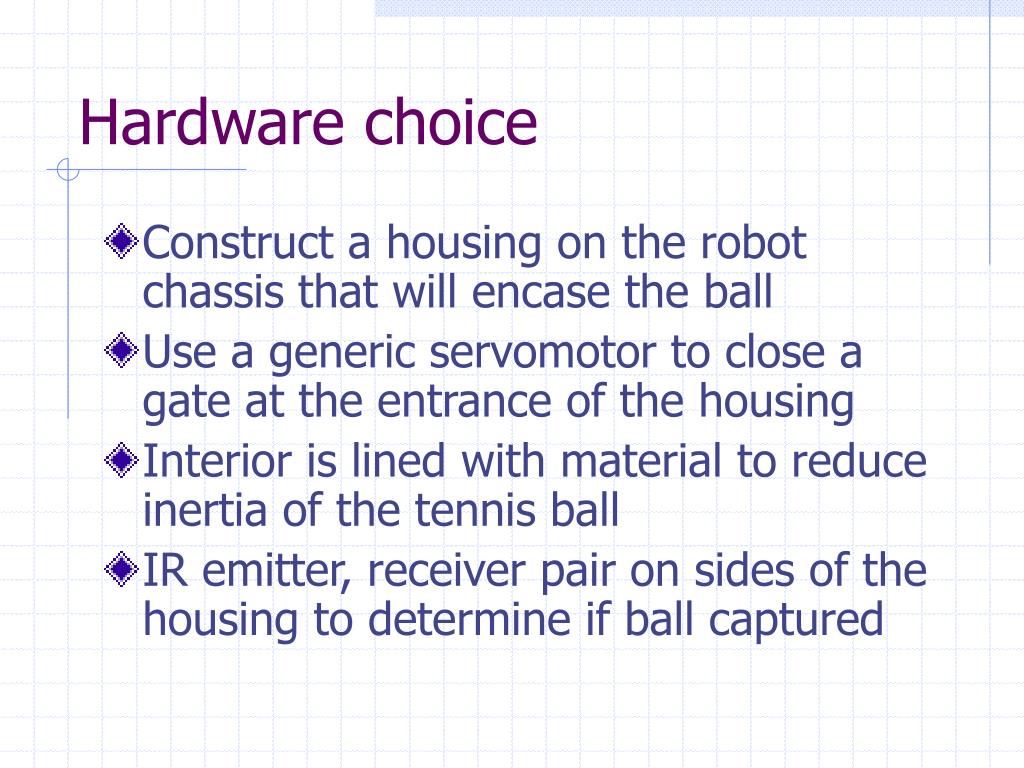

  19. Hardware choice • Construct a housing on the robot chassis that will encase the ball • Use a generic servomotor to close a gate at the entrance of the housing • Interior is lined with material to reduce inertia of the tennis ball • IR emitter, receiver pair on sides of the housing to determine if ball captured

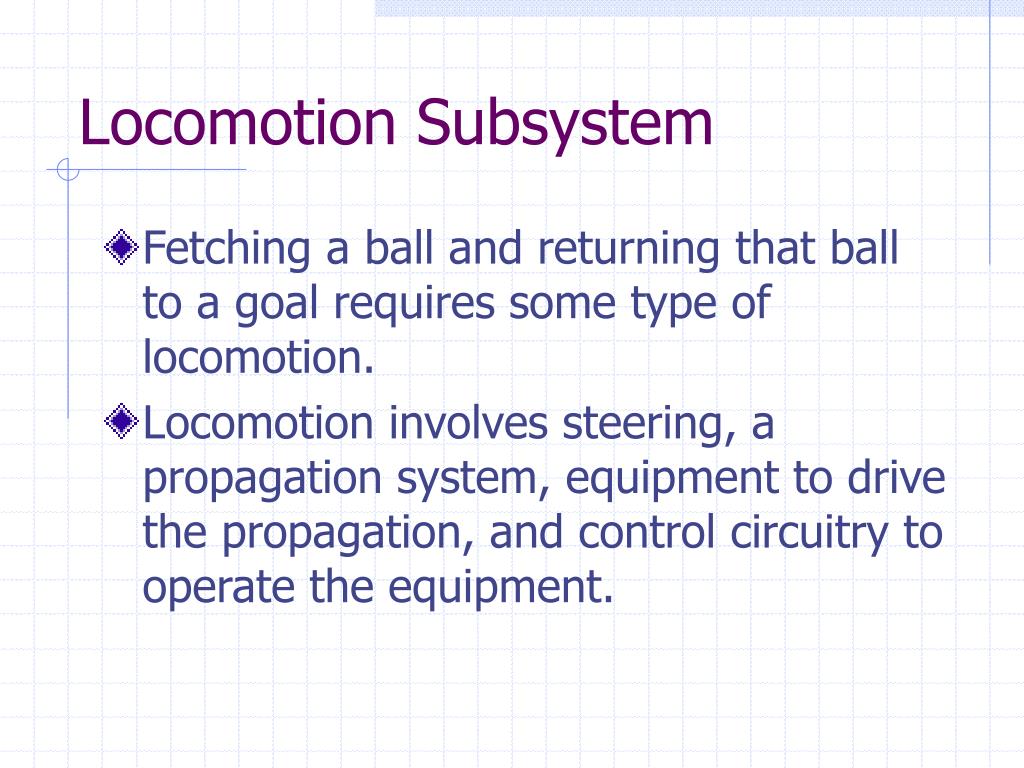

  20. Locomotion Subsystem • Fetching a ball and returning that ball to a goal requires some type of locomotion. • Locomotion involves steering, a propagation system, equipment to drive the propagation, and control circuitry to operate the equipment.

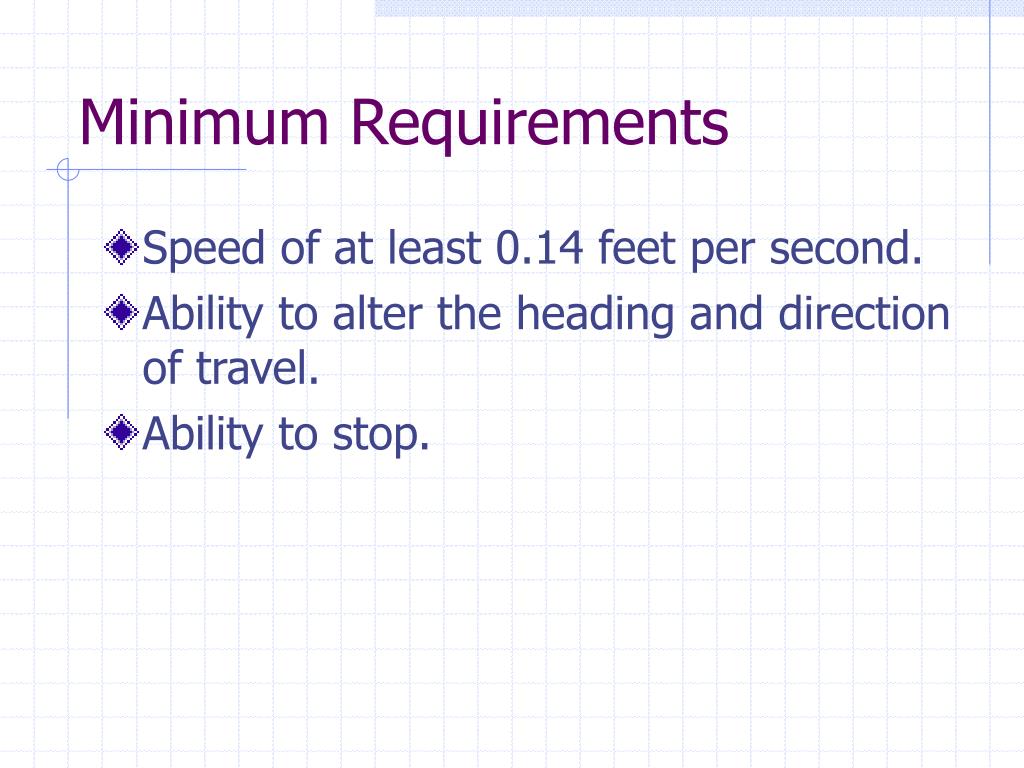

  21. Minimum Requirements • Speed of at least 0.14 feet per second. • Ability to alter the heading and direction of travel. • Ability to stop.

  22. Locomotion: Introduction to Steering • To compete well in the 6’ x 8’ area, robots will need a tight turning radius. • The chassis configuration must also be taken into account when analyzing the problem of steering.

  23. Locomotion: Steering Analysis • Robot must be able to rotate 360° without changing its position • Robot must be able to rotate a minimum of 3° at a time

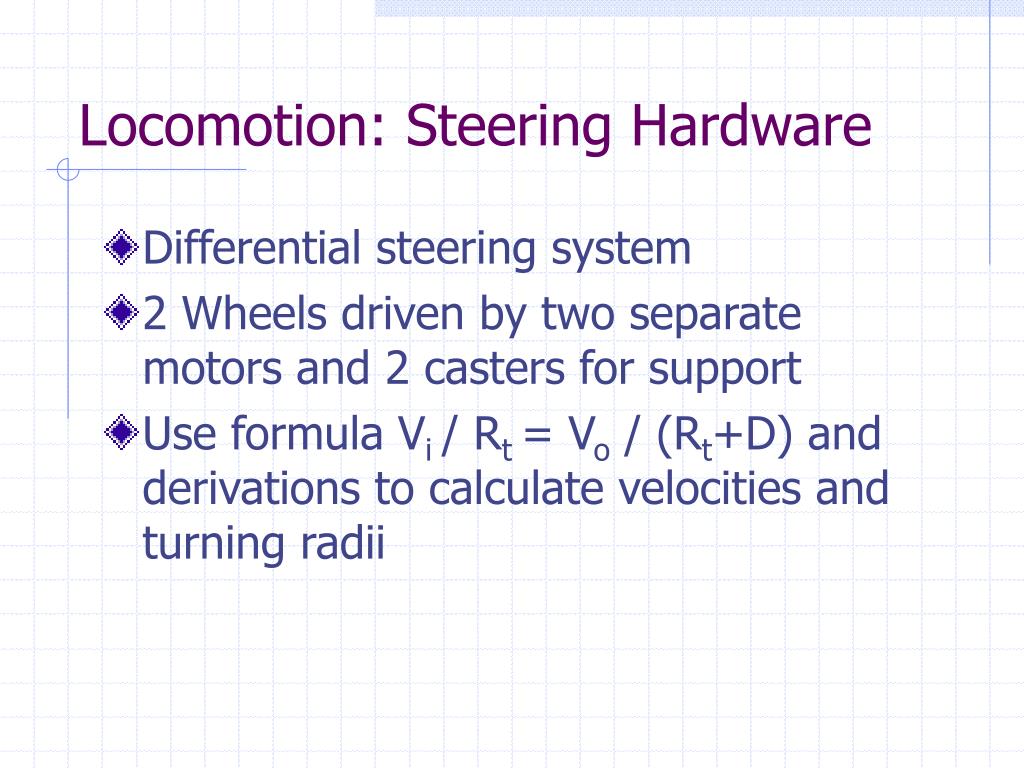

  24. Locomotion: Steering Hardware • Differential steering system • 2 Wheels driven by two separate motors and 2 casters for support • Use formula Vi / Rt = Vo / (Rt+D) and derivations to calculate velocities and turning radii

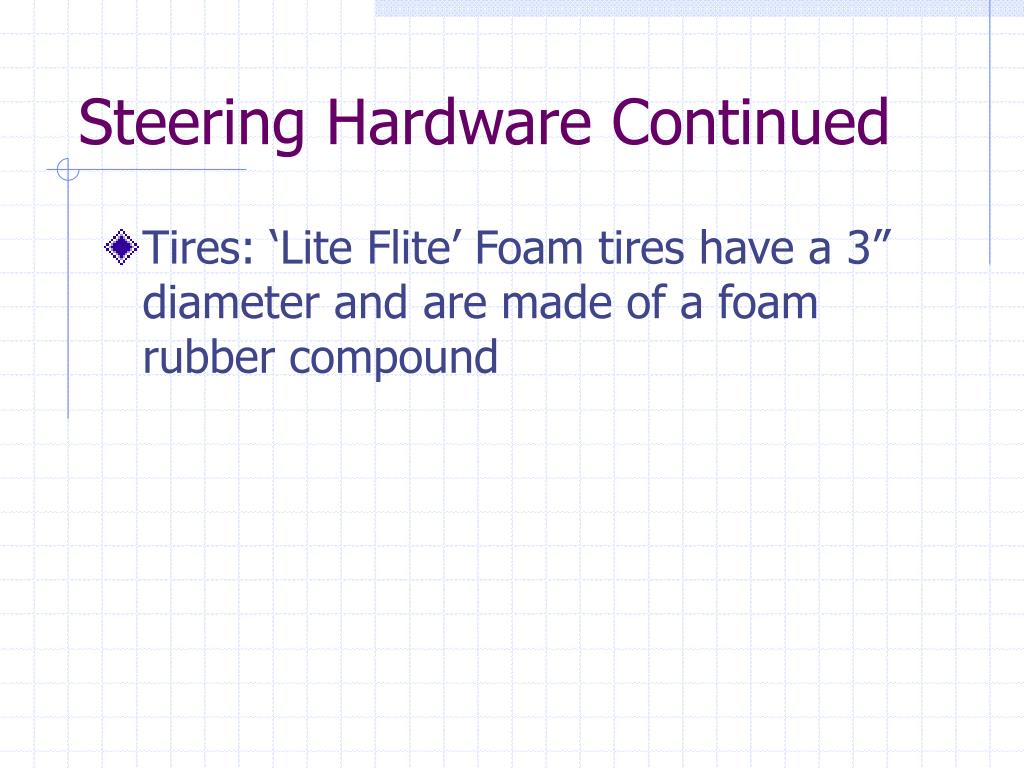

  25. Steering Hardware Continued • Tires: ‘Lite Flite’ Foam tires have a 3” diameter and are made of a foam rubber compound

  26. Chassis Schematics

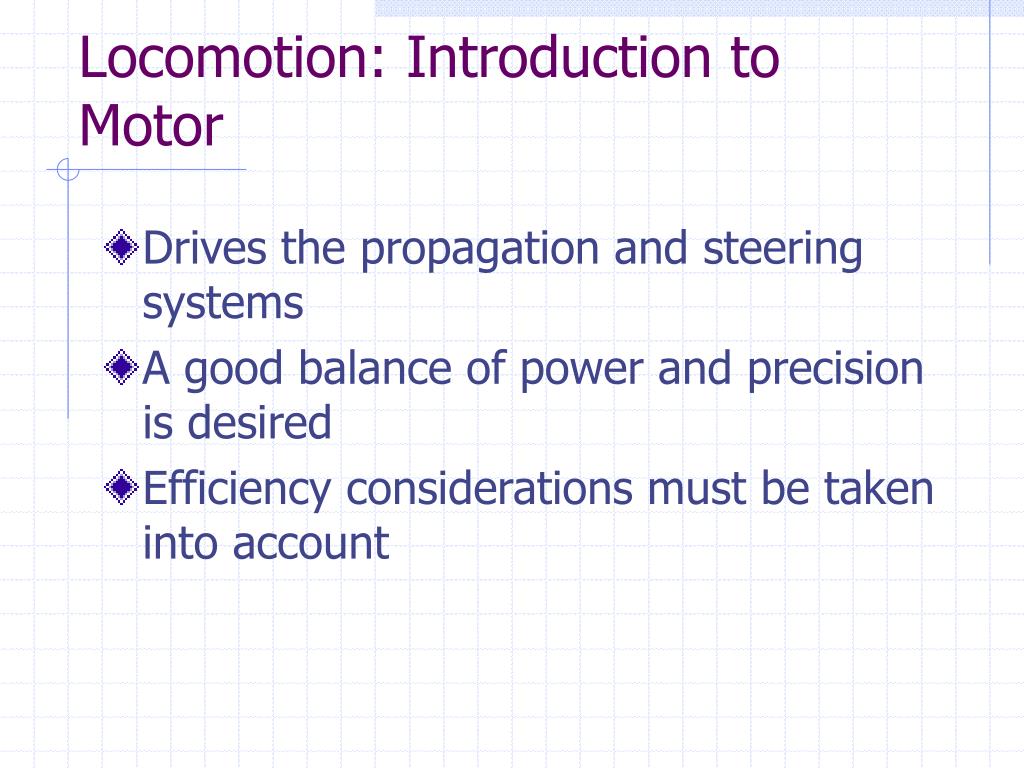

  27. Locomotion: Introduction to Motor • Drives the propagation and steering systems • A good balance of power and precision is desired • Efficiency considerations must be taken into account

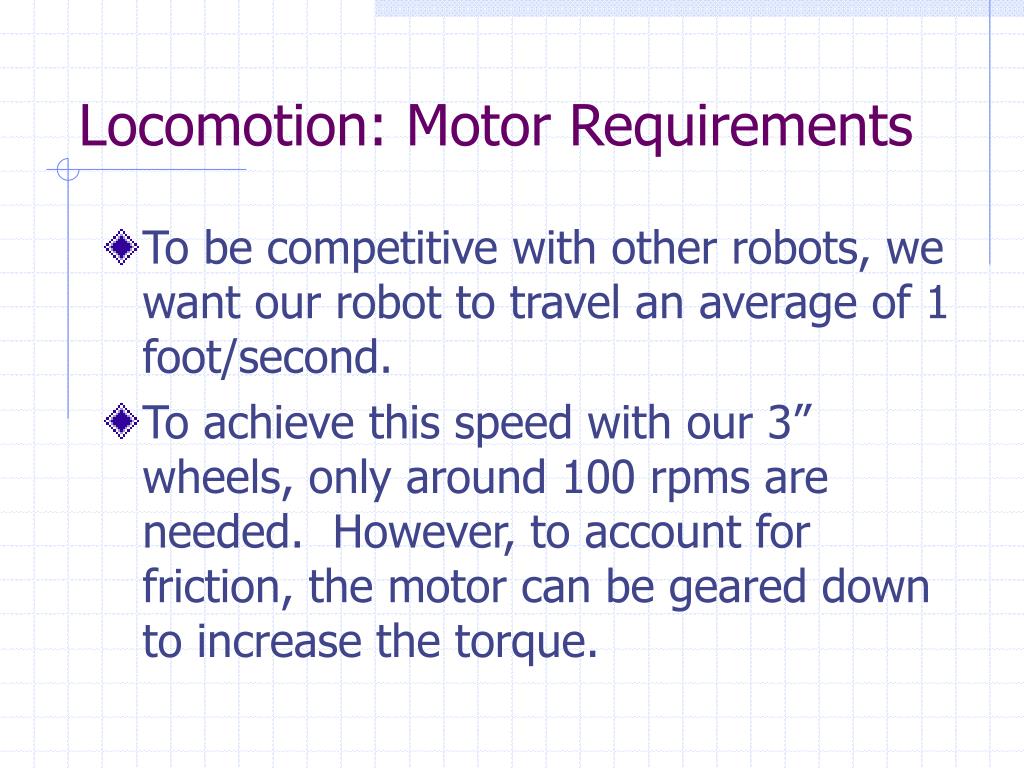

  28. Locomotion: Motor Requirements • To be competitive with other robots, we want our robot to travel an average of 1 foot/second. • To achieve this speed with our 3” wheels, only around 100 rpms are needed. However, to account for friction, the motor can be geared down to increase the torque.

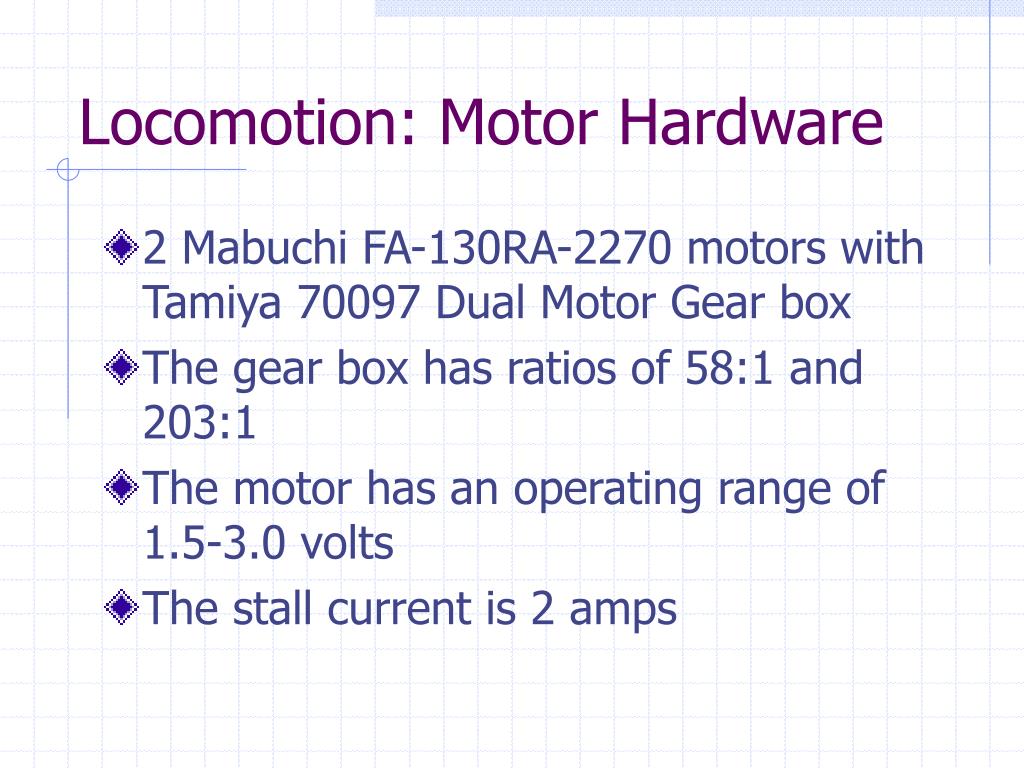

  29. Locomotion: Motor Hardware • 2 Mabuchi FA-130RA-2270 motors with Tamiya 70097 Dual Motor Gear box • The gear box has ratios of 58:1 and 203:1 • The motor has an operating range of 1.5-3.0 volts • The stall current is 2 amps

  30. Motor Hardware Continued • At max efficiency, the speed is 6990 rpms. Using the 58:1 gear setting and 3” wheels, the projected speed is 1.6 feet per second. Our goal of 1 foot per second is easily accomplished with this motor and gearbox combo.

  31. Motor Schematic

  32. Locomotion: Introduction to Motor Driver • External circuitry is needed to interface the motors with the mcu • This circuitry helps the motors run efficiently and safely • Allows motor to operate at various RPMs as well as forward and reverse

  33. Locomotion: Motor Drive Requirements • Drive two motors simultaneously • Must be able to output from 1.5 to 3 volts • Must be able to output up to 2 amps per motor at stall torque

  34. Locomotion: Motor Driver Hardware • Lynxmotion Dual H-bridge • All that is needed is to hook up mcu input lines, motor output lines, motor power supply, and 5V Vcc

  35. Power: Introduction • Power efficiency much more crucial in battery powered devices • Batteries can add significant weight • Robot will need adequate voltage and amp output • Need batteries to power MCU and motor

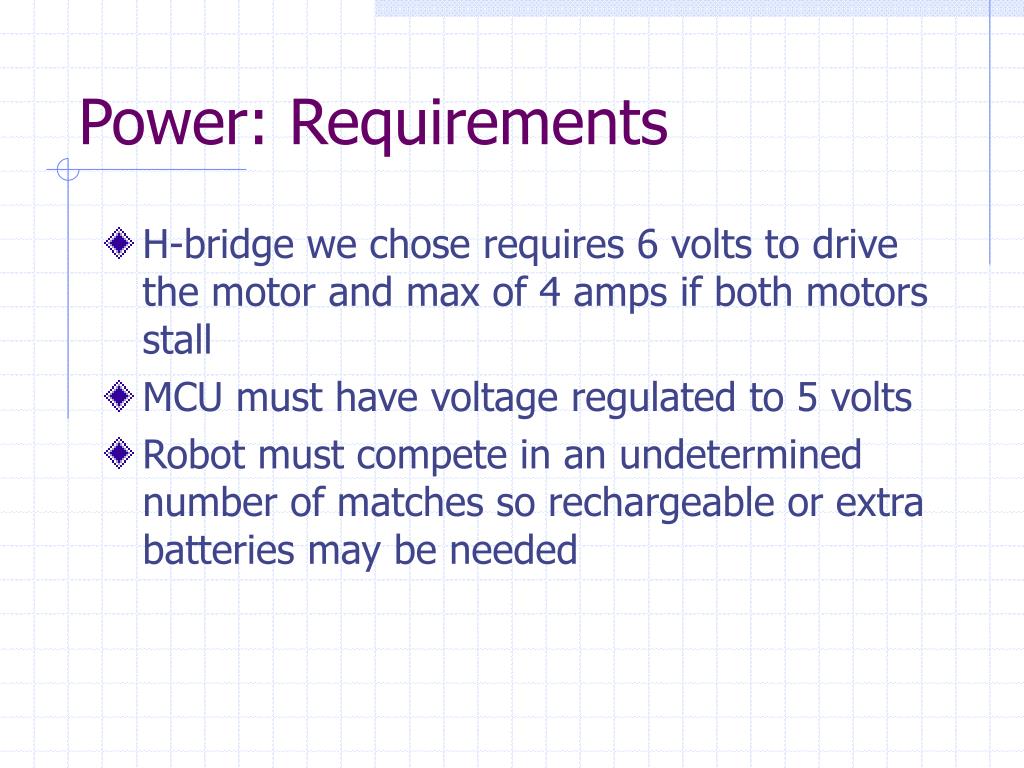

  36. Power: Requirements • H-bridge we chose requires 6 volts to drive the motor and max of 4 amps if both motors stall • MCU must have voltage regulated to 5 volts • Robot must compete in an undetermined number of matches so rechargeable or extra batteries may be needed

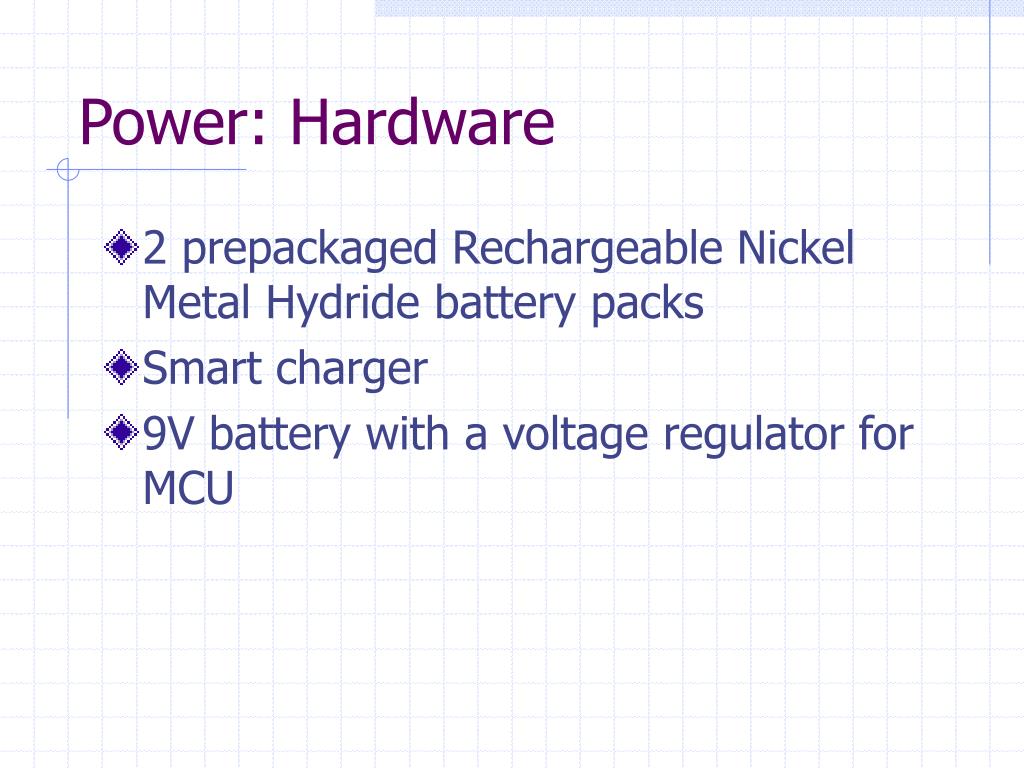

  37. Power: Hardware • 2 prepackaged Rechargeable Nickel Metal Hydride battery packs • Smart charger • 9V battery with a voltage regulator for MCU

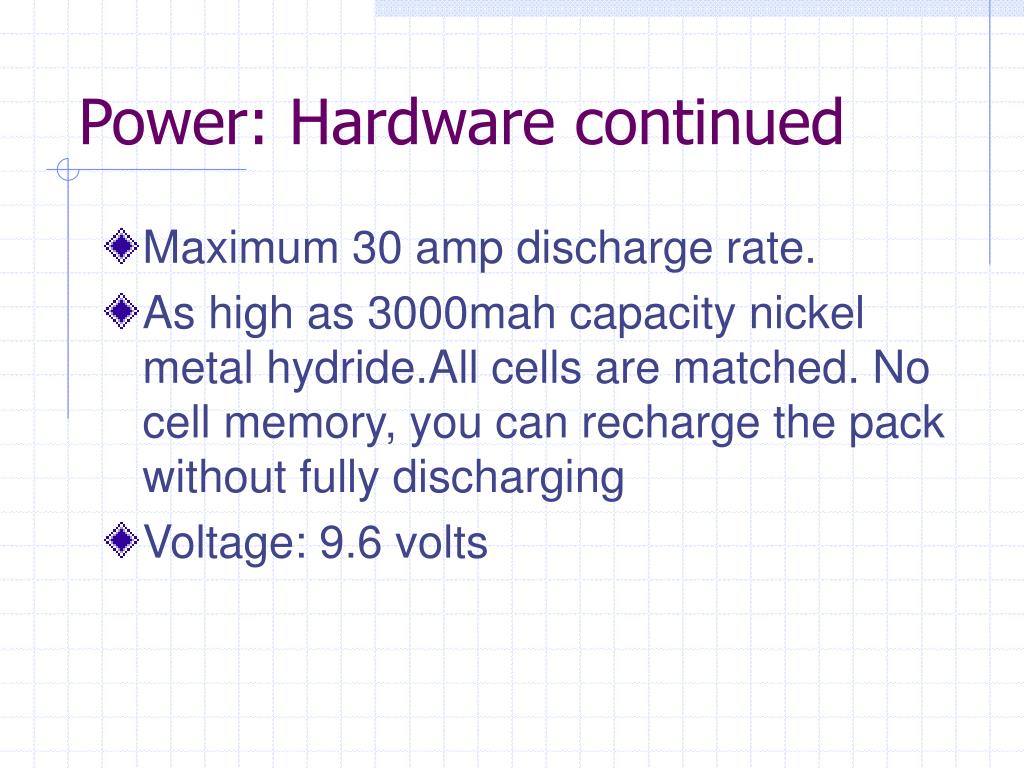

  38. Power: Hardware continued • Maximum 30 amp discharge rate. • As high as 3000mah capacity nickel metal hydride.All cells are matched. No cell memory, you can recharge the pack without fully discharging • Voltage: 9.6 volts

  39. Power: Hardware continued • 2000ma constant output current for any voltage battery pack • Charging current will reduce to trickle charging at 50mah when battery pack close to full, then green LED will be on • For 3000 mAh battery pack, charging time is about 90 minutes

  40. Battery Packs and Smart Charger

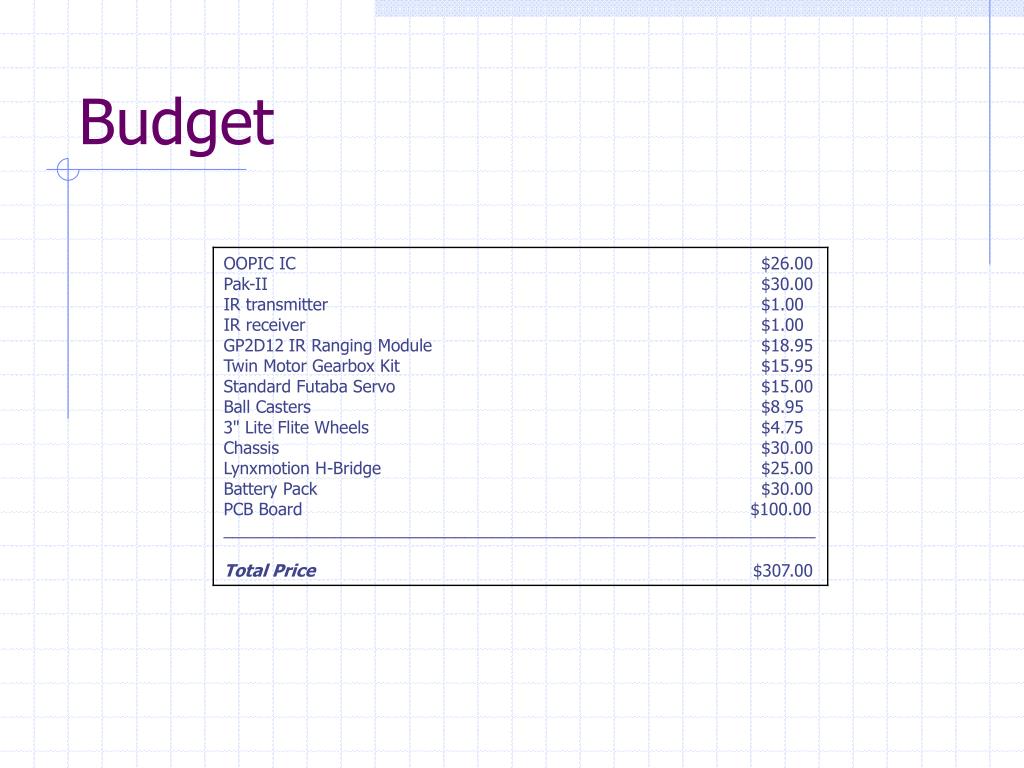

  41. Budget

  42. Main Process
