SystemReliability and Resilience and stuff
//Initialize customer and invoiceInitialize(customer, invoice);

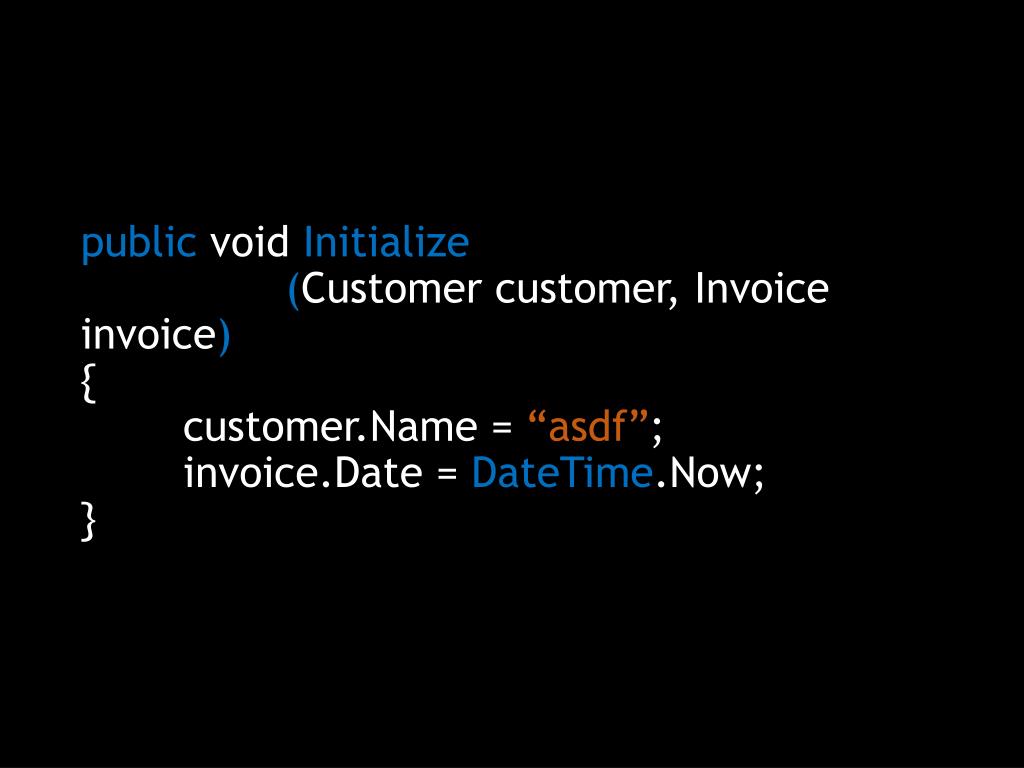

public void Initialize (Customer customer, Invoice invoice){customer.Name=“asdf”;invoice.Date =DateTime.Now;}

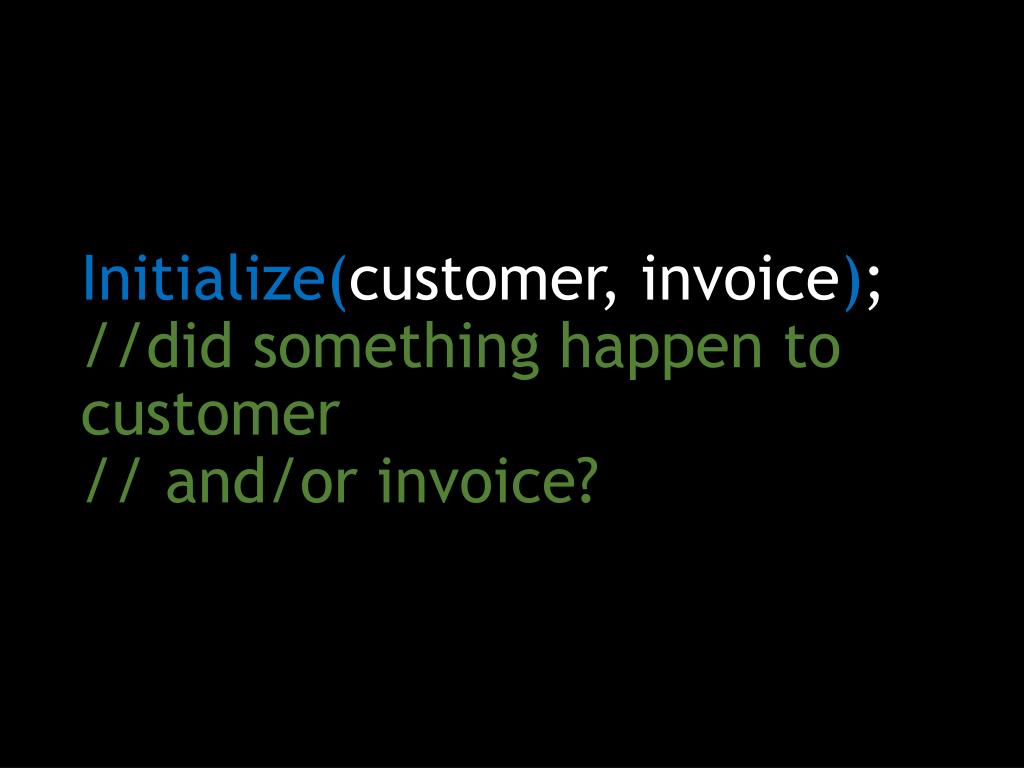

Initialize(customer, invoice);//did something happen to customer// and/or invoice?
customer.Name =InitNameFrom(customer, invoice);invoice.Date = InitDateFrom(customer, invoice);

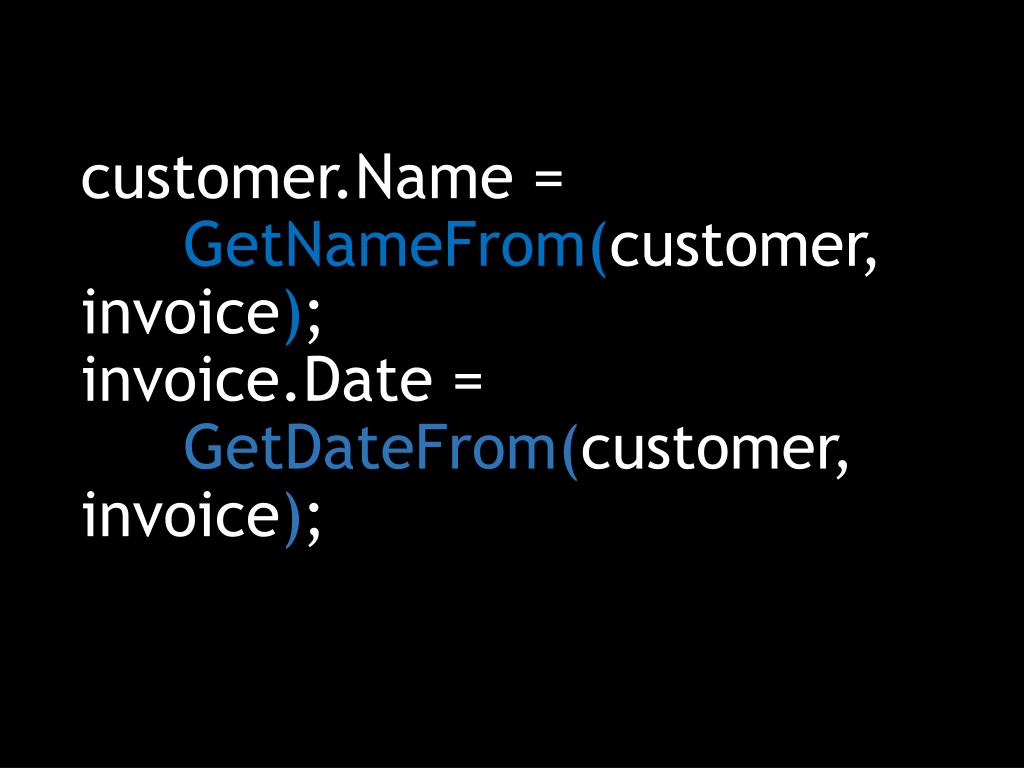

customer.Name =GetNameFrom(customer, invoice);invoice.Date = GetDateFrom(customer, invoice);
var results = Initialize(customer, invoice);customer.Name =results.Item1;invoice.Date = results.Item2;
public tuple<string, DateTime>Initialize(customer, invoice){ return new Tuple<string, DateTime> (“asdf”, DateTime.Now);}
public static boolTryParse (string s, outDateTime result)orpublic static tuple<bool, DateTime?>TryParse (string s)

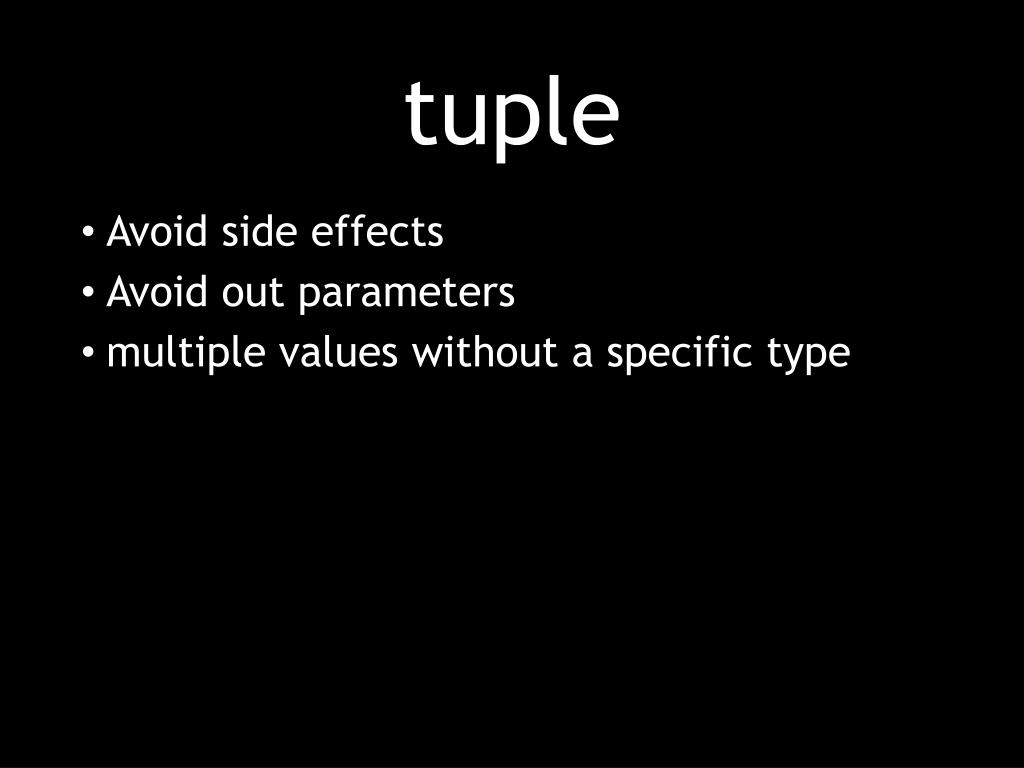

tuple • Avoid side effects • Avoid out parameters • multiple values without a specific type
private ILogger _logger;public MyClass(ILogger logger) {_logger = logger;}…if (_logger != null) {_logger.Debug(“it worked on my machine!”);}

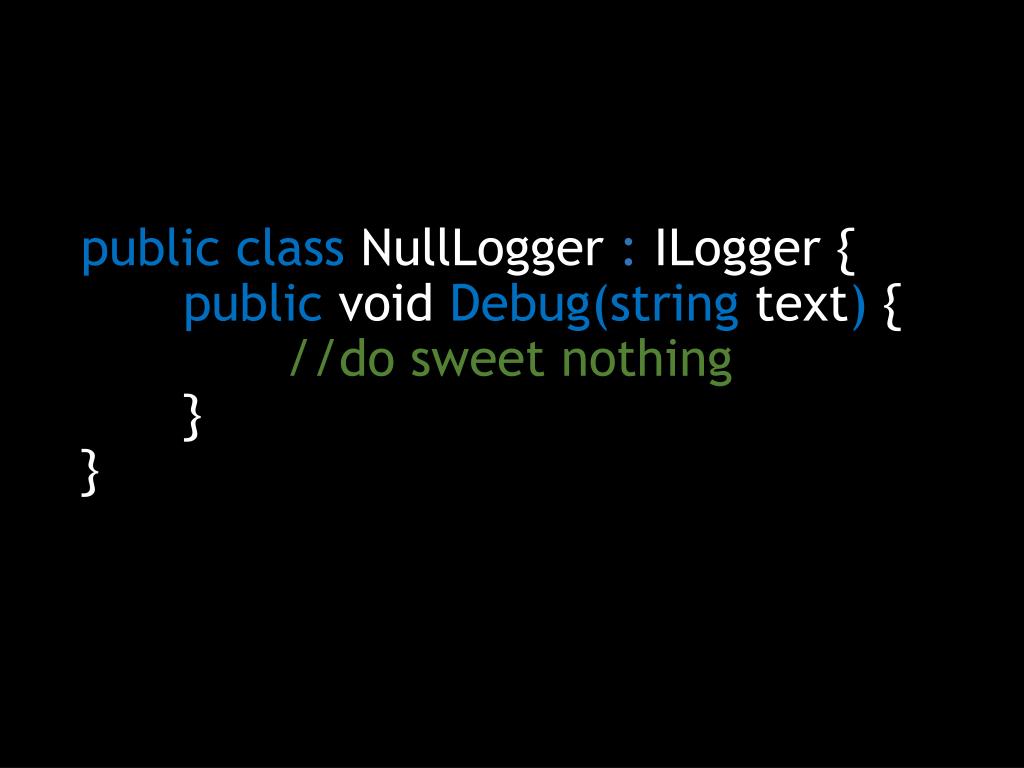

public class NullLogger:ILogger{ public void Debug(string text) { //do sweet nothing}}

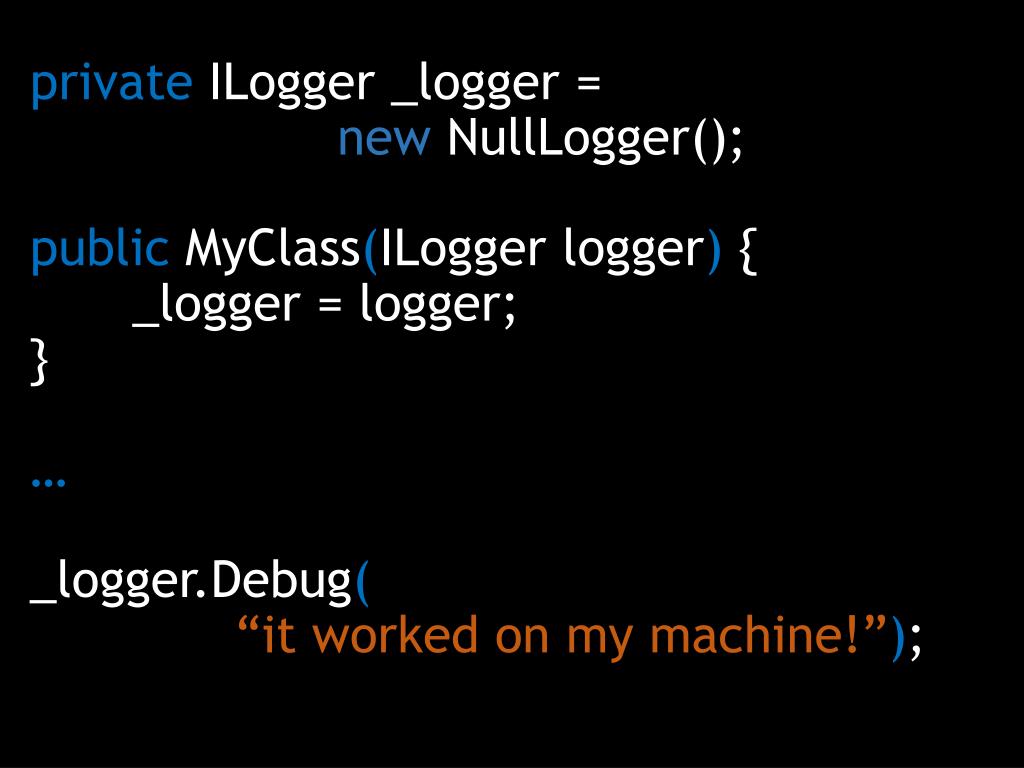

private ILogger _logger = newNullLogger();public MyClass(ILogger logger) {_logger = logger;}…_logger.Debug(“it worked on my machine!”);
null object • Can eliminate null checks • Simple to implement

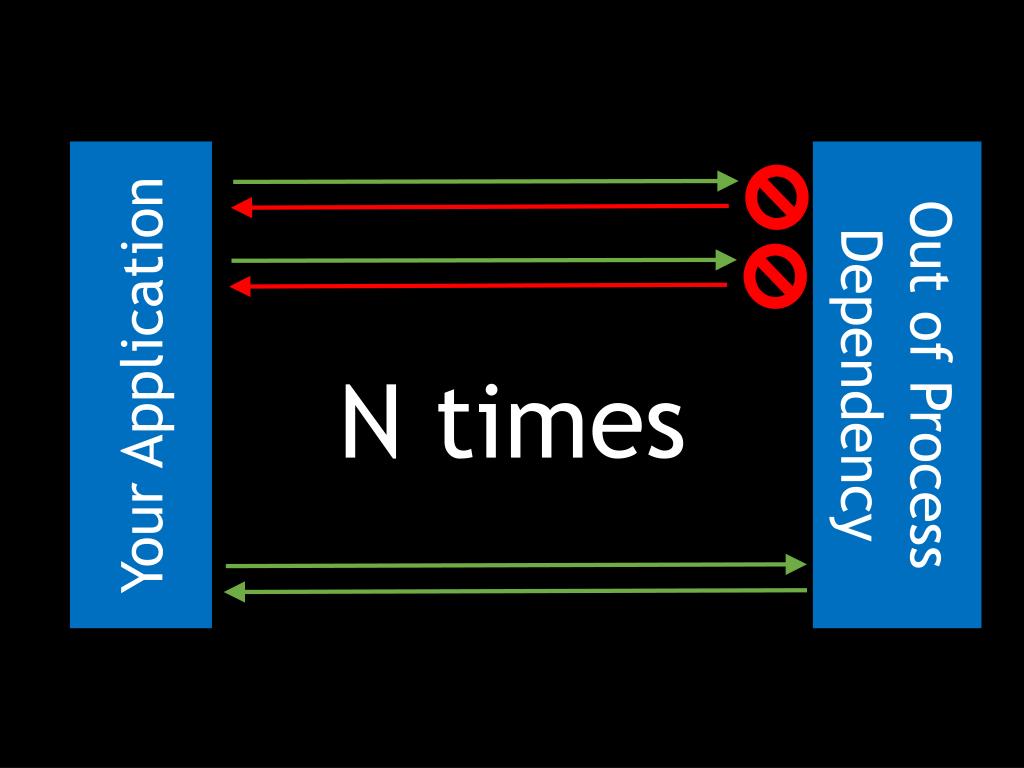

Your Application Out of Process Dependency N times

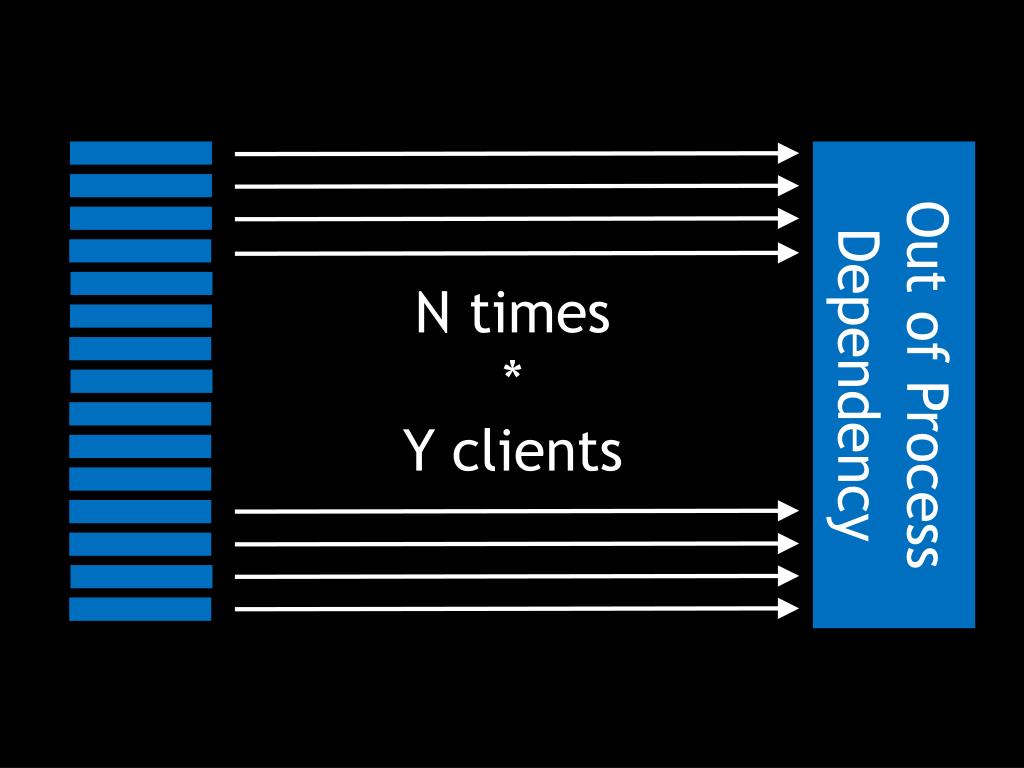

Out of Process Dependency N times * Y clients
HealthyorUnhealthy Out of Process Dependency

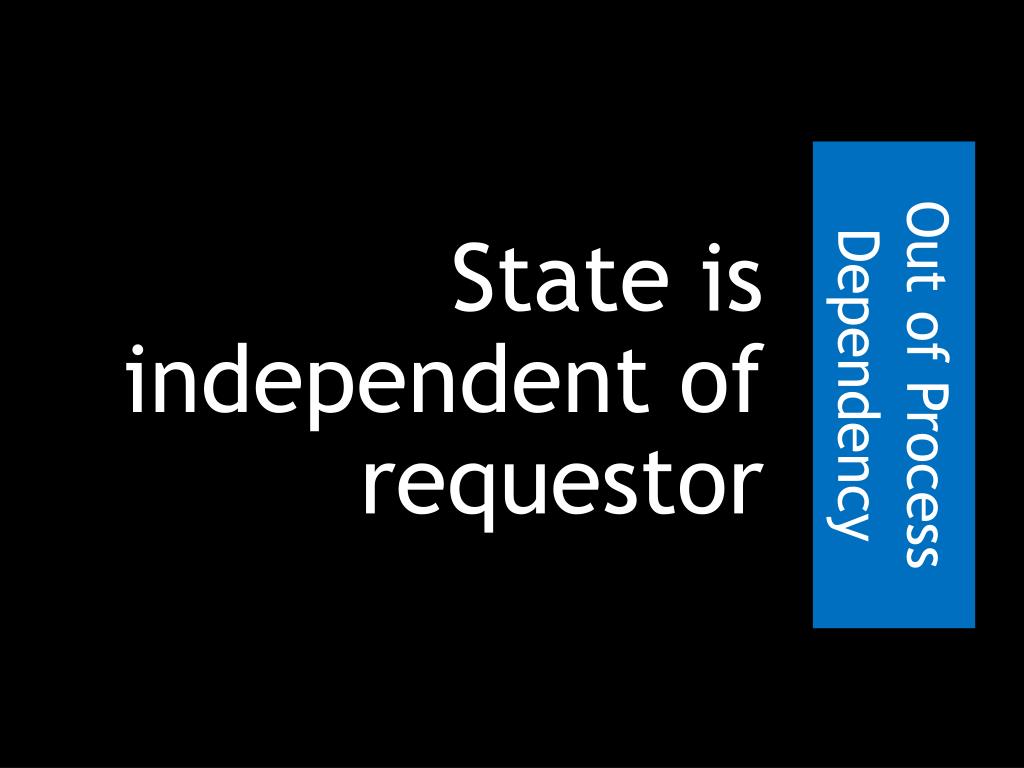

State is independent of requestor Out of Process Dependency
Has many independent external dependencies Your Application

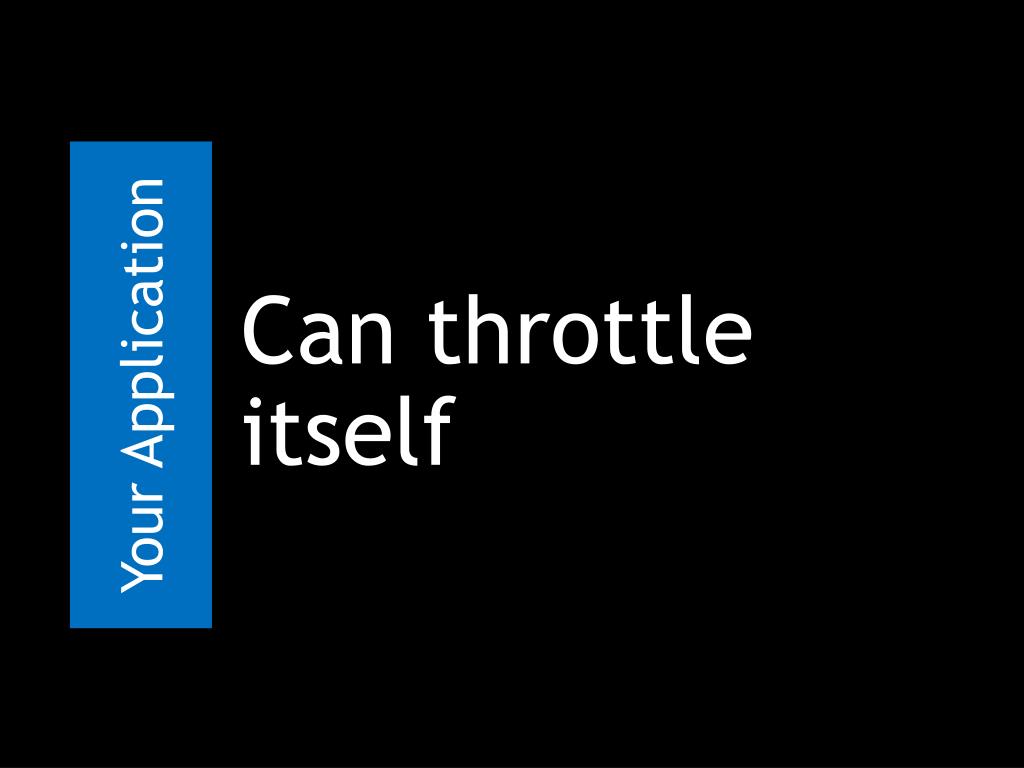

Can throttle itself Your Application

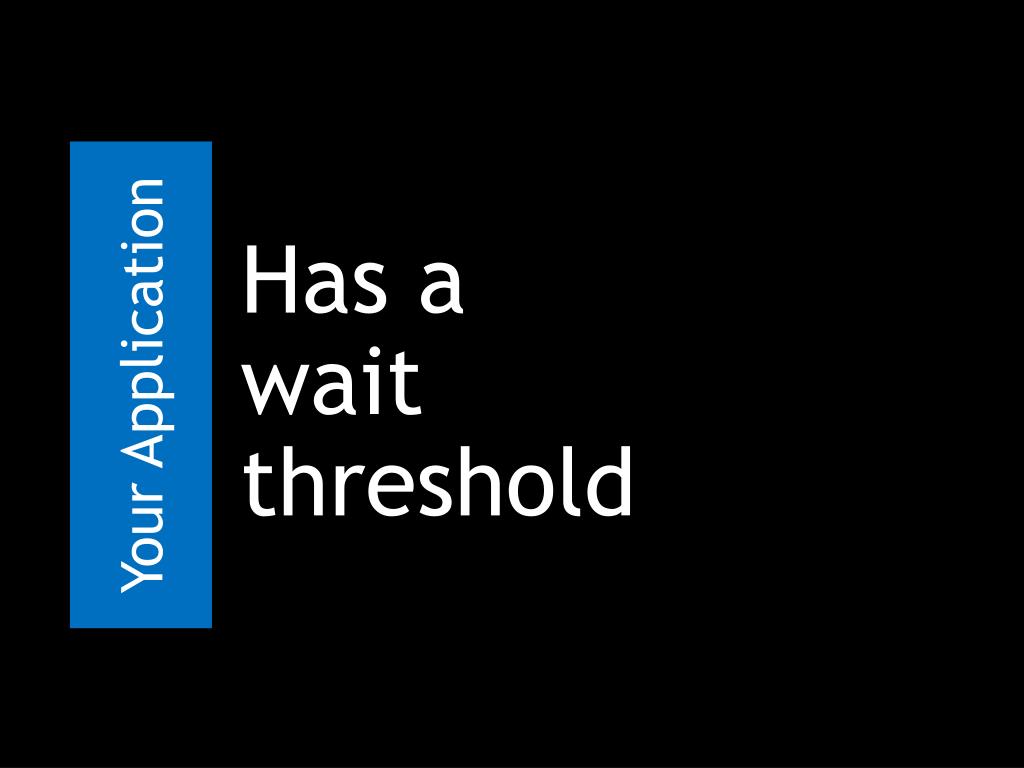

Has a wait threshold Your Application

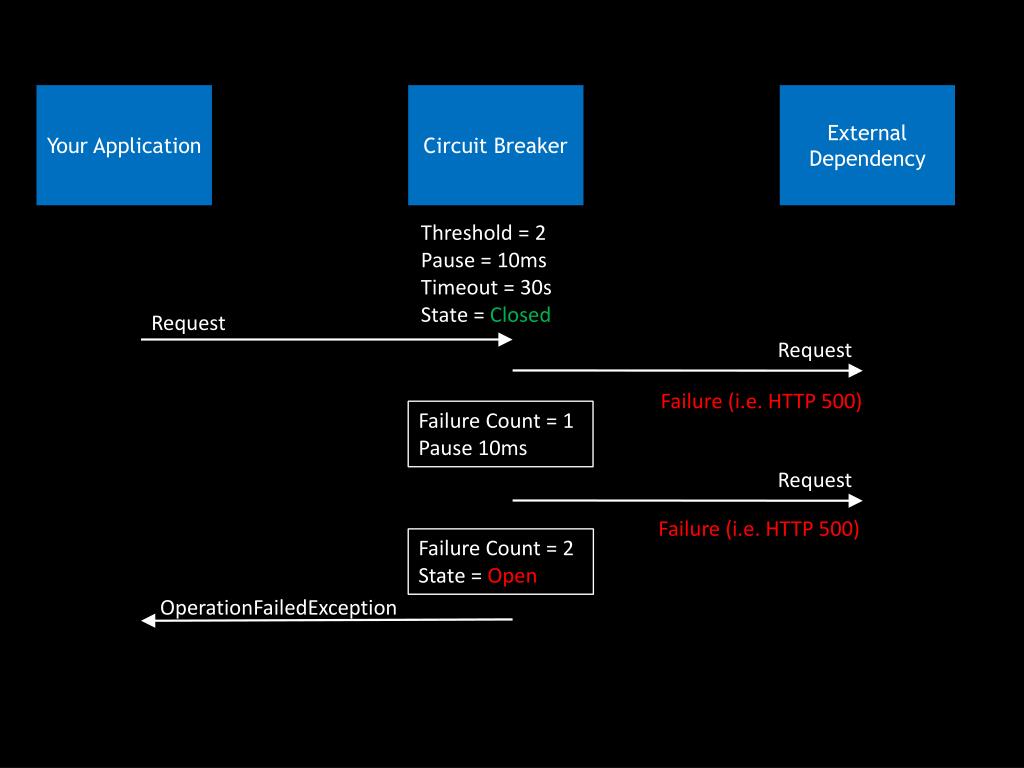

Circuit Breaker External Dependency Your Application Threshold = 2 Pause = 10ms Timeout = 30s State = Closed Request Request Failure (i.e. HTTP 500) Failure Count = 1 Pause 10ms Request Failure (i.e. HTTP 500) Failure Count = 2 State = Open OperationFailedException
Circuit Breaker External Dependency Your Application Threshold = 2 Pause = 10ms Timeout = 30s State = Open System can try to become healthy for 30s Request 30s has not passed CircuitBreakerOpenException Request 30s has not passed CircuitBreakerOpenException
Circuit Breaker External Dependency Your Application Threshold = 2 Pause = 10ms Timeout = 30s State = ½ Open 30s has passed Request Request Failure (i.e. HTTP 500) Failure Count = 2 State = Open OperationFailedException
Circuit Breaker External Dependency Your Application Threshold = 2 Pause = 10ms Timeout = 30s State = ½ Open 30s has passed Request Request Response Failure Count = 0 State = Closed Response
