  1. CT20A6100MACHINE VISION AND DIGITAL IMAGE ANALYSIS • MPEG • Pauli Jutila • Cristina Petre

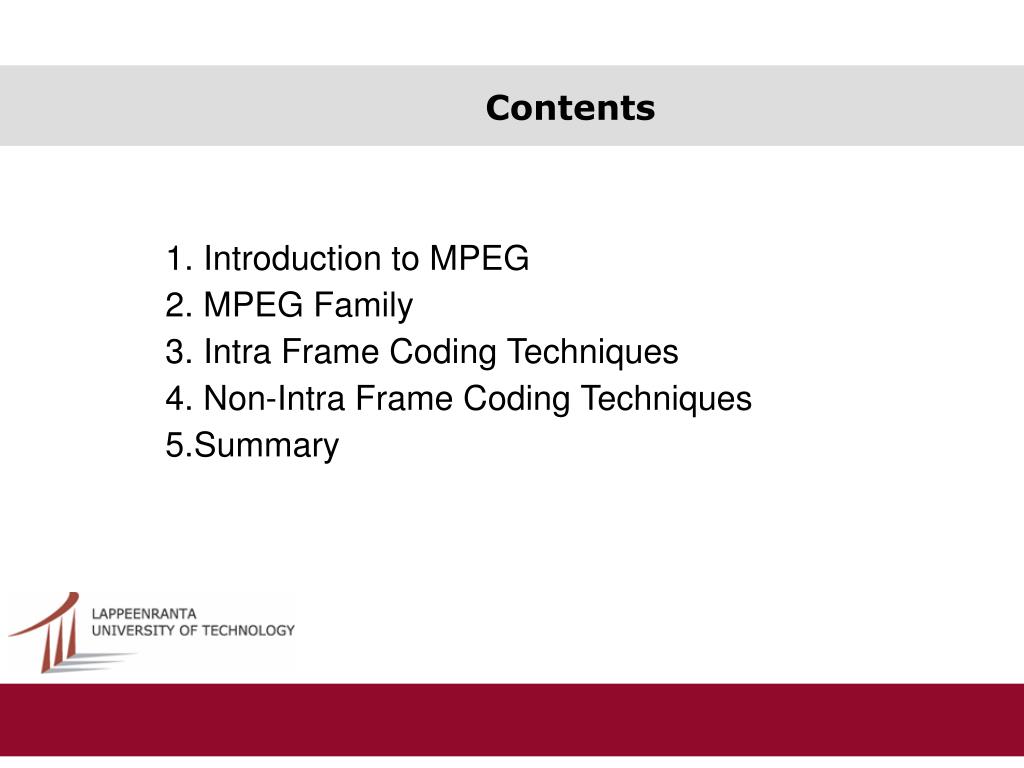

  2. Contents 1. Introduction to MPEG 2. MPEG Family 3. Intra Frame Coding Techniques 4. Non-Intra Frame Coding Techniques 5.Summary

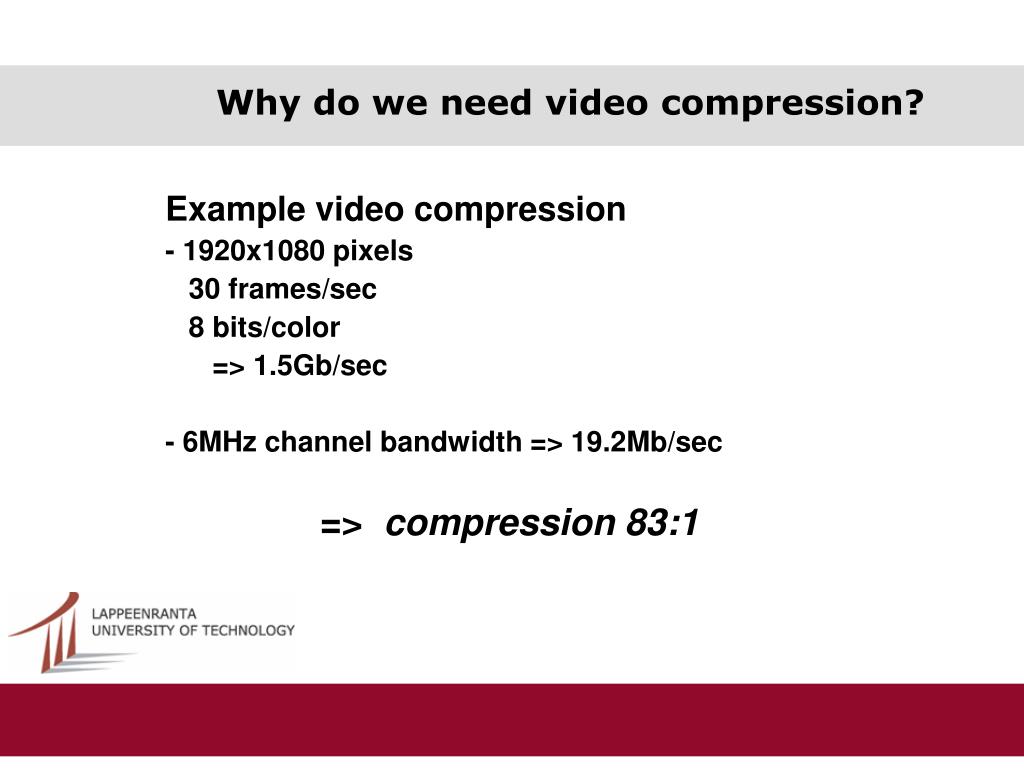

  3. Why do we need video compression? Example video compression - 1920x1080 pixels 30 frames/sec 8 bits/color => 1.5Gb/sec - 6MHz channel bandwidth => 19.2Mb/sec => compression 83:1

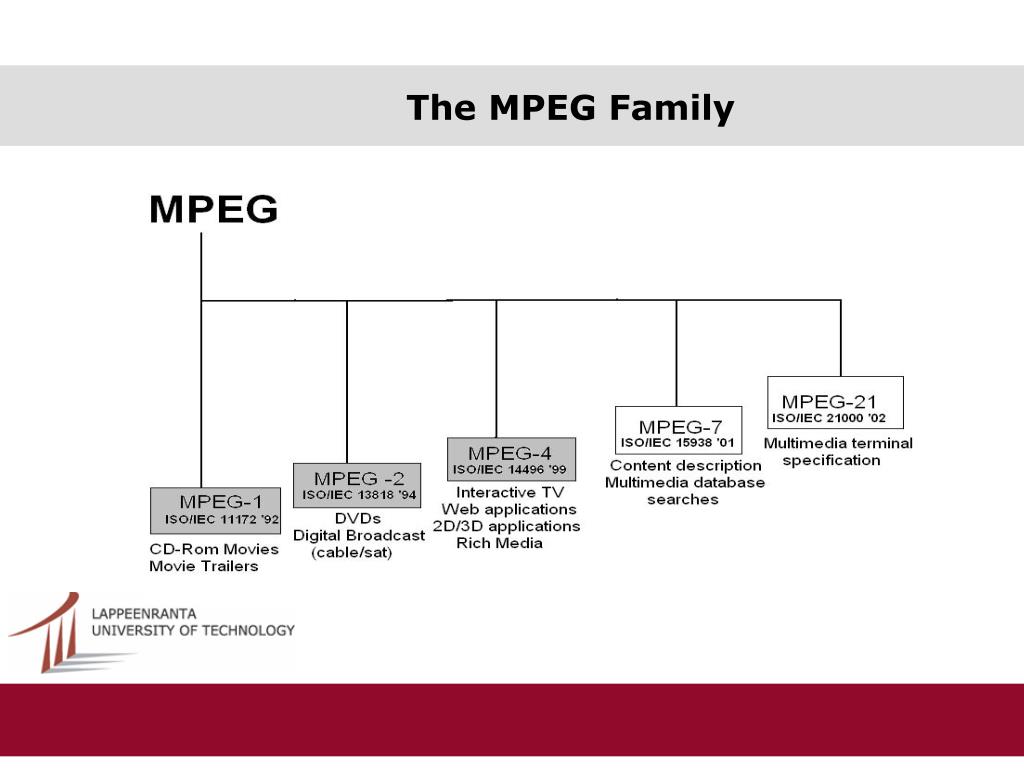

  4. The MPEG Family

  5. MPEG-1 Basic form using motion compensated block-based transform coding techniques Optimized to work for 352x240 at 30frames/sec or 352x288 at 25frames/sec ,possible to go up to 4095x4095 Defined for progressive frames only No direct provision for interlaced video applications

  6. MPEG-2 Designed for digital television broadcasting Potentially high quality video (4-9Mb/sec) Profiles and levels : profile - bitstream scalability, colorspace resolution level - image resolution, maximum bit-rate/profile MP@ML : 720x480 at 30 frames/sec MP@HL : 1920x1080 at 30 frame/sec

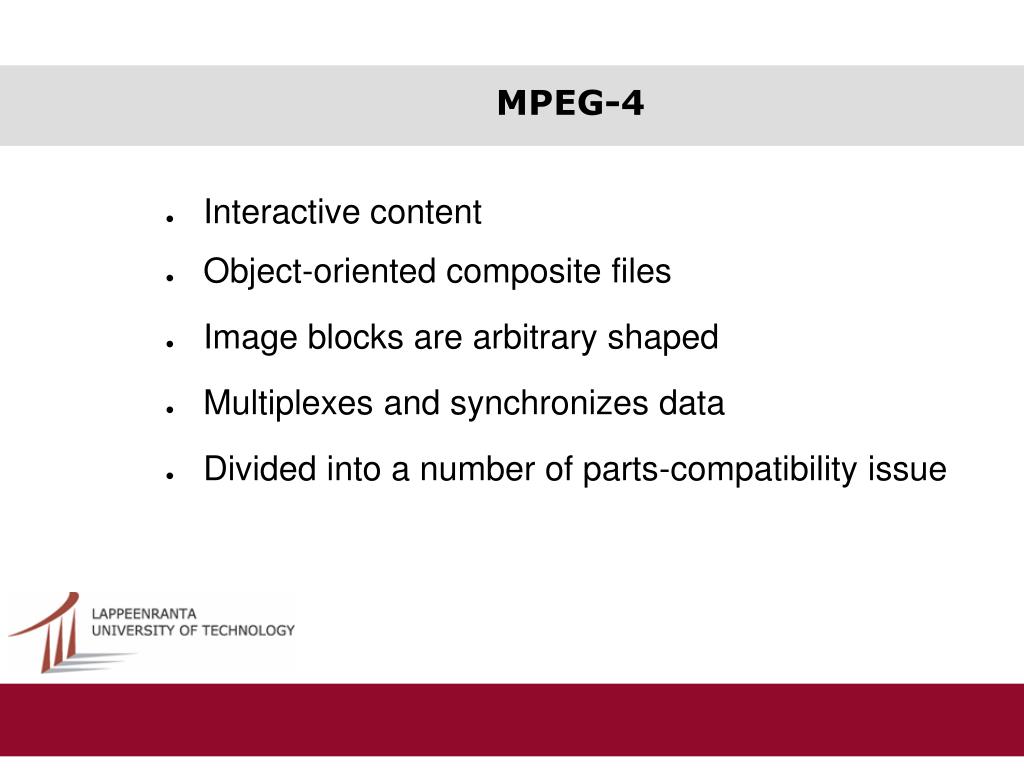

  7. MPEG-4 Interactive content Object-oriented composite files Image blocks are arbitrary shaped Multiplexes and synchronizes data Divided into a number of parts-compatibility issue

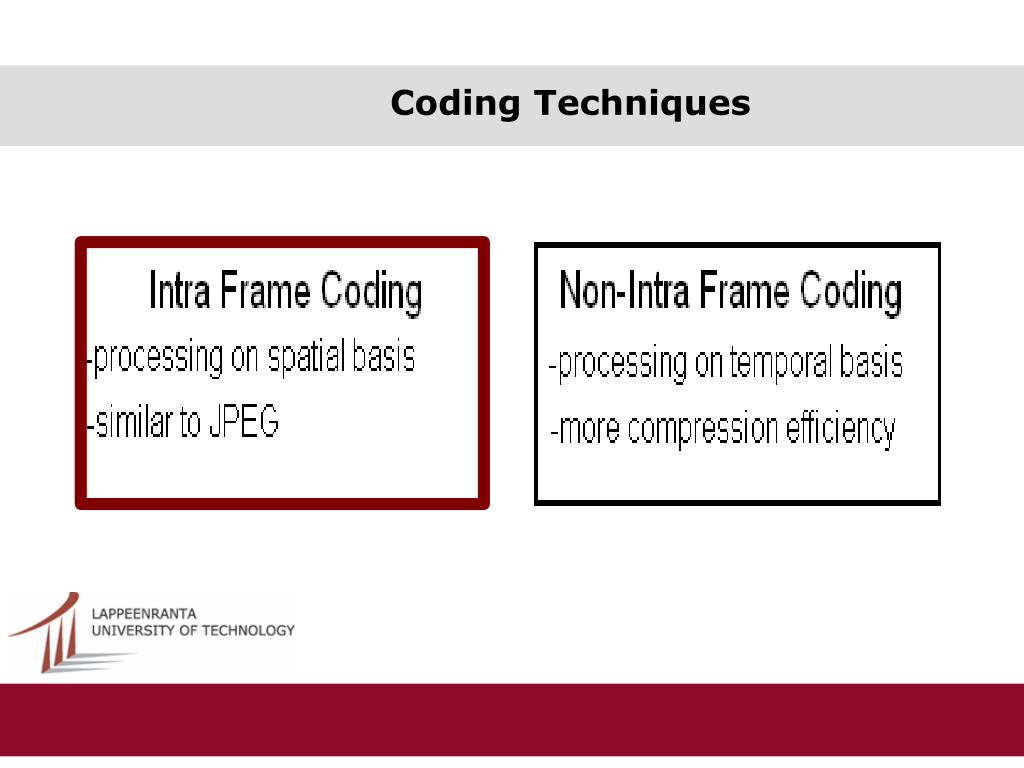

  8. Coding Techniques

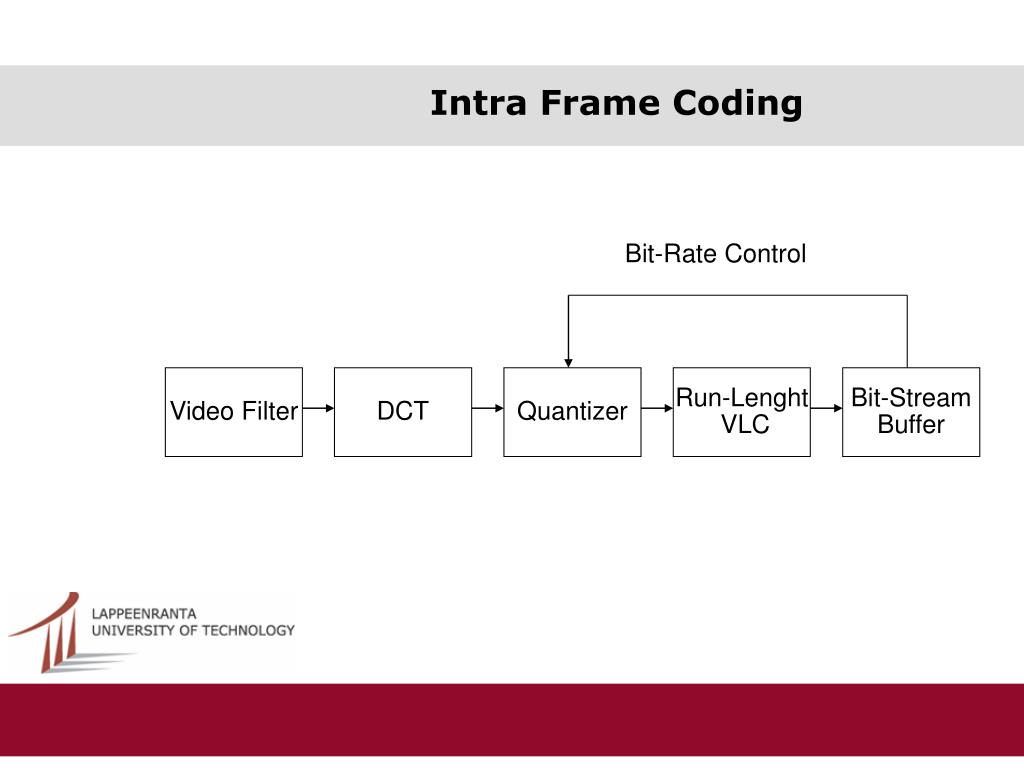

  9. Intra Frame Coding Bit-Rate Control Video Filter DCT Quantizer Run-Lenght VLC Bit-Stream Buffer

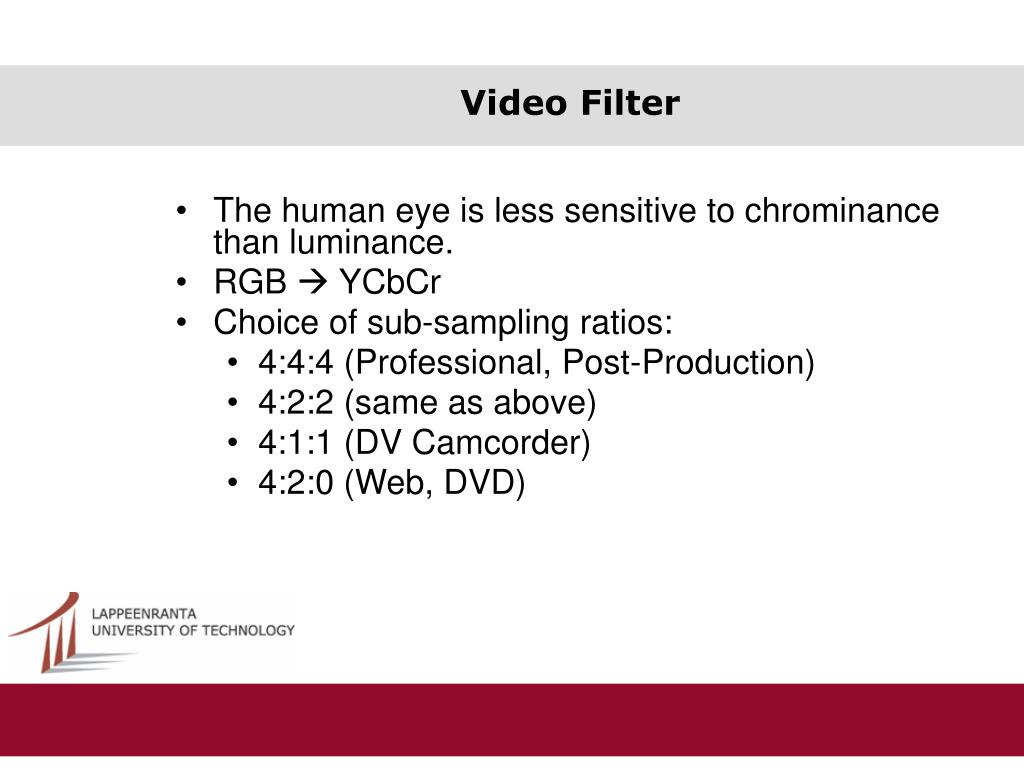

  10. Video Filter • The human eye is less sensitive to chrominance than luminance. • RGB  YCbCr • Choice of sub-sampling ratios: • 4:4:4 (Professional, Post-Production) • 4:2:2 (same as above) • 4:1:1 (DV Camcorder) • 4:2:0 (Web, DVD)

  11. Discrete Cosine Transform • Nearly optimal in energy consentration and decorrelating • The human eye is less sensitive to changes in higher frequencies • Calculated in blocks, usually 8x8

  12. DCT Coefficient Quantization • 12-bit coefficient is divided by a corresponding value from intra quantization matrix • Each value in the resultant matrix is pre-scaled by multiplying by a single value, known as the quantizer scale code (1-112) • The goal is to force as many of the DCT coefficients to zero or near zero

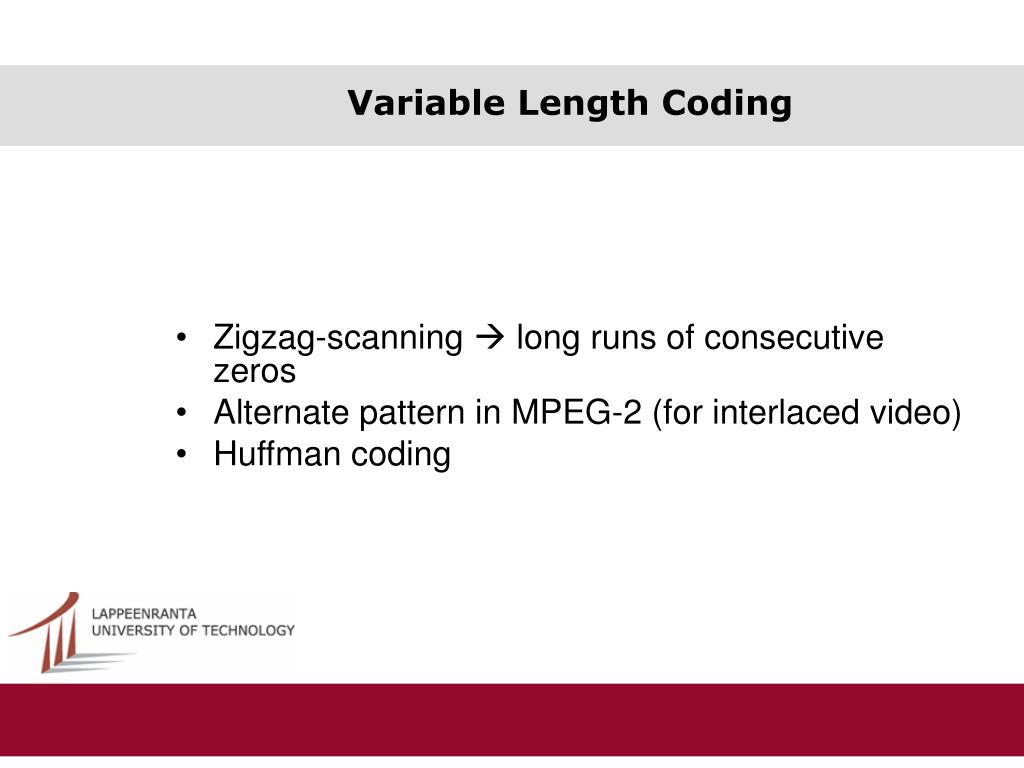

  13. Variable Length Coding • Zigzag-scanning  long runs of consecutive zeros • Alternate pattern in MPEG-2 (for interlaced video) • Huffman coding

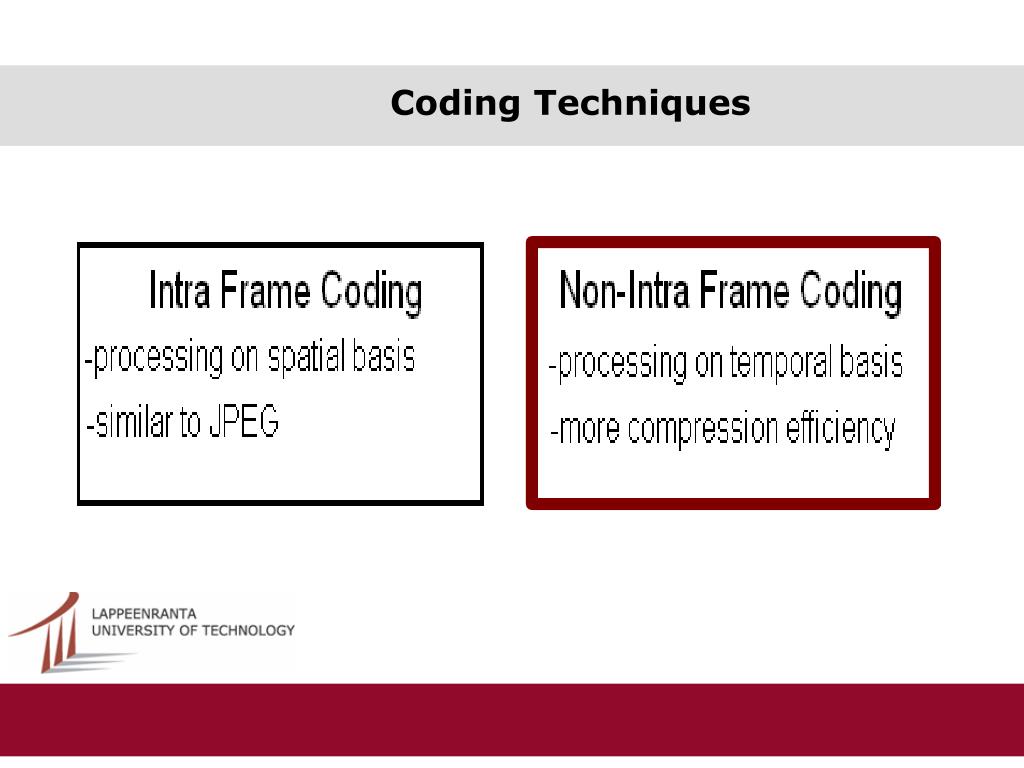

  14. Coding Techniques

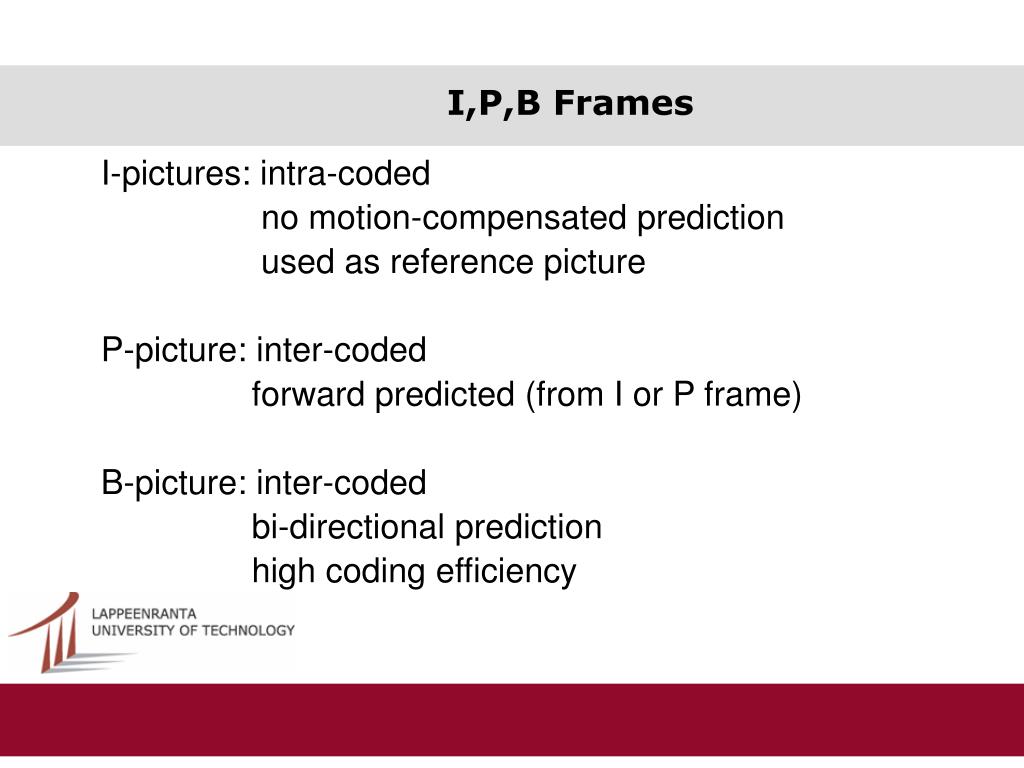

  15. I,P,B Frames I-pictures: intra-coded no motion-compensated prediction used as reference picture P-picture: inter-coded forward predicted (from I or P frame) B-picture: inter-coded bi-directional prediction high coding efficiency

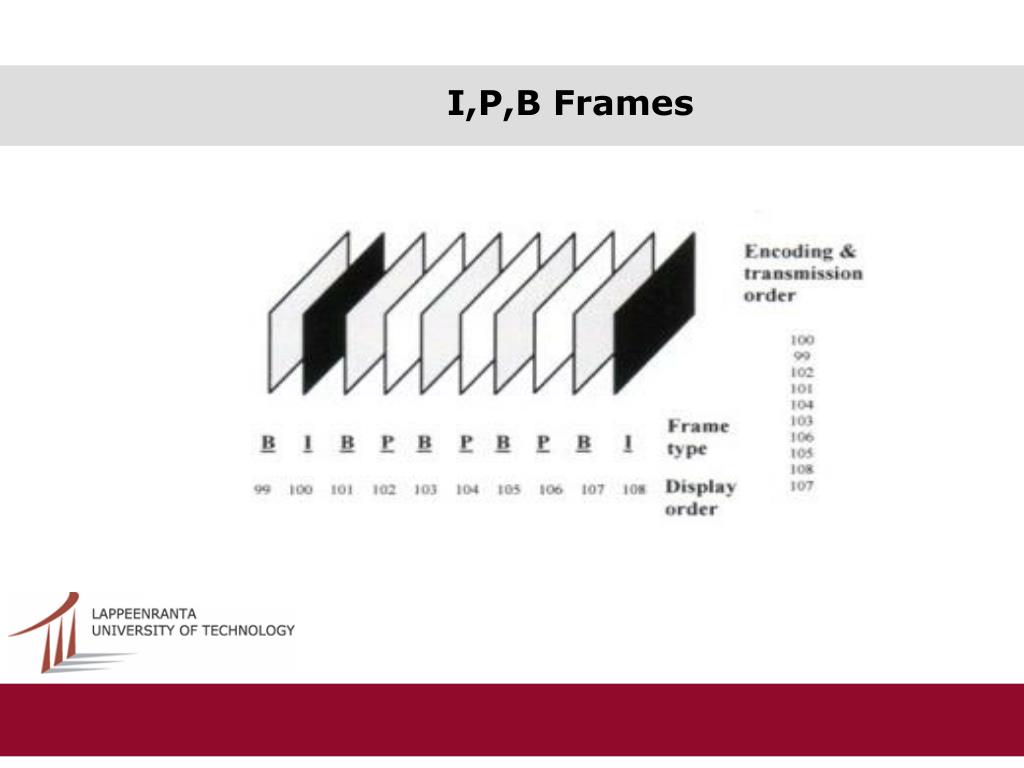

  16. I,P,B Frames

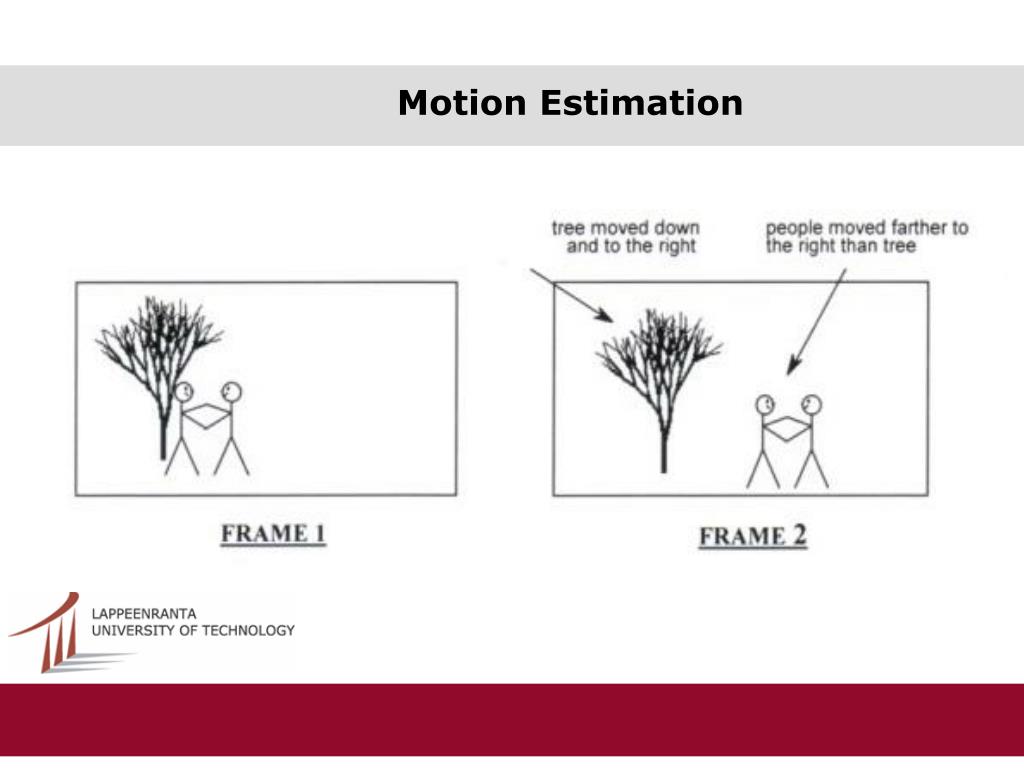

  17. Motion Estimation

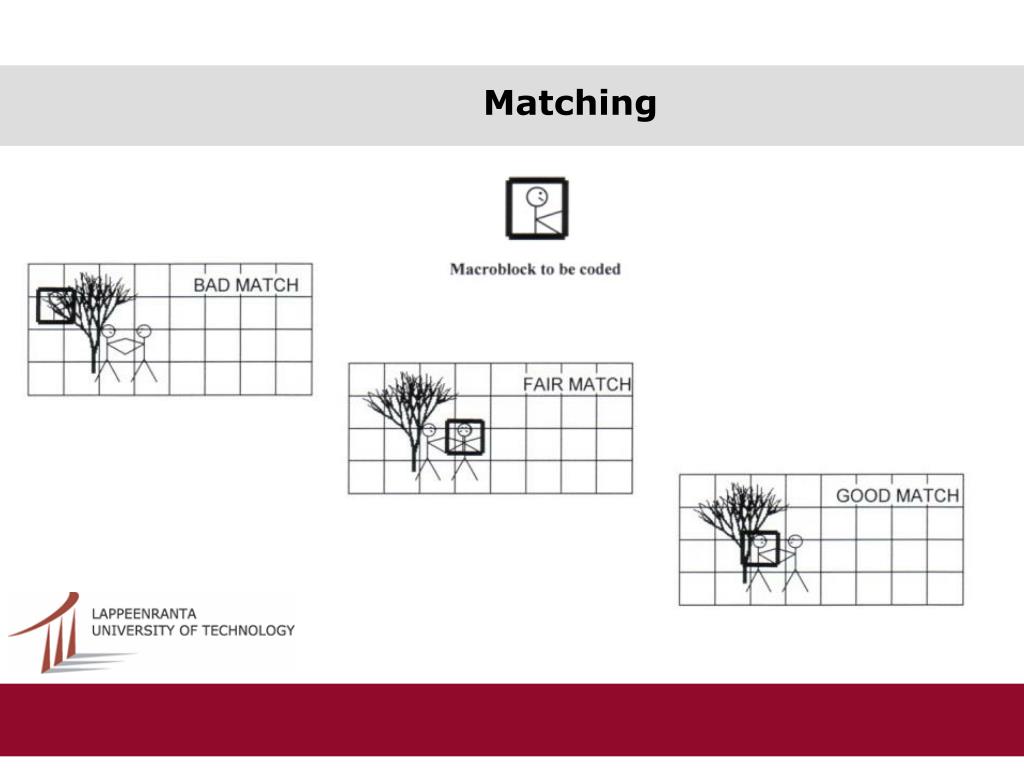

  18. Matching

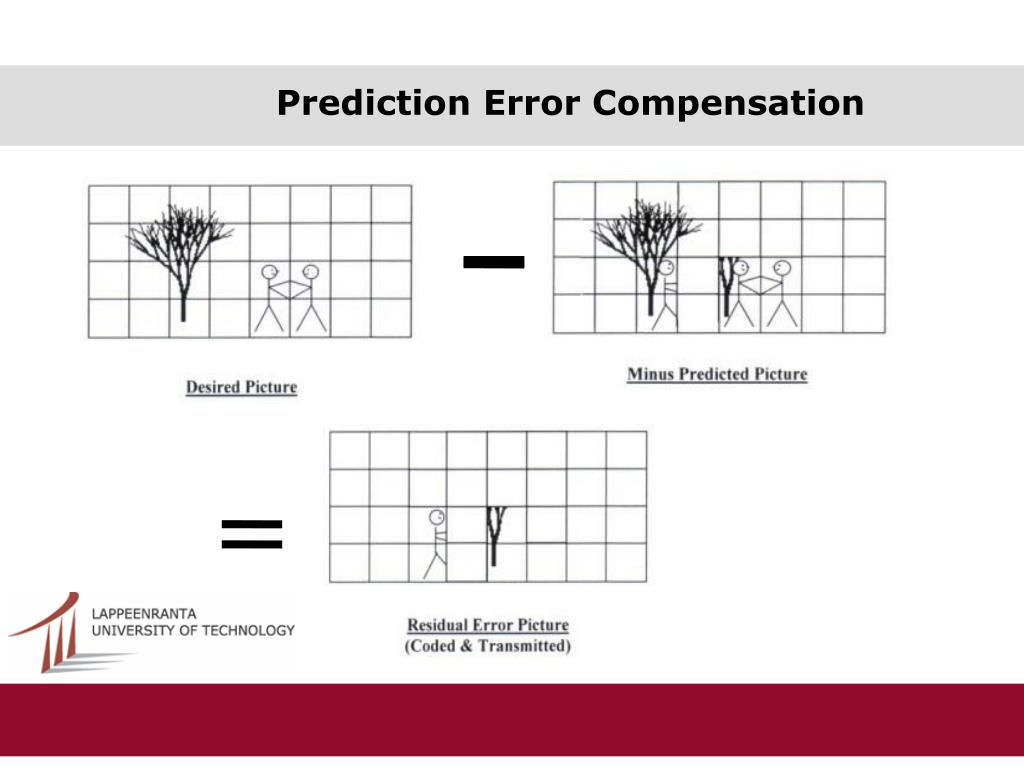

  19. Prediction Error Compensation

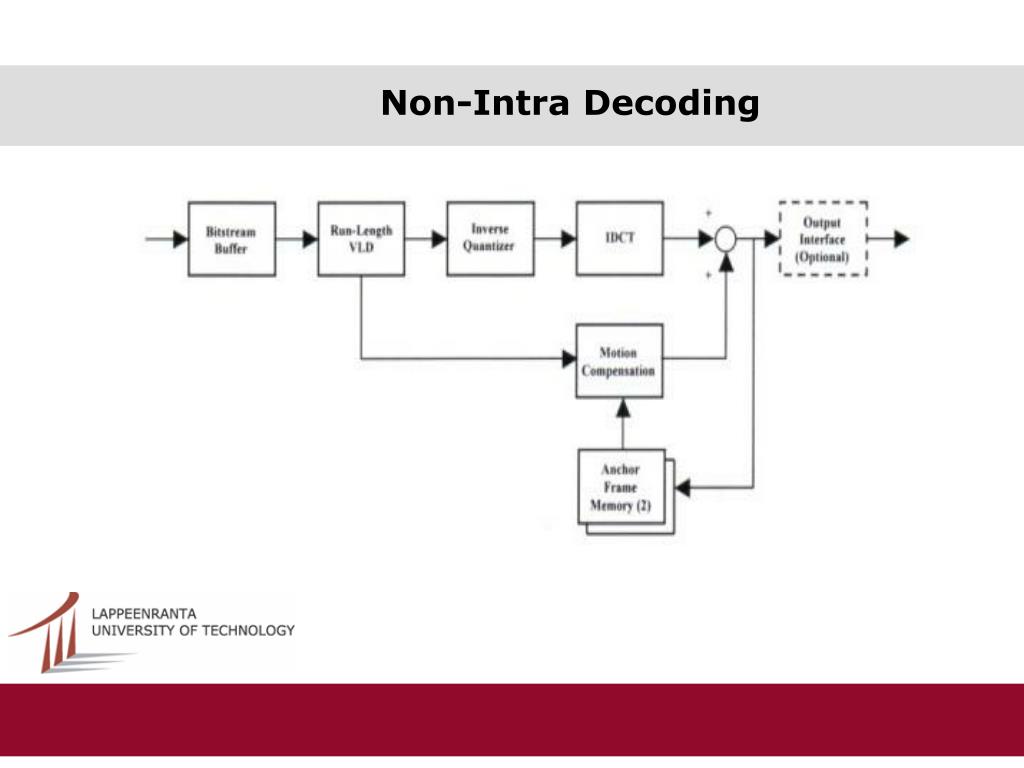

  20. Non-Intra Decoding

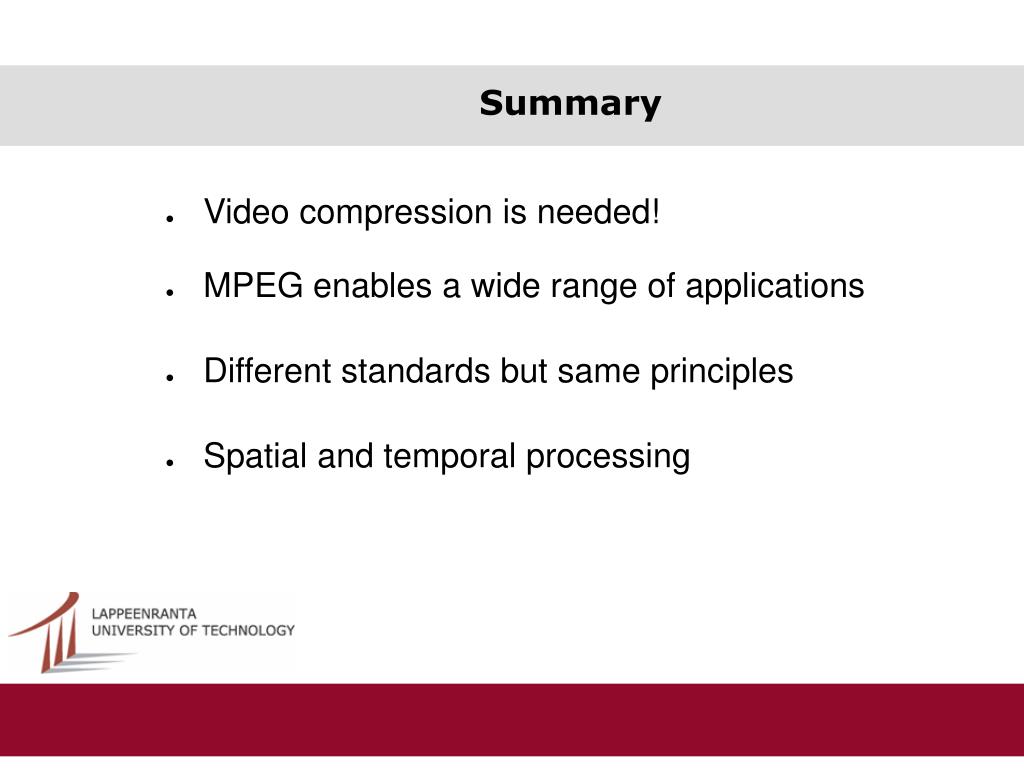

  21. Summary Video compression is needed! MPEG enables a wide range of applications Different standards but same principles Spatial and temporal processing

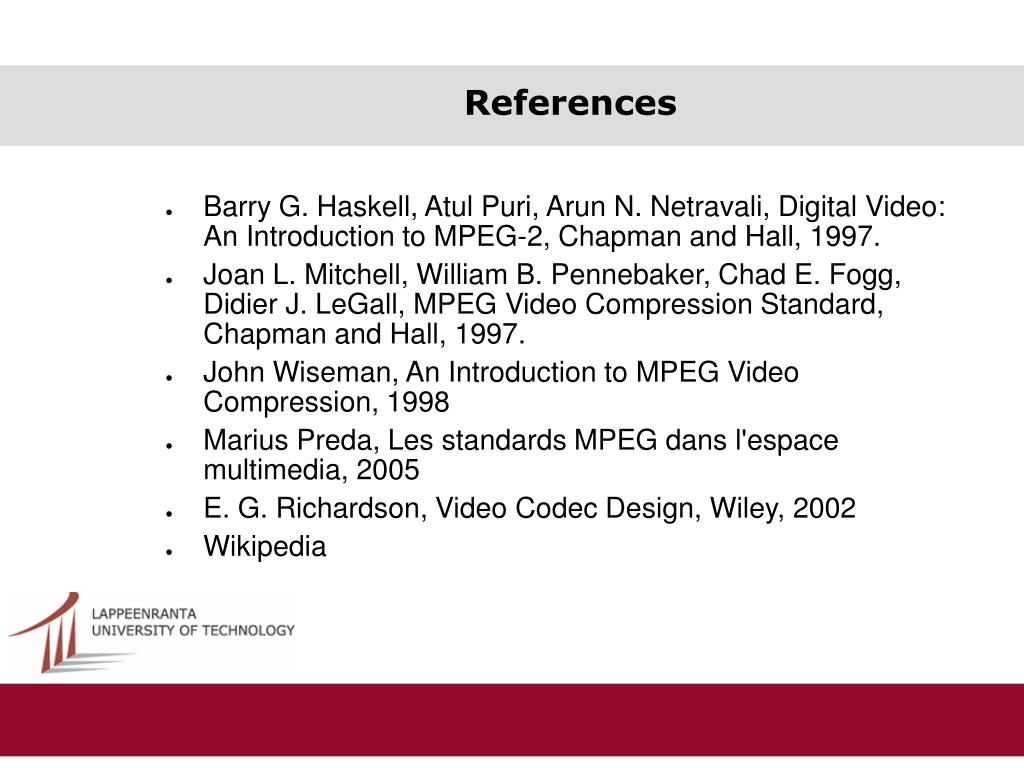

  22. References • Barry G. Haskell, Atul Puri, Arun N. Netravali, Digital Video: An Introduction to MPEG-2, Chapman and Hall, 1997. • Joan L. Mitchell, William B. Pennebaker, Chad E. Fogg, Didier J. LeGall, MPEG Video Compression Standard, Chapman and Hall, 1997. • John Wiseman, An Introduction to MPEG Video Compression, 1998 • Marius Preda, Les standards MPEG dans l'espace multimedia, 2005 • E. G. Richardson, Video Codec Design, Wiley, 2002 • Wikipedia
