  1. ERP Data Warehousing - Architecture, Tools and trendsAn overview presentation University of North Carolina at Charlotte Dr. Bjarne Berg February 16th, 2006

  2. What We will cover • Enterprise Data Warehouse and BI Data Architecture • ERP BI Example – SAP Business Warehouse • ERP Data Warehouse Content and Methodologies • Data Warehouse Presentation tools • Post-implementation Reviews

  3. What Do Users Really Want? Source: SAP

  4. Functional Area Custom Developed Applications InvoicingSystems Purchasing Data ExtractionIntegration and Cleansing Processes Marketingand Sales PurchasingSystems Data Mining Translate CorporateInformation SegmentedData Subsets GeneralLedger Attribute Statistical Programs Summation Calculate Other InternalSystems Product Line Derive SummarizedData Query Access Tools Summarize External DataSources Location Synchronize Logical Enterprise DW Architecture Metadata OperationalData Store DataWarehouse Source Data Extract Transform Applications Data Resource Management and Quality Assurance Source: Bjarne Berg, “Introduction to Data Warehousing”, Price Waterhouse Global System solution Center, 1997

  5. William H. Inmon’s Corporate Information Factory (CIF)

  6. Functional Systems: Characteristics Operational Data Store Data Warehouse Data Mart • acts as source to populate DW and marts • Often used for operational reporting • detailed, atomic data • huge data volumes • integrated, clean data • cross-functional and cross-departmental • supports data mining • may use third normal form modeling (NOT dimensional) • provides mgmt reporting • summarized data • tuned to optimize query performance • multiple departments or processes • staging area for data marts • uses dimensional data modeling • specific application or workgroup focus • narrow scope • customized or stand alone analysis • interactive query • highly summarized • single subject and department oriented • uses dimensional data modeling

  7. Evolution of ERP Data Warehousing Complex (score cards, budgeting, planning, KPI) Horizontal approach (2nd generation) Integrated analytical (3rd generation) Level of Embedded Analytics Emerging (1st generation) Vertical approach (2nd generation) Interactive Mgmt. reporting (OLAP, MQE) Toolsets & accelerators Level of Pre-delivered Content Analytical applications for specific industries Source: Mike Schroeck, David Zinn and Bjarne Berg, “Integrated Analytics – Getting Increased Value from Enterprise Resource Planning Systems”, Data Management Review, May, 2002; Adapted: Bjarne Berg “How to Manage a BW Project”, BW & Portals Conference, 2004, Orlando

  8. What We will cover • Enterprise Data Warehouse and BI Data Architecture • ERP BI Example – SAP Business Warehouse • ERP Data Warehouse Content and Methodologies • Data Warehouse Presentation tools • Post-implementation Reviews

  9. All major ERP vendors have packaged DSS solutions • SAP, Baan, PeopleSoft, Oracle, JD Edwards and others have all packaged Data warehouse solutions. This is commonly known as Business Intelligence (BI) products. • There are many types of BI products: • Data Warehouses (DW) • Strategic Enterprise management (SEM) • Corporate Performance mgmt (CPM) • Business planning & simulation (BPS) • Business Consolidation services (BCS) • Stakeholder relationship mgmt (SRM) • Data Mining • Advanced Planning and Optimization (APO) • Supply Chain Event Manager (SCEM) • Customer Relationship Manager (CRM) The DW is the source of the data for all these integrated analytical applications (iAnalytics)

  10. ERP Data warehousing – Example: SAP Business Warehouse architecture Source: SAP AG, 2005

  11. A Detailed view of management tools within BW Source: SAP AG 2004

  12. Leveraging Standard Content As a guiding principle we map requirements to standard content before we start customizing. However, we may also have external data sources that require custom ODSs and InfoCubes. An example from a large manufacturing company Source: SAP, Sdn BW 2005

  13. What We will cover • Enterprise Data Warehouse and BI Data Architecture • ERP BI Example – SAP Business Warehouse • ERP Data Warehouse Content and Methodologies • Data Warehouse Presentation tools • Post-implementation Reviews

  14. Vendor Methodologies Each vendor has their own methodology built on the System Development Life-Cycle (SDLC) approaches

  15. Framework for picking your "poison" Source: Bjarne Berg, “How to pick JAD, RAD, XP or a SDLC Methodology for your project“, Nov. 2005,

  16. Methodology to build a data warehouse Source: Bjarne Berg, “Managing a BW project “, Project Management Conference - 2004,

  17. The development phase: Model & leverage standard models 1. Create a model based on pre-delivered content 2. Map your data requirements to the delivered content and identify gaps. 3. Identify where the data gaps are going to be sourced from. Storage Requirements + Storage Objects Standard content Map functional requirements to the standard content before you make enhancements Source: Bjarne Berg, “25 tips & tricks for managing BW projects“, BW & Portals Conference - 2005,

  18. The ETL Processing of a data warehouse On a typical DW project, 40-60% of project effort will be spent on data integration, transformation and loads (used to be higher when tools were more immature). SAP NetWeaver has a GUI and formula editors to write complex transfer rules, update rules and data mapping. Source: Bjarne Berg, “An A to Z Guide in Managing SAP NetWeaver Projects” - SAP NetWeaver and Portals Conference, March. 2006, Las Vegas

  19. Performance differences of architectures Source: Alexander Peter, SAP AG, 2006

  20. What We will cover • Enterprise Data Warehouse and BI Data Architecture • ERP BI Example – SAP Business Warehouse • ERP Data Warehouse Content and Methodologies • Data Warehouse Presentation tools • Post-implementation Reviews

  21. Deciding Which Front-end To Use For A Global BW System A major decision for the global BW system is the selection of which delivery mechanism to support and who get access to which tool. Most companies start with BW OLAP for web and add other types of interfaces later..

  22. The BW Toolset BW is an enterprise-wide comprehensive decision support (DSS) system for analytical needs of an enterprise. BW can also support some degree of operational reporting Therefore it has many presentation tools and options for companies to leverage. This part focuses on the presentation tools

  23. BEx what is it? BEx is the 'umbrella name' for many of the presentation tools in BW. Therefore you will notice the tool names are often pre-fixed with names such as BEx Broadcaster, BEx Query Designer and BEx workbooks etc. Source: Bjarne Berg, “Access the easy, quality and performance of your SAP BW based reporting activities” - SAP Professional Journal, Las Vegas, Chicago, Philadelphia, Orlando - Oct/Nov/Dec 2005

  24. The BEx Query Designer The BEx query designer is a simple tool that you use to develop queries for users. While the Query Designer defined the query, you have many options on how you deploy the queries You can deploy the queries through web templates, broadcasted emails, portals, Excel and more.

  25. The BEx Ad-Hoc Query Designer A simplified version of the BEx query designer is the "ad-hoc query designer". This is a web tool that can be used by power users to define their own queries. It can be made available through a BW web template as well as directly into a web portal.

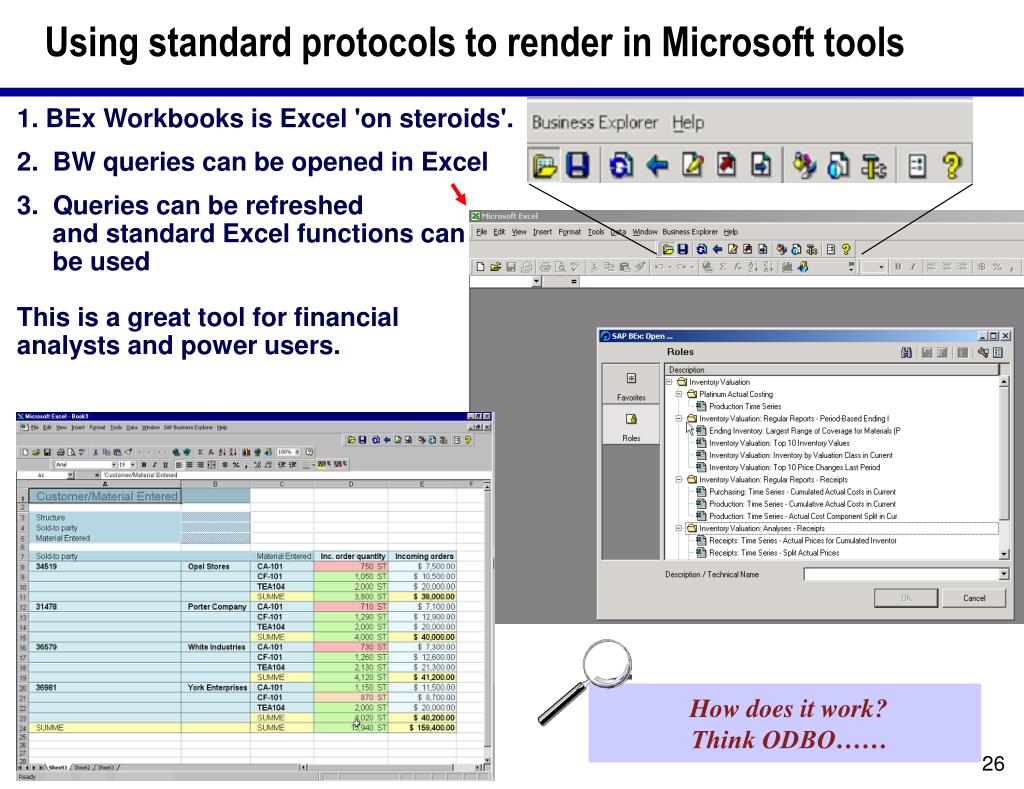

  26. Using standard protocols to render in Microsoft tools 1. BEx Workbooks is Excel 'on steroids'. 2. BW queries can be opened in Excel 3. Queries can be refreshed and standard Excel functions can be used This is a great tool for financial analysts and power users. How does it work? Think ODBO……

  27. BEx web reports • The most common way of deploying BW queries are through a standard, or customized web template with built-in navigational features. • Global web templates can be enhanced with logos, colors, fonts and additional features at a low cost of development and ownership.

  28. Building iAnalytics using a Web Application Designer (WAD) BEx Analyzer/ Query Designer Web Browser BEx Web Application Designer WAD is a tool to build powerful iAnalytics applications and to interact with portals and custom templates. BW queries can be manipulated in WAD for better display OLAP Processor Web Service HTLM Templates Charting Engine InfoProvider Source: SAP AG

  29. Analysis Process Designer • Using the BW analytics toolkit, it is possible to build association data sets that can be fed back into the OLTP engine. The way to approach this by using APD (analysis process designer). This is a visual data processing composition engine that enables organization of data flows and updates into the OLTP database (transaction system). Images: Bhanu Gupta, ASUG 2005 Illinois chapter

  30. Batch reporting • Batch reporting refers to the mass creation of reports such as account statements, that otherwise would be impossible to create on-demand in a data warehouse with billions of records. • Crystal is the leader of batch reporting of "pixel controlled' formatted reports.

  31. KPI & Scorecard Formatted • Simple • Easy to view • Limited nav • Aggregates Flat Reporting • Formatted • Print • Form based • Static • Predictable access OLAP Reporting • Drill Down • Slice and Dice • Analyse • Data Mining • Search and discover Different Needs and Broadcaster Tools Reporting tools Reporting needs “Casual” users, non-DW users, traveling users, and executives are all prime candidates for broadcasted reports!

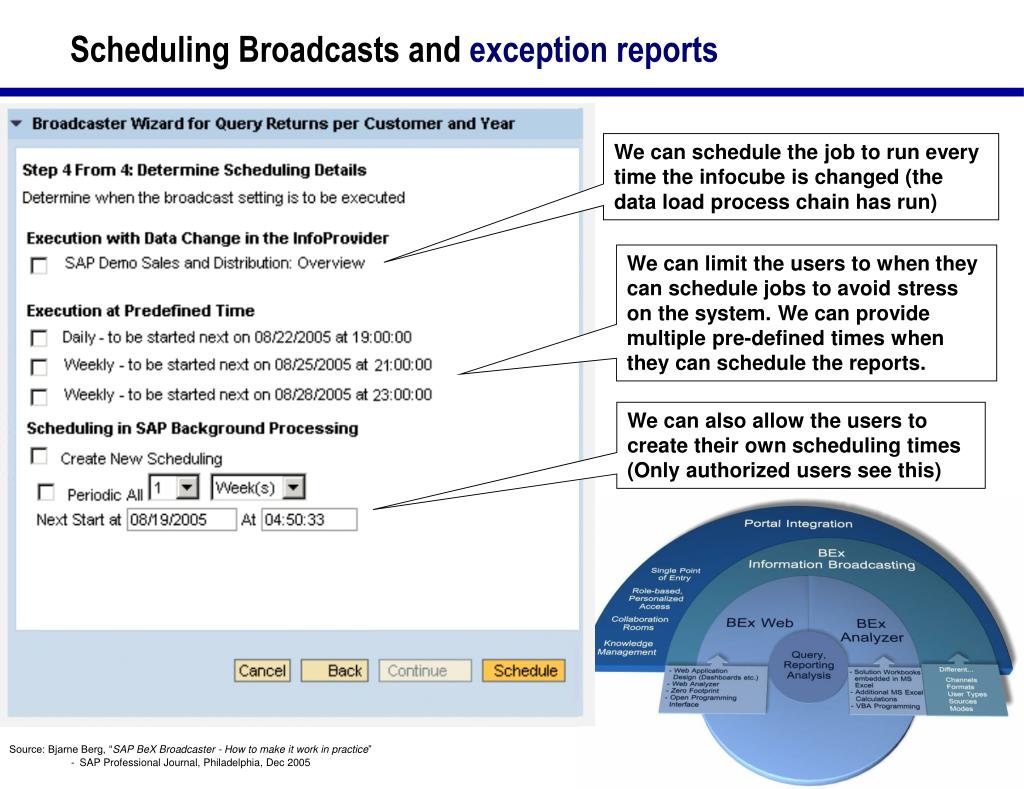

  32. Scheduling Broadcasts and exception reports We can schedule the job to run every time the infocube is changed (the data load process chain has run) We can limit the users to when they can schedule jobs to avoid stress on the system. We can provide multiple pre-defined times when they can schedule the reports. We can also allow the users to create their own scheduling times (Only authorized users see this) Source: Bjarne Berg, “SAP BeX Broadcaster - How to make it work in practice” - SAP Professional Journal, Philadelphia, Dec 2005

  33. Data Visualization from the Data Warehouse Visual Composer tools are used to visualize high volumes of data. It is a GUI modeling and design tool for rapid application development and prototyping in a code-free development environment. Most Visual Composer tools supports both JSP and HTMLB; and some also support Web Dynpro metadata as well. SAP NetWeaverVisual Composer

  34. Example: Data Visualization from the Data Warehouse • Offers the integration with BI InfoProviders (e.g. InfoCubes, BEx Queries and Query Views, BEx Web Applications) via WEB API as well as with heterogeneous data sources (including OLAP and relational data sources) via Java Connectors

  35. Data Mining Technologies Multi-Strategy - IBM Intelligent Miner - SAS - Thinking Machines Darwin Neural Network - HNC Data Mining Workstation - NeuralWare Predict Other Algorithms - DataMind - Information Discovery IDIS Tree-Based • Agnoss Knowledge Seeker • Pilot Discovery Server • SPSS • Silicon Graphics MineSet Visualization • Advanced Visual Systems:AVS Express • NeoVision Hypersystems:Heatmaps • Visible Decisions: Discovery • Visual Neumerics: PV Wave

  36. The Data Warehouse and BI Application Testing Since the data is used for decision support and can result in poor decisions being made, testing is a big part for a data warehouse development or BI application project. Typical testing include: • Unit test • Integrated unit test • System test • Integration test • Performance test

  37. What We will cover • Enterprise Data Warehouse and BI Data Architecture • ERP BI Example – SAP Business Warehouse • ERP Data Warehouse Content and Methodologies • Data Warehouse Presentation tools • Post-implementation Reviews

  38. After go-live: Track data warehouse load performance During the first 6 weeks after each go-live, organizations should formally track the load performance by process chain to detect any systematic issues This is a real example from a Fortune-50 manufacturing company that had 77 nightly load jobs (process chains).

  39. After go-live: Track Data Warehouse load performance A stabilization period after each go-live is normal until the new process chains has been tuned in the production box. This is a time when active monitoring of process chains should occur

  40. Metadata – What to track • Organization • reporting structure • IT initiatives and contacts • Technology • hardware and software • application systems • query access tools • databases and networks • Administrative • security profiles • version control • back-up and recovery • quality assurance processes • Data • data sources • data models • physical data structures • extraction, integration, and transformation rules • data currency • data definitions • data ownership • Business Processes • functions • algorithms and business rules

  41. Resources Five Core Metrics: The Intelligence Behind Successful Software Management – by Lawrence H. Putnam & Ware Myers Enterprise Architecture Planning : Developing a Blueprint for Data, Applications, and Technology; by Steven H. Spewak ISBN: 0471599859 Publisher: Wiley Rapid Development by Steve McConnell Paperback: 680 pages ; Publisher: Microsoft Press; ISBN: 1556159005 Start to Finish Guide to IT Project Management by Jeremy Kadlec, Digital: 109 pages. Publisher: NetImpress; ISBN: B0000W86H2

  42. More Resources Beck, Kent (1997) “Chrysler Comprehensive Compensation with XP”., published Feb. 2001: The Agile Software Development Alliance Beck, Kent (2000)., Extreme Programming Explained: embrace change., Addison Wesley Longman, Inc., 2000 Berg, Bjarne (1997) “Introduction to Data Warehousing”., module 2., pp.88-107. New York., NY., Price Waterhouse LLP. October 1997. Berg, Bjarne (2004) “Managing BW projects – part-2”., SAP project management conference, Las Vegas, NV, WIS publishing, November. Boehm, Barry (1986) "A Spiral Model of Software Development and Enhancement", ACM SIGSOFT Software Engineering Notes, August. Boehm, Barry (1988) "A Spiral Model of Software Development and Enhancement" IEEE Computer, vol.21, #5, May, pp 61-72.

  43. More Resources Botkin, John (1998)., "Customer Involved Participation as Part of the Application Development Process." University of Maine. Caristi, James (2002) “Extreme Programming: Theory & Practices”., Valparaiso University., SIGSEE 2002 conference tutorial. Damian, Adrian., Hong Danfeng., Li, Holly., Pan, Dong (1999) "Joint Application Development and Participatory Design". University of Calgary, Dept. of Computer Science. Dennis, Alan R., Hayes, Glenda S., Daniels, Robert M. Jr. (1990) "Business process modeling with group support systems". Journal of Management Information Systems. 115-142. Spring. Gilb, Tom (1989)., “Principles of Software Engineering Management”., Addison-Wesley Longman. Jennerich, Bill (1990)., "Joint Application Design -- Business Requirements Analysis for Successful Re- Engineering." UniSphere Ltd., November. Journal of Systems Management (1995)., "JAD basics"., Sept./Oct. ed. Keefer, Gerold (2003)., “Extreme Programming Considered Harmful for Reliable Software Development”., AVOCA GmbH., September ed.

  44. More Resources Kettemborough, Clifford (1999)., “The Prototyping Methodology“., Whitehead College, University of Redlands Larman , CraigVictor R. Basili (2003)., Iterative and Incremental Development: A Brief History”., IEEE Computer, pp. 47-56 Martin, James (1990)., “Information Engineering Planning & Analysis, Book II”., Prentice-Hall, Inc. Nobuhiro, Kataoka., Hisao, Koizumi., Kinya, Takasaki., & Norio Shiratori (1998). "Remote Joint Application Design Process Using Package Software". 13th International Conference on Information Networking (ICOIN '98)., January., pp. 0495 Soltys, Roman., Crawford, Anthony (1998) "JAD for business plans and designs"., The Process Improvement Institute., October 1998. Univerity of California (1996) ., “Application Development Methodology”., UCD., on-line at http://sysdev.ucdavis.edu/WEBADM/document/toc.html

  45. More Resources The University of Texas at Austin (2004) "Joint Application Development (JAD) What do you really want?" http://www.utexas.edu/admin/ohr/is/pubs/jad.html. Accessed on October 24. Yatco, Mei (1999) “Joint Application Design/Development”., School of Business, University of Missouri-St. Louis. Wood, J. and D. Silver (1995),. “ Joint Application Development”., 2nd ed., New York : Wiley. Wetherbe, James C. (1991)., "Executive Information Requirements: Getting It Right", MIS Quarterly, March., p. 51.

  46. Your Turn!!! Questions? How to contact me: Bergb@lrc.edu Web page: http://csc-studentweb.lrc.edu/swp/Berg/BB_index_main.htm
