  1. Architecture for Context-Aware Services in Gaia Anand Ranganathan

  2. Why context? • Situational information, or context, increases richness of communication in human-computer interaction • Makes it possible to produce more useful computational services

  3. Challenges in using context • To develop a taxonomy and uniform representation of context types • Infrastructure to promote design , implementation and evolution of context-aware applications • Discovery of compelling context-aware applications • Issues of privacy and security

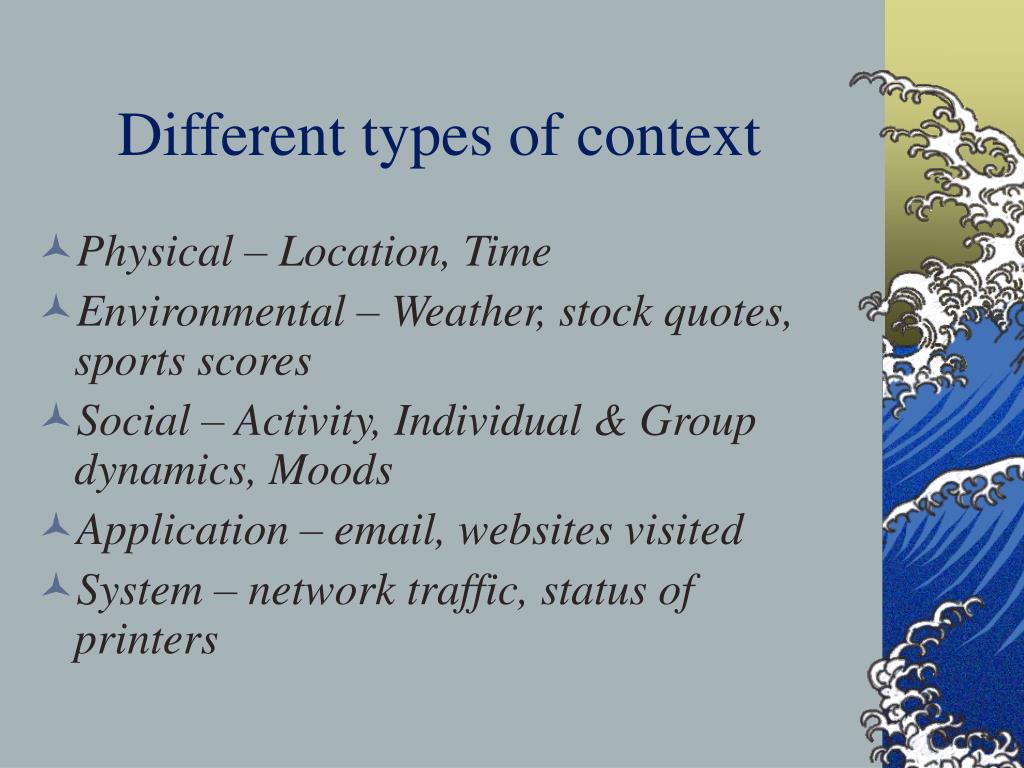

  4. Different types of context • Physical – Location, Time • Environmental – Weather, stock quotes, sports scores • Social – Activity, Individual & Group dynamics, Moods • Application – email, websites visited • System – network traffic, status of printers

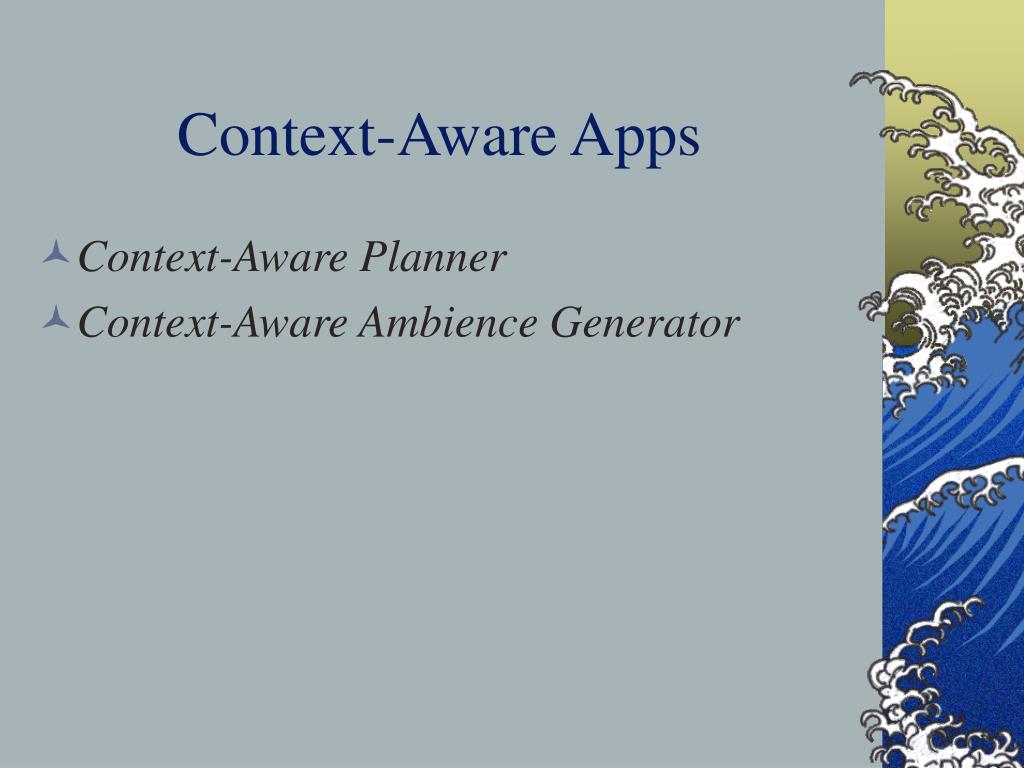

  5. Context-Aware Apps • Context-Aware Planner • Context-Aware Ambience Generator

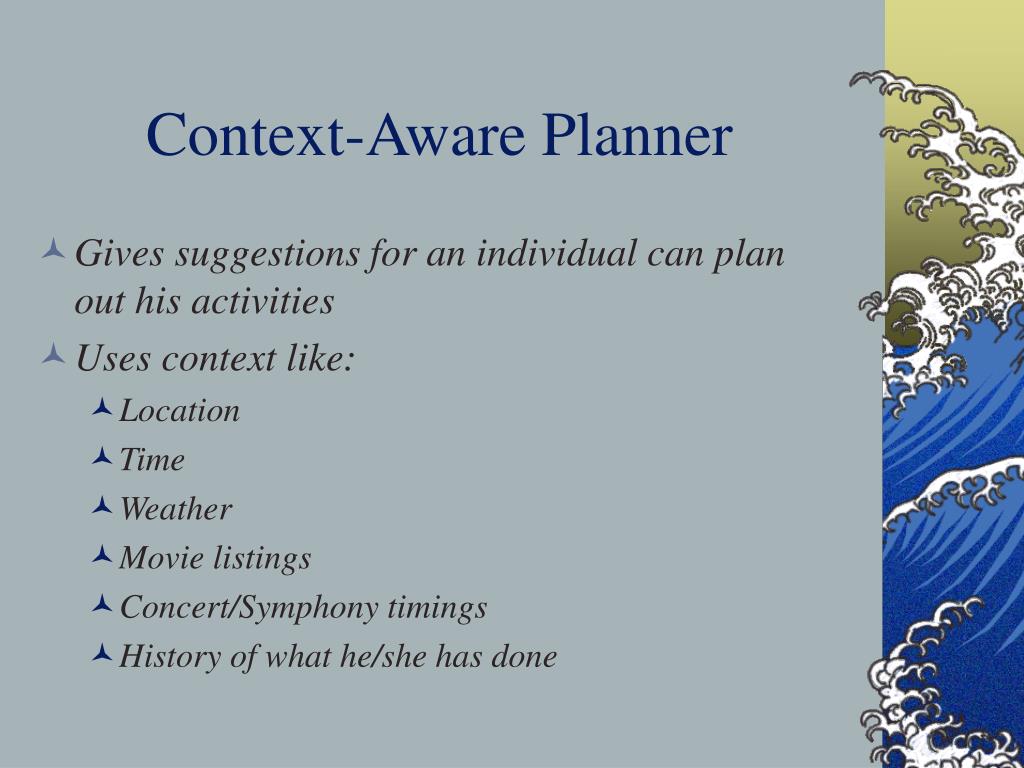

  6. Context-Aware Planner • Gives suggestions for an individual can plan out his activities • Uses context like: • Location • Time • Weather • Movie listings • Concert/Symphony timings • History of what he/she has done

  7. Context-Aware Planner- 2 • Group activities can be planned • Using social context between two or more people – like similar interests, relationship, etc. • Context-Aware Ambience Generator

  8. Context-Aware Ambience Generator • Based on moods of persons in room, social contexts, festivals, whether there’s a football game going on, etc. suitably changing the ambience of a room • Music, lighting, TV/radio

  9. Specifying context • Apps must be able to specify what type of context they want and in what format. • Context sensors must be able to send context to the apps. • Format should be flexible and extensible • Standardised?

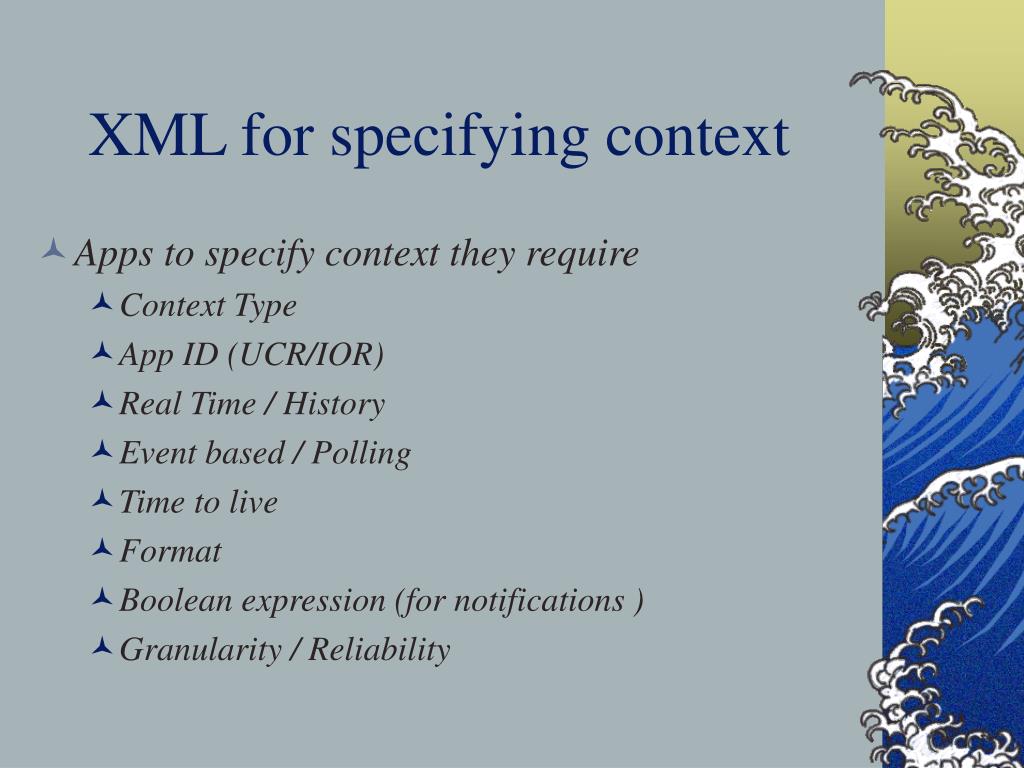

  10. XML for specifying context • Apps to specify context they require • Context Type • App ID (UCR/IOR) • Real Time / History • Event based / Polling • Time to live • Format • Boolean expression (for notifications ) • Granularity / Reliability

  11. XML for specifying context –2 • Context sensors send apps their context • Context Type • Timestamp • SourceID (UCR) • Value of context

  12. What do context-aware apps want? • Contextual information in a format they can understand (eg in temp in C or F) • Want to be notified when a context they are interested in occurs (eg. When temp > 98 F) • Want to be able to poll or query certain types of context (eg. What is temp now?) • Want to access context history (how did temp change ?) • Don’t care about actual context sensor

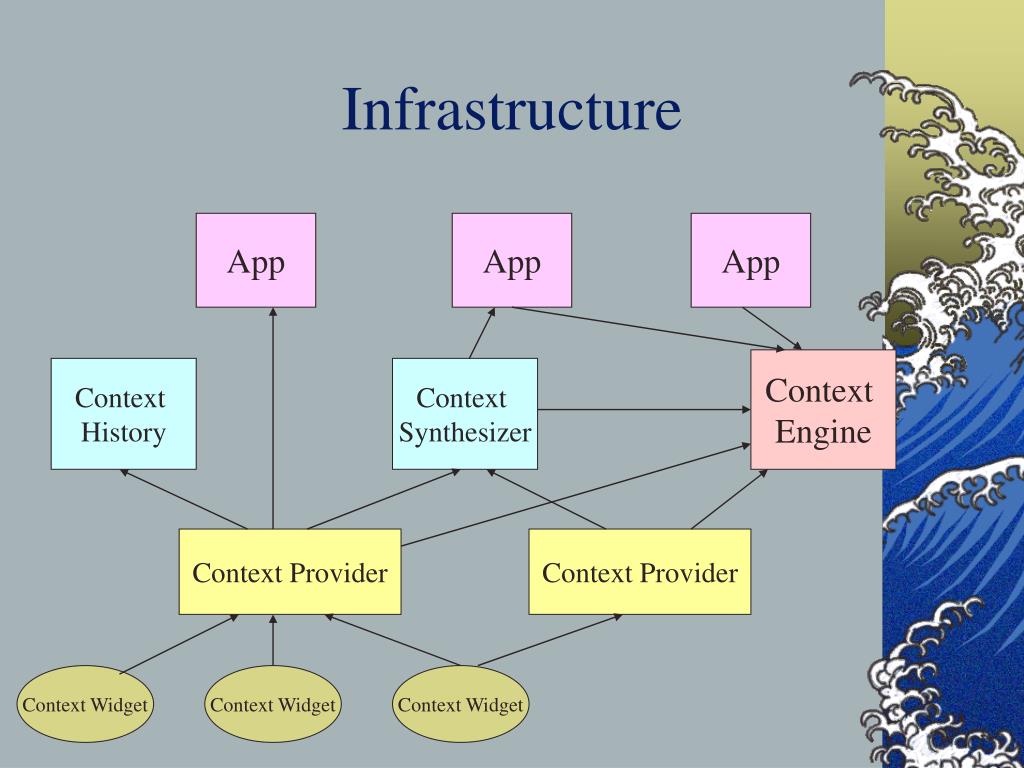

  13. Infrastructure App App App Context Engine Context History Context Synthesizer Context Provider Context Provider Context Widget Context Widget Context Widget

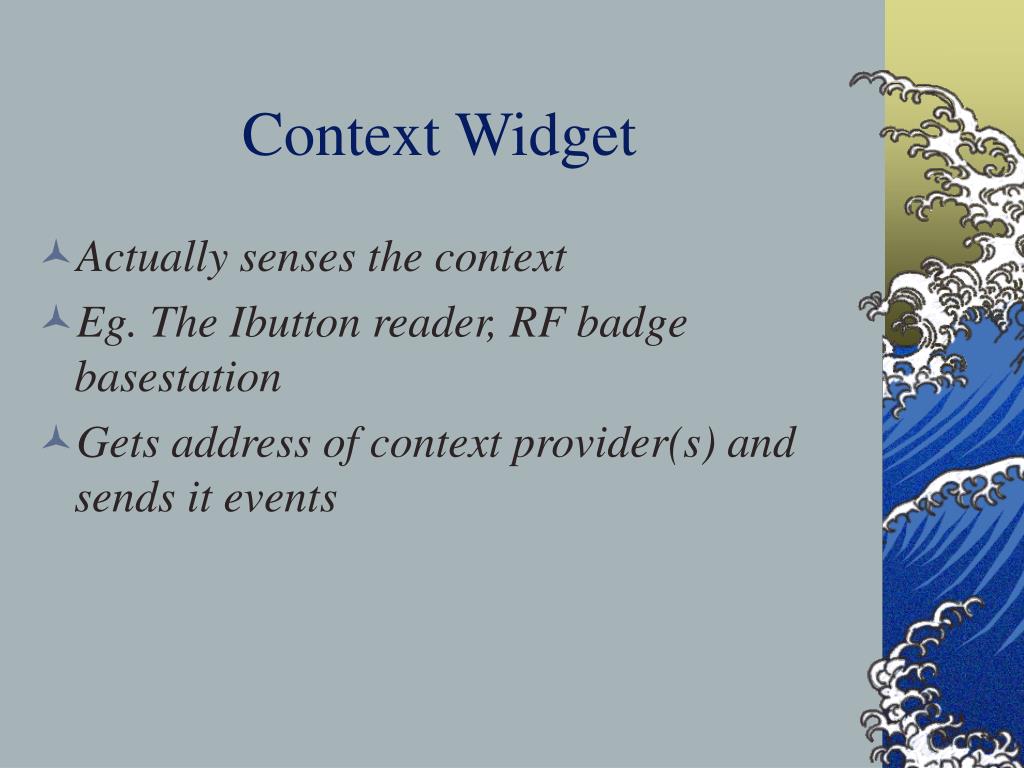

  14. Context Widget • Actually senses the context • Eg. The Ibutton reader, RF badge basestation • Gets address of context provider(s) and sends it events

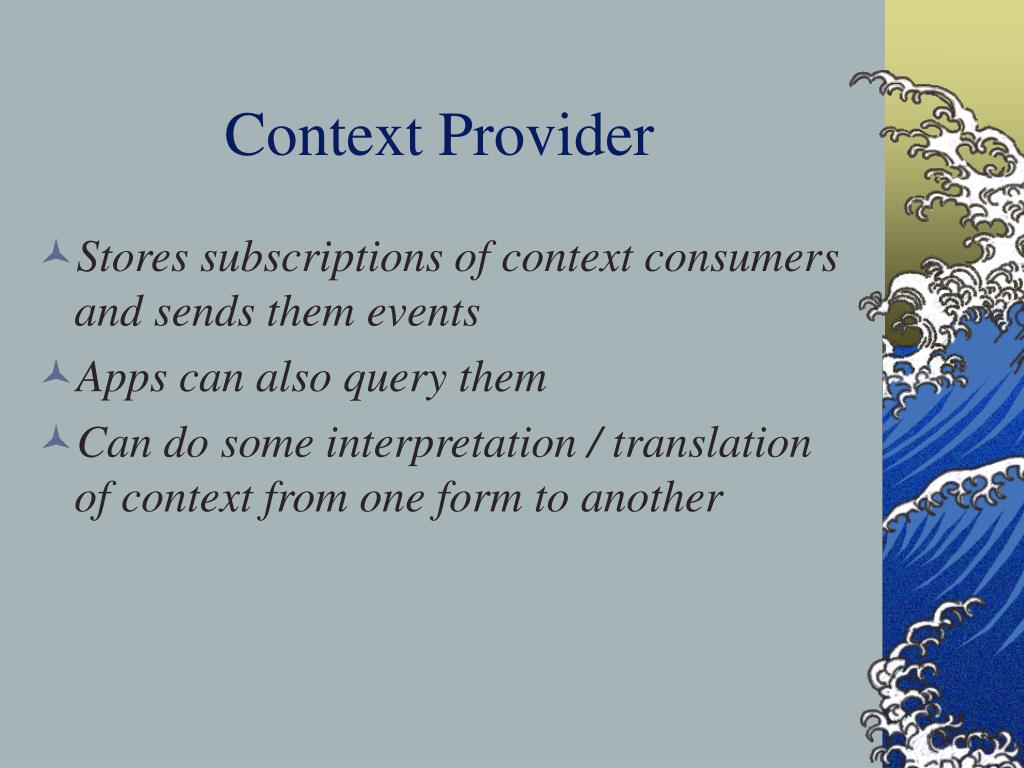

  15. Context Provider • Stores subscriptions of context consumers and sends them events • Apps can also query them • Can do some interpretation / translation of context from one form to another

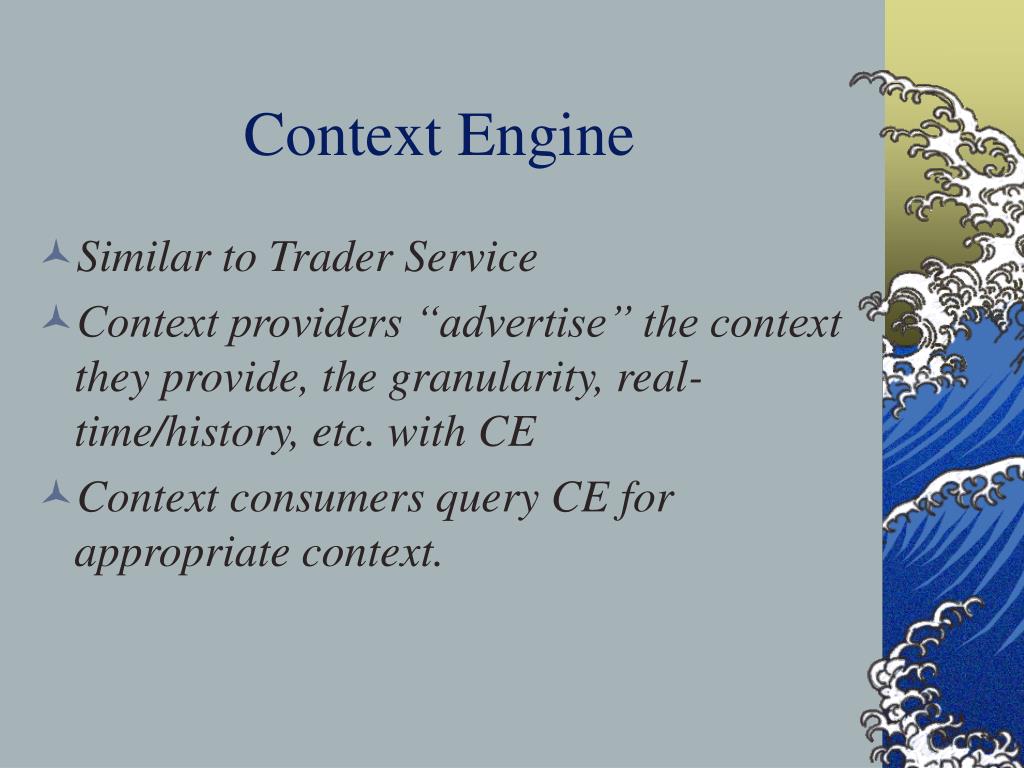

  16. Context Engine • Similar to Trader Service • Context providers “advertise” the context they provide, the granularity, real-time/history, etc. with CE • Context consumers query CE for appropriate context.

  17. Context Synthesizers • Makes use of more than one context to give another contextual cue. • Eg. Deducing if a meeting is taking place based on no. of people, sound, whether there’s a powerpoint ppt. • Is a context consumer and context provider

  18. Context History • Databases that subscribe to contextual information • Keep recording specific contexts like the location of a person • Is also a context consumer + context producer

  19. More details • ContextProvider interface • GetContext(XMLFile) • GetContext(XMLFile, IOR) • ContextConsumer interface • SendContext(XMLFile)

  20. Future issues • Resolving ambiguous context • Where does privacy fit in?
