  1. Android course Database dr Milan Vidaković Chair of Informatics Faculty of Technical Sciences University of Novi Sad

  2. Database • What is relational database model? • simplified answer: database consists of tables • table is just like the one in the Excel • Each table has rows and columns • Each column has: name, type (int, string,...), undefined value or not (null), is it primary key or not (primary key), etc.

  3. Primary key • Primary key: a column(s) which identifies a row • Student index, vehicle registration plate • Primary key can be autoincrement • Integer value which is incremented when a row is inserted in a table

  4. Android database • Android comes with SQLite database • Features: • self-contained, • serverless, • zero-configuration and • transactional • All the tables are placed in the /data folder (the only read-write folder on Android (except for the /sdcard folder content – SD card))

  5. SQLite • SQLiteDatabase class: SQLiteDatabasedb = dbHelper.getWritableDatabase(); • SQLiteOpenHelper class: to open, close, create and modify database DatabaseExamples

  6. Helper class • Extends SQLiteOpenHelper class • Overrides: • onCreate(SQLiteDatabase) • onOpen(SQLiteDatabase) • onUpgrade(SQLiteDatabase, old_ver, new_ver) • onDowngrade(SQLiteDatabase, old_ver, new_ver)

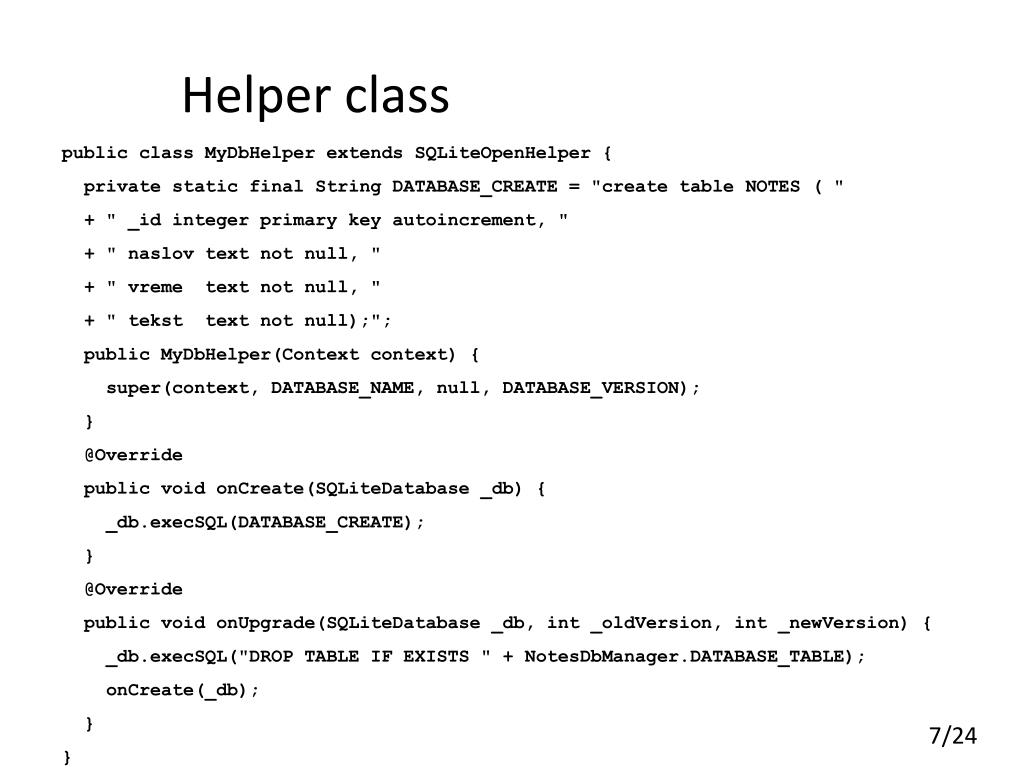

  7. Helper class public class MyDbHelper extends SQLiteOpenHelper { private static final String DATABASE_CREATE = "create table NOTES ( " + " _id integer primary key autoincrement," + " naslov text not null, " + " vreme text not null, " + " teksttext not null);"; public MyDbHelper(Context context) { super(context, DATABASE_NAME, null, DATABASE_VERSION); } @Override public void onCreate(SQLiteDatabase _db) { _db.execSQL(DATABASE_CREATE); } @Override public void onUpgrade(SQLiteDatabase _db, int _oldVersion, int _newVersion) { _db.execSQL("DROP TABLE IF EXISTS " + NotesDbManager.DATABASE_TABLE); onCreate(_db); } }

  8. SQLite database • CRUD (Create, Read, Update, Delete): long insert(String table, String null_hack, ContentCalues entry) Cursor query (String table, String[] columns, String selection, String[] selectionArgs, String groupBy, String having, String orderBy, String limit) int update(String table, ContentValues values, String whereClause, String[] whereArgs) int delete(String table, String whereClause, String[] whereArgs)

  9. Insert • Content to be inserted must be placed in the ContentValues map: ContentValues newEntry = new ContentValues(); newEntry.put(“FirstName”, “Pera”); newEntry.put(“LastName”, “Peric”); long id = db.insert(DATABASE_TABLE, null, newEntry); • Returns Id of the insterted row • Important when PK is autoincrement!

  10. Query • Return value is a cursor which is used to browse query results • If criteria, group by, having, order by, and limit is omitted, lists the whole table: Cursor c = db.query(DATABASE_TABLE, new String[] { _ID, TITLE, TIMESTAMP, TEXT },null, null, null, null, null);

  11. Query • Query: cursor = db.query(true, DATABASE_TABLE, new String[] {_ID,TITLE,TIMESTAMP,TEXT}, _ID + "=?", new String[] {id}, null,null, null, null); • Raw query: cursor = db.rawQuery("select _ID, TITLE, TIMESTAMP, TEXT from DATABASE_TABLE where ID=?", new String[] {id});

  12. Cursor • To browse and read query results • Browse: move(offset) moveToFirst(), moveToLast(), moveToNext(), moveToPrevious() isFirst(), isLast(), isAfterLast(), isBeforeFirst() • Read: getCount() getString(column_index) getInt(column_index) getColumnIndex(“LastName”);

  13. Update • Updates column(s): ContentValues newValue = new ContentValues(); newValue.put(“FirstName”, “MIKA”); newValue.put(“LastName”, “MIKIC”); int rows = db.update(DATABASE_TABLE, newValue, _ID + "=?", new String[] {id}); • SQL equivalent: update DATABASE_TABLE set FirstName=“MIKA”, LastName=“MIKIC” where _ID=id • If filter criteria is omitted, it will update all rows! • Last two arguments are filter criteria and its parameters • Returns the number of affected rows

  14. Delete • Deletes a row: int rows = db.delete(DATABASE_TABLE, _ID + "=?", new String[] {id}); • SQL equivalent: delete from DATABASE_TABLE where _ID=id • If filter criteria is omitted, it will update all rows! • Last two arguments are filter criteria and its parameters • Returns the number of affected rows

  15. Data read • To start reading query results: startManagingCursor(cur); • This method binds cursor to Activity from which it has been created • If an activity is stopped, it will invoke cursor.deactivate() • If an activity is restarted, it will invoke cursor.requery() • If an activity is destroyed, it will close the cursor • Each ListView has a ListAdapter which binds data and ListView • SimpleCursorAdapter class is used to bind query results to a ListView DatabaseExamples

  16. SimpleCursorAdapter • A kind of ListAdapter, which binds cursor to a ListView • Procedure: execute query, create SimpleCursorAdapter, and put that adapter as a soruce to a ListView

  17. SimpleCursorAdapter • Constructor: ListAdapter adapter = new SimpleCursorAdapter(this, R.layout.list_item, cur, new String[] { “FirstName”, “LastName”}, new int[] {R.id.firstname,R.id.lastname}); • Second argument (R.layout.list_item) is a resource ID which will visualise a row • Third argument is a cursor • Fourth argument is a list of column names in a db table • Fifth argument is a list of component ids bound to appropriate columns in a table • Components are part of a row component (R.layout.list_item)

  18. List multimedia files • List multimeida files on a device String[] proj = { MediaStore.Video.Media._ID, MediaStore.Video.Media.DATA, MediaStore.Video.Media.DISPLAY_NAME, MediaStore.Video.Media.SIZE }; mediaCursor = managedQuery(MediaStore.Video.Media.EXTERNAL_CONTENT_URI,proj, null, null, null); DatabaseExamples

  19. List multimedia files • How to bind query result and ListView? Create custom Adapter, which extends BaseAdapter class MMediaAdapter extends BaseAdapter { private Context vContext; public MMediaAdapter(Context c) { vContext = c; } public int getCount() { return mediaCursor.getCount(); } public Object getItem(int position) { return position; } public long getItemId(int position) { return position; }

  20. List multimedia files public View getView(int position, View oldView, ViewGroup parent) { System.gc(); TextView tv; String id = null; if (oldView == null) { tv = new TextView(vContext.getApplicationContext()); int media_column_index = mediaCursor .getColumnIndexOrThrow(MediaStore.Video.Media.DISPLAY_NAME); mediaCursor.moveToPosition(position); id = mediaCursor.getString(media_column_index); media_column_index = mediaCursor .getColumnIndexOrThrow(MediaStore.Video.Media.SIZE); mediaCursor.moveToPosition(position); id += " Size(KB):" + mediaCursor.getString(media_column_index); tv.setText(id); } else tv = (TextView) oldView; return tv; } }

  21. Browse bookmarks and web history • Android browsers record all bookmarks and history in a database • Table has an alias: android.provider.Browser.BOOKMARKS_URI • Columns: • Browser.BookmarkColumns.TITLE • Browser.BookmarkColumns.URL • Browser.BookmarkColumns.CREATED • Browser.BookmarkColumns.BOOKMARK – 1 for a bookmark; 0 for history DatabaseExamples

  22. Browse bookmarks and web history String[] columns = new String[] { Browser.BookmarkColumns.TITLE, Browser.BookmarkColumns.URL, Browser.BookmarkColumns.CREATED }; Cursor cur = managedQuery(android.provider.Browser.BOOKMARKS_URI, columns, null, null, null); ListAdapter adapter = new SimpleCursorAdapter(this, R.layout.bookmark_item, cur, new String[] { Browser.BookmarkColumns.TITLE, Browser.BookmarkColumns.URL, Browser.BookmarkColumns.CREATED}, new int[] { R.id.bookmark_title, R.id.bookmark_url, R.id.bookmark_created }); ListView mainList = (ListView) findViewById(R.id.bookmarks_list); mainList.setAdapter(adapter);

  23. Call history • Android records all voice calls history in a database • Table alias: CallLog.Calls.CONTENT_URI • Columns: • Calls.NUMBER • Calls.CACHED_NAME • Calls.DURATION • Calls.DATE • Calls.TYPE (incoming, outgoing, missed) DatabaseExamples

  24. Call history String[] columns = new String[] {Calls._ID , Calls.NUMBER, Calls.CACHED_NAME, Calls.DURATION }; Cursor cur = managedQuery(CallLog.Calls.CONTENT_URI, columns, null, null, null); ListAdapter adapter = new SimpleCursorAdapter(this, R.layout.call_history_item, cur, new String[] { Calls.NUMBER, Calls.CACHED_NAME, Calls.DURATION}, new int[] { R.id.call_number, R.id.call_name, R.id.call_duration }); ListView mainList = (ListView)findViewById(R.id.call_history_list); mainList.setAdapter(adapter);
