  1. Training:LincView OPC The Leader in Industrial Data Communication Solutions

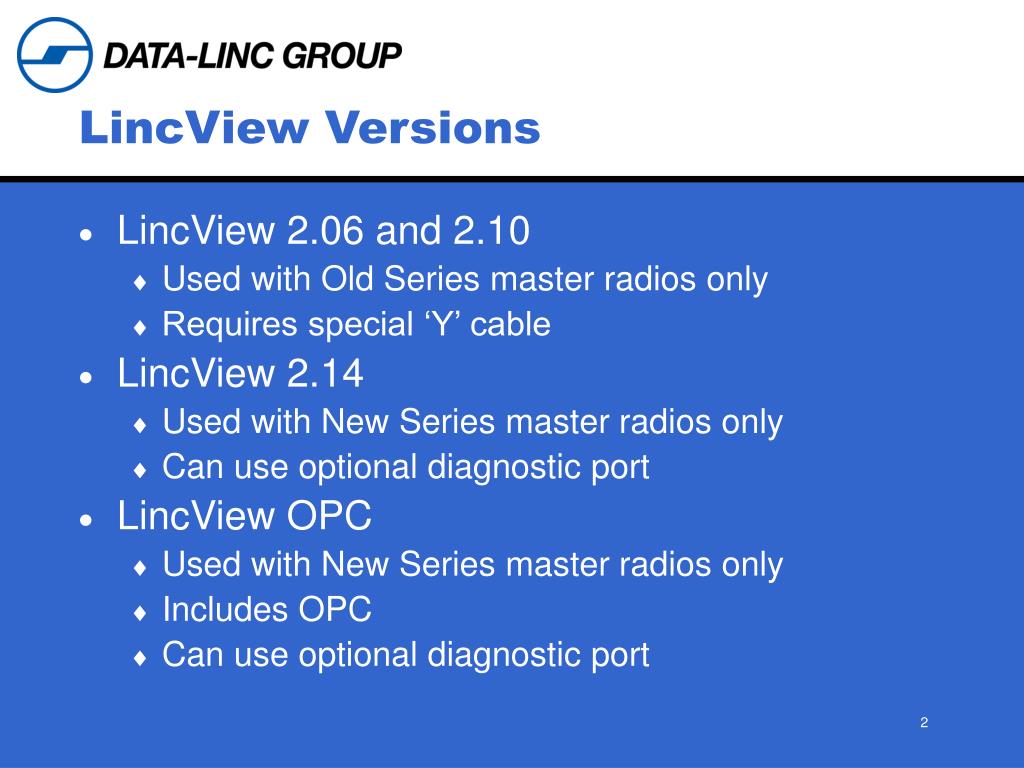

  2. LincView Versions • LincView 2.06 and 2.10 • Used with Old Series master radios only • Requires special ‘Y’ cable • LincView 2.14 • Used with New Series master radios only • Can use optional diagnostic port • LincView OPC • Used with New Series master radios only • Includes OPC • Can use optional diagnostic port

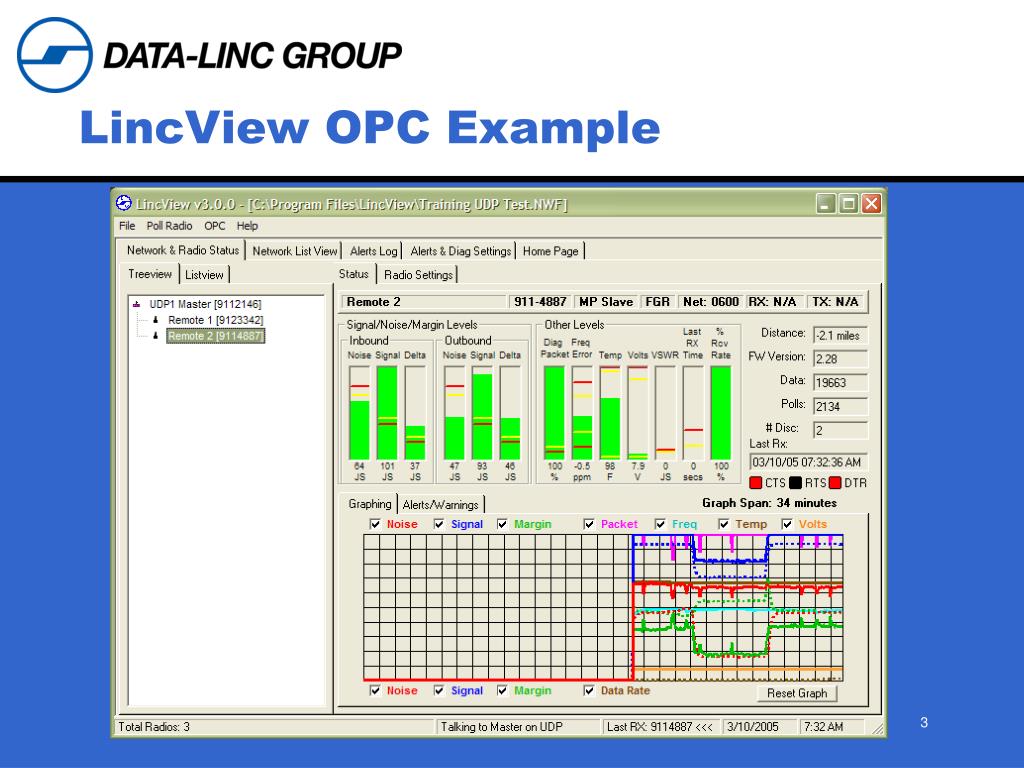

  3. LincView OPC Example

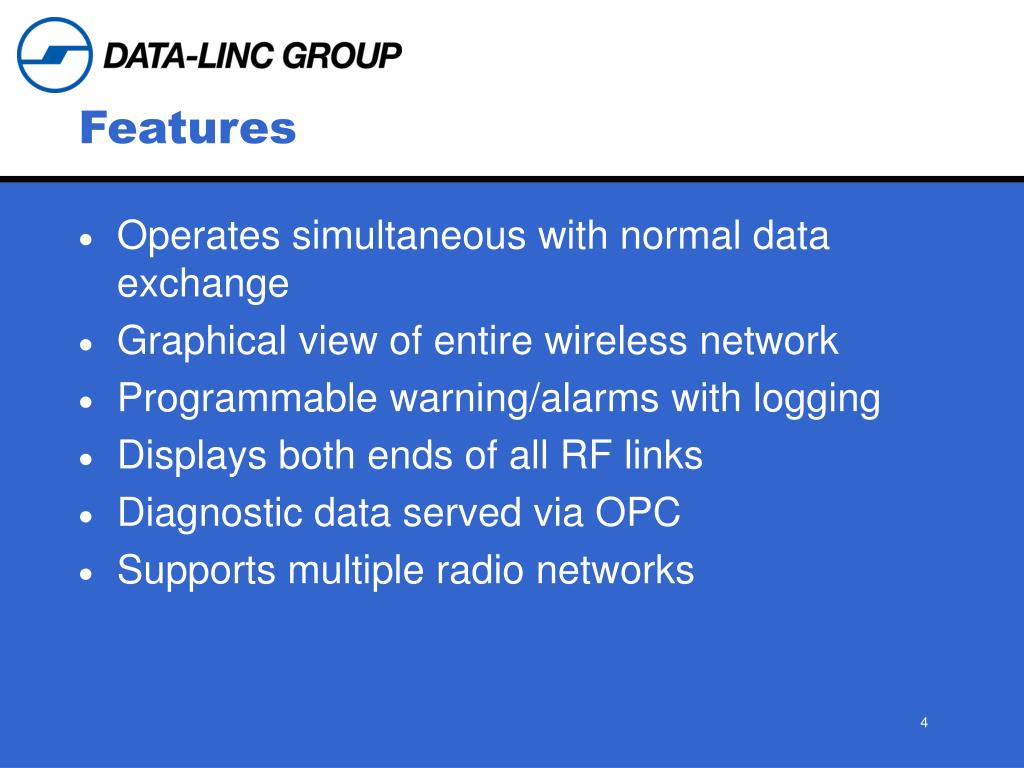

  4. Features • Operates simultaneous with normal data exchange • Graphical view of entire wireless network • Programmable warning/alarms with logging • Displays both ends of all RF links • Diagnostic data served via OPC • Supports multiple radio networks

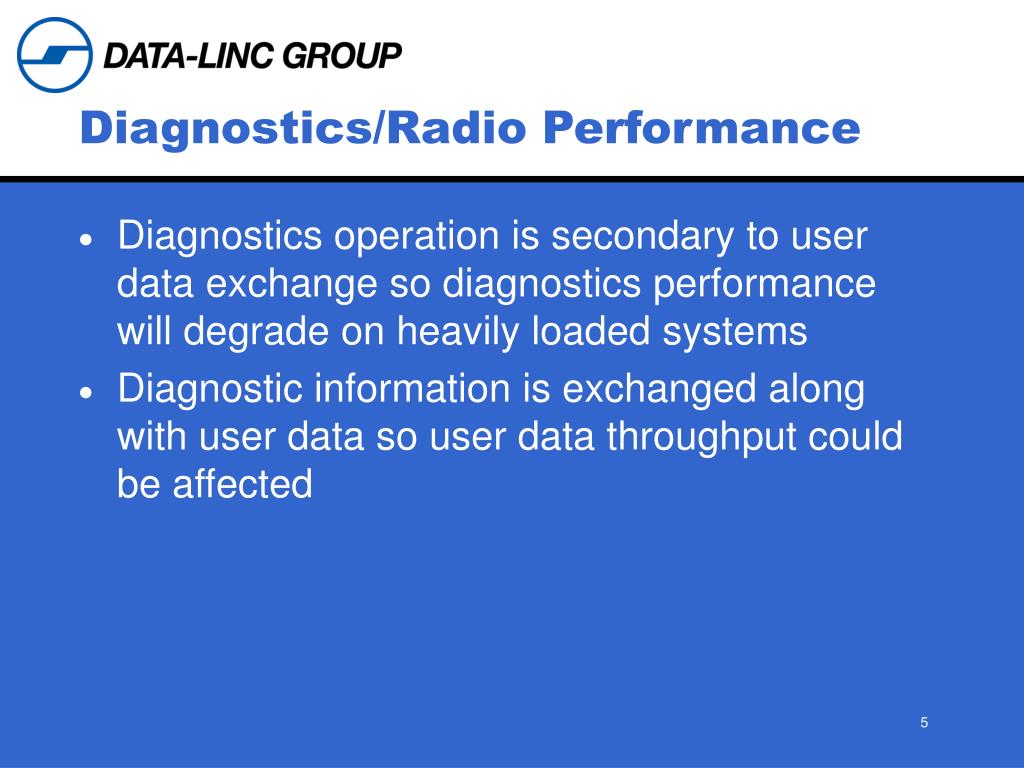

  5. Diagnostics/Radio Performance • Diagnostics operation is secondary to user data exchange so diagnostics performance will degrade on heavily loaded systems • Diagnostic information is exchanged along with user data so user data throughput could be affected

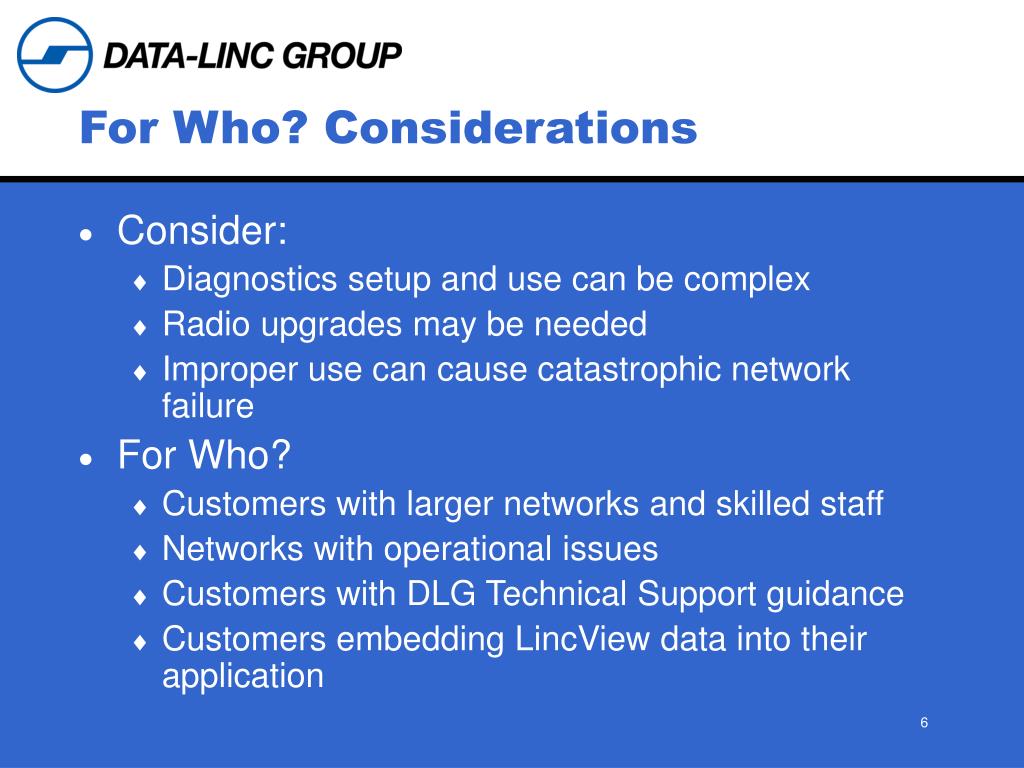

  6. For Who? Considerations • Consider: • Diagnostics setup and use can be complex • Radio upgrades may be needed • Improper use can cause catastrophic network failure • For Who? • Customers with larger networks and skilled staff • Networks with operational issues • Customers with DLG Technical Support guidance • Customers embedding LincView data into their application

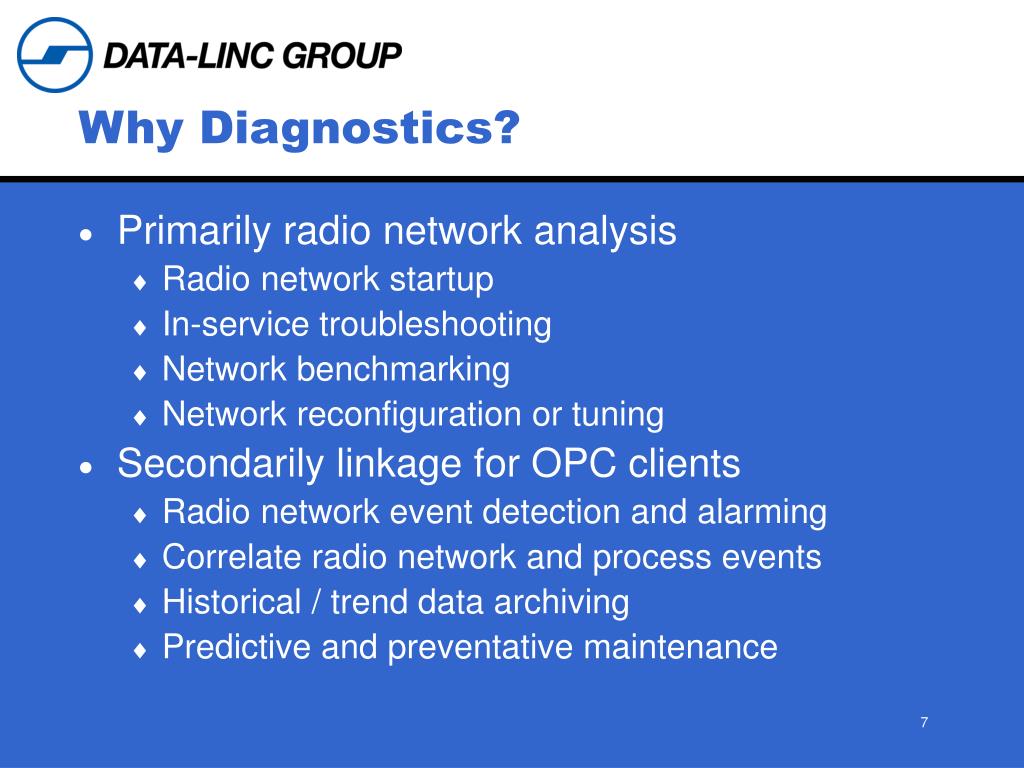

  7. Why Diagnostics? • Primarily radio network analysis • Radio network startup • In-service troubleshooting • Network benchmarking • Network reconfiguration or tuning • Secondarily linkage for OPC clients • Radio network event detection and alarming • Correlate radio network and process events • Historical / trend data archiving • Predictive and preventative maintenance

  8. Technical Support Boundaries • As always we support our products including all versions of LincView • Will assist with network analysis and problem resolution • Full support for server side OPC • Limited support for OPC clients and LincView OPC data usage

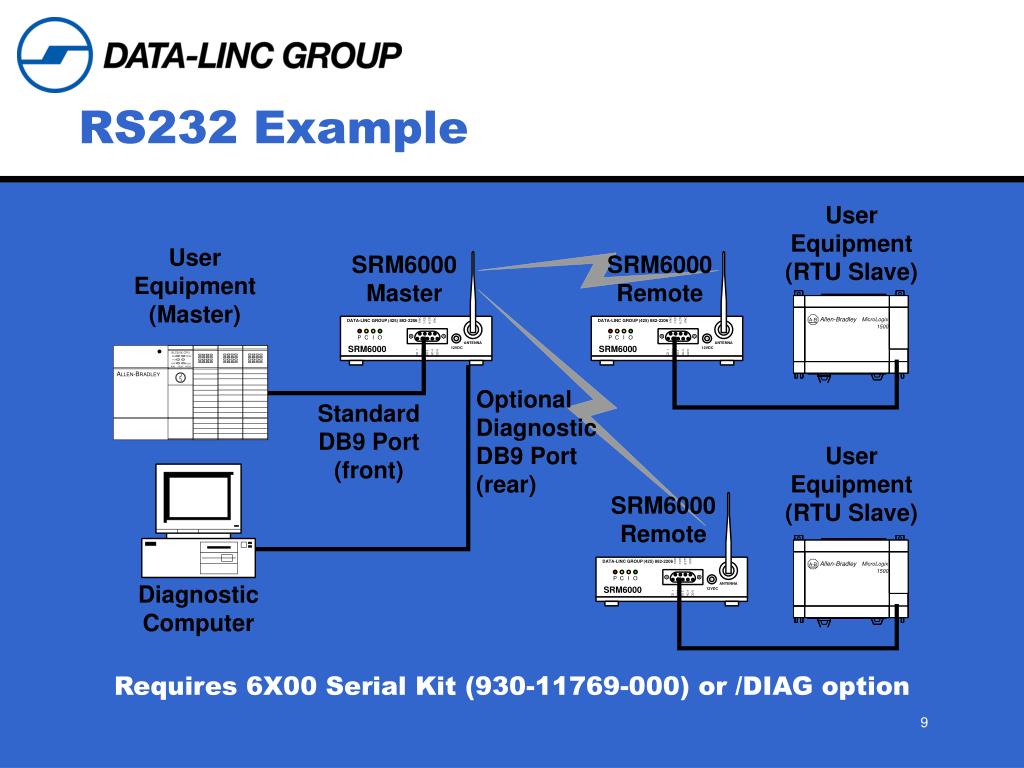

  9. RS232 Example Requires 6X00 Serial Kit (930-11769-000) or /DIAG option

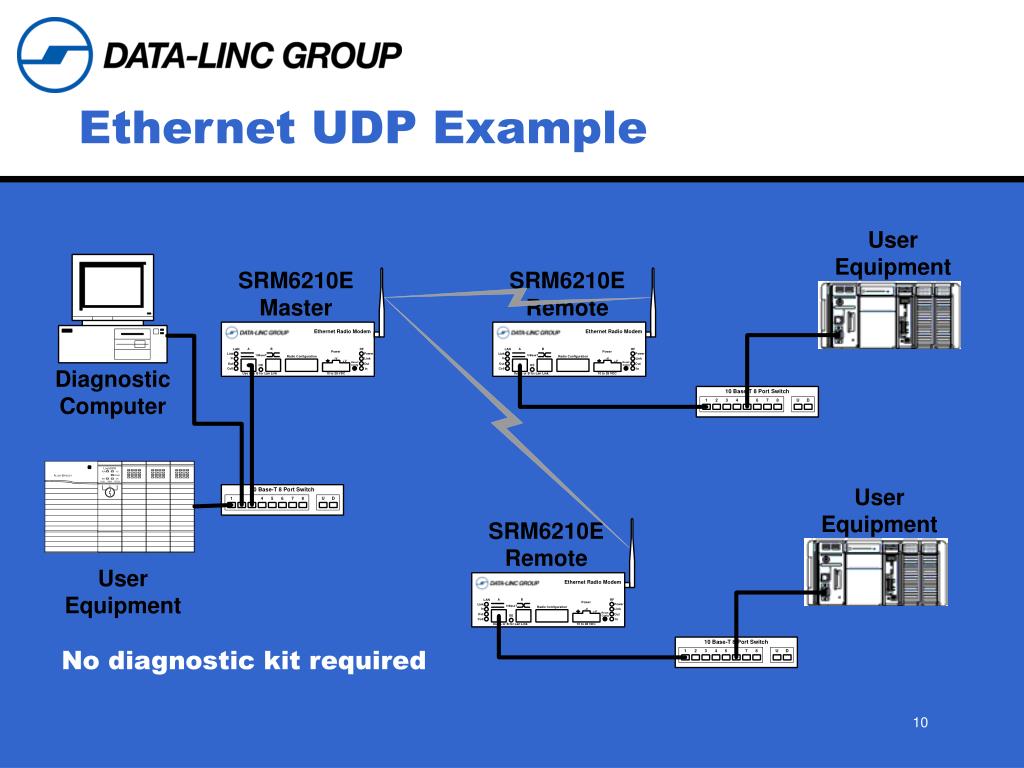

  10. Ethernet UDP Example No diagnostic kit required

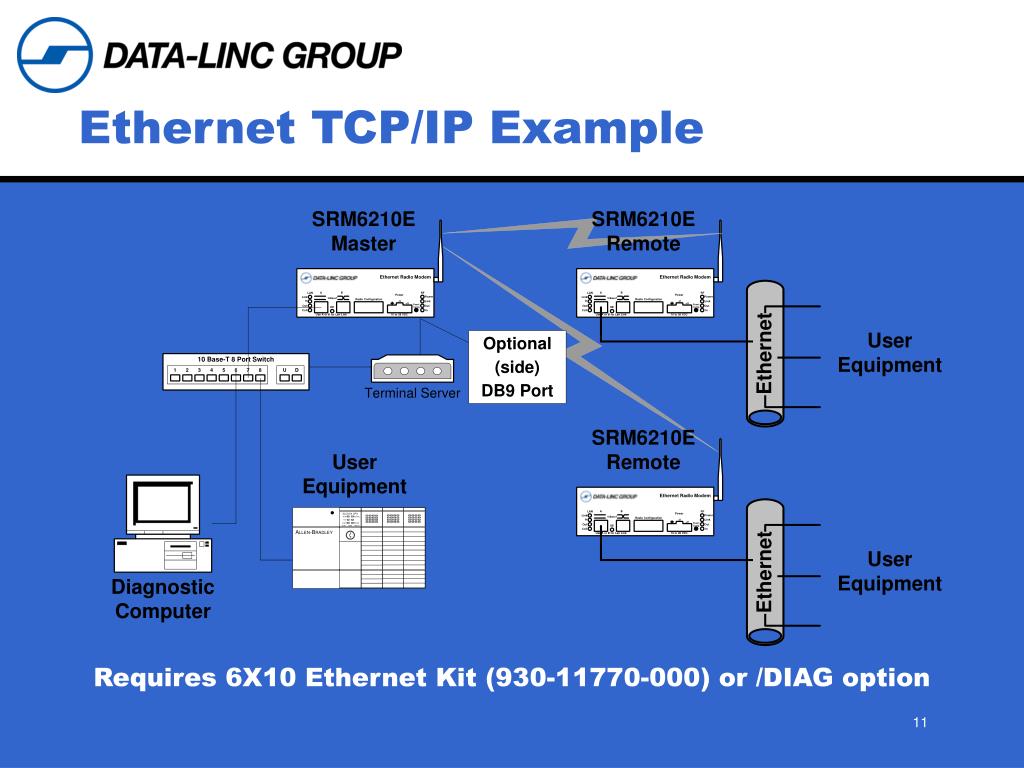

  11. Ethernet TCP/IP Example Requires 6X10 Ethernet Kit (930-11770-000) or /DIAG option

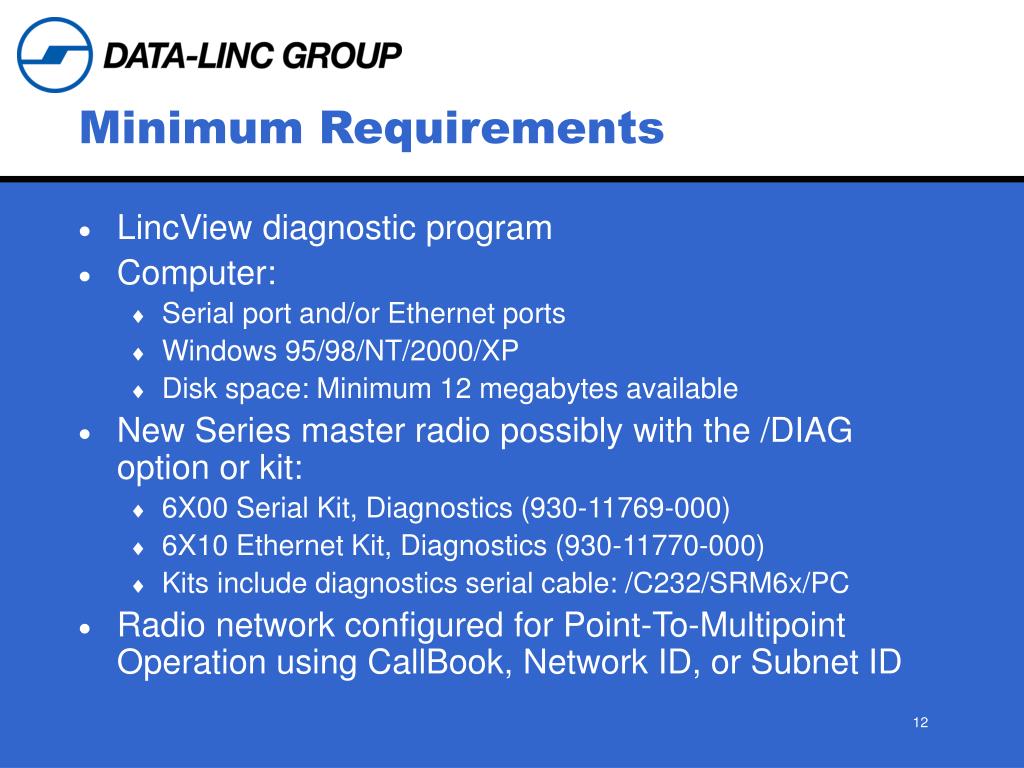

  12. Minimum Requirements • LincView diagnostic program • Computer: • Serial port and/or Ethernet ports • Windows 95/98/NT/2000/XP • Disk space: Minimum 12 megabytes available • New Series master radio possibly with the /DIAG option or kit: • 6X00 Serial Kit, Diagnostics (930-11769-000) • 6X10 Ethernet Kit, Diagnostics (930-11770-000) • Kits include diagnostics serial cable: /C232/SRM6x/PC • Radio network configured for Point-To-Multipoint Operation using CallBook, Network ID, or Subnet ID

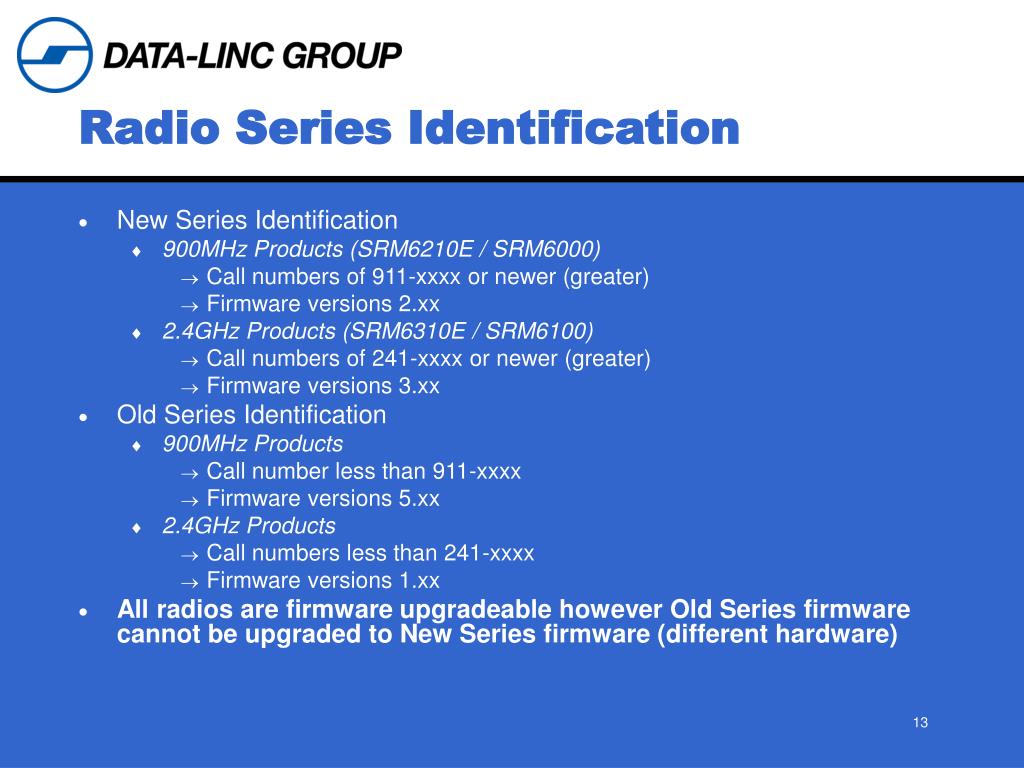

  13. Radio Series Identification • New Series Identification • 900MHz Products (SRM6210E / SRM6000) • Call numbers of 911-xxxx or newer (greater) • Firmware versions 2.xx • 2.4GHz Products (SRM6310E / SRM6100) • Call numbers of 241-xxxx or newer (greater) • Firmware versions 3.xx • Old Series Identification • 900MHz Products • Call number less than 911-xxxx • Firmware versions 5.xx • 2.4GHz Products • Call numbers less than 241-xxxx • Firmware versions 1.xx • All radios are firmware upgradeable however Old Series firmware cannot be upgraded to New Series firmware (different hardware)

  14. Radio Series Identification (Cont.) • The radio Call number and firmware version can be determined by: • Customer records archive • The Configuration Sheets provided by the factory with each modem, or • Using HyperTerminal, enter the radio’s configuration menu, and read the first lines of the Main Menu

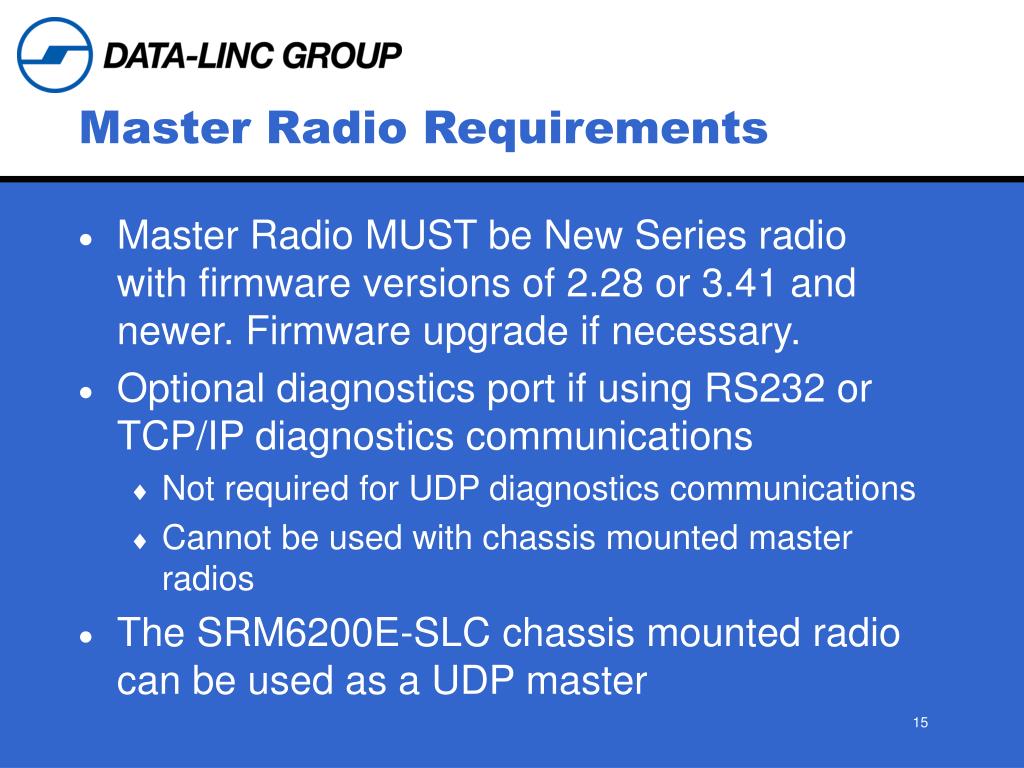

  15. Master Radio Requirements • Master Radio MUST be New Series radio with firmware versions of 2.28 or 3.41 and newer. Firmware upgrade if necessary. • Optional diagnostics port if using RS232 or TCP/IP diagnostics communications • Not required for UDP diagnostics communications • Cannot be used with chassis mounted master radios • The SRM6200E-SLC chassis mounted radio can be used as a UDP master

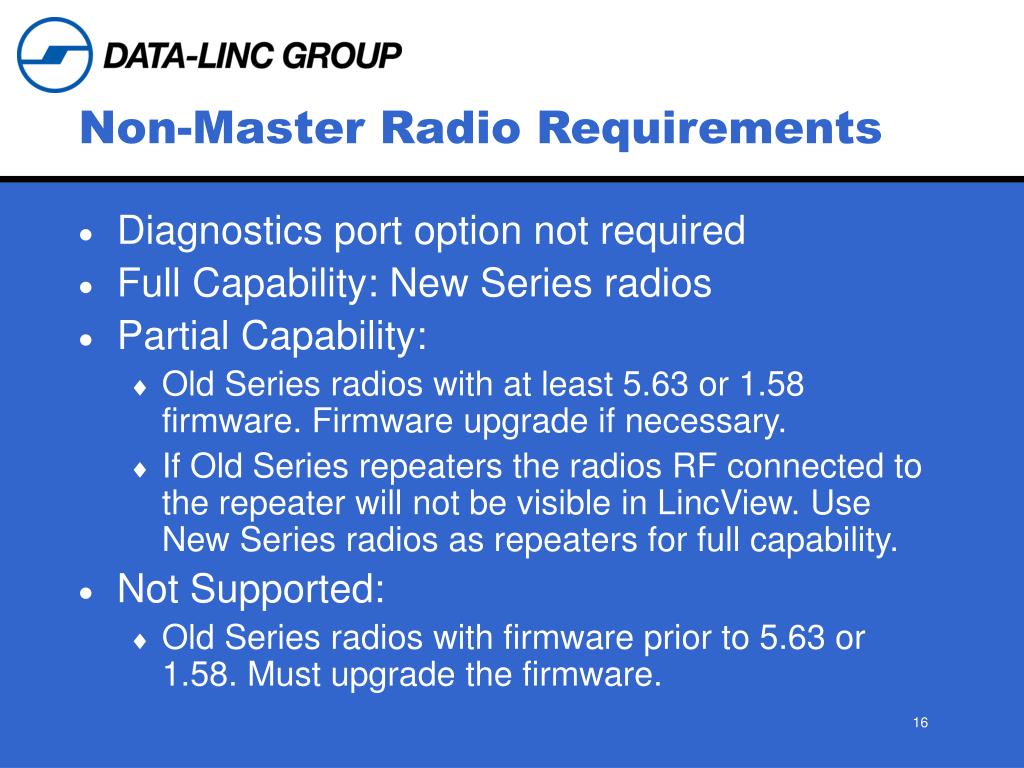

  16. Non-Master Radio Requirements • Diagnostics port option not required • Full Capability: New Series radios • Partial Capability: • Old Series radios with at least 5.63 or 1.58 firmware. Firmware upgrade if necessary. • If Old Series repeaters the radios RF connected to the repeater will not be visible in LincView. Use New Series radios as repeaters for full capability. • Not Supported: • Old Series radios with firmware prior to 5.63 or 1.58. Must upgrade the firmware.

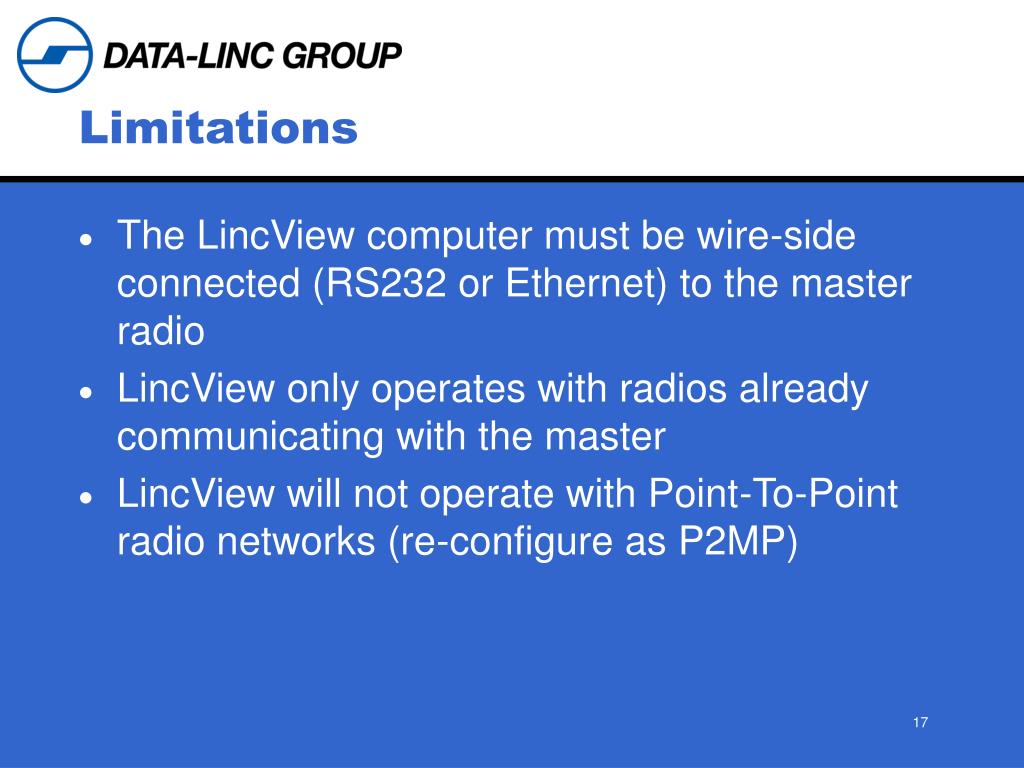

  17. Limitations • The LincView computer must be wire-side connected (RS232 or Ethernet) to the master radio • LincView only operates with radios already communicating with the master • LincView will not operate with Point-To-Point radio networks (re-configure as P2MP)

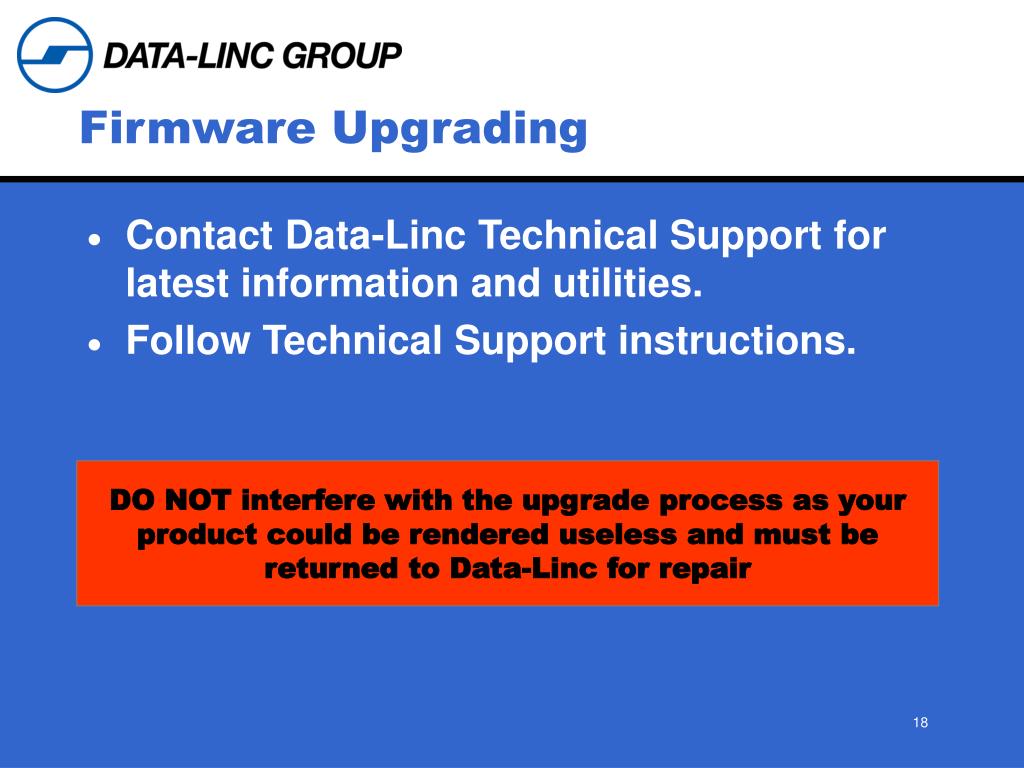

  18. Firmware Upgrading • Contact Data-Linc Technical Support for latest information and utilities. • Follow Technical Support instructions. DO NOT interfere with the upgrade process as your product could be rendered useless and must be returned to Data-Linc for repair

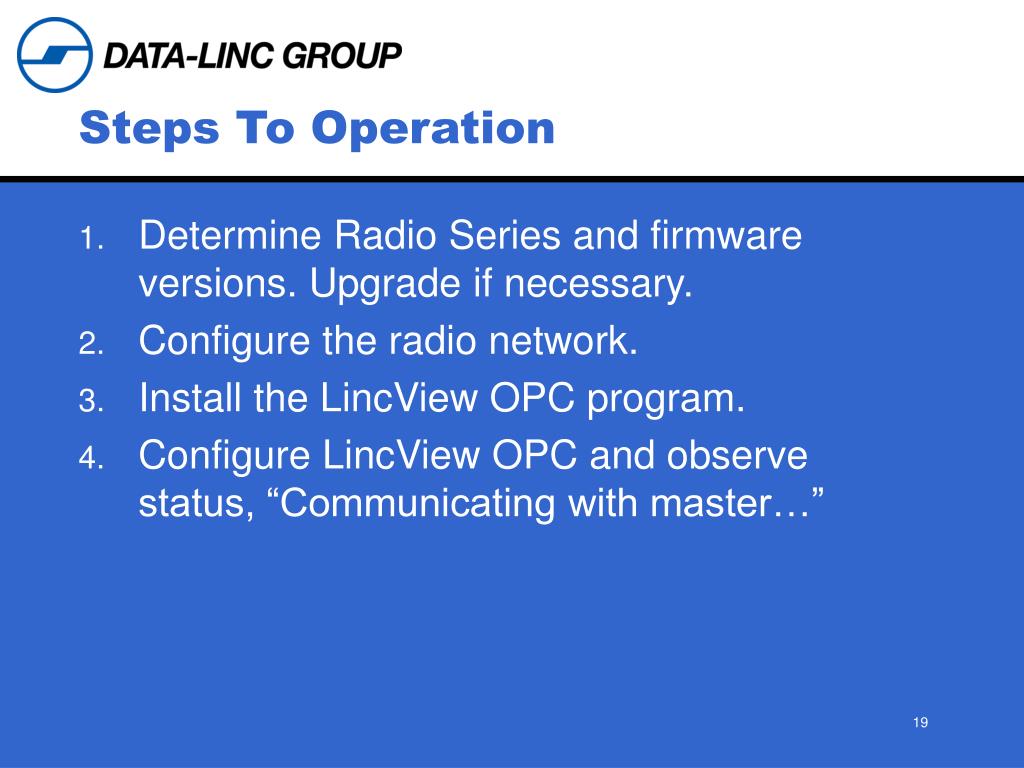

  19. Steps To Operation • Determine Radio Series and firmware versions. Upgrade if necessary. • Configure the radio network. • Install the LincView OPC program. • Configure LincView OPC and observe status, “Communicating with master…”

  20. LincView OPC Program Installation • Run the LincView setup program and answer typical setup questions. • Start by double clicking the LincView icon on the desktop. • Choose an existing network file or type in the name of a new network file. • LincView is running.

  21. RS232 Configuration Requires 6X00 Serial Kit (930-11769-000) or /DIAG option

  22. Radio: RS232 Setup • Install diagnostic port on master radio • Enter master radio configuration: • At main menu choose option 5 (Multipoint Parameters), then change option B (Diagnostics) to 1 - 63 (15 Suggested) • At main menu choose option 3 (radio transmission characteristics) and ensure option B (MCU Speed) is set to 1 • Optionally, a password may be set in the radio Set “Password” (Main Menu option 8) to your Password (I.e. 1234).WARNING: Do Not Forget Your Password! If lost the unit must be returned to Data-Linc for password reset. • Other Radios: No Menu changes Needed • Connect Diagnostic computer to diagnostic port with /C232/SRM60/PC cable

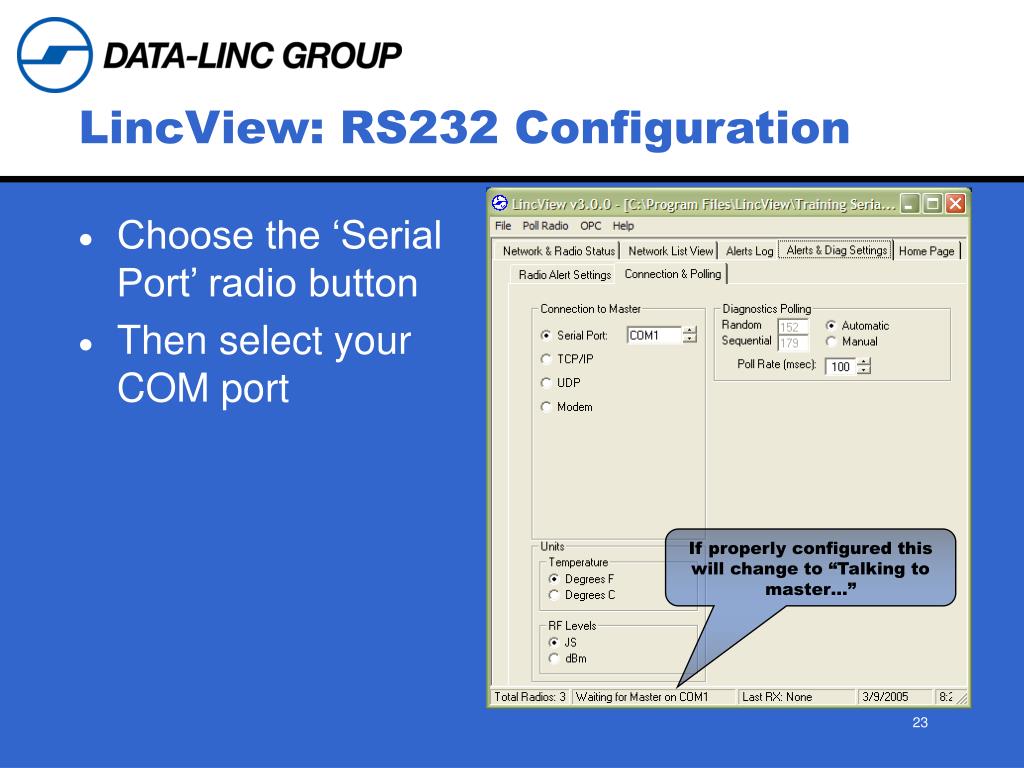

  23. LincView: RS232 Configuration • Choose the ‘Serial Port’ radio button • Then select your COM port If properly configured this will change to “Talking to master…”

  24. Ethernet UDP Configuration No diagnostic kit required

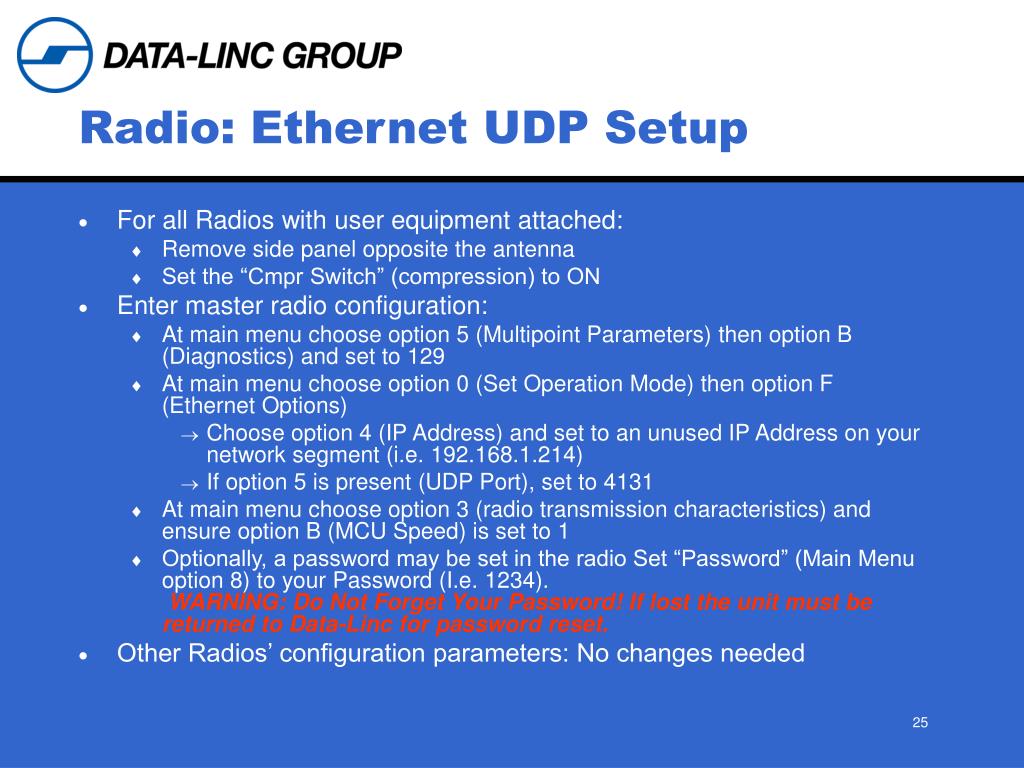

  25. Radio: Ethernet UDP Setup • For all Radios with user equipment attached: • Remove side panel opposite the antenna • Set the “Cmpr Switch” (compression) to ON • Enter master radio configuration: • At main menu choose option 5 (Multipoint Parameters) then option B (Diagnostics) and set to 129 • At main menu choose option 0 (Set Operation Mode) then option F (Ethernet Options) • Choose option 4 (IP Address) and set to an unused IP Address on your network segment (i.e. 192.168.1.214) • If option 5 is present (UDP Port), set to 4131 • At main menu choose option 3 (radio transmission characteristics) and ensure option B (MCU Speed) is set to 1 • Optionally, a password may be set in the radio Set “Password” (Main Menu option 8) to your Password (I.e. 1234).WARNING: Do Not Forget Your Password! If lost the unit must be returned to Data-Linc for password reset. • Other Radios’ configuration parameters: No changes needed

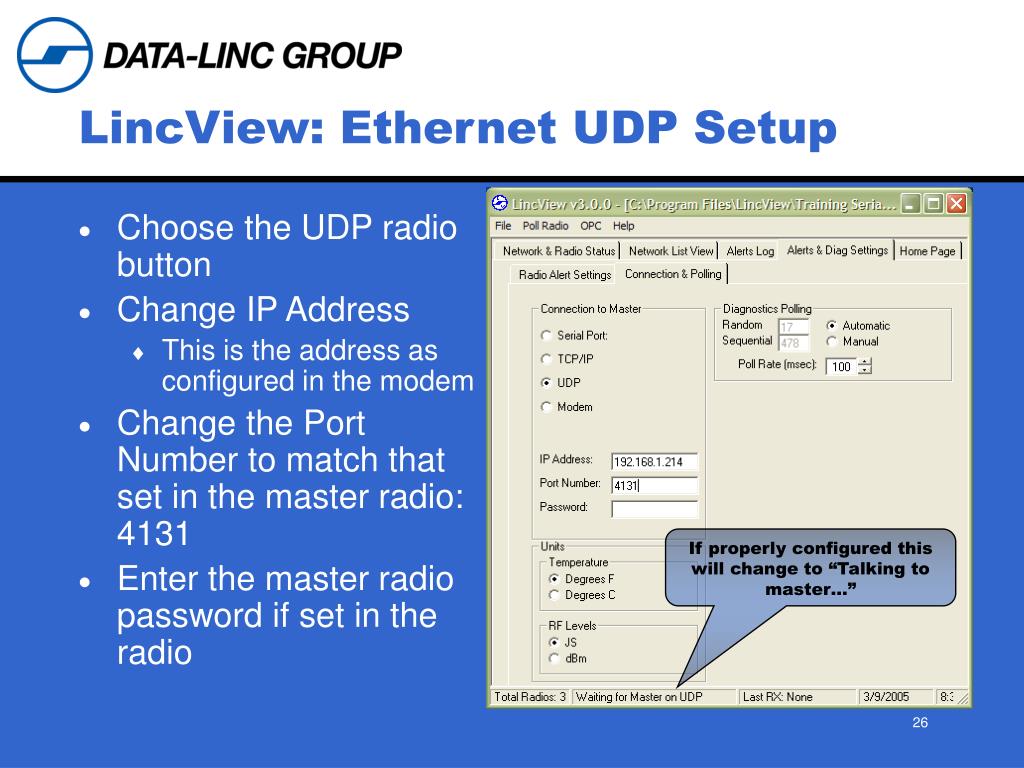

  26. LincView: Ethernet UDP Setup • Choose the UDP radio button • Change IP Address • This is the address as configured in the modem • Change the Port Number to match that set in the master radio: 4131 • Enter the master radio password if set in the radio If properly configured this will change to “Talking to master…”

  27. Ethernet TCP/IP Configuration Requires 6X10 Ethernet Kit (930-11770-000) or /DIAG option

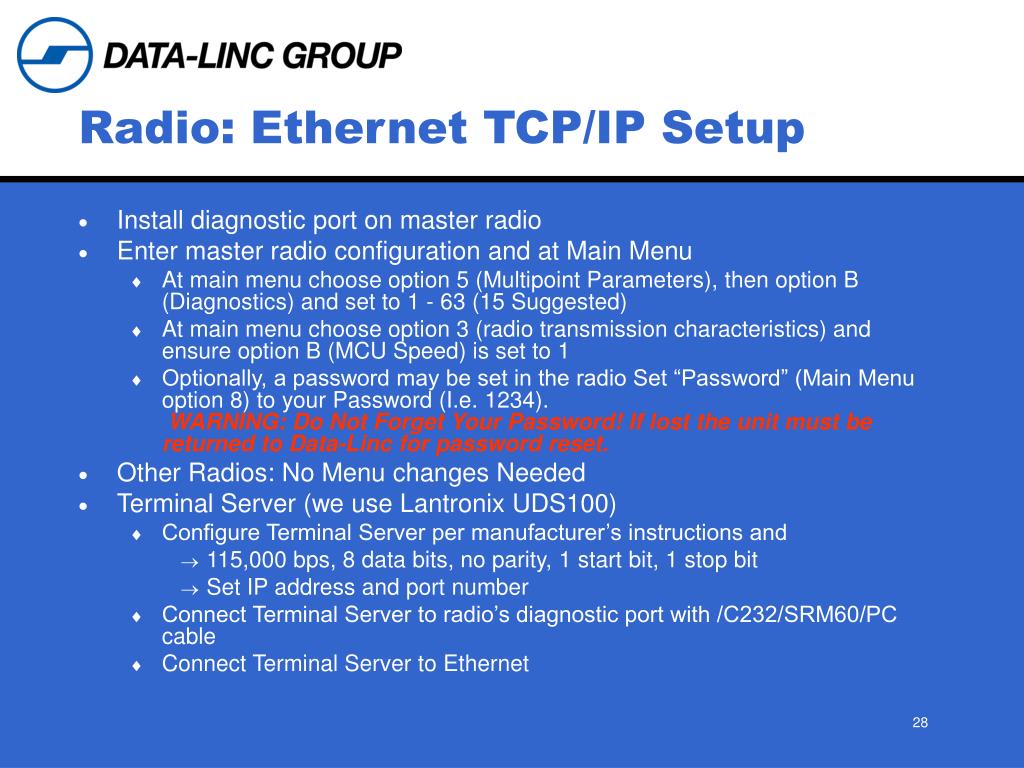

  28. Radio: Ethernet TCP/IP Setup • Install diagnostic port on master radio • Enter master radio configuration and at Main Menu • At main menu choose option 5 (Multipoint Parameters), then option B (Diagnostics) and set to 1 - 63 (15 Suggested) • At main menu choose option 3 (radio transmission characteristics) and ensure option B (MCU Speed) is set to 1 • Optionally, a password may be set in the radio Set “Password” (Main Menu option 8) to your Password (I.e. 1234).WARNING: Do Not Forget Your Password! If lost the unit must be returned to Data-Linc for password reset. • Other Radios: No Menu changes Needed • Terminal Server (we use Lantronix UDS100) • Configure Terminal Server per manufacturer’s instructions and • 115,000 bps, 8 data bits, no parity, 1 start bit, 1 stop bit • Set IP address and port number • Connect Terminal Server to radio’s diagnostic port with /C232/SRM60/PC cable • Connect Terminal Server to Ethernet

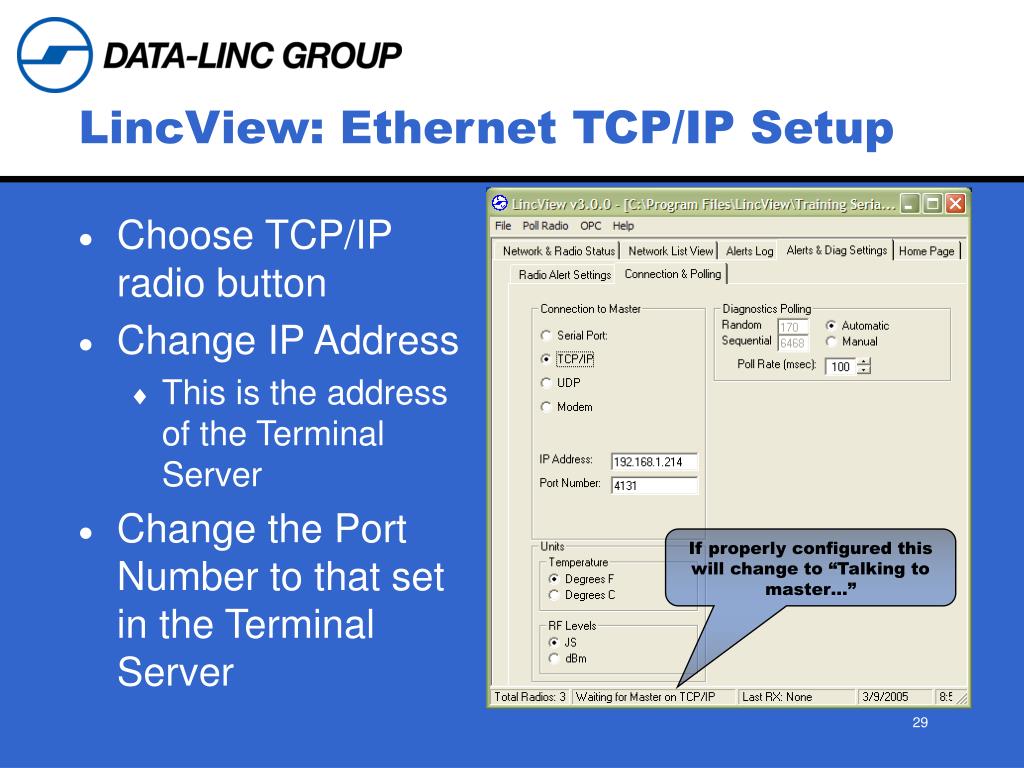

  29. LincView: Ethernet TCP/IP Setup • Choose TCP/IP radio button • Change IP Address • This is the address of the Terminal Server • Change the Port Number to that set in the Terminal Server If properly configured this will change to “Talking to master…”

  30. LincView Master Radio Example Master radio Test antenna removed

  31. LincView Remote Radio Example Values for this radio at opposite end of the RF link Values at this radio’s end of the RF link

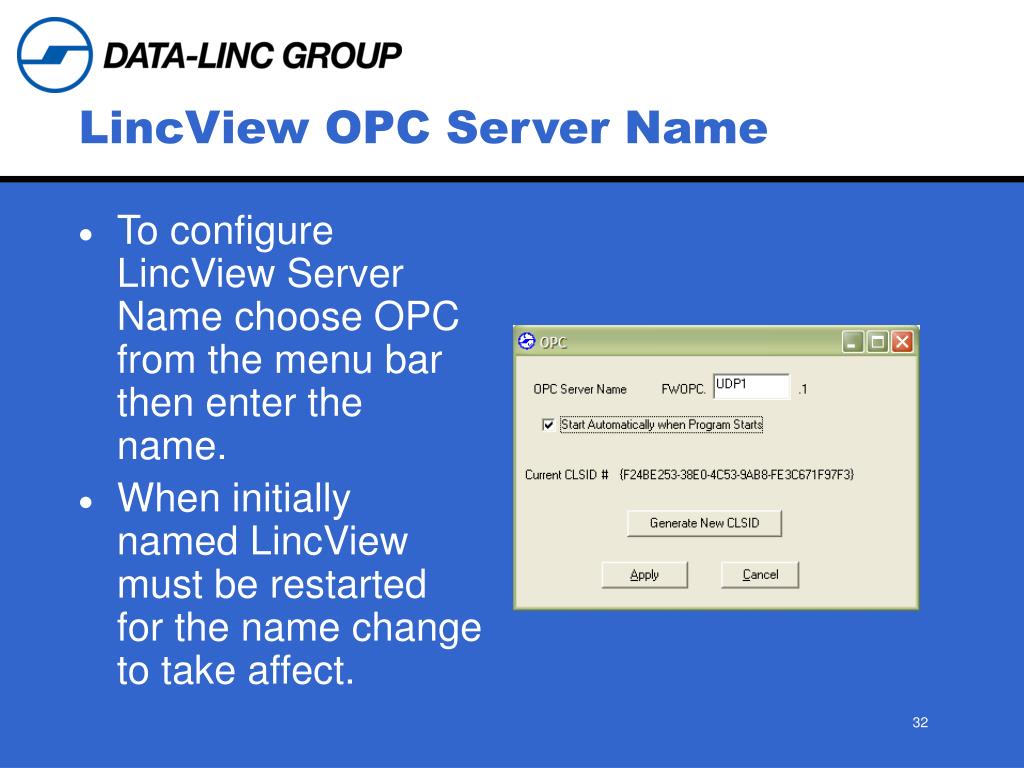

  32. LincView OPC Server Name • To configure LincView Server Name choose OPC from the menu bar then enter the name. • When initially named LincView must be restarted for the name change to take affect.

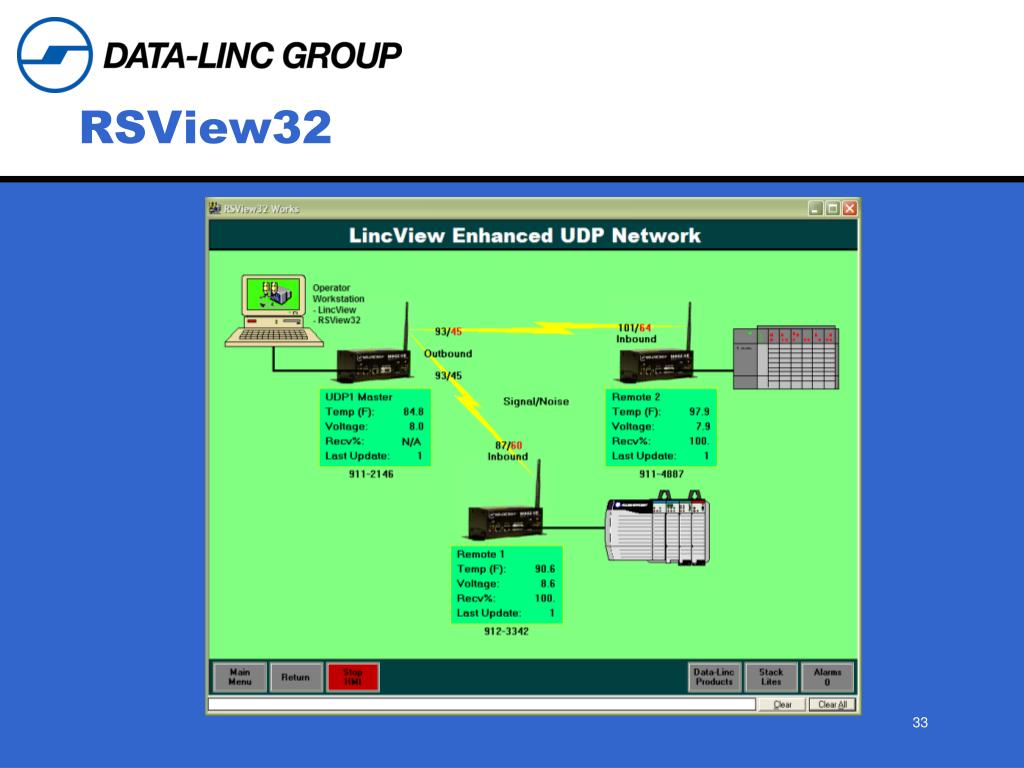

  33. RSView32

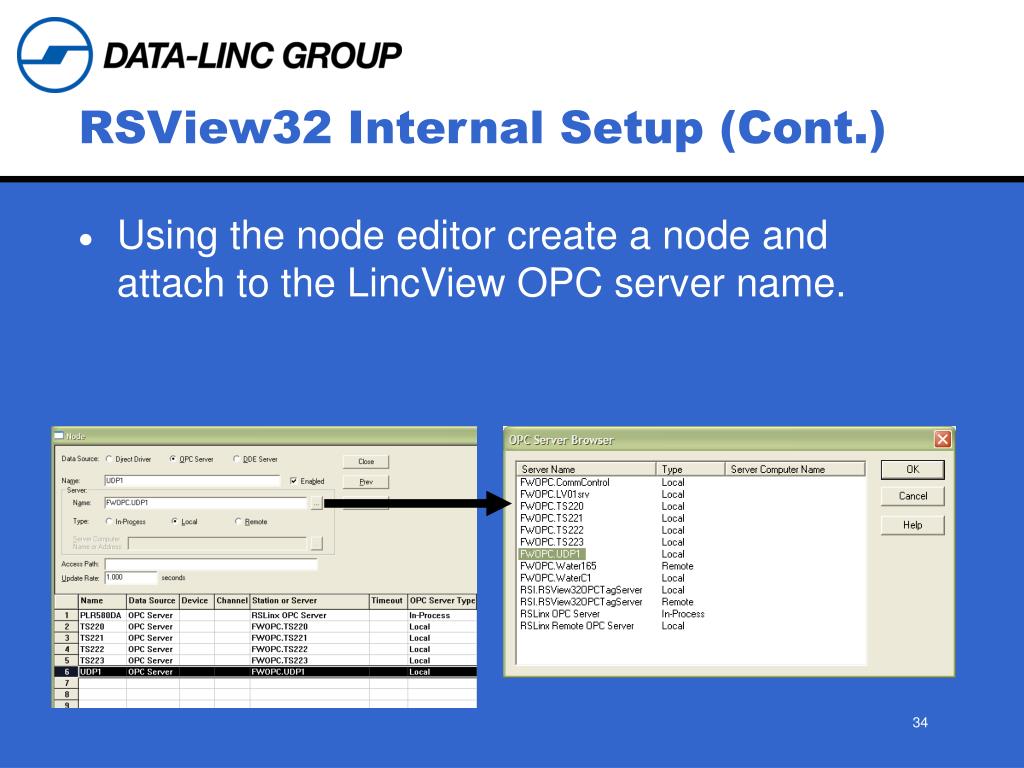

  34. RSView32 Internal Setup (Cont.) • Using the node editor create a node and attach to the LincView OPC server name.

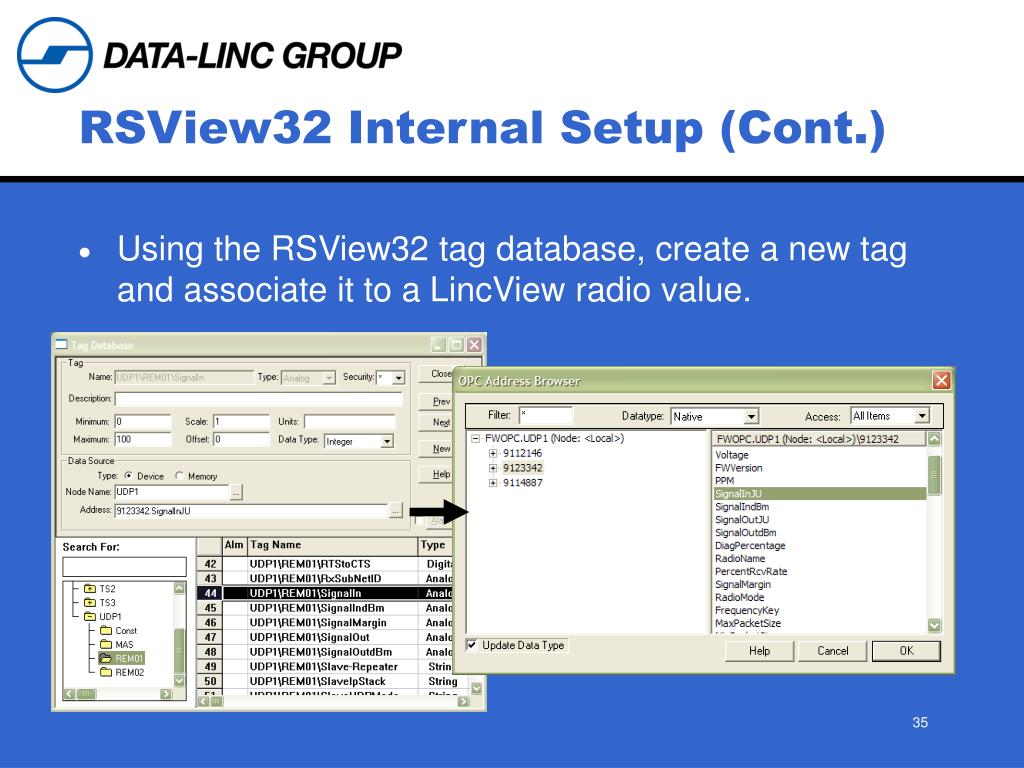

  35. RSView32 Internal Setup (Cont.) • Using the RSView32 tag database, create a new tag and associate it to a LincView radio value.

  36. RSView32 Tags (Cont.)
