Programming Project #3 Message Passing System

1. Programming Project #3Message Passing System CS-502 Operating SystemsFall 2006 Project 3, Message Passing System

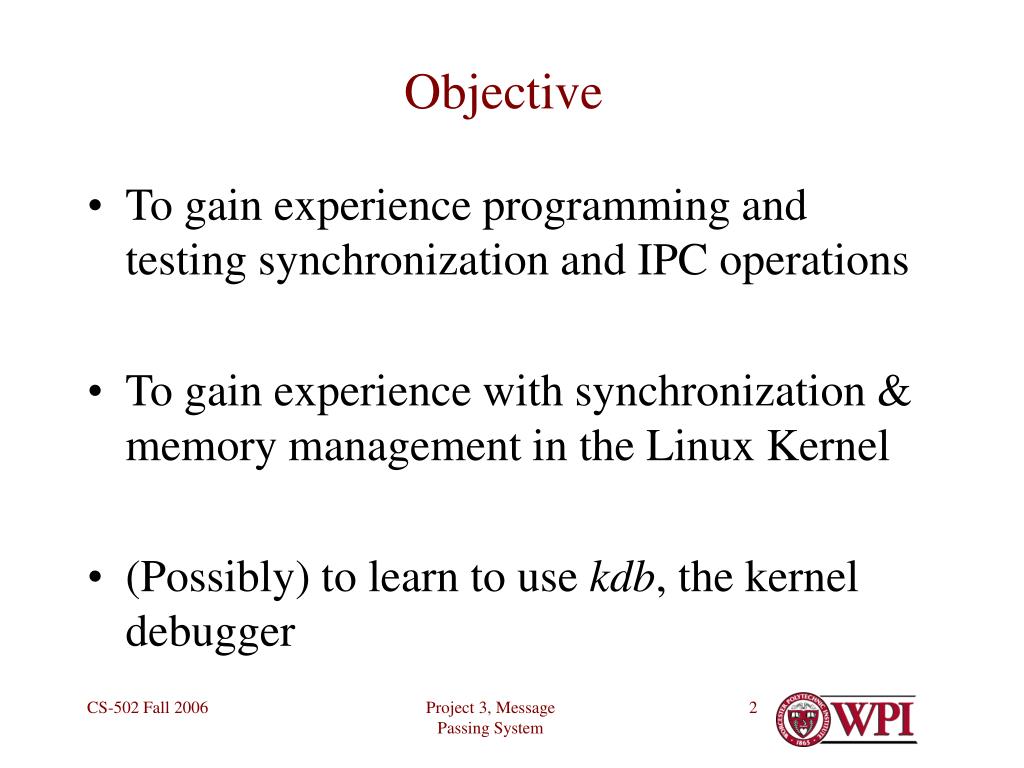

2. Objective • To gain experience programming and testing synchronization and IPC operations • To gain experience with synchronization & memory management in the Linux Kernel • (Possibly) to learn to use kdb, the kernel debugger Project 3, Message Passing System

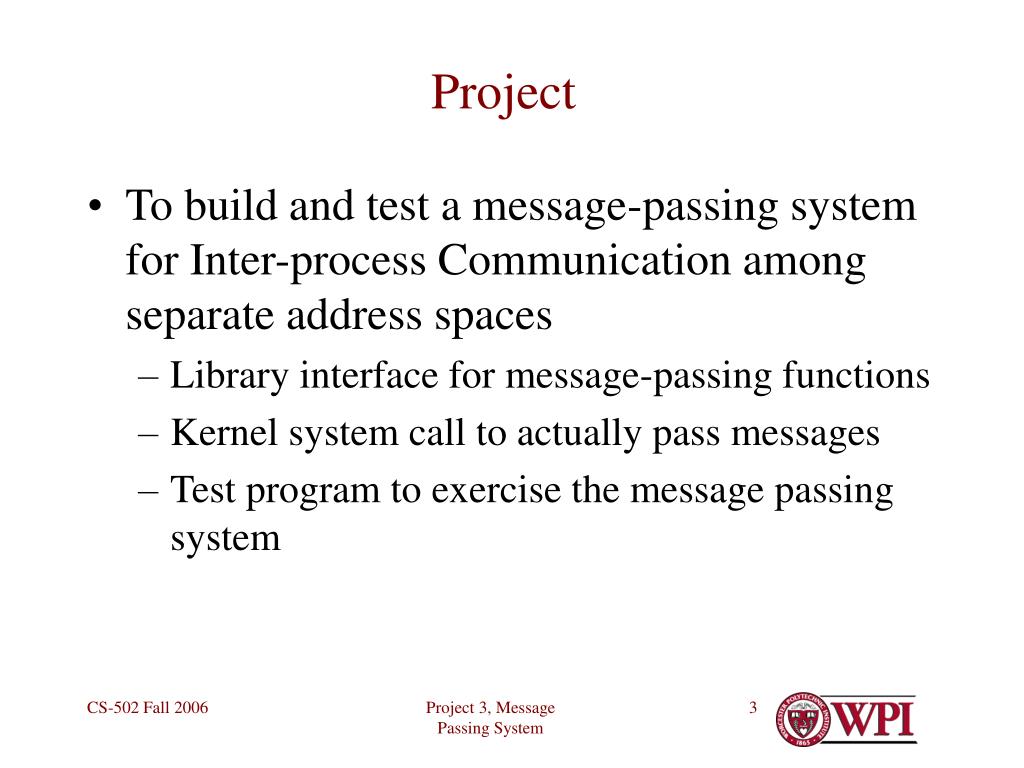

3. Project • To build and test a message-passing system for Inter-process Communication among separate address spaces • Library interface for message-passing functions • Kernel system call to actually pass messages • Test program to exercise the message passing system Project 3, Message Passing System

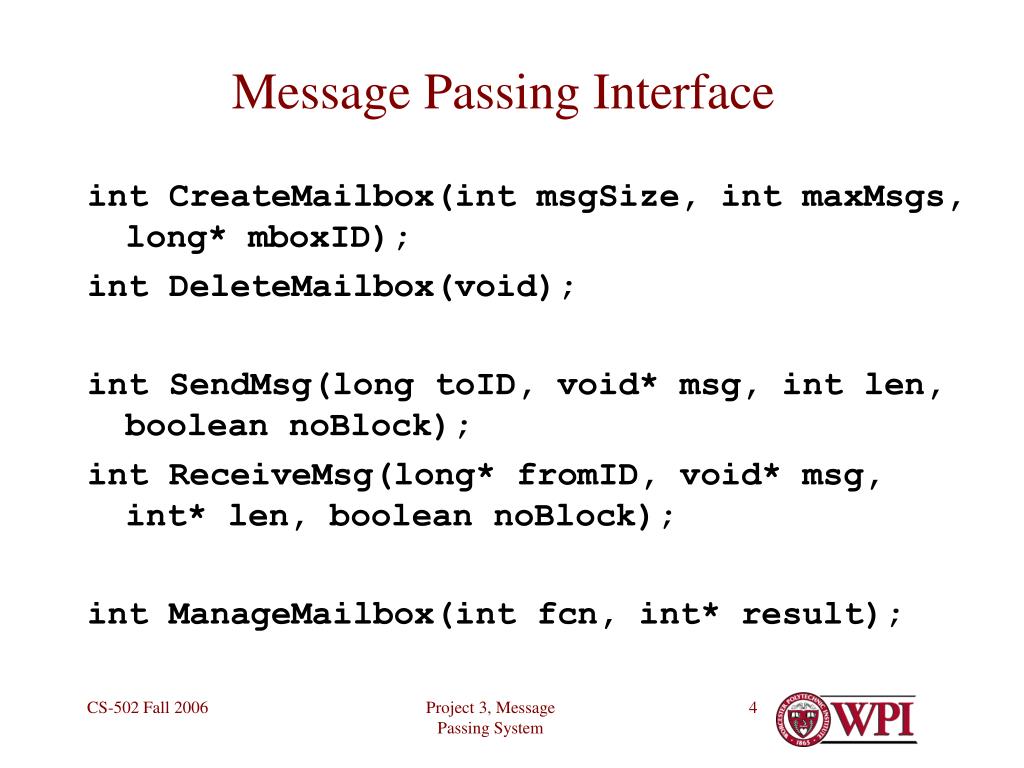

4. Message Passing Interface int CreateMailbox(int msgSize, int maxMsgs, long* mboxID); int DeleteMailbox(void); int SendMsg(long toID, void* msg, int len, boolean noBlock); int ReceiveMsg(long* fromID, void* msg, int* len, boolean noBlock); int ManageMailbox(int fcn, int* result); Project 3, Message Passing System

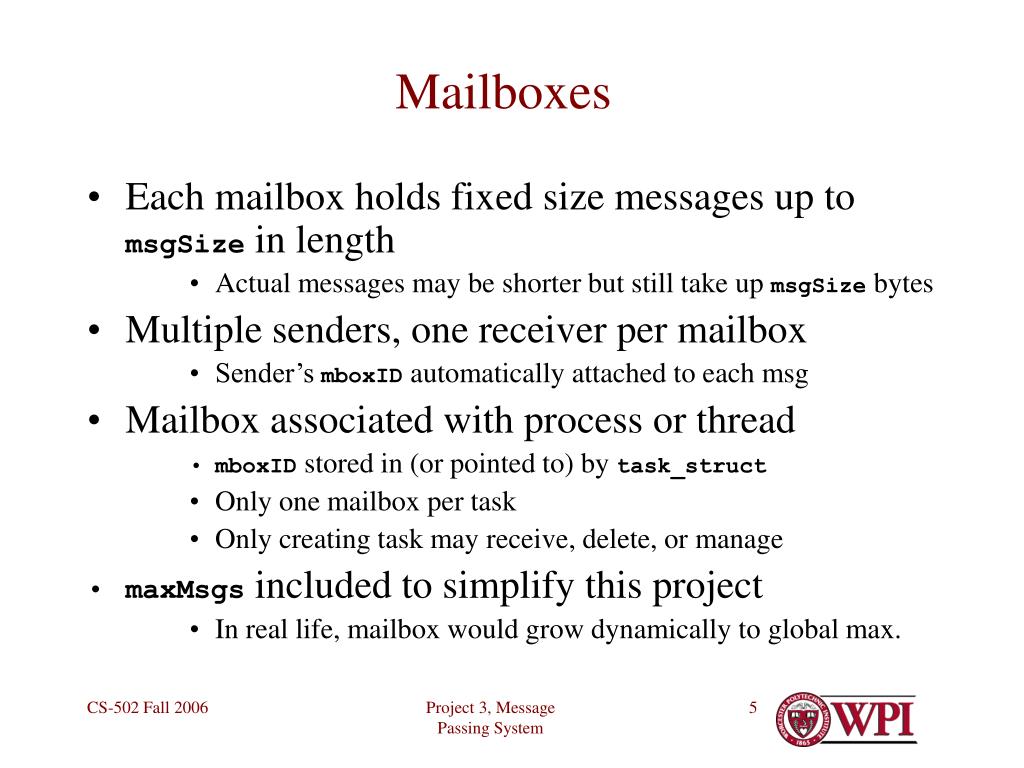

5. Mailboxes • Each mailbox holds fixed size messages up to msgSize in length • Actual messages may be shorter but still take up msgSizebytes • Multiple senders, one receiver per mailbox • Sender’s mboxID automatically attached to each msg • Mailbox associated with process or thread • mboxID stored in (or pointed to) by task_struct • Only one mailbox per task • Only creating task may receive, delete, or manage • maxMsgs included to simplify this project • In real life, mailbox would grow dynamically to global max. Project 3, Message Passing System

6. Messages • Sent to mboxID of recipient • Tattooed by system with mboxID of sender • (may include timestamp for debugging purposes) • uninterpreted sequence of len bytes msgSize • Received in FIFO order • mboxID of sender and len returned with message • Blocking • If mailbox is full on SendMsg • If mailbox is empty on ReceiveMsg • Non-blocking if noBlock = TRUE; check error code Project 3, Message Passing System

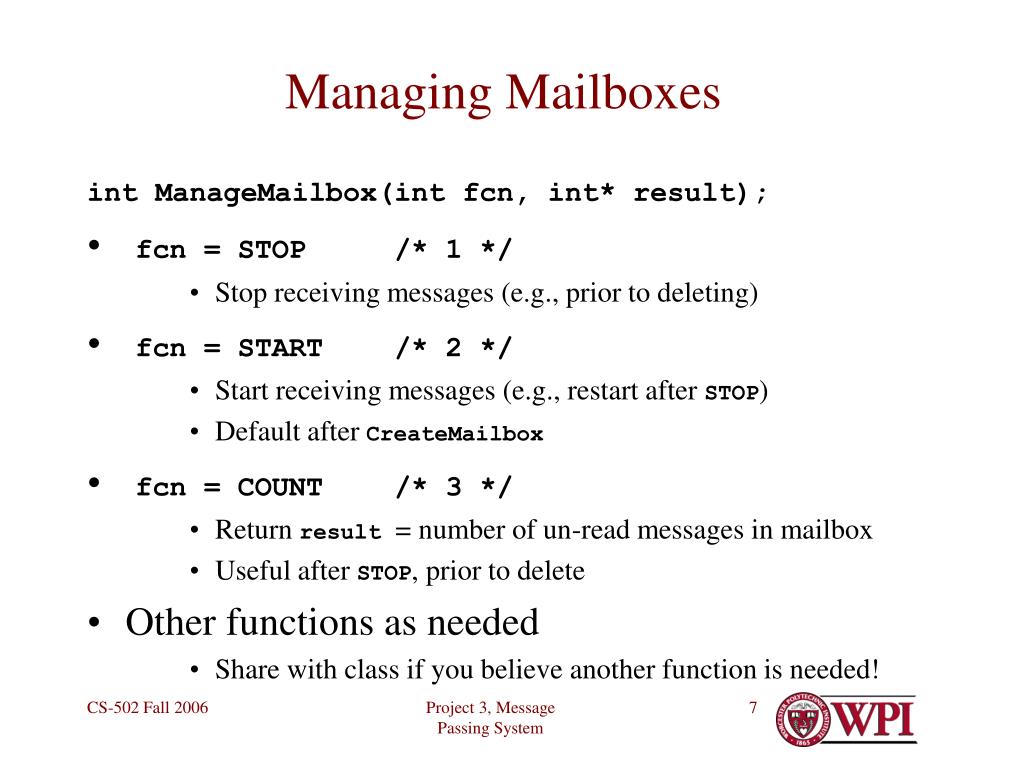

7. Managing Mailboxes int ManageMailbox(int fcn, int* result); • fcn = STOP /* 1 */ • Stop receiving messages (e.g., prior to deleting) • fcn = START /* 2 */ • Start receiving messages (e.g., restart after STOP) • Default after CreateMailbox • fcn = COUNT /* 3 */ • Return result = number of un-read messages in mailbox • Useful after STOP, prior to delete • Other functions as needed • Share with class if you believe another function is needed! Project 3, Message Passing System

8. Mailbox full Non-blocking send Mailbox empty Non-blocking receive Invalid mailbox ID,Mailbox is stopped,Message too long On send No mailbox On receive, manage Invalid arguments all Mailbox not empty On delete Mailbox too large msgSize, maxMsgs … Fill in other error checking as needed Possible Error Returns Project 3, Message Passing System

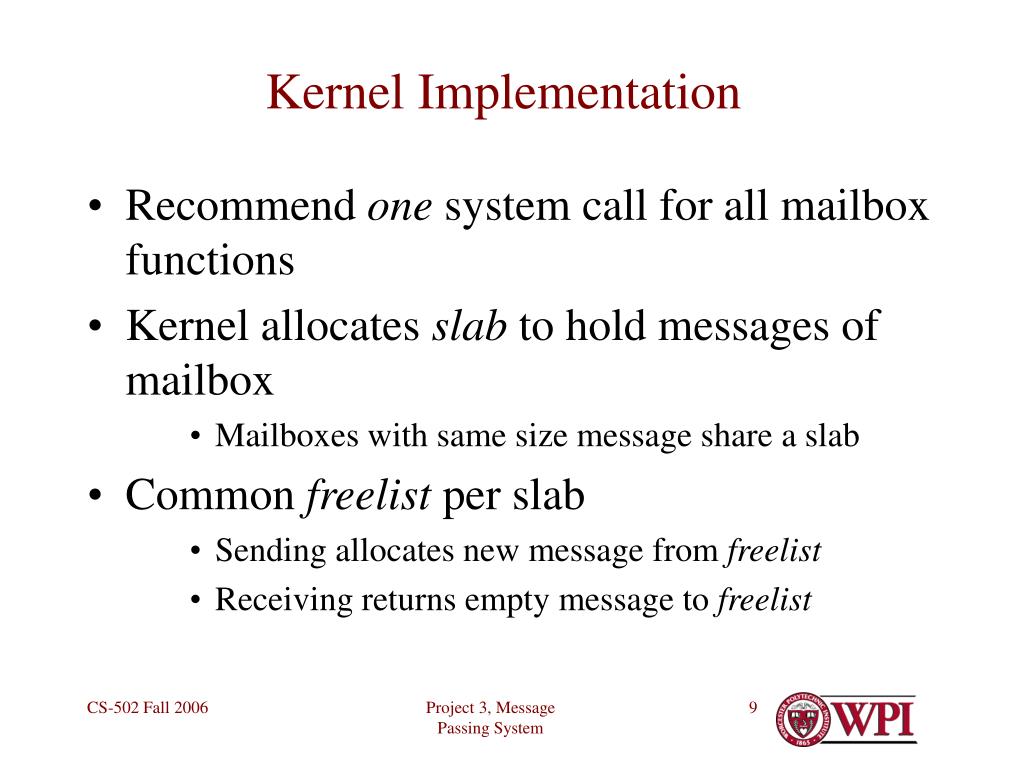

9. Kernel Implementation • Recommend one system call for all mailbox functions • Kernel allocates slab to hold messages of mailbox • Mailboxes with same size message share a slab • Common freelist per slab • Sending allocates new message from freelist • Receiving returns empty message to freelist Project 3, Message Passing System

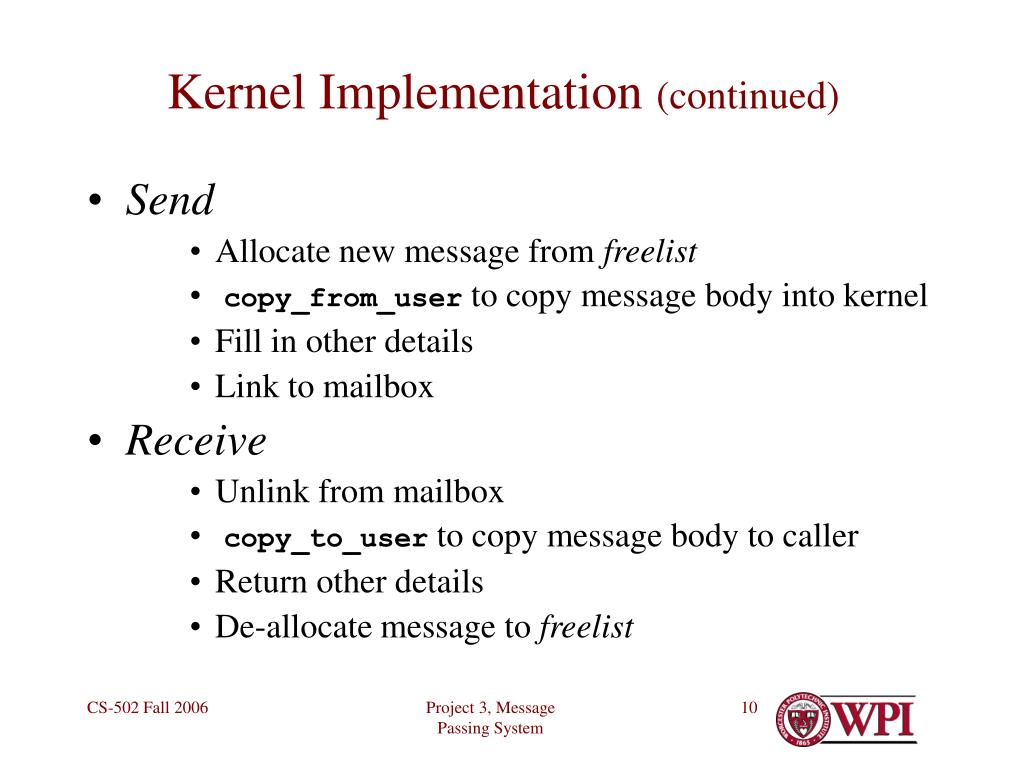

10. Kernel Implementation (continued) • Send • Allocate new message from freelist • copy_from_user to copy message body into kernel • Fill in other details • Link to mailbox • Receive • Unlink from mailbox • copy_to_user to copy message body to caller • Return other details • De-allocate message to freelist Project 3, Message Passing System

11. Locking in the Kernel • Slab • Needs to be locked to allocate and de-allocate messages • Mailbox • Needs to be locked to link and unlink messages • Also to change state (START, STOP) • Remember – the Linux Kernel is fully preemptive! • System call may be preempted before completion • Interrupt may schedule another process at any time • Interrupt may manage shared resources • Due to support for symmetric multi-processing Project 3, Message Passing System

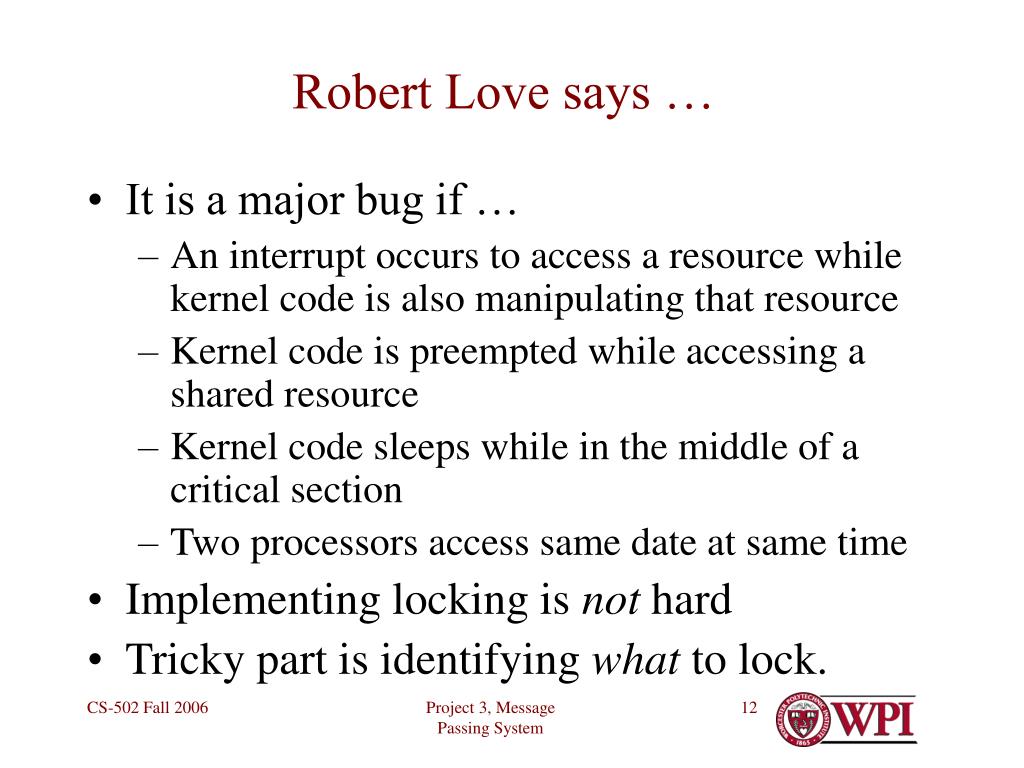

12. Robert Love says … • It is a major bug if … • An interrupt occurs to access a resource while kernel code is also manipulating that resource • Kernel code is preempted while accessing a shared resource • Kernel code sleeps while in the middle of a critical section • Two processors access same date at same time • Implementing locking is not hard • Tricky part is identifying what to lock. Project 3, Message Passing System

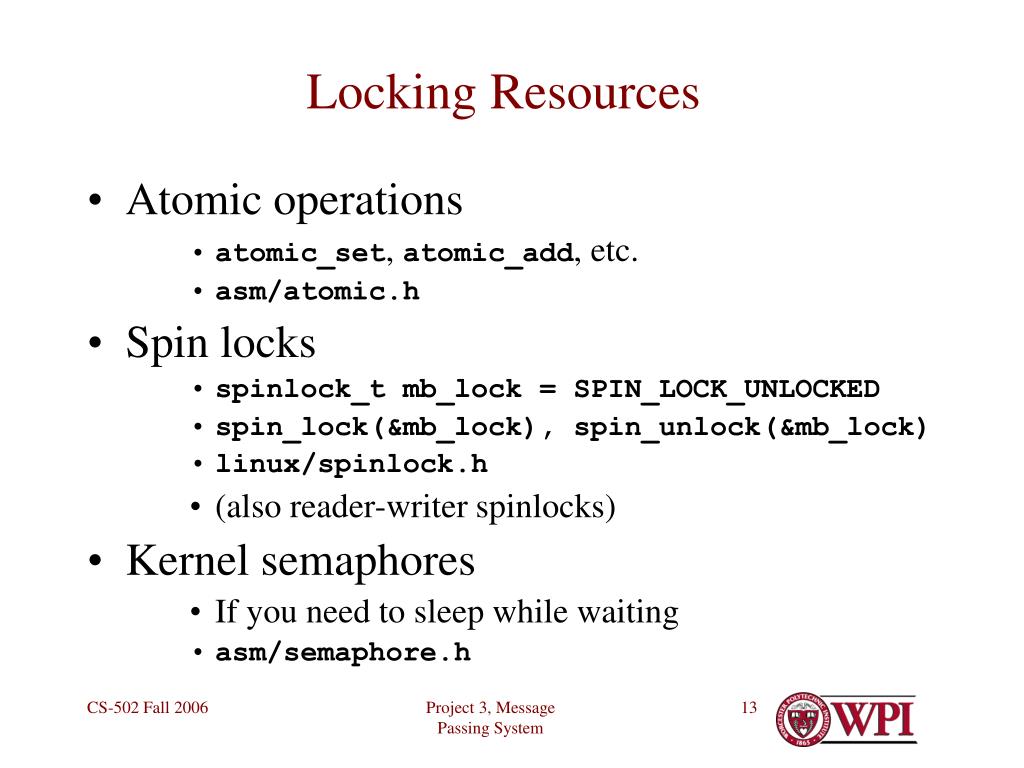

13. Locking Resources • Atomic operations • atomic_set, atomic_add, etc. • asm/atomic.h • Spin locks • spinlock_t mb_lock = SPIN_LOCK_UNLOCKED • spin_lock(&mb_lock), spin_unlock(&mb_lock) • linux/spinlock.h • (also reader-writer spinlocks) • Kernel semaphores • If you need to sleep while waiting • asm/semaphore.h Project 3, Message Passing System

14. Synchronization Suggestions • Sending and Receiving to/from mail box are Producer-Consumer functions • Use semaphores to block if full or empty • Linking & Unlinking messages, slab allocation, etc. are mutex critical sections • Use spin lock to protect • Adding, deleting, managing a mailbox is ??? • What should be used to protect it? • Reference count for number of mailboxes in slab Project 3, Message Passing System

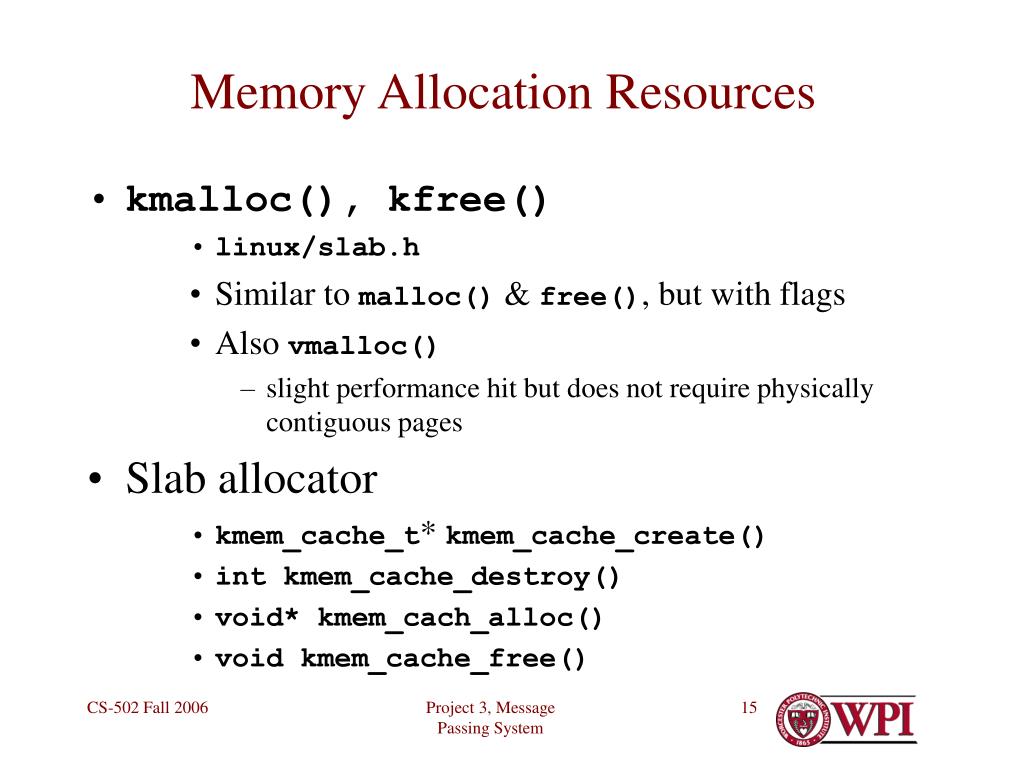

15. Memory Allocation Resources • kmalloc(), kfree() • linux/slab.h • Similar to malloc() & free(), but with flags • Also vmalloc() • slight performance hit but does not require physically contiguous pages • Slab allocator • kmem_cache_t* kmem_cache_create() • int kmem_cache_destroy() • void* kmem_cach_alloc() • void kmem_cache_free() Project 3, Message Passing System

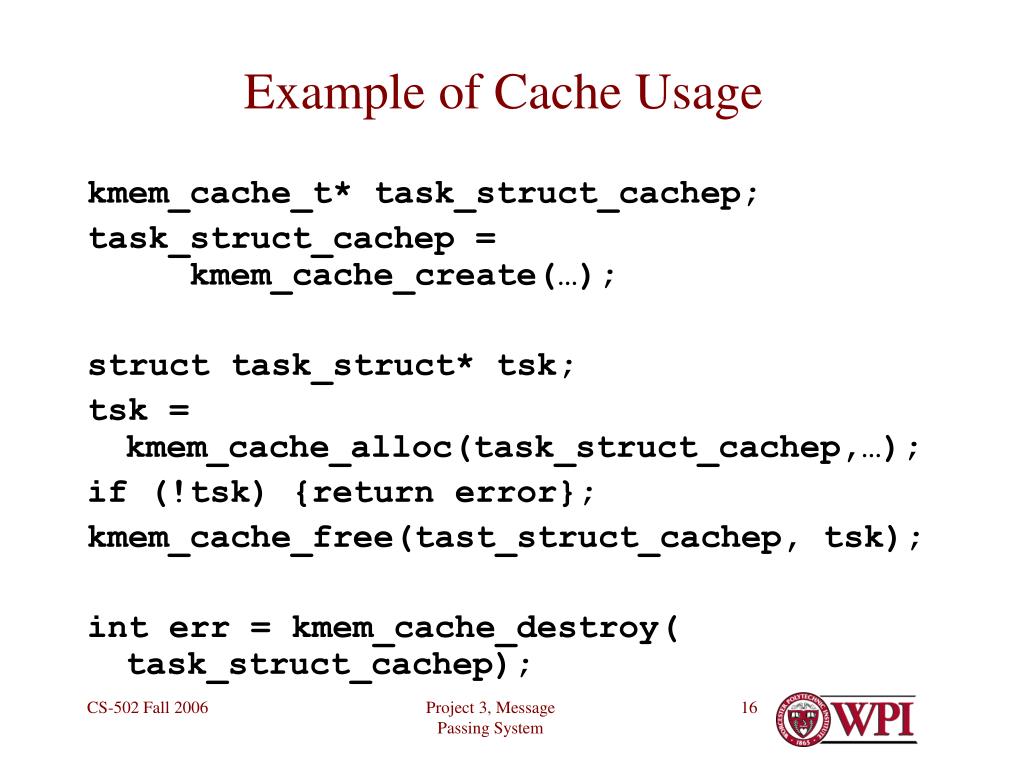

16. Example of Cache Usage kmem_cache_t* task_struct_cachep; task_struct_cachep = kmem_cache_create(…); struct task_struct* tsk; tsk = kmem_cache_alloc(task_struct_cachep,…); if (!tsk) {return error}; kmem_cache_free(tast_struct_cachep, tsk); int err = kmem_cache_destroy( task_struct_cachep); Project 3, Message Passing System

17. Testing • Fork multiple processes • Create mailboxes, exchange mailbox IDs • Randomly send messages to each other • Payload must be self identifying • Acknowledge received messages • Test extreme conditions • E.g., fill up mailbox Project 3, Message Passing System

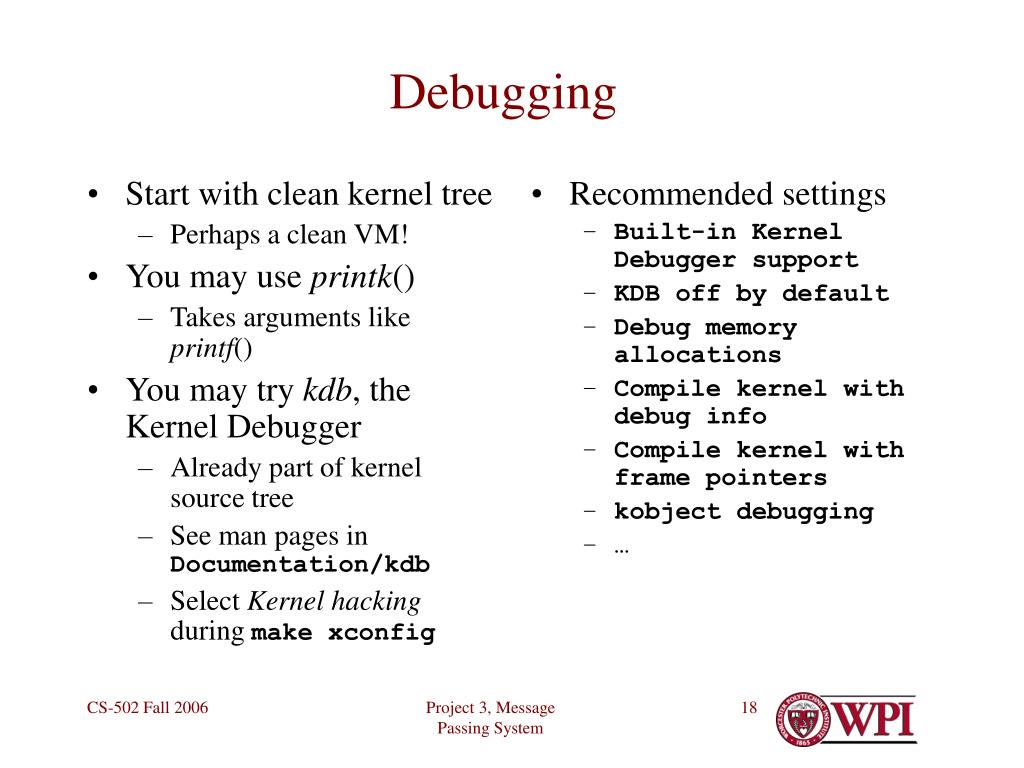

18. Start with clean kernel tree Perhaps a clean VM! You may use printk() Takes arguments like printf() You may try kdb, the Kernel Debugger Already part of kernel source tree See man pages in Documentation/kdb Select Kernel hacking during make xconfig Recommended settings Built-in Kernel Debugger support KDB off by default Debug memory allocations Compile kernel with debug info Compile kernel with frame pointers kobject debugging … Debugging Project 3, Message Passing System

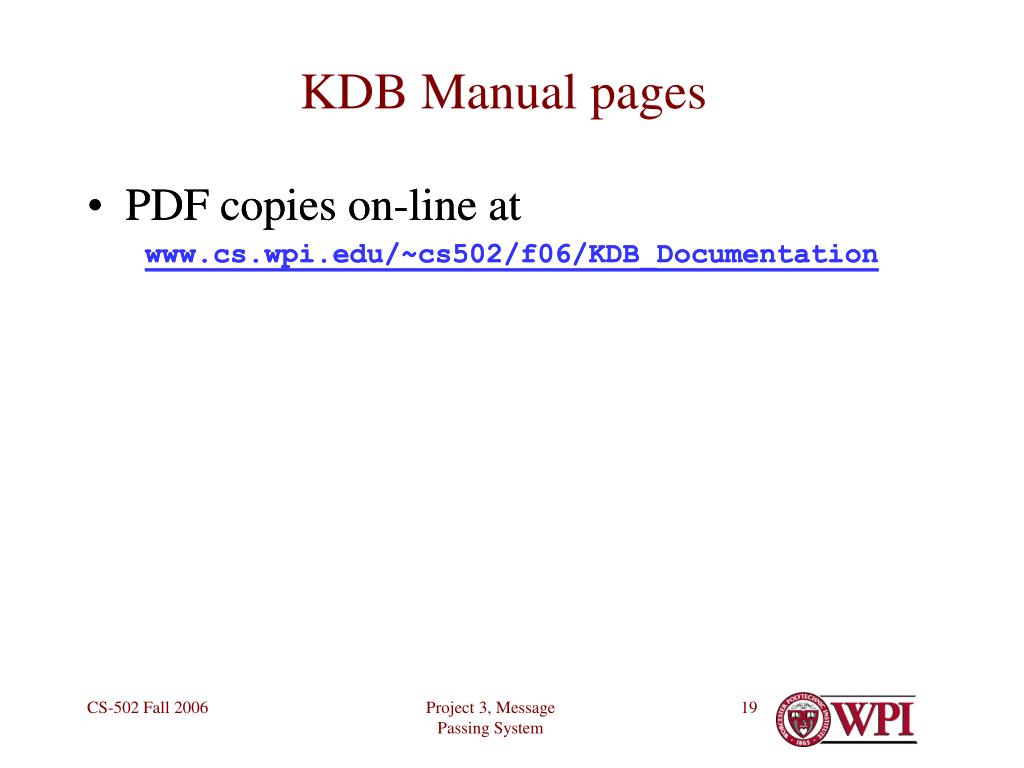

19. KDB Manual pages • PDF copies on-line at www.cs.wpi.edu/~cs502/f06/KDB_Documentation • PDF copies on-line at www.cs.wpi.edu/~cs502/f06/KDB_Documentation Project 3, Message Passing System

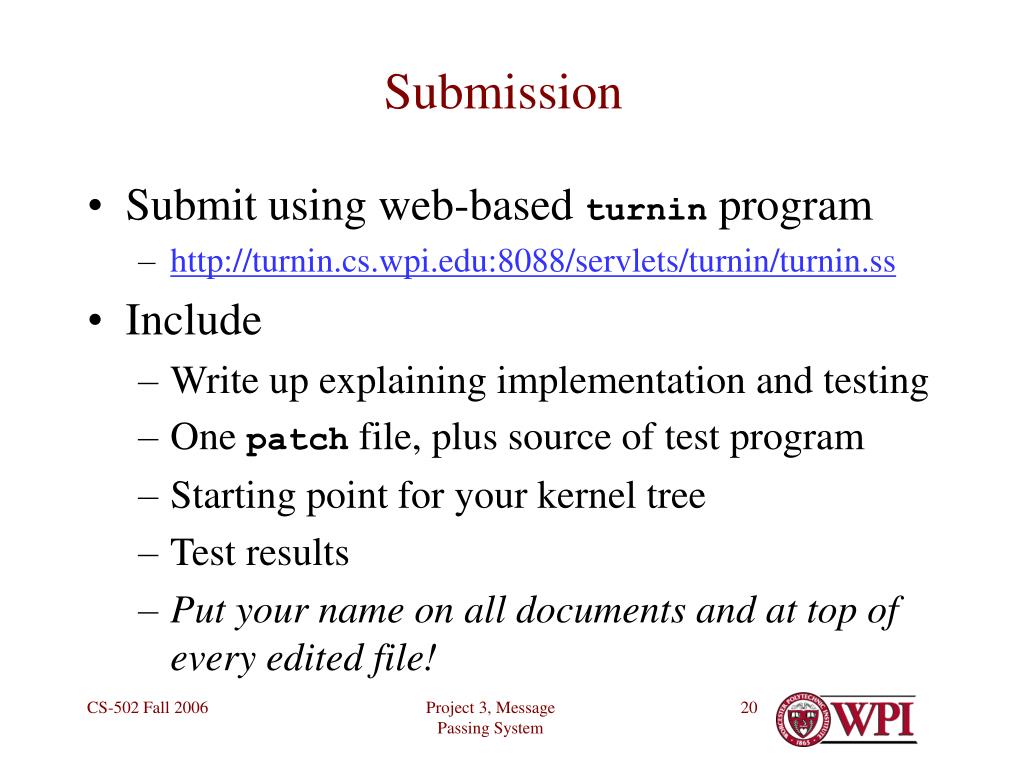

20. Submission • Submit using web-based turnin program • http://turnin.cs.wpi.edu:8088/servlets/turnin/turnin.ss • Include • Write up explaining implementation and testing • One patch file, plus source of test program • Starting point for your kernel tree • Test results • Put your name on all documents and at top of every edited file! Project 3, Message Passing System

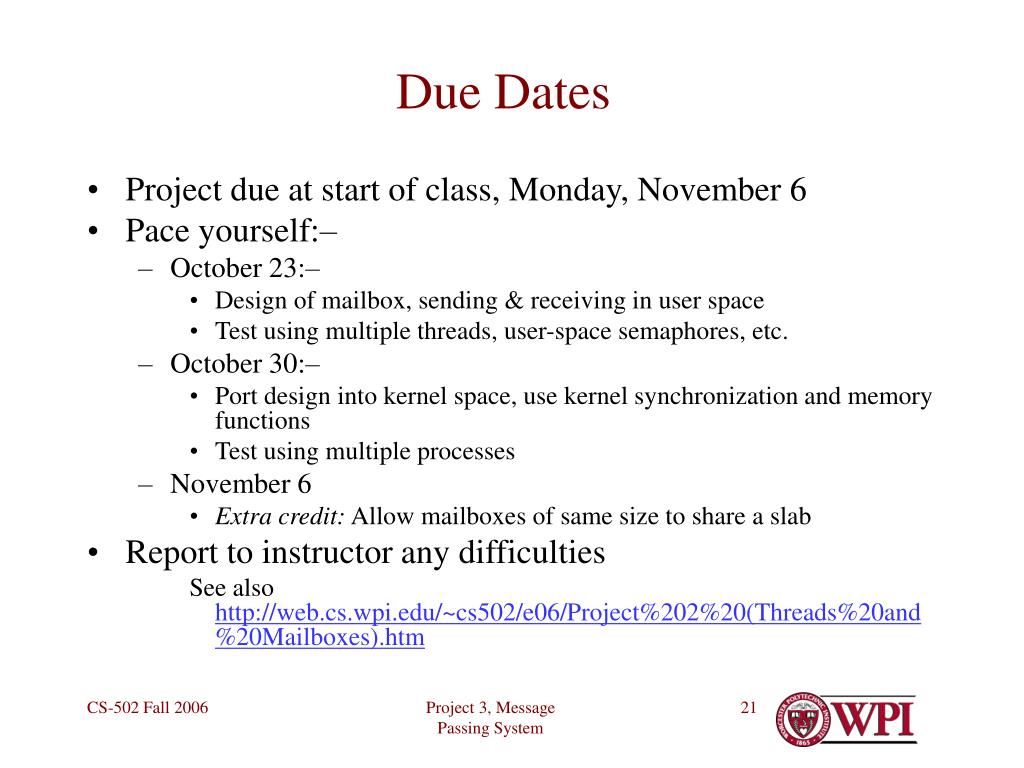

21. Due Dates • Project due at start of class, Monday, November 6 • Pace yourself:– • October 23:– • Design of mailbox, sending & receiving in user space • Test using multiple threads, user-space semaphores, etc. • October 30:– • Port design into kernel space, use kernel synchronization and memory functions • Test using multiple processes • November 6 • Extra credit: Allow mailboxes of same size to share a slab • Report to instructor any difficulties See also http://web.cs.wpi.edu/~cs502/e06/Project%202%20(Threads%20and%20Mailboxes).htm Project 3, Message Passing System

22. Questions? Project 3, Message Passing System
