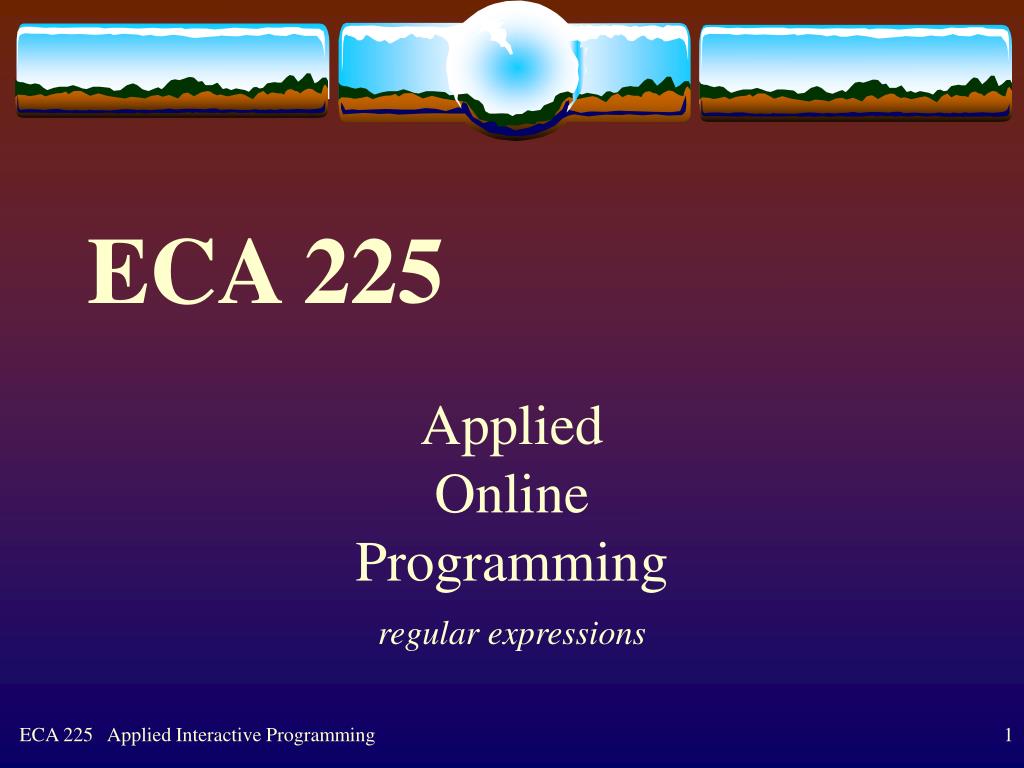

  1. ECA 225 AppliedOnline Programming regular expressions ECA 225 Applied Interactive Programming

  2. Regular Expressions • another way to validate form input • less code than String methods • pattern matching • based on Perl’s Regular Expressions • find complex patterns within strings with just a few lines of code ECA 225 Applied Interactive Programming

  3. Regular Expressions • unique syntax • looks complex and mysterious • broken down into component parts, regular expressions are not so mysterious • In short, you create a pattern to look for /^\b\d{3}\-\d{2}\-\d{4}\b$/ ECA 225 Applied Interactive Programming

  4. Regular Expressions • 2 ways to create a regular expression • object constructor, RegExp( ) • use new keyword • pass the pattern as an argument • assign result to variable var name = new RegExp( “Bob” ); ECA 225 Applied Interactive Programming

  5. Regular Expressions • 2 ways to create a regular expression • assign pattern directly to a variable • delimit with forward slash rather than quotes, as you would a string • in this example, we have created a regular expression to match a string literal, “Bob” var name = /Bob/; ECA 225 Applied Interactive Programming

  6. Regular Expressions • String methods, such as indexOf( ), are good for searching for exact matches • regular expressions allow us to match patterns, such as a social security number • we can do this with String methods such as indexOf( ) and charAt( ), but it is simpler with a regular expression xxx-xx-xxxx ECA 225 Applied Interactive Programming

  7. Regular Expressions • regular expressions allow you to search for the correct pattern • define a pattern using • string literals • metacharacters • a character in an expression that is not matchable itself, but acts as a guideline for what is to be matched ECA 225 Applied Interactive Programming

  8. Regular Expression example • Given the string • search the string to replace each instance of “all” with “the entire” • create a regular expression var myString = “Halle barked all night.”; var myRE = /all/; ECA 225 Applied Interactive Programming

  9. Regular Expression example cont … • all regular expressions begin and end with a forward slash • use a RegExp or String method var myString = “Halle barked all night.”;var myRE = /all/; newString = myString.replace( myRE, “the entire”); document.write( myString + “<br>” + newString ); ECA 225 Applied Interactive Programming

  10. String.replace( ) • takes 2 arguments • regular expression which takes the pattern to be matched • the string replacement when a match is found ECA 225 Applied Interactive Programming

  11. Regular Expression example cont … • only one instance of the match was changed • as written the RE will match only the first instance of the pattern in the target string • to replace all instances of a match we add a switch to the RE • g mean global, all instances of the match • g goes after the last forward slash var myRE = /all/g; ECA 225 Applied Interactive Programming

  12. Regular Expression example cont … • another problem: we do not want the word “all” to be replaced unless it is a complete word • metacharacter \b • word boundry • the pattern will match only if it is at a word boundary, ie, the beginning or end of a word var myRE = /\ball\b/g; ECA 225 Applied Interactive Programming

  13. Regular Expression example cont … ECA 225 Applied Interactive Programming

  14. Regular Expression test • all regular expressions begin and end with a forward slash • use a RegExp or String method var myString = “Halle barked all night.”;var myRE = /all/; newString = myString.replace( myRE, “REPLACE”); document.write( myString + “<br>” + newString ); ECA 225 Applied Interactive Programming

  15. metacharacters gglobal, find all instances of the match isearch without case sensitivity var myRE = /all/ g; var myRE = /all/ i; ECA 225 Applied Interactive Programming

  16. metacharacters cont … ^beginning of a string $ end of a string var myRE = /^hal/ i; var myRE = /ong.$/ i; ECA 225 Applied Interactive Programming

  17. metacharacters cont … \bword boundary \B non-word boundary var myRE = /\ball/ i; var myRE = /\Ball/ i; ECA 225 Applied Interactive Programming

  18. metacharacters cont … \xnnASCII character defined by nn [abcde] any one of the enclosed characters var myRE = /\x61/g; var myRE = /[H r]all/g; ECA 225 Applied Interactive Programming

  19. metacharacters cont … [a-e]any character within the enclosed range [^abcde] any one of the characters not enclosed var myRE = /[a-j]/g; var myRE = /[^H r]all/g; ECA 225 Applied Interactive Programming

  20. metacharacters cont … .any character except a newline \W any non-alphanumeric character var myRE = /.all./g; var myRE = /\W/g; ECA 225 Applied Interactive Programming

  21. metacharacters cont … \wany alphanumeric character including underscore [A-Za-z0-9_ ] any alphanumeric character including underscore var myRE = /\w/g; var myRE = /[A-Za-z0-9_ ]/g; ECA 225 Applied Interactive Programming

  22. metacharacters cont … \dany single digit \D any single non-digit var myRE = /\d/g; var myRE = /\D/g; ECA 225 Applied Interactive Programming

  23. metacharacters cont … \sany single space \S any single non-space var myRE = /\s/g; var myRE = /\S/g; ECA 225 Applied Interactive Programming

  24. metacharacters cont … {x}exactly x occurrences of the previous character {x,} x or more occurrences of the previous character var myRE = /l{2}/g; var myRE = /l{1,}/g; ECA 225 Applied Interactive Programming

  25. metacharacters cont … {x,y}between x and y occurrences of the previous character ? 0 or 1 time var myRE = /l{1,2}/g; var myRE = /H?all/g; ECA 225 Applied Interactive Programming

  26. metacharacters cont … *zero or more times + 1 or more times var myRE = /al*/g; var myRE = /l+[eo]/g; ECA 225 Applied Interactive Programming

  27. metacharacters cont … |logical or ( ) grouping var myRE = /a(r|l)/g; var myRE = /a(r|l)\1/g; ECA 225 Applied Interactive Programming

  28. escaped characters ECA 225 Applied Interactive Programming

  29. re.test( ) • regular expression to test for SSN • test( ) will return T or F var mySSN = document.myForm.ssn.value;var myRE = /^\b\d{3}\-\d{2}\-\d{4}\b$/ ;result = myRE.test( mySSN );alert( result ); ECA 225 Applied Interactive Programming

  30. JavaScript methods ECA 225 Applied Interactive Programming

  31. String.replace( ) • takes 2 arguments • regular expression • replacement string to be used if a match is found var myString = “Halle barked all night.”;var myRE = /\ball\b/g; newString = myString.replace( myRE, “the entire”); document.write( myString + “<br>” + newString ); ECA 225 Applied Interactive Programming

  32. String.search( ) • takes 1 argument • regular expression which contains the pattern to be matched • if a match is found • character offset is returned • if no match is found • – 1 is returned ECA 225 Applied Interactive Programming

  33. String.search( ) cont … • example var myStr = "123-45-6789"; var re = /\-\d{2}\-/; var x = myStr.search( re ); document.write( myStr ); alert( x ); ECA 225 Applied Interactive Programming

  34. String.match( ) • takes 1 argument • regular expression which contains the pattern to be matched • String.match( ) returns an array • elements of the array are all the values that match the pattern established by the Reg Exp • if no match is found, NULL is returned ECA 225 Applied Interactive Programming

  35. String.match( ) cont … • example var myStr = "123-45-6789"; var re = /\-\d{2}\-/; var x = myStr.match( re ); document.write( myStr ); alert( x[ 0 ] ); alert( x[ 1 ] ); ECA 225 Applied Interactive Programming

  36. RegExp.test( ) • takes 1 argument • the string to be tested • searches the string for a match to the Reg Exp • returns a Boolean value • TRUE or FALSE • used inside an if statement ECA 225 Applied Interactive Programming

  37. RegExp.test( ) cont … • example var myStr = "123-45-6789"; var re = /^\b(\d{3})\-(\d{2})\-(\d{4})\b$/; var x = re.test( myStr ); if( x ) { alert( x );} ECA 225 Applied Interactive Programming

  38. RegExp.exec( ) • takes 1 argument • the string to be tested • returns an array of matches found in the string • the value at index 0 is the original string • other indexes contain any values that were matched within parentheses ECA 225 Applied Interactive Programming

  39. RegExp.exec( ) cont … • example var myStr = "123-45-6789"; var re = /^\b(\d{3})\-(\d{2})\-(\d{4})\b$/; var x = re.exec( myStr ); for( i = 0; i < x.length; i ++ ){ document.write(“<p>” + x[ i ] );} ECA 225 Applied Interactive Programming

  40. backreference • parentheses have special meaning • grouping • setting precedence • backreferencing • stores the values matched inside parentheses for later use • use special characters to access stored values • $1 through $9 ECA 225 Applied Interactive Programming

  41. backreference cont … • example var myStr = "123-45-6789"; var re = /^\b(\d{3})\-(\d{2})\-(\d{4})\b$/; document.write( myStr.replace( re,"The third match: $3 <br /> The second match: $2 <br /> The first match: $1" ) ); ECA 225 Applied Interactive Programming
