  1. Operating Systems PrinciplesMemory ManagementLecture 9: Sharing of Code and Data in Main Memory 主講人：虞台文

  2. Content • Single-Copy Sharing • Reasons of Sharing • Requirements for Sharing • Static Linking and Sharing • Sharing in Systems w/o Segmentation or Paging • Sharing in Paging Systems • Sharing in Segmented Systems • Dynamic Linking and Sharing • Principles of Distributed Shared Memory (DSM) • The User's View of DSM • Implementations of DSM • Implementing Unstructured DSM • Implementing Structured DSM

  3. Operating Systems PrinciplesMemory ManagementLecture 9: Sharing of Code and Data in Main Memory Single-Copy Sharing

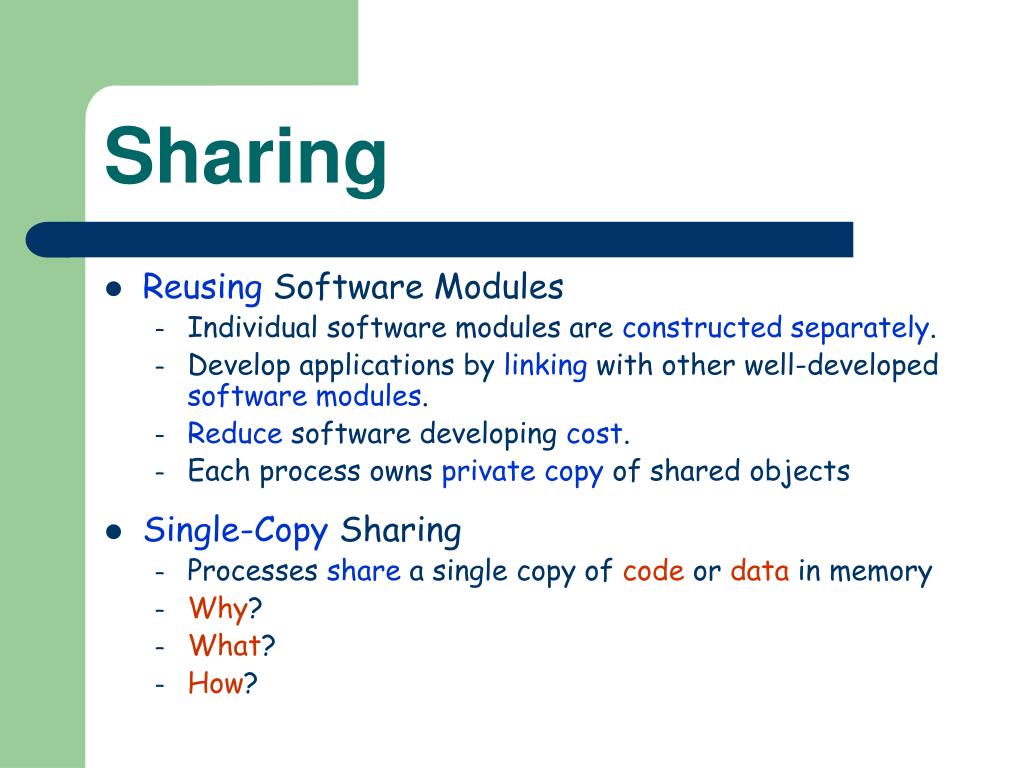

  4. Sharing • Reusing Software Modules • Individual software modules are constructed separately. • Develop applications by linking with other well-developed software modules. • Reduce software developing cost. • Each process owns private copy of shared objects • Single-Copy Sharing • Processes share a single copy of code or data in memory • Why? • What? • How?

  5. Why? • Processes need to access common data, e.g., • Communication btw producer & consumer • Cooperation among divide-and-conquer processes • Competition on resources • Better utilization of memory (code & data) • Several active processes use the same code or data at the same time, e.g., many users running the same editor or debugger in a time-sharing system • Without sharing, • memory requirement would increase dramatically and, thus, reduce the number of login users. • increase I/O overhead to load excess copies • increase the page fault rate and, thus, the risk of thrashing.

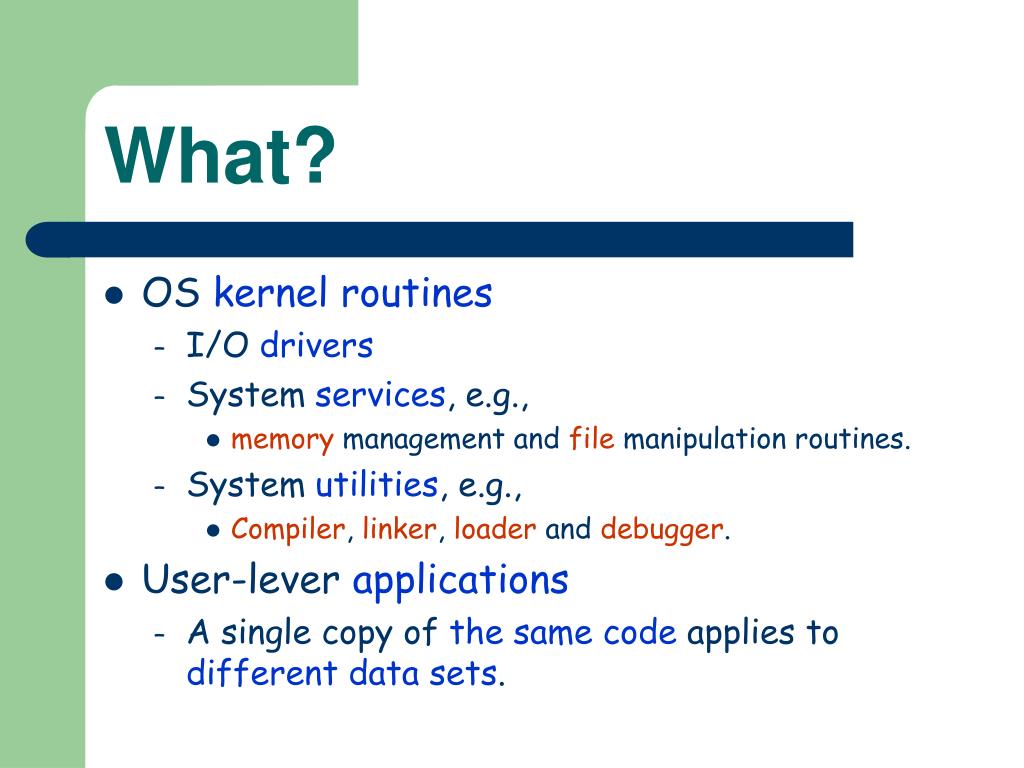

  6. What? • OS kernelroutines • I/O drivers • System services, e.g., • memory management and file manipulation routines. • System utilities, e.g., • Compiler, linker, loader and debugger. • User-lever applications • A single copy of the same code applies to different data sets.

  7. How? • How to express what is shared? • System Components • Designated at the time of system design or initialization • User-Level Applications • Shared code must be reentrant (read-only, “pure”) • Stack and heap must be replicated per process

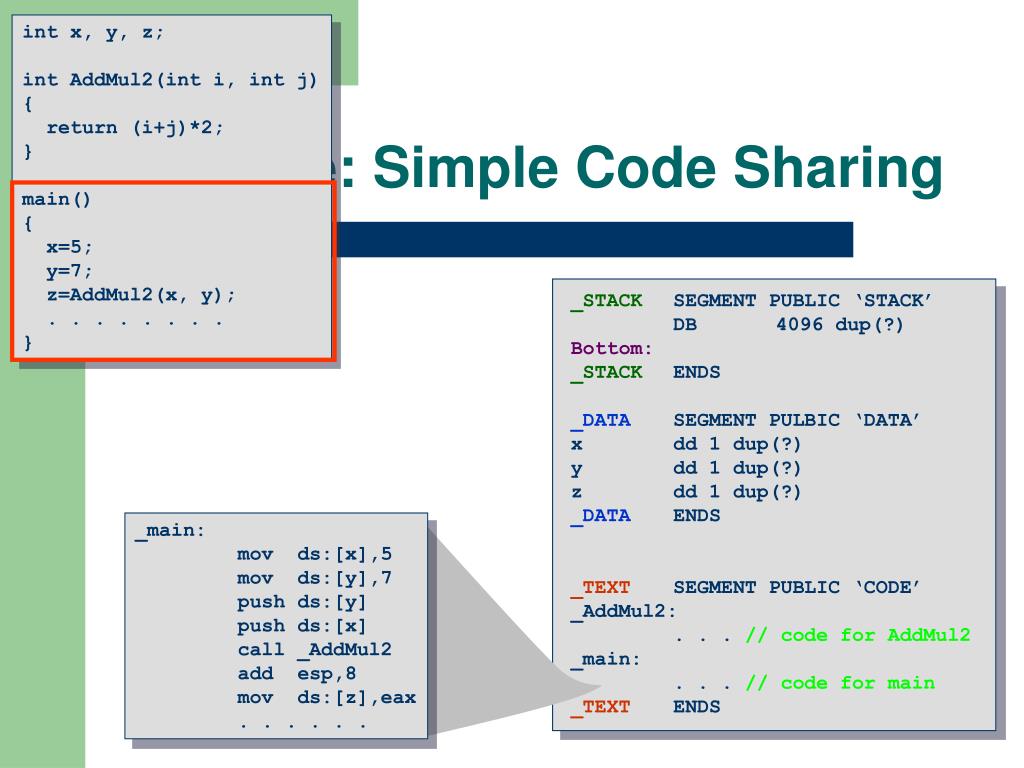

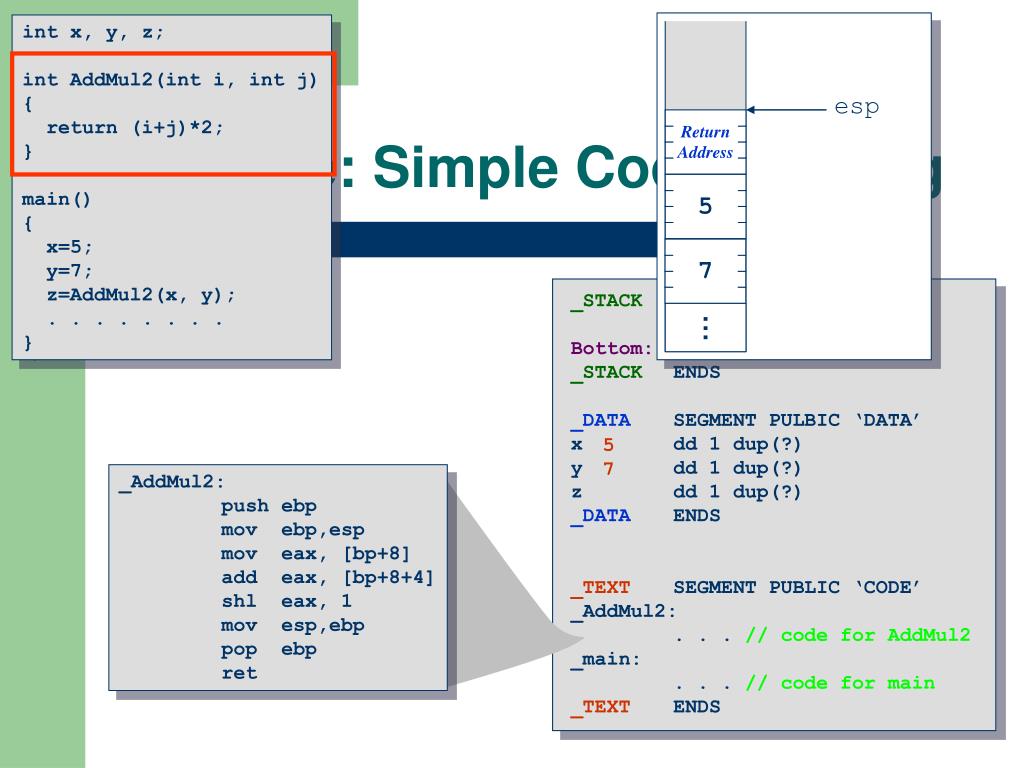

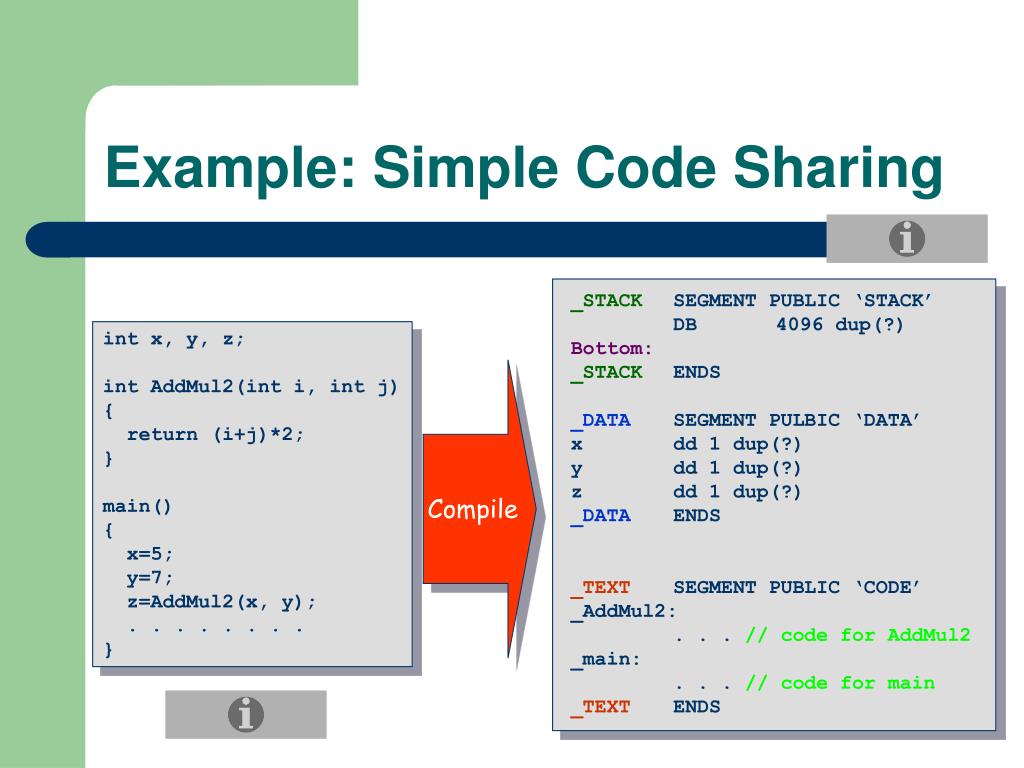

  8. Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Compile

  9. int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

  10. esp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

  11. esp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

  12. esp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

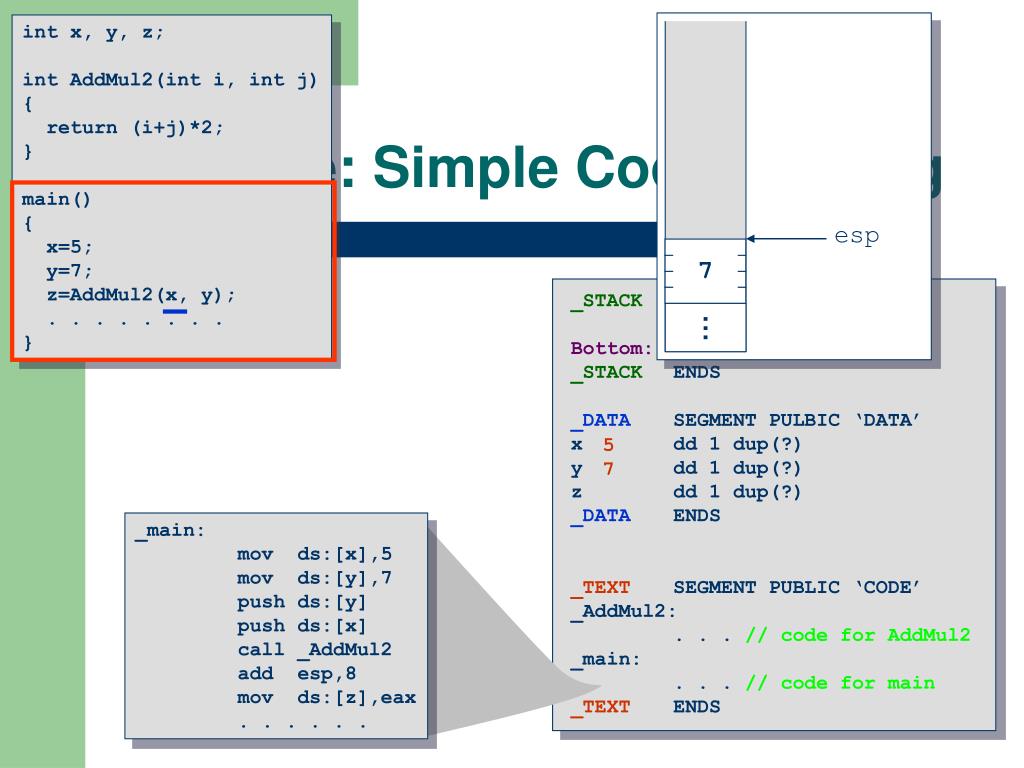

  13. esp 7 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

  14. esp 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

  15. esp Return Address Return Address 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . .

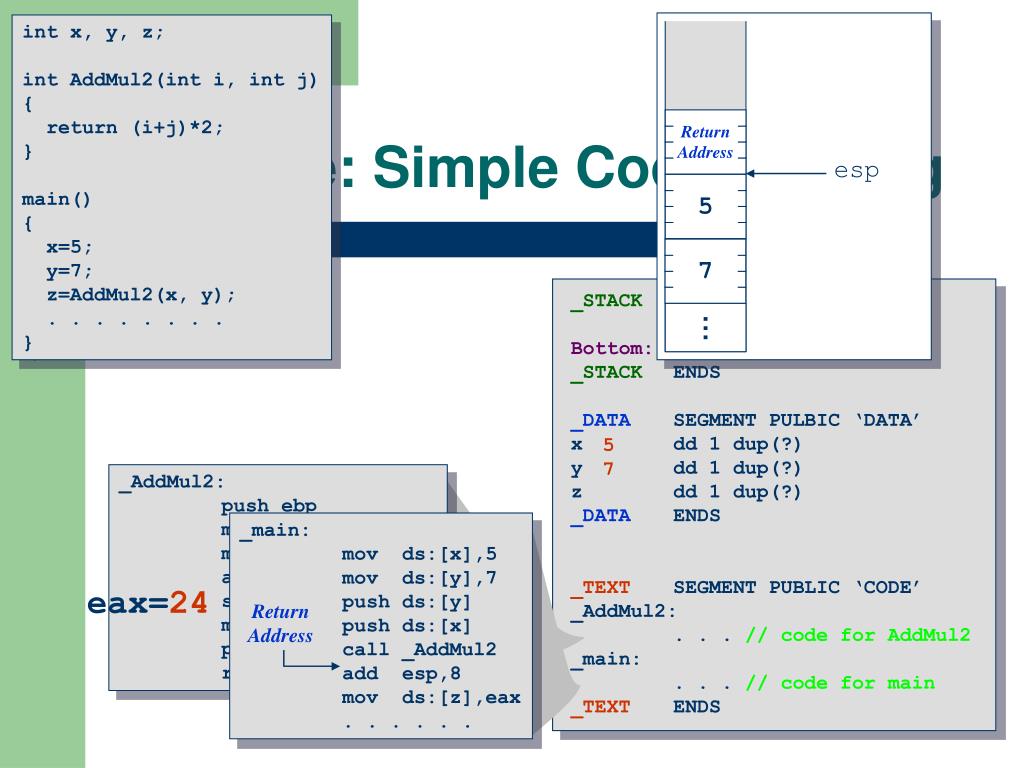

  16. esp Return Address 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret

  17. esp Return Address 7 5 old ebp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret

  18. ebp ebp+12 ebp+8 esp Return Address 7 old ebp 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing i j _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret

  19. ebp ebp+12 ebp+8 Return Address 5 old ebp 7 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing i j _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret eax=5

  20. ebp ebp+12 ebp+8 Return Address 5 old ebp 7 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing i j _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret eax=12

  21. ebp ebp+12 ebp+8 Return Address 5 old ebp 7 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing i j _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret eax=24

  22. ebp esp ebp+12 ebp+8 Return Address old ebp 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing i j _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret eax=24

  23. esp Return Address 7 5 old ebp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret eax=24

  24. esp Return Address Return Address 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _AddMul2: push ebp mov ebp,esp mov eax, [bp+8] add eax, [bp+8+4] shl eax, 1 mov esp,ebp pop ebp ret _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . . eax=24

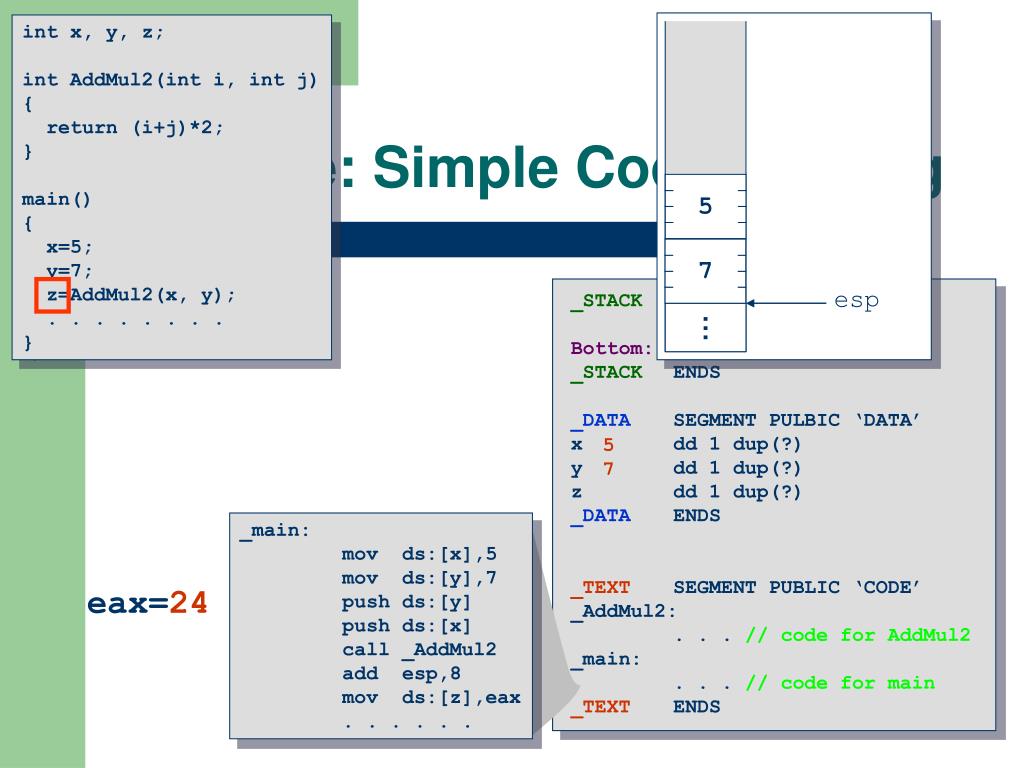

  25. esp 7 5 int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . . eax=24

  26. esp int x, y, z; int AddMul2(int i, int j) { return (i+j)*2; } main() { x=5; y=7; z=AddMul2(x, y); . . . . . . . . } Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS . . . 5 7 24 _main: mov ds:[x],5 mov ds:[y],7 push ds:[y] push ds:[x] call _AddMul2 add esp,8 mov ds:[z],eax . . . . . . eax=24

  27. Example: Simple Code Sharing _STACK SEGMENT PUBLIC ‘STACK’ DB 4096 dup(?) Bottom: _STACK ENDS _DATA SEGMENT PULBIC ‘DATA’ x dd 1 dup(?) y dd 1 dup(?) z dd 1 dup(?) _DATA ENDS _TEXT SEGMENT PUBLIC ‘CODE’ _AddMul2: . . . // code for AddMul2 _main: . . . // code for main _TEXT ENDS Each process has its own stack segment Each process has its own data segment Pure code is sharable

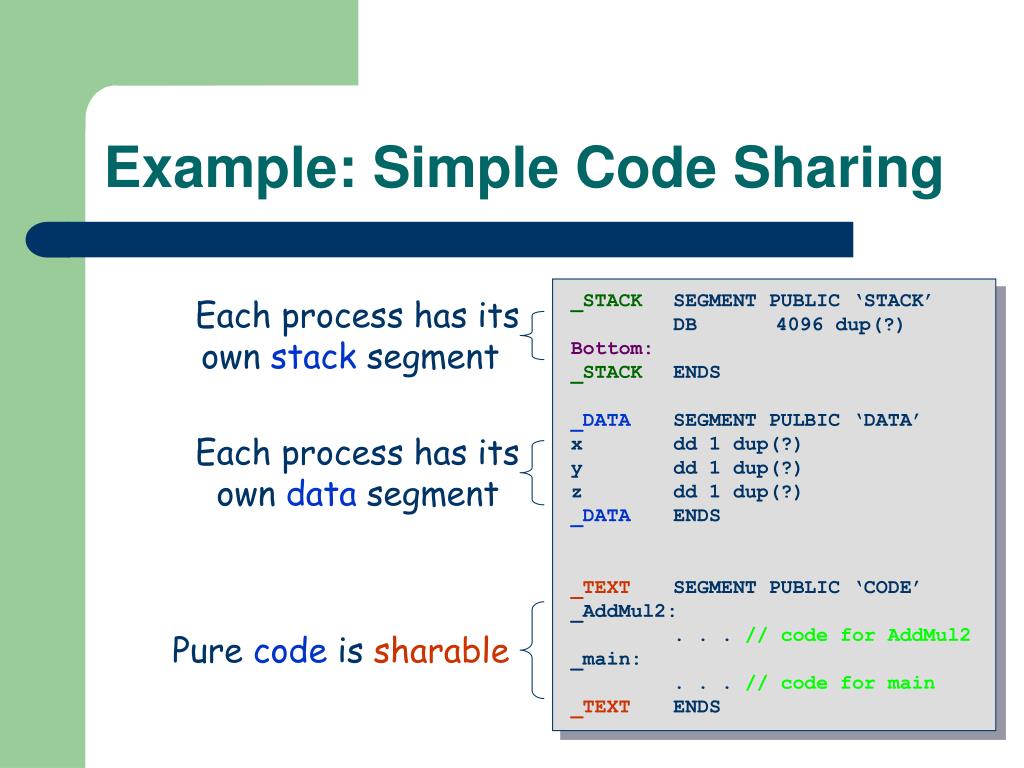

  28. Example: Simple Code Sharing Translate to the same physical process for different processes Access different data areas for different processes

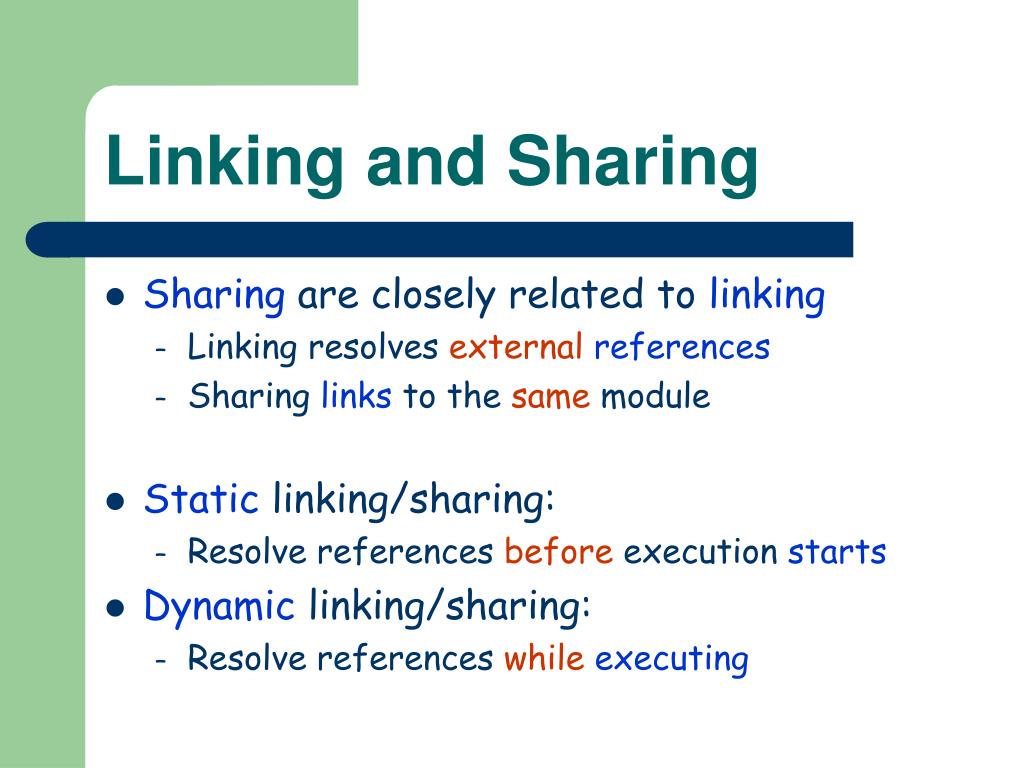

  29. Linking and Sharing • Sharing are closely related to linking • Linking resolves externalreferences • Sharing links to the same module • Static linking/sharing: • Resolve references before execution starts • Dynamic linking/sharing: • Resolve references whileexecuting

  30. Operating Systems PrinciplesMemory ManagementLecture 9: Sharing of Code and Data in Main Memory Static Linking and Sharing

  31. All memory of a process is contiguous physically. Sharing without Virtual Memory • With one or noRelocation Register (RR) • Sharing user programs: • Possible only by partial overlapping • Too restrictive and difficult; generally not used • Sharing system components: • Agree on a starting positions • Linker resolves references to those locations • Can also use a block of “transfer addresses,”but this involves additional memory references. • Issues  difficult to identify the invoking processes by system components. Physical Memory System Components User Programs User Program 1 User Program 2

  32. All memory of a process is contiguous physically. Sharing without Virtual Memory • With one or noRelocation Register (RR) • Sharing user programs: • Possible only by partial overlapping • Too restrictive and difficult; generally not used • Sharing system components: • Agree on a starting positions • Linker resolves references to those locations • Can also use a block of “transfer addresses,”but this involves additional memory references. • Issues  difficult to identify the invoking processes by system components. Physical Memory System Components User Programs

  33. Sharing without Virtual Memory • With multiple RR’s CBR = Code Base Reg. Point to shared copy of code SBR = Stack Base Reg. Point to private copy of stack DBR = Data Base Reg. Point to private copy of data Sharing of code

  34. process1 process2 code1    CBR1 CBR2 code2 SBR1 SBR2    DBR1 DBR2       stack1    stack2    data Sharing without Virtual Memory • With multiple RR’s CBR = Code Base Reg. Point to private copy of code SBR = Stack Base Reg. Point to private copy of stack DBR = Data Base Reg. Point to shared copy of data Sharing of data

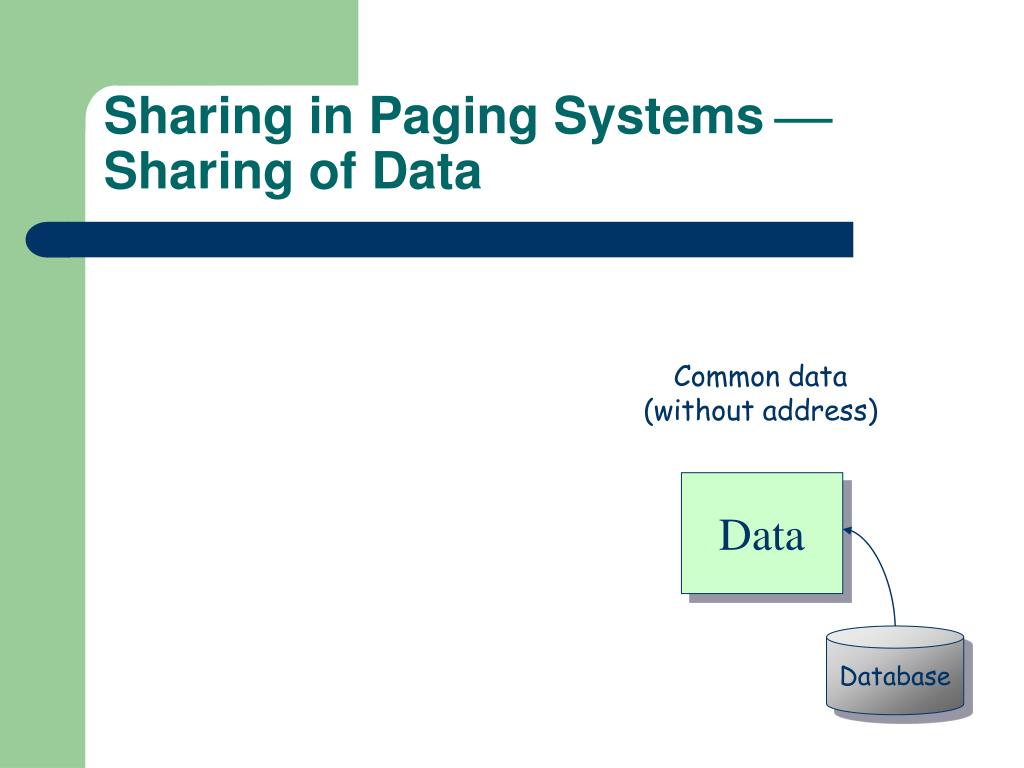

  35. Database Sharing in Paging Systems Sharing of Data Common data (without address) Data

  36. Database Physical Memory Sharing in Paging Systems Sharing of Data Data3 Data Data1 Data2 Data1 Data3 Data2

  37. PT2 PT1 0 0 . . . . . . n1 n2 . . . . . . Database Physical Memory Sharing in Paging Systems Sharing of Data n1, w n2, w Data3 Data1 Data2

  38. Database Physical Memory Sharing in Paging Systems Sharing of Data The page numbers of sharing processes can be different. PT2 PT1 n1, w 0 0 . . . . . . n2, w n2 n1 Data3 . . . . . . Data1 Data2

  39. 0x0000 0x0000 . . . . . . bra (2,w) label1: bra label1 label1: 4k 0x1000 0x1000 . . . . . . 4k 0x2000 0x2000 . . . . . . w 4k Sharing in Paging Systems Sharing of Code Assemble

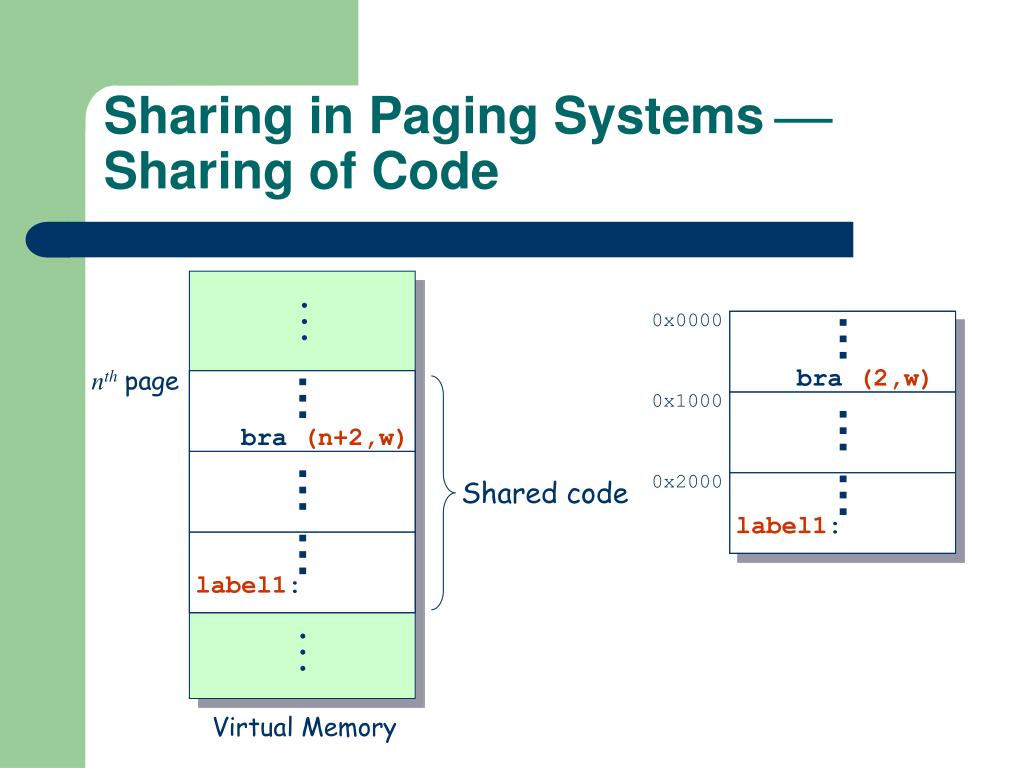

  40. 0x0000 . . . . . . bra (2,w) label1: bra (n+2,w) label1: 0x1000 . . . . . . 0x2000 . . . . . . Sharing in Paging Systems Sharing of Code nthpage Shared code Virtual Memory

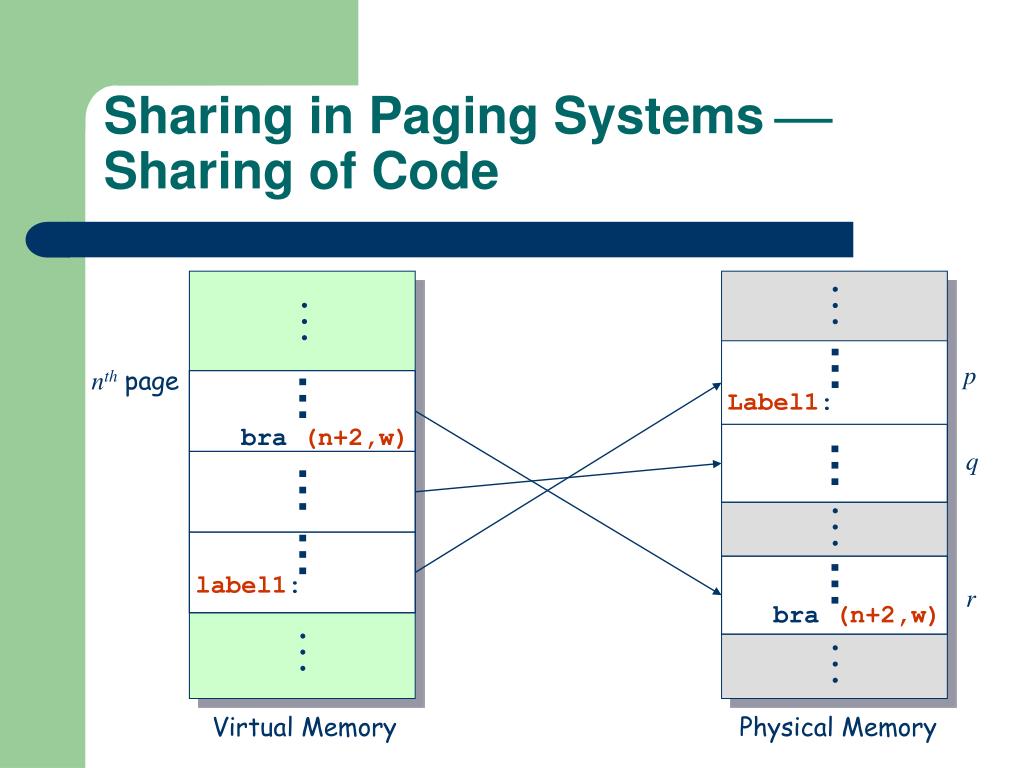

  41. . . . bra (n+2,w) label1: . . . Label1: . . . bra (n+2,w) . . . . . . . . . Sharing in Paging Systems Sharing of Code p nthpage q r Virtual Memory Physical Memory

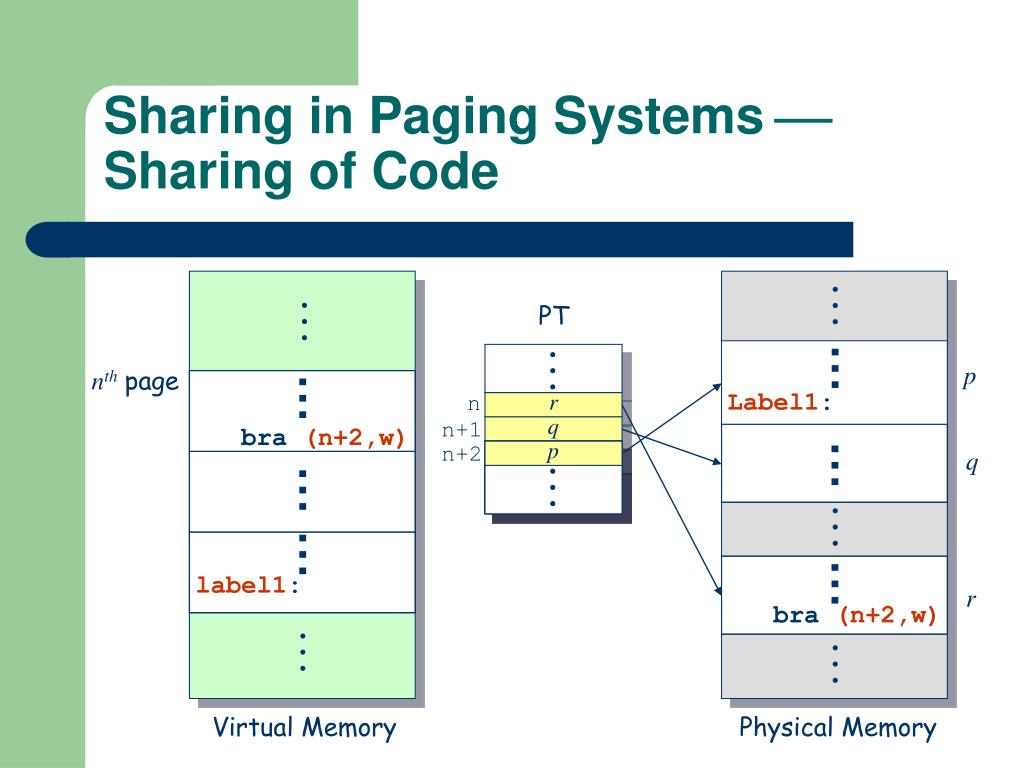

  42. PT . . . bra (n+2,w) label1: . . . Label1: . . . bra (n+2,w) . . . n r n+1 . . . q n+2 . . . p Sharing in Paging Systems Sharing of Code p nthpage q r Virtual Memory Physical Memory

  43. PT PT1 PT2 . . . 0 0 Label1: 0 0 . . . bra (n+2,w) n r n1 n2 r r n+1 . . . q n1+1 n2+1 q q n+2 p n1+2 n2+2 p p Physical Memory Sharing in Paging Systems Sharing of Code n1, w n2, w p q r

  44. PT PT1 PT2 . . . 0 0 Label1: 0 0 . . . bra (n+2,w) n r n1 n2 r r n+1 . . . q n1+1 n2+1 q q n+2 p n1+2 n2+2 p p Physical Memory If absolute virtual address is used for coding, such a code sharing scheme is workable if n1= n2 = n Sharing in Paging Systems Sharing of Code n1, w n2, w p q r

  45. . . . Label1: . . . bra (n+2,w) . . . Physical Memory PT Sharing in Paging Systems Sharing of Code n r n+1 q n+2 p Can we assign different starting page numbers to a different processes? n1, w PT1 PT2 n2, w p 0 0 0 0 q n1 n2 r r n1+1 n2+1 q q n1+2 n2+2 p p r

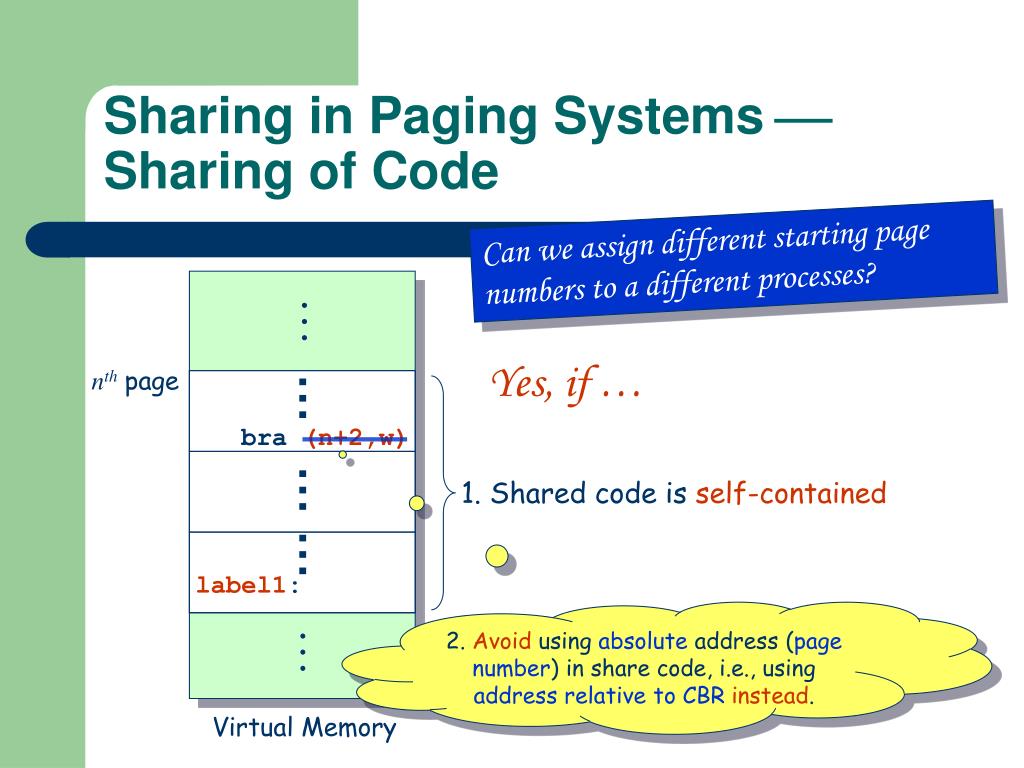

  46. . . . bra (n+2,w) label1: . . . . . . Sharing in Paging Systems Sharing of Code Can we assign different starting page numbers to a different processes? Yes, if … nthpage 1. Shared code is self-contained 2. Avoid using absolute address (page number) in share code, i.e., using address relative to CBRinstead. Virtual Memory

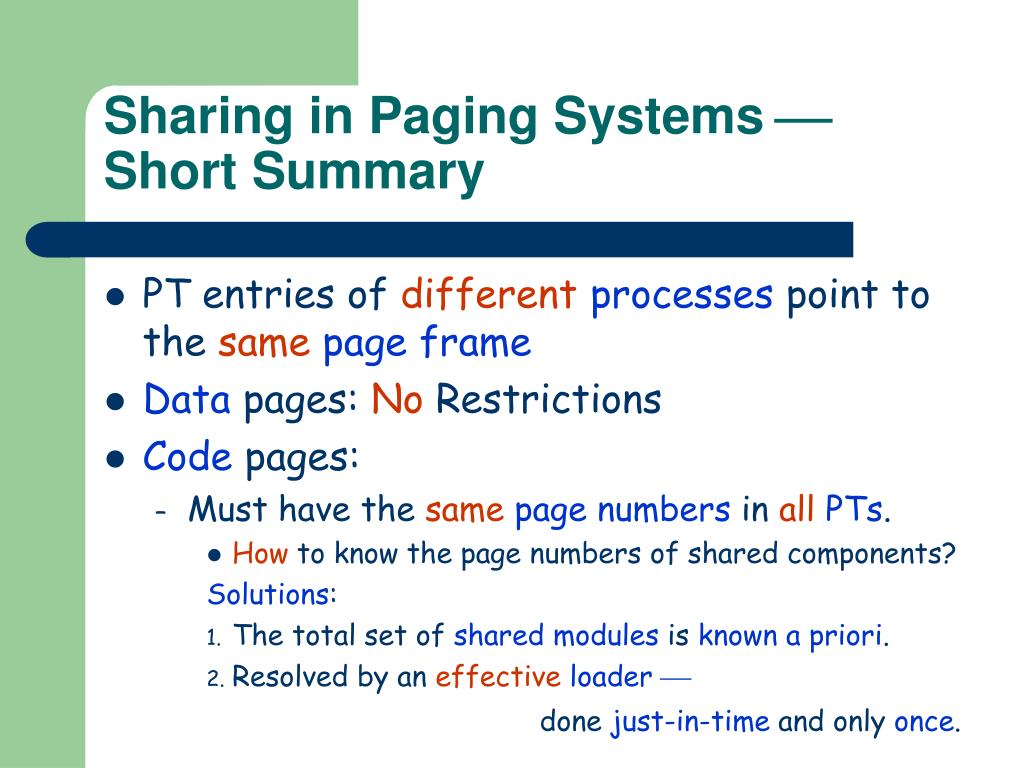

  47. Sharing in Paging Systems Short Summary • PT entries of differentprocesses point to the samepage frame • Data pages: No Restrictions • Code pages: • Must have the samepage numbers in allPTs. • For generalization, avoid using page numbers in shared code (self-contained), i.e., using address relative to CBR instead.

  48. Sharing in Paging Systems Short Summary • PT entries of differentprocesses point to the samepage frame • Data pages: No Restrictions • Code pages: • Must have the samepage numbers in allPTs. • How to know the page numbers of shared components? Solutions: • The total set of shared modules is known a priori. • Resolved by an effectiveloader  done just-in-time and only once.

  49. 0 ... ... stub 1 stub i stub n1 stub Linkingjust-in-time and only once. Dynamic Linking via Transfer Vector Currently Executing Code ... bri tv[i] ... bri tv[i] ... call the same shared function by indirect branch instruction. Transfer Vectors

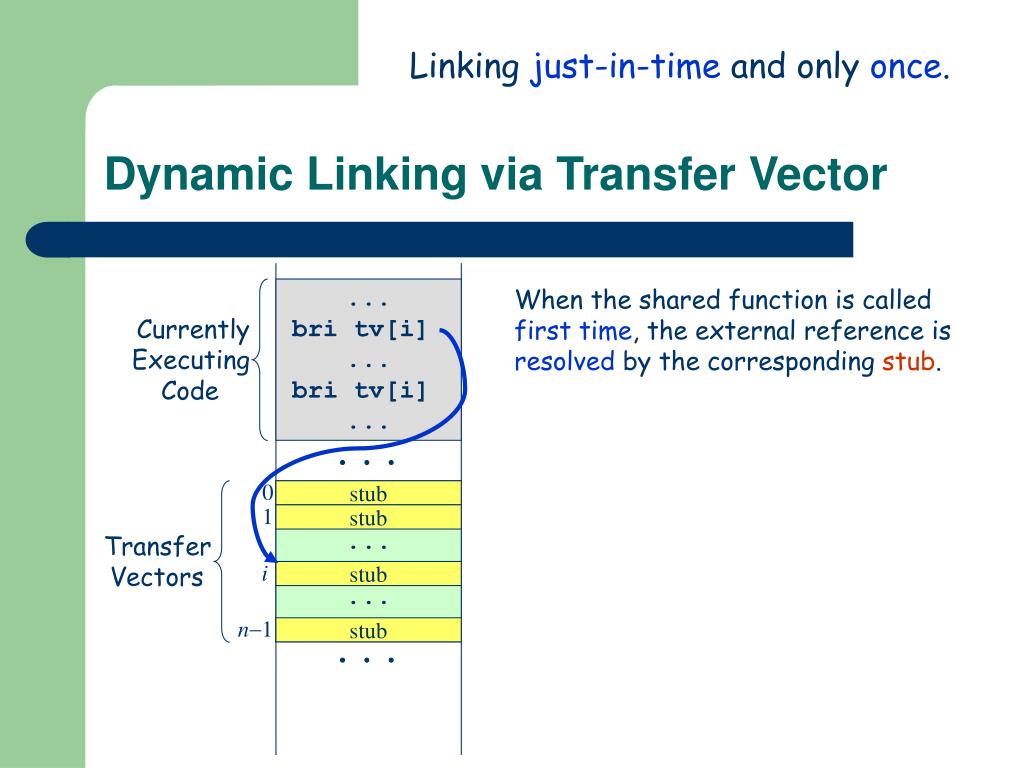

  50. Linkingjust-in-time and only once. Dynamic Linking via Transfer Vector Currently Executing Code ... bri tv[i] ... bri tv[i] ... When the shared function is called first time, the external reference is resolved by the corresponding stub. 0 Transfer Vectors ... ... stub 1 stub i stub n1 stub
