  1. Fuzzy graph and relation

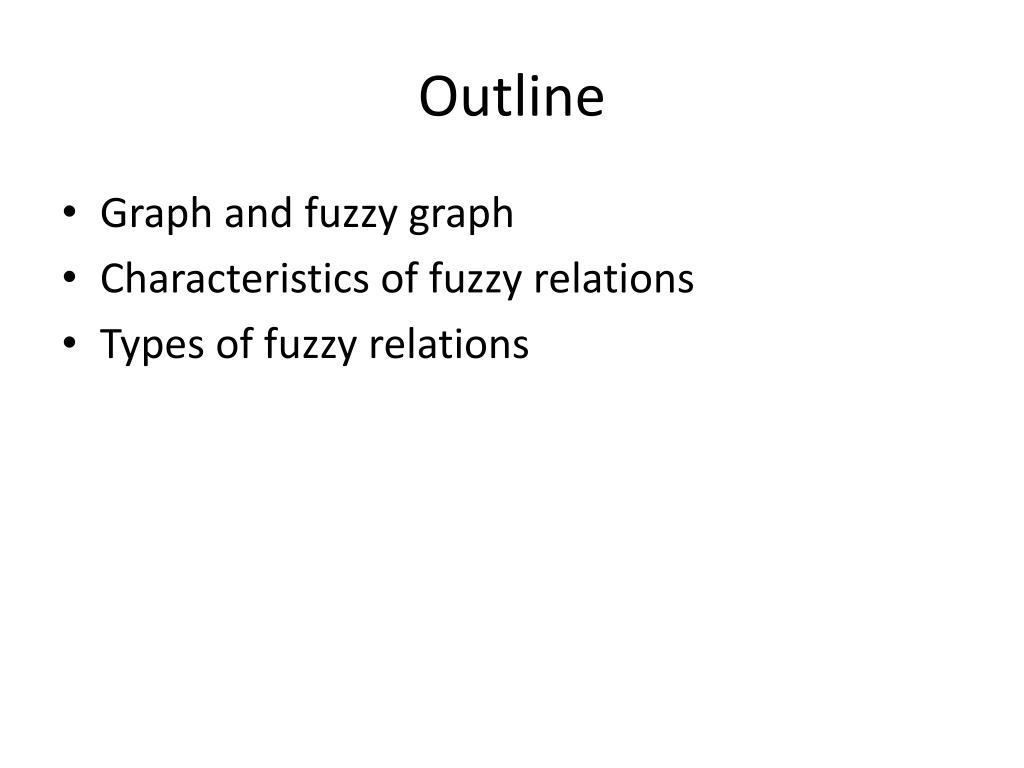

  2. Outline • Graph and fuzzy graph • Characteristics of fuzzy relations • Types of fuzzy relations

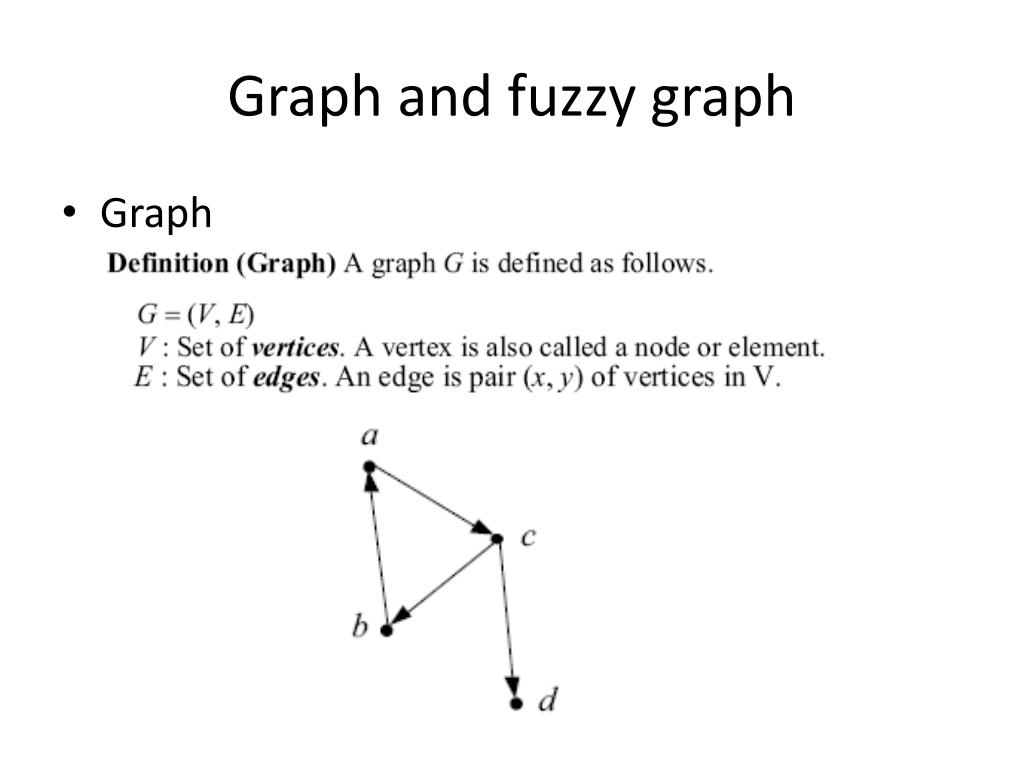

  3. Graph and fuzzy graph • Graph

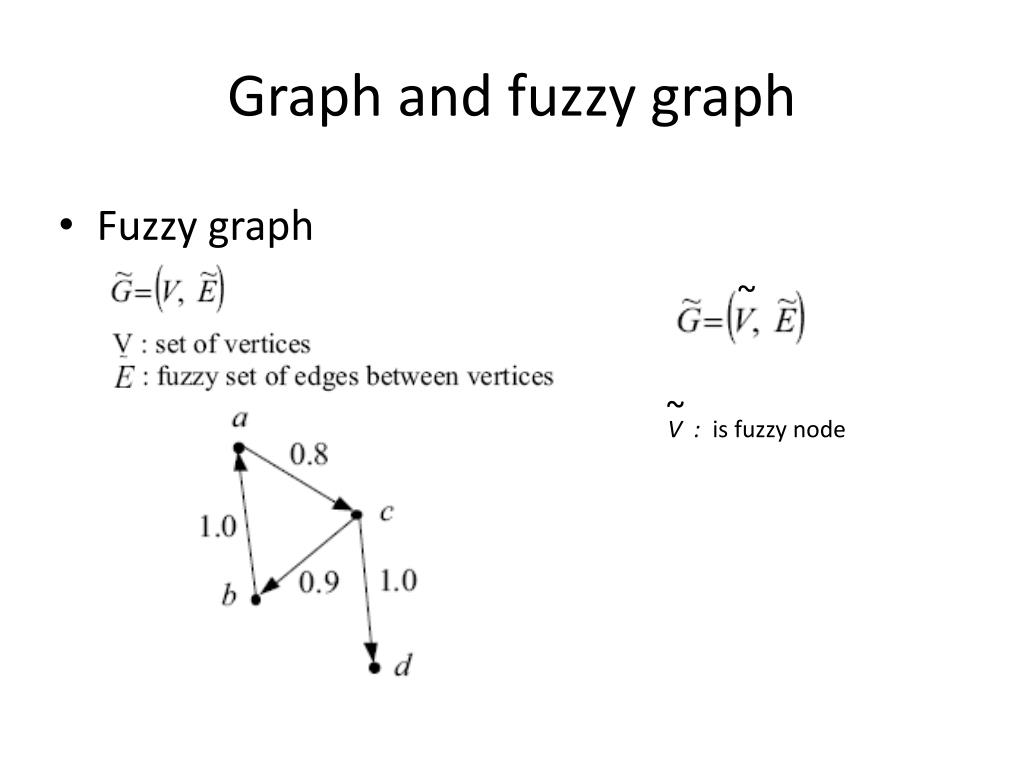

  4. Graph and fuzzy graph • Fuzzy graph ~ ~ V : is fuzzy node

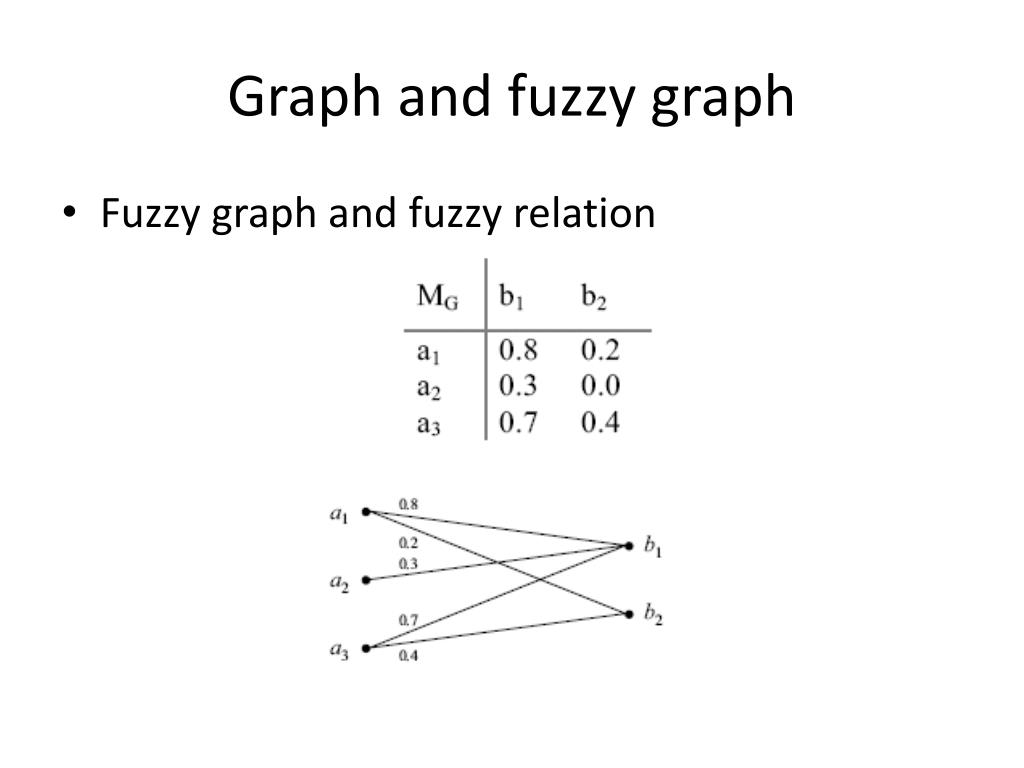

  5. Graph and fuzzy graph • Fuzzy graph and fuzzy relation

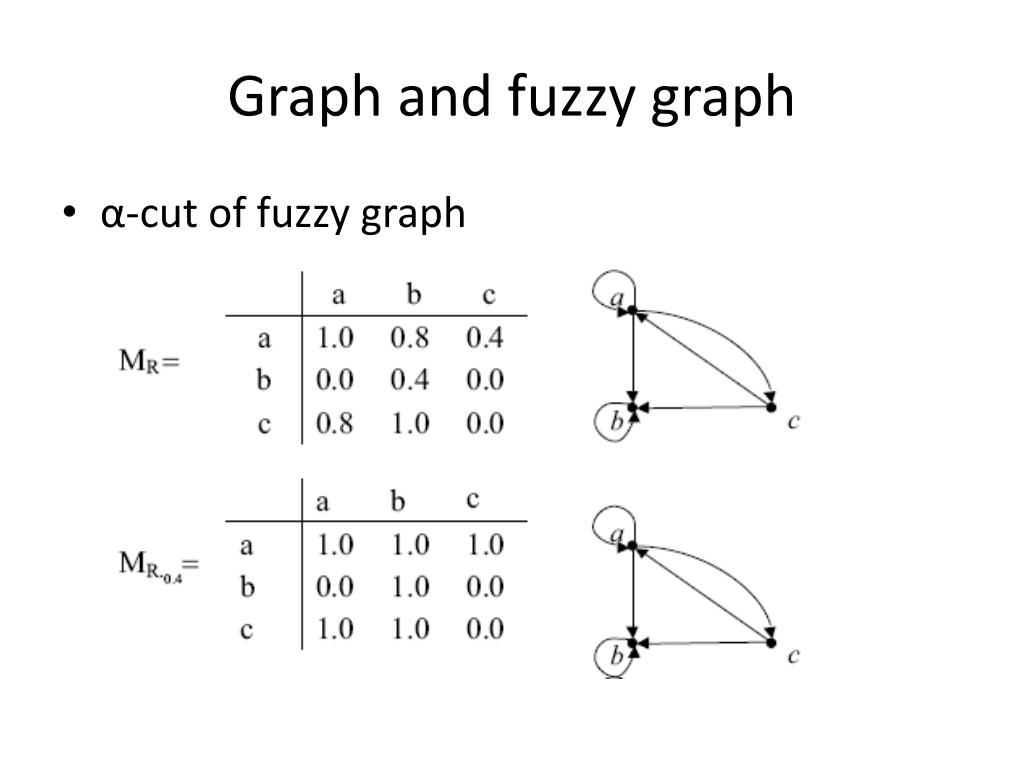

  6. Graph and fuzzy graph • α-cut of fuzzy graph

  7. Graph and fuzzy graph • α-cut of fuzzy graph

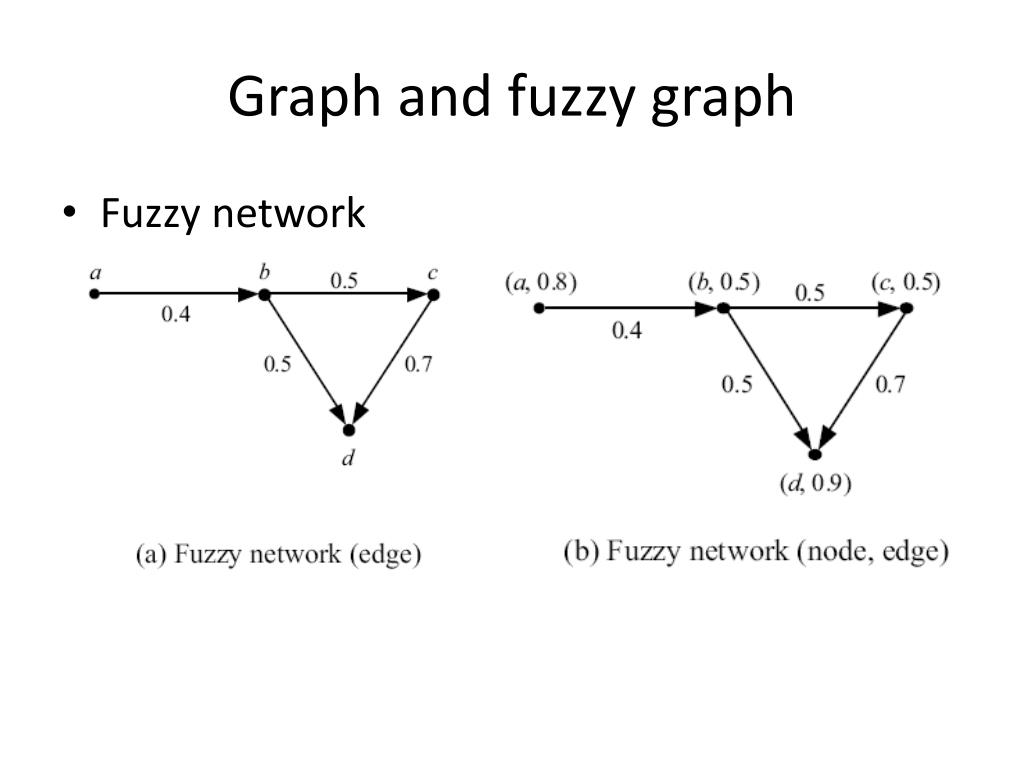

  8. Graph and fuzzy graph • Fuzzy network

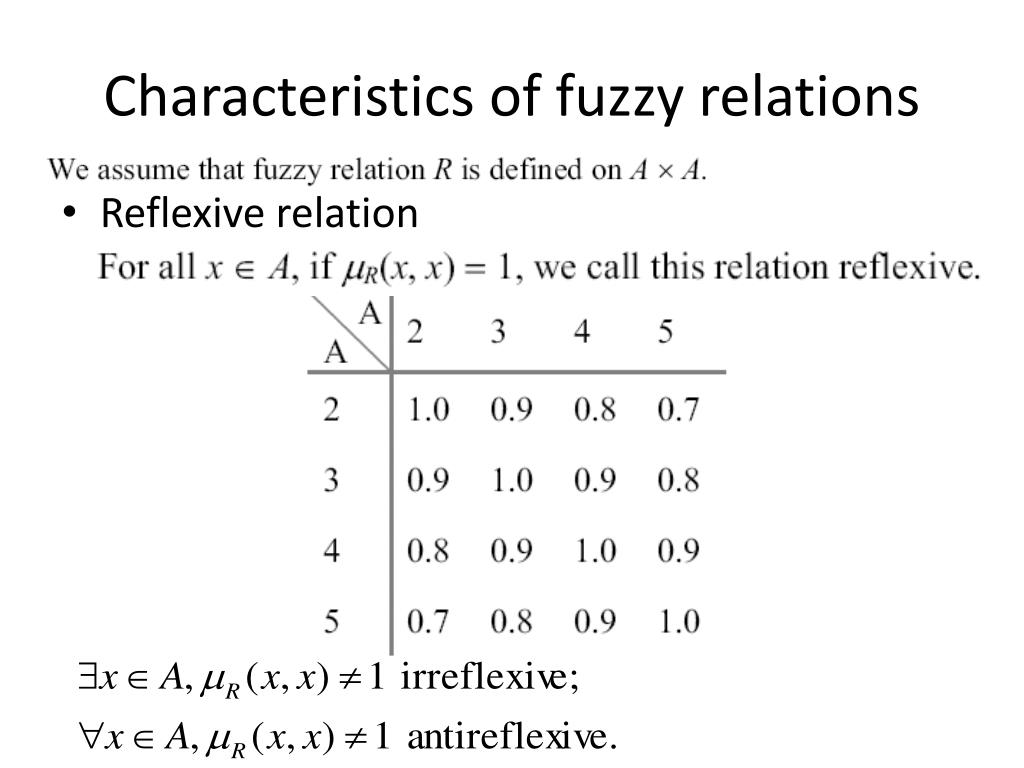

  9. Characteristics of fuzzy relations • Reflexive relation

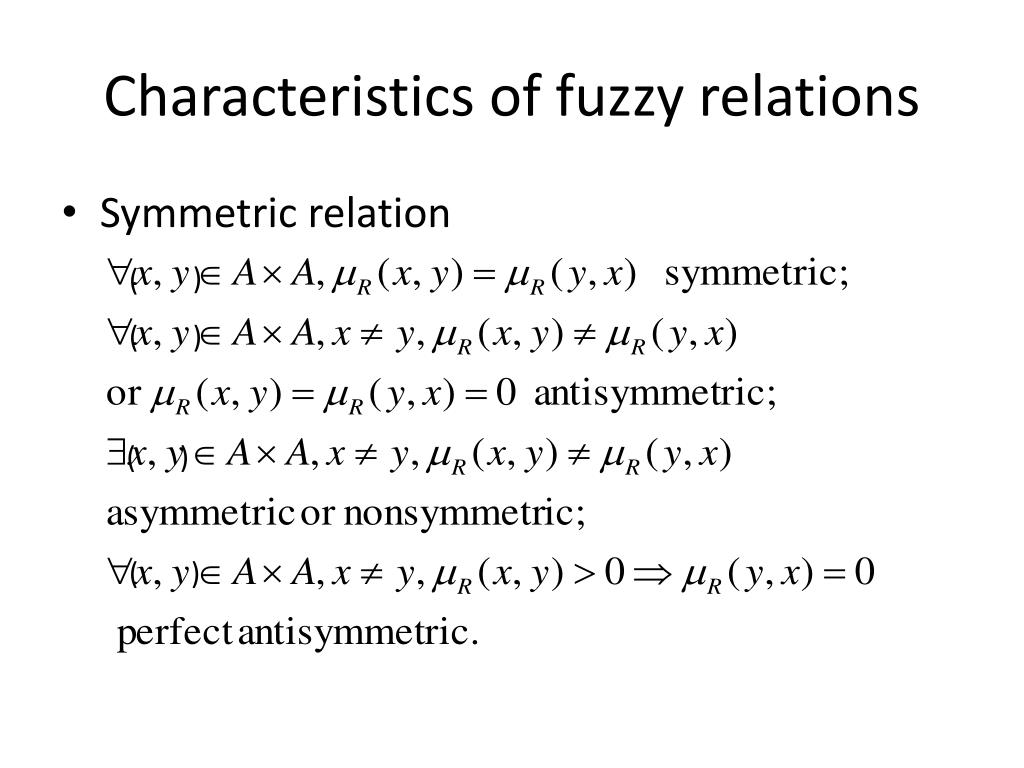

  10. Characteristics of fuzzy relations • Symmetric relation ) ( ) ( ) ( ) (

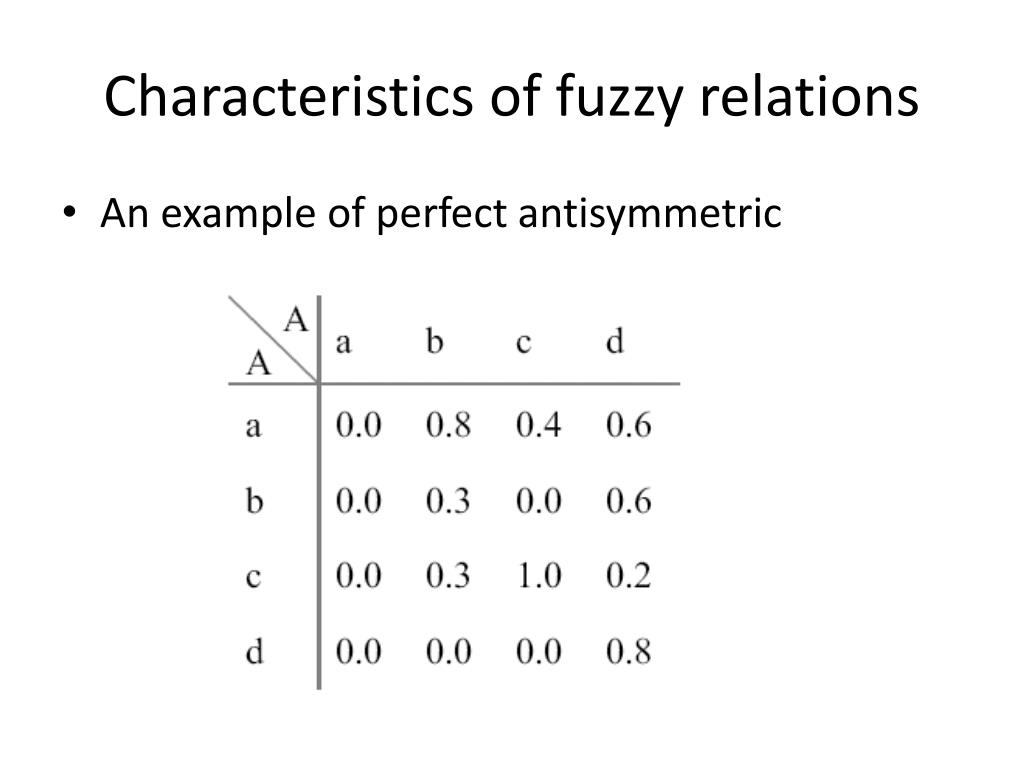

  11. Characteristics of fuzzy relations • An example of perfect antisymmetric

  12. Characteristics of fuzzy relations • Transitive relation

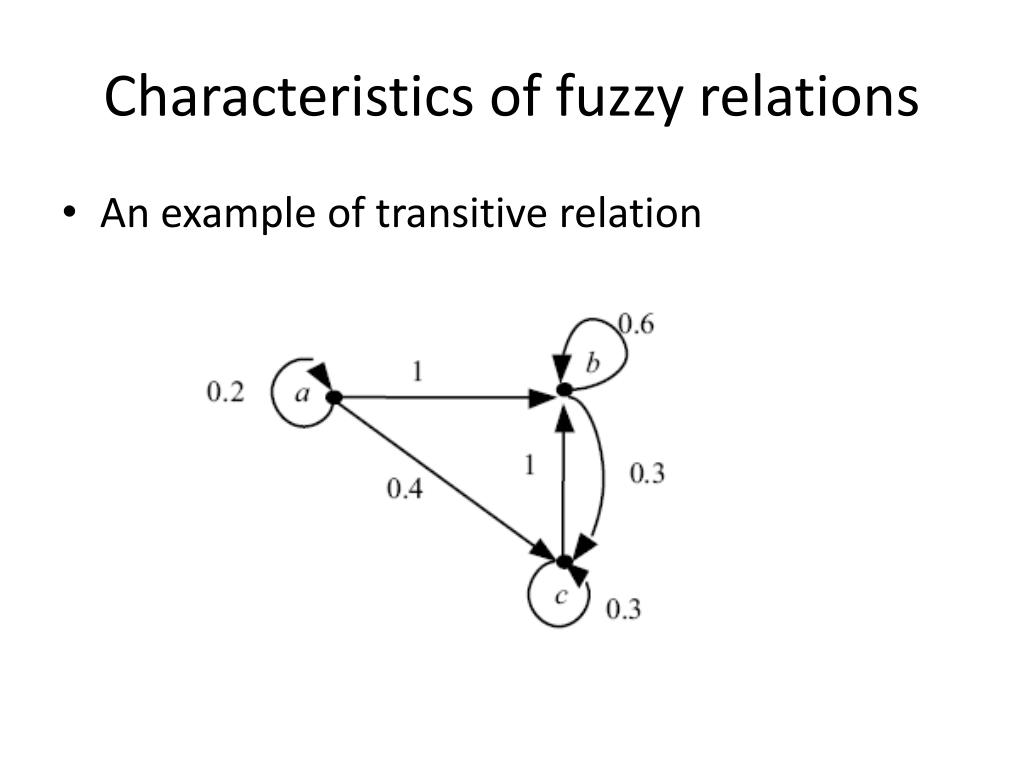

  13. Characteristics of fuzzy relations • An example of transitive relation

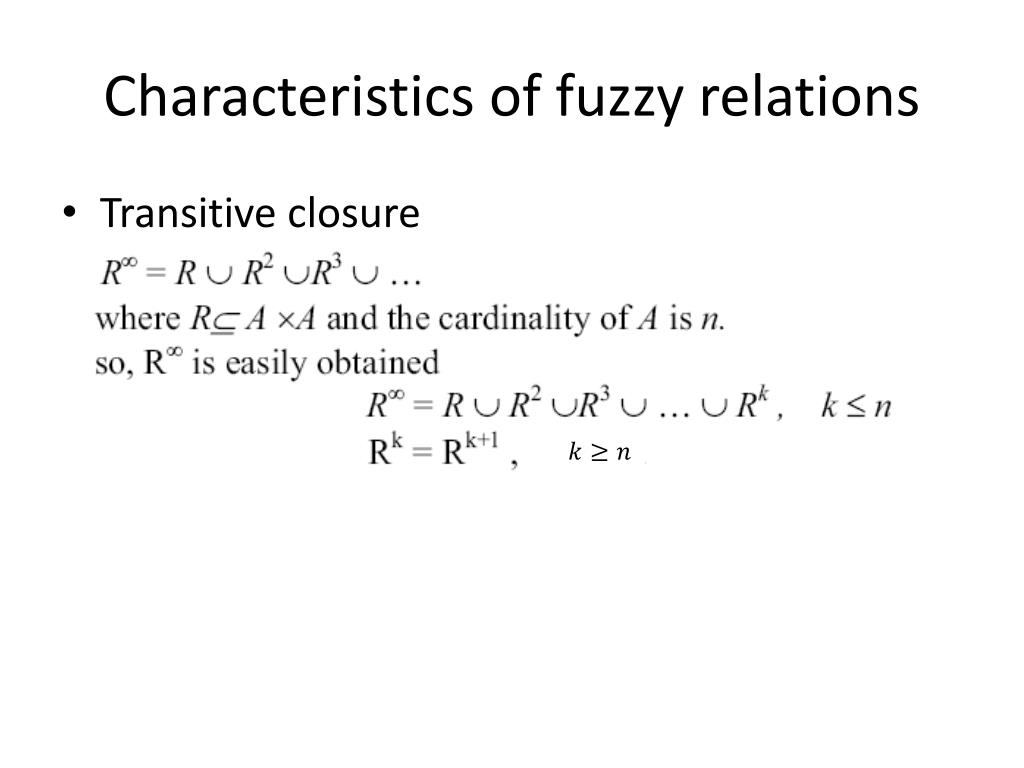

  14. Characteristics of fuzzy relations • Transitive closure

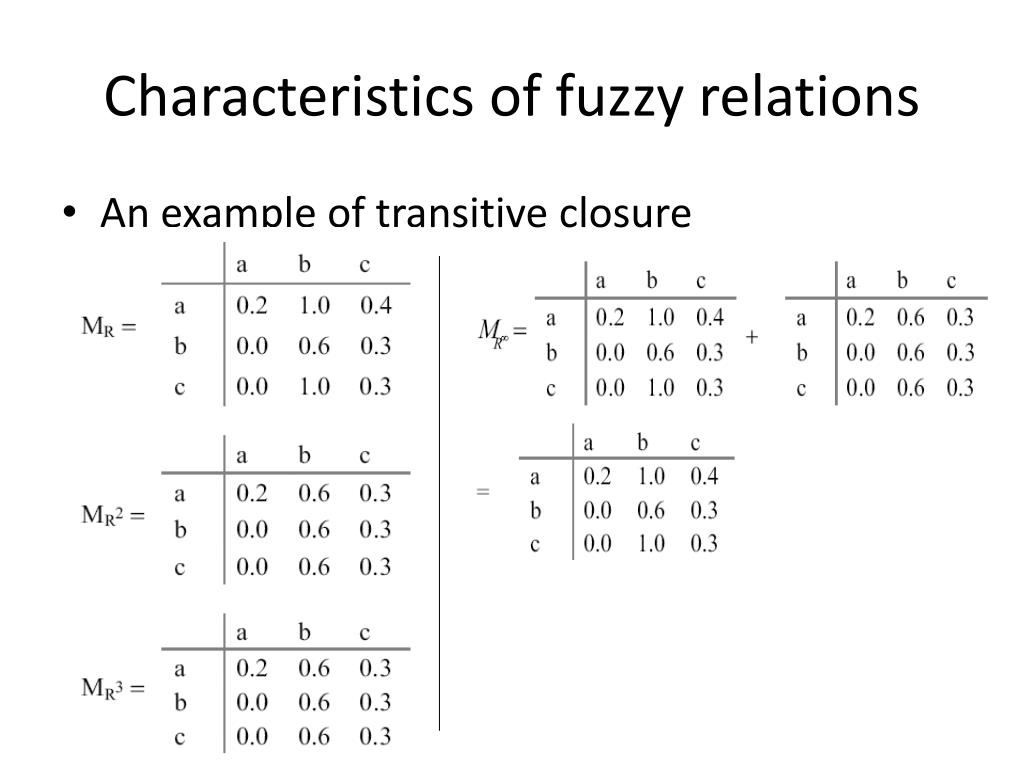

  15. Characteristics of fuzzy relations • An example of transitive closure

  16. Types of fuzzy relation • Fuzzy equivalence relation • Reflexive relation • Symmetric relation • Transitive relation

  17. Types of fuzzy relation (i) Reflexive relation √ (ii) Symmetric relation √ (iii) Transitive relation X

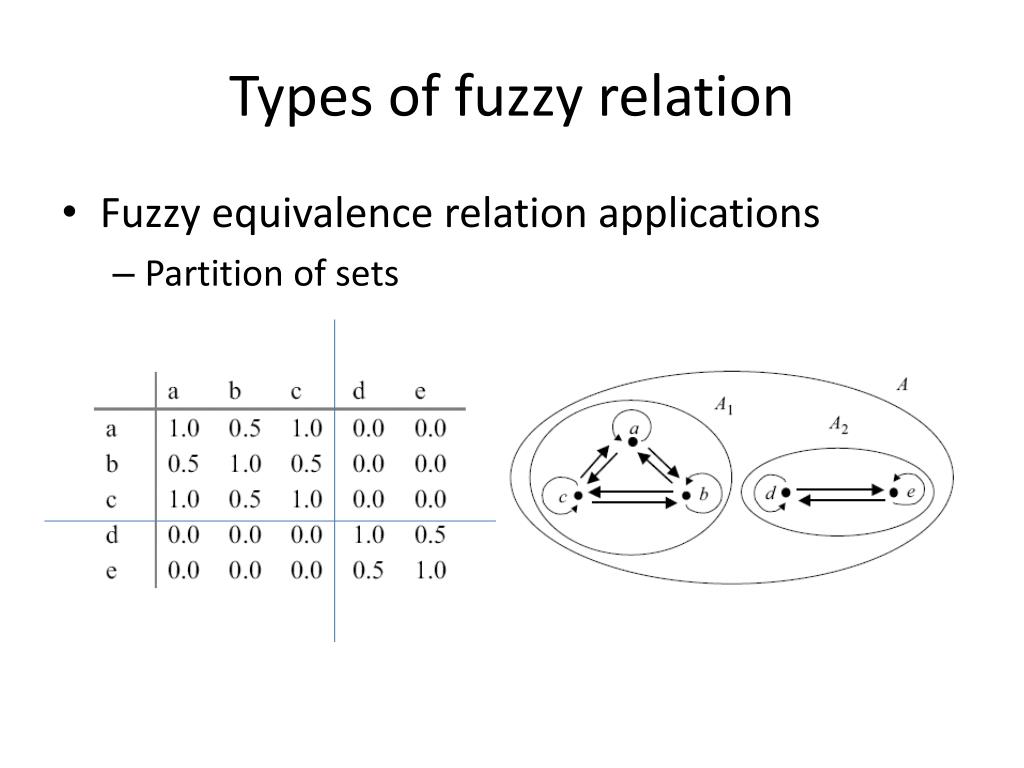

  18. Types of fuzzy relation • Fuzzy equivalence relation applications • Partition of sets

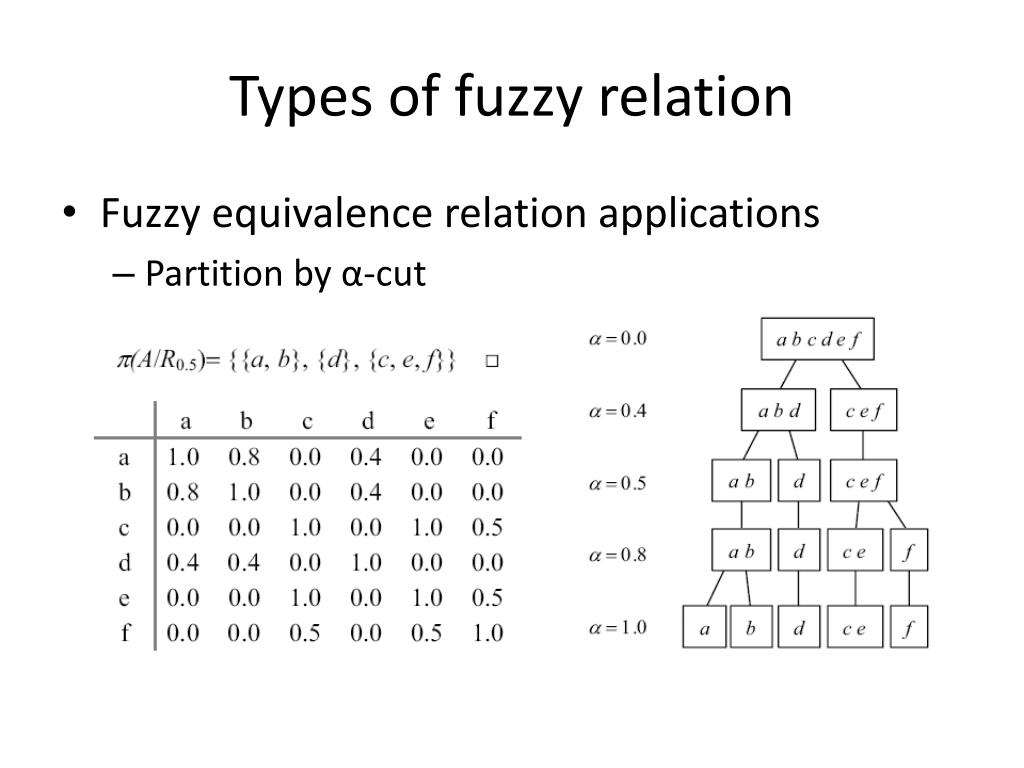

  19. Types of fuzzy relation • Fuzzy equivalence relation applications • Partition by α-cut

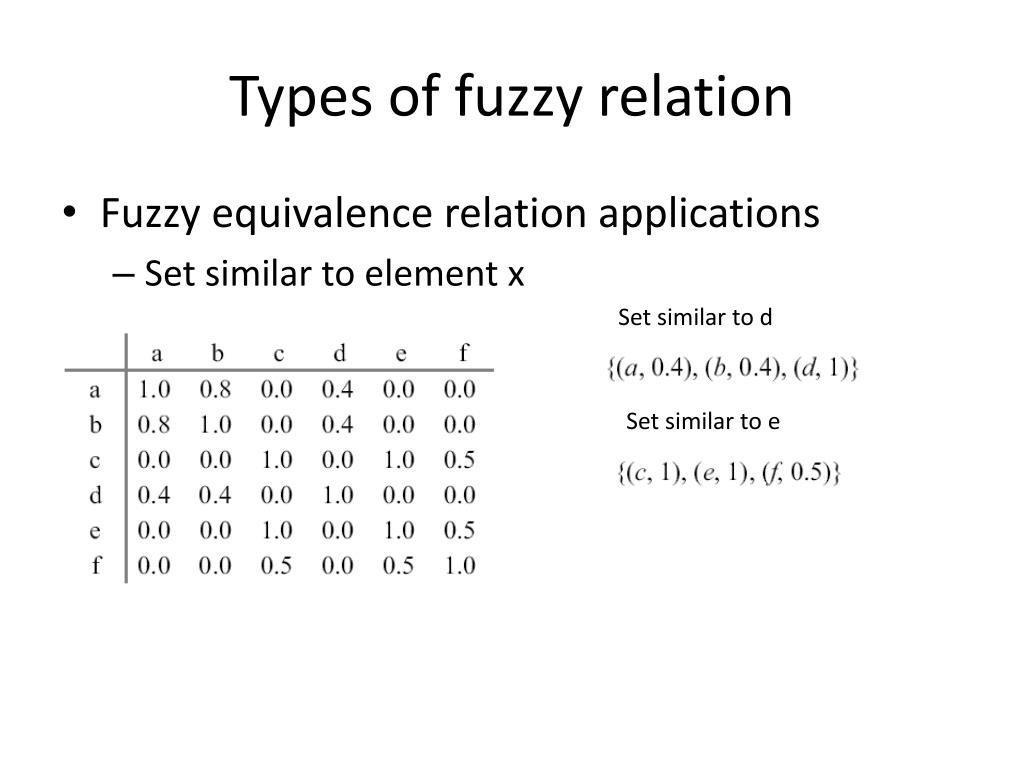

  20. Types of fuzzy relation • Fuzzy equivalence relation applications • Set similar to element x Set similar to d Set similar to e

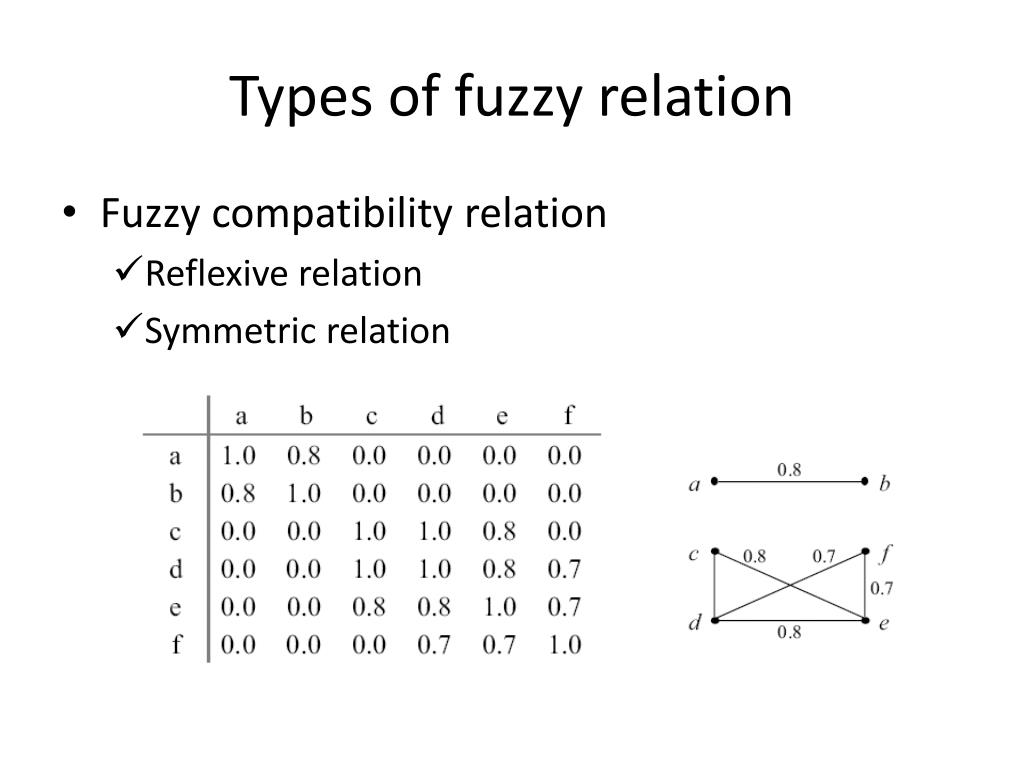

  21. Types of fuzzy relation • Fuzzy compatibility relation • Reflexive relation • Symmetric relation

  22. Types of fuzzy relation • Fuzzy pre-order relation • Reflexive relation • Transitive relation

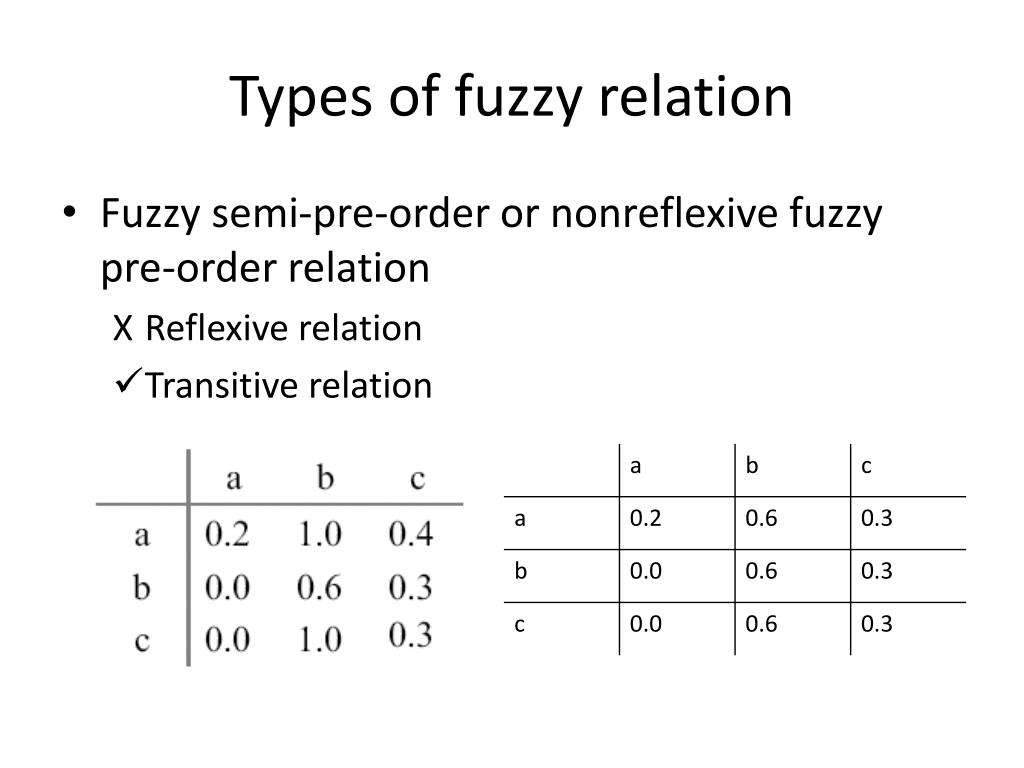

  23. Types of fuzzy relation • Fuzzy semi-pre-order or nonreflexive fuzzy pre-order relation • Reflexive relation • Transitive relation

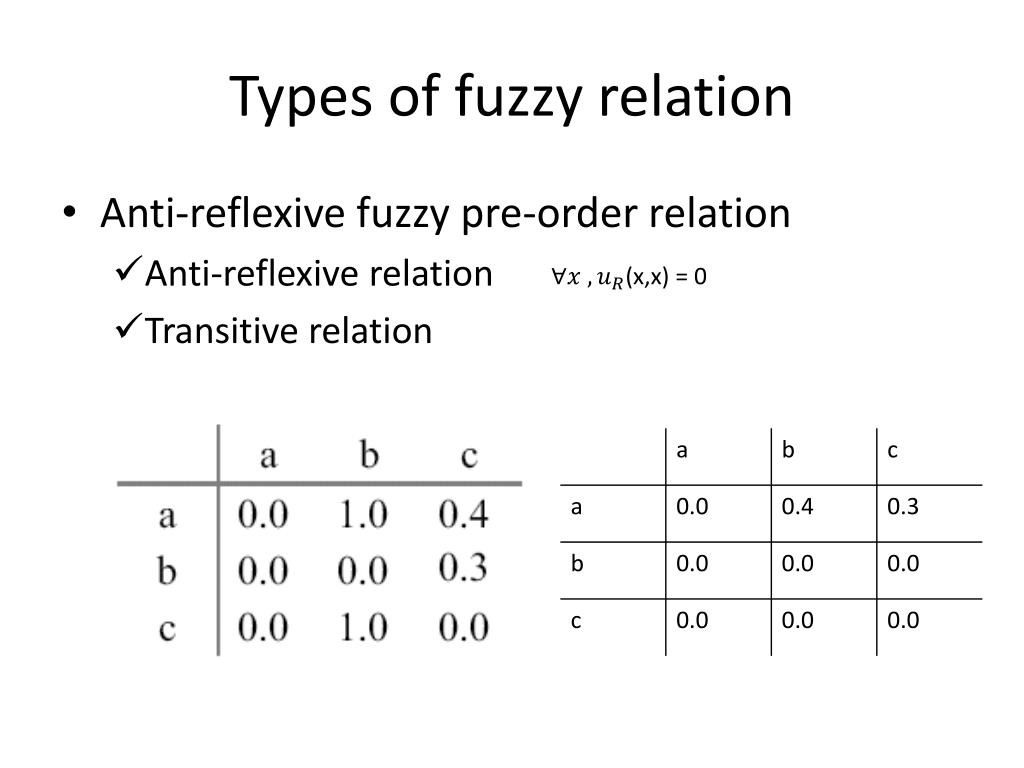

  24. Types of fuzzy relation • Anti-reflexive fuzzy pre-order relation • Anti-reflexive relation • Transitive relation (x,x) = 0

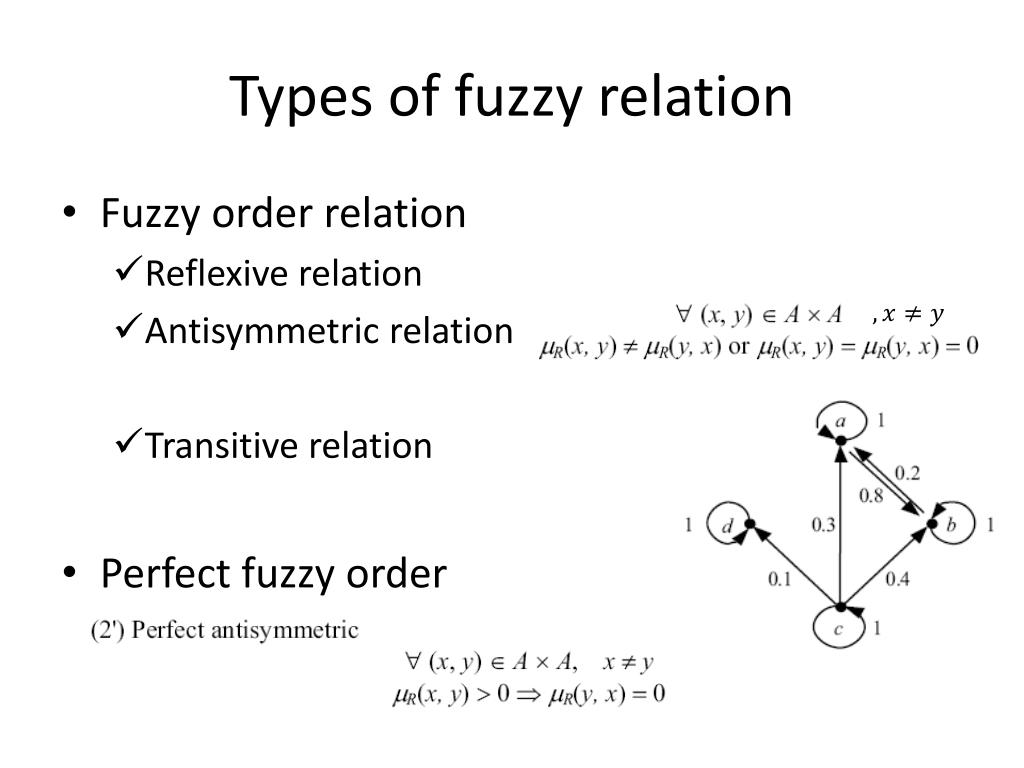

  25. Types of fuzzy relation • Fuzzy order relation • Reflexive relation • Antisymmetric relation • Transitive relation • Perfect fuzzy order

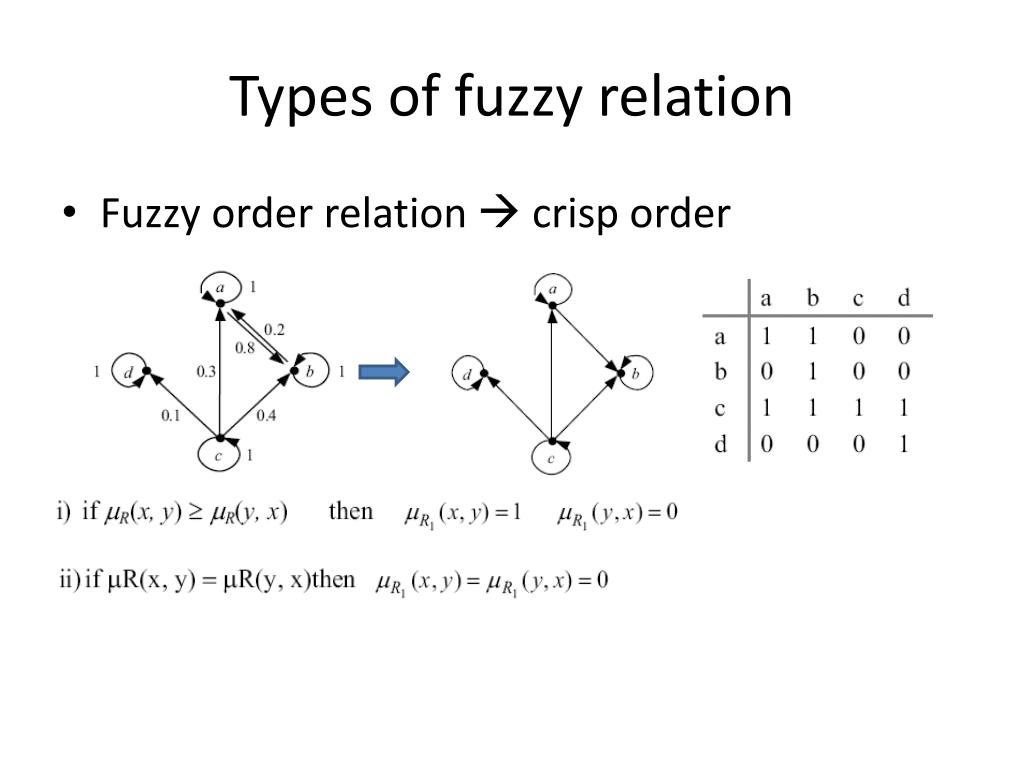

  26. Types of fuzzy relation • Fuzzy order relation  crisp order

  27. Types of fuzzy relation • Fuzzy order relation • Dominating class • Dominated class

  28. Types of fuzzy relation

  29. Types of fuzzy relation • Dissimilitude relation • Antireflexive relation • Symmetric relation • Min-Max transitive relation

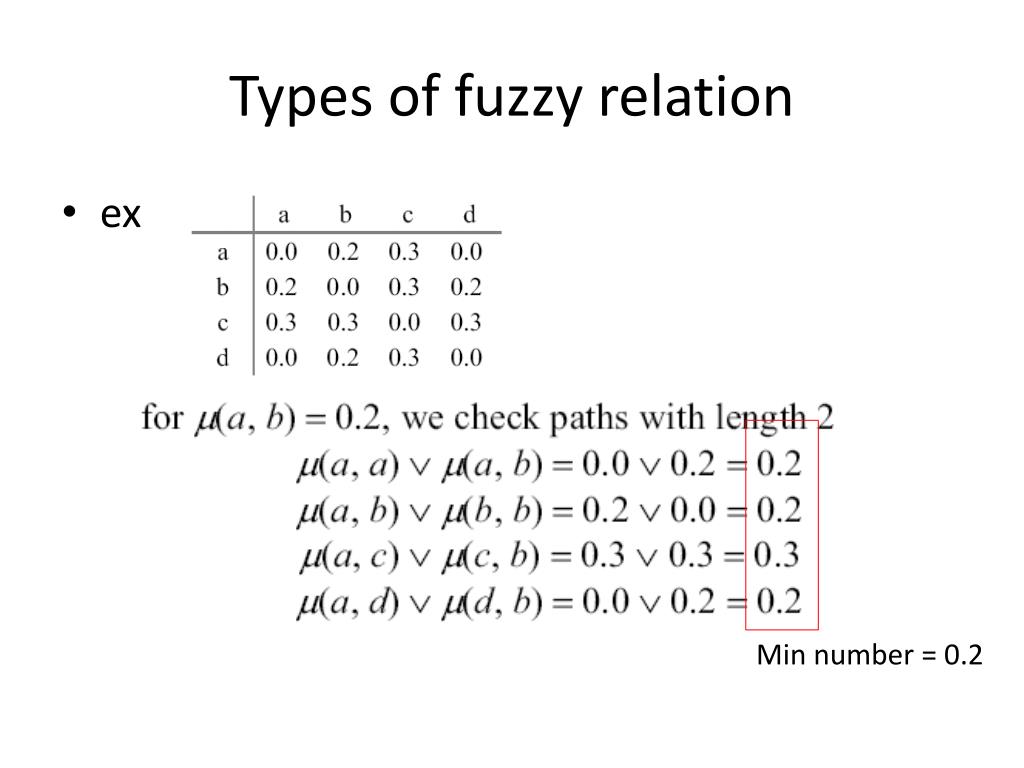

  30. Types of fuzzy relation • ex Min number = 0.2

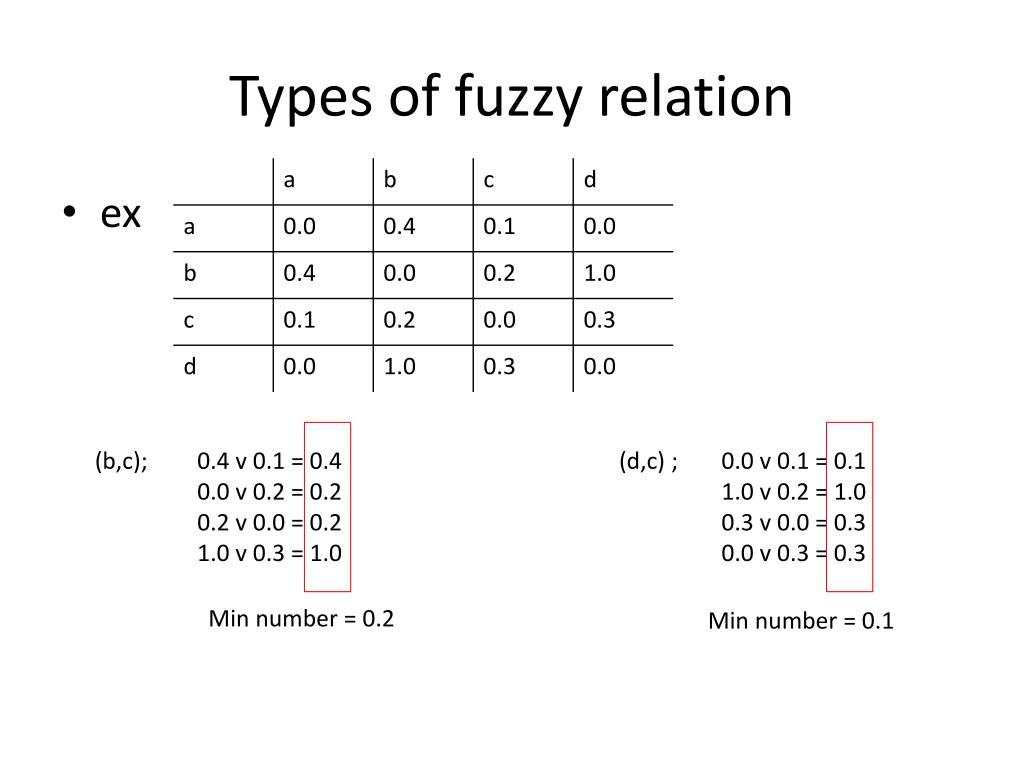

  31. Types of fuzzy relation • ex (b,c); 0.4 v 0.1 = 0.4 0.0 v 0.2 = 0.2 0.2 v 0.0 = 0.2 1.0 v 0.3 = 1.0 (d,c) ; 0.0 v 0.1 = 0.1 1.0 v 0.2 = 1.0 0.3 v 0.0 = 0.3 0.0 v 0.3 = 0.3 Min number = 0.2 Min number = 0.1

  32. Types of fuzzy relation • Fuzzy morphism • Homomorphism • Fuzzy homomorphism

  33. Types of fuzzy relation • Fuzzy morphism • Strong homomorphism • Fuzzy strong homomorphism

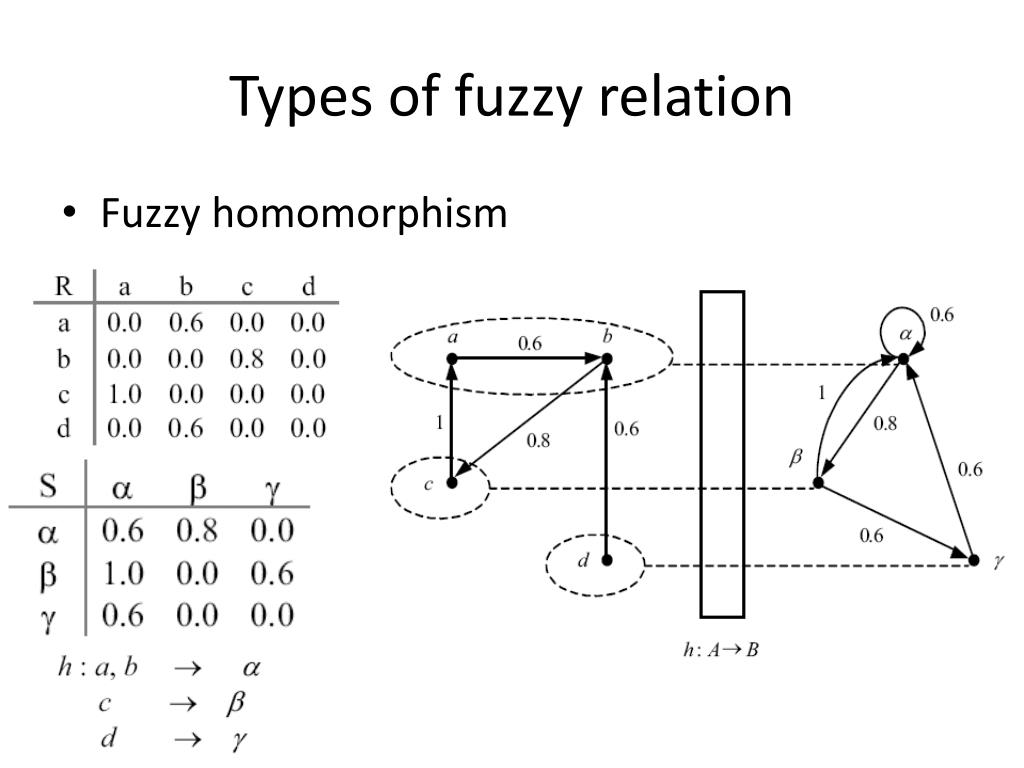

  34. Types of fuzzy relation • Fuzzy homomorphism

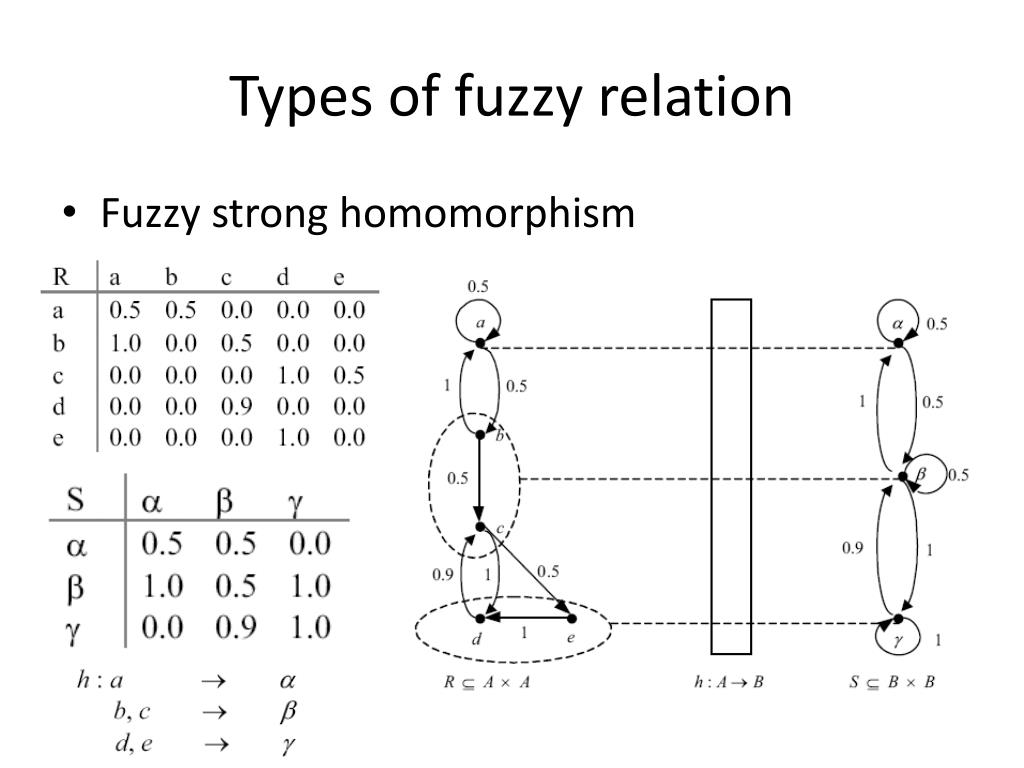

  35. Types of fuzzy relation • Fuzzy strong homomorphism
