  1. AH-64 Apache SSG Coon

  2. AH-64 History • The AH-64 was first known as the Hughes YAH-64. • The Hughes YAH-64, first flew in September 1975. • The Army contracted the of making the YAH-64 in 1977. • Originally, the YAH-64 featured a T-tail design with the tail rotor mounted mid-way on the vertical stabilizer. • The tail was then redesigned into the low-set, fully movable horizontal stabilizer. • Note: The T-Tale Design

  3. Credits to the AH-64 • The Apache helicopters played a key role in the 1989 action in Panama, when the AH-64's advanced sensors and sighting systems were effective against anti-government forces at night. • They played a major role in the liberation of Kuwait, destroying early warning radar sites. • During Operation Desert Storm, AH-64As were destroyed more than 500 tanks, armored personnel carriers, trucks and other vehicles. • AH-64 Apaches have helped keep the peace in Bosnia and called into service in Albania, Kosovo and Kuwait.  • Most recently, Apaches have seen service in the Global War on Terrorism in both Afghanistan and Iraq.

  4. Evolution of theAH-64Apache

  5. AH -64A • Between 1984 and 1997, Boeing produced 937 AH-64As for the U.S. Army, Egypt, Greece, Israel, Saudi Arabia, and the United Arab Emirates. The combat-proven AH-64A is still in service and includes the following features: • Two high-performance turbo shaft engines and maximum cruise speed of 284 kph. • Laser, infrared, and other systems (including target acquisition designation sight/pilot night vision sensor) to locate, track, and attack targets • A combination of laser-guided precision Hellfire missiles, 70mm rockets, and a 30mm automatic cannon with up to 1,200 high explosive, dual-purpose ammunition rounds.

  6. AH -64A

  7. AH-64D and AH-64D Longbow • The combat-proven AH-64D Apache and AH-64D Apache Longbow share the following history and characteristics: • Testing in the late 1990s, delivery in 1997, in production for the U.S. Army and several international customers • Selection by the U.S. Army, Egypt, Greece, Israel, Japan, Kuwait, The Netherlands, Republic of Singapore, and United Kingdom (as the AH Mk1) • Ability to assimilate advancements in digital connectivity, sensors, weapon systems, advanced training devices, and maintenance support systems

  8. AH-64D and AH-64D Longbow

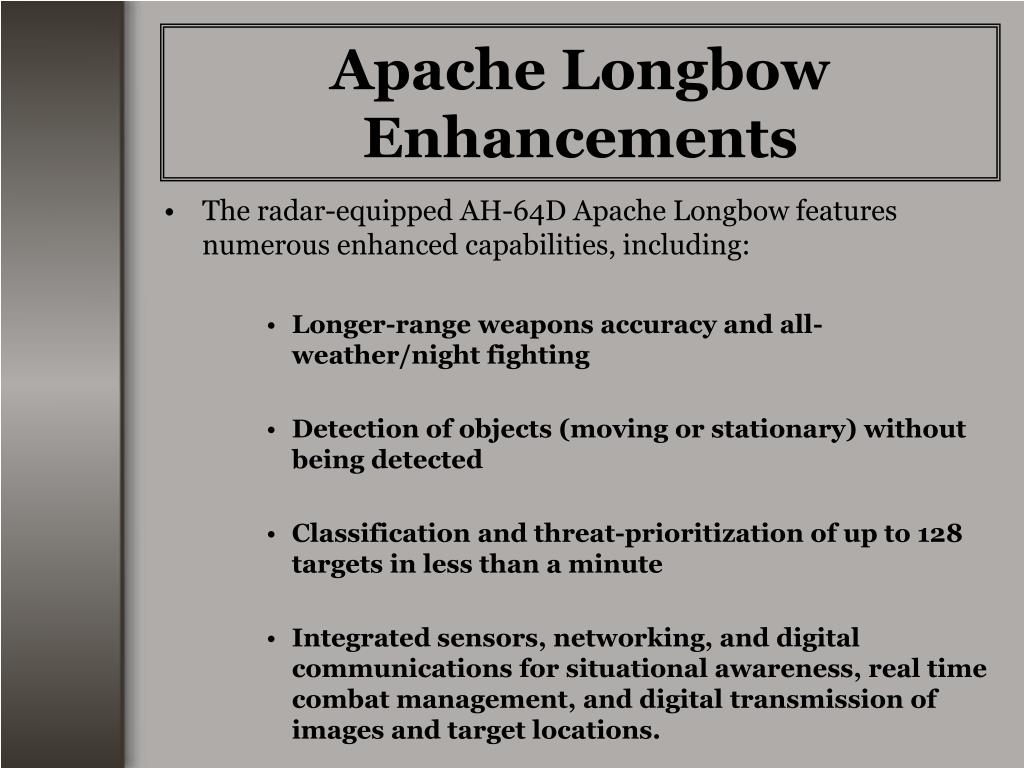

  9. Apache Longbow Enhancements • The radar-equipped AH-64D Apache Longbow features numerous enhanced capabilities, including: • Longer-range weapons accuracy and all-weather/night fighting • Detection of objects (moving or stationary) without being detected • Classification and threat-prioritization of up to 128 targets in less than a minute • Integrated sensors, networking, and digital communications for situational awareness, real time combat management, and digital transmission of images and target locations.

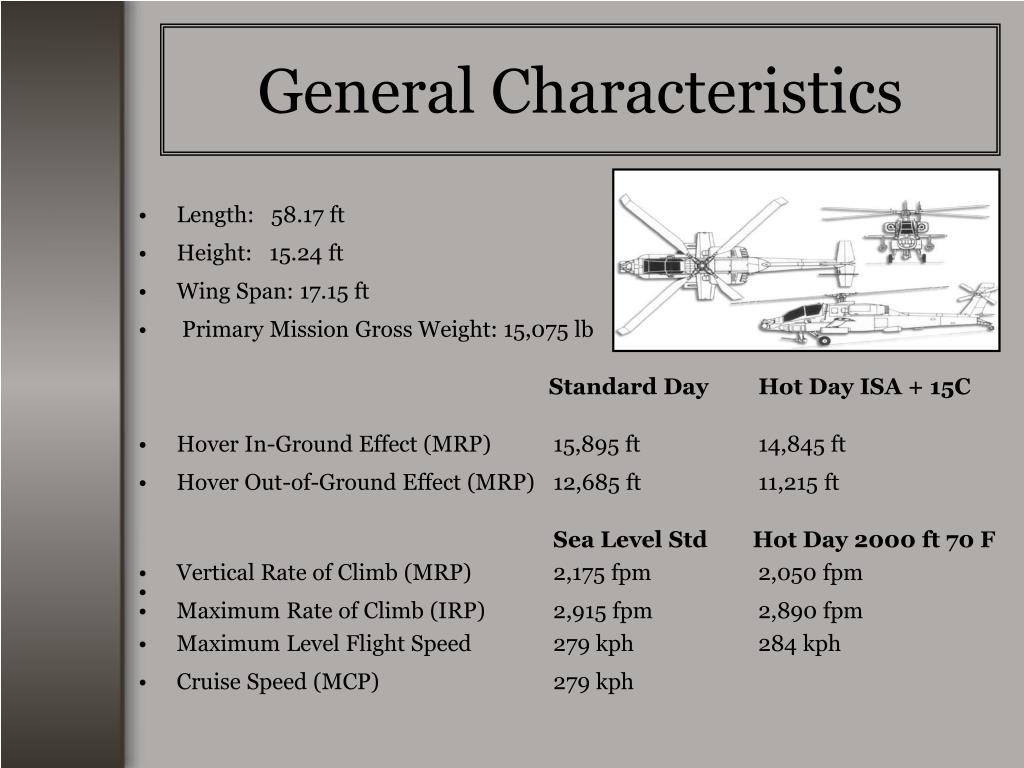

  10. General Characteristics • Length: 58.17 ft • Height: 15.24 ft • Wing Span: 17.15 ft • Primary Mission Gross Weight: 15,075 lb Standard Day Hot Day ISA + 15C • Hover In-Ground Effect (MRP) 15,895 ft 14,845 ft • Hover Out-of-Ground Effect (MRP) 12,685 ft 11,215 ft Sea Level Std Hot Day 2000 ft 70 F • Vertical Rate of Climb (MRP) 2,175 fpm 2,050 fpm • Maximum Rate of Climb (IRP) 2,915 fpm 2,890 fpm • Maximum Level Flight Speed 279 kph 284 kph • Cruise Speed (MCP) 279 kph

  11. Advancements for the AH-64D • This diagram illustrates the new technology being worked on to connect the connectivity and information flow among the aircraft, to the ground stations, and from Photo Telesis-equipped aircraft and LVRS-equipped pathfinders and scouts.

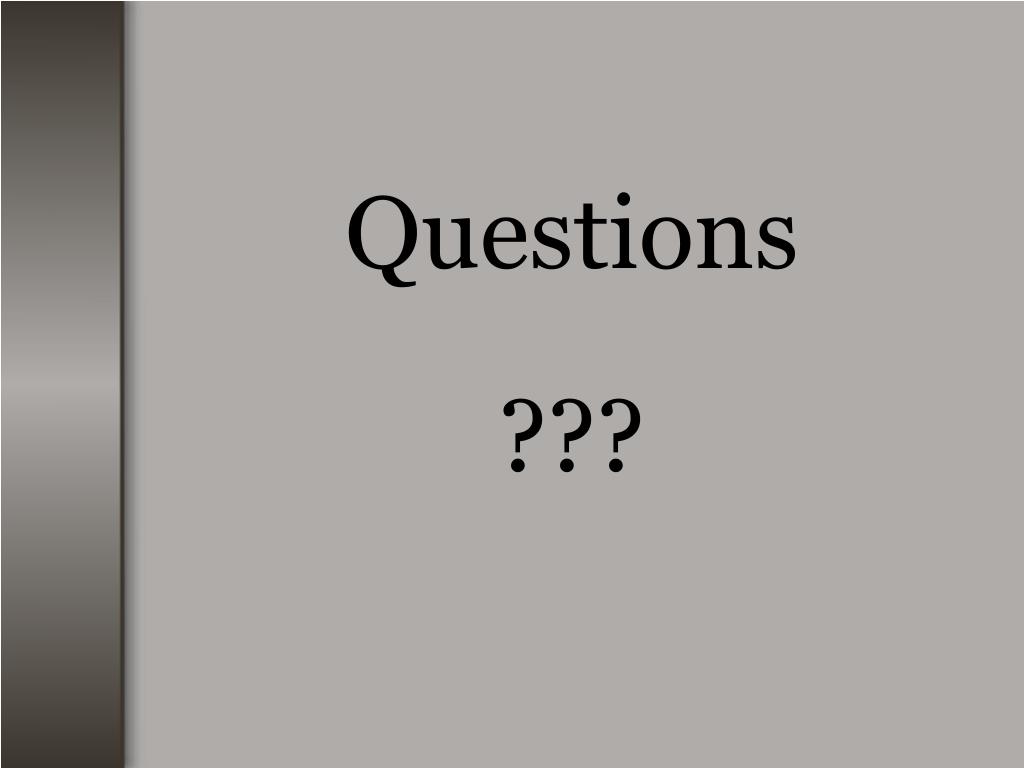

  12. Questions ???
