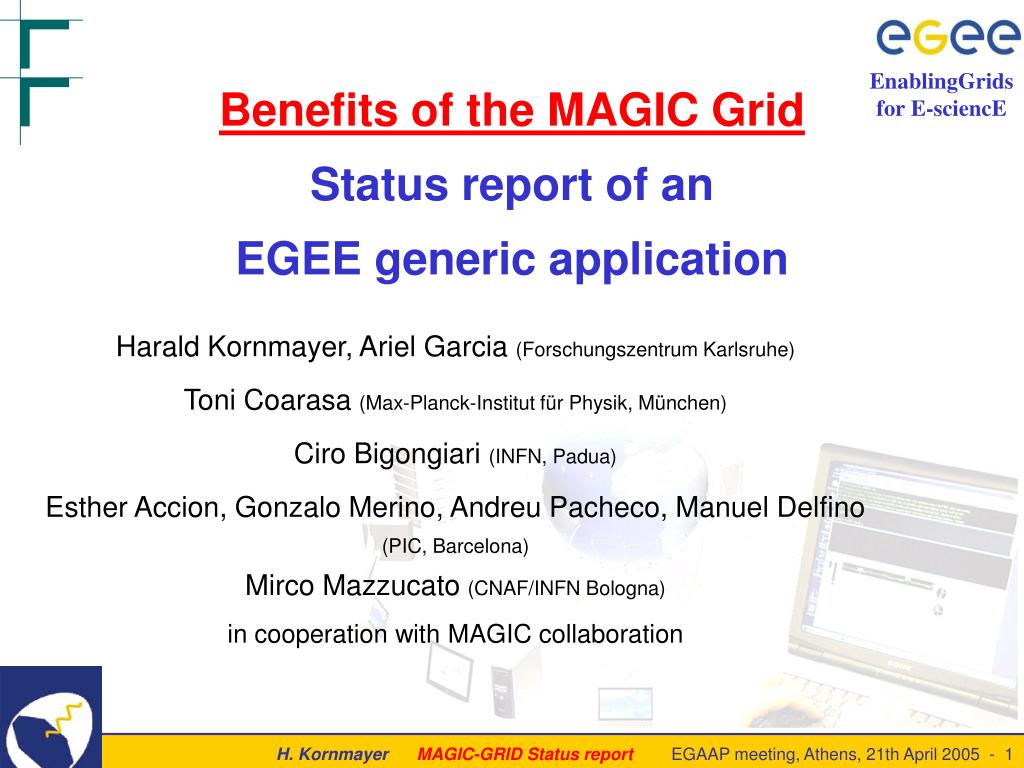

  1. Benefits of the MAGIC GridStatus report of an EGEE generic application Harald Kornmayer, Ariel Garcia (Forschungszentrum Karlsruhe) Toni Coarasa (Max-Planck-Institut für Physik, München) Ciro Bigongiari (INFN, Padua) Esther Accion, Gonzalo Merino, Andreu Pacheco, Manuel Delfino (PIC, Barcelona) Mirco Mazzucato (CNAF/INFN Bologna) in cooperation with MAGIC collaboration

  2. Outline • Introduction • What kind of MAGIC? • The idea of a MAGIC Grid • Grid added value • Expectations vs. reality? • Data challenges • Experience • Conclusion and Outlook

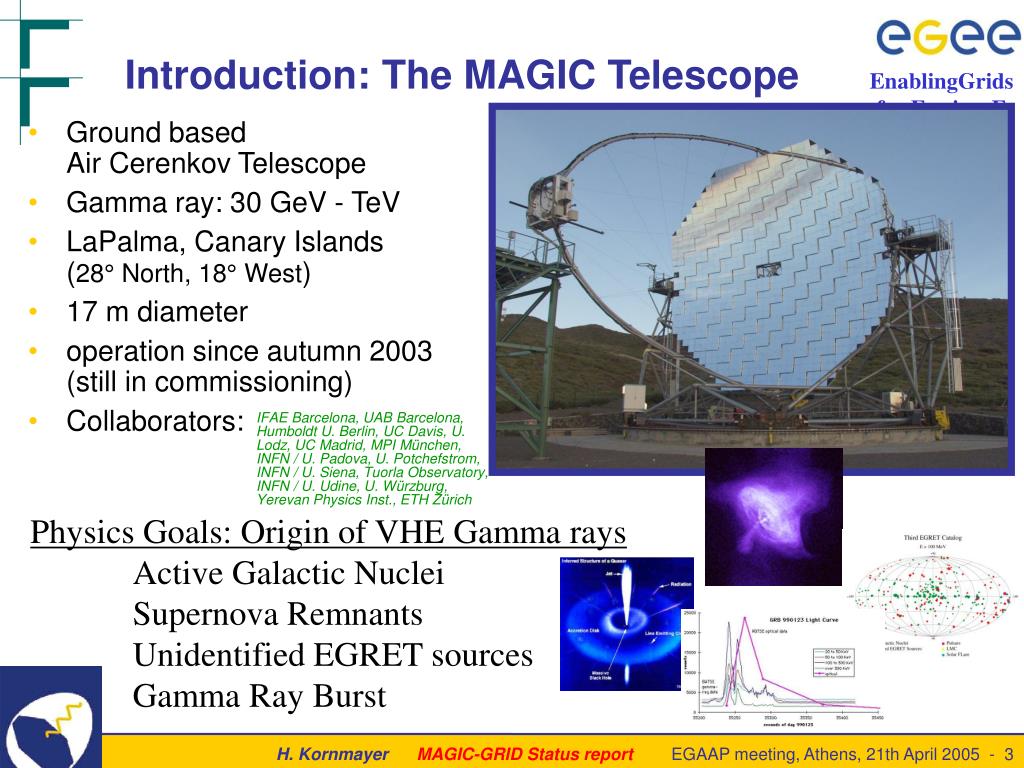

  3. Introduction: The MAGIC Telescope • Ground based Air Cerenkov Telescope • Gamma ray: 30 GeV - TeV • LaPalma, Canary Islands (28° North, 18° West) • 17 m diameter • operation since autumn 2003(still in commissioning) • Collaborators: IFAE Barcelona, UAB Barcelona, Humboldt U. Berlin, UC Davis, U. Lodz, UC Madrid, MPI München, INFN / U. Padova, U. Potchefstrom, INFN / U. Siena, Tuorla Observatory, INFN / U. Udine, U. Würzburg, Yerevan Physics Inst., ETH Zürich Physics Goals: Origin of VHE Gamma rays Active Galactic Nuclei Supernova Remnants Unidentified EGRET sources Gamma Ray Burst

  4. Gamma ray GLAST (~ 1 m2) Particle shower ~ 10 km Cherenkov light Image of particle shower in telescope camera ~ 1o Cherenkov light reconstruct: arrival direction, energy reject hadron background ~ 120 m Ground based γ-ray astronomy

  5. MAGIC – Why the Grid? Analysis is based on Monte Carlo simulations • CORSIKA code • CPU consuming • 1 night of hadronic background needs 20000 days on 70 computer • Lowering the threshold of MAGIC telescope requires new methods based on MC simulations • More CPU power needed! MAGIC is an international collaboration • Partners distributed all over Europe • Amount of data can NOT be handled by one partner only(up to 200 GB per night) • Access to data and computing needs to be more efficient • MAGIC will build a second telescope

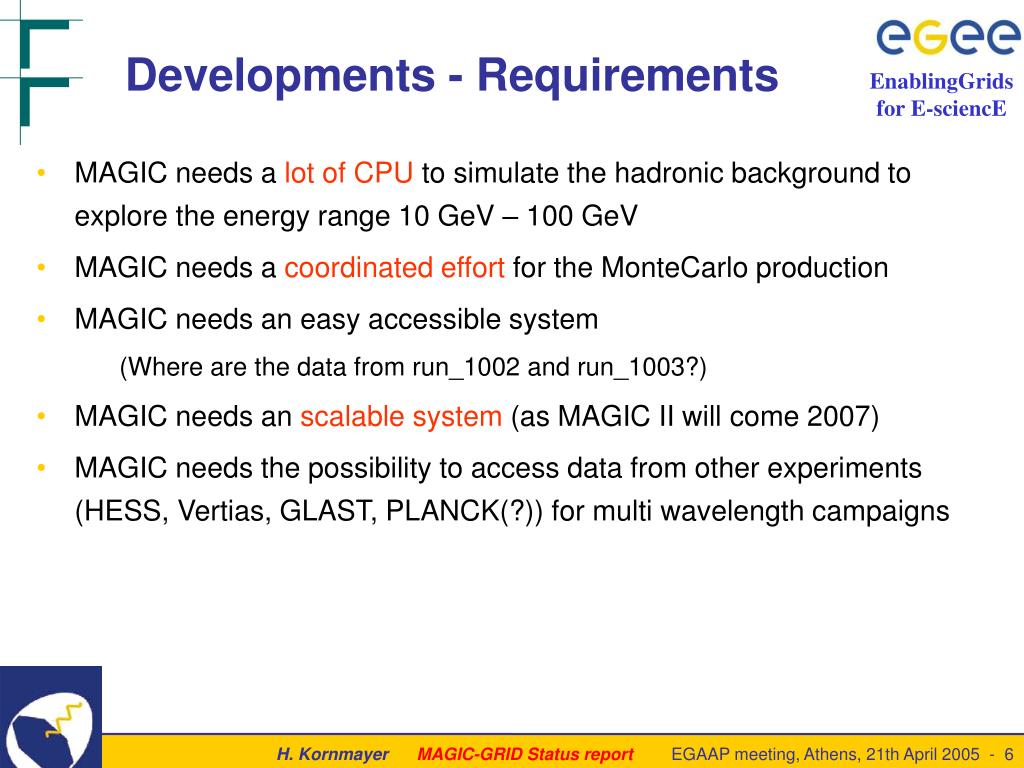

  6. Developments - Requirements • MAGIC needs a lot of CPU to simulate the hadronic background to explore the energy range 10 GeV – 100 GeV • MAGIC needs a coordinated effort for the MonteCarlo production • MAGIC needs an easy accessible system (Where are the data from run_1002 and run_1003?) • MAGIC needs an scalable system (as MAGIC II will come 2007) • MAGIC needs the possibility to access data from other experiments (HESS, Vertias, GLAST, PLANCK(?)) for multi wavelength campaigns

  7. The infrastructure idea • Use three national Grid centers • CNAF, PIC, GridKA • All the EGEE members • Run the central services • Connect MAGIC resources to enable collaboration • (Get resources for free!  ) • 2 subsystems • MC (Monte Carlo) • Analysis • Start with MC first!!

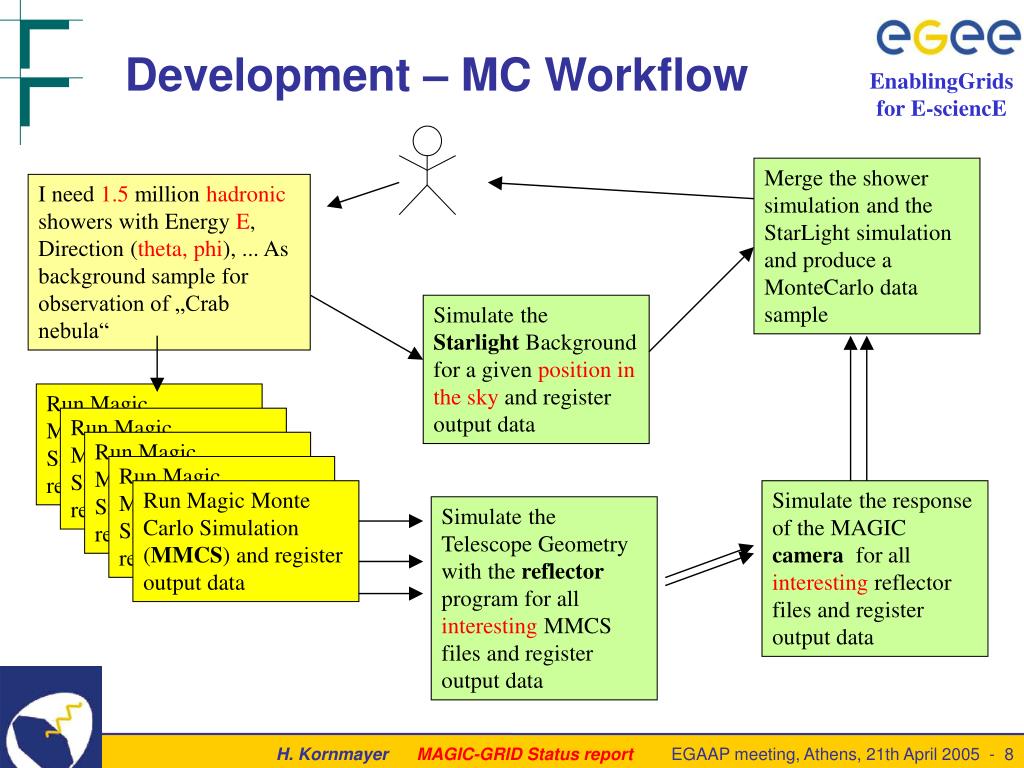

  8. Merge the shower simulation and the StarLight simulation and produce a MonteCarlo data sample I need 1.5 million hadronic showers with Energy E, Direction (theta, phi), ... As background sample for observation of „Crab nebula“ Simulate the StarlightBackground for a given position in the sky and register output data Run Magic MonteCarlo Simulation and register output data Run Magic MonteCarlo Simulation and register output data Run Magic MonteCarlo Simulation and register output data Run Magic MonteCarlo Simulation and register output data Run Magic Monte Carlo Simulation (MMCS) and register output data Simulate the response of the MAGIC camera for all interesting reflector files and register output data Simulate the Telescope Geometry with the reflector program for all interesting MMCS files and register output data Development – MC Workflow

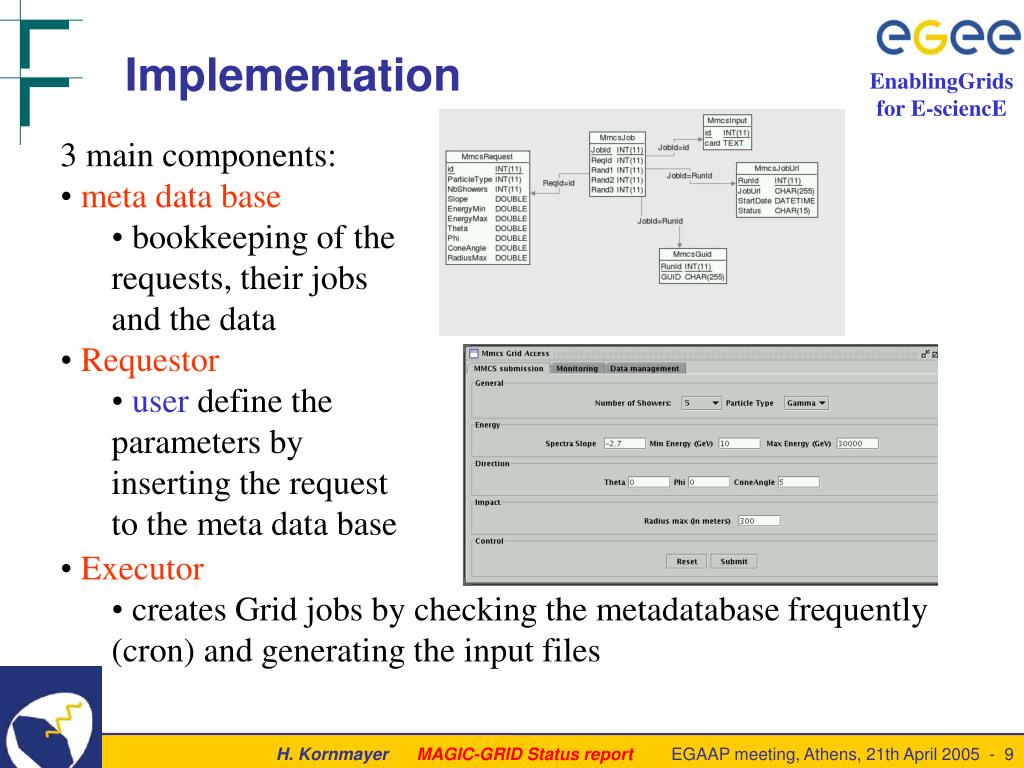

  9. Implementation • 3 main components: • meta data base • bookkeeping of the requests, their jobs and the data • Requestor • user define the parameters by inserting the request to the meta data base • Executor • creates Grid jobs by checking the metadatabase frequently (cron) and generating the input files

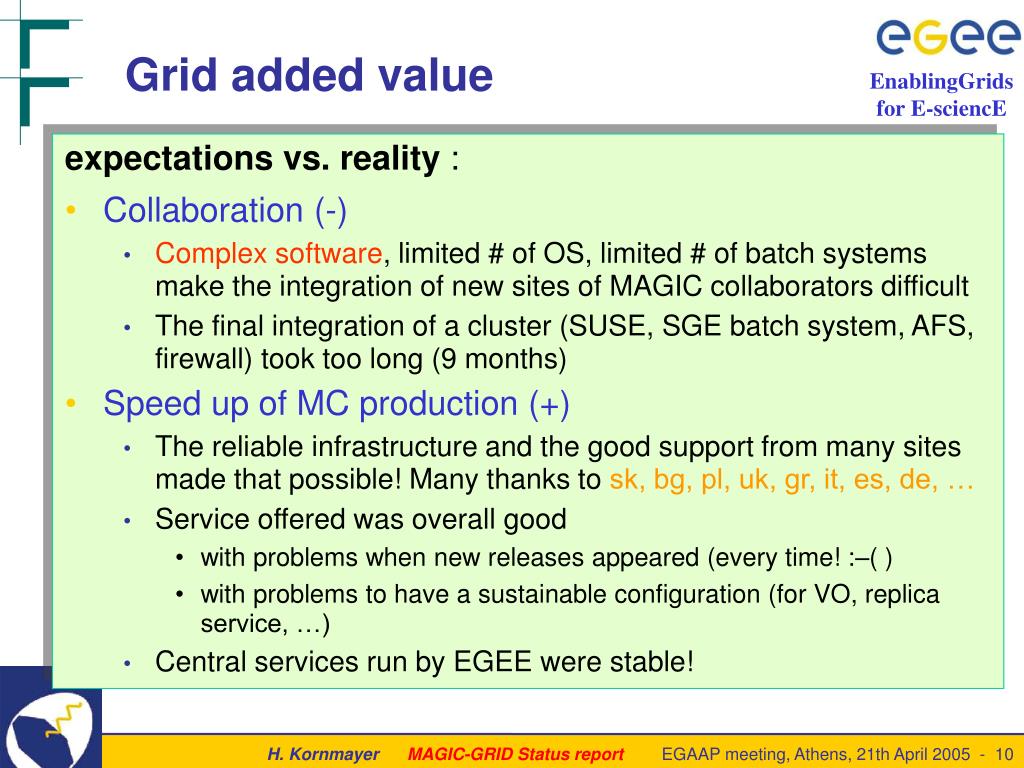

  10. Grid added value expectations vs. reality : • Collaboration (-) • Complex software, limited # of OS, limited # of batch systems make the integration of new sites of MAGIC collaborators difficult • The final integration of a cluster (SUSE, SGE batch system, AFS, firewall) took too long (9 months) • Speed up of MC production (+) • The reliable infrastructure and the good support from many sites made that possible! Many thanks to sk, bg, pl, uk, gr, it, es, de, … • Service offered was overall good • with problems when new releases appeared (every time! :–( ) • with problems to have a sustainable configuration (for VO, replica service, …) • Central services run by EGEE were stable!

  11. Grid added value II expectations vs. reality II: • Persistent storage (+) • of Monte Carlo data • Some problems during the first runs • (Too many small files on a tape system is equal to /dev/null). We learnt that lesson! • of observation data • Started the automated production data transfer of real observation data from LaPalma to PIC, Barcelona in november 2001 • 3.2 TB of real data are available on the Grid now • Improvements of data availability (?) • Replica mechanisms needs to be tested! • Measurements needed in the future! • Ongoing work!

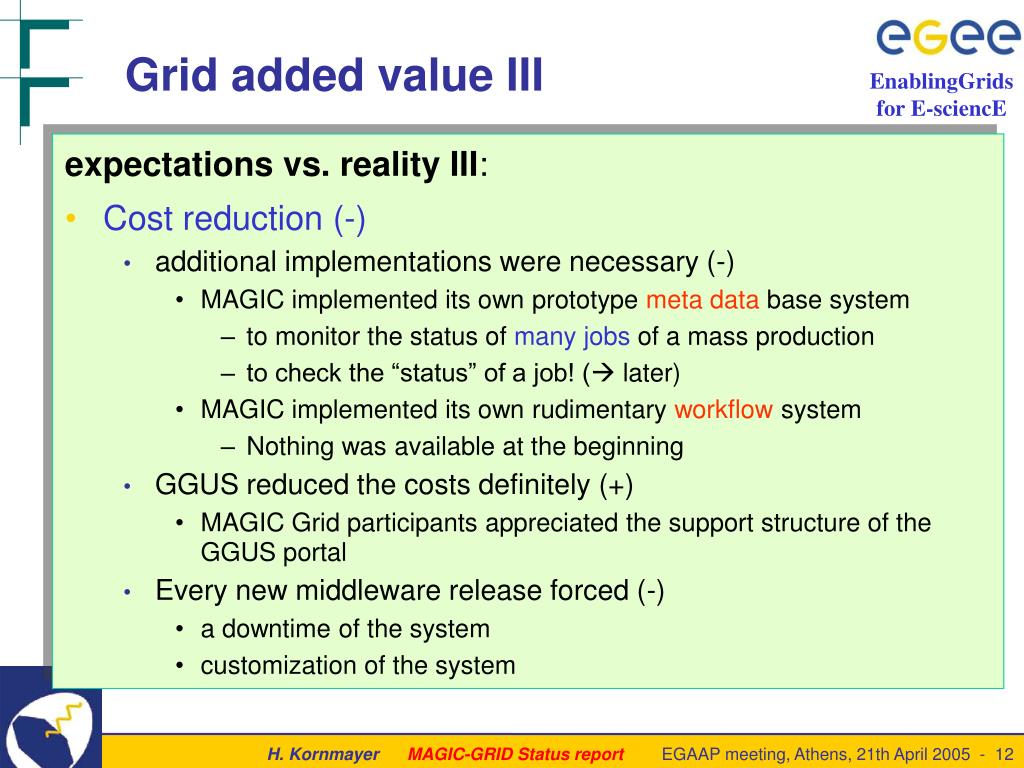

  12. Grid added value III expectations vs. reality III: • Cost reduction (-) • additional implementations were necessary (-) • MAGIC implemented its own prototype meta data base system • to monitor the status of many jobs of a mass production • to check the “status” of a job! ( later) • MAGIC implemented its own rudimentary workflow system • Nothing was available at the beginning • GGUS reduced the costs definitely (+) • MAGIC Grid participants appreciated the support structure of the GGUS portal • Every new middleware release forced (-) • a downtime of the system • customization of the system

  13. Data challenges Last data challenge • December - today • Successful: 13500 • Success (Data available) Mmcs output registered in the Grid • FAILED: 4567 () • Done (Failed): 249 • Done (Success): 2830 • Scheduled: 86 • Submitted: 9 • Aborted: 930 • Waiting: 473 Past experience • Three MMCS data challenges: • Mar/Apr 2005: 10% failure • July 2005: 3.9%failure • Sept 2005: 3.4% failure • Improvements: • Underlying Middleware • Operation of Services • Many lessons learnt • Data management • Additional checks ?

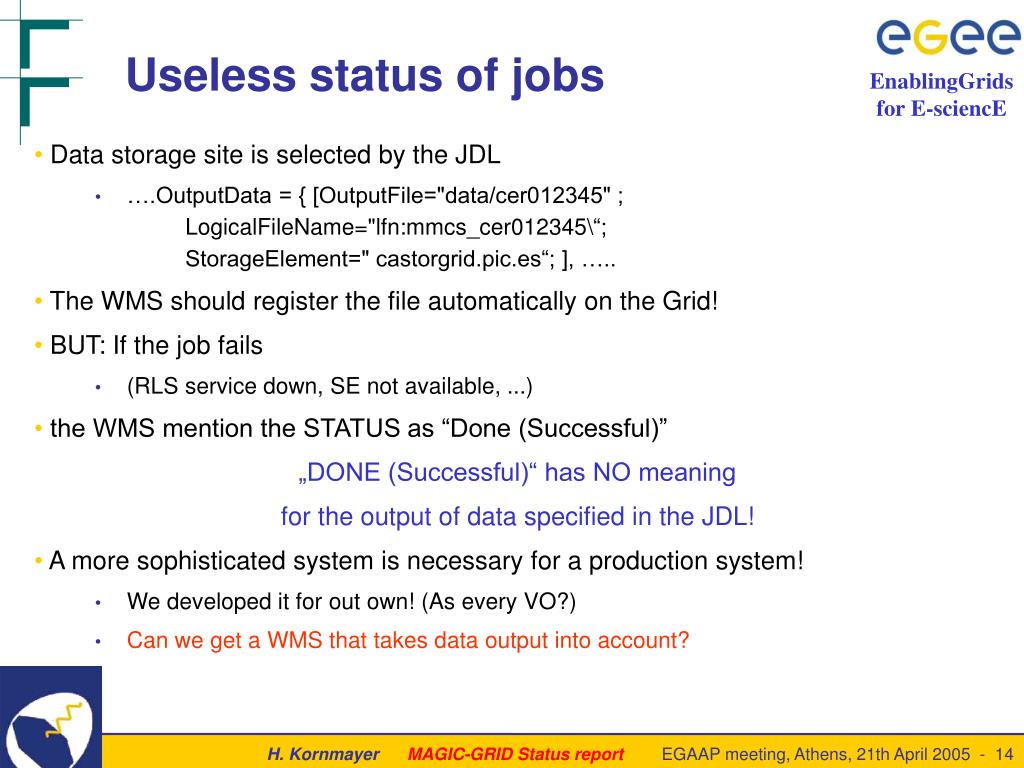

  14. Useless status of jobs • Data storage site is selected by the JDL • ….OutputData = { [OutputFile="data/cer012345" ; LogicalFileName="lfn:mmcs_cer012345\“; StorageElement=" castorgrid.pic.es“; ], ….. • The WMS should register the file automatically on the Grid! • BUT: If the job fails • (RLS service down, SE not available, ...) • the WMS mention the STATUS as “Done (Successful)” „DONE (Successful)“ has NO meaning for the output of data specified in the JDL! • A more sophisticated system is necessary for a production system! • We developed it for out own! (As every VO?) • Can we get a WMS that takes data output into account?

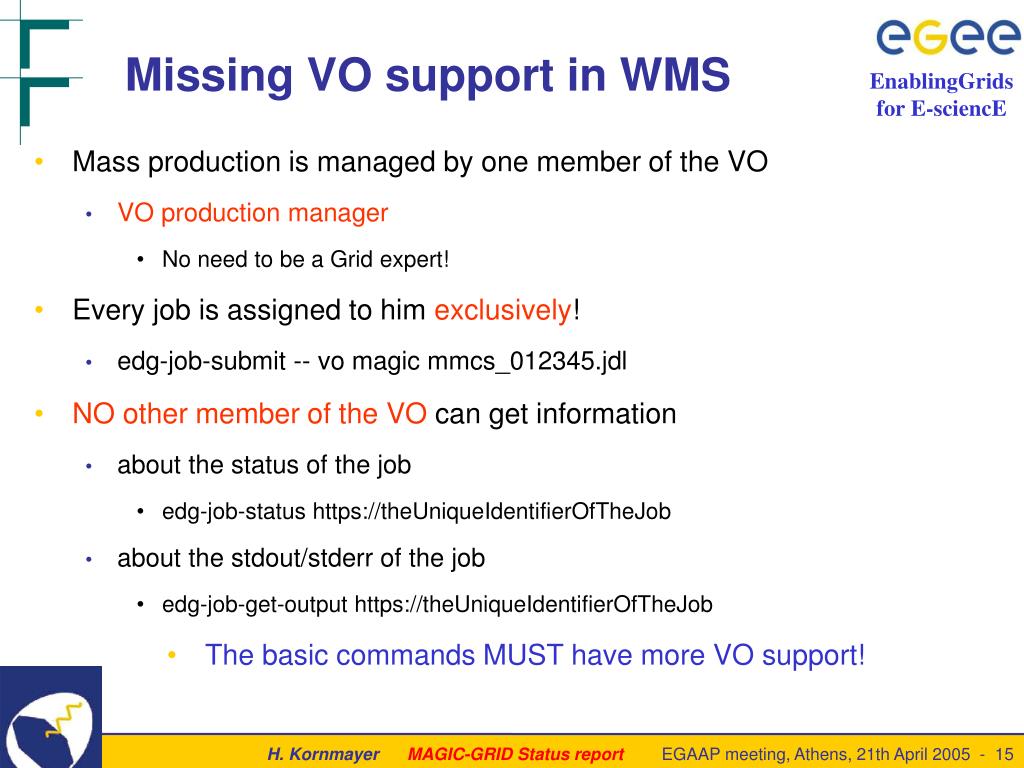

  15. Missing VO support in WMS • Mass production is managed by one member of the VO • VO production manager • No need to be a Grid expert! • Every job is assigned to him exclusively! • edg-job-submit -- vo magic mmcs_012345.jdl • NO other member of the VO can get information • about the status of the job • edg-job-status https://theUniqueIdentifierOfTheJob • about the stdout/stderr of the job • edg-job-get-output https://theUniqueIdentifierOfTheJob • The basic commands MUST have more VO support!

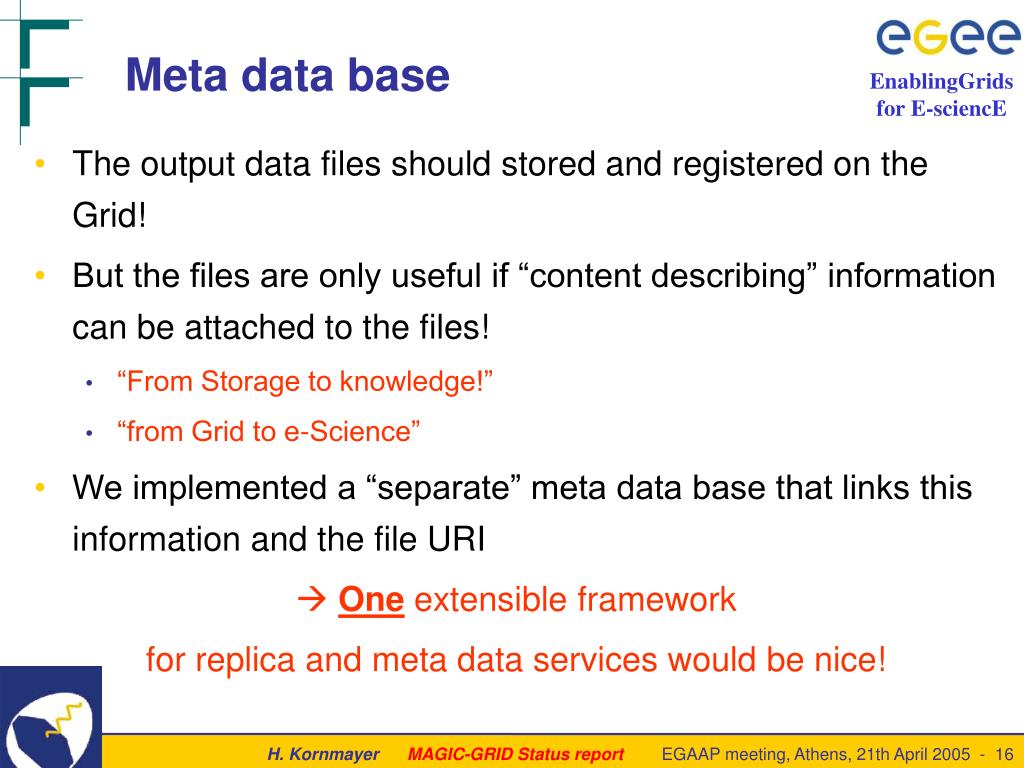

  16. Meta data base • The output data files should stored and registered on the Grid! • But the files are only useful if “content describing” information can be attached to the files! • “From Storage to knowledge!” • “from Grid to e-Science” • We implemented a “separate” meta data base that links this information and the file URI  One extensible framework for replica and meta data services would be nice!

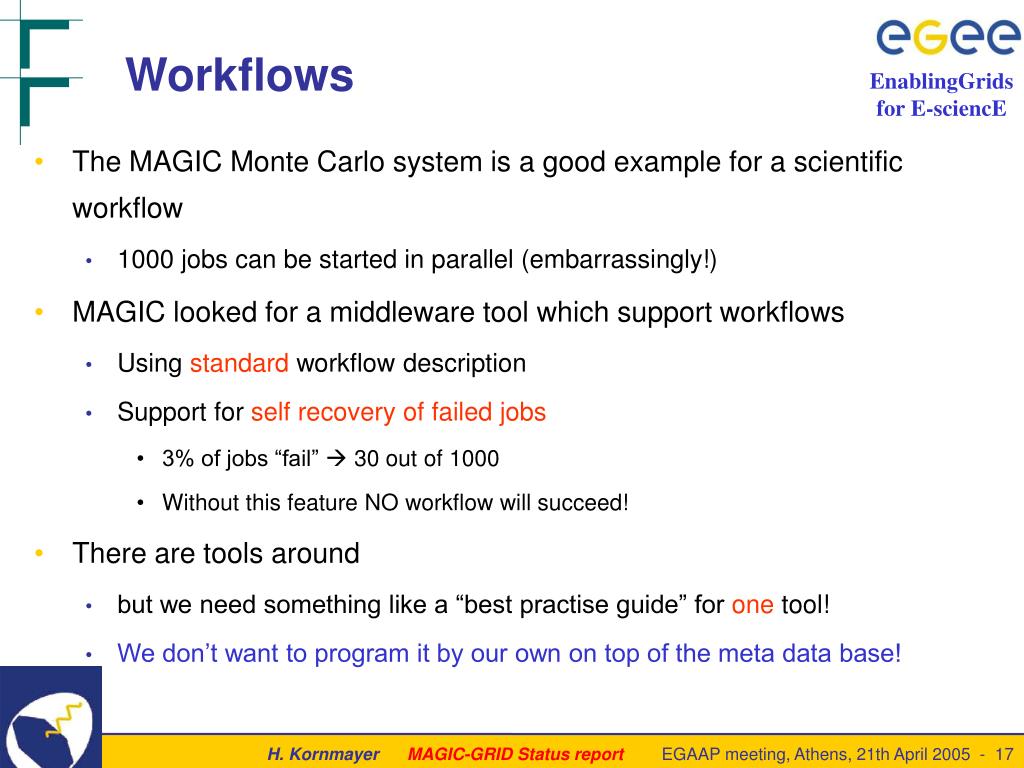

  17. Workflows • The MAGIC Monte Carlo system is a good example for a scientific workflow • 1000 jobs can be started in parallel (embarrassingly!) • MAGIC looked for a middleware tool which support workflows • Using standard workflow description • Support for self recovery of failed jobs • 3% of jobs “fail”  30 out of 1000 • Without this feature NO workflow will succeed! • There are tools around • but we need something like a “best practise guide” for one tool! • We don’t want to program it by our own on top of the meta data base!

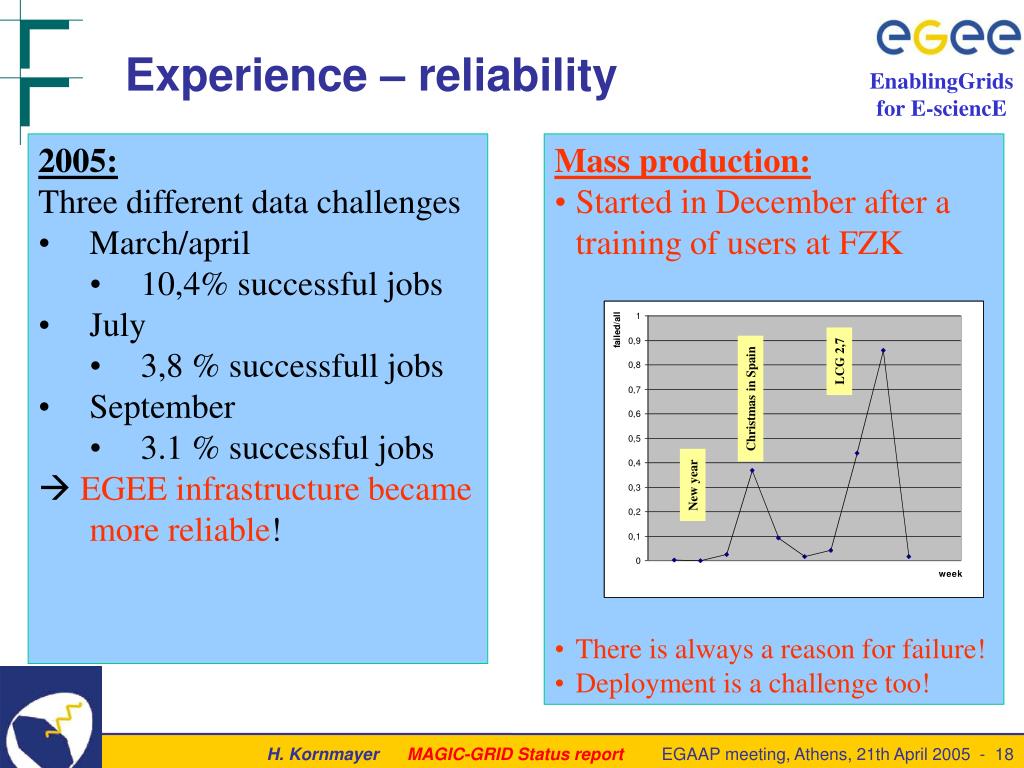

  18. Experience – reliability • 2005: • Three different data challenges • March/april • 10,4% successful jobs • July • 3,8 % successfull jobs • September • 3.1 % successful jobs •  EGEE infrastructure became more reliable! • Mass production: • Started in December after a training of users at FZK • There is always a reason for failure! • Deployment is a challenge too! LCG 2,7 Christmas in Spain New year

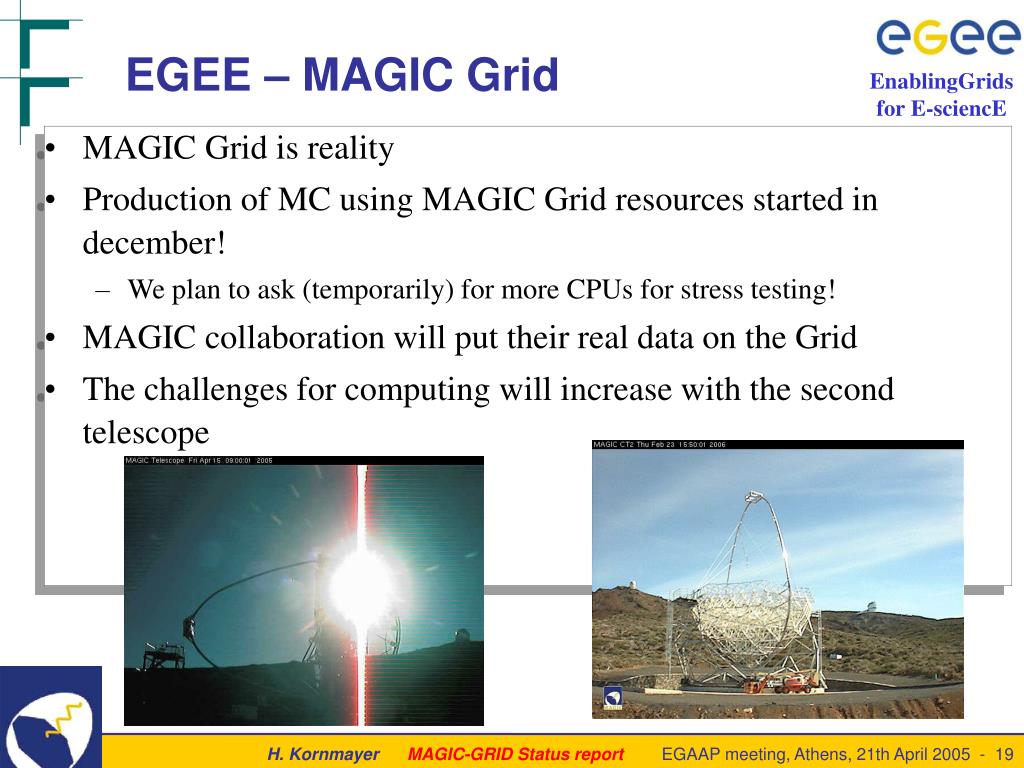

  19. EGEE – MAGIC Grid • MAGIC Grid is reality • Production of MC using MAGIC Grid resources started in december! • We plan to ask (temporarily) for more CPUs for stress testing! • MAGIC collaboration will put their real data on the Grid • The challenges for computing will increase with the second telescope

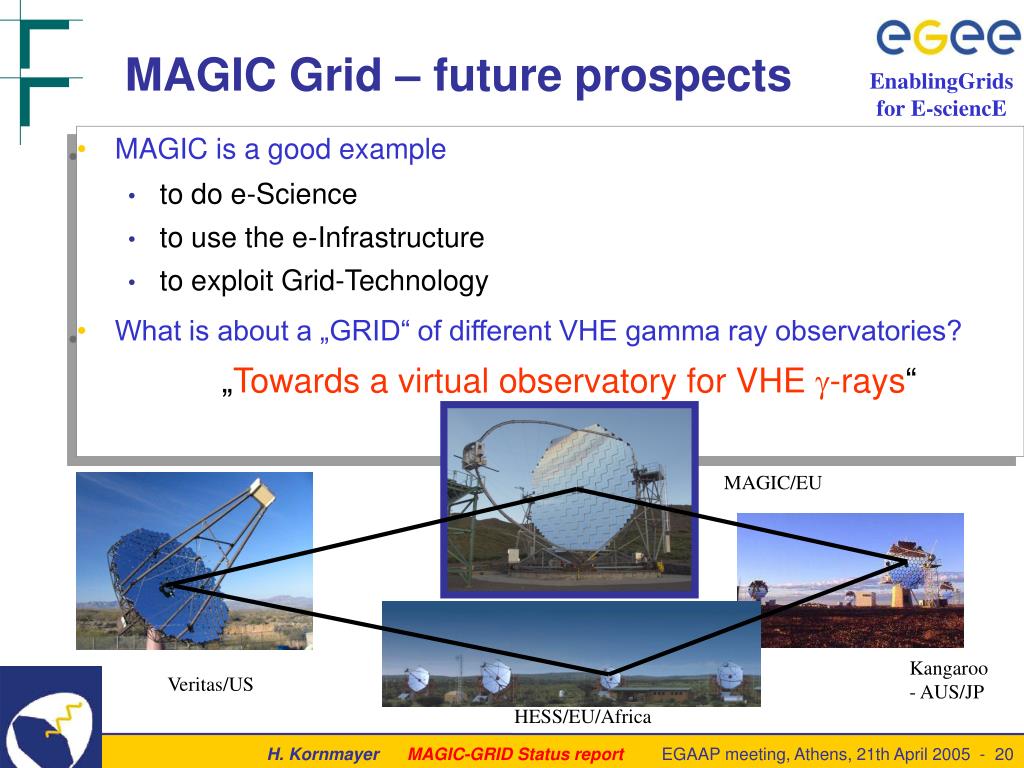

  20. MAGIC/EU Kangaroo - AUS/JP Veritas/US HESS/EU/Africa MAGIC Grid – future prospects • MAGIC is a good example • to do e-Science • to use the e-Infrastructure • to exploit Grid-Technology • What is about a „GRID“ of different VHE gamma ray observatories? „Towards a virtual observatory for VHE g-rays“
