  1. Cosc 4730 Basics of Google glass development.

  2. Basic idea From https://developers.google.com/glass/develop/overview

  3. Basic Idea (2) • So we use everything we have learned so far, except it’s only API 19. • There is a note, that the sensors api were frozen at 17 and that any changes in 18+ were not added.

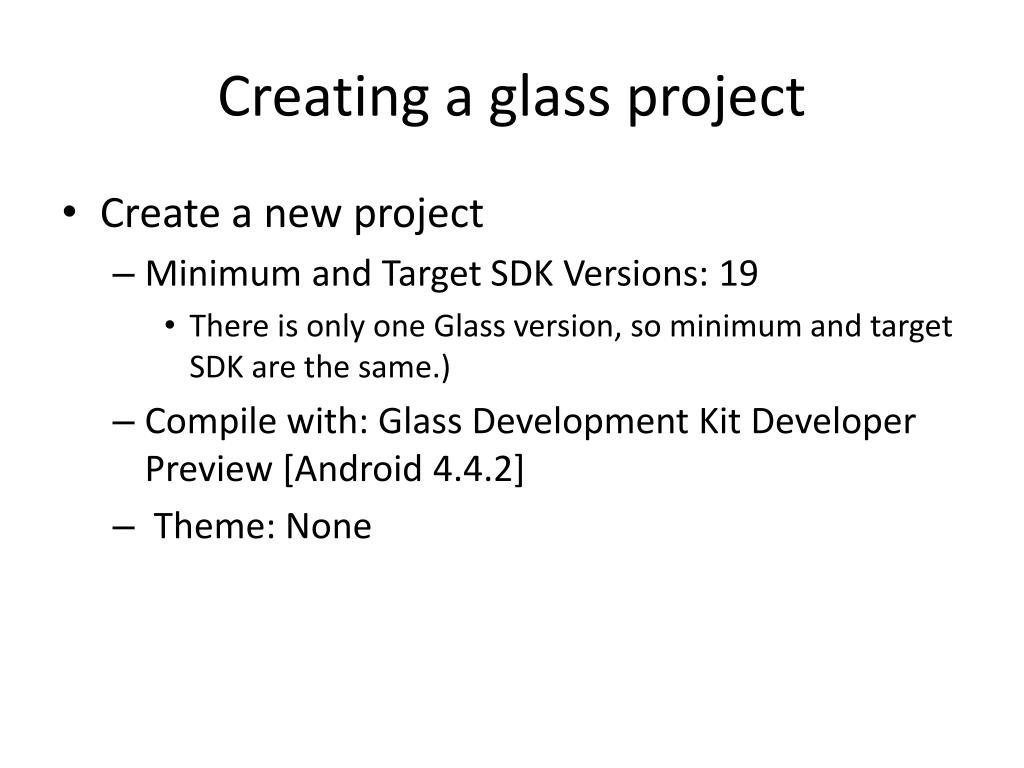

  4. Creating a glass project • Create a new project • Minimum and Target SDK Versions: 19 • There is only one Glass version, so minimum and target SDK are the same.) • Compile with: Glass Development Kit Developer Preview [Android 4.4.2] • Theme: None

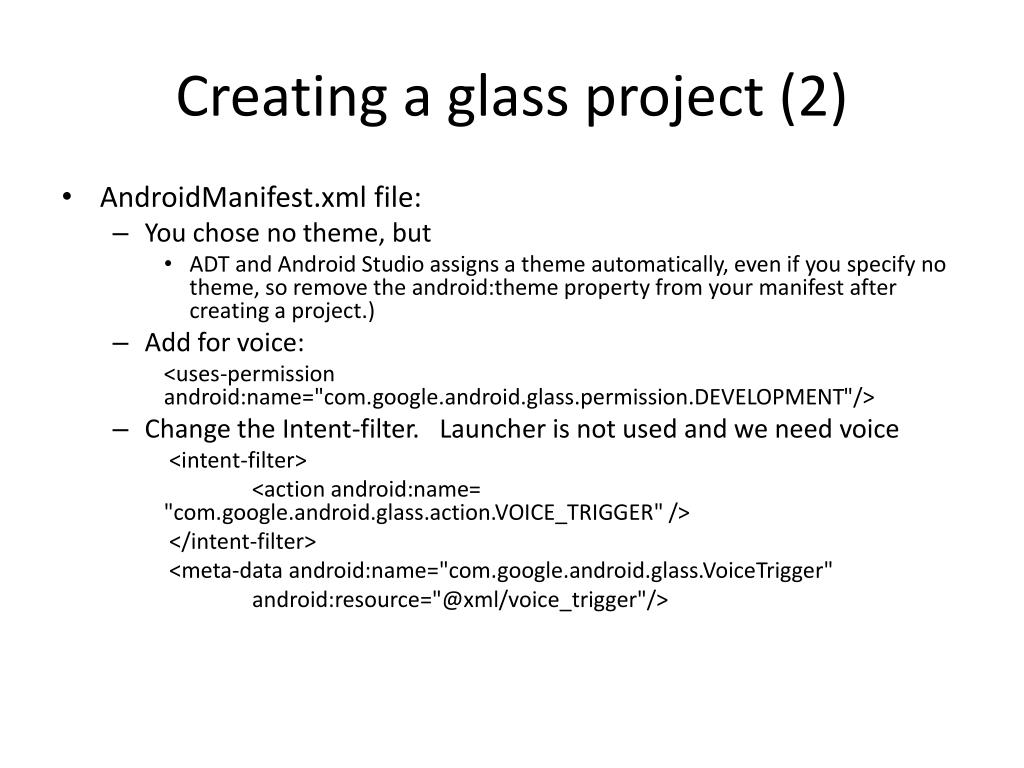

  5. Creating a glass project (2) • AndroidManifest.xml file: • You chose no theme, but • ADT and Android Studio assigns a theme automatically, even if you specify no theme, so remove the android:theme property from your manifest after creating a project.) • Add for voice: <uses-permission android:name="com.google.android.glass.permission.DEVELOPMENT"/> • Change the Intent-filter. Launcher is not used and we need voice <intent-filter> <action android:name= "com.google.android.glass.action.VOICE_TRIGGER" /> </intent-filter> <meta-data android:name="com.google.android.glass.VoiceTrigger" android:resource="@xml/voice_trigger"/>

  6. Voice Trigger • Pick a couple of words • Hello world project uses “Hello World” • The full command would be “Ok Glass Hello World” and it will launch the hello world app. • Voice_trigger.xml file: <trigger keyword="@string/voice_trigger" /> • Since we are “Doing this correctly” • In String.xml file (only a snippet of the file) <!-- The voice trigger used for launching general demos. --> <string name="voice_trigger">Hello World</string>

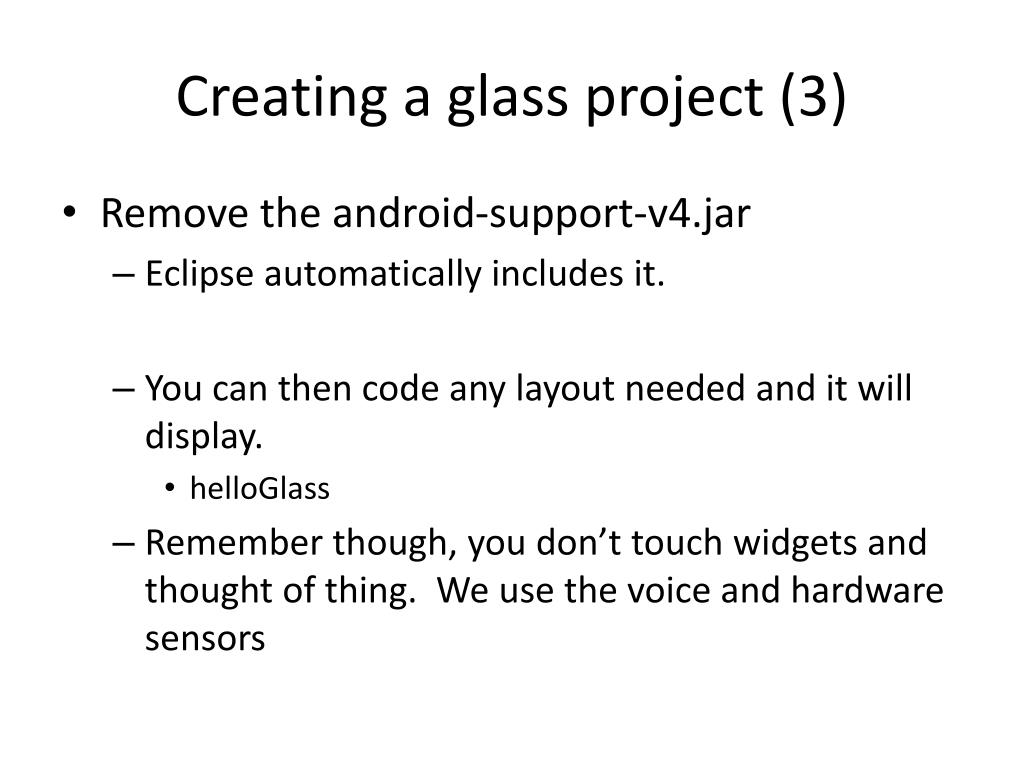

  7. Creating a glass project (3) • Remove the android-support-v4.jar • Eclipse automatically includes it. • You can then code any layout needed and it will display. • helloGlass • Remember though, you don’t touch widgets and thought of thing. We use the voice and hardware sensors

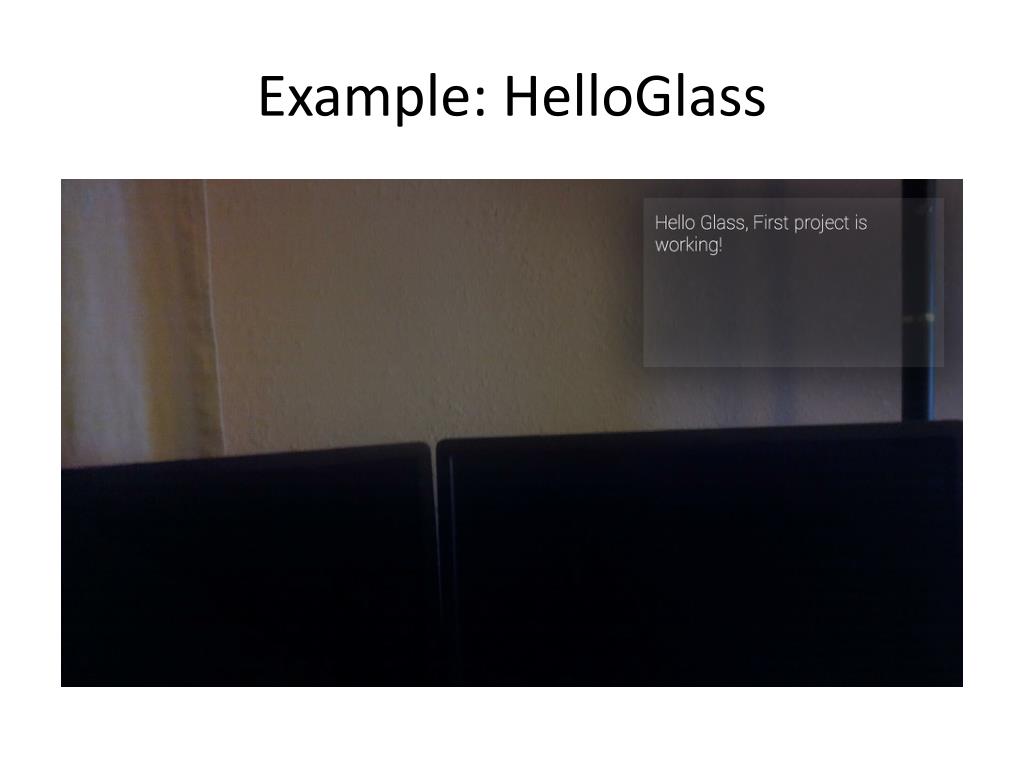

  8. Example: HelloGlass

  9. Live Cards • Live Cards app show up on the glass time line • They are updated (low or high frequency) via a service render • We also use menus, When the live card is no longer needed then the service is ended (or destroyed) via the stop menu. https://developers.google.com/glass/develop/gdk/live-cards

  10. Immersion • Immersion app’s display outside the time line • The Hello Glass app is basically an immersion app and what we are used too. • This are “great for experiences that require prolonged user attention” • Design items to keep in mind: • Design your UIs for a 640 × 360 pixel screen. With a layout, custom 2D view, or opengl rendering. • Don't rely on complex touch gestures or UI patterns: Instead use menus, voice, or simple touch events (tap, slide forward, slide backward, slide up) • You can use more then one finger touch as well, but those tend to be complex. • Create a 50 × 50 pixel icon and specify it for the android:icon attribute of the <activity> element in your Android manifest. Also specify text for android:label. This allows a voice or touch menu item that is associated with multiple Glassware to show your Glassware's name and icon as an option. • Specify android:immersive="true" for your <activity> element to give immersions focus after a screen sleeps and wakes up. https://developers.google.com/glass/develop/gdk/immersions

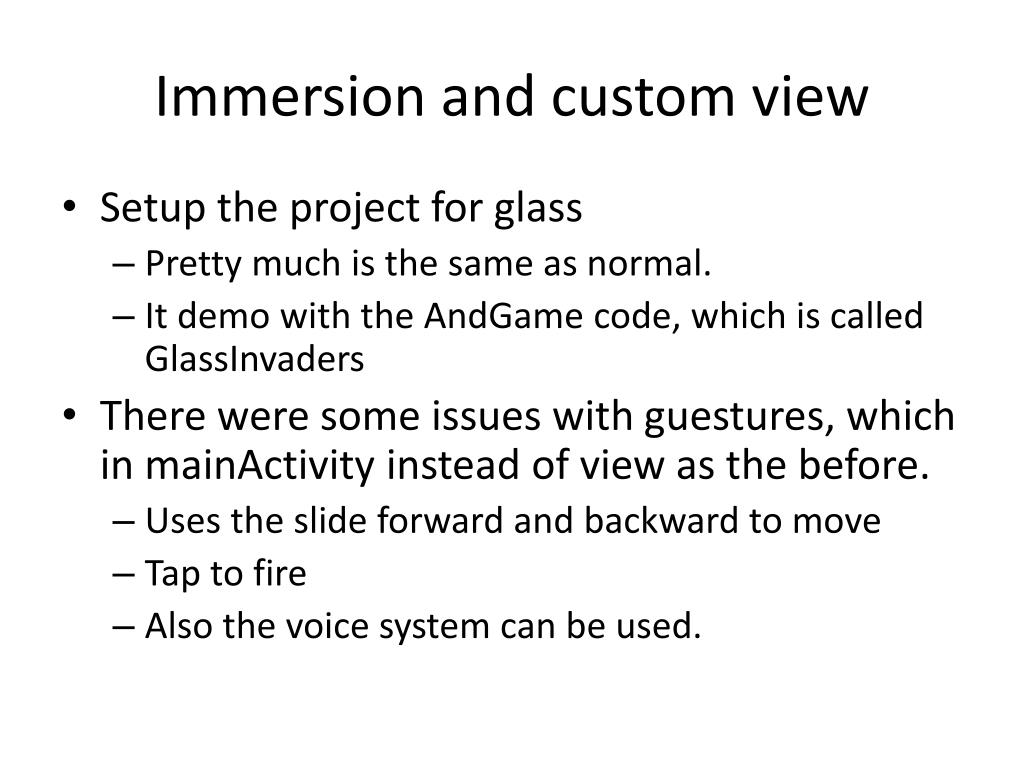

  11. Immersion and custom view • Setup the project for glass • Pretty much is the same as normal. • It demo with the AndGame code, which is called GlassInvaders • There were some issues with guestures, which in mainActivity instead of view as the before. • Uses the slide forward and backward to move • Tap to fire • Also the voice system can be used.

  12. Glass Invaders Full size 200 px less Bigger font

  13. gestures • Swipe forward, back, tap, and double tap • Declare a GestureDetector and in onCreate • GestureDetectorgestureDetector = new GestureDetector(context); • //Create a base listener for generic gestures • gestureDetector.setBaseListener( new GestureDetector.BaseListener() { • public boolean onGesture(Gesture gesture) { • If gesture == Gesture.TAP • Gesture.TWO_TAP, Gesture.SWIPE_RIGHT, or Gesture.SWIPE_LEFT

  14. Gestures (2) gestureDetector.setFingerListener(new GestureDetector.FingerListener() { @Override public void onFingerCountChanged(intpreviousCount, intcurrentCount) { // do something on finger count changes } }); gestureDetector.setScrollListener(new GestureDetector.ScrollListener() { @Override public booleanonScroll(float displacement, float delta, float velocity) { // do something on scrolling return false; } });

  15. voice • In the App you can also respond to voice pretty easily. • NOTE: The system requires that user to say “OK Glass” before every command. • This is not a free form voice recognition, which you can do just like in any android app. • In OnCreateand before SetContentView • getWindow().requestFeature(WindowUtils.FEATURE_VOICE_COMMANDS);

  16. Voice (2) • Now it works off the same functions/idea as a menu does, public booleanonMenuItemSelected(intfeatureId, MenuItem item) { if (featureId == WindowUtils.FEATURE_VOICE_COMMANDS) { If (item.getItemId() == R.id.menuitemid) { //do something } } }

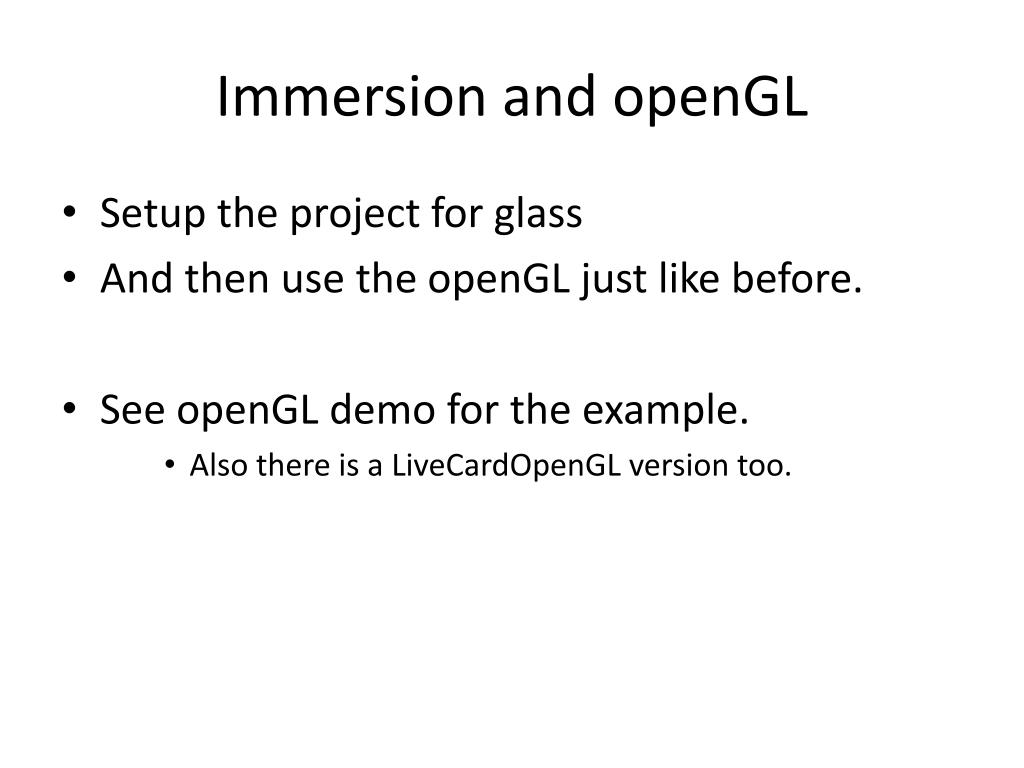

  17. Immersion and openGL • Setup the project for glass • And then use the openGL just like before. • See openGL demo for the example. • Also there is a LiveCardOpenGL version too.

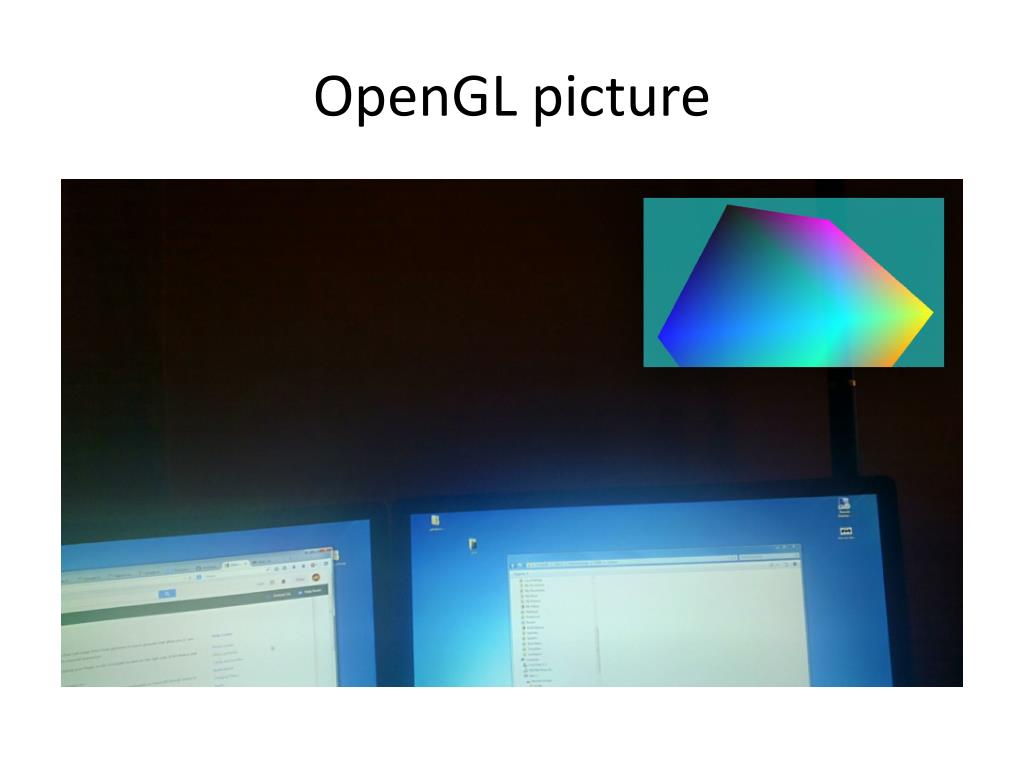

  18. OpenGL picture

  19. menu • Almost all of the menu system is just like android with a couple of exceptions. • First the menu system is not automatic. We have to start it up when the user taps. • So we have to include this code in the activity we want a menu in. @Override public booleanonKeyDown(intkeyCode, KeyEvent event) { if (keyCode == KeyEvent.KEYCODE_DPAD_CENTER) { openOptionsMenu(); return true; } return false; } • Now the onCreateOptionsMenu and onOptionsItemSelected methods will be called.

  20. Menu (2) • For each menu item, provide a 50 × 50 pixel menu item icon. The menu icon must be white in color on a transparent background. • Download the Glass menu icons for use or as an example. • Use a short phrase that describes the action and is in sentence case. An imperative verb works well (for example, "Share" or "Reply all").  <item android:id="@+id/exit_menu" android:icon="@drawable/ic_done_50" android:title="@string/exit"/> https://developers.google.com/glass/develop/gdk/immersions#creating_and_displaying_a_menu

  21. Card View • A Card class creates a well-formed cards given a set of properties and can be used where you need any view (ie in a layout) • We can also use a CardScrollView (and adapter), so it works like a listview • But the user “scroll” back and forth between the cards.

  22. Card View (2) • The card can have text, a footer, and pictures. card.setText() Card.setFootnote() cardsetImagelayout(Card.ImageLayout.FULL) or Card.ImageLayout.LEFT Card.AddImage(R.drawable.X) • Add The number of images needed

  23. Card View (3) • A click (tap) listener for the CardScrollView • mCardScrollView.setOnItemClickListener(new AdapterView.OnItemClickListener() { • @Override • public void onItemClick(AdapterView<?> parent, View view, int position, long id) { • Position is the which card in the CardScrollView (and adapterview parent)

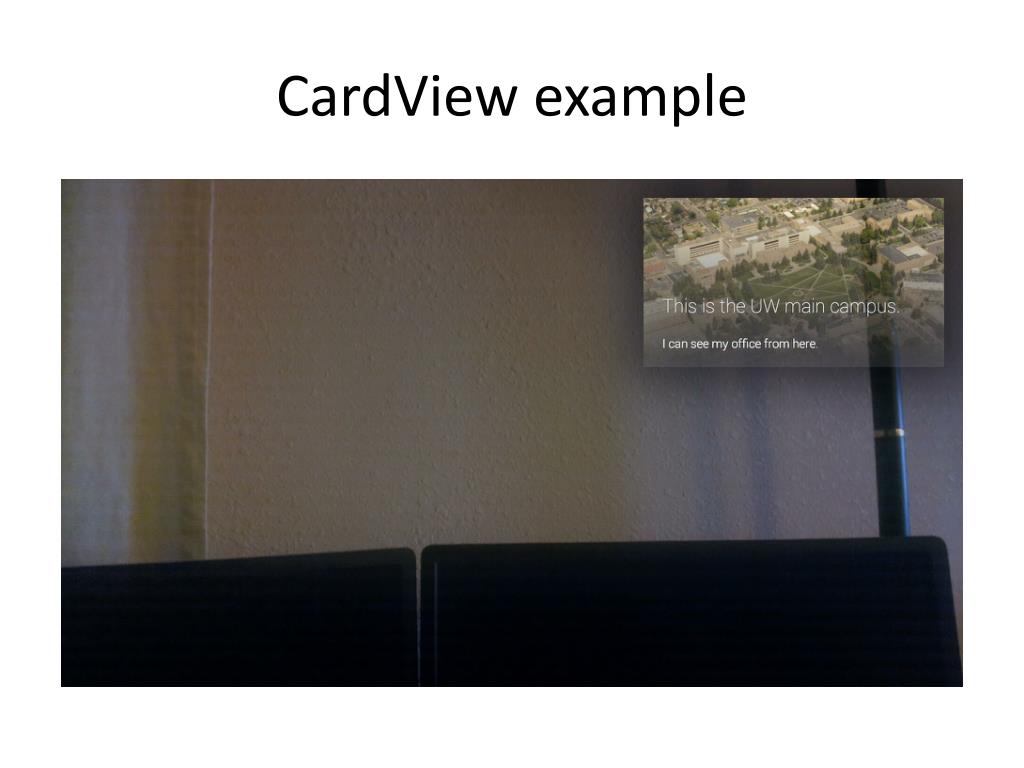

  24. CardView example

  25. Back to Live Cards. • Low-Frequency Rendering • It’s a small of views, that don’t need updated every second • FrameLayout, LinearLayout, RelativeLayout, GridLayout, AdapterViewFlipper, AnalogClock, Button, Chronometer, GridView, ImageButton, ImageView, ListView, ProgressBar, StrackView, TextView, and ViewFlipper • High Frequency Rendering • Custom 2D view (ie drawing) and OpenGL

  26. Live Cards (2) • LiveCard app will have the following parts • MenuActivity (required) • Used to Stop the LiveCard at the very minimum • Provides a Stop Menu item and other menu items as needed. • Service • This is actually what is called when the app is started • It provided the view to be displayed either view a Render or RemoteView (Low Frequency) • Render (High Frequency only) • OpenGL code and/or Custum View • Other Java classes as needed.

  27. Live Cards (3) • Some Notes • Put all images in a drawable directory (not drawable-XXX) • Live Card are long running services. You may have to manually uninstall the app to get to it stop if there are problems. • Even if it crashes, sometimes the devices restarts it.

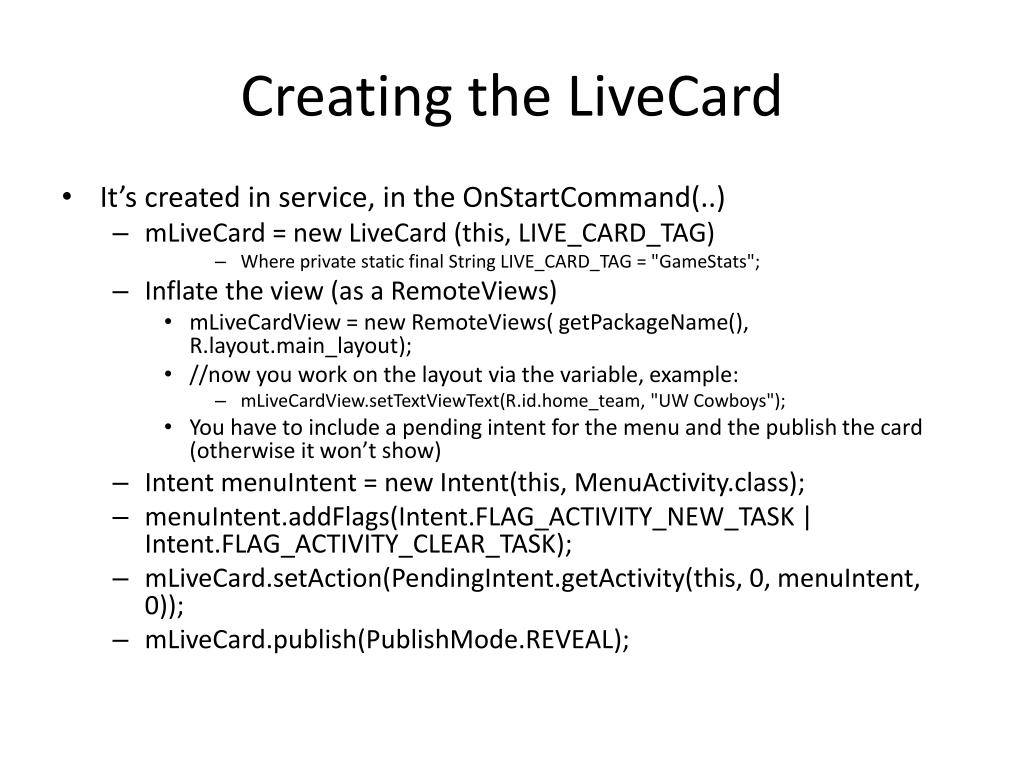

  28. Creating the LiveCard • It’s created in service, in the OnStartCommand(..) • mLiveCard = new LiveCard (this, LIVE_CARD_TAG) • Where private static final String LIVE_CARD_TAG = "GameStats"; • Inflate the view (as a RemoteViews) • mLiveCardView= new RemoteViews( getPackageName(), R.layout.main_layout); • //now you work on the layout via the variable, example: • mLiveCardView.setTextViewText(R.id.home_team, "UW Cowboys"); • You have to include a pending intent for the menu and the publish the card (otherwise it won’t show) • Intent menuIntent = new Intent(this, MenuActivity.class); • menuIntent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK| Intent.FLAG_ACTIVITY_CLEAR_TASK); • mLiveCard.setAction(PendingIntent.getActivity(this, 0, menuIntent, 0)); • mLiveCard.publish(PublishMode.REVEAL);

  29. Example

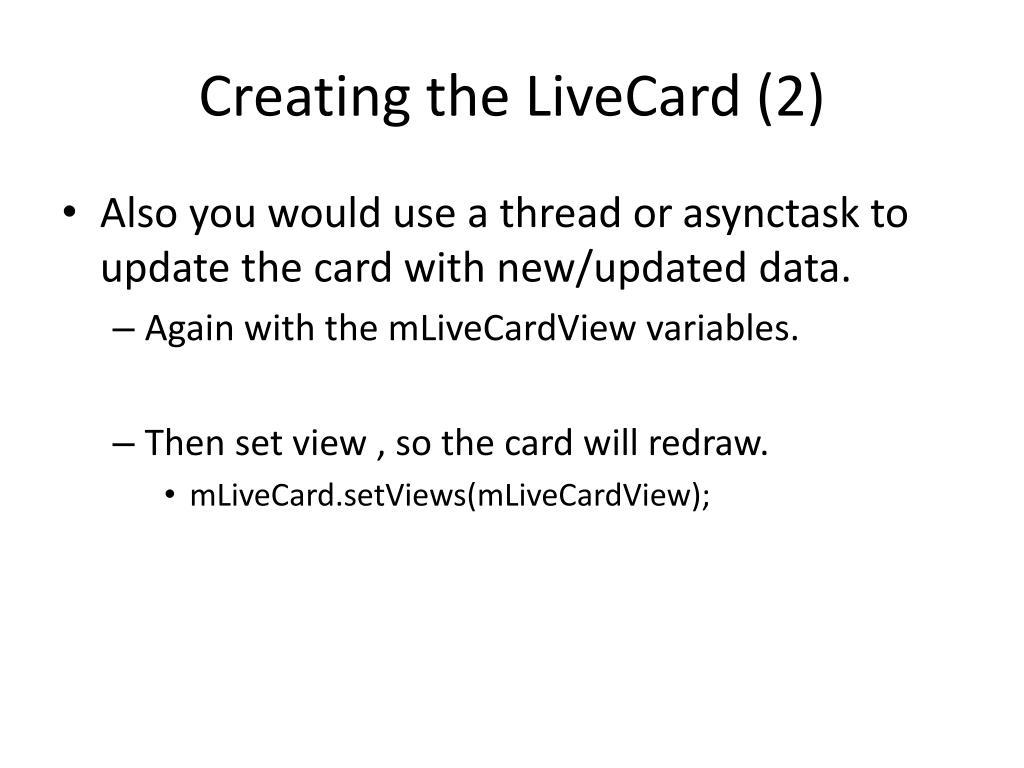

  30. Creating the LiveCard (2) • Also you would use a thread or asynctask to update the card with new/updated data. • Again with the mLiveCardView variables. • Then set view , so the card will redraw. • mLiveCard.setViews(mLiveCardView);

  31. MenuActivity • For any LiveCard, you are REQUIRED to have a menu and the Stop. • Ie it’s the only way to end the service. • See the liveCardGameStats demo code for the MenuActivityon how to make it work correctly.

  32. TextToSpeech and Binder • In LiveCards you have a service which holds all the running data. • So if you want to use “Read Aloud” functions, then you must use the IPC functions in android (ie Binder) methods. • Shown in the code and here. • LiveCardStats2 • Use the normal TextToSpeech like normal android.

  33. LiveCard and OpenGL • So like before, use the OnStartCommand to start the Renderer() • And menuActivityand publish. • The render though uses a import com.google.android.glass.timeline.GlRenderer; //which is a GLES20 version (not 1.1) • Otherwise, just like normal openGL.

  34. example

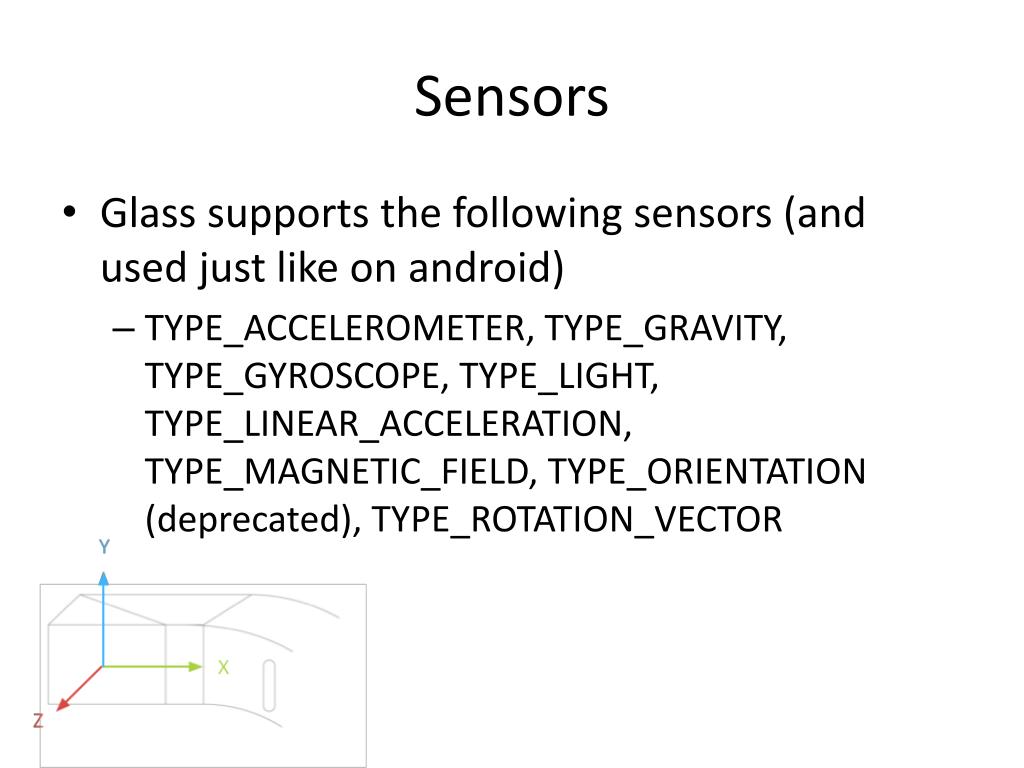

  35. Sensors • Glass supports the following sensors (and used just like on android) • TYPE_ACCELEROMETER, TYPE_GRAVITY, TYPE_GYROSCOPE, TYPE_LIGHT, TYPE_LINEAR_ACCELERATION, TYPE_MAGNETIC_FIELD, TYPE_ORIENTATION (deprecated), TYPE_ROTATION_VECTOR

  36. Sensors • Location (GPS) is the same. • Camera is also the same, but there is a camera button builtin to the top of the glass. • You can override it as needed • public booleanonKeyDown(intkeyCode, KeyEvent event) {    if (keyCode == KeyEvent.KEYCODE_CAMERA) { return false; //let the glass do the work return true; //if you handled it or taking video • Taking video and pictures are like in android.

  37. References • Using glass: https://support.google.com/glass/?hl=en#topic=4363345 • Using an older API, but somewhat useful: • https://github.com/harrywye/gdkdemo • Glass doc’s: • https://developers.google.com/glass/develop/overview • https://developers.google.com/glass/develop/patterns/index • https://developers.google.com/glass/develop/gdk/index
