1-2 Linear Measure

1-2 Linear Measure. Vocabulary. Line Segment - unlike a line, a segment can be measured because it has 2 endpoints Betweenness of points - There is always a point that lies between two other points on any line Congruent Segments- segments that have the same measure

maura
Télécharger la présentation

1-2 Linear Measure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 1-2 Linear Measure

  2. Vocabulary • Line Segment- unlike a line, a segment can be measured because it has 2 endpoints • Betweenness of points- There is always a point that lies between two other points on any line • Congruent Segments- segments that have the same measure • Constructions- methods of creating geometric figures without the benefit or measuring tools

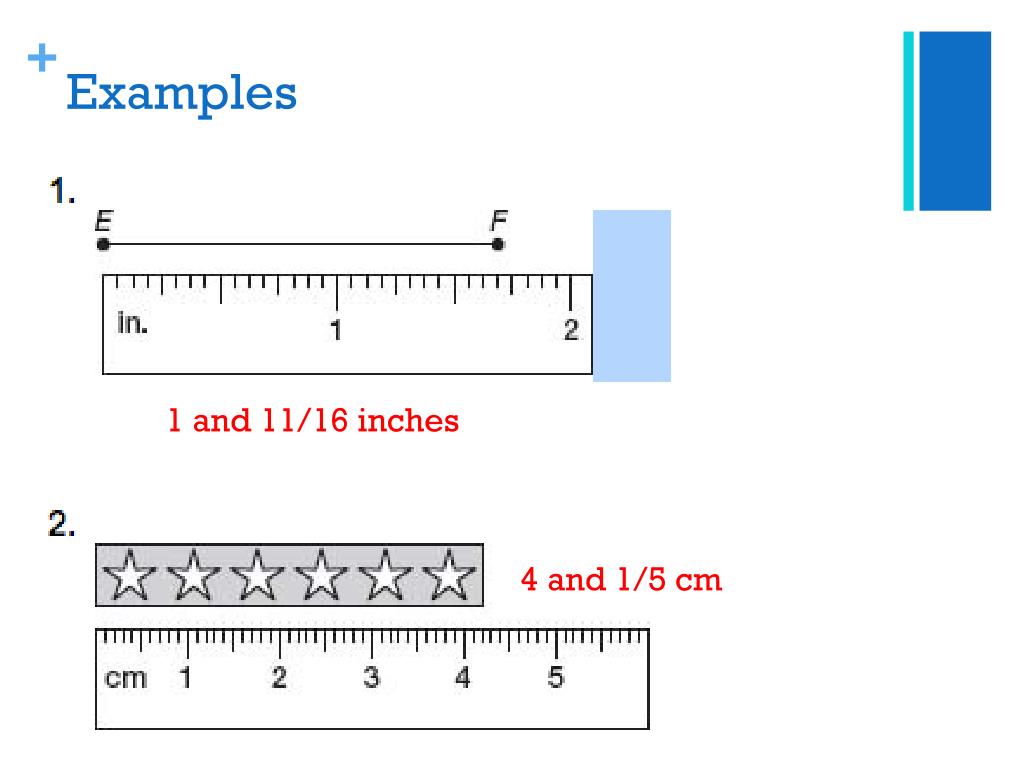

  3. Examples 1 and 11/16 inches 4 and 1/5 cm

  4. Examples • Find the measure of each segment: 18.4 + 4.7 = 23.1 cm 100 - 89.6 = 10.4 cm

  5. Practice 5 ½ cm 2 ¼ in

  6. Practice 1 + 1 ¼ = 2 ¼ in 4.9 + 5.2 = 10.1 cm 15 – 9.7 = 5.3 mm

  7. Examples K J L • 6. JK = 6x , KL = 3x , JL = 27 • 7. Are the following congruent? JK + KL = JL 6x +3x = 27 9x = 27 x = 3 Yes, because of the single tic marks on each segment

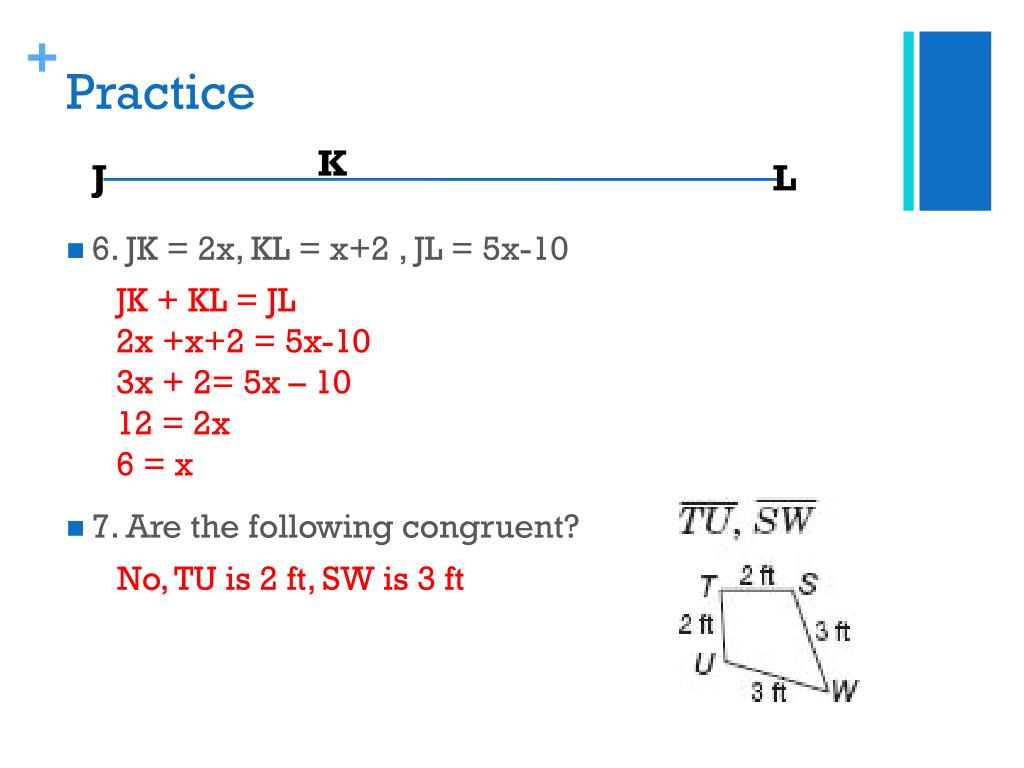

  8. Practice K J L • 6. JK = 2x, KL = x+2 , JL = 5x-10 • 7. Are the following congruent? JK + KL = JL 2x +x+2 = 5x-10 3x + 2= 5x – 10 12 = 2x 6 = x No, TU is 2 ft, SW is 3 ft
