  1. Chapter 4 Atoms

  2. 4.1 Objectives • Identify who came up with the first theory of atoms? • Discuss what Dalton added to the atomic theory? • Explain how JJ Thomson discovered the electron? • Describe Rutherford’s atomic model?

  3. Key Terms • Electron • Proton • Neutron • Nucleus

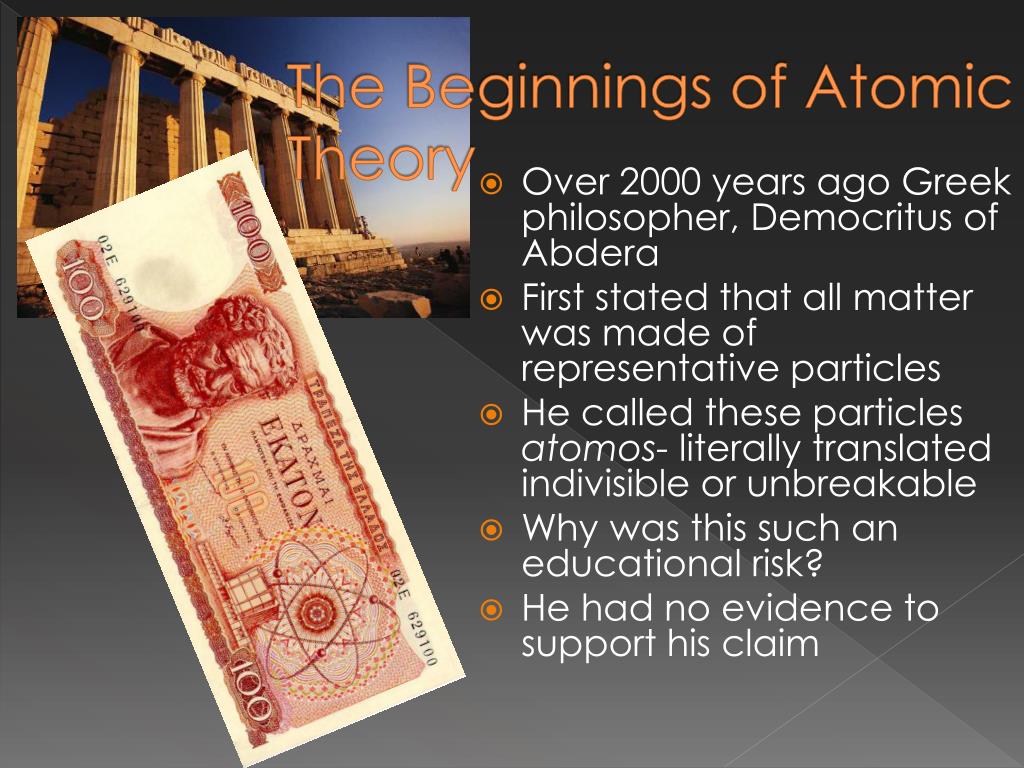

  4. The Beginnings of Atomic Theory • Over 2000 years ago Greek philosopher, Democritus of Abdera • First stated that all matter was made of representative particles • He called these particles atomos- literally translated indivisible or unbreakable • Why was this such an educational risk? • He had no evidence to support his claim

  5. Alchemy…the birth of Chemistry • Since Democritus lacked evidence, many other theories were proposed • Chemistry did not become a science of measurement until the 1700’s • Between the time of Democritus and the 18th century alchemy reined • One main goal of alchemists was to turn inexpensive materials into gold! • Did they succeed?

  6. John Dalton • One century later, John Dalton, a school teacher, published his theory on atoms • He first suggested that atoms can join other atoms to form compounds • He also stated that all atoms of the same element are exactly alike (we will find out later that this is not exactly true)

  7. Dalton cont’d. • Dalton, unlike Democritus, used evidence to support his theory of atoms • Dalton conducted experiments and noticed that certain substances actually behave in predictable ways (Water reaction video) 2H2 + O2 2H2O • He also noticed that they happen in specific proportions.

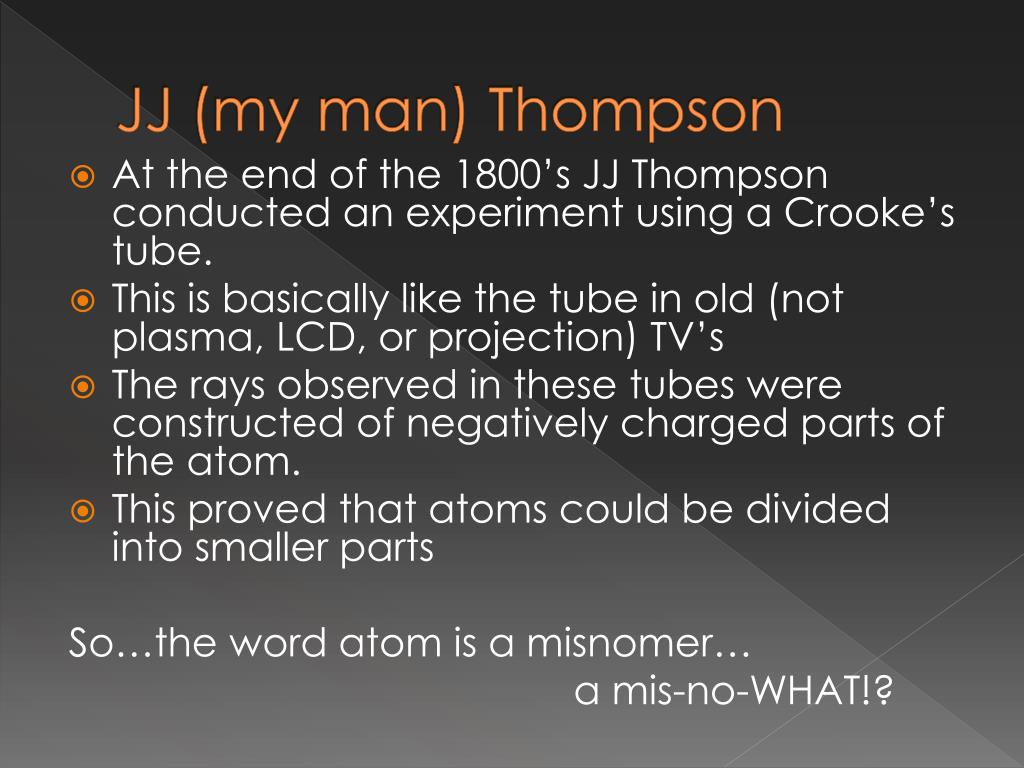

  8. JJ (my man) Thompson • At the end of the 1800’s JJ Thompson conducted an experiment using a Crooke’s tube. • This is basically like the tube in old (not plasma, LCD, or projection) TV’s • The rays observed in these tubes were constructed of negatively charged parts of the atom. • This proved that atoms could be divided into smaller parts So…the word atom is a misnomer… a mis-no-WHAT!?

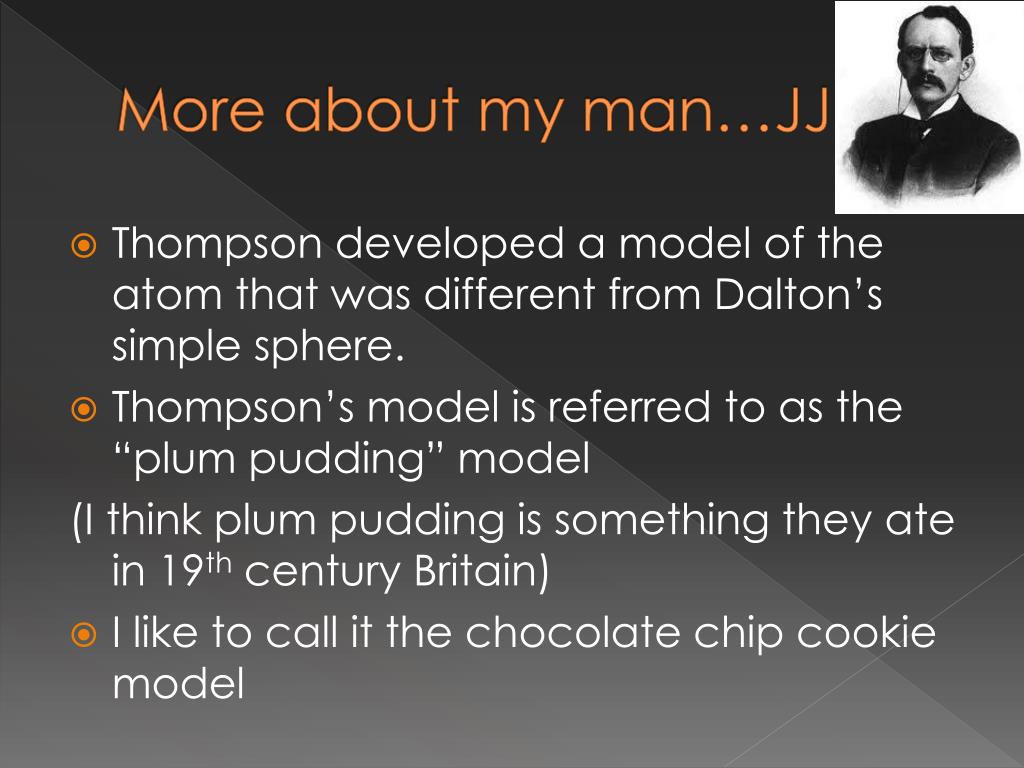

  9. More about my man…JJ • Thompson developed a model of the atom that was different from Dalton’s simple sphere. • Thompson’s model is referred to as the “plum pudding” model (I think plum pudding is something they ate in 19th century Britain) • I like to call it the chocolate chip cookie model

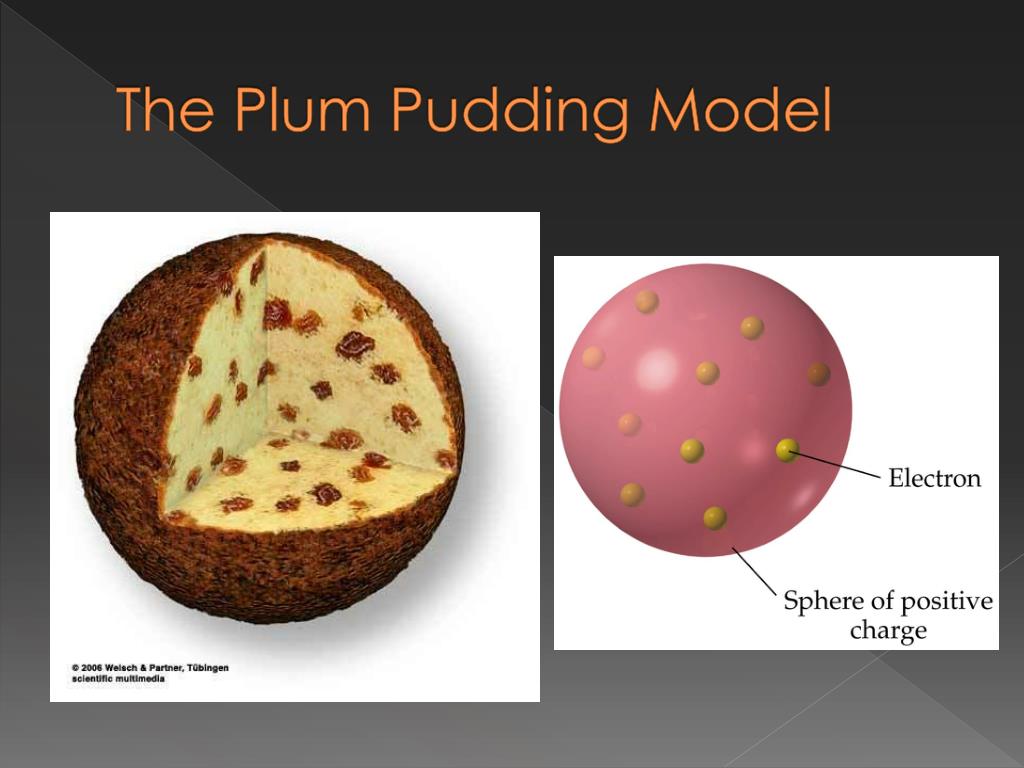

  10. The Plum Pudding Model

  11. Ernest Rutherford • Probably the most famous experiment ever conducted in science… • THE GOLD FOIL EXPERIMENT! • Ernest Rutherford used a radioactive source (we will talk more about this later) to shoot a thin piece of gold foil

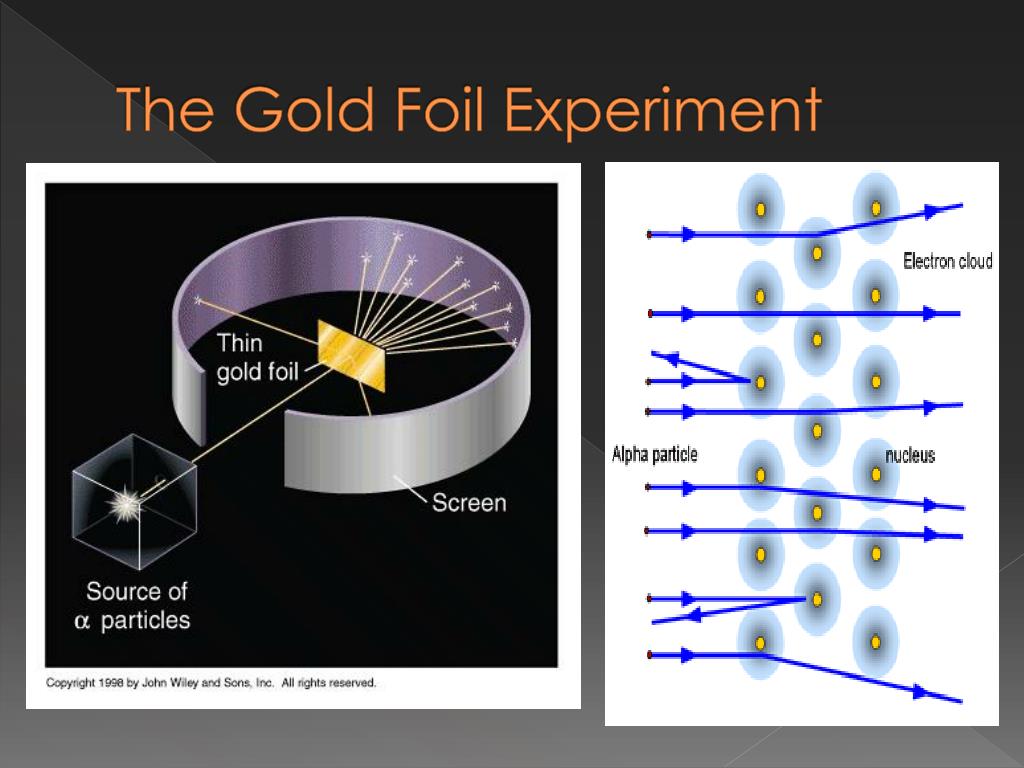

  12. The Gold Foil Experiment

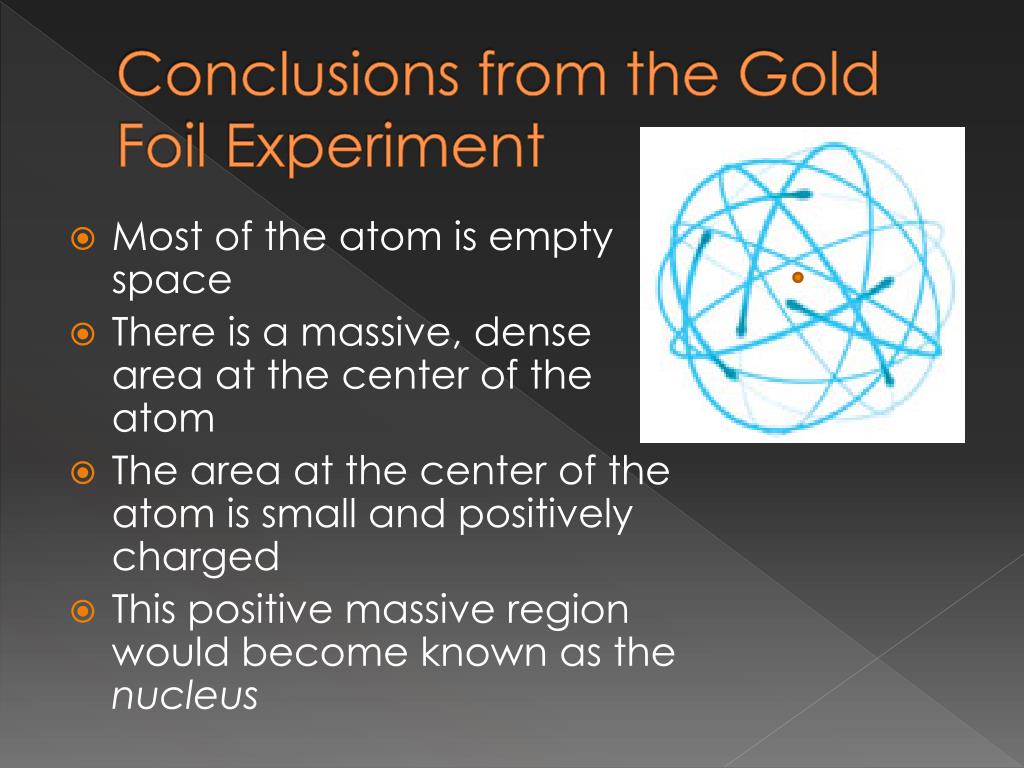

  13. Conclusions from the Gold Foil Experiment • Most of the atom is empty space • There is a massive, dense area at the center of the atom • The area at the center of the atom is small and positively charged • This positive massive region would become known as the nucleus

  14. Shortcomings of the GFE • It did not account for all the mass of the atom • Did not allow us to see that all atoms of the same element are not necessarily exactly alike
