  1. Hyper-V 2008 R2 managedwithSystem Center Michael Faden Microsoft Schweiz Michael.faden@microsoft.com

  2. Agenda • Whatsnewwith Hyper-V Version 2? • Which Hyper-V Version fitsbestforme? • Installation of Hyper-V Server 2008 R2 • Managing Hyper-V with System Center

  3. Whats new with Hyper-V Version 2 ?

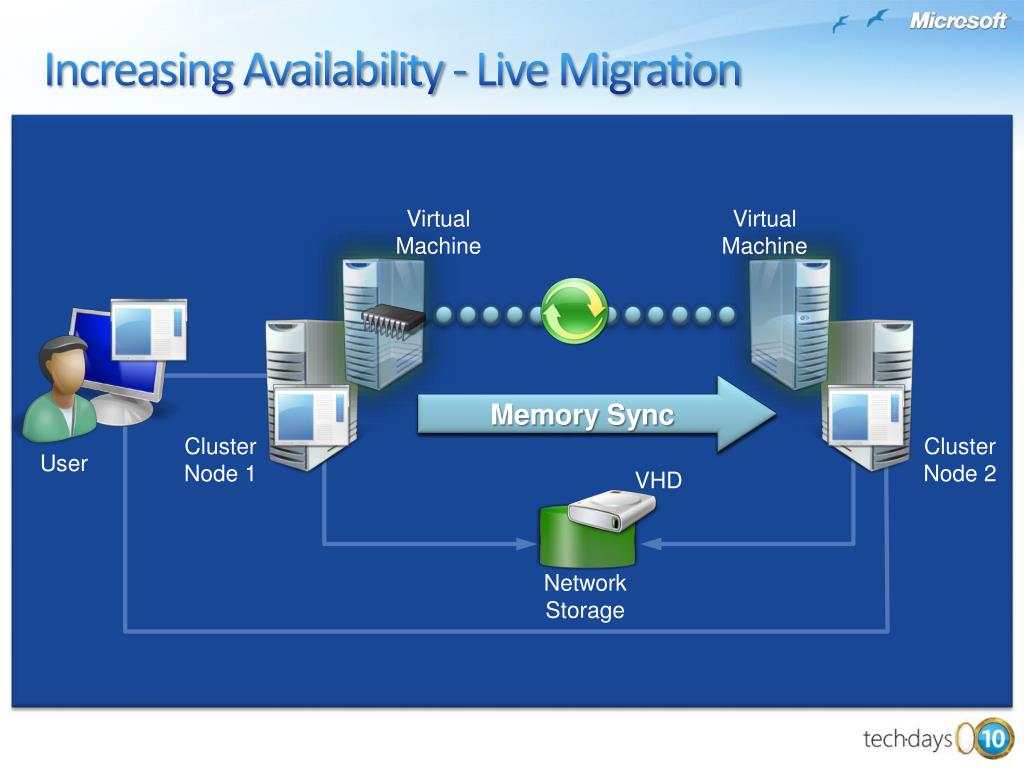

  4. Increasing Availability - Live Migration Virtual Machine Virtual Machine Memory Content Memory Sync Configuration Data Cluster Node 1 Cluster Node 2 User VHD Network Storage

  5. Cluster Shared Volumes Concurrent access to a single file system SAN VHD VHD VHD Single Volume

  6. Overview Provides Hyper-V the ability to utilizes up to 64 of the logical processor pool presented to Windows Server 2008 R2 Benefits Significantly increases host server density Easily provide multiple processers per virtual machine 64 Logical Processor Support

  7. Power Management 2.8 GHz Dual Core Processor • Core Parking • Adjusting P-states • Centralizedstorage P-State=0 Processor Core 1 Active Processor Core 2 Inactive Processor Core 1 Storage Area Network Processor Core 3 Inactive Processor Core 4 Inactive P-State=4 Processor Core 2

  8. Hyper-V Management Console PowerShell command-line interface System Center Virtual Machine Manager 2008 R2 Streamlining Virtualization Management

  9. Overview A memory management enhancement for Hyper-V Enables customers to dynamically grow and decrease the memory of a virtual machine Available as a feature in Windows Server 2008 R2 SP1 Benefits Better consolidation ratios with predictable performance Enables linear scalability for deployment environments Designed for production use Dynamic Memory in Windows Server 2008 R2 SP1 VM1 VM2 VM3 VM4 T1 T2 T2

  10. RemoteFX in Windows Server 2008 R2 SP1 NEW! • RDP 7.x with • New platform capability for session-based and virtual desktops in Remote Desktop Services • Enables virtual desktops on a single Hyper-V or Windows Server to share the power of hardware graphics acceleration • Improves performance of media-rich, 3D and graphics-intensive applications • Any application today and tomorrow “will just work” • Supports rich PCs and low-cost thin clients • Designed to complement partner solutions such as Citrix XenDesktop with HDX technology

  11. Which Hyper-V Version fits best for me?

  12. What is Microsoft Hyper-V Server 2008 R2? Microsoft Hyper-V Server 2008 R2 Hyper-VRole feature of Windows Server 2008 R2 Microsoft Hyper-V Server 2008 R2 built with components and technologies from Server core Windowsor Linux Windows or Linux Parent Partition Hyper-V Windows hypervisor Hardware Windows or Linux Windowsor Linux Windows (parent partition) Windows hypervisor Hardware Contains Windows hypervisor and other components, including base kernel and driver technologies. Available as a role in Server Core or full installation of Windows Server 2008 R2

  13. Composition of Microsoft Hyper-V Server 2008 R2 Windows Server 2008 R2 Server Core Architecture WDS PS .NET2.0/3/3.5 WOW 64 SNMP Backup Clustering ASP.NET Cert Server TS ………. Bitlocker MultipathIO File ADLDS Print Hyper-V DNS DHCP AD IIS MediaServer Server Core Security, TCP/IP, File Systems, RPC,plus other Core Server Sub-Systems GUI, Shell, IE, Media, Mail, Etc.

  14. Hyper-V Server 2008 R2 vs. Windows Server 2008 R2 DC

  15. Installation of Hyper-V Server 2008 R2

  16. Multi-path management Command line (mpclaim.exe) GUI (mpiocpl.exe) Setting up Storage iSCSIInitiator • Command line (iscsicli.exe) • GUI (iscsicpl.exe)

  17. Setting up networks Management Public Livemigration Heartbeat VHD VHD VHD

  18. Managing Hyper-V with System Center

  19. Virtualization needs to be managed “Virtualization without good management is more dangerous than not usingvirtualization in the first place.” – Tom Bittman, Gartner VP AND Analyst, 9 May, 2007 Virtualization Will Drive Major Change in IT Infrastructure and Operations in the Next Three Years, Tom Bittman, May 8, 2007

  20. Management Framework

  21. Leverage Skills Familiar interface, common foundation Monitor physical and virtual machines from one console Fully scriptable using Windows PowerShell Maximize Resources Centralized virtual machine deployment and management for Hyper-V, Virtual Server, and VMware ESX servers Intelligent placement of Virtual Machines Fast and reliable P2V and V2V conversion Comprehensive application and service-level monitoring with Operations Manager Integrated Performance and Resource Optimization (PRO) of VMs Increase Agility Rapid provisioning of new and virtual machines with templates Centralized library of infrastructure components Leverage and extend existing storage infrastructure and clusters Allow for delegated management and access of VMs System Center Virtual Machine Manager A centralized, heterogeneous management solution for the virtual datacenter

  22. Capacity planning technology ensures best resource utilization Star rated results for easy decision making Customizable algorithm to achieve your goals Applicable to both Microsoft and VMware hosts Intelligent Placement

  23. Placement and Cluster Reserve Can the cluster sustain 1 node failure? YES Cluster reserve = 1 node Place the VM Clustered Host 1 Clustered Host 2 Clustered Host 3

  24. Placement and Cluster Reserve Can the cluster sustain 1 node failure? NO Cluster reserve = 1 node Don’t place the VM Clustered Host 1 Clustered Host 2 Clustered Host 3

  25. VMM & SCOM Architecture Administrator’s Console Self Service Web Portal Operator’s Console Web Console Windows PowerShell Windows® PowerShell Connector • Virtual Machine Manager • Server Operations Manager Server Management Interfaces Virtual Server Host VMM Library Server VMware VI3 Virtual Center Server ESX Host VM VM VM VM VM VM Template VM VM VM VM VM VM VM VM VM ISO VHD Script SAN Storage

  26. End to End Monitoring Proactive platform, application and service-level monitoring • IT services, applications and servers must run smoothly • Increasing pressure for service levels that ensure optimal uptime and responsiveness Challenges Addressed ERP Application • Proactively monitor availability, performance and configuration across heterogeneous platforms • Perform deep application and service-level monitoring Key Capabilities Databases Servers Web Servers “I can provide our system administrators with more in-depth monitoring and more explicit alerting. We can configure server reports to show downtime warnings, downtime events, and the start time and end time of every occurrence. We can also quickly learn why a server experienced downtime—whether it was a power outage, a hardware or software malfunction, or a server maintenance issue.” Paul Johnson, Windows Monitoring Architect & Systems Engineer, Gates Corp OTW-IIS-01 OTW-IIS-02 Order Tracker DB DN-App1

  27. Discovery of Hosts, Virtual Machines and Virtual Machine Manager components Performance and Health Monitoring, Reports, etc. Application awareness Performance and resource calibration and optimization SCOM End to End Monitoring

  28. Performance and Resource Optimization

  29. Workload and application aware resource optimization Extensible through the Operations Manager 2007 MP framework Create policies that VMM acts upon tips automatically or manually Minimize downtime and accelerating time to resolution. Enables partners to deliver value add to our mutual customers Performance and Resource Optimization (PRO)

  30. Brocade Management Pack for Microsoft System Center Virtualization Servers (3 + 1 Servers) VMs migrate based on Pro Tip Implement PRO remediation Domain Controller Brocade VMM PRO Tip Initiated VMM intelligent placement indicates optimum host What does this mean for my Virtual Machines?? Link Congestion Opportunity to automate as needed Ethernet Specific advice for the VM administrator! Fabric alerts sent to System Center Operations Manager VHDs Reside On SAN Legend Green Arrows = 1GbE Black = 8 Gb/FC

  31. Demo Server Management with System Center

  32. “Enabling PRO in VMM 2008”: http://technet.microsoft.com/en-us/library/cc764271.aspx Getting Started with PRO

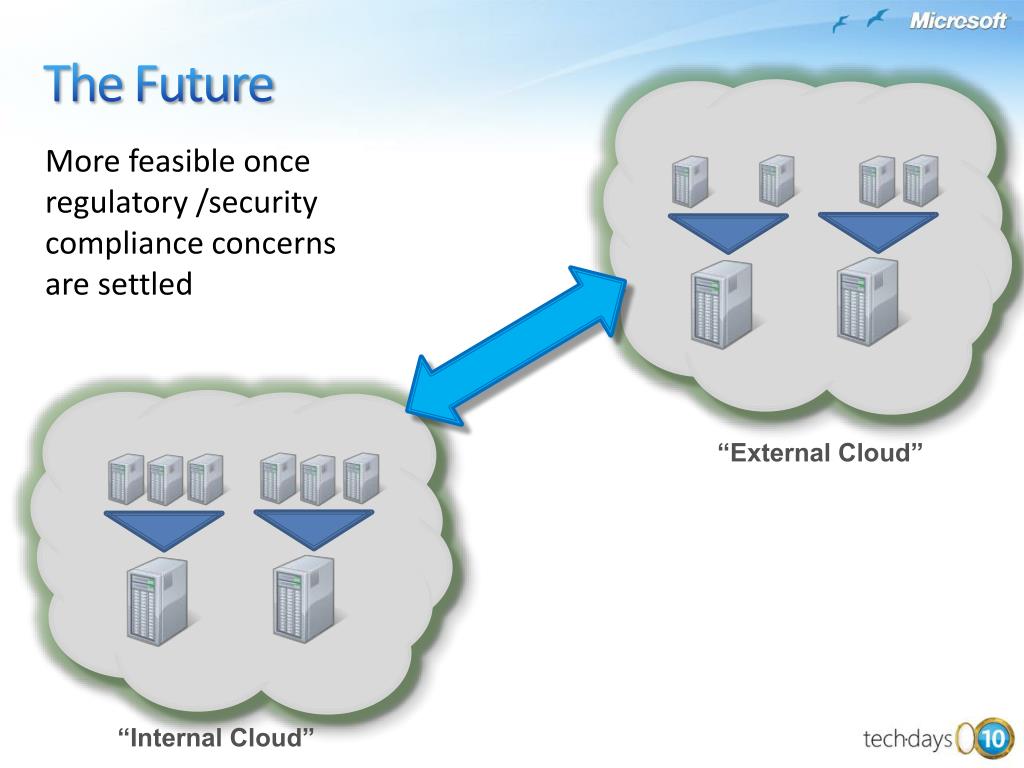

  33. More feasible once regulatory /security compliance concernsare settled The Future “External Cloud” “Internal Cloud”

  34. Why Virtualization based on Hyper-V? Best TCO/ROI Data center to desktop It’s the Platform you know End-to-End Management 1/3 the price up front Key feature of platform Full range of products & solutions Physical and Virtual & Cross-hypervisor Significant Savings Tools you know Interoperability Large partner eco-system Lower ongoing costs
