Introduction to Gaussian and GaussView

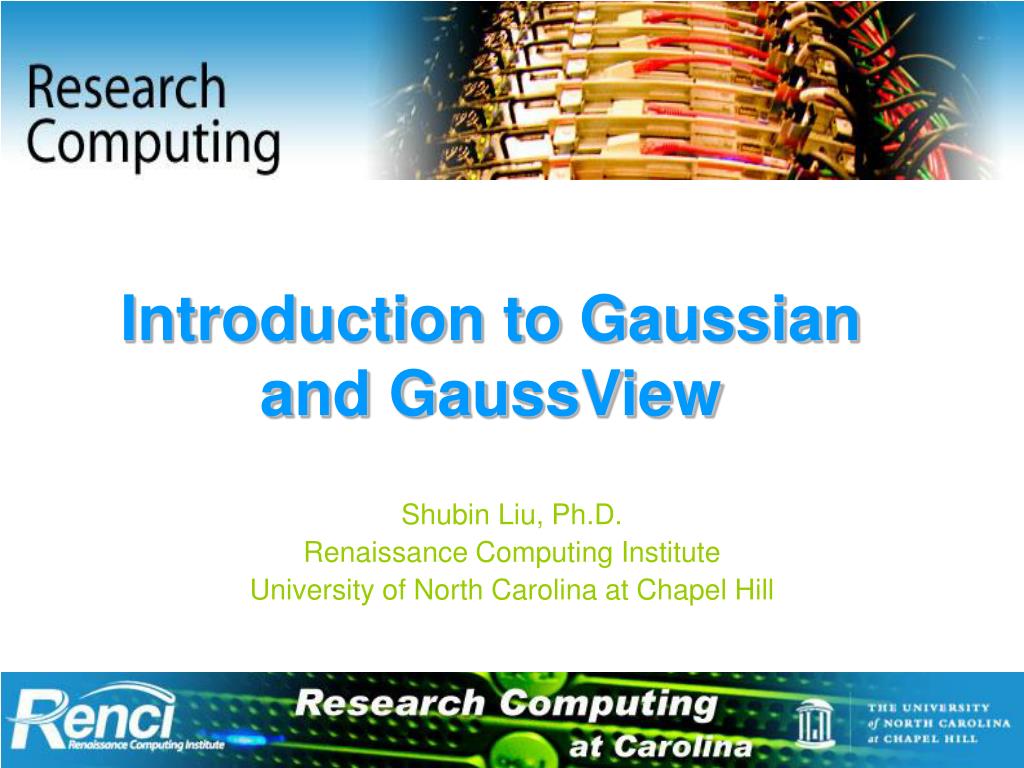

1. Introduction to Gaussian and GaussView Shubin Liu, Ph.D. Renaissance Computing Institute University of North Carolina at Chapel Hill

2. Agenda • Introduction • Capabilities • Input File Preparation • Gaussian GUI – GaussView • Run G03 Jobs @ UNC-CH • Some Advanced Topics • Hands-on Experiments Introduction to Gaussian

3. Course Goal • What Gaussian/GaussView packages are • How to prepare input files via GaussView • How to run G03 jobs on UNC-CH servers • How to view G03 results • Learn selected advanced topics • Hands-on experiments Introduction to Gaussian

4. Pre-requisites • Basic UNIX knowledge • Introduction to Scientific Computing • An account on Emerald Introduction to Gaussian

5. About Myself • Ph.D. from Chemistry, UNC-CH • Currently Senior Computational Scientist @ UNC ITS Research Computing Division • Responsibilities: • Support Comp Chem/Phys/Material Science software, Support Programming (FORTRAN/C/C++) tools, code porting, parallel computing, etc. • Engagement projects with faculty members on campus • Conduct own research on Comp Chem • DFT theory and concept • Systems in biological and material science Introduction to Gaussian

6. About You • Name, department, group, interest? • Any experience before with Gaussian or GaussView? • What do you expect to use them? What kind of systems? Introduction to Gaussian

7. Gaussian & GaussView • Gaussian is a general purpose electronic structure package for use in computational chemistry. Current version 03 D02. • GaussView is a graphical user interface (GUI) designed to be used with Gaussian to make calculation preparation and output analysis easier, quicker and more efficient. Current version 3.0.9. • Vendor’s website: http://www.gaussian.com Introduction to Gaussian

8. Gaussian Introduction to Gaussian

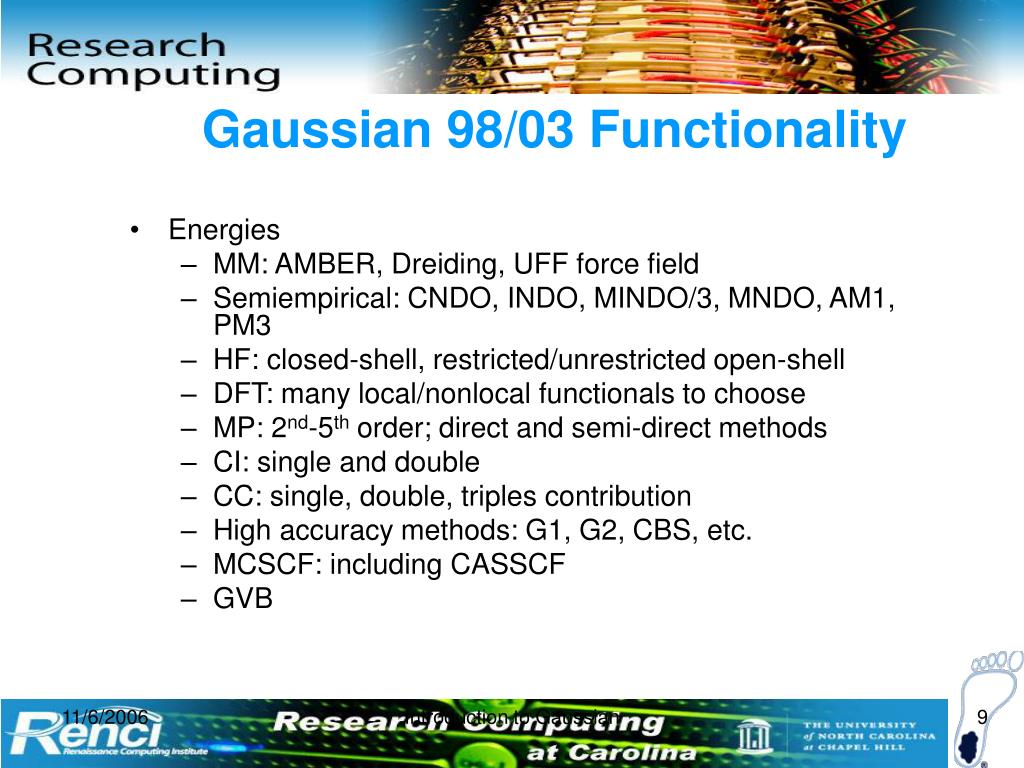

9. Gaussian 98/03 Functionality • Energies • MM: AMBER, Dreiding, UFF force field • Semiempirical: CNDO, INDO, MINDO/3, MNDO, AM1, PM3 • HF: closed-shell, restricted/unrestricted open-shell • DFT: many local/nonlocal functionals to choose • MP: 2nd-5th order; direct and semi-direct methods • CI: single and double • CC: single, double, triples contribution • High accuracy methods: G1, G2, CBS, etc. • MCSCF: including CASSCF • GVB Introduction to Gaussian

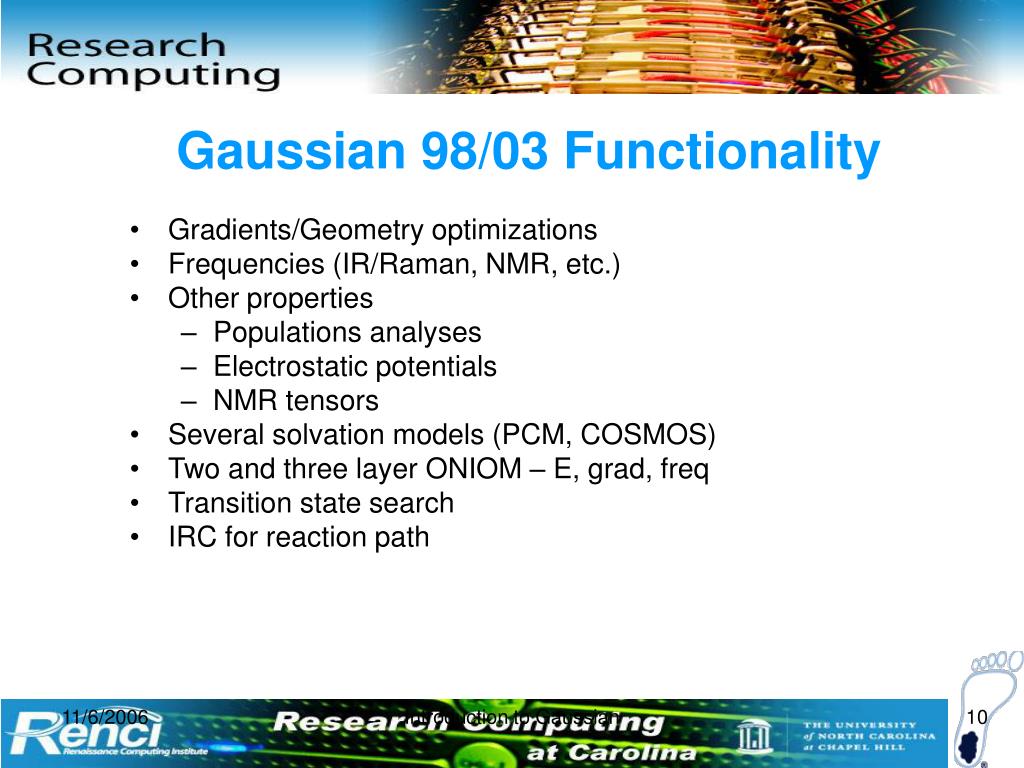

10. Gaussian 98/03 Functionality • Gradients/Geometry optimizations • Frequencies (IR/Raman, NMR, etc.) • Other properties • Populations analyses • Electrostatic potentials • NMR tensors • Several solvation models (PCM, COSMOS) • Two and three layer ONIOM – E, grad, freq • Transition state search • IRC for reaction path Introduction to Gaussian

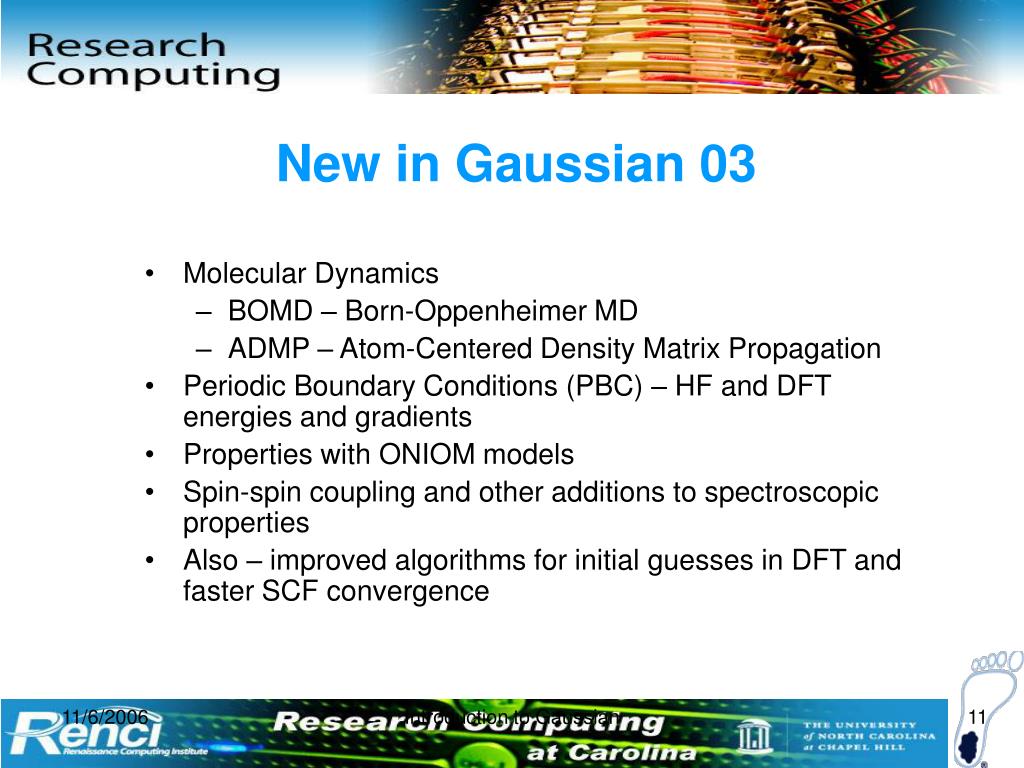

11. New in Gaussian 03 • Molecular Dynamics • BOMD – Born-Oppenheimer MD • ADMP – Atom-Centered Density Matrix Propagation • Periodic Boundary Conditions (PBC) – HF and DFT energies and gradients • Properties with ONIOM models • Spin-spin coupling and other additions to spectroscopic properties • Also – improved algorithms for initial guesses in DFT and faster SCF convergence Introduction to Gaussian

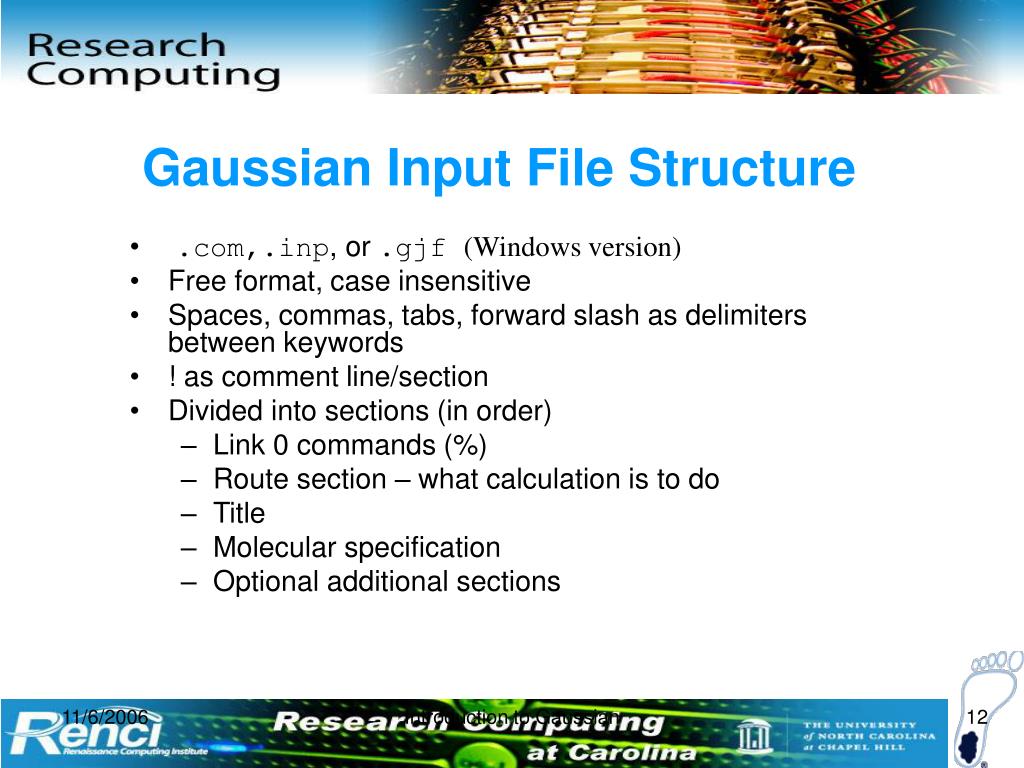

12. Gaussian Input File Structure • .com,.inp, or .gjf (Windows version) • Free format, case insensitive • Spaces, commas, tabs, forward slash as delimiters between keywords • ! as comment line/section • Divided into sections (in order) • Link 0 commands (%) • Route section – what calculation is to do • Title • Molecular specification • Optional additional sections Introduction to Gaussian

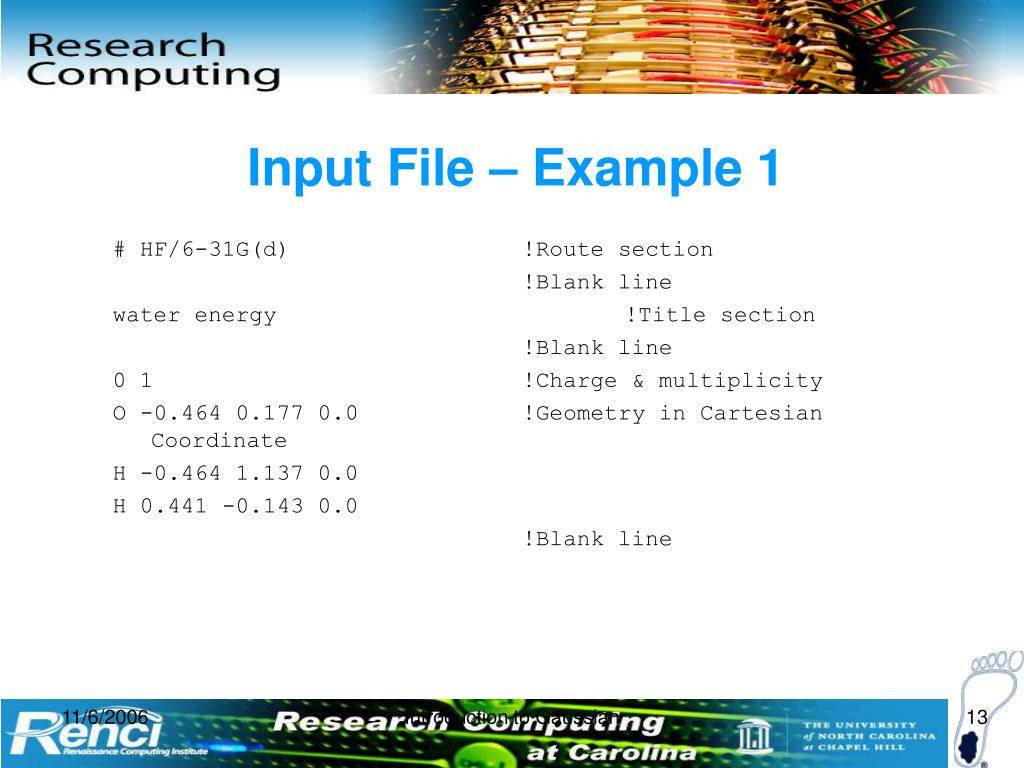

13. Input File – Example 1 # HF/6-31G(d) !Route section !Blank line water energy !Title section !Blank line 0 1 !Charge & multiplicity O -0.464 0.177 0.0 !Geometry in Cartesian Coordinate H -0.464 1.137 0.0 H 0.441 -0.143 0.0 !Blank line Introduction to Gaussian

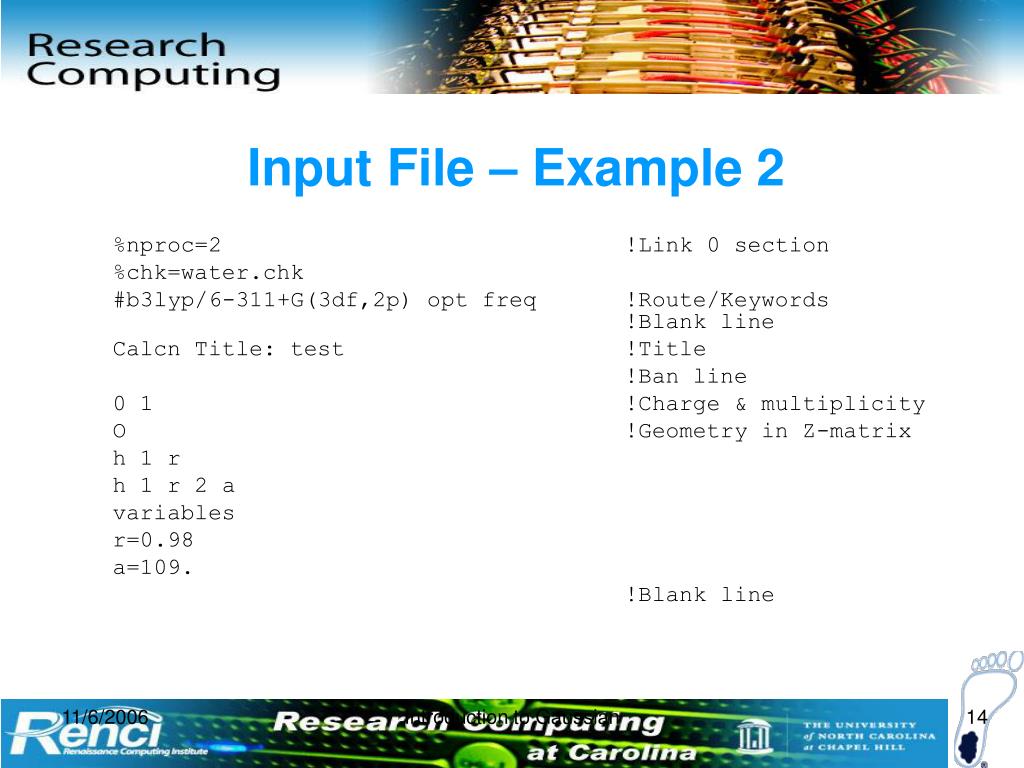

14. Input File – Example 2 %nproc=2 !Link 0 section %chk=water.chk #b3lyp/6-311+G(3df,2p) opt freq !Route/Keywords !Blank line Calcn Title: test !Title !Ban line 0 1 !Charge & multiplicity O !Geometry in Z-matrix h 1 r h 1 r 2 a variables r=0.98 a=109. !Blank line Introduction to Gaussian

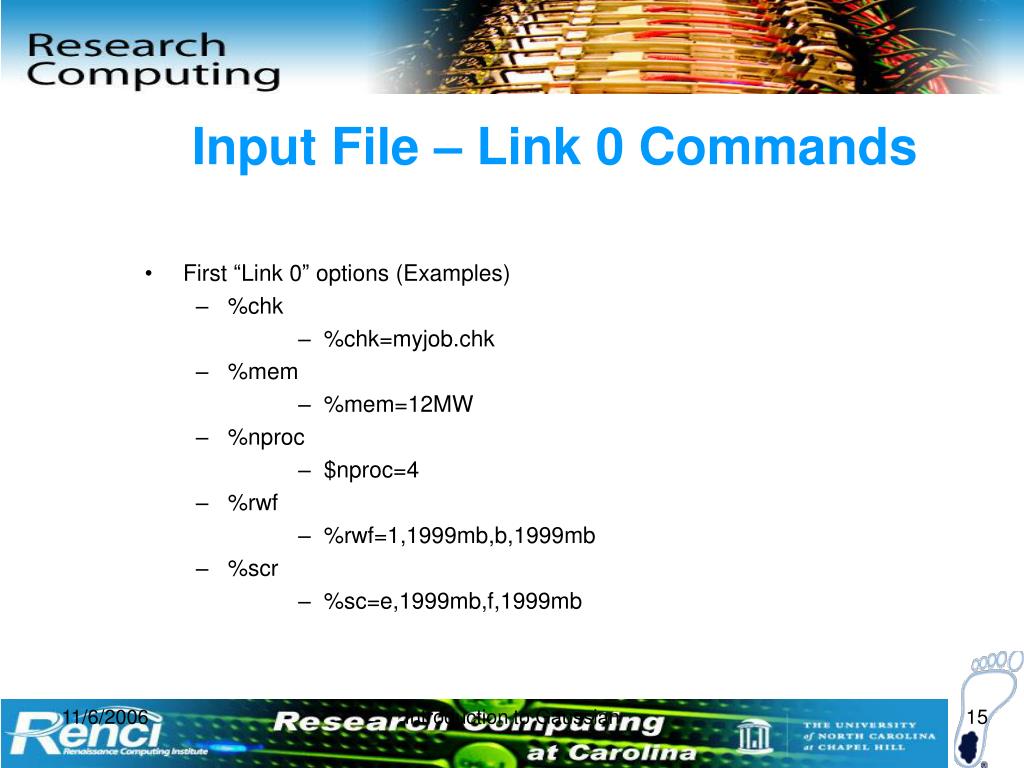

15. Input File – Link 0 Commands • First “Link 0” options (Examples) • %chk • %chk=myjob.chk • %mem • %mem=12MW • %nproc • $nproc=4 • %rwf • %rwf=1,1999mb,b,1999mb • %scr • %sc=e,1999mb,f,1999mb Introduction to Gaussian

16. Input File – Keyword Specification • Keyword line(s) – specify calculation type and other job options • Start with # symbol • Can be multiple lines • Terminate with a blank line • Format • keyword=option • keyword(option) • keyword(option1,option2,…) • keyword=(option1,option2,…) • User’s guide provides list of keywords, options, and basis set notion http://www.gaussian.com/g_ur/keywords.htm Introduction to Gaussian

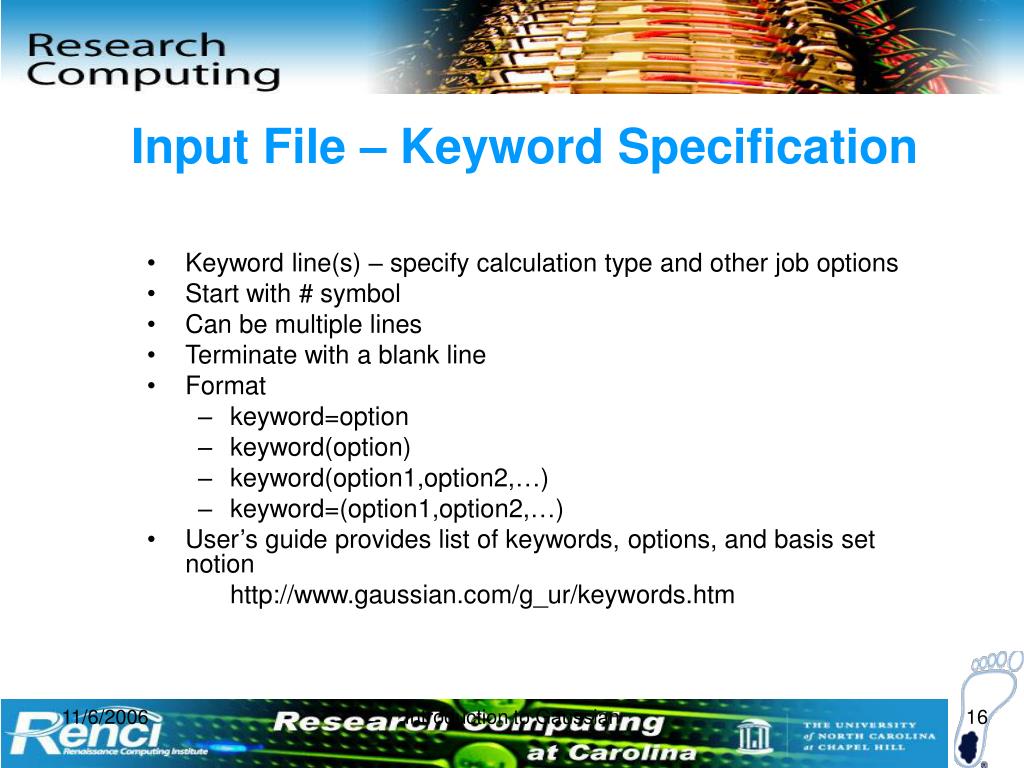

17. Introduction to Gaussian

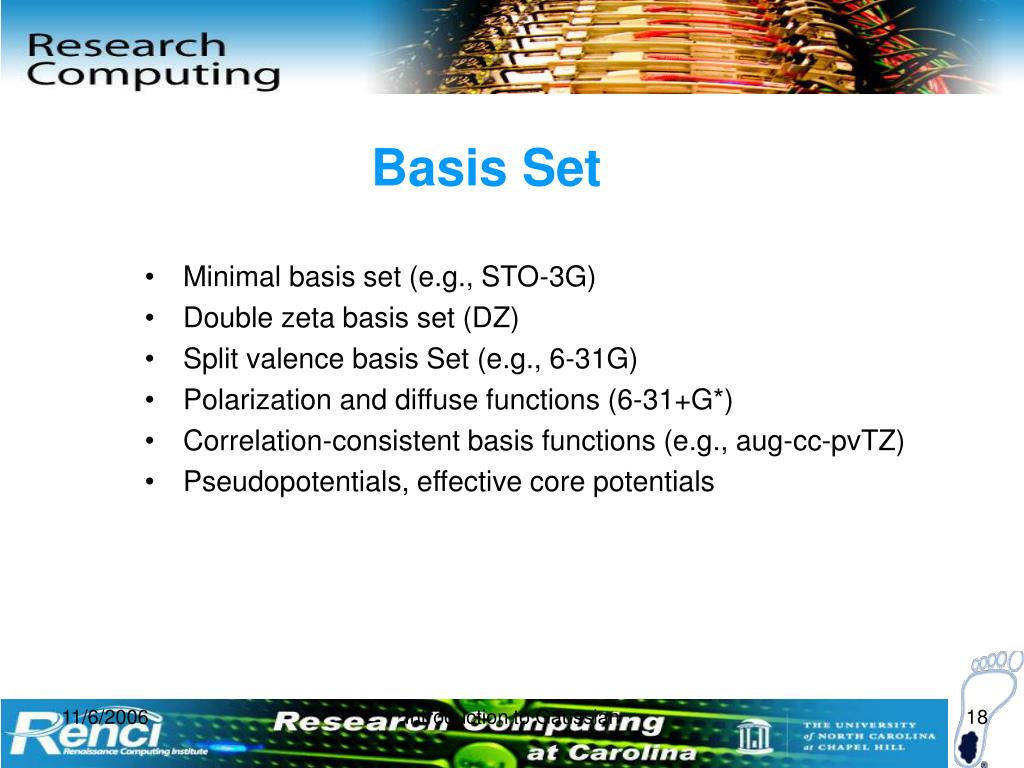

18. Basis Set • Minimal basis set (e.g., STO-3G) • Double zeta basis set (DZ) • Split valence basis Set (e.g., 6-31G) • Polarization and diffuse functions (6-31+G*) • Correlation-consistent basis functions (e.g., aug-cc-pvTZ) • Pseudopotentials, effective core potentials Introduction to Gaussian

19. Introduction to Gaussian

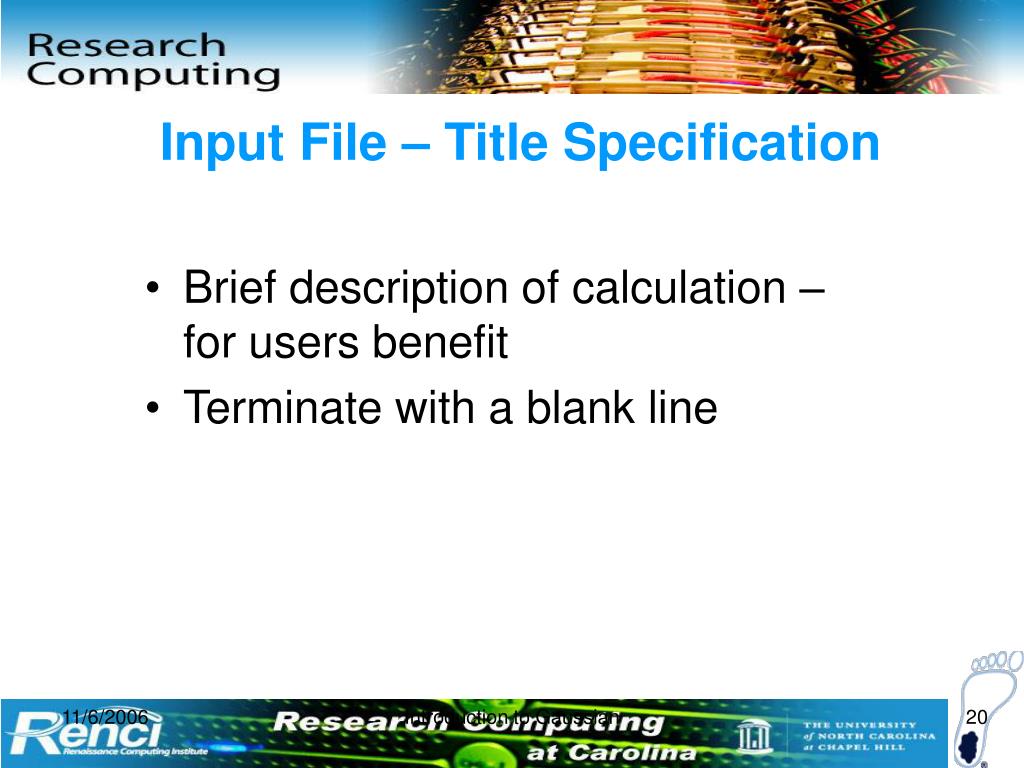

20. Input File – Title Specification • Brief description of calculation – for users benefit • Terminate with a blank line Introduction to Gaussian

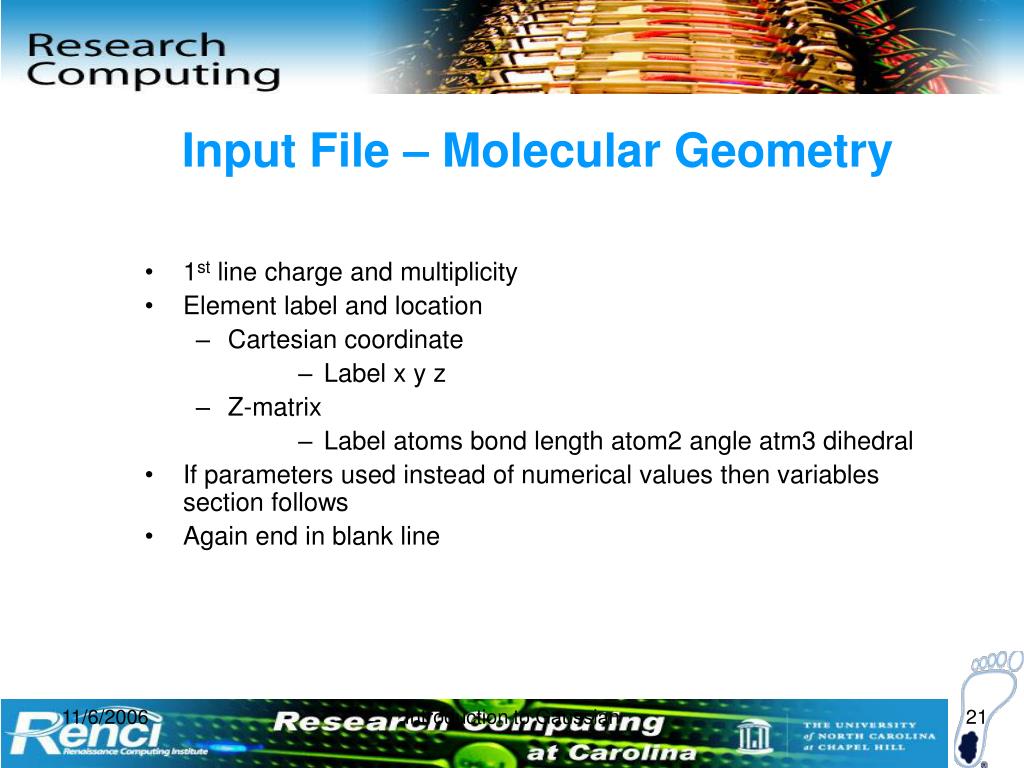

21. Input File – Molecular Geometry • 1st line charge and multiplicity • Element label and location • Cartesian coordinate • Label x y z • Z-matrix • Label atoms bond length atom2 angle atm3 dihedral • If parameters used instead of numerical values then variables section follows • Again end in blank line Introduction to Gaussian

22. A More Complicated Example %chk=/scr/APPS_SCRDIR/f33em5p77c.chk %mem=4096MB %NProc=4 #B3LYP/6-31G* opt geom=Checkpoint Guess=read nosymm scf=tight Geometry optimization of a sample molecule 1 1 --Link1-- %chk=/scr/APPS_SCRDIR/f33em5p77c.chk %mem=4096MB %NProc=2 # B3LYP/6-311++G** sp pop=nbo nosymm guess=read geom=checkpoint Single Point Energy for the "reference state" of molecule with one more electron. 0 2 Introduction to Gaussian

23. Other Gaussian Utilities • formchk – formats checkpoint file so it can be used by other programs • cubgen – generate cube file to look at MOs, densities, gradients, NMR in GaussView • freqchk – retrieves frequency/thermochemsitry data from chk file • newzmat – converting molecular specs between formats (zmat, cart, chk, cache, frac coord, MOPAC, pdb, and others) Introduction to Gaussian

24. GaussView GaussView 3.0.9 makes using Gaussian 03 simple and straightforward: • Sketch in molecules using its advanced 3D Structure Builder, or load in molecules from standard files. • Set up and submit Gaussian 03 jobs right from the interface, and monitor their progress as they run. • Examine calculation results graphically via state-of-the-art visualization features: display molecular orbitals and other surfaces, view spectra, animate normal modes, geometry optimizations and reaction paths. • Online help: http://www.gaussian.com/g_gv/gvtop.htm Introduction to Gaussian

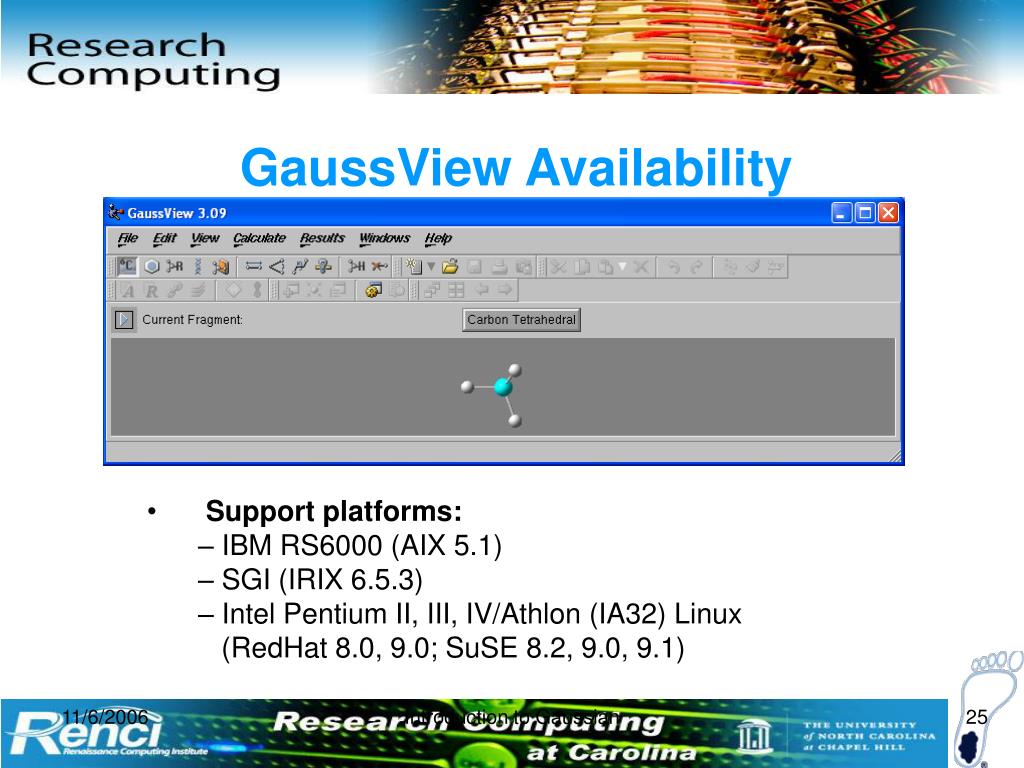

25. GaussView Availability • Support platforms: – IBM RS6000 (AIX 5.1) – SGI (IRIX 6.5.3) – Intel Pentium II, III, IV/Athlon (IA32) Linux (RedHat 8.0, 9.0; SuSE 8.2, 9.0, 9.1) Introduction to Gaussian

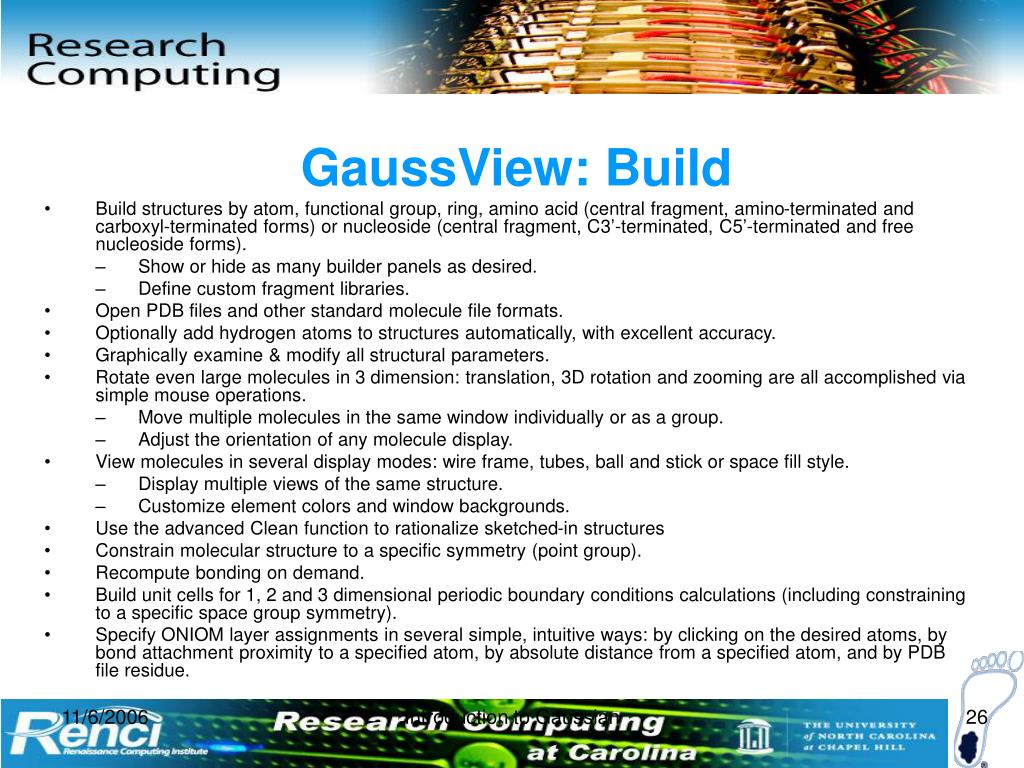

26. GaussView: Build • Build structures by atom, functional group, ring, amino acid (central fragment, amino-terminated and carboxyl-terminated forms) or nucleoside (central fragment, C3’-terminated, C5’-terminated and free nucleoside forms). • Show or hide as many builder panels as desired. • Define custom fragment libraries. • Open PDB files and other standard molecule file formats. • Optionally add hydrogen atoms to structures automatically, with excellent accuracy. • Graphically examine & modify all structural parameters. • Rotate even large molecules in 3 dimension: translation, 3D rotation and zooming are all accomplished via simple mouse operations. • Move multiple molecules in the same window individually or as a group. • Adjust the orientation of any molecule display. • View molecules in several display modes: wire frame, tubes, ball and stick or space fill style. • Display multiple views of the same structure. • Customize element colors and window backgrounds. • Use the advanced Clean function to rationalize sketched-in structures • Constrain molecular structure to a specific symmetry (point group). • Recompute bonding on demand. • Build unit cells for 1, 2 and 3 dimensional periodic boundary conditions calculations (including constraining to a specific space group symmetry). • Specify ONIOM layer assignments in several simple, intuitive ways: by clicking on the desired atoms, by bond attachment proximity to a specified atom, by absolute distance from a specified atom, and by PDB file residue. Introduction to Gaussian

27. GaussView: Build Introduction to Gaussian

28. GaussView: Build Introduction to Gaussian

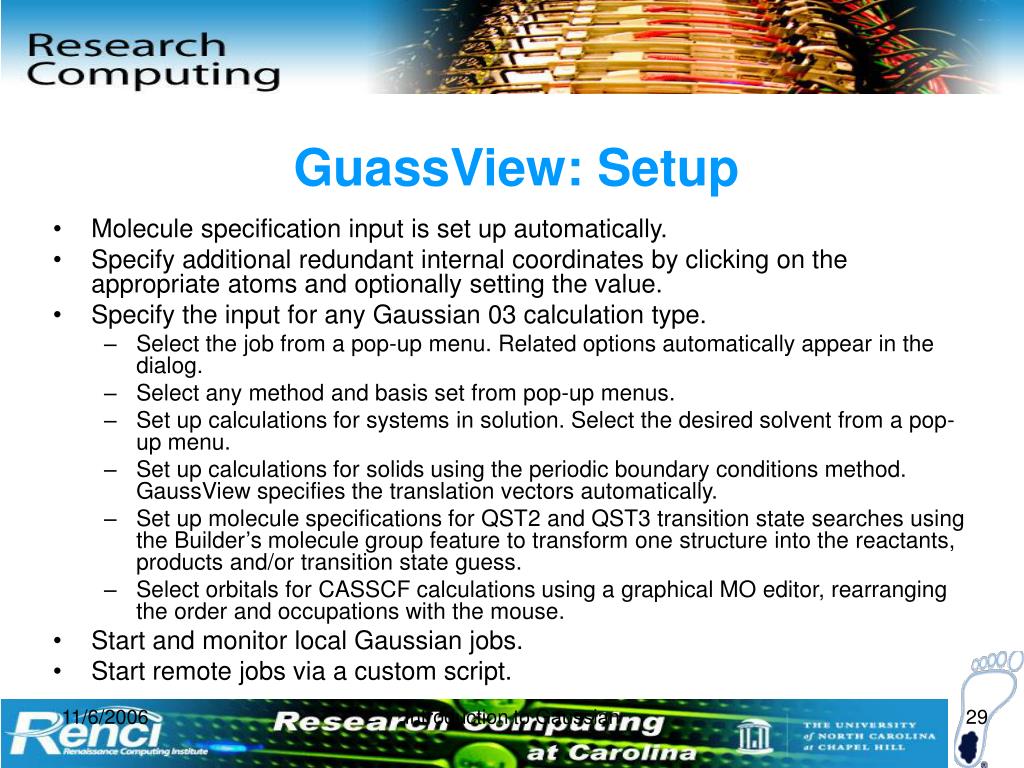

29. GuassView: Setup • Molecule specification input is set up automatically. • Specify additional redundant internal coordinates by clicking on the appropriate atoms and optionally setting the value. • Specify the input for any Gaussian 03 calculation type. • Select the job from a pop-up menu. Related options automatically appear in the dialog. • Select any method and basis set from pop-up menus. • Set up calculations for systems in solution. Select the desired solvent from a pop-up menu. • Set up calculations for solids using the periodic boundary conditions method. GaussView specifies the translation vectors automatically. • Set up molecule specifications for QST2 and QST3 transition state searches using the Builder’s molecule group feature to transform one structure into the reactants, products and/or transition state guess. • Select orbitals for CASSCF calculations using a graphical MO editor, rearranging the order and occupations with the mouse. • Start and monitor local Gaussian jobs. • Start remote jobs via a custom script. Introduction to Gaussian

30. GaussView: Setup Introduction to Gaussian

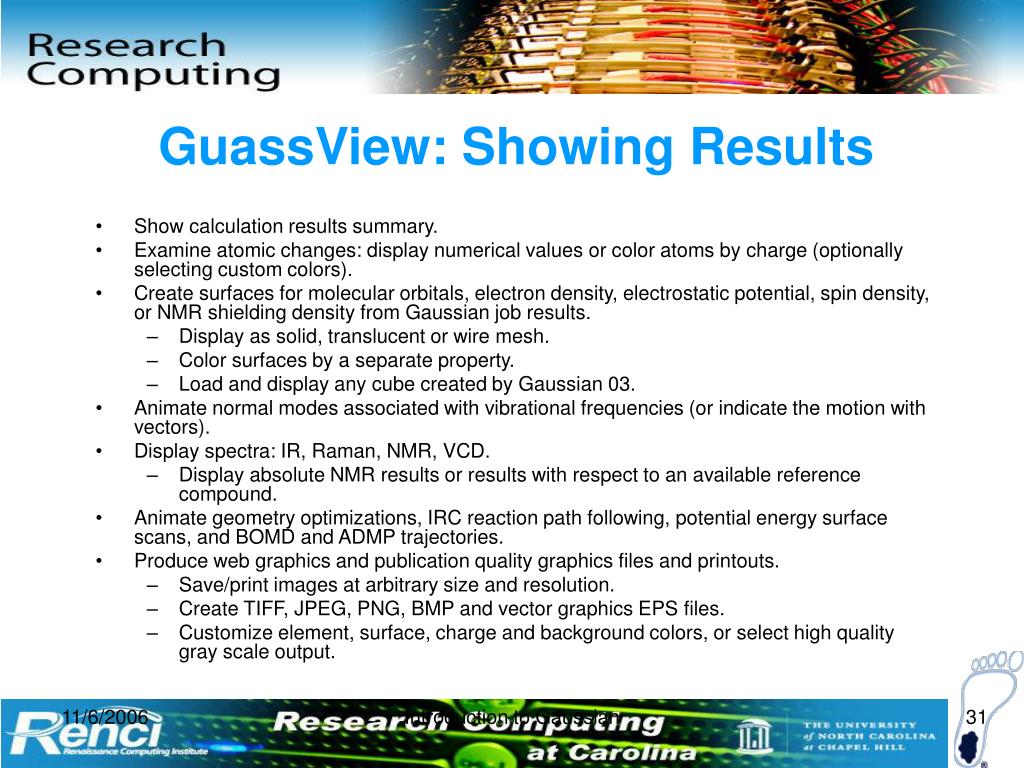

31. GuassView: Showing Results • Show calculation results summary. • Examine atomic changes: display numerical values or color atoms by charge (optionally selecting custom colors). • Create surfaces for molecular orbitals, electron density, electrostatic potential, spin density, or NMR shielding density from Gaussian job results. • Display as solid, translucent or wire mesh. • Color surfaces by a separate property. • Load and display any cube created by Gaussian 03. • Animate normal modes associated with vibrational frequencies (or indicate the motion with vectors). • Display spectra: IR, Raman, NMR, VCD. • Display absolute NMR results or results with respect to an available reference compound. • Animate geometry optimizations, IRC reaction path following, potential energy surface scans, and BOMD and ADMP trajectories. • Produce web graphics and publication quality graphics files and printouts. • Save/print images at arbitrary size and resolution. • Create TIFF, JPEG, PNG, BMP and vector graphics EPS files. • Customize element, surface, charge and background colors, or select high quality gray scale output. Introduction to Gaussian

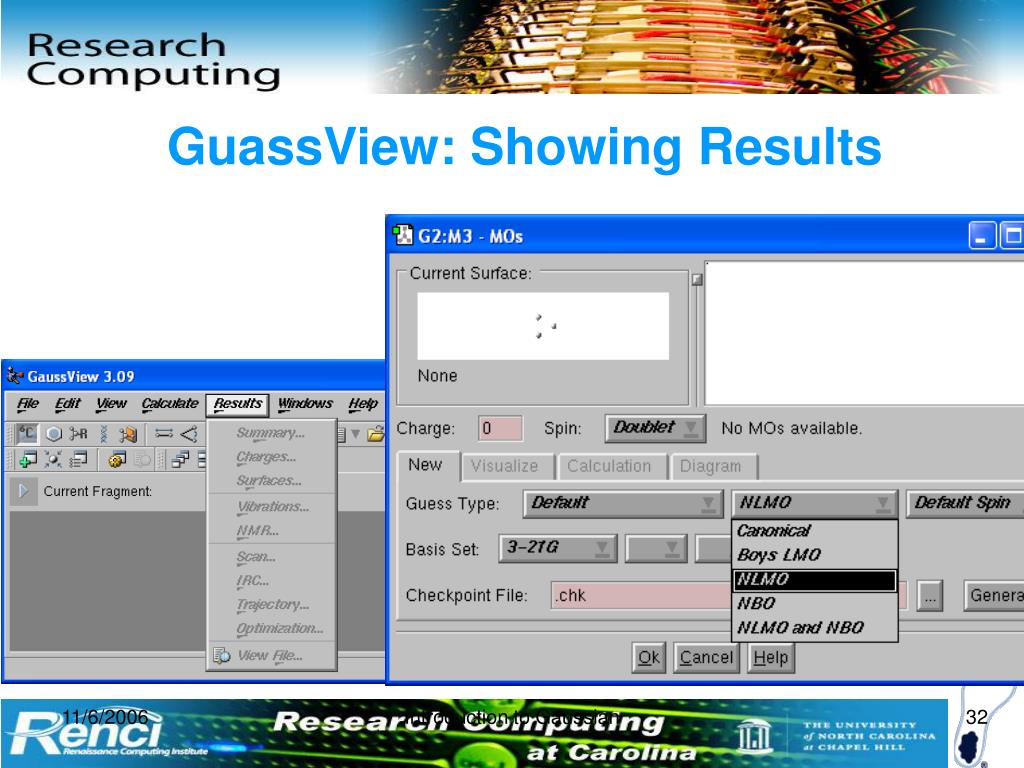

32. GuassView: Showing Results Introduction to Gaussian

33. Surfaces Introduction to Gaussian

34. Reflection-Absorption Infrared Spectrum of AlQ3 Wavenumbers (cm-1) 1473 752 1386 1338 1116 1580 1605 800 1000 1200 1400 1600 Introduction to Gaussian

35. GaussView: VCD (Vibrational Circular Dichroism) Spectra GaussView can display a variety of computed spectra, including IR, Raman, NMR and VCD. Here we see the VCD spectra for two conformations of spiropentyl acetate, a chiral derivative of spiropentane. See F. J. Devlin, P. J. Stephens, C. Österle, K. B. Wiberg, J. R. Cheeseman, and M. J. Frisch, J. Org. Chem. 67, 8090 (2002). Introduction to Gaussian

36. GaussView: ONIOM Bacteriorhodopsin, set up for an ONIOM calculation (stylized). See T. Vreven and K. Morokuma, “Investigation of the S0->S1 excitation in bacteriorhodopsin with the ONIOM(MO:MM) hybrid method,” Theor. Chem. Acc. (2003). Introduction to Gaussian

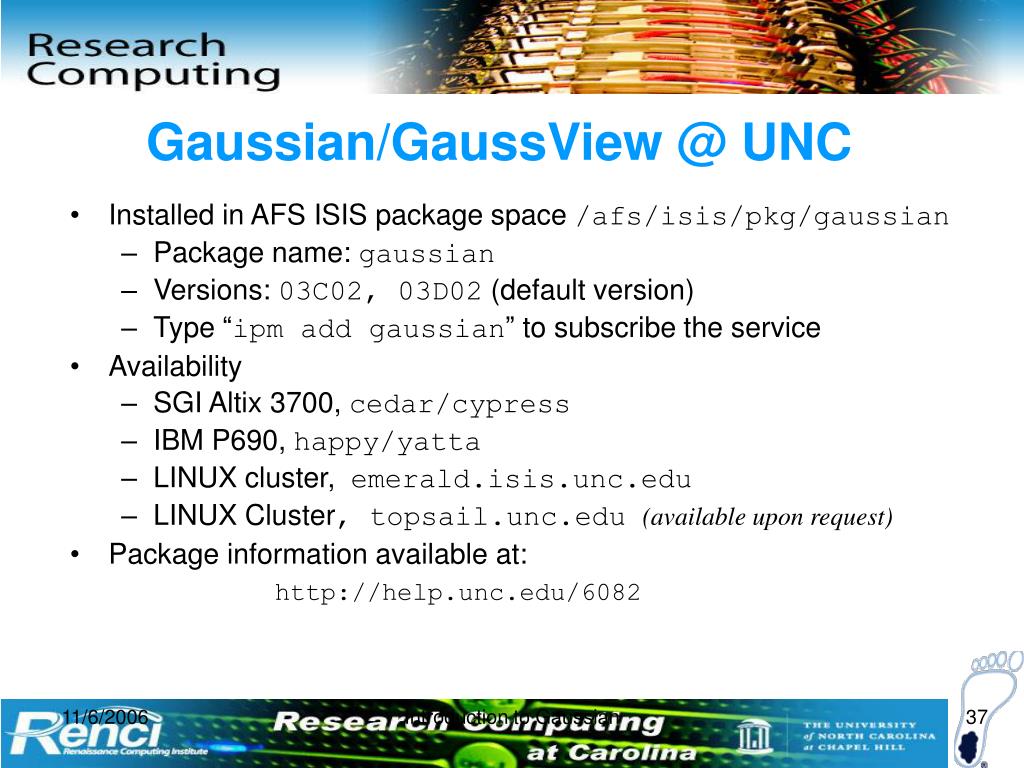

37. Gaussian/GaussView @ UNC • Installed in AFS ISIS package space /afs/isis/pkg/gaussian • Package name: gaussian • Versions: 03C02, 03D02 (default version) • Type “ipm add gaussian” to subscribe the service • Availability • SGI Altix 3700, cedar/cypress • IBM P690, happy/yatta • LINUX cluster, emerald.isis.unc.edu • LINUX Cluster, topsail.unc.edu (available upon request) • Package information available at: http://help.unc.edu/6082 Introduction to Gaussian

38. Access GaussView • From UNIX workstation • Type “xhost + emerald.isis.unc.edu” or “xhost + happy.isis.unc.edu” • Login to emerald or happy • Set display to your local host • Invoke gaussview or gview via LSF interactive queue • From PC desktop via X-Win32 or SecureCRT • Detailed document available at: http://www.unc.edu/atn/hpc/applications/science/gaussian/access_gv/g03_gv_instructions.htm Introduction to Gaussian

39. Submit G03 Jobs to Servers • To submit single-CPU G03 jobs to computing servers via LSF: bsub -q qname -m mname g03 input.inp where “qname” stands for a queue name, e.g., week, month, etc., “mname” represents a machine name, e.g., cypress,yatta, etc., and “input.inp” denotes the input file prepared manually or via GaussView. For example: bsub -q week-m cypress g03 input.inp bsub -q month -m yatta g03 input.inp bsub -q idle -R blade g03 input.inp Introduction to Gaussian

40. Submit G03 Jobs to Servers • To submit multiple-CPU G03 jobs via LSF: bsub -q qname -n ncpu -m mname g03 input.inp where “qname” stands for a queue name, e.g., week, idle, etc., “ncpu” is the number of CPUs requested, e.g., 2 or 4., “mname” represents a machine name, e.g., yatta, cypress, etc., and “input.inp” denotes the input file prepared manually or via GaussView. For example bsub -q week -n 4 -m cypress g03 input.inp On Emerald, only serial G03 is available because G03 is parallelized via OpenMP (for share-memory SMP machines) Introduction to Gaussian

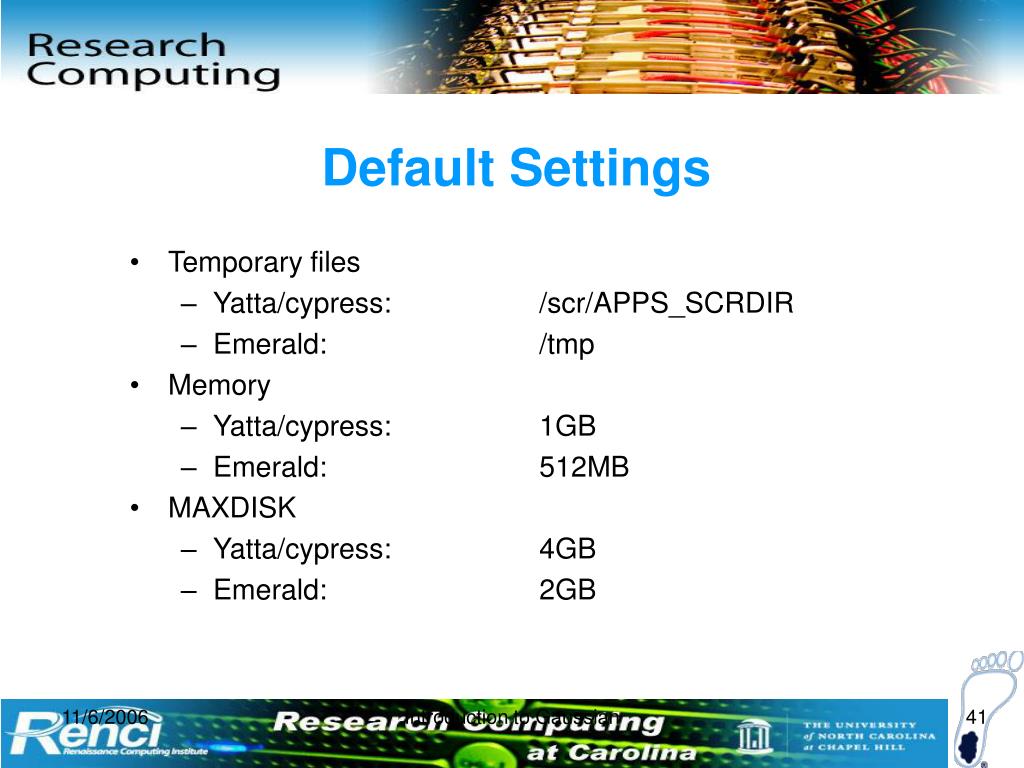

41. Default Settings • Temporary files • Yatta/cypress: /scr/APPS_SCRDIR • Emerald: /tmp • Memory • Yatta/cypress: 1GB • Emerald: 512MB • MAXDISK • Yatta/cypress: 4GB • Emerald: 2GB Introduction to Gaussian

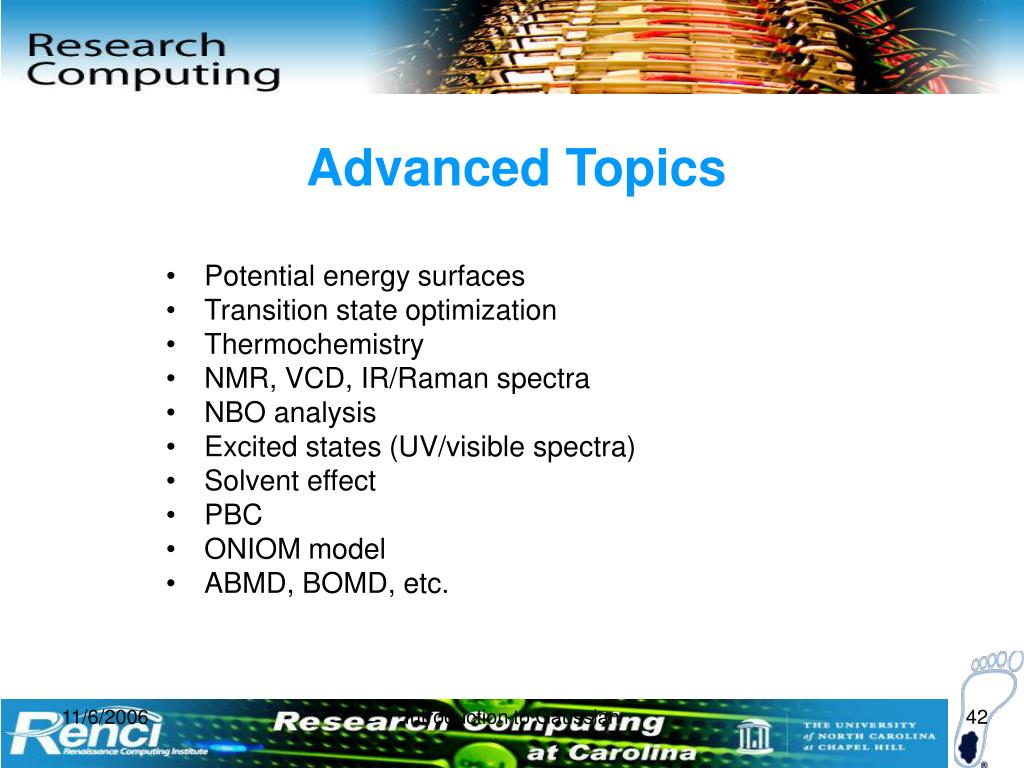

42. Advanced Topics • Potential energy surfaces • Transition state optimization • Thermochemistry • NMR, VCD, IR/Raman spectra • NBO analysis • Excited states (UV/visible spectra) • Solvent effect • PBC • ONIOM model • ABMD, BOMD, etc. Introduction to Gaussian

43. Potential Energy Surfaces • Many aspects of chemistry can be reduced to questions about potential energy surfaces (PES) • A PES displays the energy of a molecule as a function of its geometry • Energy is plotted on the vertical axis, geometric coordinates (e.g bond lengths, valence angles, etc.) are plotted on the horizontal axes • A PES can be thought of it as a hilly landscape, with valleys, mountain passes and peaks • Real PES have many dimensions, but key feature can be represented by a 3 dimensional PES Introduction to Gaussian

44. Model Potential Energy Surface Introduction to Gaussian

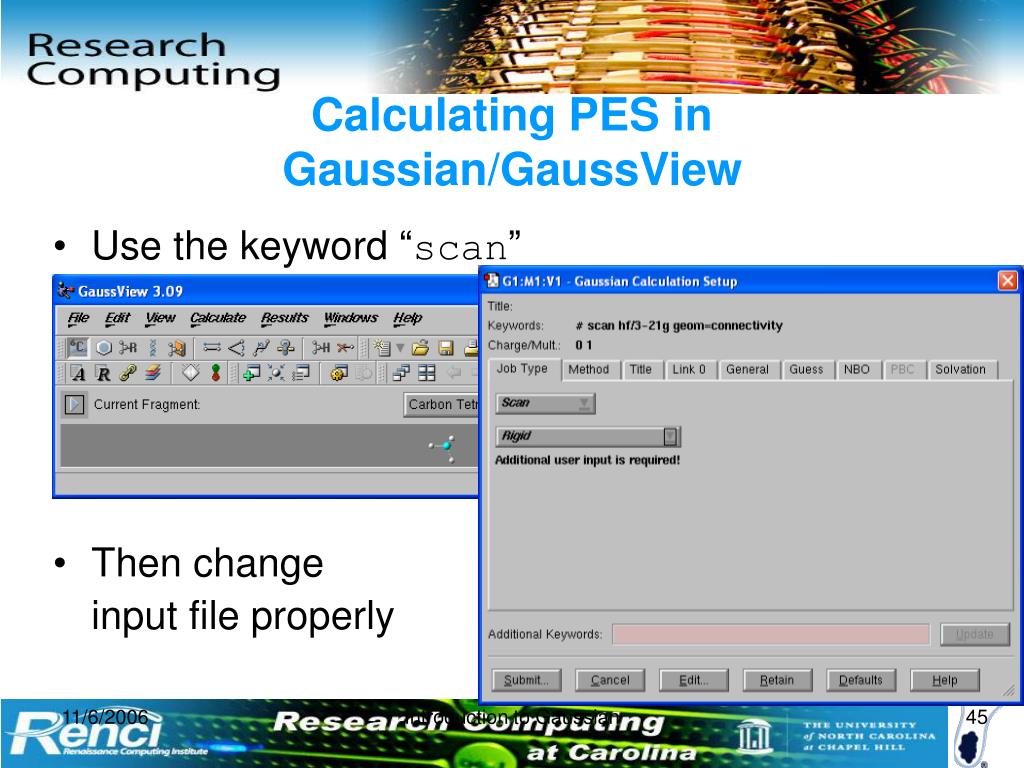

45. Calculating PES in Gaussian/GaussView • Use the keyword “scan” • Then change input file properly Introduction to Gaussian

46. Transition State Search Introduction to Gaussian

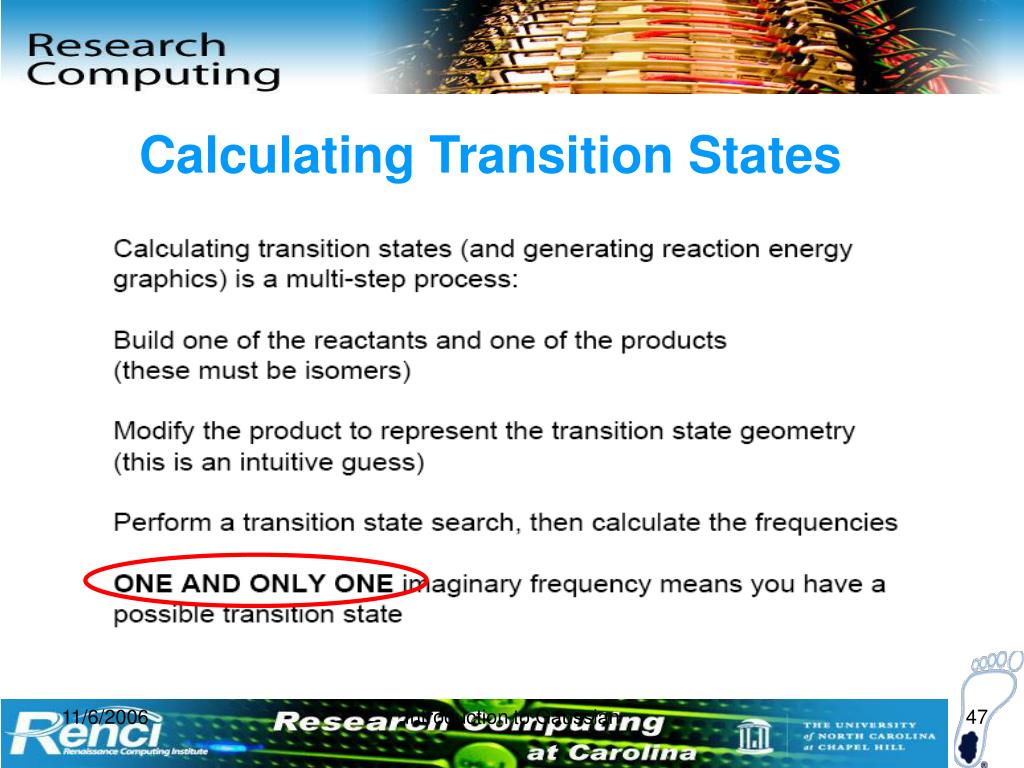

47. Calculating Transition States Introduction to Gaussian

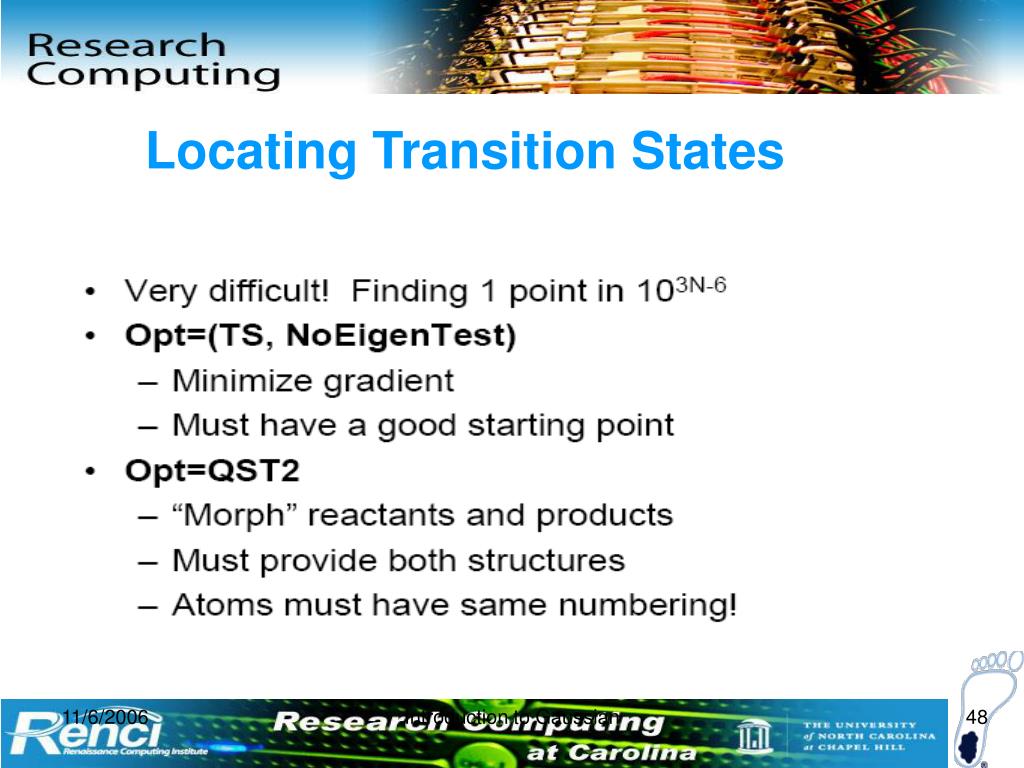

48. Locating Transition States Introduction to Gaussian

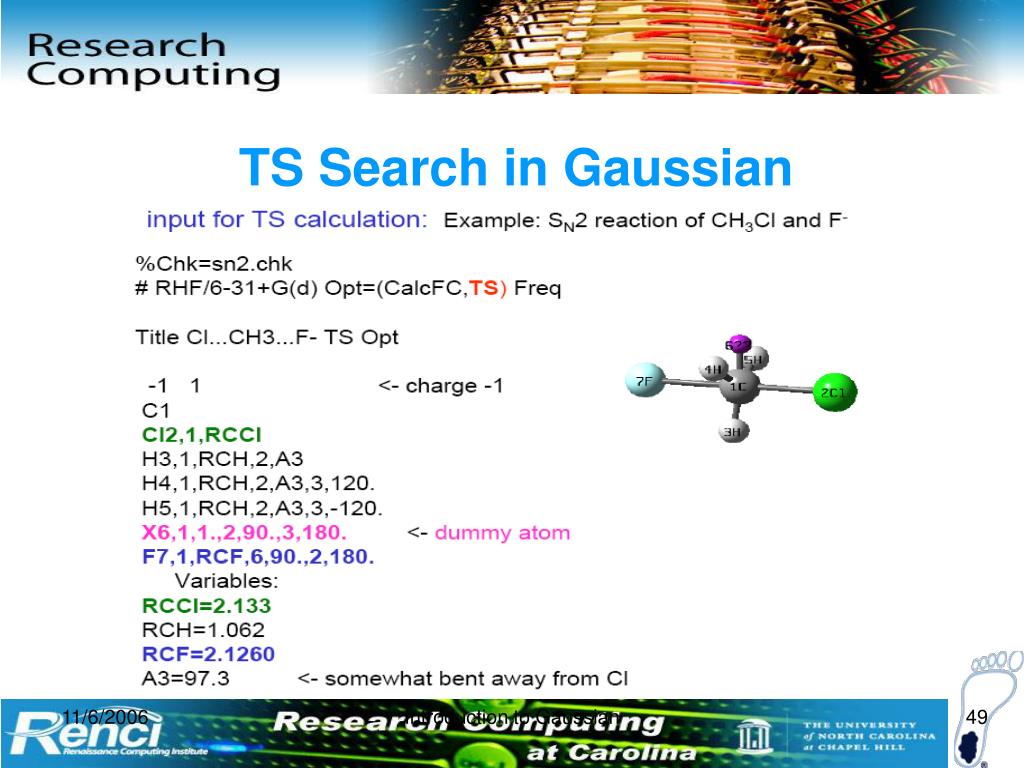

49. TS Search in Gaussian Introduction to Gaussian

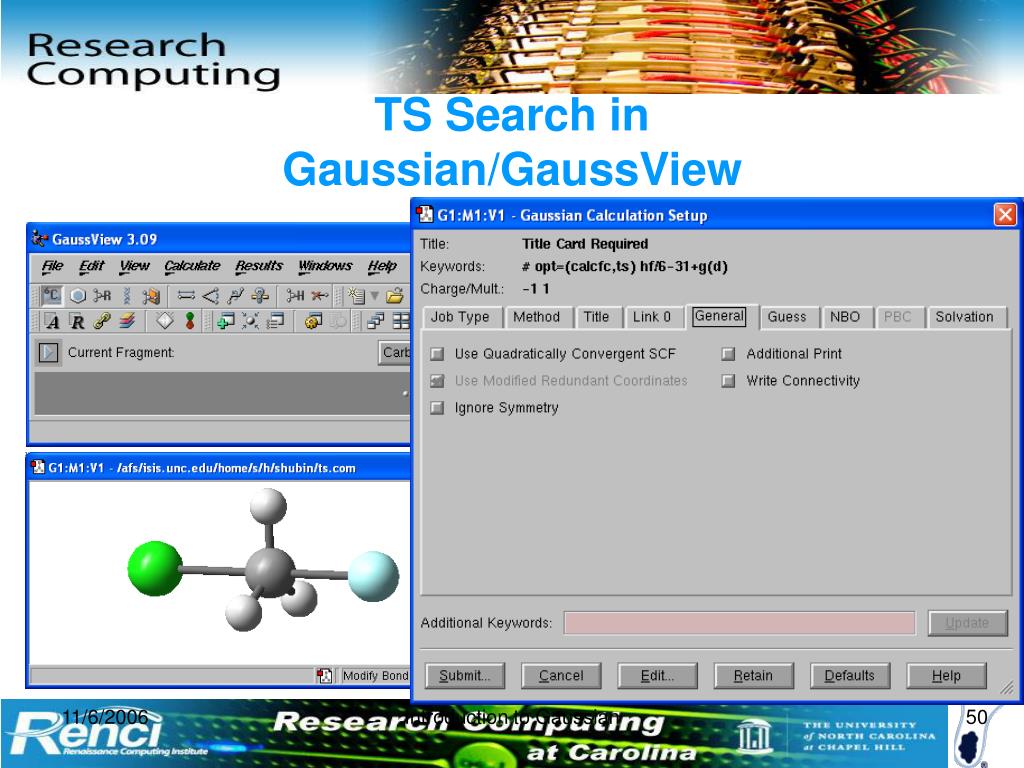

50. TS Search inGaussian/GaussView Introduction to Gaussian
