11.3: Inscribed angles

11.3: Inscribed angles. Objectives: Students will be able to… Apply the relationship between an inscribed angle and the arc it intercepts Find the measures of an angle formed by a tangent and a chord. Inscribed Angle Theorem. Inscribed Angle: sides are chords, vertex is on the circle

mayes
Télécharger la présentation

11.3: Inscribed angles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 11.3: Inscribed angles Objectives: Students will be able to… Apply the relationship between an inscribed angle and the arc it intercepts Find the measures of an angle formed by a tangent and a chord

  2. Inscribed Angle Theorem • Inscribed Angle: sides are chords, vertex is on the circle THEOREM: The measure of an inscribed angle is half the measurement of the intercepted arc

  3. Find the value of each variable. b° a° 60° 108° c°

  4. Corollaries to Inscribed Angle Theorem • 2 inscribed angles that intercept the same arc are congruent • An angle inscribed in a semicircle is a right angle • The opposite angles of a quadrilateral inscribed in a circle are supplementary.

  5. Find the values of the variables 100° c° b° 99° 96° d° a°

  6. Find the value of the variables 1. 2. [ a° P a° 40° b° P is the center of the circle.

  7. Theorem The measure of an angle formed by a tangent and a chord is half the measure of the intercepted arc

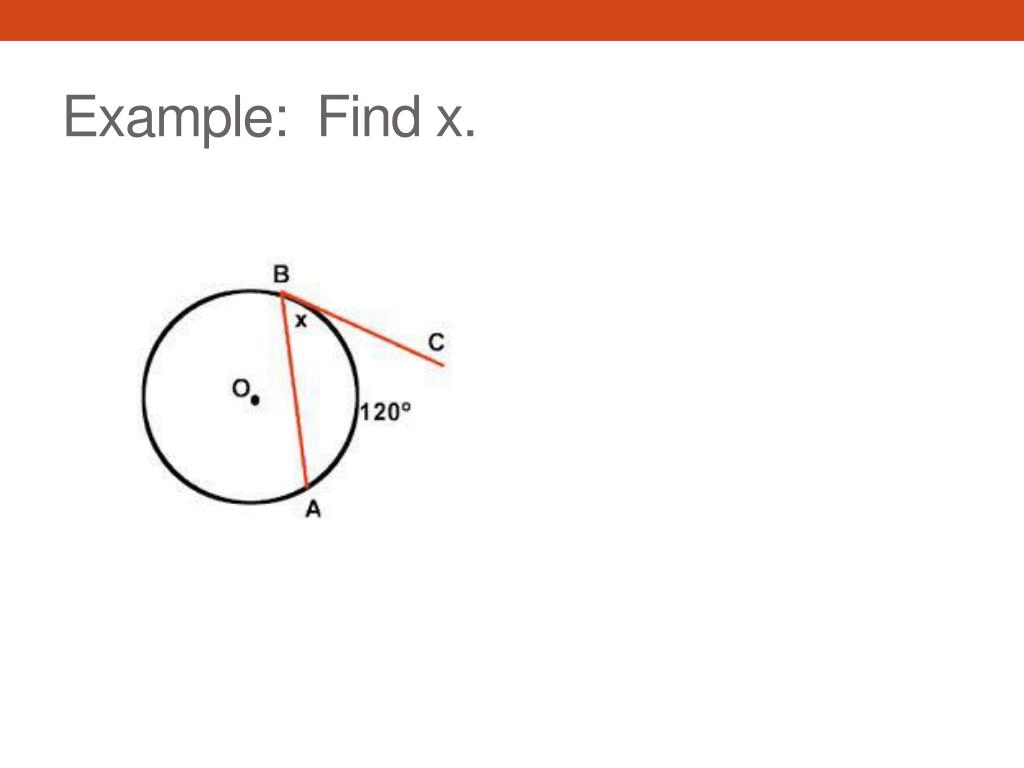

  8. Example: Find x.

  9. Find the value of a. 300° a°
