Structural Variability of La 0.5 Sr 0.5 TiO 3 Thin Films Yayoi Takamura , University of California-Davis, DMR 0747896.

maylin
Télécharger la présentation

1  m

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

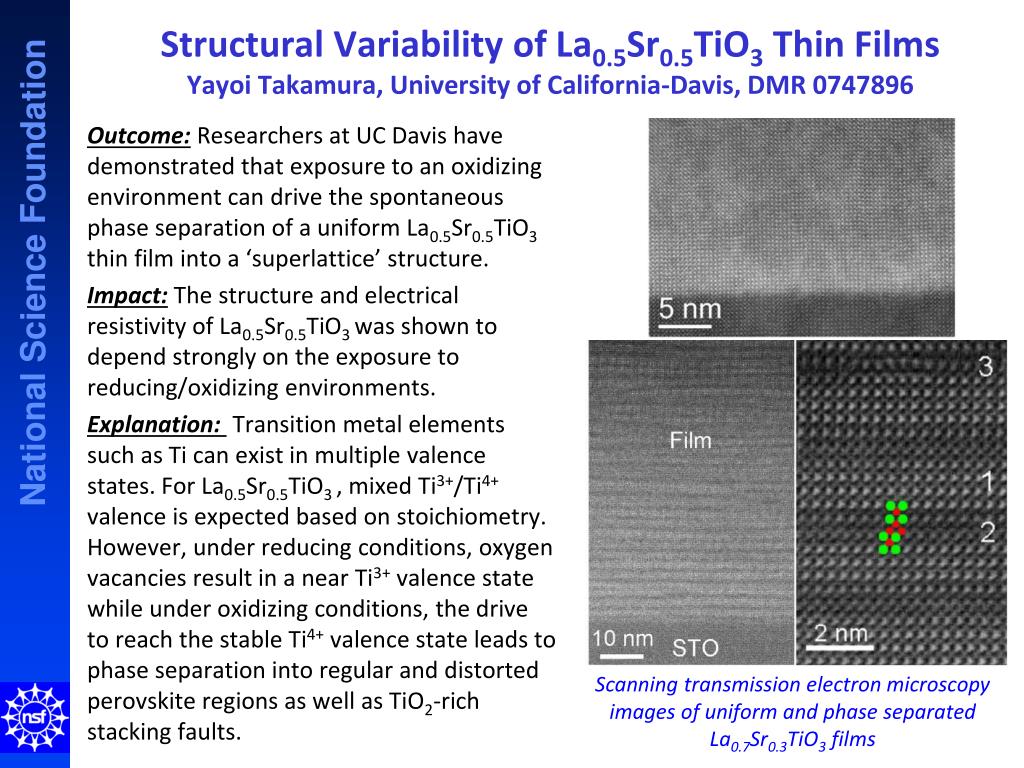

  1. Structural Variability of La0.5Sr0.5TiO3 Thin FilmsYayoi Takamura, University of California-Davis, DMR 0747896 Outcome: Researchers at UC Davis have demonstrated that exposure to an oxidizing environment can drive the spontaneous phase separation of a uniform La0.5Sr0.5TiO3 thin film into a ‘superlattice’ structure. Impact: The structure and electrical resistivity of La0.5Sr0.5TiO3 was shown to depend strongly on the exposure to reducing/oxidizing environments. Explanation: Transition metal elements such as Ti can exist in multiple valence states. For La0.5Sr0.5TiO3 , mixed Ti3+/Ti4+ valence is expected based on stoichiometry. However, under reducing conditions, oxygen vacancies result in a near Ti3+ valence state while under oxidizing conditions, the drive to reach the stable Ti4+ valence state leads to phase separation into regular and distorted perovskite regions as well as TiO2-rich stacking faults. Scanning transmission electron microscopy images of uniform and phase separated La0.7Sr0.3TiO3 films

  2. Strain Relaxation Defects: Stacking Faults and NanoflowersYayoi Takamura, University of California-Davis, DMR 0747896 Outcome: Scanning and transmission electron microscopy was used to image the defect structures formed due to strain relaxation in perovskite oxide superlattices grown by pulsed laser deposition. Impact: A correlation was made between the growth conditions, defect structures and functional properties of perovskite oxide superlattices. Explanation: Artificial layered materials were synthesized by pulsed laser deposition, however, the lattice mismatch between layers leads to the formation of a variety of different defect structures. These structures are as subtle as stacking faults and as striking as the petals on a nanoflower. Growth Direction 2 nm 0.1m 1m Scanning and transmission electron microscopy images of stacking faults and nanoflowers found in perovskite oxide superlattices

  3. STEM Transfer DayYayoi Takamura, University of California-Davis, DMR 0747896 The UC Davis Science, Technology, Engineering, Mathematics (STEM) Transfer Day brings prospective transfer students from community colleges with Mathematics Engineering Science Achievement (MESA) programs to UC Davis for a series of workshops and panels to learn about academic and research opportunities. MESA programs are designed to aid educationally disadvantaged students to prepare for and graduate from a four-year college. These programs have a proportionally higher percentage of students who are under-represented minorities, women, and first generation college attendees. About 20% of past attendees have enrolled at UC Davis, where they have excelled academically. Profs. Takamura and Jeoh during the Career Discovery Workshop, and students participating in hands on demonstrations by the Center for Biophotonics, Science and Technology (courtesy the Undergraduate Research Center, UC Davis)
