  1. Groundwater Modeling – 3Transient Models Groundwater Hydraulics Daene C. McKinney

  2. Remember Your Old Model? • Find the file that you used for the example model from the previous class • Or recreate it by reviewing the overhead slides from that assignment. • See file: 07_Groundwater_Modeling_2.pptx

  3. Example Pumping Well Layer 1 10 m • Boundaries • North & South: No-flow • East & West: Constant-head • Layer 1 – unconfined (13 m) • Kh = 5x10-3 m/s; Kv = 5x10-4 m/s • Porosity = 0.25 • Layer 2 – confined (5 m) • Kh = 1x10-3 m/s; Kv = 1x10-4 m/s • Porosity = 0.25 13 Layer 2 -3 m 5 -8 m No-flow Boundary N Pumping Well Constant Head Boundary (h = 9 m) Constant Head Boundary (h = 8 m) 600 m No-flow Boundary Adapted from Chiang, W-H and W. Kinzelbach, Processing Modflow: A Simulation System For Modeling Groundwater Flow and Pollution, 1996 600 m

  4. Results – Remember? To get contours of water table, check this box Always check the box for Cell-by-Cell flow

  5. Transient Groundwater Models • Transient models simulate changes over time • Necessary when boundary conditions vary with time (e.g., pumping rates, recharge, river stage, etc.) • Stress period: • Period of time during which boundary conditions are constant • Stress periods can have multiple time steps • Boundary conditions can change at the beginning of a stress period e.g., one day Time Steps Time Steps Time Steps Time Stress period Stress period Stress period e.g., one month Pumping and boundary conditions can change

  6. Transient Model • Convert you steady-state model to a transient model • Open your model • Select: Model  MODFLOW  Package Options • Select: Basic Package Tab • Uncheck: Steady-State checkbox • Enter: Number of stress periods = 12 • Select: Days • Select: OK • Do you want to copy data? Select: Yes • Do you want to set up stress periods? Select: Yes

  7. Stress Periods • Use 12 stress periods, one for each day for 12 days • Enter • Length of each stress period (= 1 day) • Number of time steps (= 1) • Time step multiplier (= 1.0)

  8. Pumping Conditions • Select: Layer 1 • Select: BC  Well • Select: BC  Modify  Layer • Uncheck: “Steady-state Boundary Condition” • Press: “Transient Data” Uncheck this box Press this button

  9. Pumping Conditions • Change the pumping rates from “m3/sec” to “m3/day” • Enter: Starting and Ending Stress Period Numbers • Enter: Q = 0 m3/d for stress periods 1, 2, and 3 • Enter: Q = -159,840 m3/d for stress periods 4 - 12 • Repeat for layer 2: Q = 0 m3/d in stress periods 1, 2 and 3; Q = -1296 m3/d in periods 4 - 12

  10. Hydraulic Conductivity • Change the hydraulic conductivity values from “m/sec” to “m/day” • Select: Props – Hydraulic Conductivity • Select: Props – Property Values – Database • Enter: • Zone 1: • Kx = 432 m/d • Ky = 432 m/d • Kz = 43.2 m/d • Zone 2: • Kx = 86.4 m/d • Ky = 86.4 m/d • Kz = 8.64 m/d

  11. Storage/Porosity • Select: Props – Storage/Porosity • Select: Props – Property Values – Database • Enter: • Zone 1 and Zone 2: • Ss = 0.0001 • Sy = 0.15 • Porosity = 0.15

  12. Leakance • Select: Props – Leakance • Select: Props – Property Values – Database • Enter: • Zone 1 and Zone 2: • Leakance = 864 m/day

  13. Monitoring Wells • Select: AE  Well • Select: Row 15, Column 24 • Select: Top layer = 1, and Bottom Layer = 2 • Change: Pumping rate = 0.0 • Check box: Monitor Head/Concentration vs. Time • Select: Well Name button • Enter MW-1 • Select: OK Add another Monitoting Well (MW-2) in cell (15, 18)

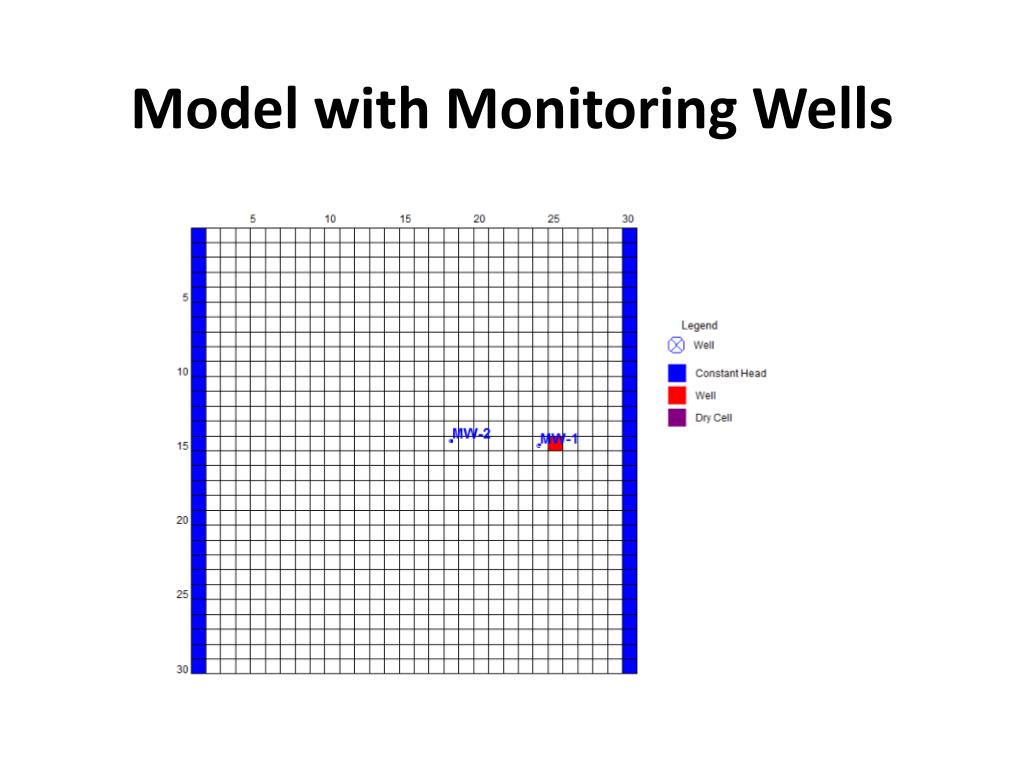

  14. Model with Monitoring Wells

  15. Run Simulation • Select: Calculator button • Would you like to process the results? Select: Yes • Select: Cell-by-cell flows

  16. Switching Between Time Steps • There are several options that allow switching between time steps in a transient run: • Import Results (Plot->Import Results) Ctrl+Shift+I • Next Time Step (Plot->Next Time Step) Ctrl+Shift+N • Previous Time Step (Plot->Previous Time Step) Ctrl+Shift+P • Selecting the next time step will bring in the next set of heads, drawdowns, and cell-by-cell flows

  17. Results – Stress Period 12

  18. Monitoring Wells Row 7 Column 9 • Select: Plot – Hydrograph - Monitoring Well • Select: Your Monitoring Wells Row 2 Column 9
