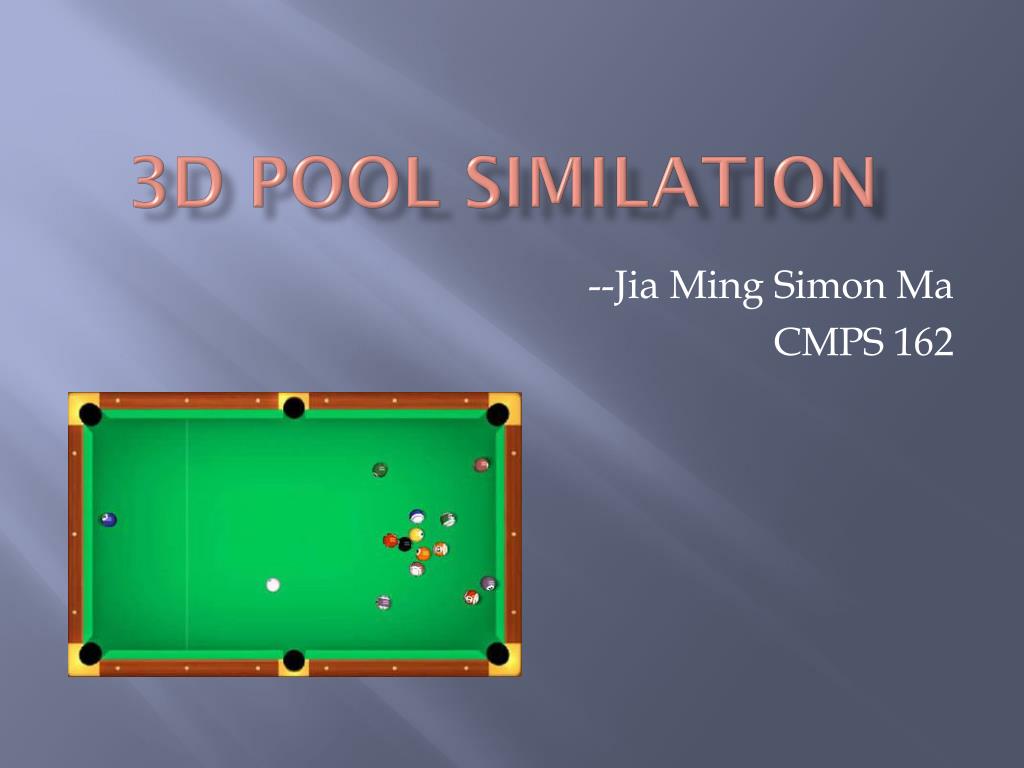

  1. 3D Pool similation --Jia Ming Simon Ma CMPS 162

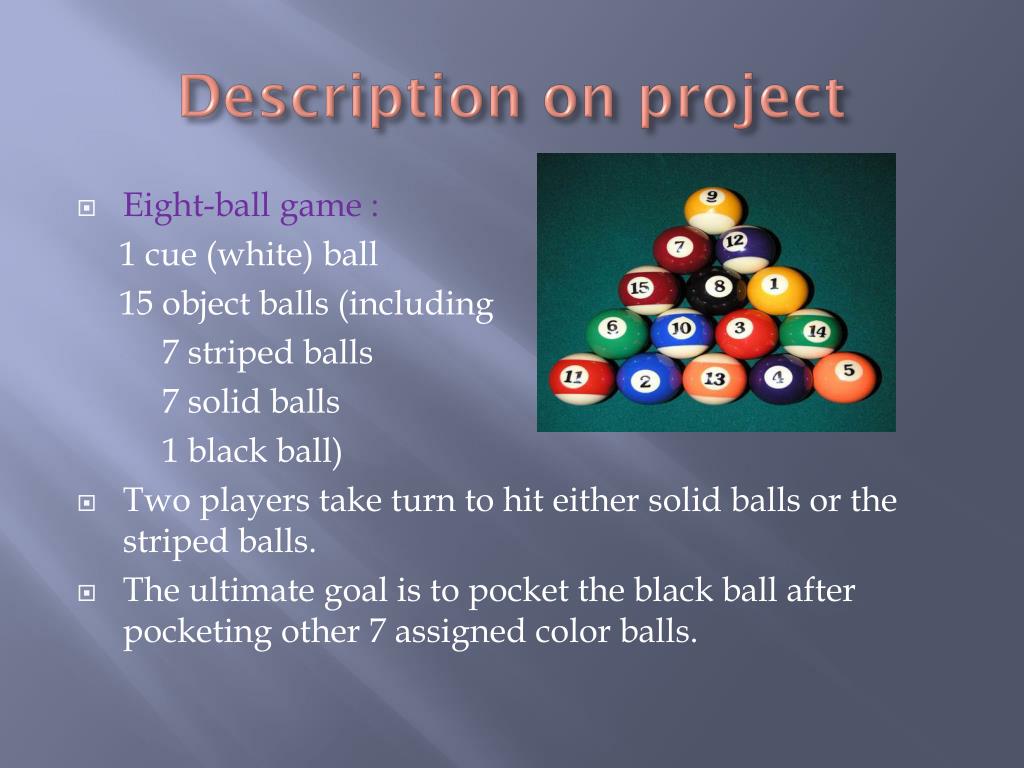

  2. Description on project • Eight-ball game : 1 cue (white) ball 15 object balls (including 7 striped balls 7 solid balls 1 black ball) • Two players take turn to hit either solid balls or the striped balls. • The ultimate goal is to pocket the black ball after pocketing other 7 assigned color balls.

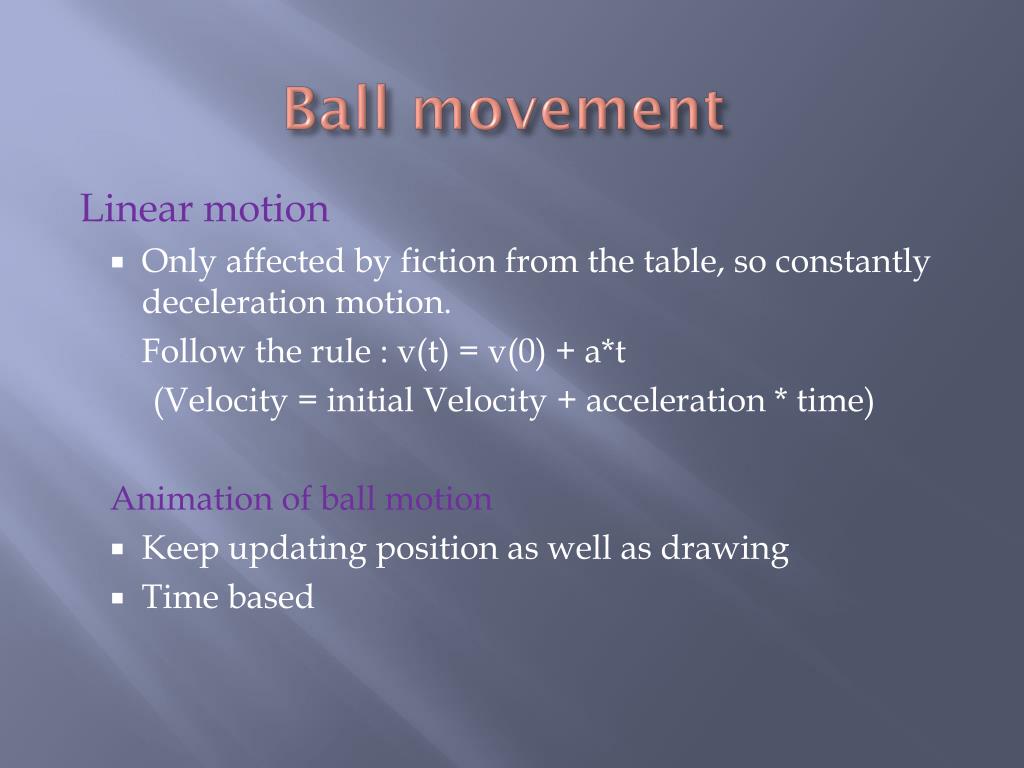

  3. Ball movement Linear motion • Only affected by fiction from the table, so constantly deceleration motion. Follow the rule : v(t) = v(0) + a*t (Velocity = initial Velocity + acceleration * time) Animation of ball motion • Keep updating position as well as drawing • Time based

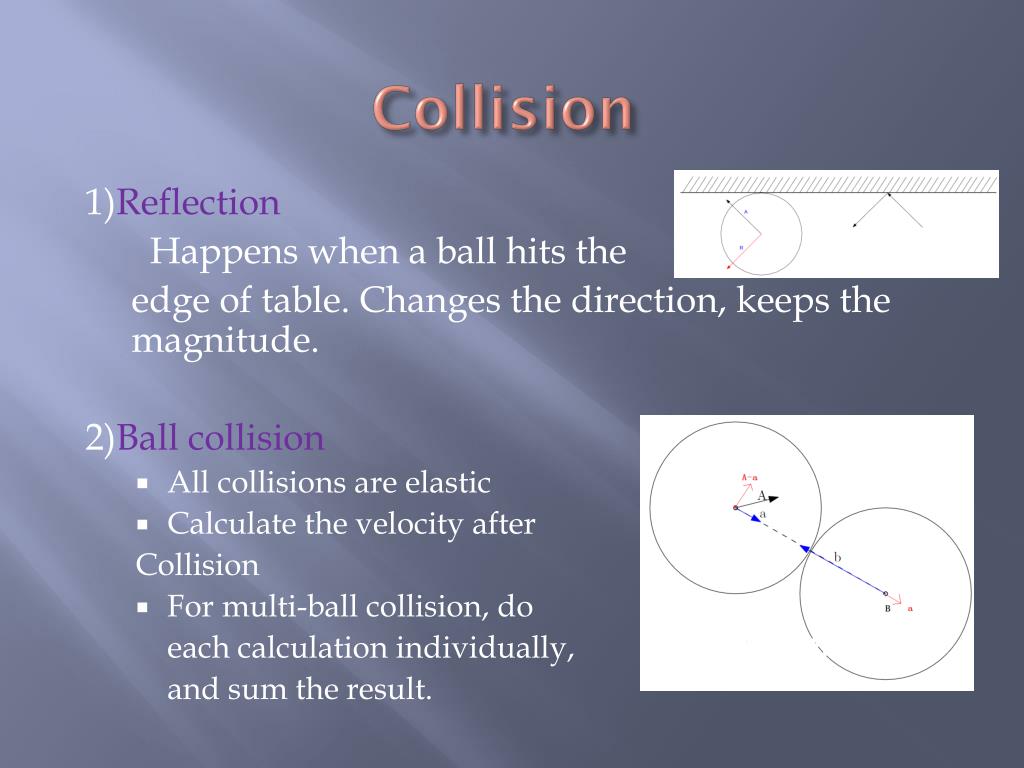

  4. Collision 1)Reflection Happens when a ball hits the edge of table. Changes the direction, keeps the magnitude. 2)Ball collision • All collisions are elastic • Calculate the velocity after Collision • For multi-ball collision, do each calculation individually, and sum the result.

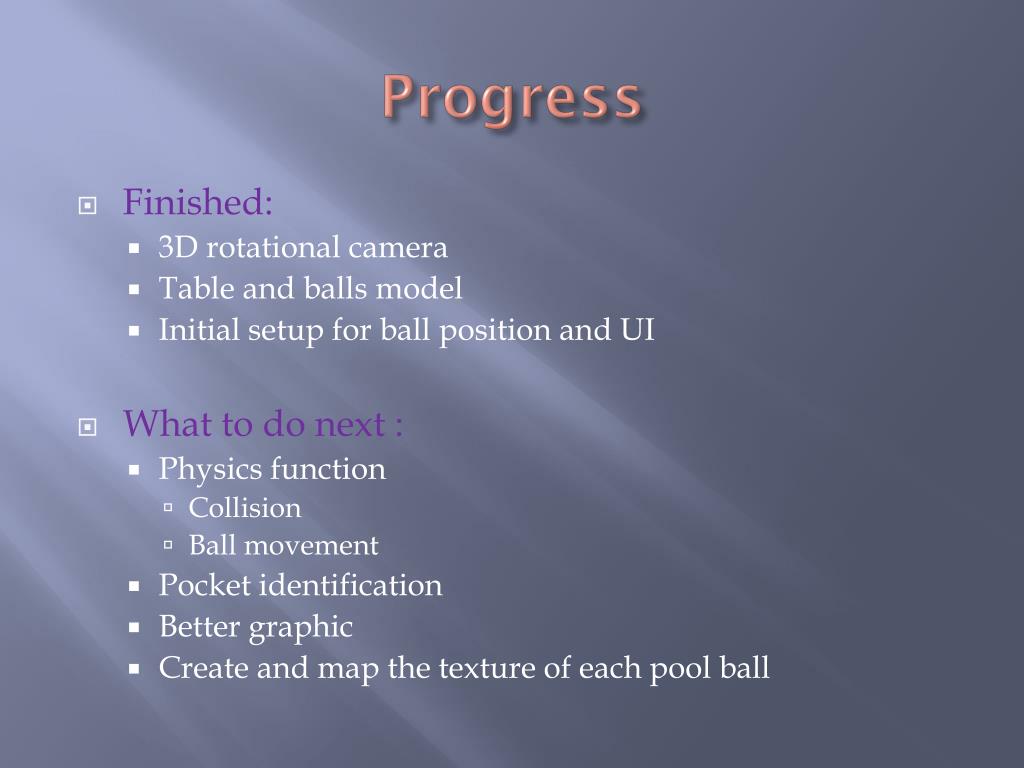

  5. Progress • Finished: • 3D rotational camera • Table and balls model • Initial setup for ball position and UI • What to do next : • Physics function • Collision • Ball movement • Pocket identification • Better graphic • Create and map the texture of each pool ball
