Exception

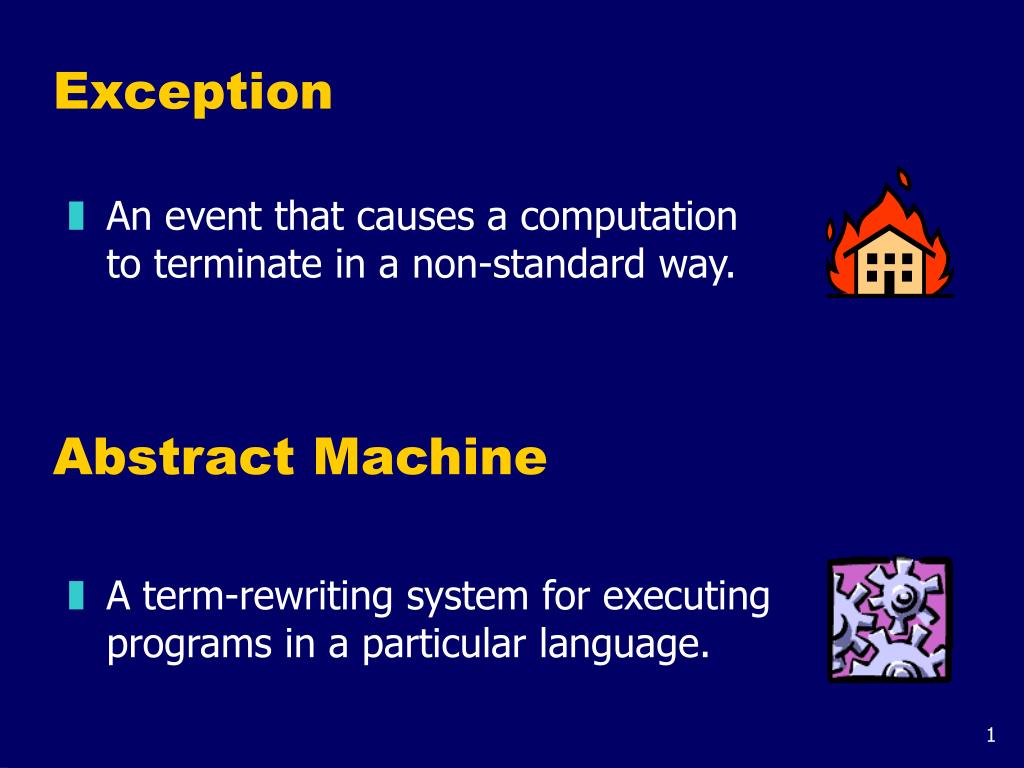

2. Exception • An event that causes a computation to terminate in a non-standard way. Abstract Machine • A term-rewriting system for executing programs in a particular language.

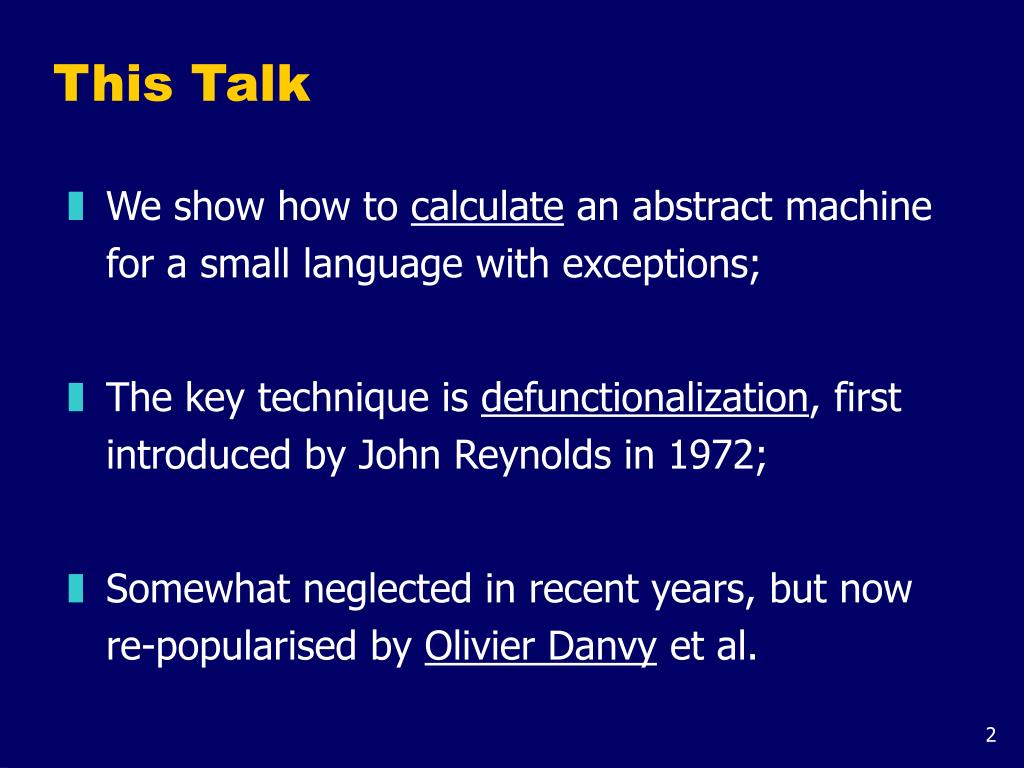

3. This Talk • We show how to calculate an abstract machine for a small language with exceptions; • The key technique is defunctionalization, first introduced by John Reynolds in 1972; • Somewhat neglected in recent years, but now re-popularised by Olivier Danvy et al.

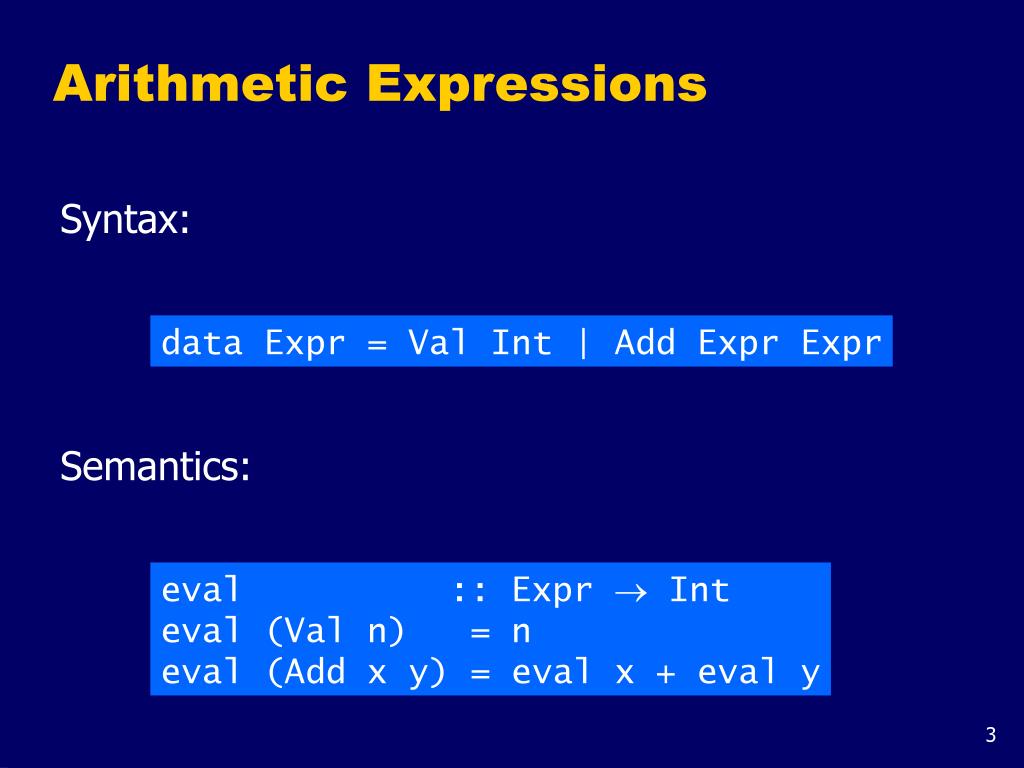

4. Arithmetic Expressions Syntax: data Expr = Val Int | Add Expr Expr Semantics: eval :: Expr  Int eval (Val n) = n eval (Add x y) = eval x + eval y

5. Step 1 - Add Continuations Make the evaluation order explicit, by rewriting the semantics in continuation-passing style. Definition: A continuation is a function that is applied to the result of another computation.

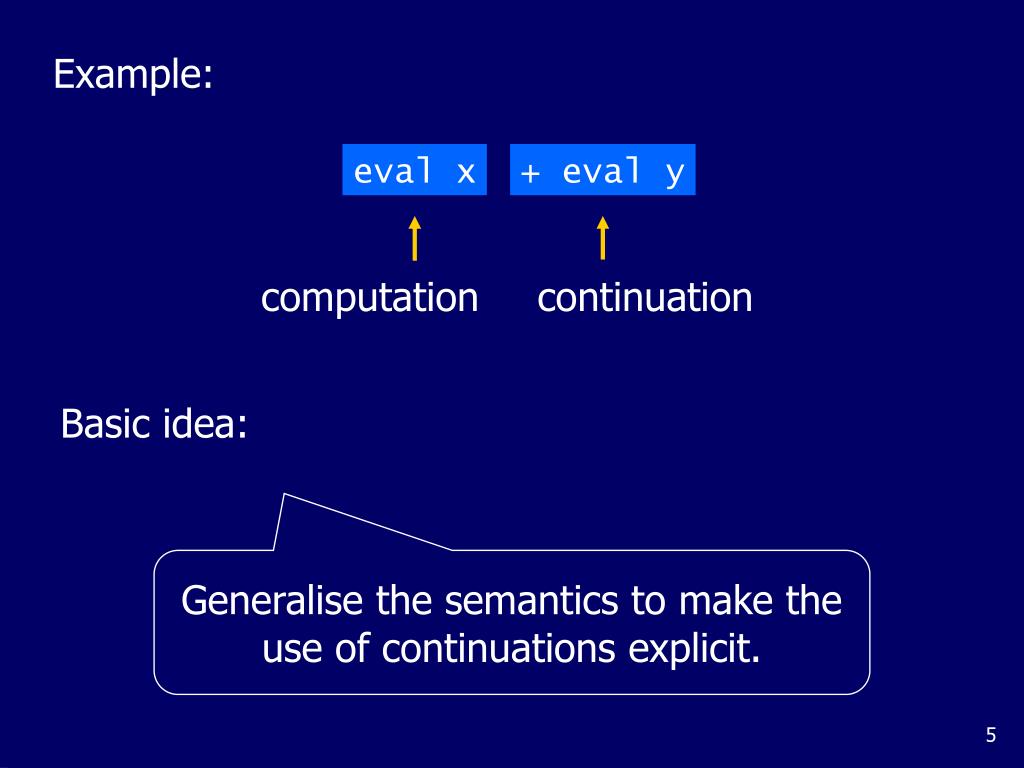

6. eval x + eval y computation continuation Example: Basic idea: Generalise the semantics to make the use of continuations explicit.

7. Aim: define a new semantics eval’ :: Expr  (Int  Int)  Int such that eval’ e c = c (eval e) and hence eval e = eval’ e (n  n)

8. = c (eval (Add x y)) = c (eval x + eval y) = (n  c (n + eval y)) (eval x) = eval’ x (n  c (n + eval y)) = eval’ x (n  (m  c (n+m)) (eval y)) = eval’ x (n  eval’ y (m  c (n+m)) Case: e = Add x y eval’ (Add x y) c c (eval (Add x y)) c (eval x + eval y) (n  c (n + eval y)) (eval x) eval’ x (n  c (n + eval y)) eval’ x (n (m  c (n+m)) (eval y))

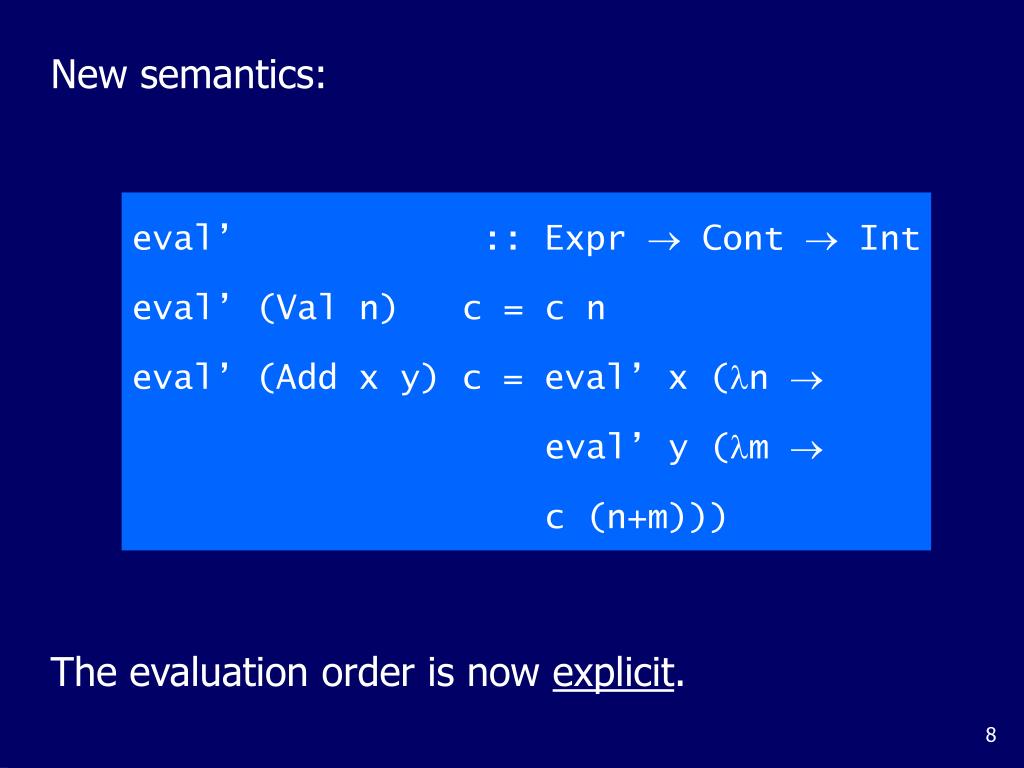

9. New semantics: eval’ :: Expr  Cont  Int eval’ (Val n) c = c n eval’ (Add x y) c = eval’ x (n  eval’ y (m  c (n+m))) The evaluation order is now explicit.

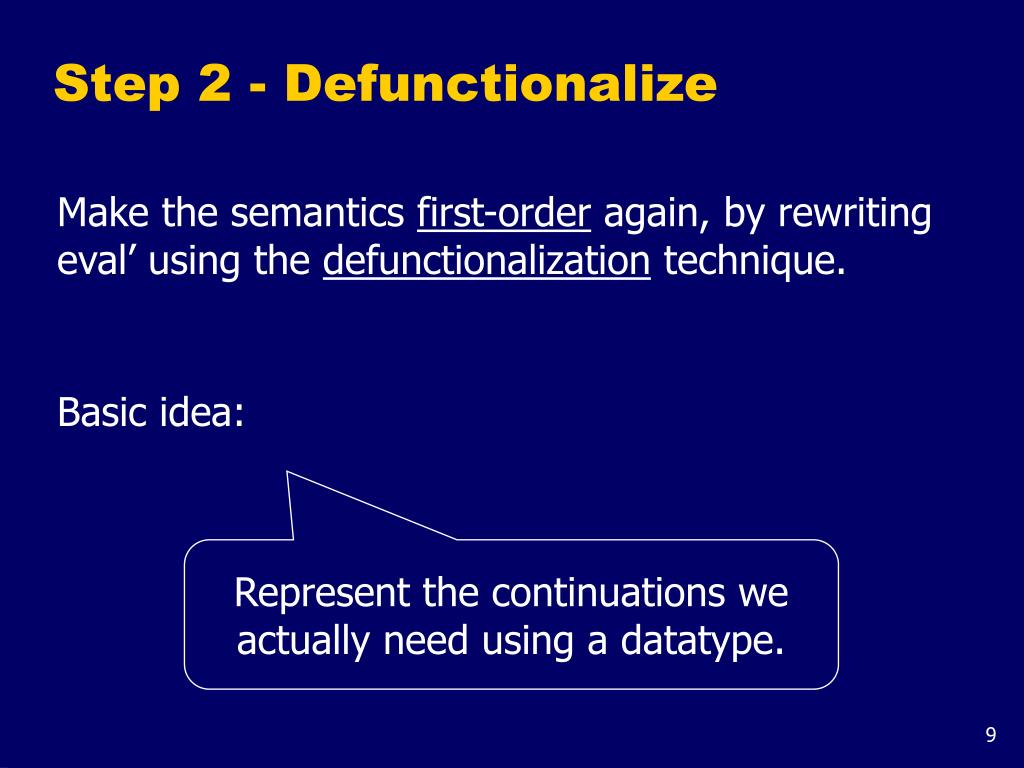

10. Step 2 - Defunctionalize Make the semantics first-order again, by rewriting eval’ using the defunctionalization technique. Basic idea: Represent the continuations we actually need using a datatype.

11. Continuations: eval :: Expr  Int eval e = eval’ e (n  n) (n  n) eval’ :: Expr  Cont  Int eval’ (Val n) c = c n eval’ (Add x y) c = eval’ x (n  eval’ y (m  c (n+m))) (n  eval’ y (m  c (n+m))) (m  c (n+m))

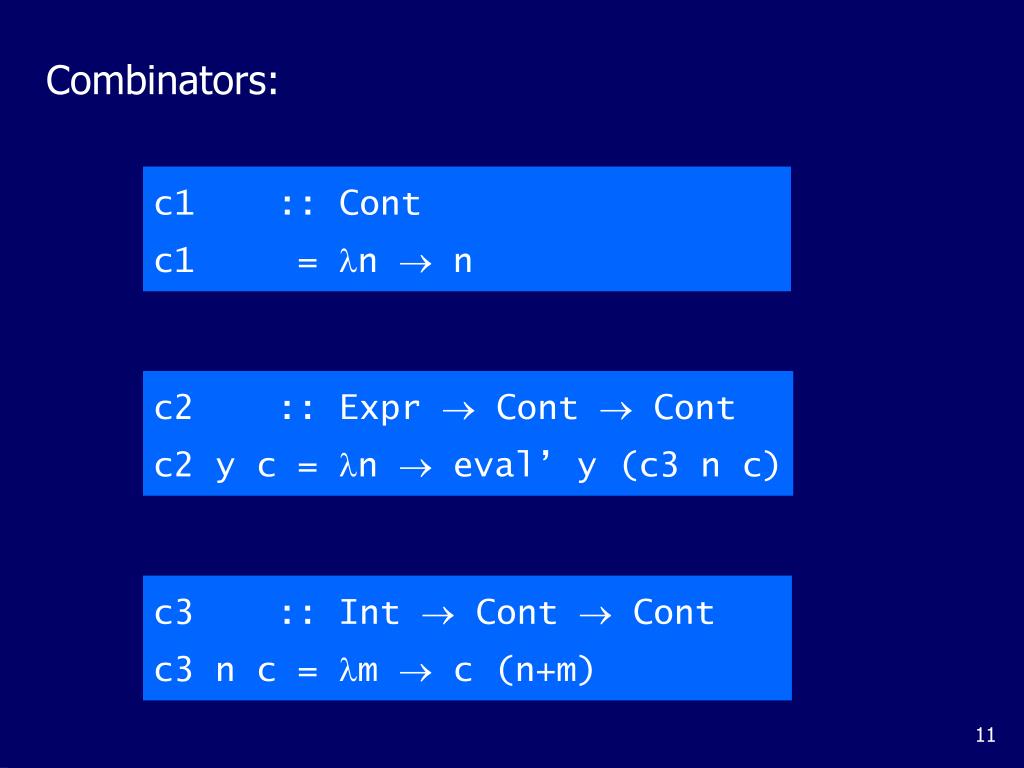

12. Combinators: c1 :: Cont c1 = n  n c2 :: Expr  Cont  Cont c2 y c = n  eval’ y (c3 n c) c3 :: Int  Cont  Cont c3 n c = m  c (n+m)

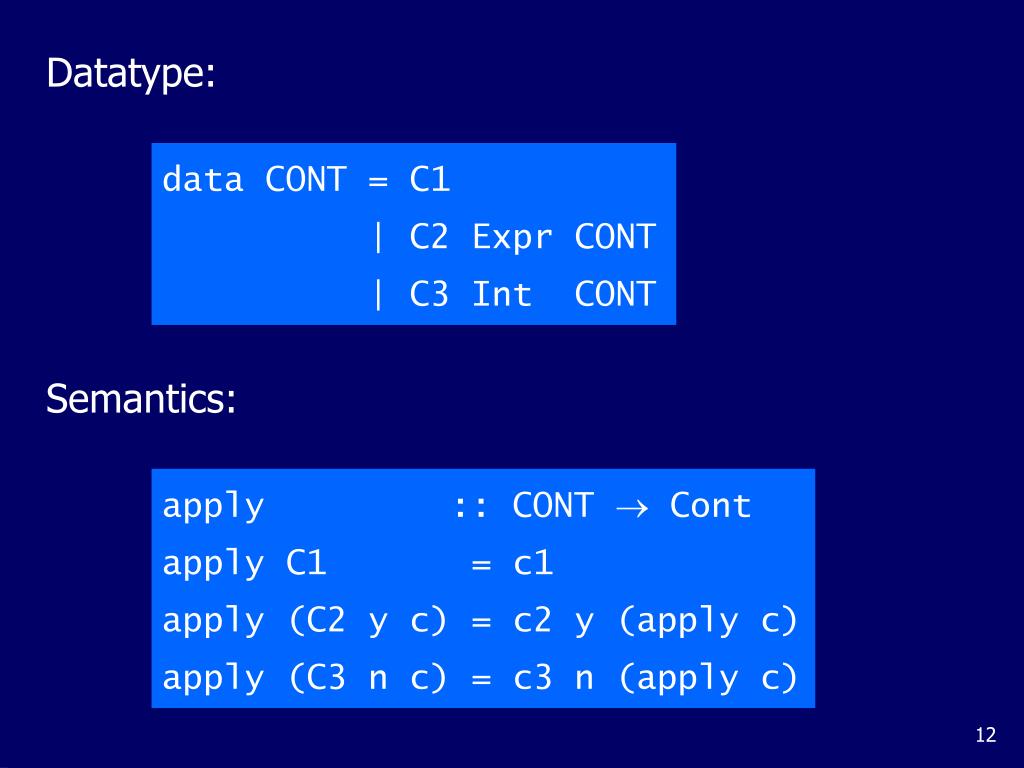

13. Datatype: data CONT = C1 | C2 Expr CONT | C3 Int CONT Semantics: apply :: CONT  Cont apply C1 = c1 apply (C2 y c) = c2 y (apply c) apply (C3 n c) = c3 n (apply c)

14. Aim: define a function eval’’ :: Expr  CONT  Int such that eval’’ e c = eval’ e (apply c) and hence eval e = eval’’ e C1

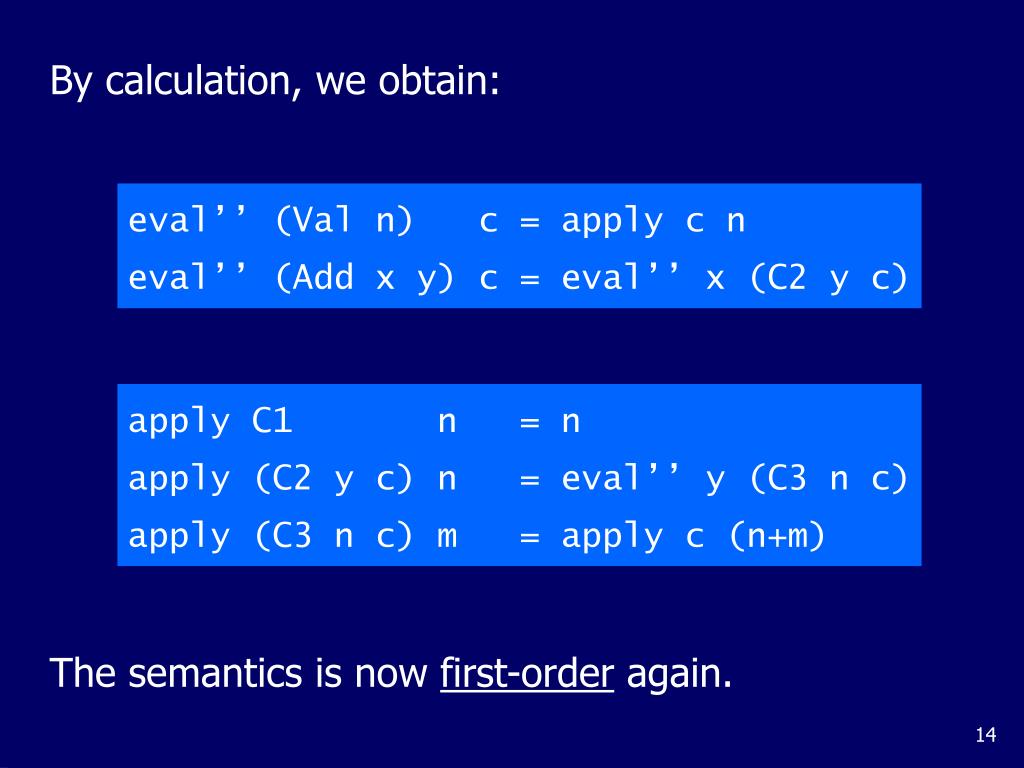

15. By calculation, we obtain: eval’’ (Val n) c = apply c n eval’’ (Add x y) c = eval’’ x (C2 y c) apply C1 n = n apply (C2 y c) n = eval’’ y (C3 n c) apply (C3 n c) m = apply c (n+m) The semantics is now first-order again.

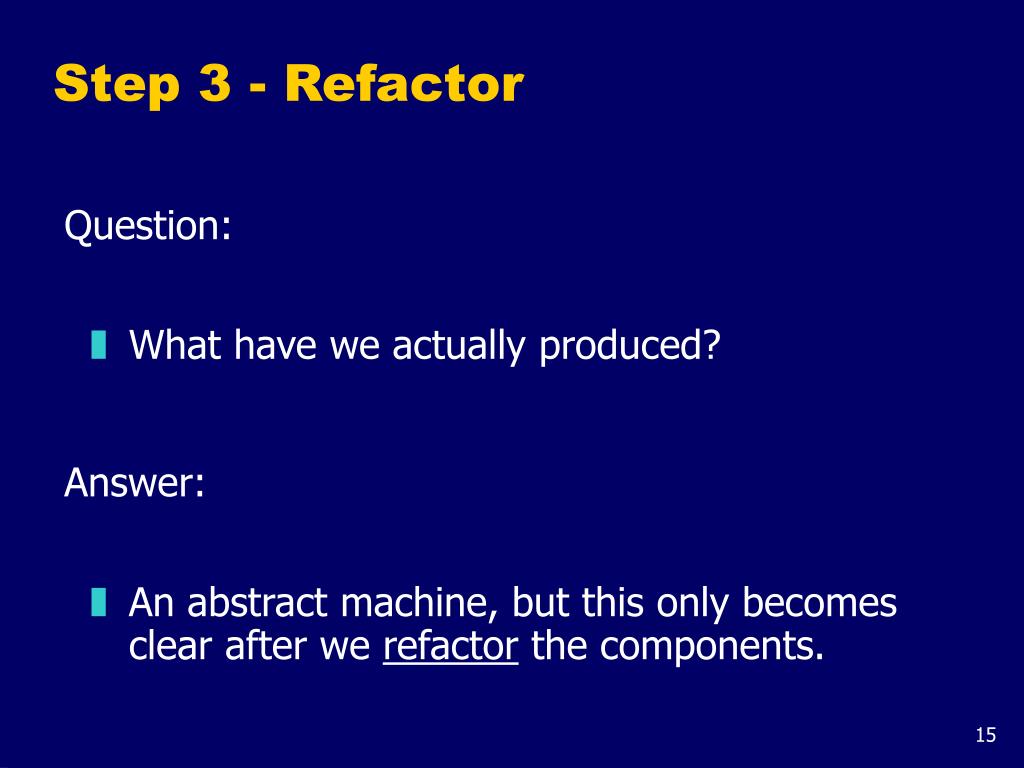

16. Step 3 - Refactor Question: • What have we actually produced? Answer: • An abstract machine, but this only becomes clear after we refactor the components.

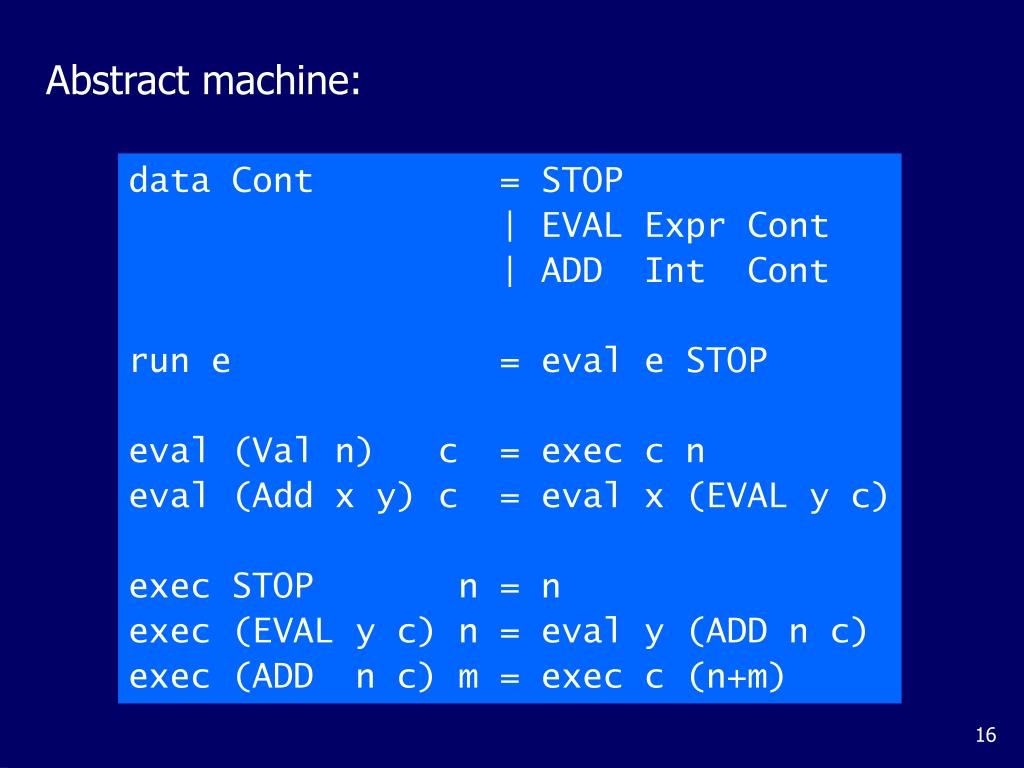

17. Abstract machine: data Cont = STOP | EVAL Expr Cont | ADD Int Cont run e = eval e STOP eval (Val n) c = exec c n eval (Add x y) c = eval x (EVAL y c) exec STOP n = n exec (EVAL y c) n = eval y (ADD n c) exec (ADD n c) m = exec c (n+m)

18. = eval (Add (Val 1) (Val 2)) STOP = eval (Val 1) (EVAL (Val 2) STOP) = exec (EVAL (Val 2) STOP) 1 = eval (Val 2) (ADD 1 STOP) = exec (ADD 1 STOP) 2 = exec 3 STOP = 3 Example: run (Add (Val 1) (Val 2))

19. Adding Exceptions Syntax: data Expr = ••• | Throw | Catch Expr Expr Semantics: eval :: Expr  Maybe Int eval (Val n) = Just n eval (Throw) = Nothing eval (Add x y) = eval xeval y eval (Catch x y) = eval x  eval y

20. Step 1 - Add Continuations Make evaluation order explicit. Step 2 - Defunctionalize Make first-order once again. Step 3 - Refactor Reveal the abstract machine.

21. Control stack: data Cont = STOP | EVAL Expr Cont | ADD Int Cont | HAND Expr Cont Evaluating an expression: eval :: Expr  Cont  Maybe Int eval (Val n) c = exec c n eval (Throw) c = unwind c eval (Add x y) c = eval x (EVAL y c) eval (Catch x y) c = eval x (HAND y c)

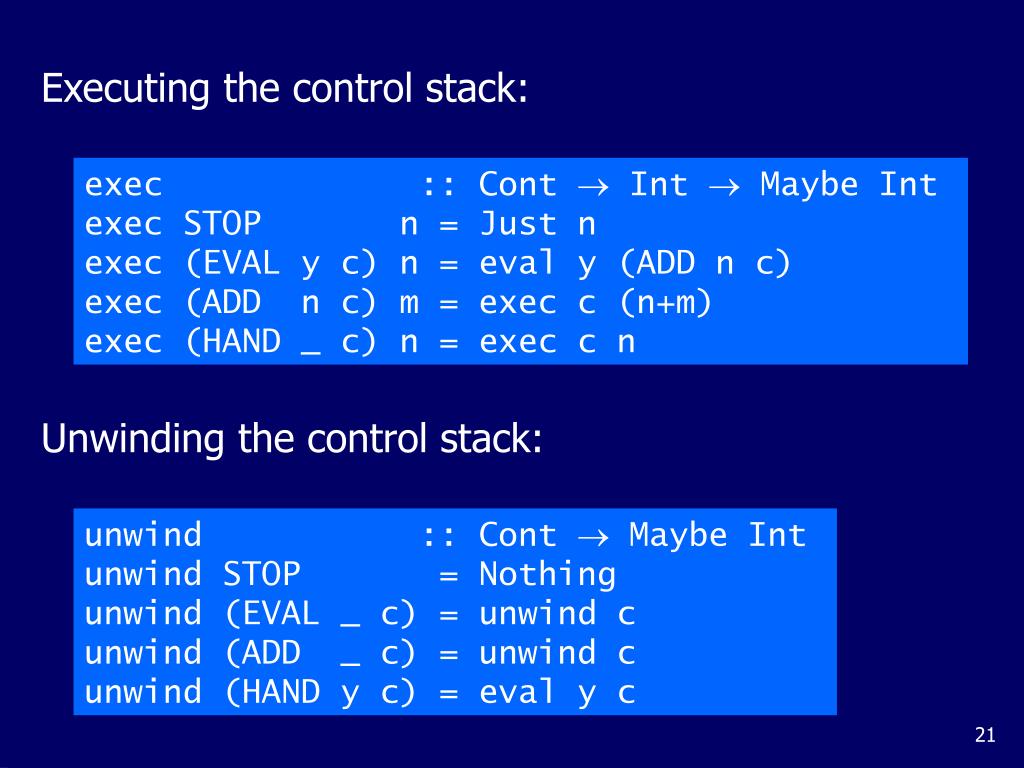

22. Executing the control stack: exec :: Cont  Int  Maybe Int exec STOP n = Just n exec (EVAL y c) n = eval y (ADD n c) exec (ADD n c) m = exec c (n+m) exec (HAND _ c) n = exec c n Unwinding the control stack: unwind :: Cont  Maybe Int unwind STOP = Nothing unwind (EVAL _ c) = unwind c unwind (ADD _ c) = unwind c unwind (HAND y c) = eval y c

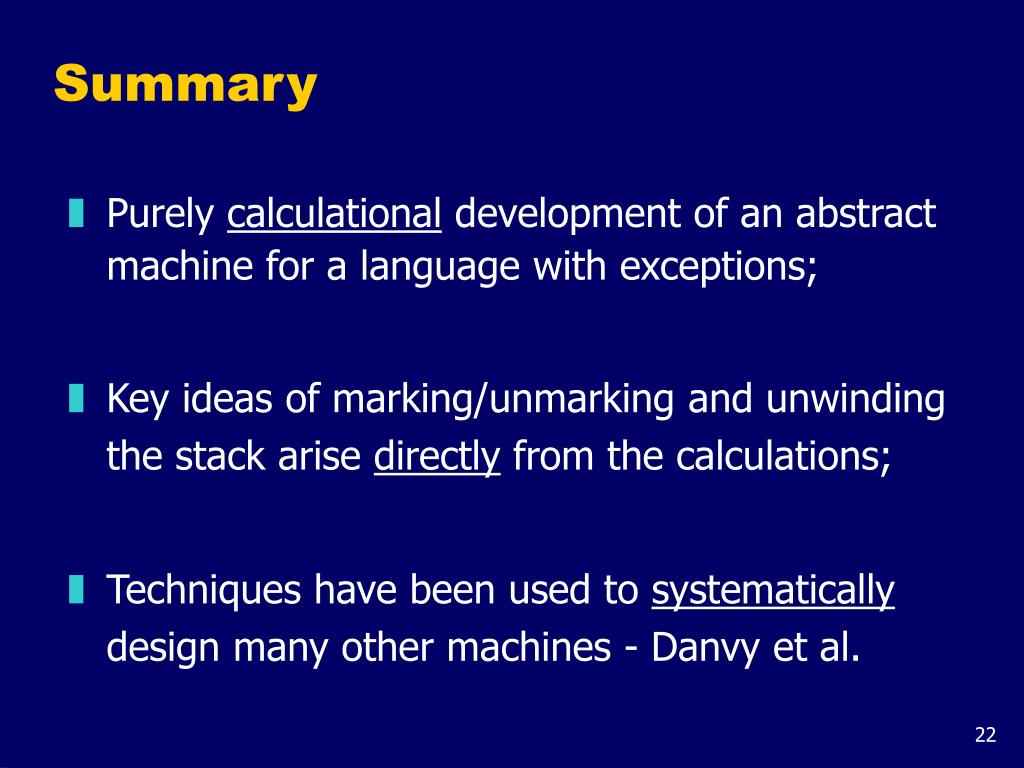

23. Summary • Purely calculational development of an abstract machine for a language with exceptions; • Key ideas of marking/unmarking and unwinding the stack arise directly from the calculations; • Techniques have been used to systematically design many other machines - Danvy et al.

24. Further Work • Exploiting monads and folds; • Reasoning about efficiency; • Generalising the language; • Calculating a compiler.
