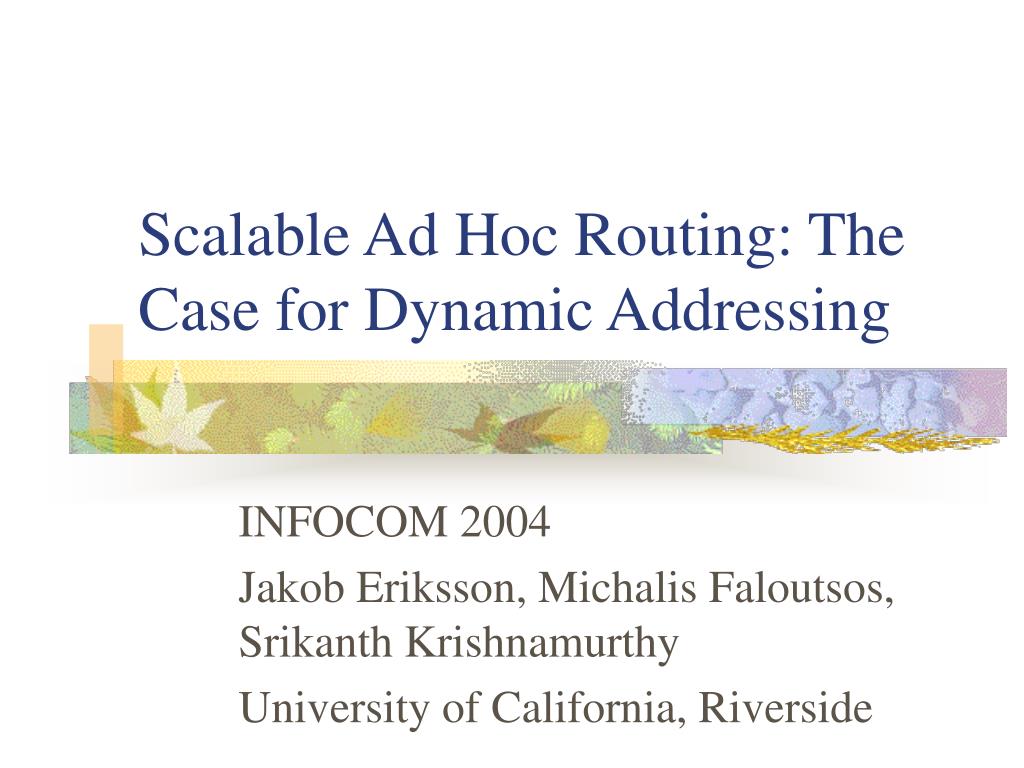

  1. Scalable Ad Hoc Routing: The Case for Dynamic Addressing INFOCOM 2004 Jakob Eriksson, Michalis Faloutsos, Srikanth Krishnamurthy University of California, Riverside

  2. Introduction • Why dynamic addressing? • Address equals to identity is impropriate in ad hoc (especially mobility) networks • Dynamic addressing in ad hoc network: • How to allocate address? • How to route? • How to perform node lookup? • The methods should be: • Localize overhead • Avoid centralized protocols or special nodes • Minimize manual configuration

  3. Terminologies • Identifier: globally unique • Address: changes with node movement • Address tree: the address space can be viewed as the leaves of a binary tree • Address subtree: a range of addresses with a common prefix • Level-k sibling

  4. xxx 0xx 1xx L2 11x 00x 01x 10x L1 011 111 000 001 010 100 101 110 L0 Example of address tree, address subtree, and level-k sibling

  5. 1. B joins via A 2. C joins via B xxx 3. D joins via A 0xx 1xx 00x 01x 10x 11x A B C D 000 010 100 110 Address allocation • The responding node splits its controlling address into half

  6. A B S 100 011 010 D C E 101 000 001 xxx 1xx 0xx 00x 01x 10x 11x 000 001 010 011 100 101 110 111 D C A B S E - - Characteristics of the method • Level-0 sibling:physically connected directly • The leaves of the same subtree: form a physically connected sub-graph Node S enters the networks through node D, should these two nodes be physically connected?

  7. xxx 1xx 0xx 10x 11x 101 100 Routing • A node keeps one entry for each level-i sibling in its routing table

  8. A B S 100 011 010 D C E 101 000 001 xxx 1xx 0xx 00x 01x 10x 11x 000 001 010 011 100 101 110 111 D C A B S E - - Routing example

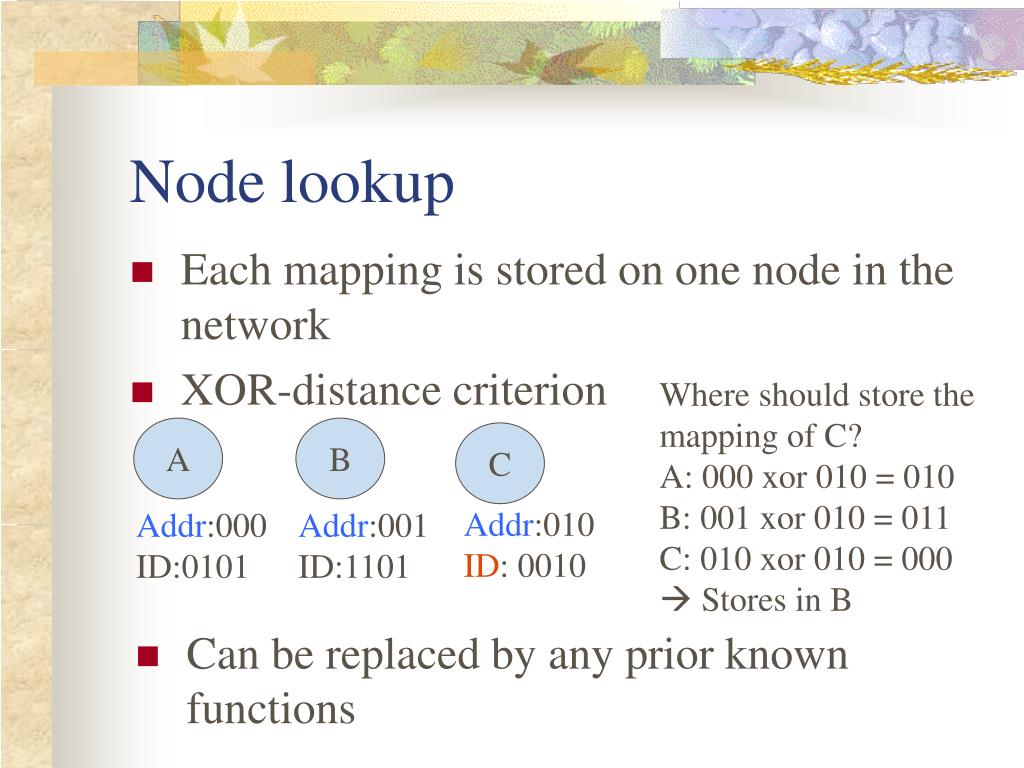

  9. A B C Addr:000 ID:0101 Addr:001 ID:1101 Addr:010 ID: 0010 Node lookup • Each mapping is stored on one node in the network • XOR-distance criterion Where should store the mapping of C? A: 000 xor 010 = 010 B: 001 xor 010 = 011 C: 010 xor 010 = 000  Stores in B • Can be replaced by any prior known functions

  10. Improvements in node moving and lookup entry updates • Challenge: • Lookup entries have to be updated when moving • Improving method: • Use xor-distance criterion with 1 or more of the most significant bits removed • Choose a local node that fits the criterion

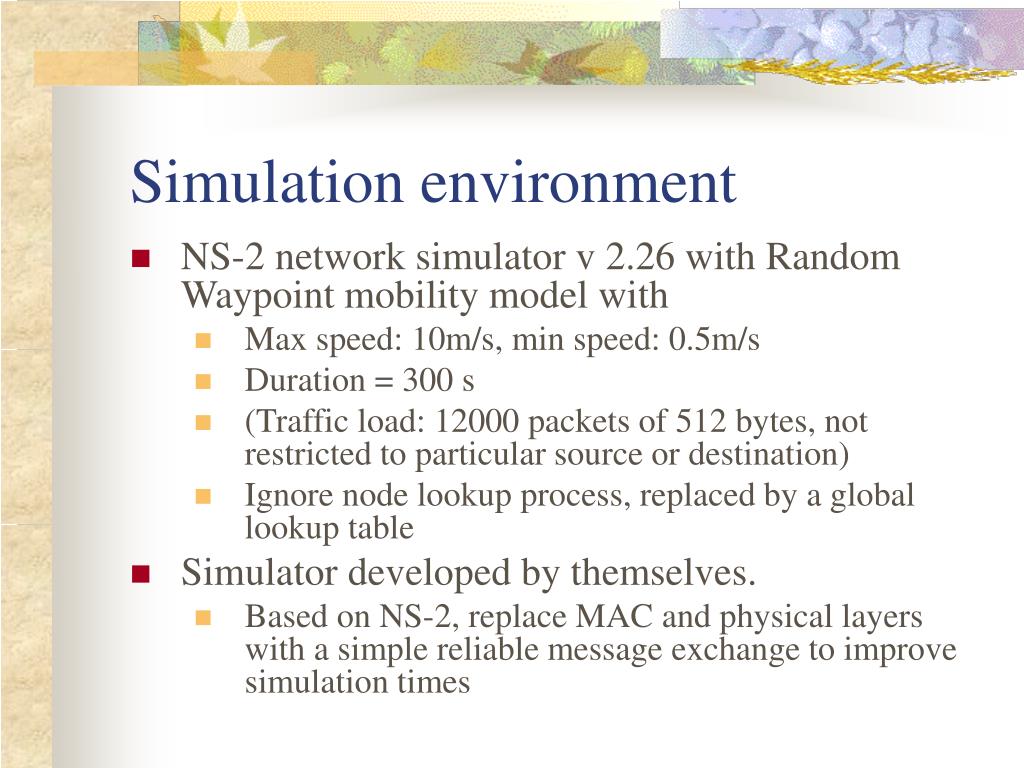

  11. Simulation environment • NS-2 network simulator v 2.26 with Random Waypoint mobility model with • Max speed: 10m/s, min speed: 0.5m/s • Duration = 300 s • (Traffic load: 12000 packets of 512 bytes, not restricted to particular source or destination) • Ignore node lookup process, replaced by a global lookup table • Simulator developed by themselves. • Based on NS-2, replace MAC and physical layers with a simple reliable message exchange to improve simulation times

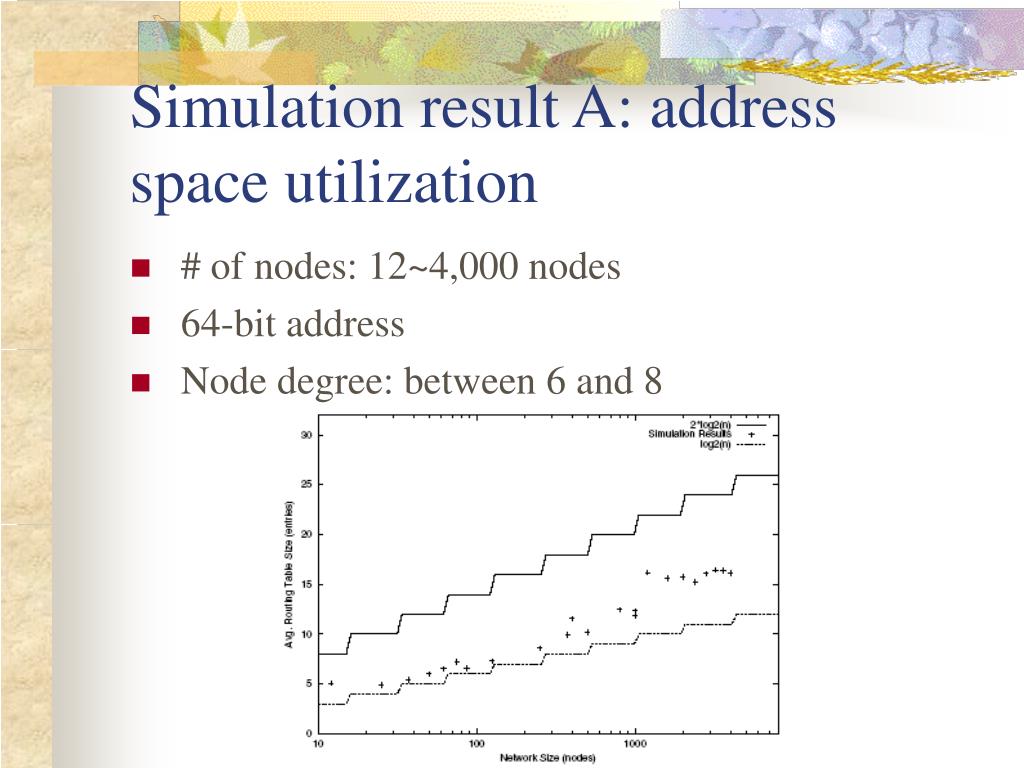

  12. Simulation result A: address space utilization • # of nodes: 12~4,000 nodes • 64-bit address • Node degree: between 6 and 8

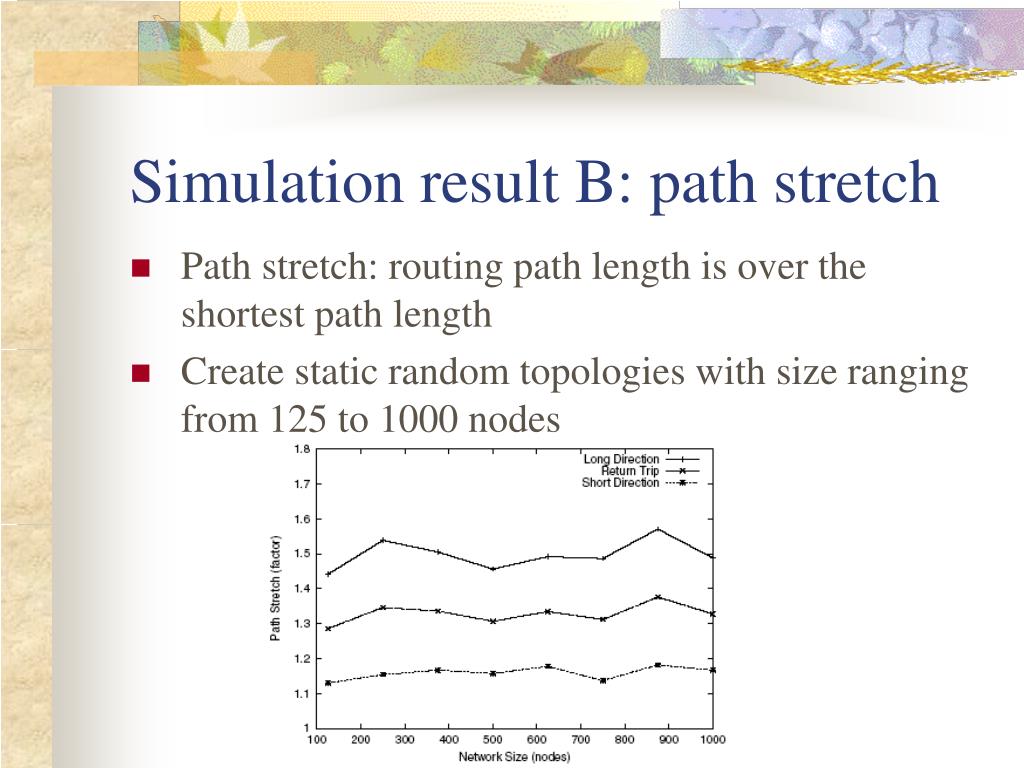

  13. Simulation result B: path stretch • Path stretch: routing path length is over the shortest path length • Create static random topologies with size ranging from 125 to 1000 nodes

  14. Simulation result C: routing scalability • CEF: frequency of connection establishment • Network size: 400 nodes • Connection frequency: ½ to 50 per second

  15. Topology and address allocation • Star-like topology • If the central node has address [000…0], its neighbors will be [100…0], [010…0], [001…0], ... [000…1]. Only l addresses are available • Typical ad hoc networks: not realistic, unless considering natural obstacles • Base station

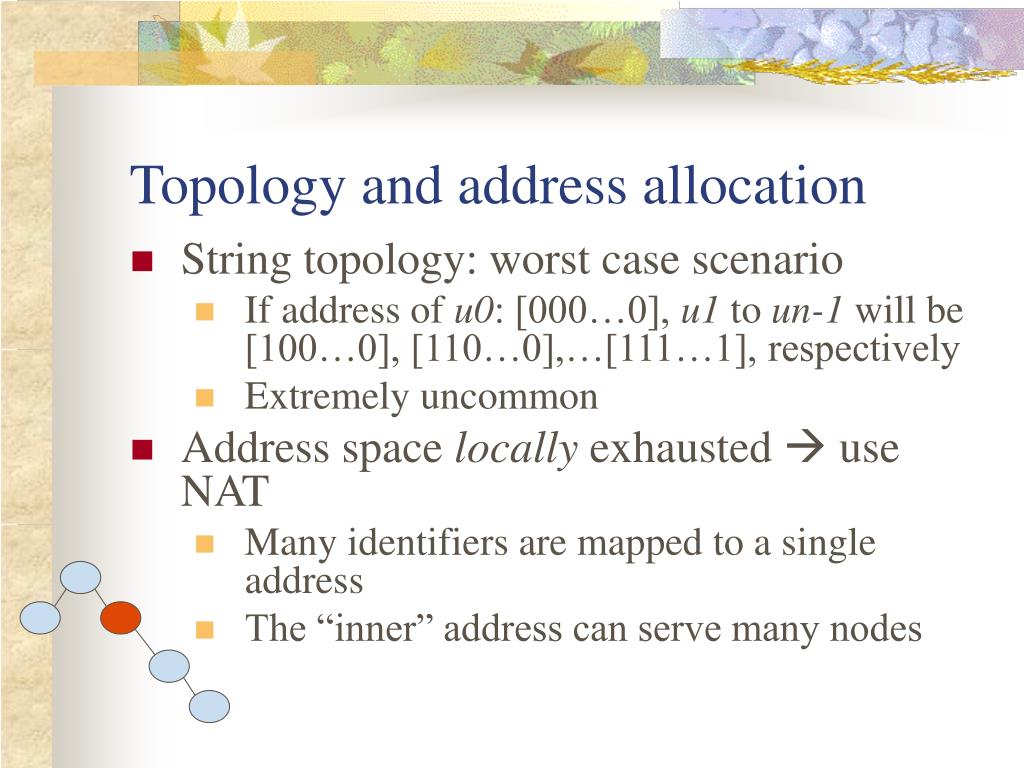

  16. Topology and address allocation • String topology: worst case scenario • If address of u0: [000…0], u1 to un-1 will be [100…0], [110…0],…[111…1], respectively • Extremely uncommon • Address space locally exhausted  use NAT • Many identifiers are mapped to a single address • The “inner” address can serve many nodes

  17. Conclusion • Present methods for dynamic addressing • Distinguish id and address • Routing complexity: O(logN), not based on flooding or broadcasting • No manual configuration • No need for central servers or geographical information (GPS)

  18. Pre-reading advice • J. Eriksson, M. Faloutsos, and S. Krishnamurthy, Peernet: Pushing peer-2-peer down the stack. in IPTPS, 2003
