  1. AGRULINE TRENCHLESS INSTALLATION

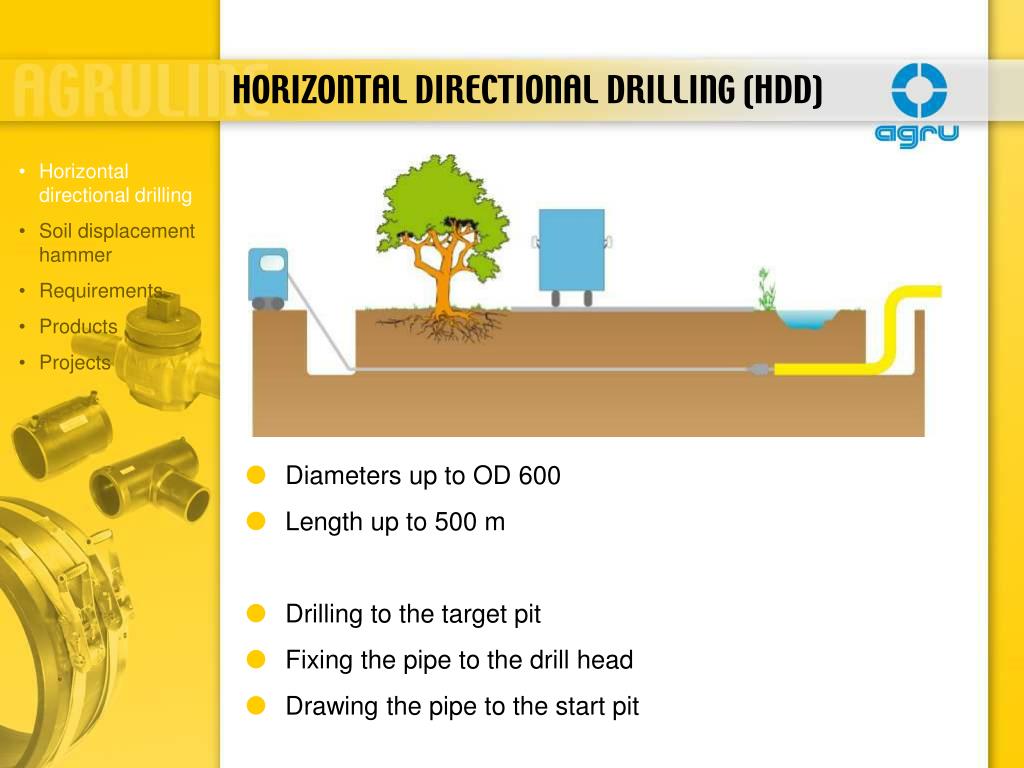

  2. HORIZONTAL DIRECTIONAL DRILLING (HDD) • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects • Diameters up to OD 600 • Length up to 500 m • Drilling to the target pit • Fixing the pipe to the drill head • Drawing the pipe to the start pit

  3. SOIL DISPLACEMENT HAMMER • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects • Uncontrolled displacement hammer up to DN 150 • Controlled displacement hammer up to OD 63 • Length up to 25 m • Commonly used for house connections

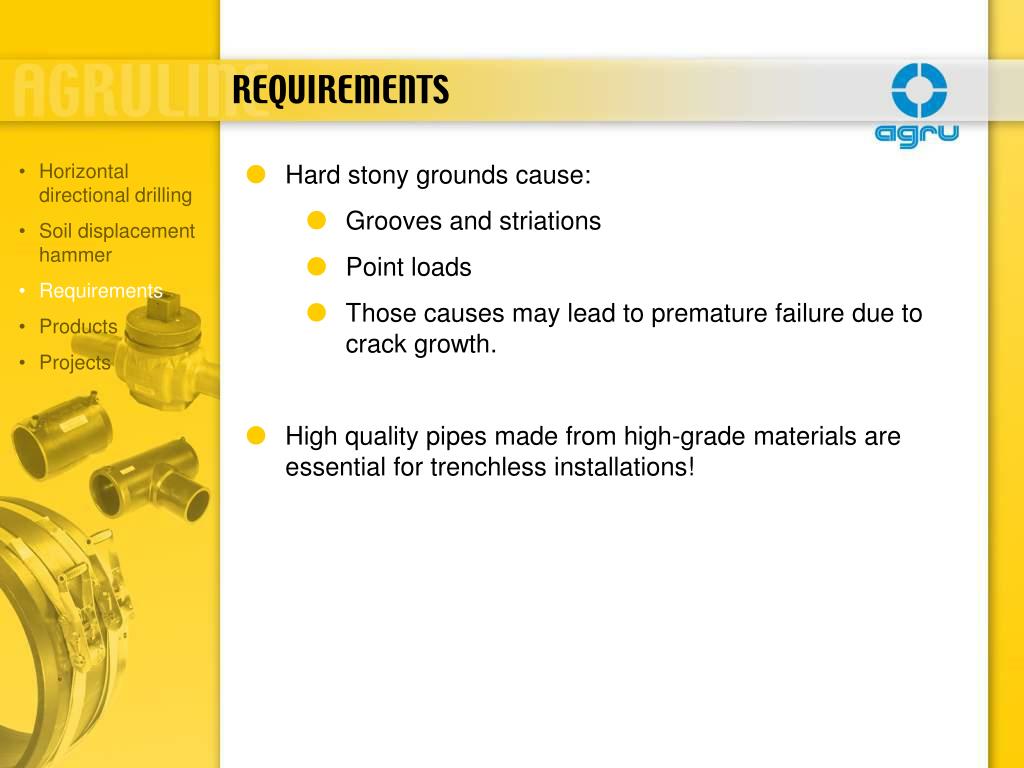

  4. REQUIREMENTS • Hard stony grounds cause: • Grooves and striations • Point loads • Those causes may lead to premature failure due to crack growth. • High quality pipes made from high-grade materials are essential for trenchless installations! • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects

  5. PRODUCTS • Sureline® • made of PE 100-RC • Especially crack resistant • SurePEX • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects

  6. PROJECT: HDD • Bad Hall (A) • Natural gas supply • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects

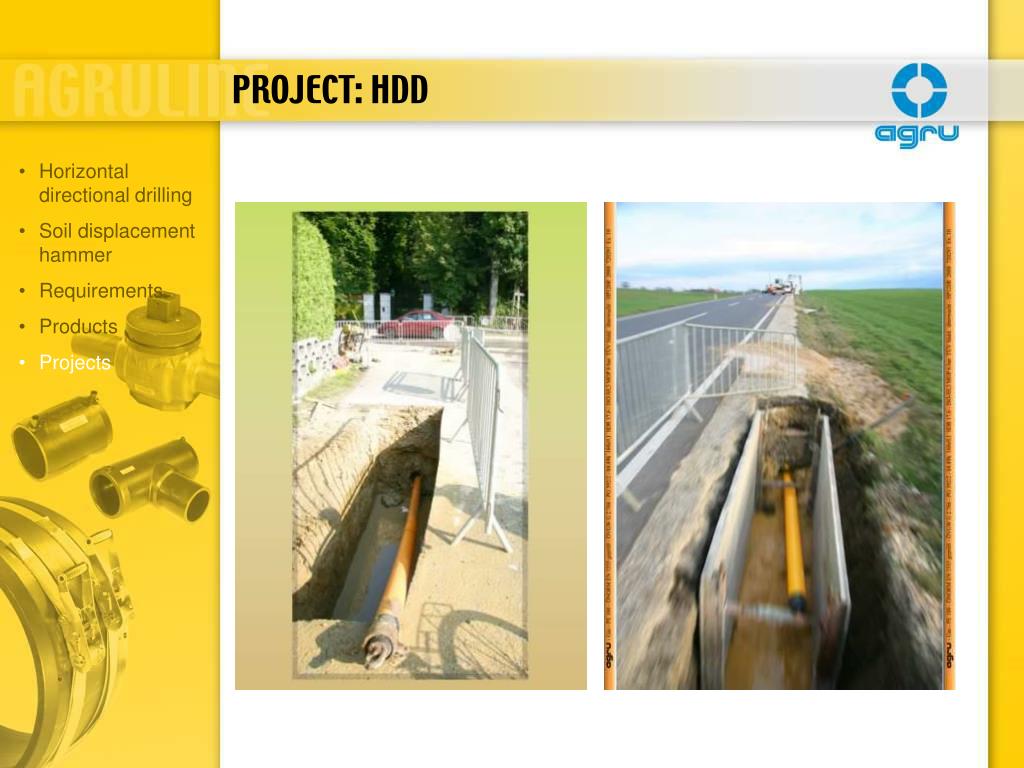

  7. PROJECT: HDD • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects

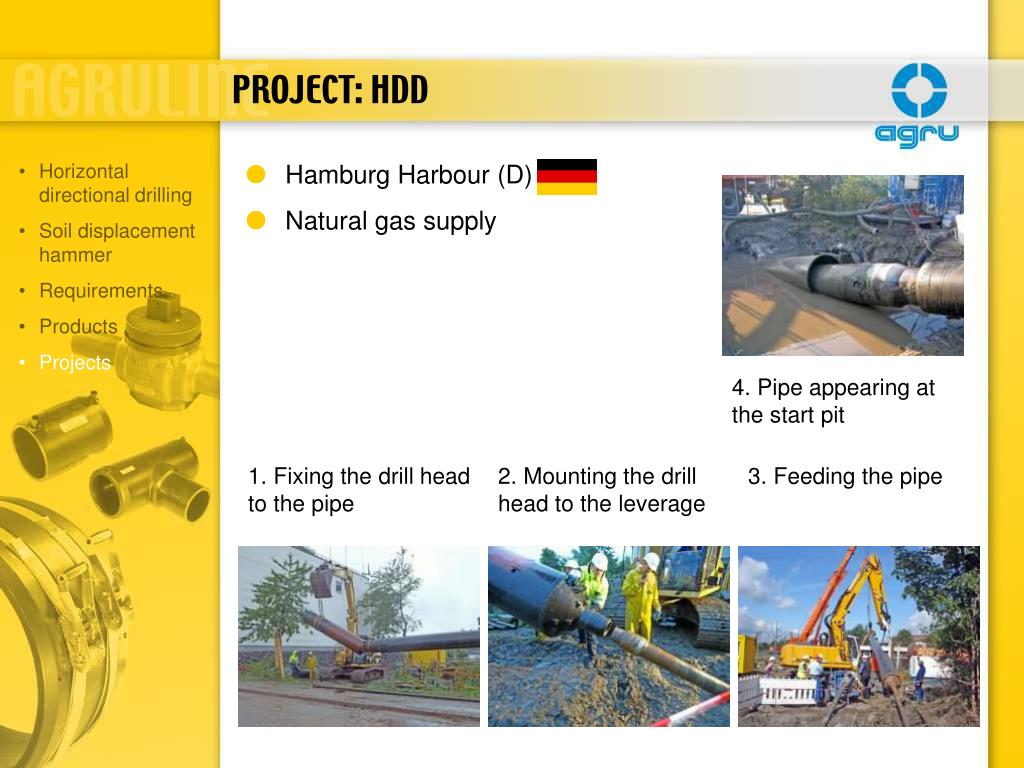

  8. 4. Pipe appearing at the start pit 1. Fixing the drill head to the pipe 2. Mounting the drill head to the leverage 3. Feeding the pipe PROJECT: HDD • Hamburg Harbour (D) • Natural gas supply • Horizontal directional drilling • Soil displacement hammer • Requirements • Products • Projects

  9. T +43 (0) 7258 790 - 0 F+43 (0) 7258 3863 Eoffice@agru.at AGRU Kunststofftechnik GmbH Ing.-Pesendorfer-Str. 31 A-4540 Bad Hall Austria / EU www.agru.at THANKS FOR YOUR ATTENTION Subject to errors of typesetting, misprints and modifications. Illustration are generic and for reference only!
