  1. Wireless Security 802.11 With a focus on Security by Brian Lee Takehiro Takahashi

  2. Survey (1) • Do you have wireless networking at home? • If yes, I’m assuming that it is encrypted…. • What is your security? • WEP • WPA • Mac filtering • I consider my home network as local wireless hotspot • Do you think your wireless network is secure?

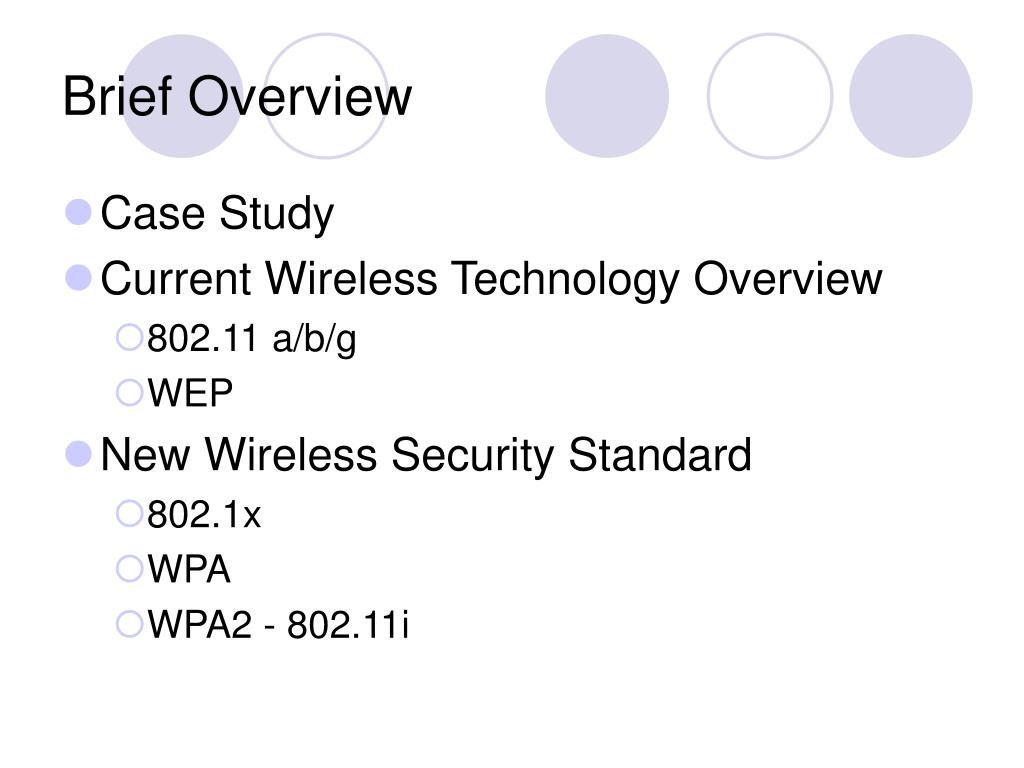

  3. Brief Overview • Case Study • Current Wireless Technology Overview • 802.11 a/b/g • WEP • New Wireless Security Standard • 802.1x • WPA • WPA2 - 802.11i

  4. GOAL • Realize the real problem set and the solution in wireless security.

  5. GOAL • Realize the real problem set and the solution in wireless security. • Exploi… (cough)

  6. So….. Is wireless network secure? • Umm… kind of? • Why is it not secure? • How insecure is it? • Some misunderstanding… • How can we make it secure?

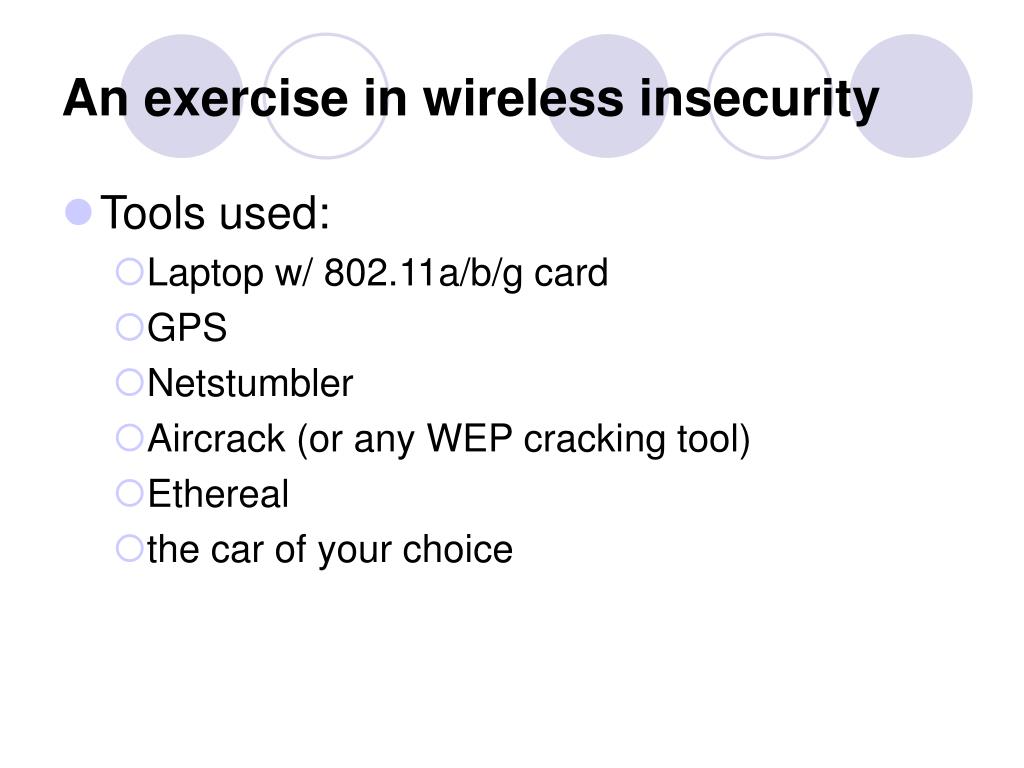

  7. An exercise in wireless insecurity • Tools used: • Laptop w/ 802.11a/b/g card • GPS • Netstumbler • Aircrack (or any WEP cracking tool) • Ethereal • the car of your choice

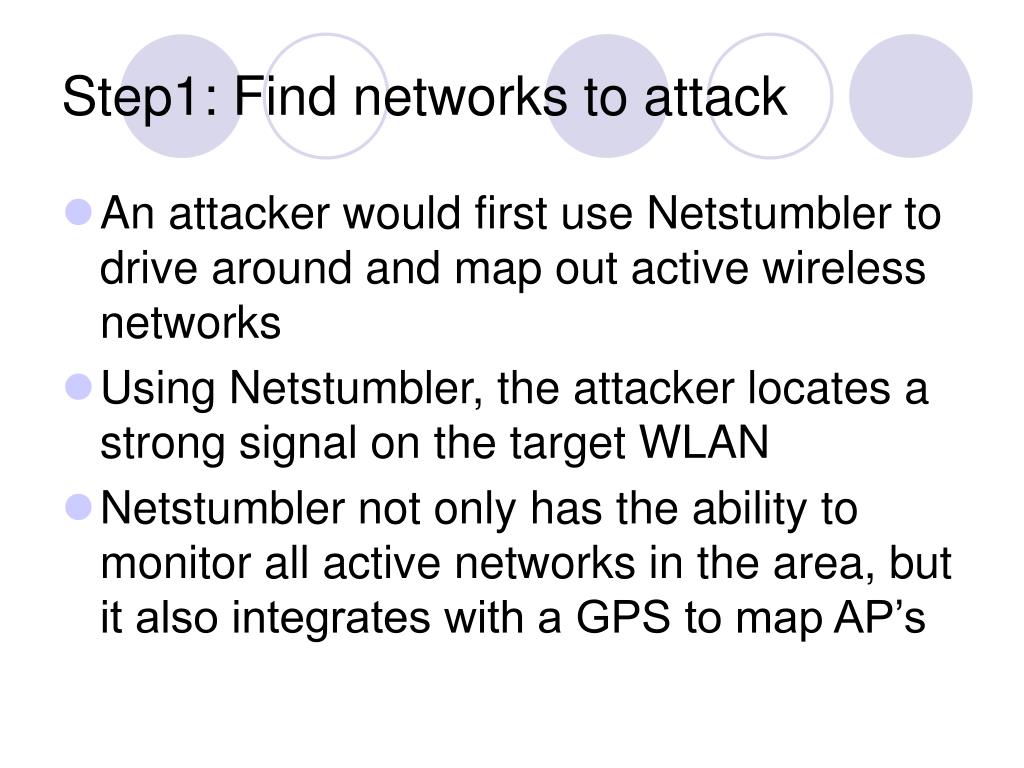

  8. Step1: Find networks to attack • An attacker would first use Netstumbler to drive around and map out active wireless networks • Using Netstumbler, the attacker locates a strong signal on the target WLAN • Netstumbler not only has the ability to monitor all active networks in the area, but it also integrates with a GPS to map AP’s

  9. WarDriving

  10. Step 2: Choose the network to attack • At this point, the attacker has chosen his target; most likely a business • Netstumbler can tell you whether or not the network is encrypted • Also, start Ethereal to look for additional information. This time……. Your target is GTwireless

  11. Step3: Analyzing the Network • WLAN has no broadcasted SSID • Netstubmler tells me that SSID is GTwireless • Multiple access points • Many active users • Open authentication method • WLAN is encrypted with 40bit WEP • WLAN is not using 802.1X (WEB-auth)

  12. Step4: Cracking the WEP key • Attacker sets NIC drivers to Monitor Mode • Begins capturing packets with Airodump • Airodump quickly lists the available network with SSID and starts capturing packets. • After a few hours of airodump session, launch aircrack to start cracking! • WEP key for GTwireless is revealed!

  13. Step5: Sniffing the network • Once the WEP key is cracked and the NIC is configured appropriately, the attacker is assigned an IP, and can access the WLAN • However, a secure proxy with an SSL enabled web based login prevents access to the rest of network and the Internet • Attacker begins listening to traffic with Ethereal

  14. Step6: Sniffing continued… • Sniffing a WLAN is very fruitful because everyone on the WLAN is a peer, therefore you can sniff every wireless client • Listening to connections with plain text protocols (in this case FTP and Telnet) to servers on the wired LAN yielded 2 usable logins within 1.5hrs

  15. What was accomplished? • Complete access to the WLAN • Complete access to the wired LAN • Complete access to the internet • Access to servers on the wired LAN using the sniffed accounts • Some anonymity. Usage of Netstumbler and other network probing devices can be detected. Skip that step if possible.

  16. Other possibilities • Instead of sniffing a valid login, the attacker could have exploited a known vulnerability in the proxy (provided there is one) • Attacker could have hijacked a valid user’s session using a DOS attack against the user, and then assuming his MAC address and IP • Both ways present a greater risk for being noticed, something an attacker does not want

  17. That’s it…the network is compromised • Most wireless networks remain no more secure than this, many are less secure • Hundreds of business’s, schools, airports, and residences use wireless technology as a major point of access to their networks

  18. Basic 802.11b Overview • 802.11b was IEEE approved in 1999 • Infrastructure Mode or Ad Hoc • Utilizes 2.4GHz band on 15 different channels (only 11 in US) • 11Mbps shared among all users on access point • Cheap!!!

  19. Basic 802.11g Overview • Faster than 802.11b (54Mbps) • Backward compatibility • Same interference problem with 802.11b Future work… • 802.11n • Over 100Mbps actual throughput…?? • Backward compatibility with a/b • Still trying to come up with the first draft…

  20. 802.11 Built in Security Features • Service Set Identifier (SSID) • Differentiates one access point from another • SSID is cast in ‘beacon frames’ every few seconds. • Beacon frames are in plain text! • First layer of security • Stealth Mode – probe request

  21. Do’s and Don'ts for SSID’s • Default SSID’s are well known (Linksys AP’s default to linksys, CISCO defaults to tsunami, etc) so change them immediately. • Do change the settings on your AP so that it does not broadcast the SSID in the beacon frame.

  22. Hiding the SSID • As stated earlier, the SSID is by default broadcast every few seconds. • Turning it off makes it harder to figure out a wireless connection is there • Reading raw packets will reveal the SSID since even when using WEP, the SSID is in plain text • Increases deployment difficulty

  23. MAC address filtering • MAC address filtering works by only allowing specific hardware to connect to the AP • Management on large networks unfeasible • Using a packet sniffer, one can very easily find a valid MAC address and modify their OS to use it, even if the data is encrypted • May be good for small networks • Prevents casual hacking..

  24. Associating with the AP • Access points have two ways of initiating communication with a client • Shared Key or Open Key authentication • Open key allows anyone to start a conversation with the AP • Shared Key is supposed to add an extra layer of security by requiring authentication info as soon as one associates

  25. How Shared Key Auth. works • Client begins by sending an association request to the AP • AP responds with a challenge text (unencrypted) • Client, using the proper WEP key, encrypts text and sends it back to the AP • If properly encrypted, AP allows communication with the client

  26. Is Open or Shared Key more secure? • Ironically enough, Open key is the answer in short • Using passive sniffing, one can gather 2 of the three variables needed in Shared Key authentication: challenge text and the encrypted challenge text

  27. Wired Equivalent Protocol (WEP) • Primary built-in security for 802.11 protocol • Provides “Confidentiality”, and “Integrity”. • “Authentication” ? • Uses 40/104 bits RC4 encryption + CRC • Unfortunately, the usage of RC4 in WEP has been proven insecure

  28. WEP Encryption

  29. 64/40 and 128/104 bits confusion • IV (24bits) • Your WEP key: • 5-ASCII char word = 40bits • 13-ASCII char word = 104bits Security-wise, it’s really 40bits or 104bits

  30. Problems with WEP • 1 static key • No encryption is strong if one key is used forever • Key length is short for default settings(40bits) • Brute forcing is possible • Using CRC32 in ICV • Bit flipping attack: CRC(msg XOR delta) = CRC(M) XOR CRC(delta) • bits cannot be set or cleared, but could be flipped • No specification on key distribution • Lacks scalability • No protection against replay attack • Improper RC4 implementation • Protocol doesn’t actually specify IV’s use • 2 existing attacks

  31. Numerical Limitation Attack • IV’s are only 24bit, and thus there are only 16,777,216 possible IV’s • A busy network will repeat IV’s often

  32. FMS Attack -- weak IV attack -- • Some IV’s do not work well with RC4 • Using a formula, one can take these weak IV and infer parts of the WEP key • 5 % chance of guessing correctly • Once again, passively monitoring the network for a few hours can be enough time to gather enough weak IV’s to figure out the WEP key • 7M~ packets to decrypt 40bit WEP key • The time needed to deploy the attack is linearly proportional to the key length • 104bit key is just as useless as 40bits key

  33. Is RC4 really vulnerable? • There are a few flaws but it is still considered safe. • WEP did not use RC4 properly. • IPSEC • SSL

  34. Another Attack - KoreK • Vendors have implemented a ‘hack’ • Another statistical analysis based attack on WEP key • Extremely fast • Possible with as little as 0.1M IVs… • Traditional method requires more than 4M packets • Accelerate it with packet injection - ARP Fast swapping of WEP key is no longer safe

  35. Conclusion: WEP • Confidentiality • FMS attack • KoreK attack • Integrity • Bit-flipping attack • Authentication • Attacks are passive and difficult to detect NO MORE WEP

  36. WEP…. Wired Equivalent Privacy Well.. More like What on the Earth does it Protect?

  37. Virtual Private Networking (VPN) • Deploying a secure VPN over a wireless network can greatly increase the security of your data • Idea behind this is to treat the wireless network the same as an insecure wired network (the internet).

  38. VPN is really not the greatest option…. • Overhead • Deployment • Performance • susceptible to any attack against the specific VPN Bottom Line: Not practical

  39. Finally…. Some Solutions! 802.1x (Authentication) per-user authentication Key distribution mechanism WPA (Confidentiality, Integrity) Subset of 802.11i 2 forms 802.1x + EAP + TKIP + MIC Pre-shared Key + TKIP + MIC WPA2 – 802.11i WPA2 is the implementation of 802.11i Usage of AES + CCMP

  40. 802.1X • 802.1X is a port-based, layer 2 (MAC address layer) authentication framework on IEEE 802 networks. • Not limited or specific to 802.11 networks • Uses EAP for implementation • 802.1X is not an alternative to WEP, it works along with the 802.11 protocol to manage authentication for WLAN clients

  41. How authentication takes place • A client requests access to the AP • The AP asks for a set of credentials • The client sends the credentials to the AP which forwards them to authenticating server • The exact method for supplying credentials is not defined in 802.1X itself

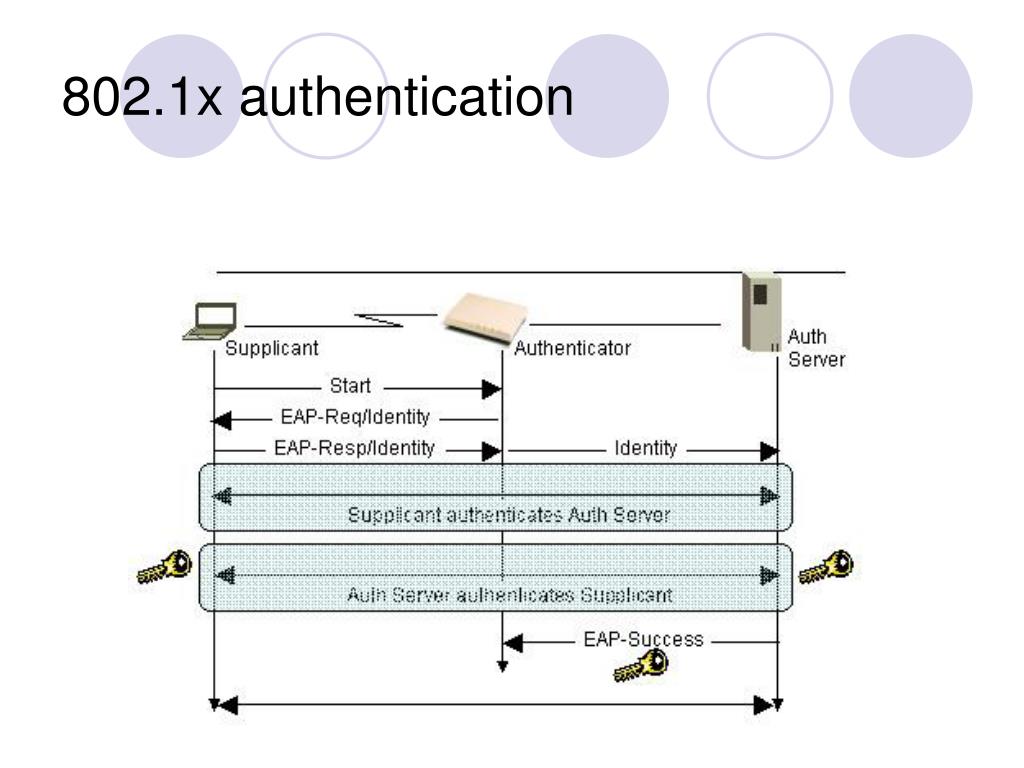

  42. 802.1x authentication

  43. Extensible Authentication Protocol (EAP) • 802.1X utilizes EAP for it’s authentication framework • flexible: one time passwords, certificates, smartcards, own EAP protocol, etc • zero per packet overhead • cost efficient • 802.1X integrates well with other open standards such as RADIUS • RADIUS is de-facto

  44. more benefits of choosing 802.1X… • Software upgrade • Access points only need a firmware upgrade to enable 802.1X • On the client side, 802.1X can be enabled with an updated driver for the NIC • Depending on the EAP you choose, you can have a very secure authentication scheme! • Proprietary versions of dynamic key management available

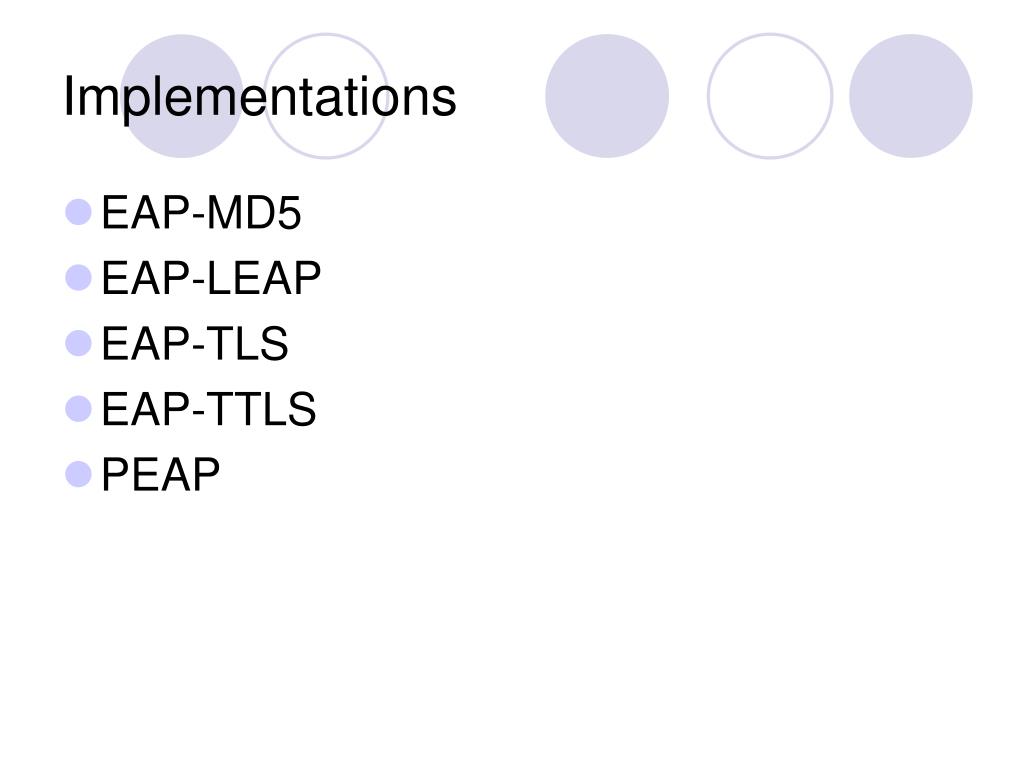

  45. Implementations • EAP-MD5 • EAP-LEAP • EAP-TLS • EAP-TTLS • PEAP

  46. EAP-MD5 • EAP-MD5 is a simple EAP implementation • Uses and MD5 hash of a username and password that is sent to the RADIUS server • Authenticates only one way • Man in the middle attack • Bottom line: Not recommended

  47. EAP-LEAP (Cisco Wireless) • Like MD5-LEAP, it uses a Login/Password scheme that it sends to the RADIUS server • Each user gets a dynamically generated one time key upon login • Authenticates client to AP and vice versa • Can be used along with RADIUS session time out feature, to dynamically generate keys at set intervals • Only guaranteed to work with Cisco wireless clients • Broken – ASLEAP by Joshua Wright

  48. EAP-TLS by Microsoft • Instead of a username/password scheme, EAP-TLS uses certificate based authentication • Has dynamic one time key generation • Two way authentication • Uses TLS (Transport Layer Security) to pass the PKI (Public Key Infrastructure) information to RADIUS server • Compatible with many OS’s • Harder to implement and deploy because PKI for clients are also required

  49. PEAP by Microsoft and Cisco • A more elegant solution! • Very similar to EAP-TLS except that the client does not have to authenticate itself with the server using a certificate, instead it can use a login/password based scheme • Much easier to setup, does not necessarily require a PKI • Currently works natively with Windows XP SP1, but other platforms should support it soon
