  1. 6890 GC Detectors - The Flame Ionization Detector

  2. 6890 GC Detectors - The Flame Ionization Detector - Main Components Igniter Teflon Insulator Collector Interconnect/Spring Electrometer Jet Heater/Sensor Assembly Detector Base Assembly Column Adapter

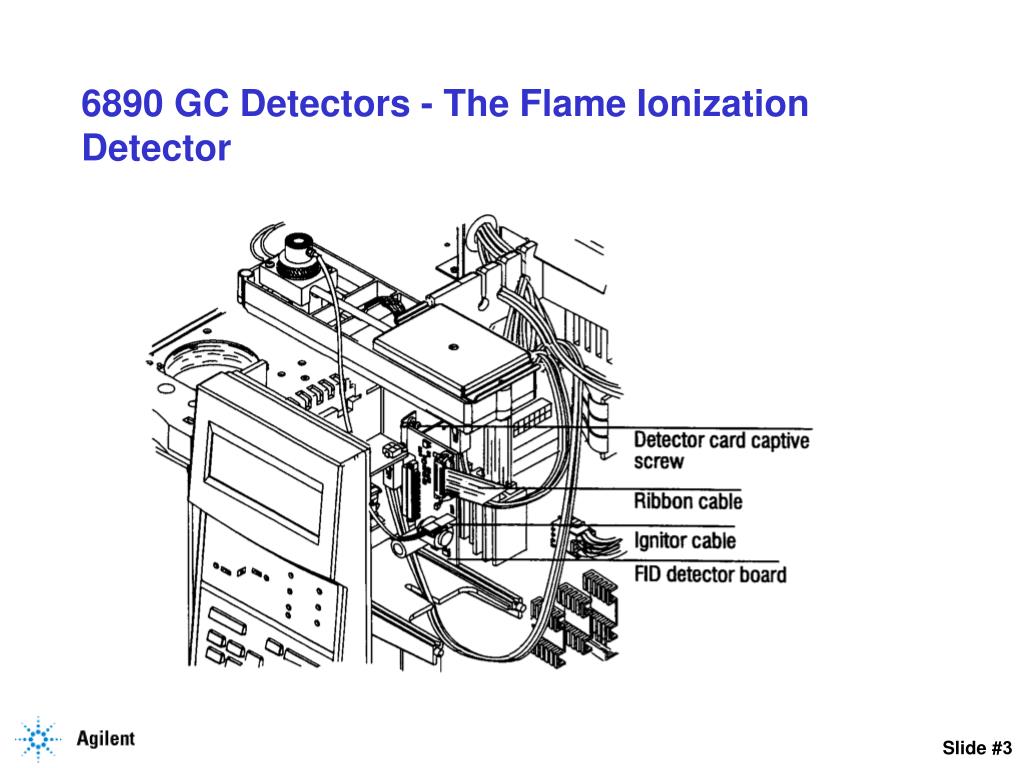

  3. 6890 GC Detectors - The Flame Ionization Detector

  4. 6890 GC Detectors - The Flame Ionization Detector - Theory of Operation 1. H2 - Air Flame 2. Sample is burned in flame 3. When burned produces charged Ions 4. Ions attracted to collector 5. Collector current converted to output via Electrometer

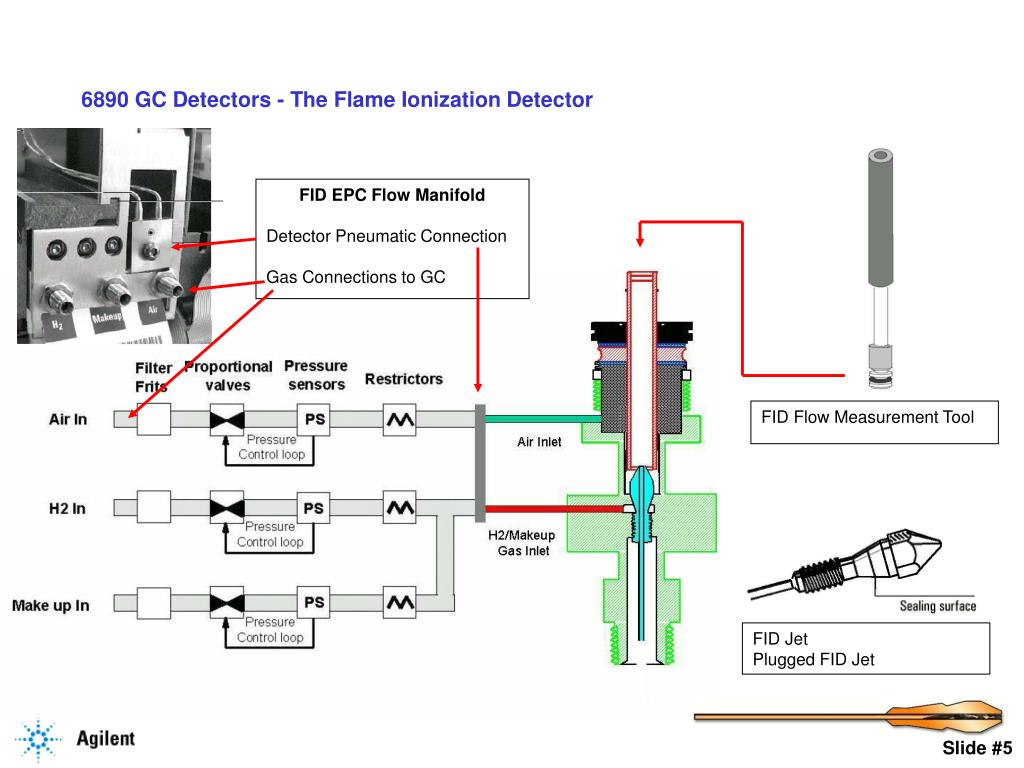

  5. 6890 GC Detectors - The Flame Ionization Detector FID EPC Flow Manifold Detector Pneumatic Connection Gas Connections to GC FID Flow Measurement Tool FID Jet Plugged FID Jet

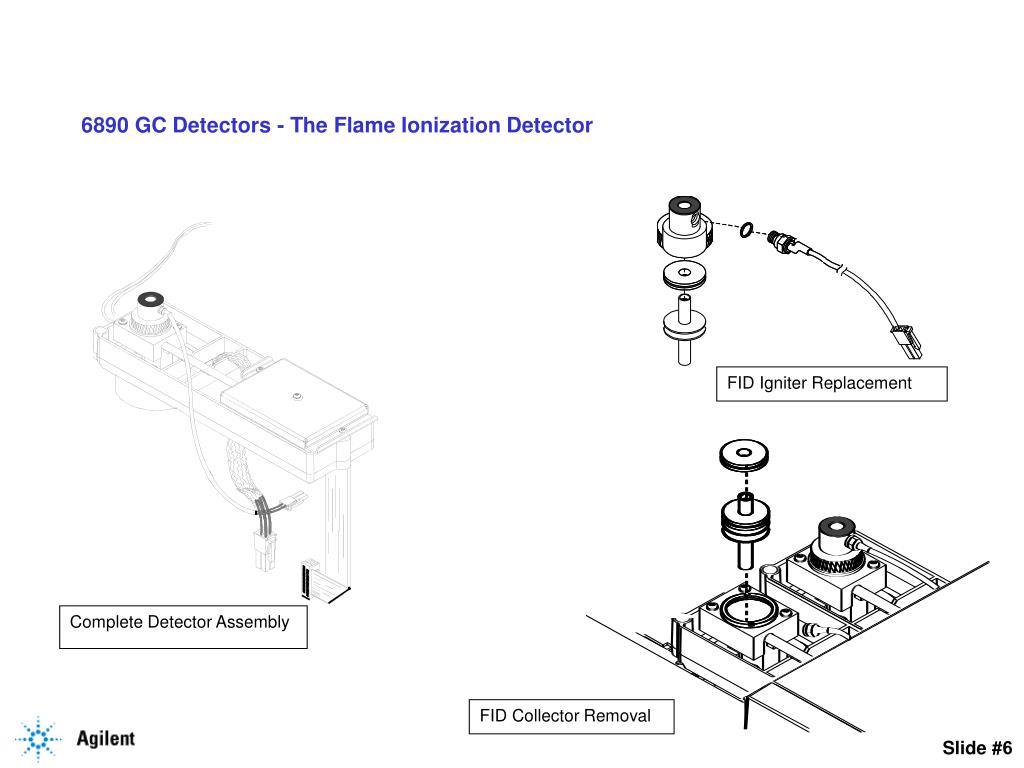

  6. 6890 GC Detectors - The Flame Ionization Detector FID Igniter Replacement Complete Detector Assembly FID Collector Removal

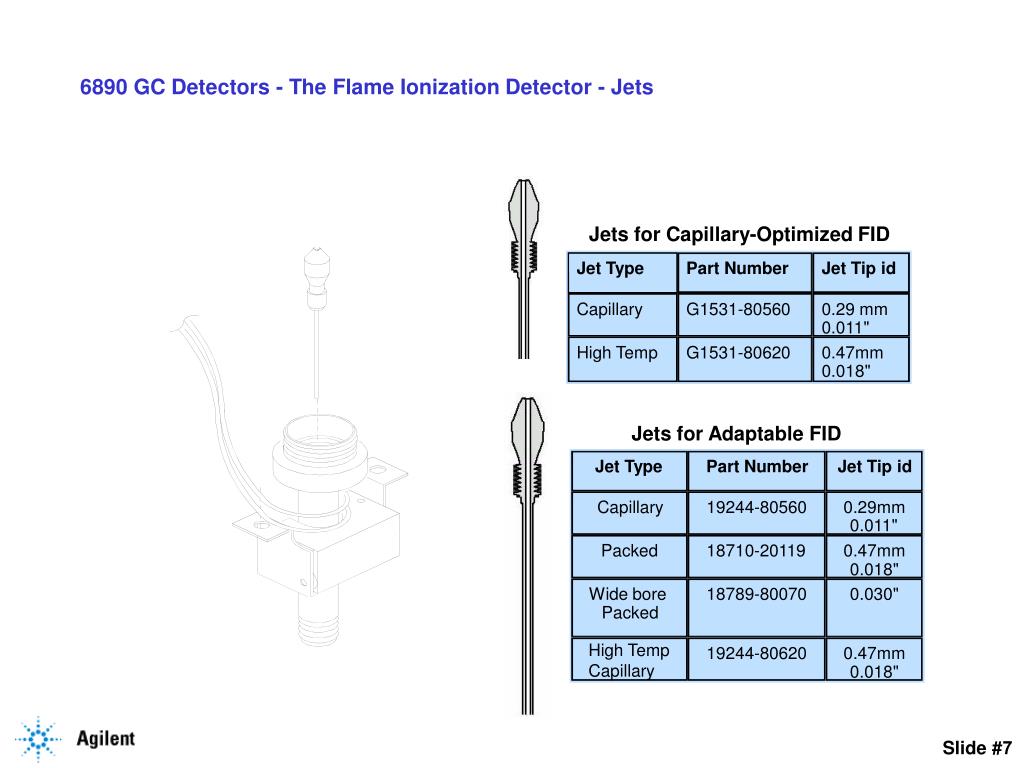

  7. 6890 GC Detectors - The Flame Ionization Detector - Jets Jets for Capillary-Optimized FID Jet Type Part Number Jet Tip id Capillary G1531-80560 0.29 mm 0.011" High Temp G1531-80620 0.47mm 0.018" Jets for Adaptable FID Jet Type Part Number Jet Tip id Capillary 19244-80560 0.29mm 0.011" Packed 18710-20119 0.47mm 0.018" Wide bore 18789-80070 0.030" Packed High TempCapillary 19244-80620 0.47mm 0.018"

  8. 6890 GC Detectors - The Flame Ionization Detector

  9. 6890 GC Detectors - The Flame Ionization Detector

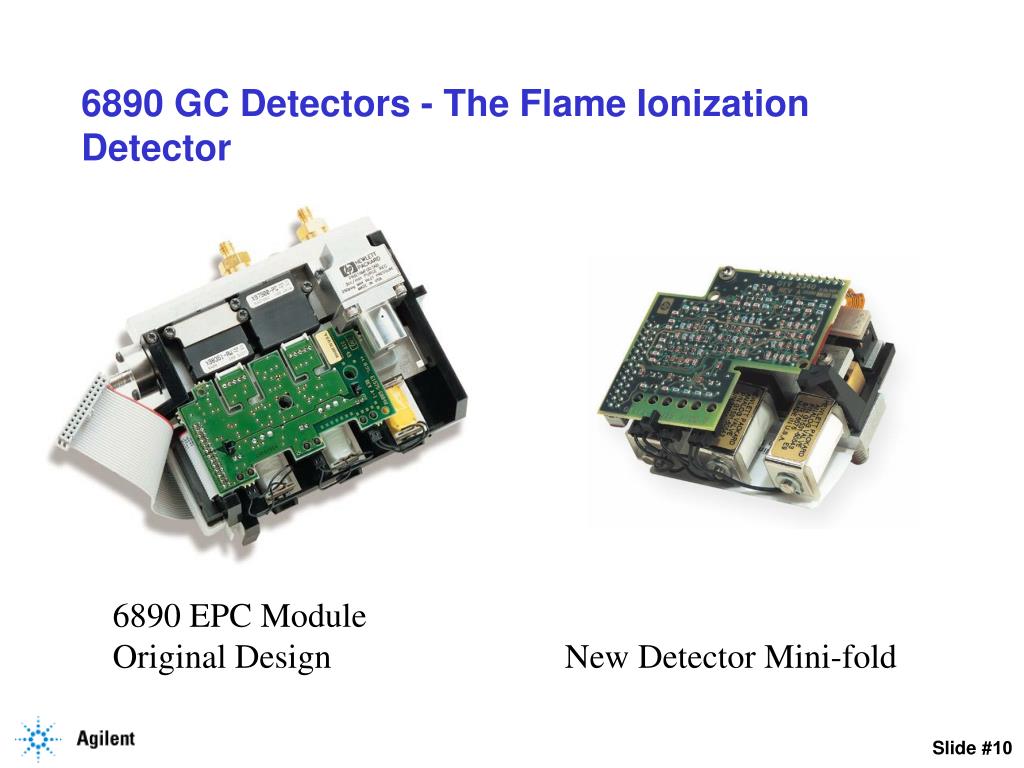

  10. 6890 GC Detectors - The Flame Ionization Detector 6890 EPC ModuleOriginal Design New Detector Mini-fold

  11. 6890 GC Detectors - The Flame Ionization Detector

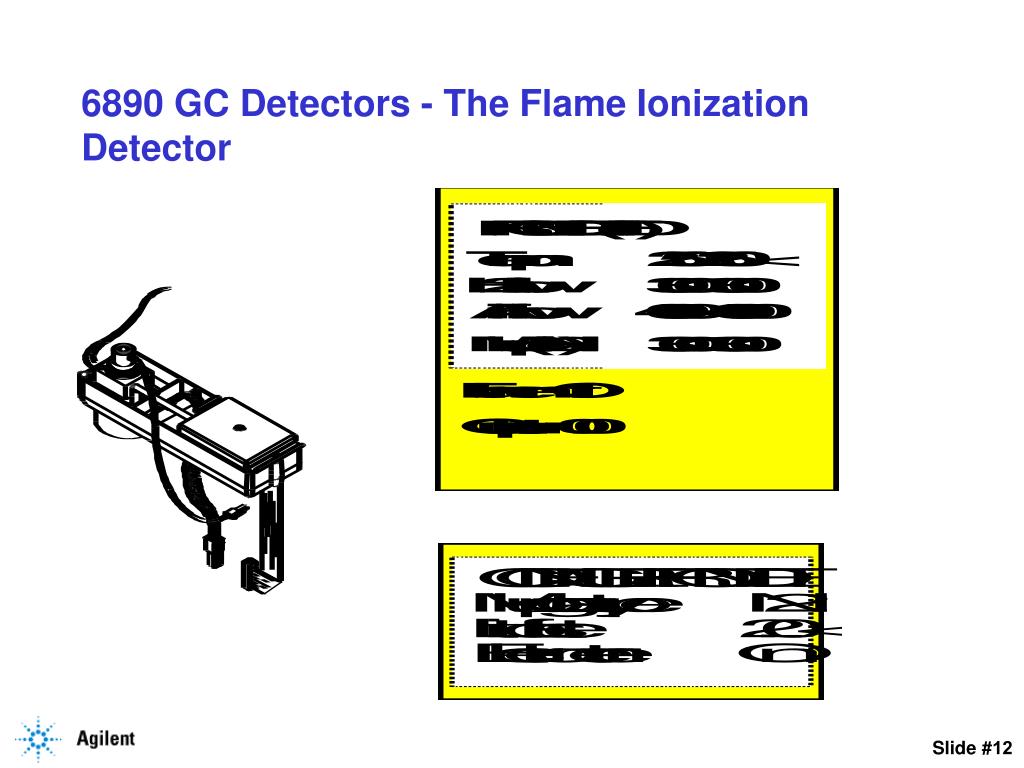

  12. 6890 GC Detectors - The Flame Ionization Detector

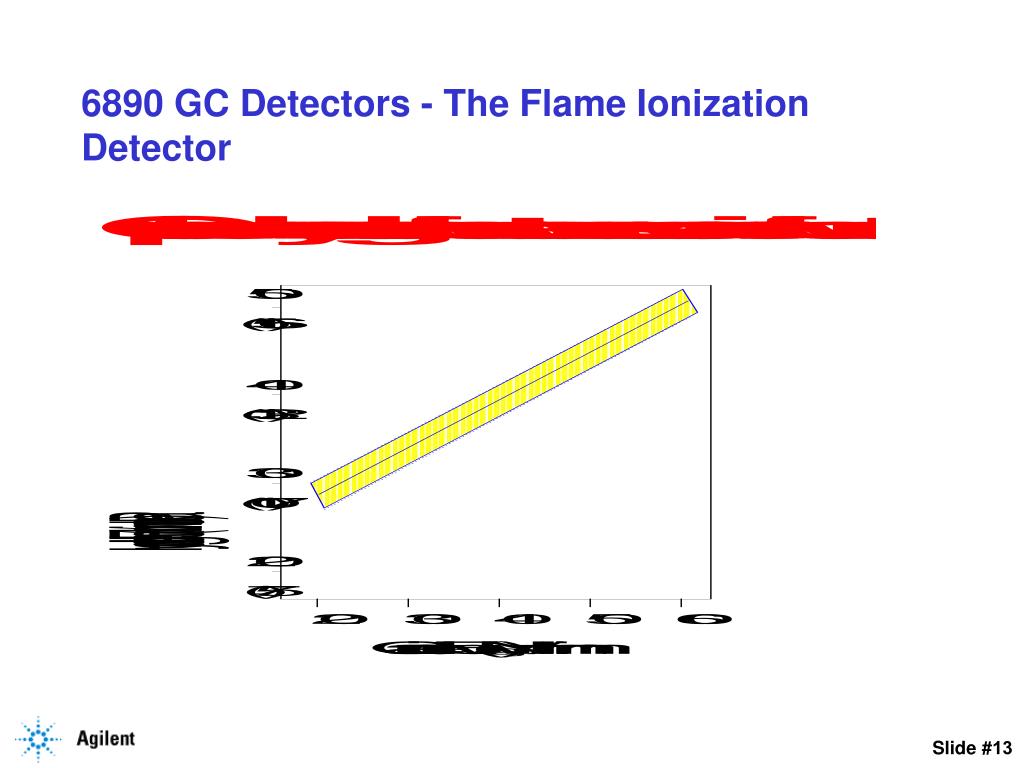

  13. 6890 GC Detectors - The Flame Ionization Detector

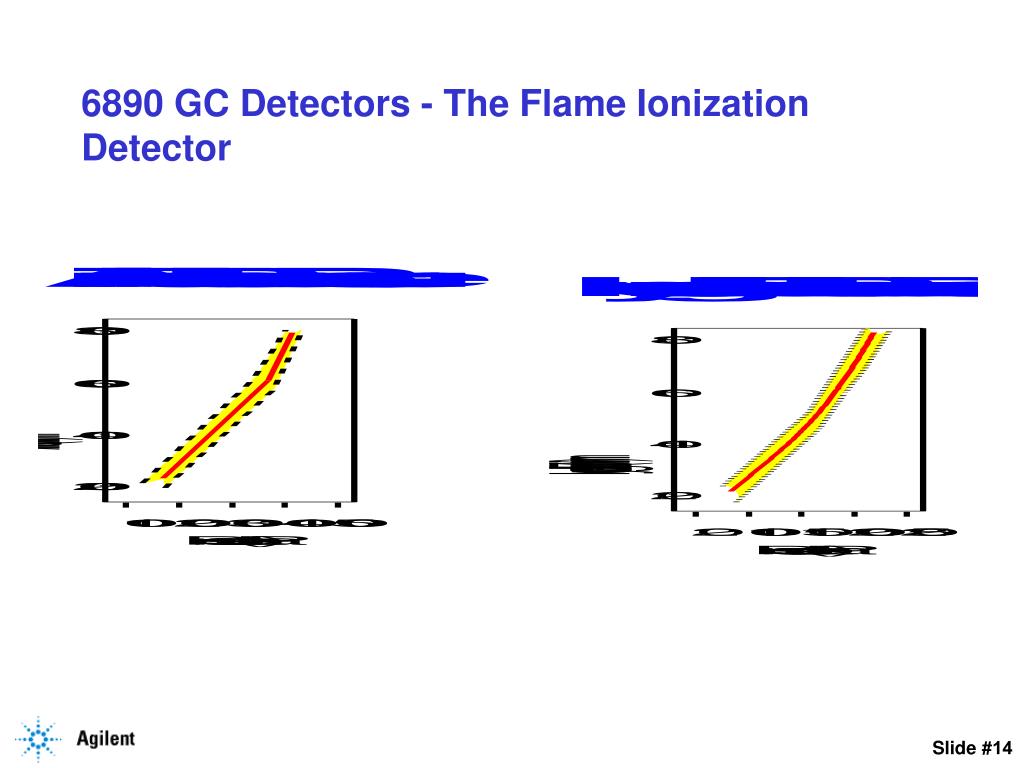

  14. 6890 GC Detectors - The Flame Ionization Detector

  15. 6890 GC Detectors - The Flame Ionization Detector

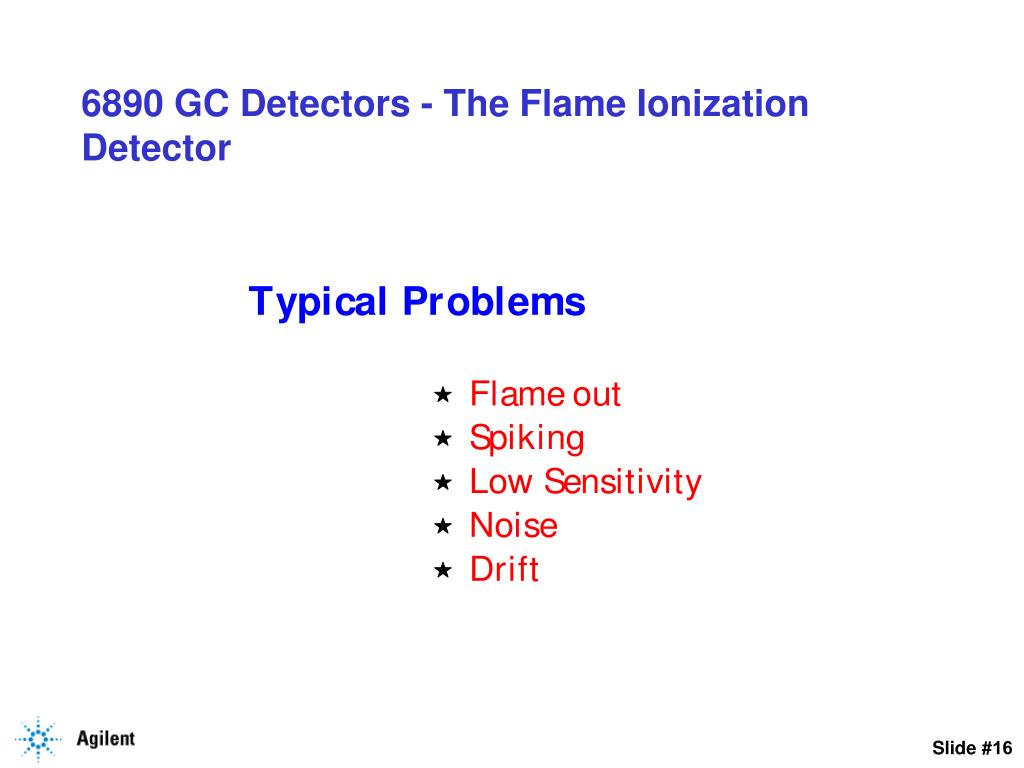

  16. 6890 GC Detectors - The Flame Ionization Detector

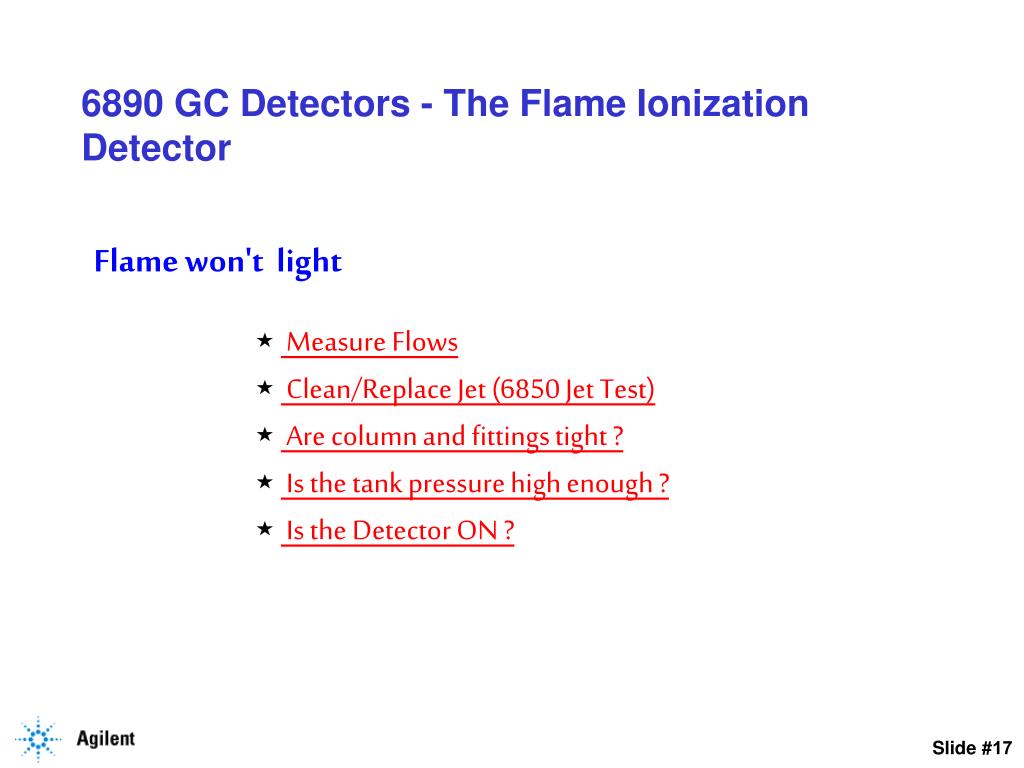

  17. 6890 GC Detectors - The Flame Ionization Detector Flame won't light Measure Flows Clean/Replace Jet (6850 Jet Test) Are column and fittings tight ? Is the tank pressure high enough ? Is the Detector ON ?

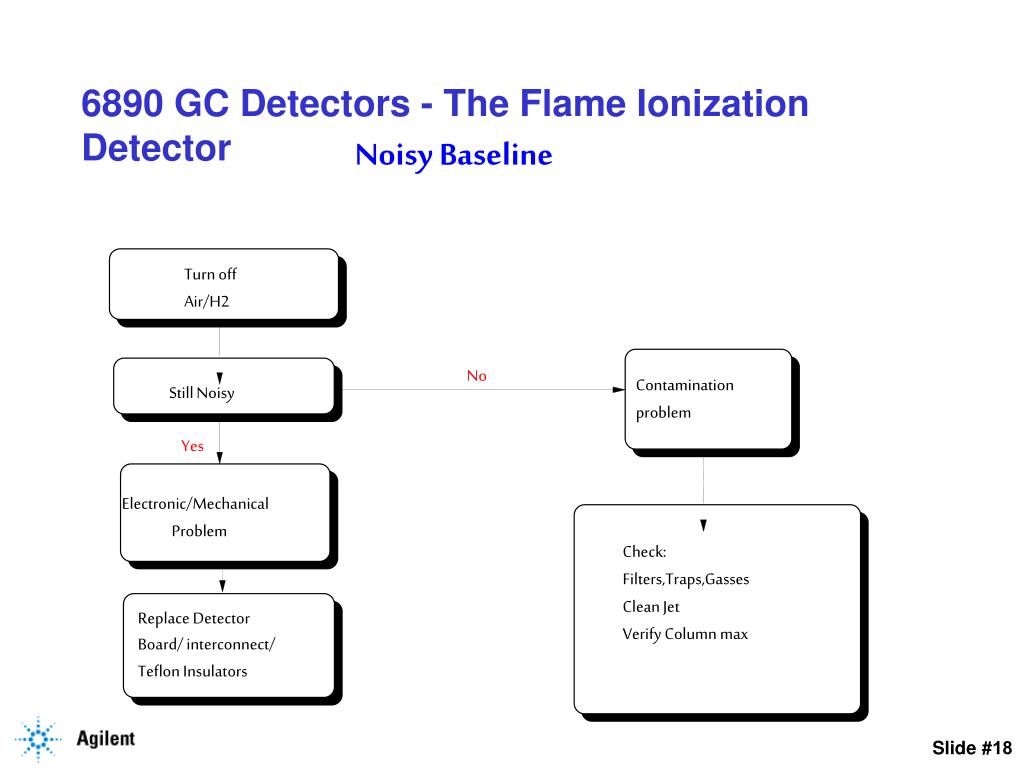

  18. 6890 GC Detectors - The Flame Ionization Detector Noisy Baseline Turn off Air/H2 No Contamination Still Noisy problem Yes Electronic/Mechanical Problem Check: Filters,Traps,Gasses Clean Jet Replace Detector Verify Column max Board/ interconnect/ Teflon Insulators

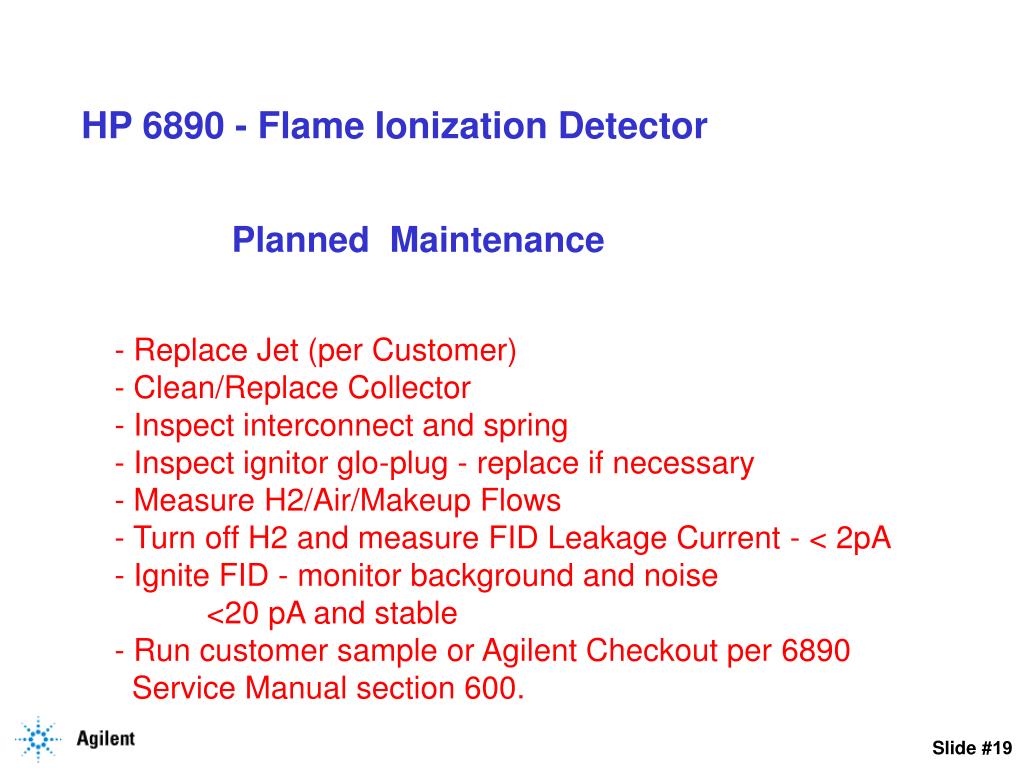

  19. HP 6890 - Flame Ionization Detector Planned Maintenance - Replace Jet (per Customer) - Clean/Replace Collector - Inspect interconnect and spring - Inspect ignitor glo-plug - replace if necessary - Measure H2/Air/Makeup Flows - Turn off H2 and measure FID Leakage Current - < 2pA - Ignite FID - monitor background and noise <20 pA and stable - Run customer sample or Agilent Checkout per 6890 Service Manual section 600.
