Process Multimeter (CA450)

Transmitter terminal diagram. Process Multimeter (CA450). 2-wire transmitter loop check (mA LOOP POWER). Example connection for a pressure transmitter ・ Loop check function ・ Supplies 24 VDC power to the transmitter, and measures mADC output ・ Precisely measures instrumentation signals:

merle
Télécharger la présentation

Process Multimeter (CA450)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

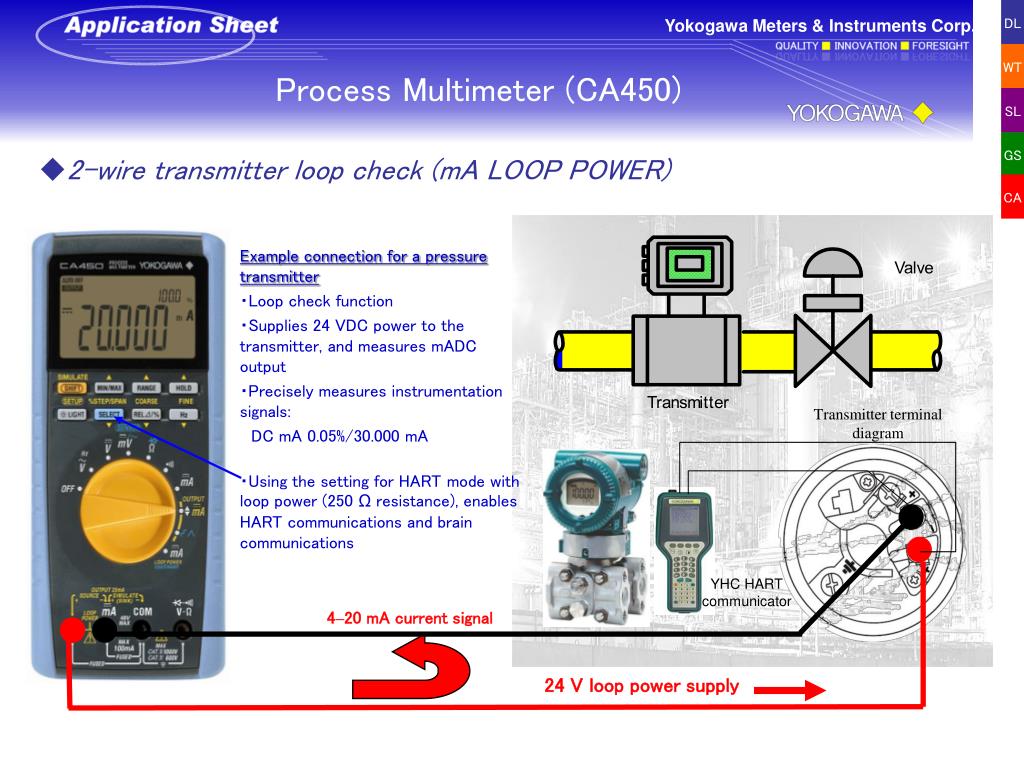

  1. Transmitter terminal diagram Process Multimeter (CA450) • 2-wire transmitter loop check (mA LOOP POWER) Example connection for a pressure transmitter ・Loop check function ・Supplies 24 VDC power to the transmitter, and measures mADC output ・Precisely measures instrumentation signals: DC mA 0.05%/30.000 mA ・Using the setting for HART mode with loop power (250 Ω resistance), enables HART communications and brain communications YHC HART communicator 4–20 mA current signal 24 V loop power supply

  2. 2-wire transmitter Process Multimeter (CA450) • 2-wire transmitter simulator (20 mA SINK) Transmitter simulator ・With the CA450, transmitter I/O can be checked (simulated) by drawing in designated currents (SINK) from the external voltage generators (distributors) of your instrumentation. * As in the figure on the right, applied voltage is polar: take care not to apply voltage in the opposite direction. Converter (distributor) Constant current output of 4–20 mA

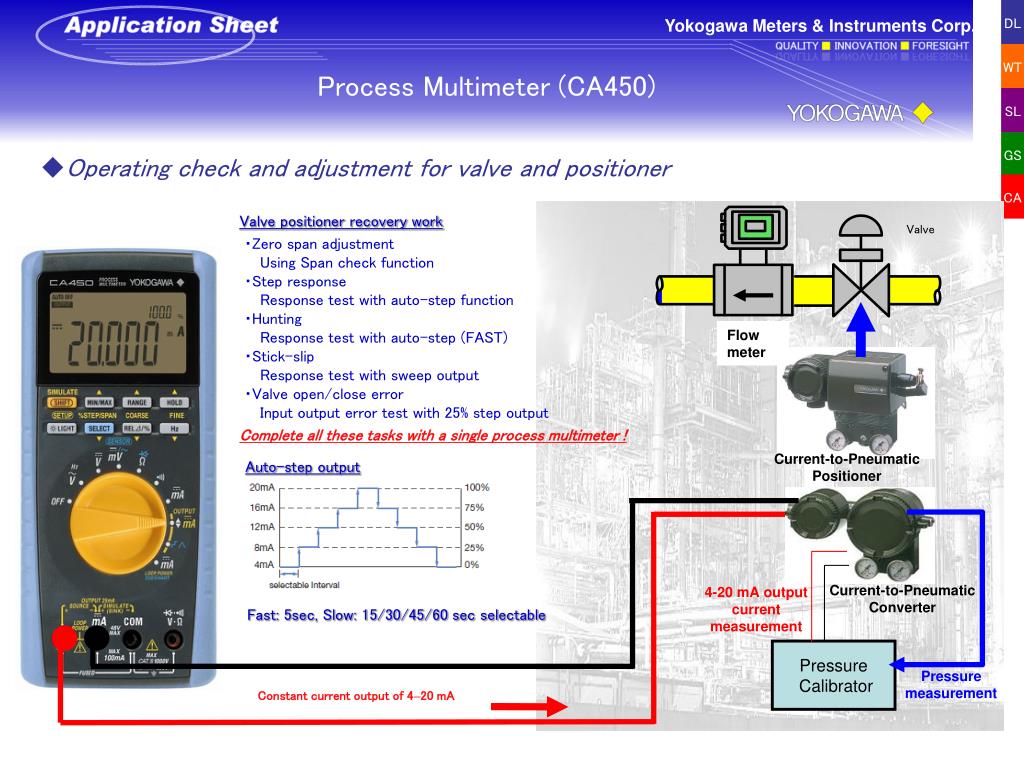

  3. Process Multimeter (CA450) • Operating check and adjustment for valve and positioner Valve positioner recovery work ・Zero span adjustmentUsing Span check function・Step responseResponse test with auto-step function・HuntingResponse test with auto-step (FAST)・Stick-slipResponse test with sweep output・Valve open/close errorInput output error test with 25% step output Complete all these tasks with a single process multimeter ! Flow meter Current-to-Pneumatic Positioner Auto-step output Current-to-Pneumatic Converter 4-20 mA output current measurement Fast: 5sec, Slow: 15/30/45/60 sec selectable Pressure Calibrator Pressure measurement Constant current output of 4–20 mA

  4. Process Multimeter (CA450) • 4–20 mA step/Auto-step/sweep output Checking controller programs4–20 mA step generation ・Switches between 4 and 20mA in 4mA output steps making work more efficient. Ideal for checking controller programs. Flow meter Controller Valve open/close signal Alarm Fast: 5sec, Slow: 15/30/45/60 sec selectable Constant current output of 4–20 mA

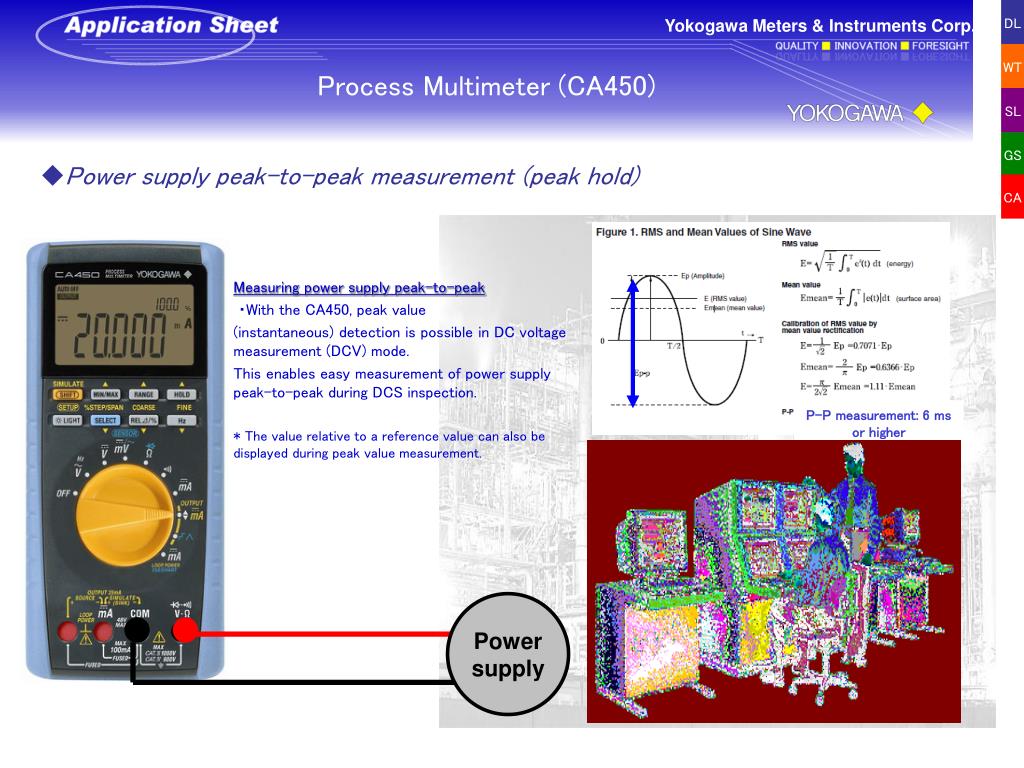

  5. Process Multimeter (CA450) • Power supply peak-to-peak measurement (peak hold) Measuring power supply peak-to-peak ・With the CA450, peak value (instantaneous) detection is possible in DC voltage measurement (DCV) mode. This enables easy measurement of power supply peak-to-peak during DCS inspection. * The value relative to a reference value can also be displayedduring peak value measurement. P-P measurement: 6 ms or higher Power supply

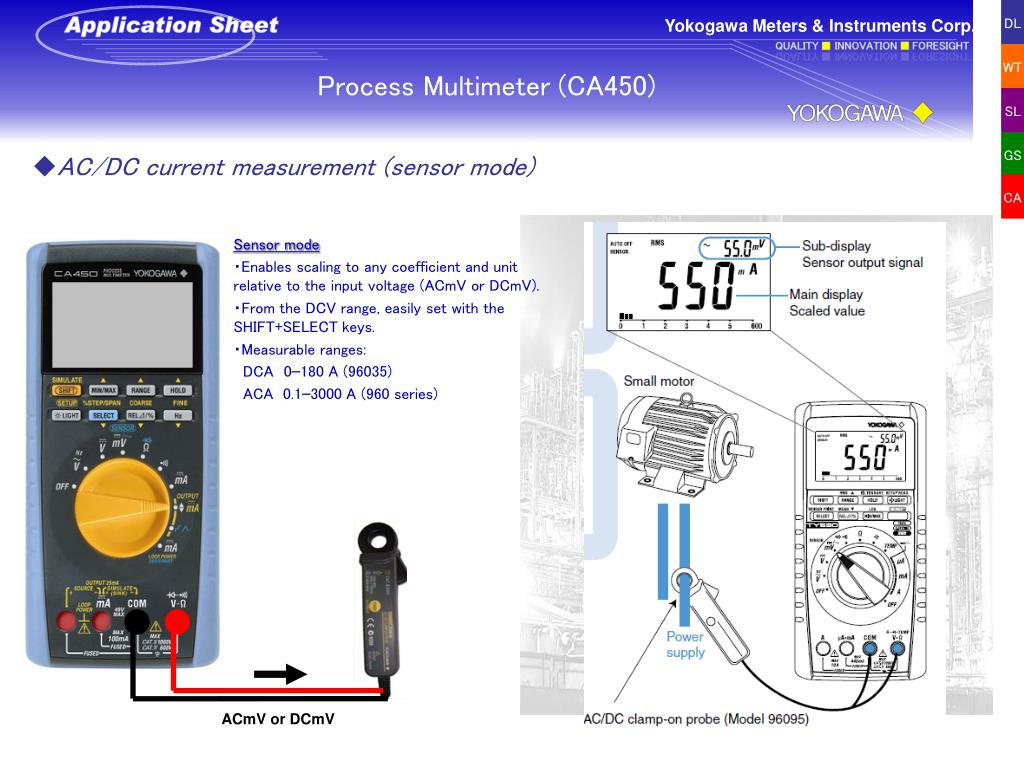

  6. Process Multimeter (CA450) • AC/DC current measurement (sensor mode) Sensor mode ・Enables scaling to any coefficient and unit relative to the input voltage (ACmV or DCmV). ・From the DCV range, easily set with the SHIFT+SELECT keys. ・Measurable ranges: DCA0–180 A (96035) ACA 0.1–3000 A (960 series) ACmV or DCmV

  7. Suppressed meter 2101A36 Process Multimeter (CA450) • Panel meter inspection Connection, reproducibility test, error test ・4–20 mA sweep (SLOW 15 s/FAST 40 s) ・Zero point adjustment of a suppressed meter ・Step function for checking error at each point 4-20 mA sweep/step output
