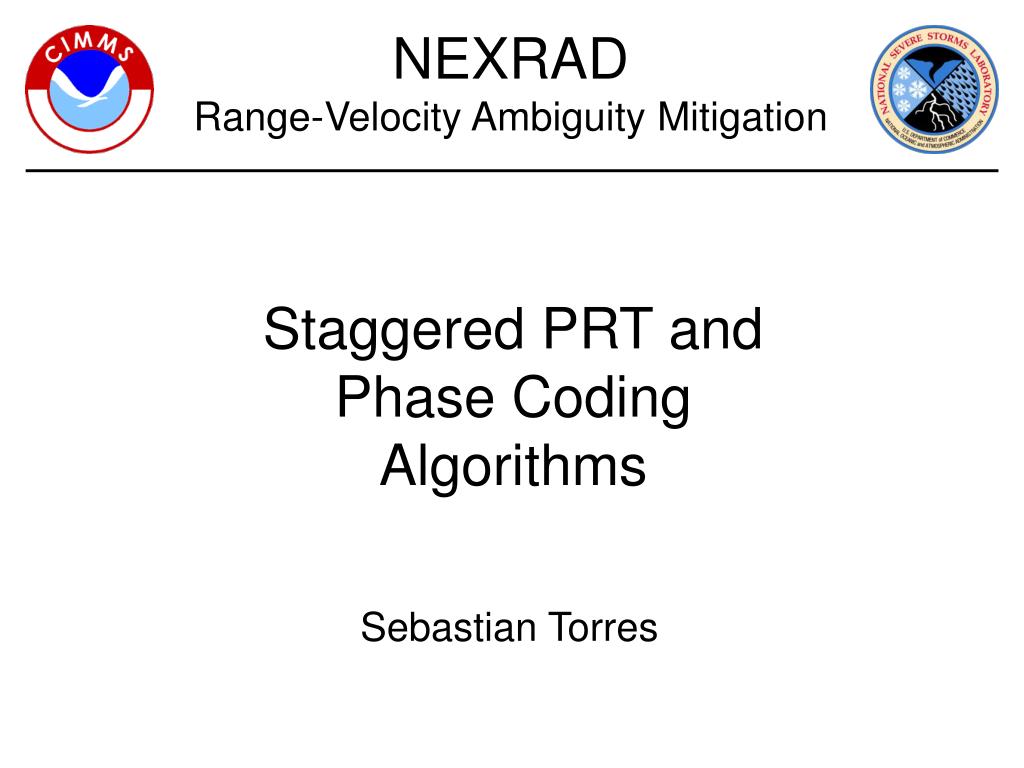

  1. NEXRAD Range-Velocity Ambiguity Mitigation Staggered PRT andPhase Coding Algorithms Sebastian Torres

  2. Part One Staggered PRT Current Status

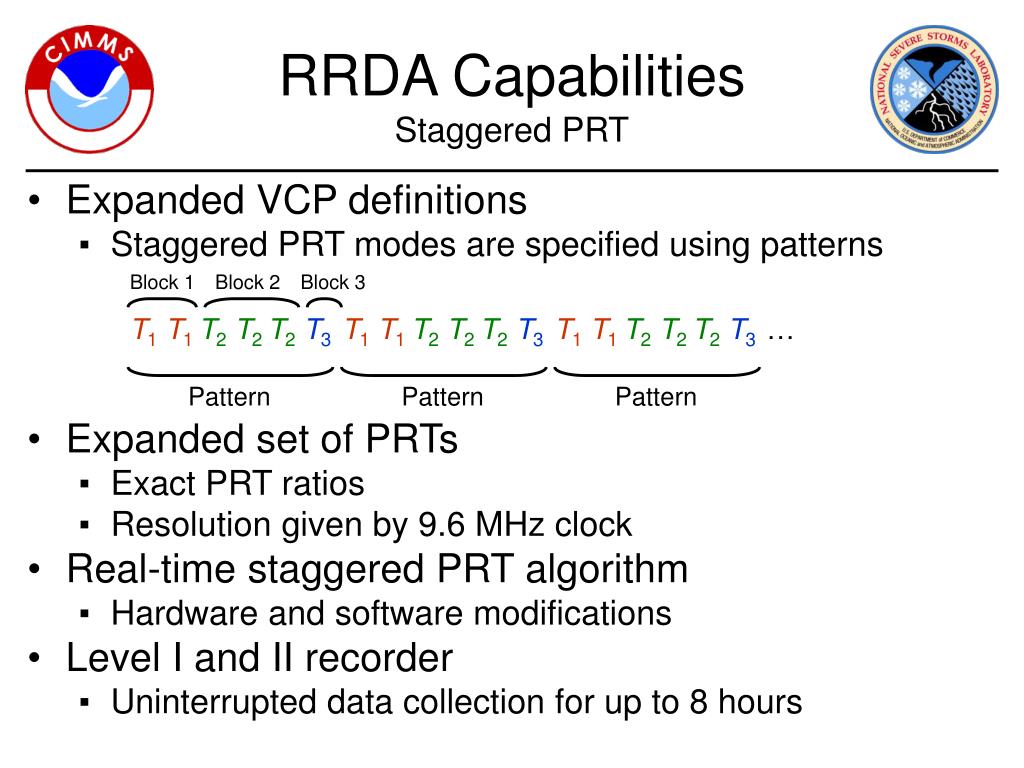

  3. Block 1 Block 2 Block 3 Pattern Pattern Pattern RRDA CapabilitiesStaggered PRT • Expanded VCP definitions • Staggered PRT modes are specified using patterns T1T1T2T2 T2T3T1T1T2T2 T2T3T1T1T2T2 T2T3 … • Expanded set of PRTs • Exact PRT ratios • Resolution given by 9.6 MHz clock • Real-time staggered PRT algorithm • Hardware and software modifications • Level I and II recorder • Uninterrupted data collection for up to 8 hours

  4. T1 T2 T1 T2 … time The Staggered PRT Technique • Transmitter alternates two PRTs • T1 < T2 • PRT ratio: K = T1/T2 = m/n (m,n integers) • ra1 = cT1/2, ra2 = cT2/2 • va1 = l/4T1, va2 = l/4T2 • Maximum unambiguous range • ra = ra2 (one-overlay resolution) • Maximum unambiguous velocity • va = m va1 = n va2 (velocity dealiasing)

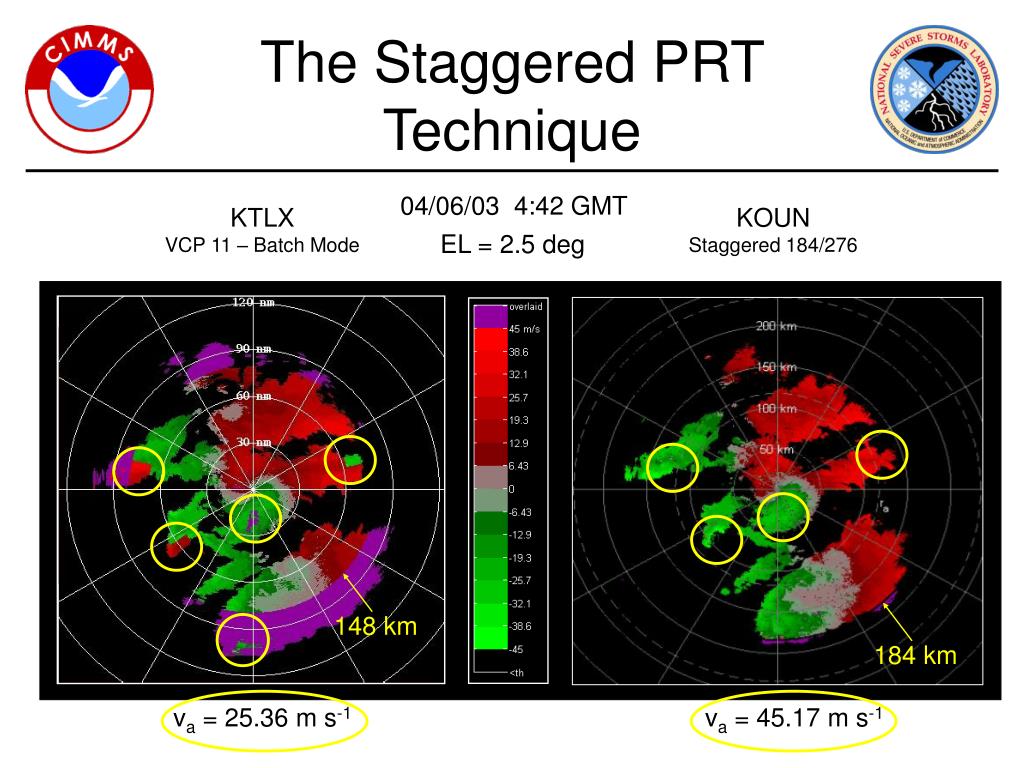

  5. 04/06/03 4:42 GMT KTLXVCP 11 – Batch Mode KOUNStaggered 184/276 EL = 2.5 deg 148 km 184 km va = 25.36 m s-1 va = 45.17 m s-1 The Staggered PRT Technique

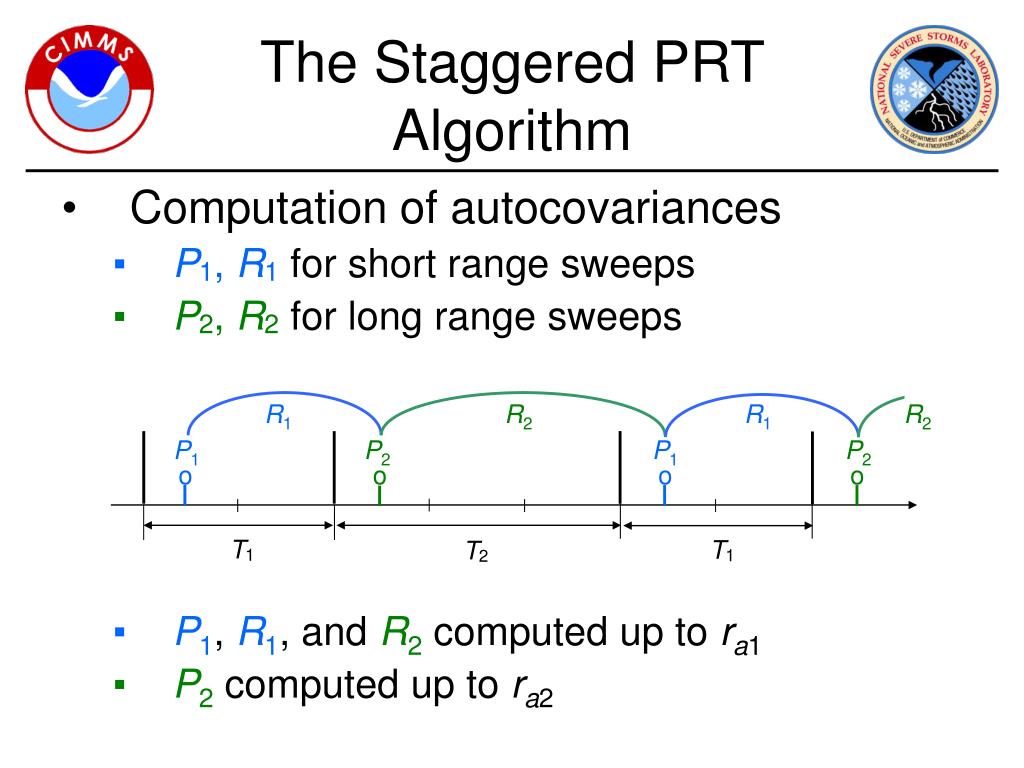

  6. R1 R2 R1 R2 P1 P2 P1 P2 o o o o T1 T1 T2 The Staggered PRT Algorithm • Computation of autocovariances • P1, R1 for short range sweeps • P2, R2 for long range sweeps • P1, R1, and R2 computed up to ra1 • P2 computed up to ra2

  7. The Staggered PRT Algorithm • Ground clutter filtering • Magnitude squared of DC component is removedfromautocovariances • Bypass map is used • Filter is simple but suppression is limited to about 10 dB • Future work: Test other filtering schemes • Sachidananda’s GCF (Rep. 3 & 4) • Frequency domain filter • Regressive filters • Others

  8. 03/17/03 23:06 GMT KOUNStaggered PRT KOUNUniform PRT EL = 0.5 deg Clutter Filter Performance

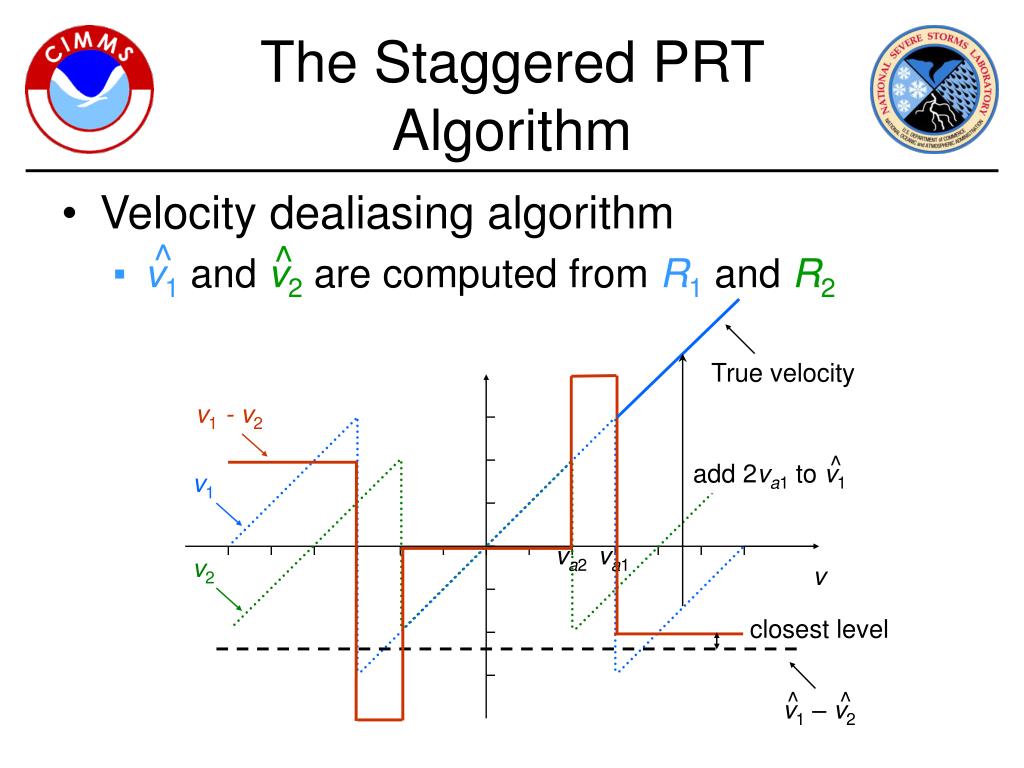

  9. v1 - v2 True velocity v1 v2 ^ add 2va1 to v1 va2 va1 closest level ^ ^ v1 – v2 The Staggered PRT Algorithm • Velocity dealiasing algorithm • v1 and v2 are computed from R1 and R2 ^ ^ v

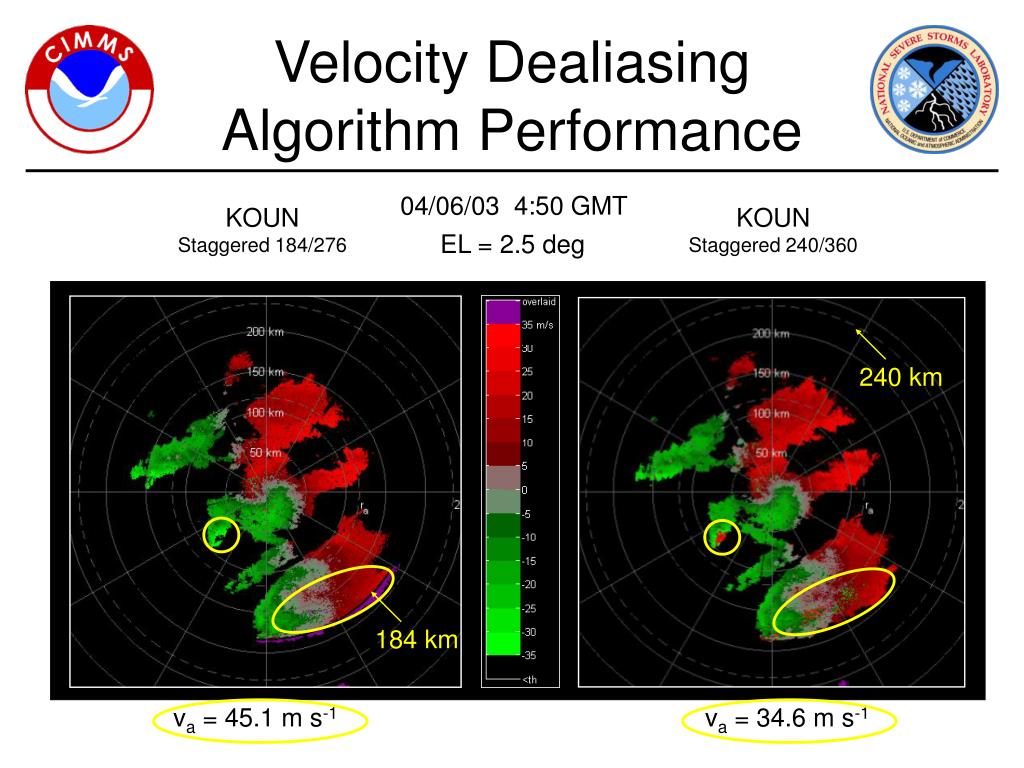

  10. 04/06/03 4:50 GMT KOUNStaggered 184/276 KOUNStaggered 240/360 EL = 2.5 deg 240 km 184 km va = 45.1 m s-1 va = 34.6 m s-1 Velocity Dealiasing Algorithm Performance

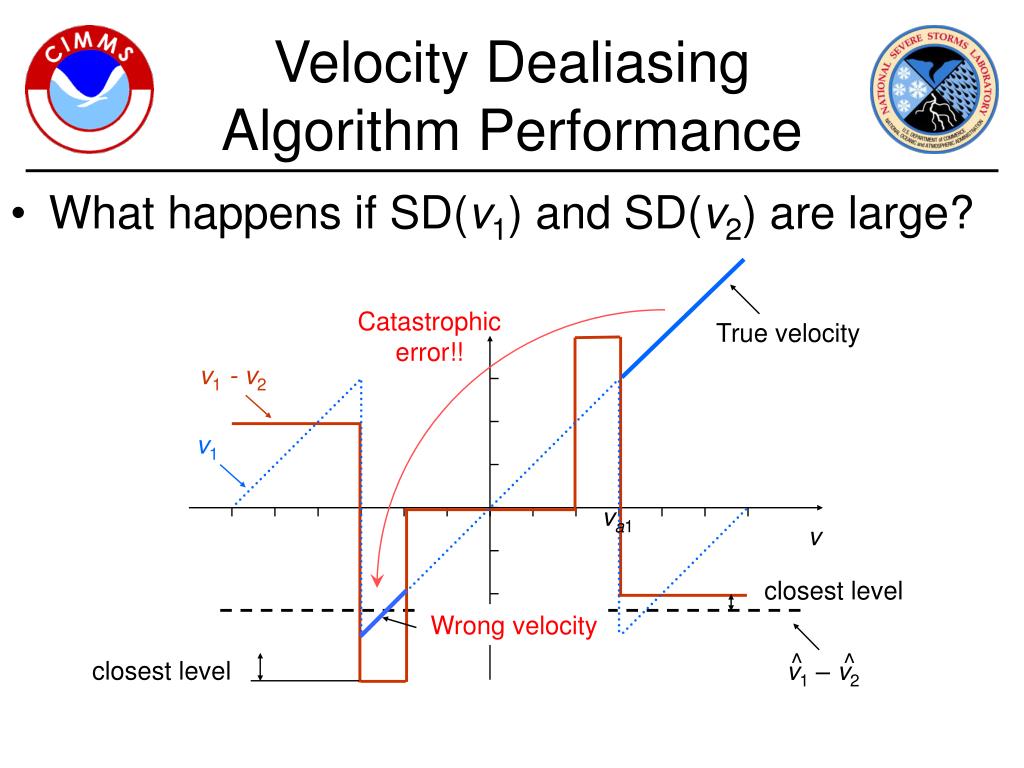

  11. Catastrophic error!! v1 - v2 True velocity v1 va1 v closest level Wrong velocity closest level ^ ^ v1 – v2 Velocity Dealiasing Algorithm Performance • What happens if SD(v1) and SD(v2) are large?

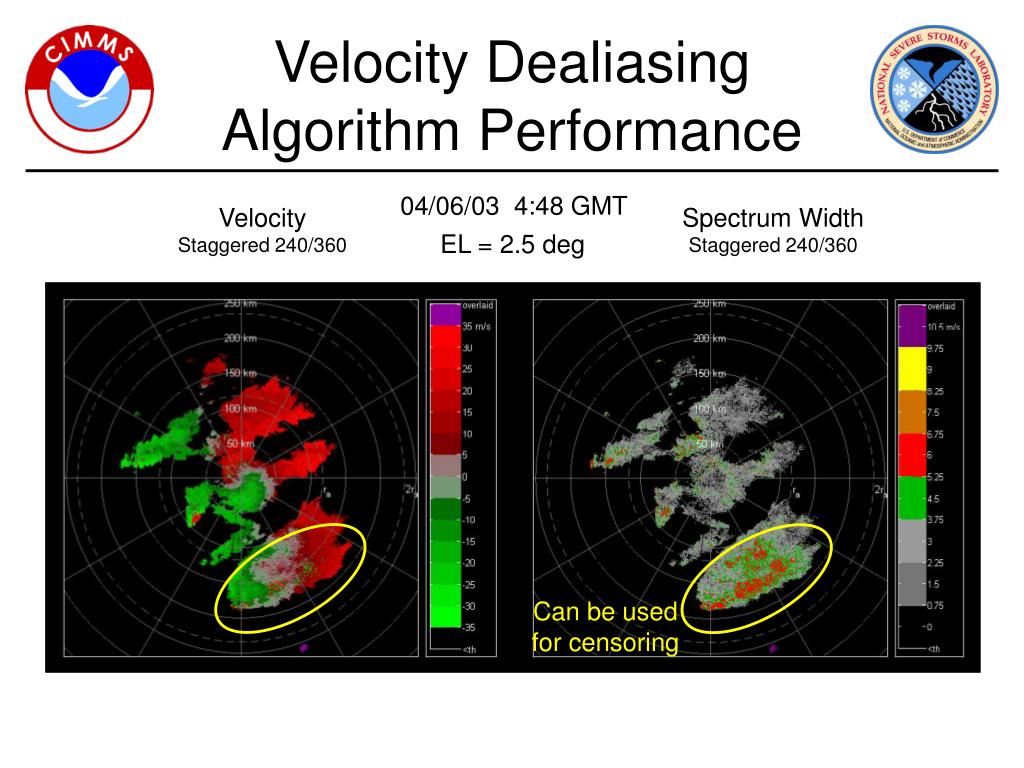

  12. 04/06/03 4:48 GMT VelocityStaggered 240/360 Spectrum WidthStaggered 240/360 EL = 2.5 deg Velocity Dealiasing Algorithm Performance Can be used for censoring

  13. The Staggered PRT Algorithm • Reflectivity computation • Use clean powers • Computed to ra2 • Future work: Extend Z to 2ra1 • Censoring • Overlaid echoes do not bias v, but act as noise • Future work: Test Sachidananda’s one-overlaid resolution scheme (Rpt. 4) T1 T2 I II I II III

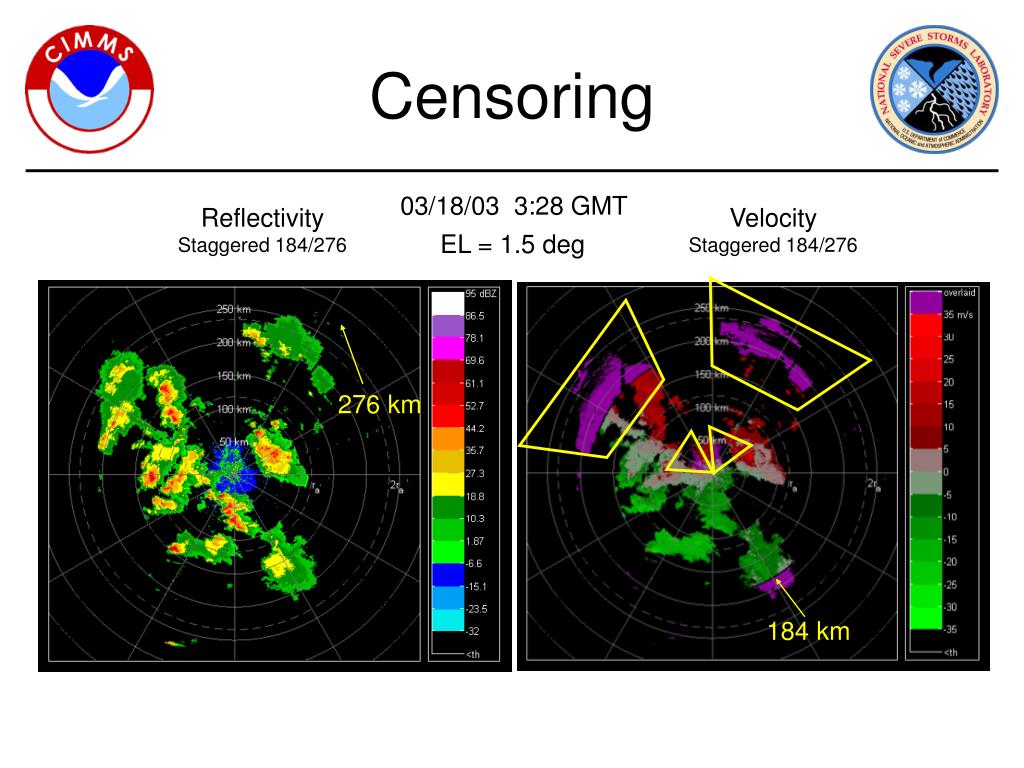

  14. 03/18/03 3:28 GMT ReflectivityStaggered 184/276 VelocityStaggered 184/276 EL = 1.5 deg 276 km 184 km Censoring

  15. Statistical errors

  16. Summary • Range coverage • Z to ra2 and v to ra1, where ra1/ra2 = m/n = K • Natural “match” for NEXRAD requirements • Extension of maximum unambiguous velocity • va = m va1 = n va2 • Range-velocity ambiguities • Uniform PRT • rava = cl/8 → Inadequate for l = 10 cm • Staggered PRT • ra1va = m(cl/8) • ra1 vs. va trade-off controlled by PRTs

  17. K = 2/3 K = 2/3 PRT Trade-Off 336 km Long PRTs Staggered 336/466 va= 26.7 m s-1 240 km 184 km Medium PRTs Staggered 240/360 va= 34.6 m s-1 Short PRTs Staggered 184/276 va= 45.1 m s-1

  18. Conclusions • Algorithm works with any PRT ratio • No need to add new PRTs to the system (initially) • Only need exact ratios for Sachidananda’s ground clutter filter and one-overlaid recovery • Need good velocity estimates to avoid catastrophic errors • Future work: Determine maximum allowable errors for a given set of PRTs

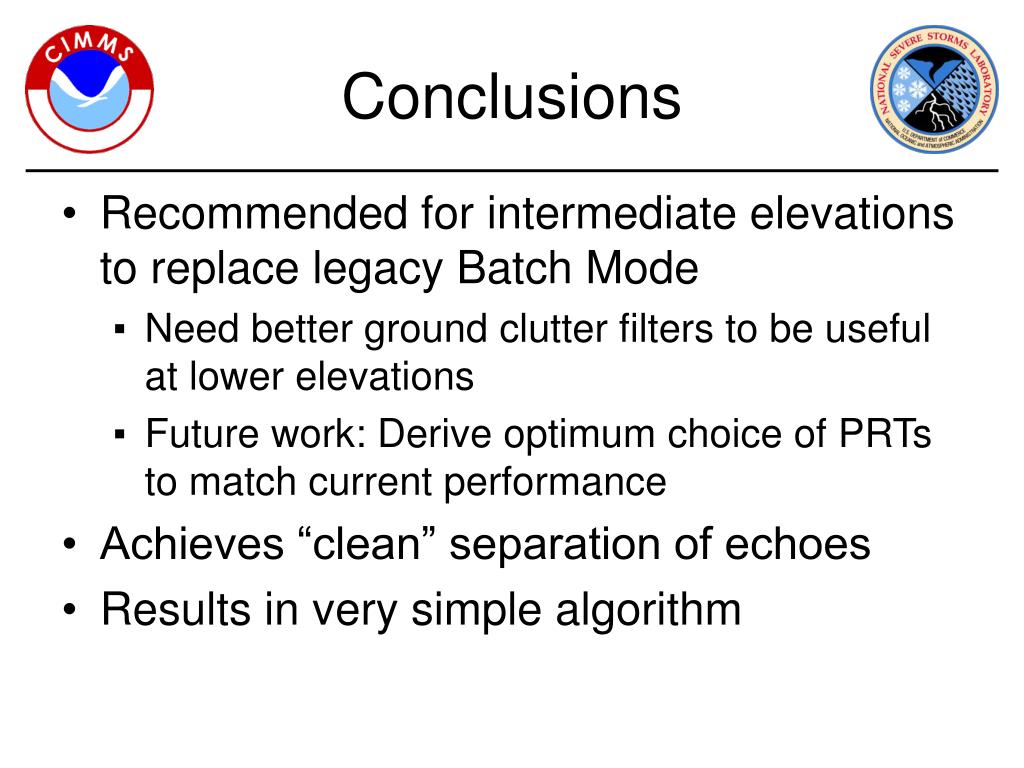

  19. Conclusions • Recommended for intermediate elevations to replace legacy Batch Mode • Need better ground clutter filters to be useful at lower elevations • Future work: Derive optimum choice of PRTs to match current performance • Achieves “clean” separation of echoes • Results in very simple algorithm

  20. Part Two Phase Coding SZ-2 Algorithm Current Status

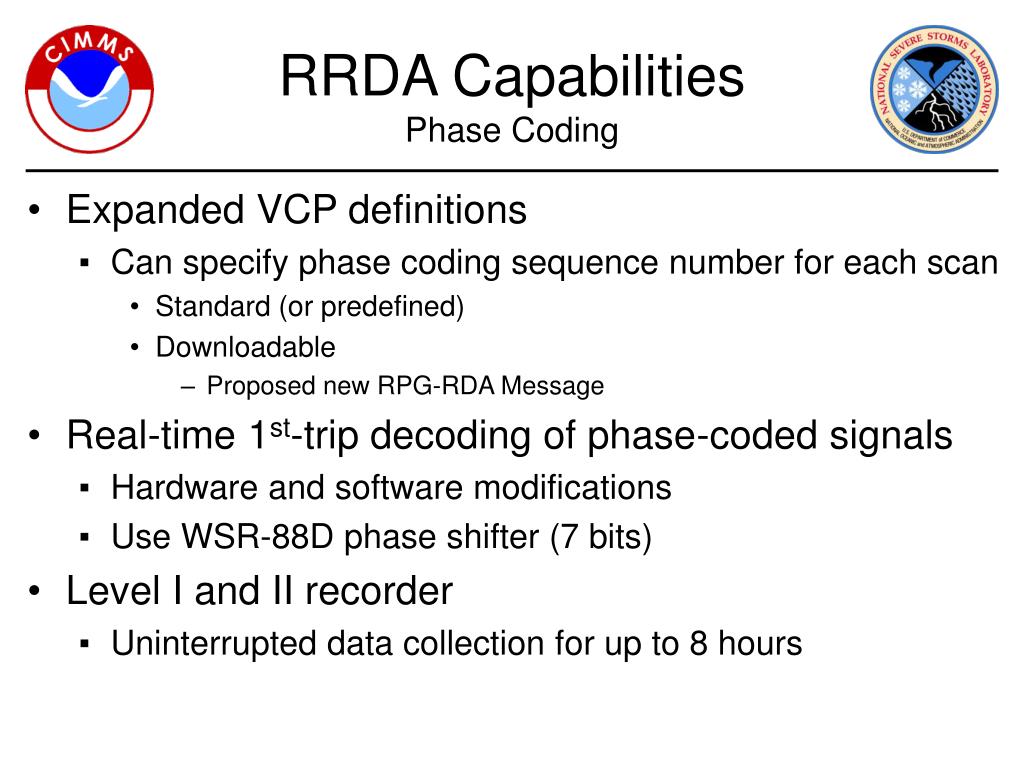

  21. RRDA CapabilitiesPhase Coding • Expanded VCP definitions • Can specify phase coding sequence number for each scan • Standard (or predefined) • Downloadable • Proposed new RPG-RDA Message • Real-time 1st-trip decoding of phase-coded signals • Hardware and software modifications • Use WSR-88D phase shifter (7 bits) • Level I and II recorder • Uninterrupted data collection for up to 8 hours

  22. SZ-2 Algorithm • Transmitted pulses are phase-modulated with SZ(8/64) switching code • Phase-coded scan is preceded by long-PRT surveillance scan • Surveillance scan is not phase coded • Powers from the surveillance scan are used to determine overlaid trips in the phase-coded scan • Spectrum widths from the surveillance scan can be used for censoring • Future work: Study limitations of spectrum width estimates obtained from long PRTs

  23. P1 P2 P3 P4 Pth SZ-2 Algorithm • Censoring and overlaid trip determination • Significant return? • Above noise plus sum of out-of-trip powers? • Within recovery region? • Based on plots of SD(vw) on the Ps/Pw vs. ww plane PL range 1st trip 2nd trip 3rd trip 4th trip

  24. Ground clutter 1st trip cohered v SZ-2 Algorithm • 1st trip cohering • Use measured switching code • Ground clutter filtering • Use bypass map • Frequency domain filter • Future work: Study other filtering schemes 2nd trip modulated 3rd trip modulated 4th trip modulated

  25. v vs SZ-2 Algorithm • Lag-one autocorrelation computation • From cohered data for two strongest trips • Final strong/weak trip determination • Use |R(Ts)| for the two strongest trips • Strong-trip cohering • Strong-trip velocity computation (vs) Strong trip cohered Weak trip cohered Strong trip modulated Weak trip modulated

  26. 1st trip cohered 2nd trip modulated vs/2 vs v SZ-2 Algorithm • Processing notch filter (PNF) • Location determined by vs and presence of clutter • Notch Width determined by strong and weak trip numbers • 8 replicas → NW = 3M/4 • 4 replicas → NW = M/2 PNF PNF

  27. Sidebands Strong trip residue v vw SZ-2 Algorithm • Weak-trip cohering • Weak-trip velocity computation (vw) • From lag-one autocorrelation of notched and cohered weak signal Weak trip cohered

  28. SZ-2 Censoring • Power adjustments • Windowing • PNF • Weak-trip • Assignment of correct range • Trip numbers are used to assign correct range location to strong- and weak-trip moments • Censoring and thresholding • Tag trips with significant powers that are unrecoverable

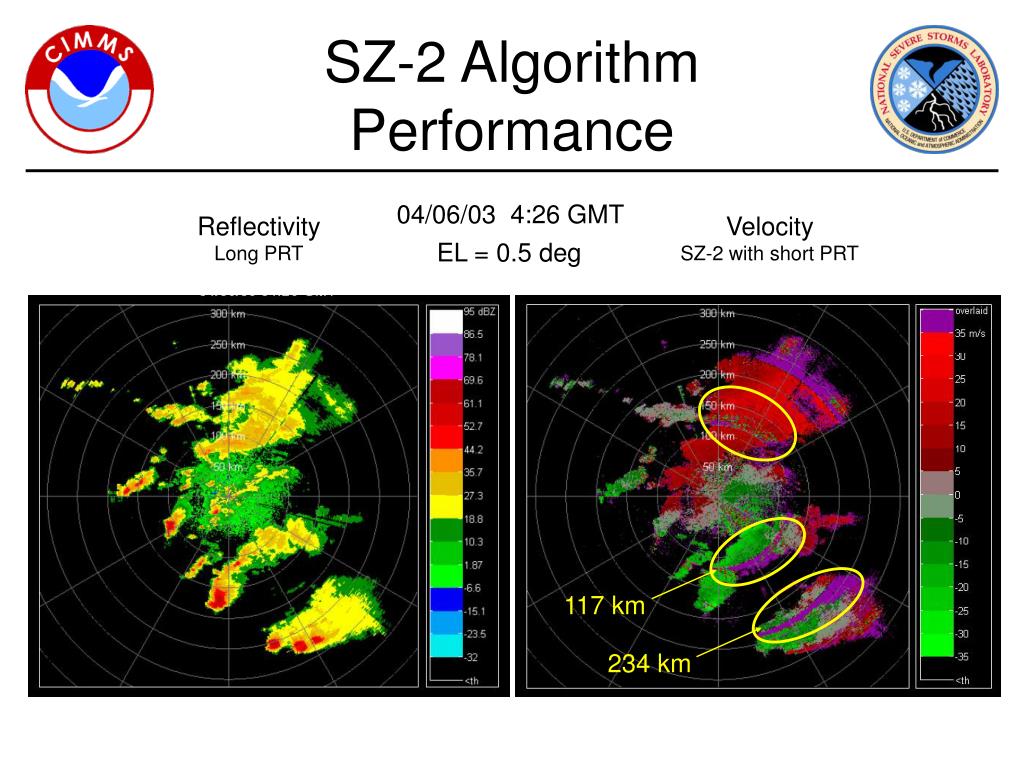

  29. 04/06/03 4:26 GMT ReflectivityLong PRT VelocitySZ-2 with short PRT EL = 0.5 deg 117 km 234 km SZ-2 Algorithm Performance

  30. 04/06/03 4:28 GMT VelocityNon PC “Split cut” VelocitySZ-2 with medium PRT EL = 0.5 deg 175 km 175 km SZ-2 Algorithm Performance va = 23.7 m s-1

  31. 04/06/03 4:30 GMT VelocityStaggered 240/360 VelocitySZ-2 with medium PRT EL = 0.5 deg 240 km 175 km SZ-2 vs. Staggered PRT va = 34.6 m s-1 va = 23.7 m s-1

  32. Conclusions • SZ-2 uses a non-phase-coded, long-PRT, surveillance scan to determine overlaid trips • Substitute for “split cuts” in the legacy WSR-88D • SZ-2 handles up to 2 trips out of 4 possible • Two strongest trips are selected • Future work: Fine-tune thresholds • Can use overlapping radials if M ≠ 64 • Future work: Test this technique with real data

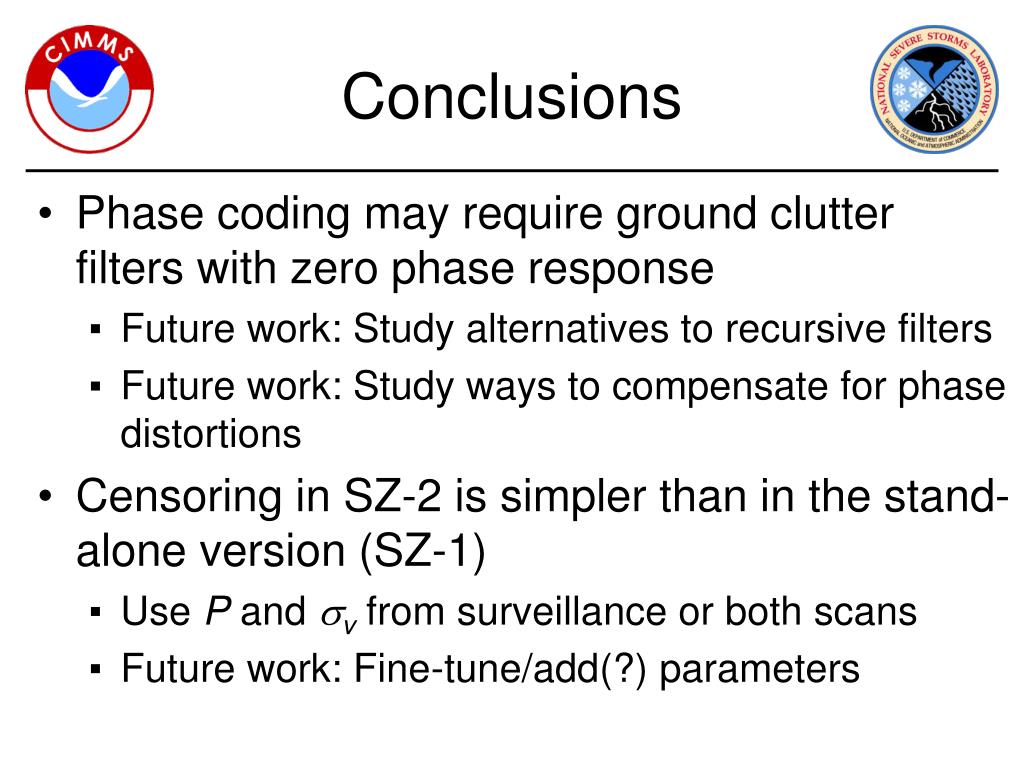

  33. Conclusions • Phase coding may require ground clutter filters with zero phase response • Future work: Study alternatives to recursive filters • Future work: Study ways to compensate for phase distortions • Censoring in SZ-2 is simpler than in the stand-alone version (SZ-1) • Use P and sv from surveillance or both scans • Future work: Fine-tune/add(?) parameters

  34. Conclusions • SZ-2 is very sensitive to clutter residue • From the long-PRT surveillance scan • Recovery region test does not pass • Ring of censored data at the beginning of 2nd, 3rd, and 4th trips • From the phase-coded scan • Noisy data at the beginning of 2nd, 3rd, and 4th trips • Could add CSR as a censoring parameter • SZ-2 is very sensitive to out-of-trip leakage • Fixed by fine-tuned censoring parameters

  35. The End

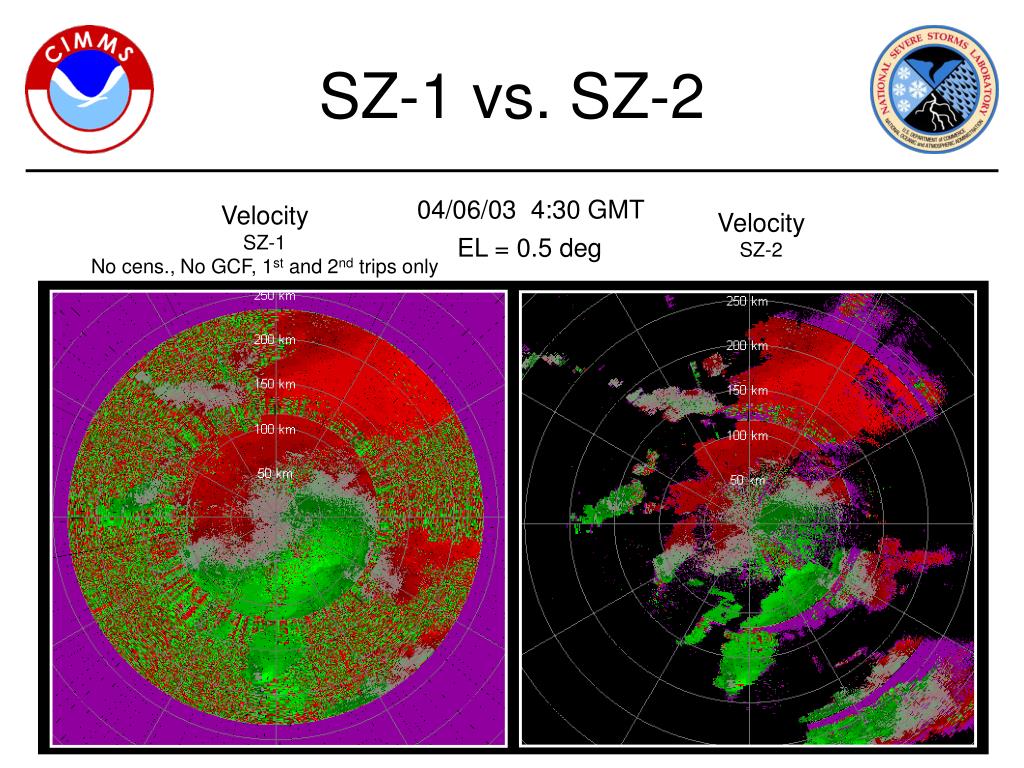

  36. SZ-1 vs. SZ-2 04/06/03 4:30 GMT VelocitySZ-1 No cens., No GCF, 1st and 2nd trips only VelocitySZ-2 EL = 0.5 deg
