Online Recovery of Active Directory Deleted Objects and the Windows Server 2008 R2 Recycle Bin

2. Online Recovery of Active Directory Deleted Objects and the Windows Server 2008 R2Recycle Bin John Craddock Infrastructure & Security Architect XTSeminars Ltd Session Code: SIA402

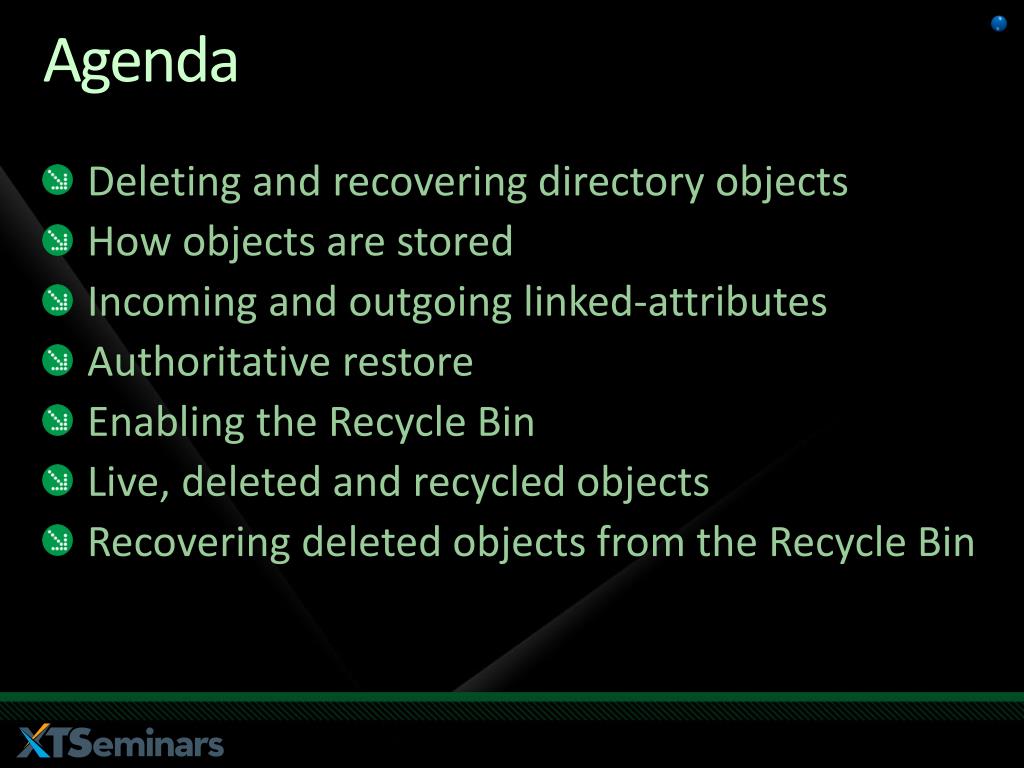

3. Agenda • Deleting and recovering directory objects • How objects are stored • Incoming and outgoing linked-attributes • Authoritative restore • Enabling the Recycle Bin • Live, deleted and recycled objects • Recovering deleted objects from the Recycle Bin

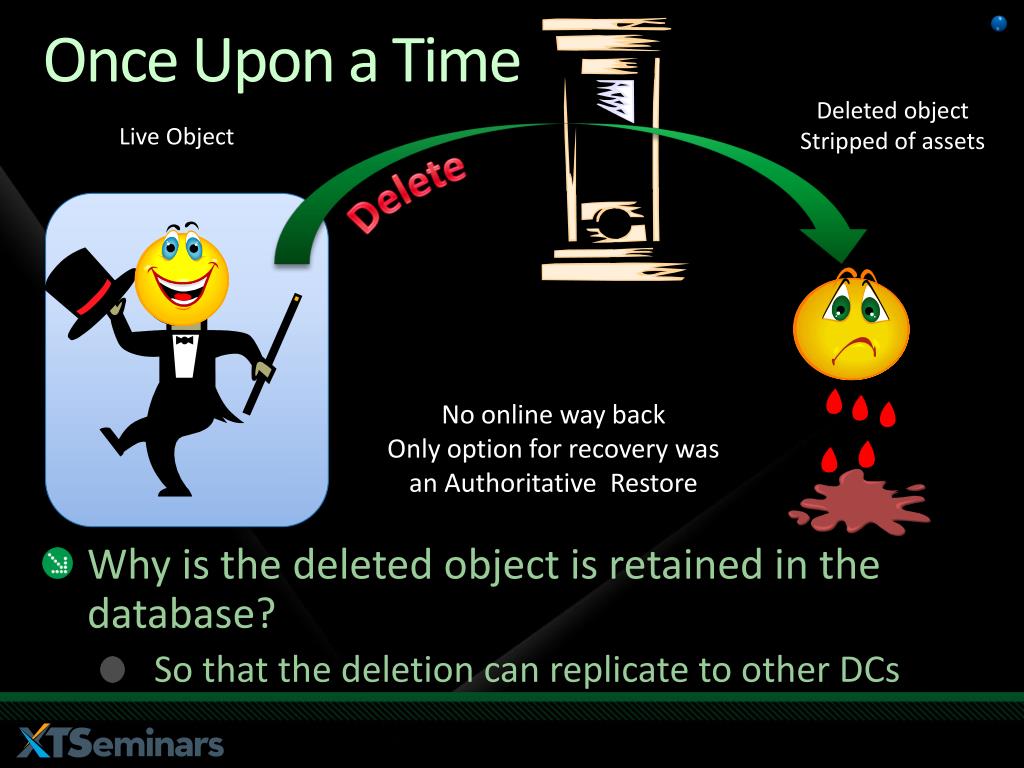

4. Once Upon a Time Deleted objectStripped of assets Live Object • Why is the deleted object is retained in the database? • So that the deletion can replicate to other DCs Delete No online way back Only option for recovery was an Authoritative Restore

5. Significant Events 2008 R2 Forest 2003 Forest 2003 SKU Recycle Bin can be enabled Linked-valuereplication Re-animation of deleted objects

6. In the dark days before the recycle bin

7. Object Deletion Majority of attributes deleted • The object is moved to the deleted objects container • Referred to as a tombstone • isDeleted attribute is set TRUE • The majority of attribute values are removed • Attributes can be retained by setting their searchFlags property Garbagecollection X Live object Tombstoneobject Delete Purged fromdirectory Offline authoritative restore Tombstone lifetime (180 days)

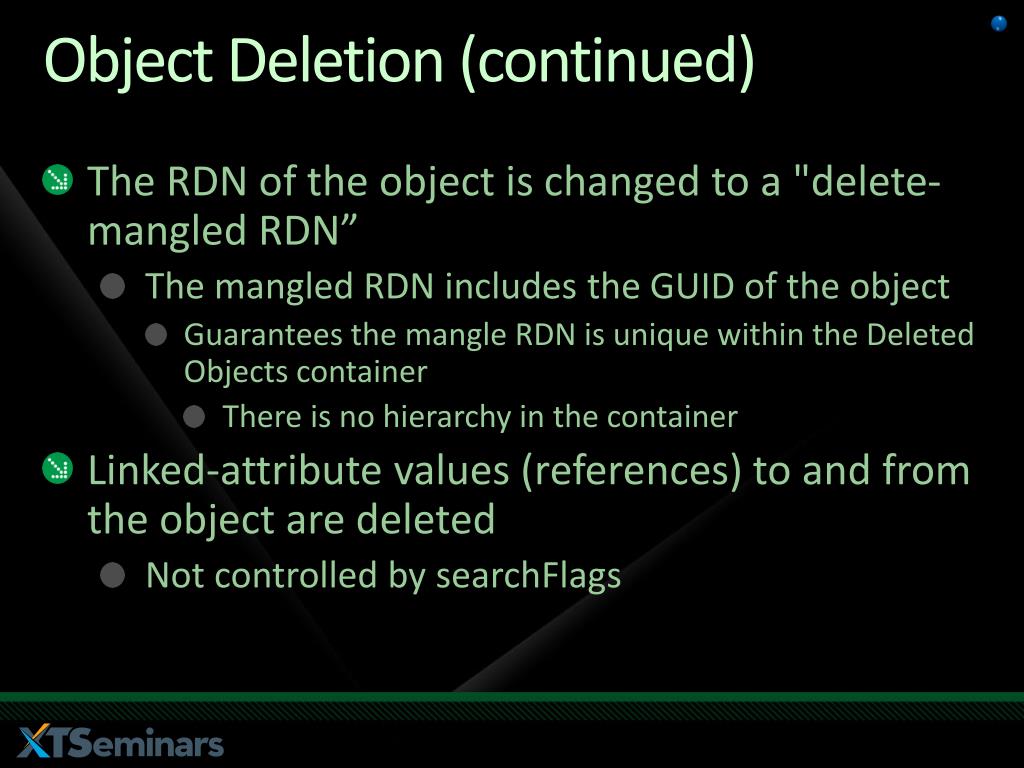

8. Object Deletion (continued) • The RDN of the object is changed to a "delete-mangled RDN” • The mangled RDN includes the GUID of the object • Guarantees the mangle RDN is unique within the Deleted Objects container • There is no hierarchy in the container • Linked-attribute values (references) to and from the object are deleted • Not controlled by searchFlags

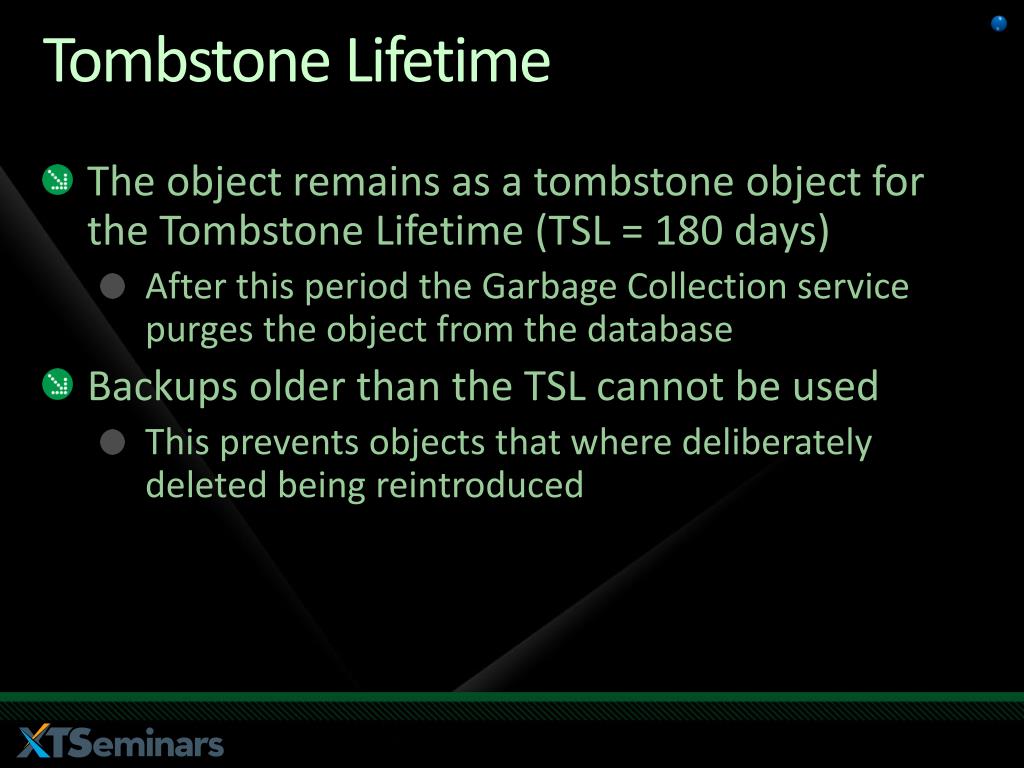

9. Tombstone Lifetime • The object remains as a tombstone object for the Tombstone Lifetime (TSL = 180 days) • After this period the Garbage Collection service purges the object from the database • Backups older than the TSL cannot be used • This prevents objects that where deliberately deleted being reintroduced

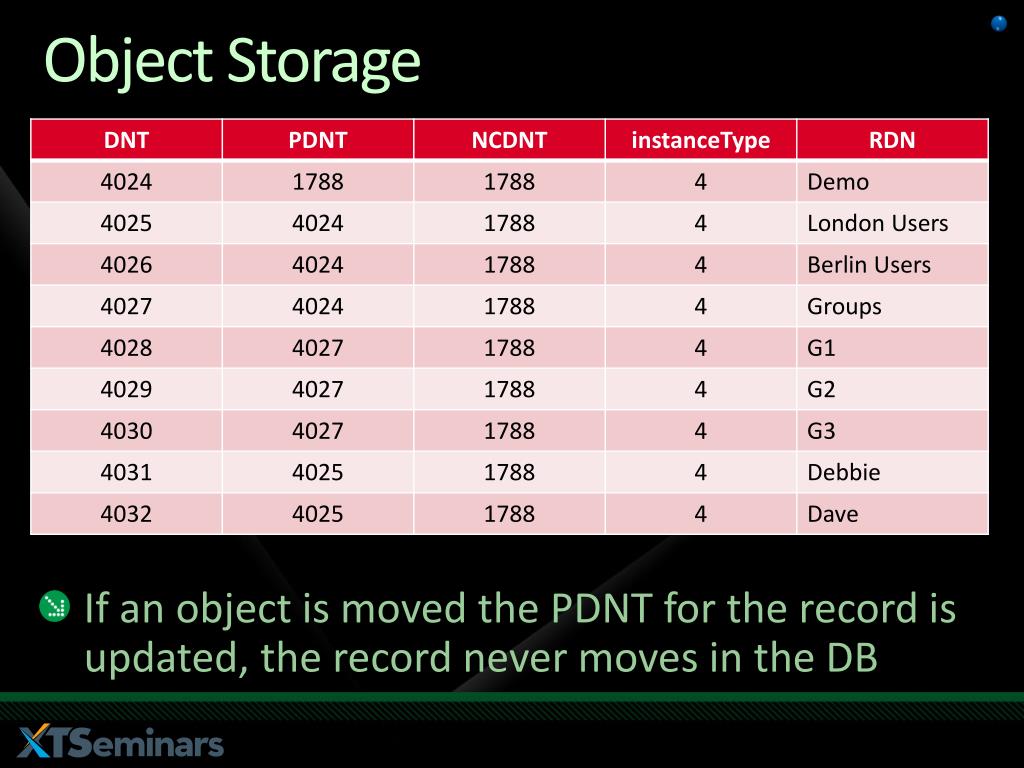

10. Object Storage • If an object is moved the PDNT for the record is updated, the record never moves in the DB

11. Viewing the Database No DN • dumpdatabase is an operational (RootDSE) attribute Name of operational attribute Required attributes for operation Dumpdatabase: dumps text version ofthe database in the NTDS directory

12. Working with Deleted Objects • To view deleted objects requiresan LDAP control • Can select the control in LDP • Windows 2008 R2 PowerShell with AD module • Get-ADObject –LDAPFilter {} –IncludeDeletedObjects

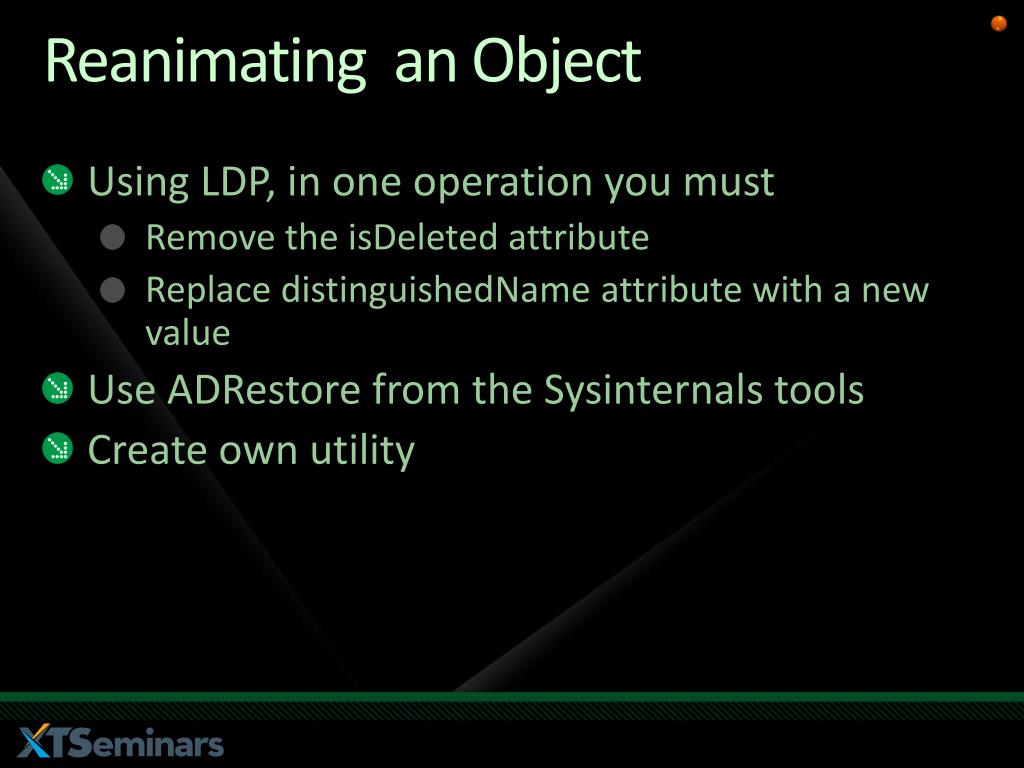

13. Reanimating an Object • Using LDP, in one operation you must • Remove the isDeleted attribute • Replace distinguishedName attribute with a new value • Use ADRestore from the Sysinternals tools • Create own utility

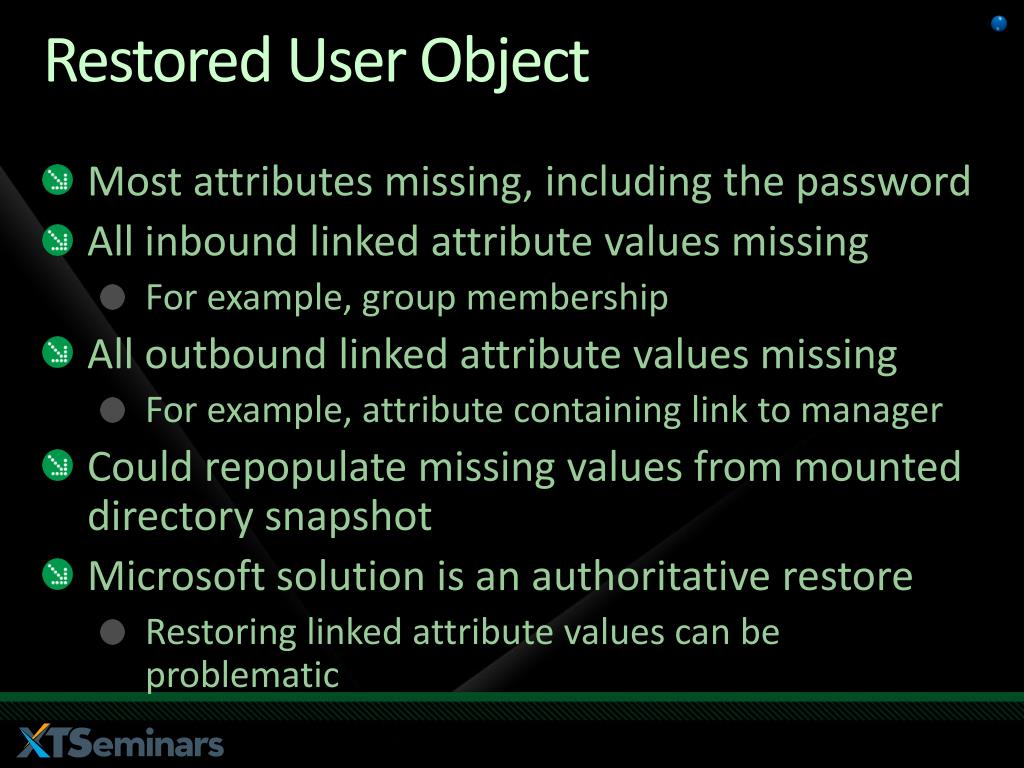

14. Restored User Object • Most attributes missing, including the password • All inbound linked attribute values missing • For example, group membership • All outbound linked attribute values missing • For example, attribute containing link to manager • Could repopulate missing values from mounted directory snapshot • Microsoft solution is an authoritative restore • Restoring linked attribute values can be problematic

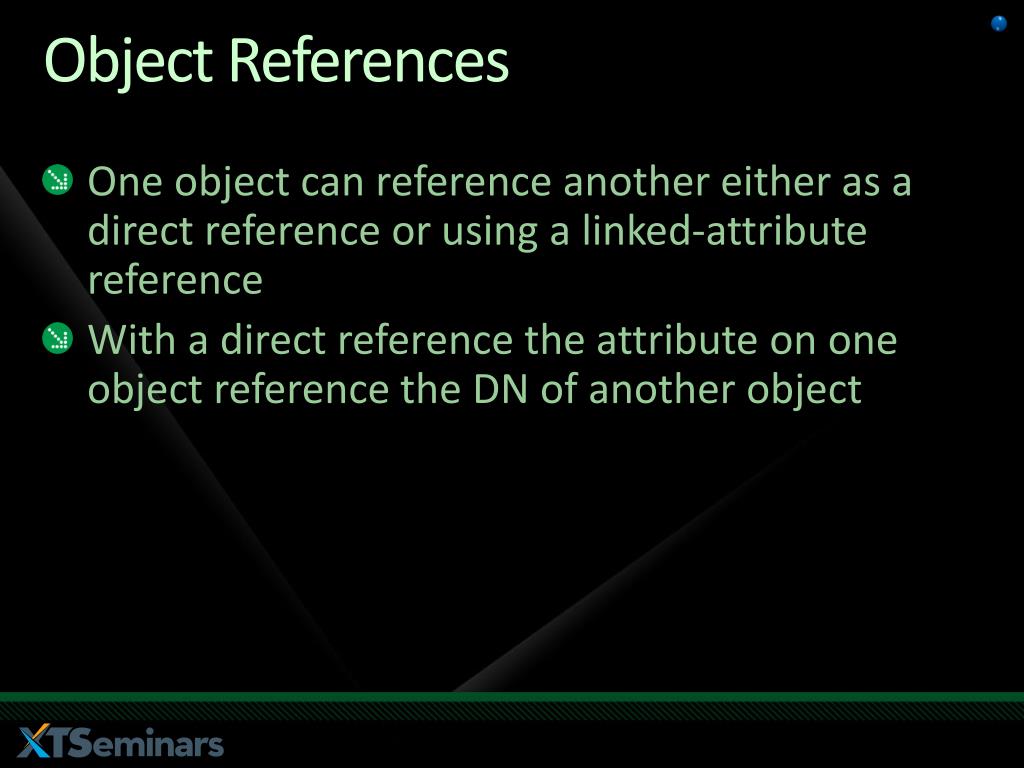

15. Object References • One object can reference another either as a direct reference or using a linked-attribute reference • With a direct reference the attribute on one object reference the DN of another object

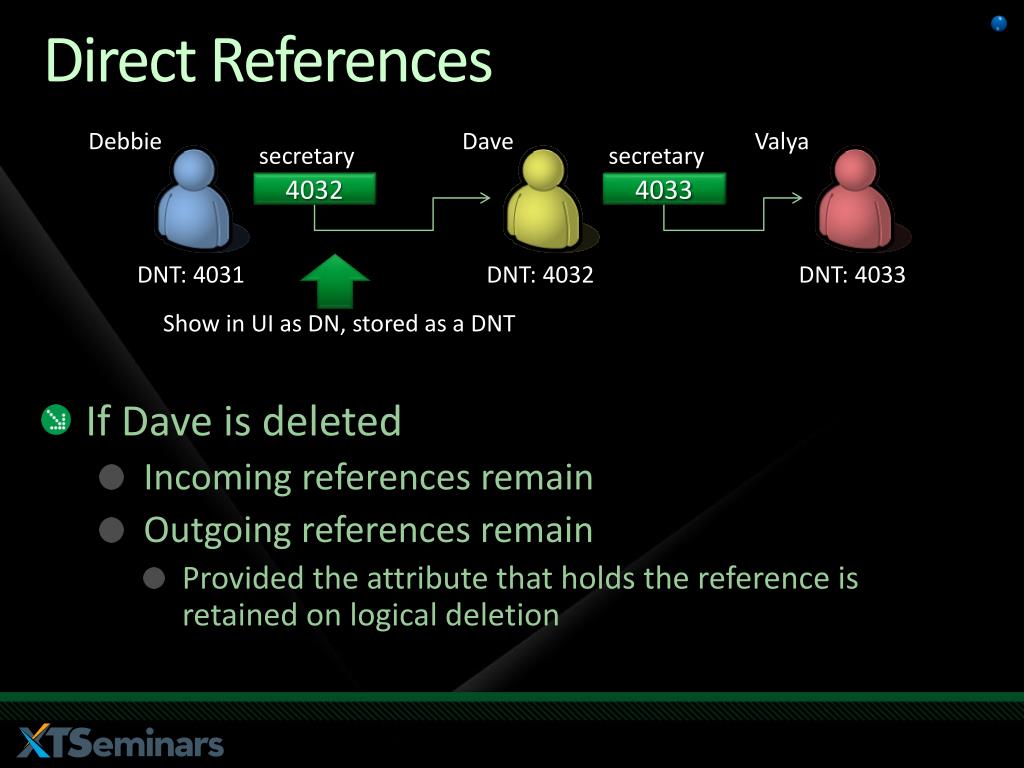

16. Direct References Debbie Dave Valya secretary secretary • If Dave is deleted • Incoming references remain • Outgoing references remain • Provided the attribute that holds the reference is retained on logical deletion 4032 4033 DNT: 4031 DNT: 4032 DNT: 4033 Show in UI as DN, stored as a DNT

17. Linked Attributes • Linked attributes consist of a forward-link and back-link pair • The forward link can be populated and the back link is calculated • Forward links may be single-valued or multi-valued • Back links are always multi-valued • Each linked pair is identified by the linkID property of an attribute • Forward linkIDs are even (n) and for each forward link the associated back-link is an odd number (n+1)

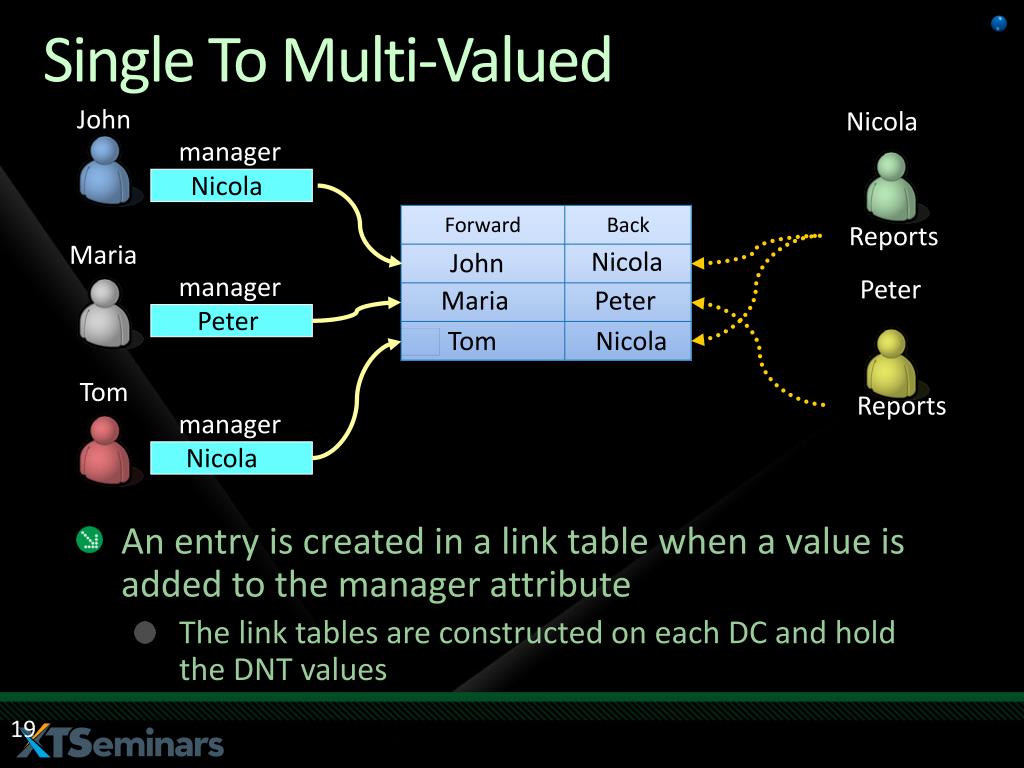

18. Nicola Nicola John Maria Peter Peter Tom Nicola Nicola Single To Multi-Valued John Nicola manager Link Table (simplified) • An entry is created in a link table when a value is added to the manager attribute • The link tables are constructed on each DC and hold the DNT values Reports Maria manager Peter Tom Reports manager

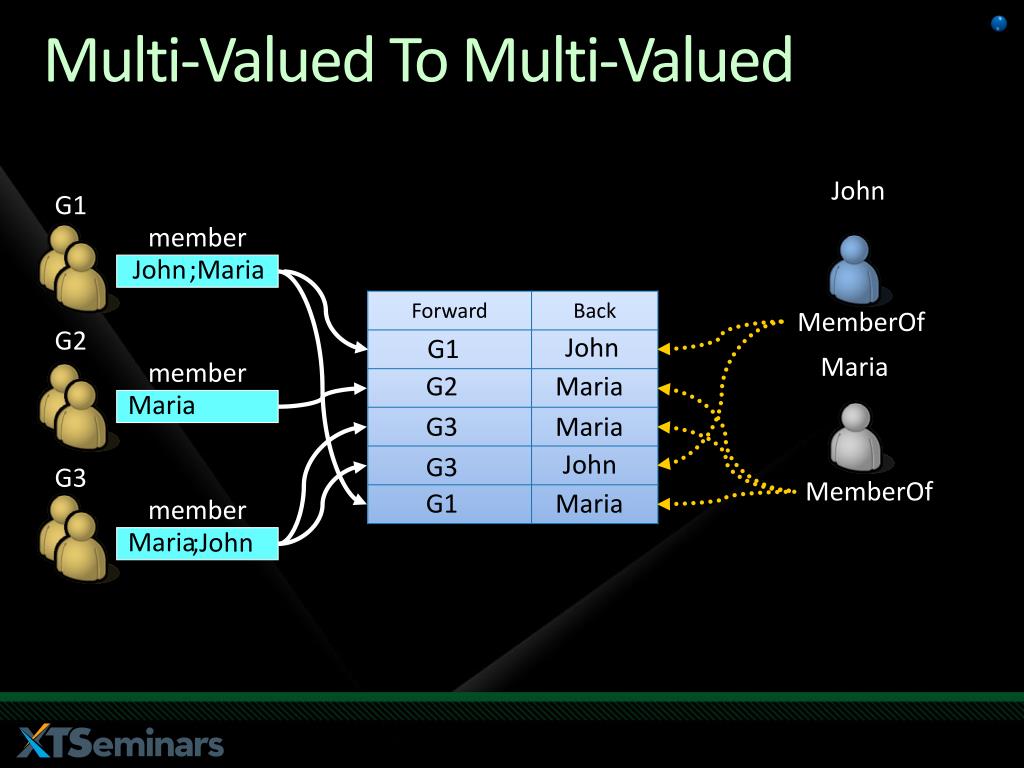

19. John ;Maria John G1 G2 Maria Maria G3 Maria John G3 G1 Maria Maria ;John Multi-Valued To Multi-Valued John G1 member Link Table (simplified) MemberOf G2 Maria member G3 MemberOf member

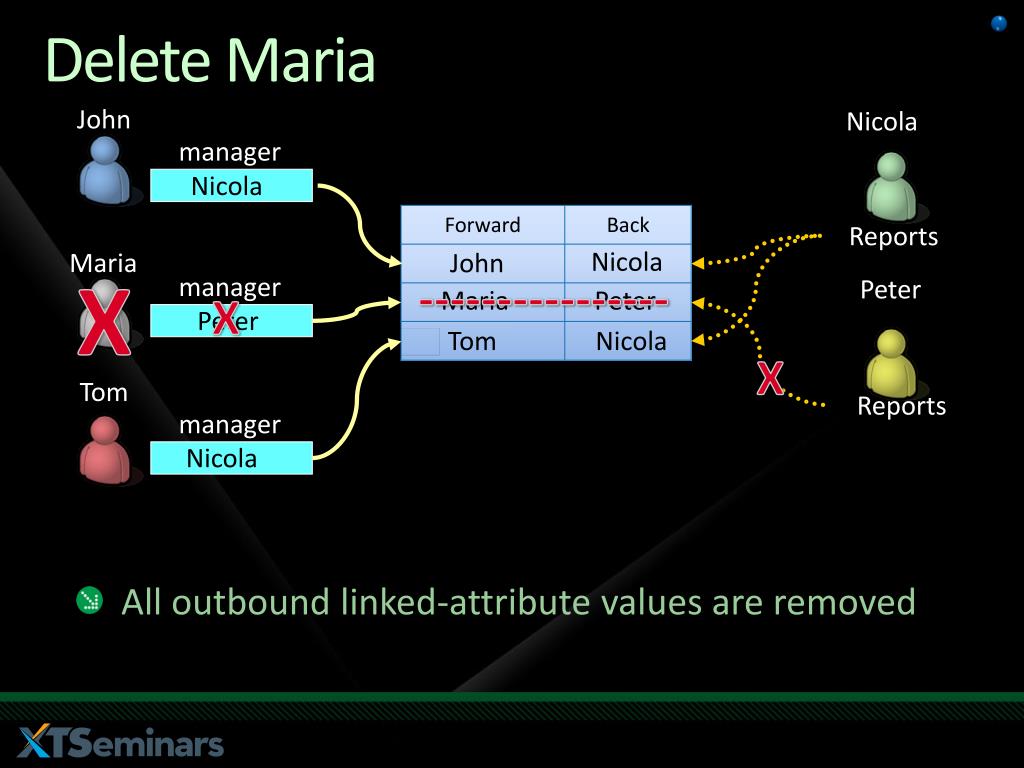

20. Nicola Nicola John Maria Peter Peter Tom Nicola Nicola Delete Maria John Nicola manager Link Table (simplified) • All outbound linked-attribute values are removed Reports Maria X ---------------- manager Peter X X Tom Reports manager

21. John ;Maria John G1 G2 Maria Maria G3 Maria John G3 G1 Maria Maria ;John Delete Maria (continued) John G1 member Link Table (simplified) ---- MemberOf X G2 Maria ---------------- member X ---- X ---------------- X X G3 ---------------- MemberOf member ---- • All Inbound linked-attribute values are removed

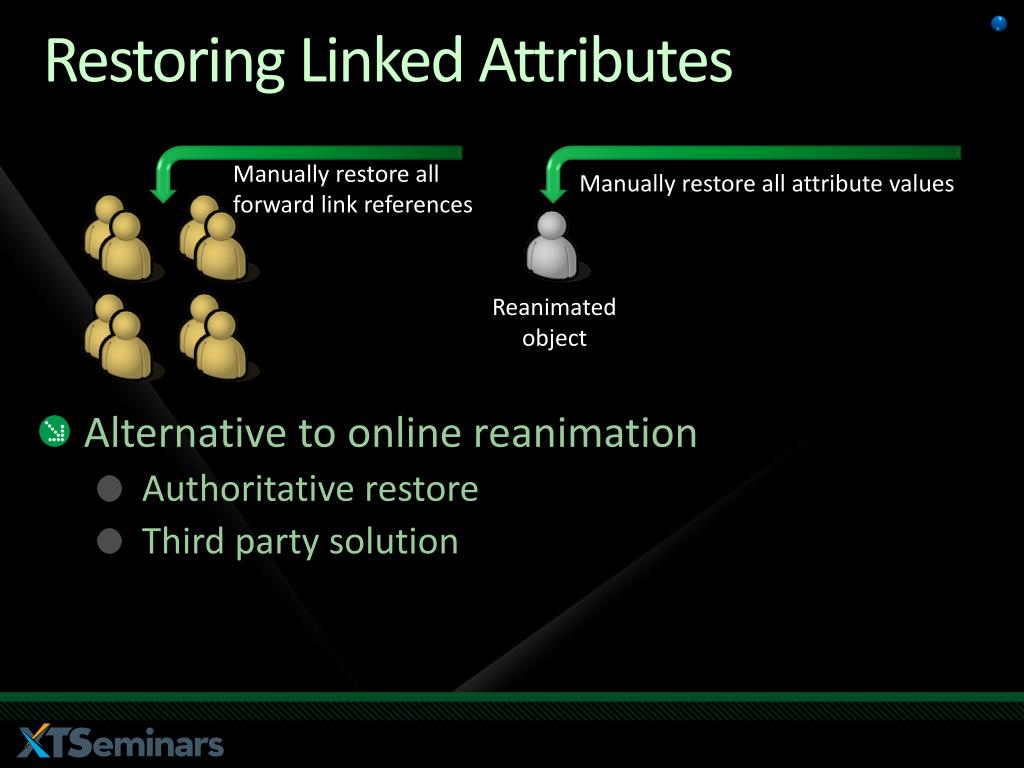

22. Restoring Linked Attributes Manually restore allforward link references • Alternative to online reanimation • Authoritative restore • Third party solution Manually restore all attribute values Reanimatedobject

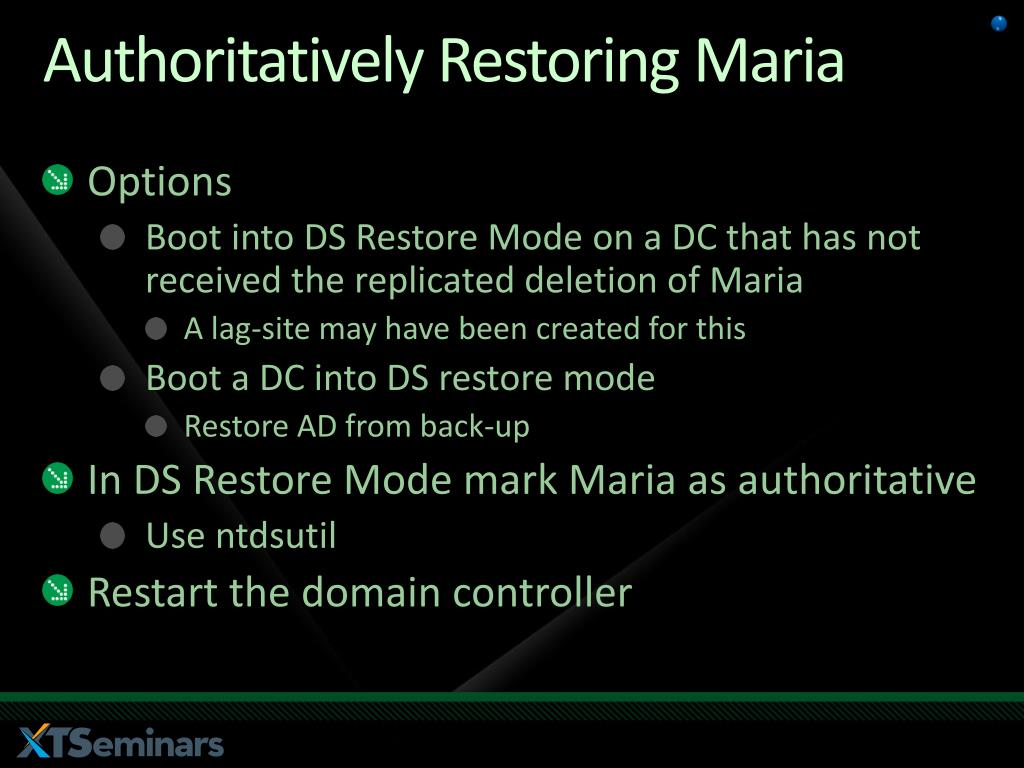

23. Authoritatively Restoring Maria • Options • Boot into DS Restore Mode on a DC that has not received the replicated deletion of Maria • A lag-site may have been created for this • Boot a DC into DS restore mode • Restore AD from back-up • In DS Restore Mode mark Maria as authoritative • Use ntdsutil • Restart the domain controller

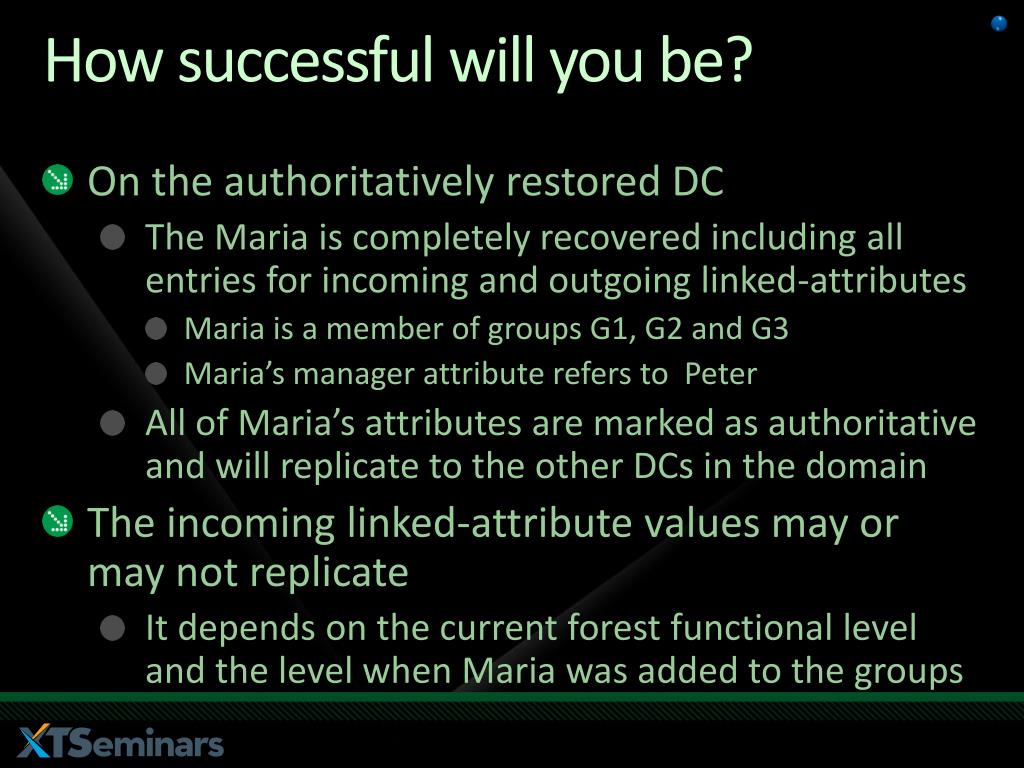

24. How successful will you be? • On the authoritatively restored DC • The Maria is completely recovered including all entries for incoming and outgoing linked-attributes • Maria is a member of groups G1, G2 and G3 • Maria’s manager attribute refers to Peter • All of Maria’s attributes are marked as authoritative and will replicate to the other DCs in the domain • The incoming linked-attribute values may or may not replicate • It depends on the current forest functional level and the level when Maria was added to the groups

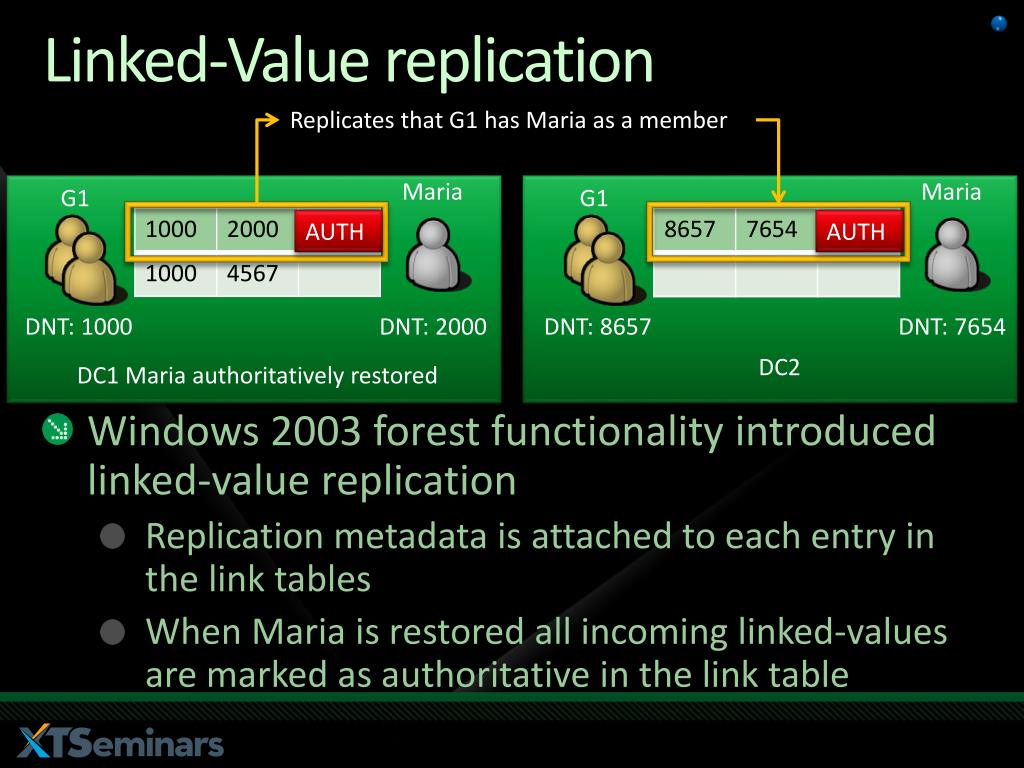

25. Linked-Value replication Replicates that G1 has Maria as a member • Windows 2003 forest functionality introduced linked-value replication • Replication metadata is attached to each entry in the link tables • When Maria is restored all incoming linked-values are marked as authoritative in the link table Maria Maria G1 G1 AUTH AUTH DNT: 1000 DNT: 2000 DNT: 8657 DNT: 7654 DC2 DC1 Maria authoritatively restored

26. No Linked Value Replication • Prior to 2003 forest functionality replication metadata existed on the attribute and not the individual links • To restore Marias group membership one option was to authoritatively restore all groups that she belonged to • If Maria was added to some groups before and after linked-value replication was enabled • During an authoritative restore of Maria, some links would replicate others wouldn’t

27. Partial Solution LDF Produced During Authoritative Restore # CN=G1,OU=Groups,OU=Demo,DC=example,DC=com # dn: <GUID=4ec2d1b7-354b-4f17-9a6b-c567888bcf24> dn:: PEdVSUQ9NGVjMmQxYjctMzU0Yi00ZjE3LTlhNmItYzU2Nzg4OGJjZjI0Pg== # Base64 encoded: <GUID=4ec2d1b7-354b-4f17-9a6b-c567888bcf24> changetype: modify delete: member # CN=Maria,OU=Berlin Users,OU=Demo,DC=example,DC=com # member: <GUID=6a677bde-f83e-49a5-b5fb-eb074a2899b7> member:: PEdVSUQ9NmE2NzdiZGUtZjgzZS00OWE1LWI1ZmItZWIwNzRhMjg5OWI3Pg== - # CN=G1,OU=Groups,OU=Demo,DC=example,DC=com # dn: <GUID=4ec2d1b7-354b-4f17-9a6b-c567888bcf24> dn:: PEdVSUQ9NGVjMmQxYjctMzU0Yi00ZjE3LTlhNmItYzU2Nzg4OGJjZjI0Pg== changetype: modify add: member # CN=Maria,OU=Berlin Users,OU=Demo,DC=example,DC=com # member: <GUID=6a677bde-f83e-49a5-b5fb-eb074a2899b7> member:: PEdVSUQ9NmE2NzdiZGUtZjgzZS00OWE1LWI1ZmItZWIwNzRhMjg5OWI3Pg== -

28. The dawnof a New Era

29. Recycle Bin Enabled All attributes retained Live object Deletedobject Delete Deleted object lifetime (180 days) Online undelete Garbagecollection Recycledobject Garbagecollection X Purged fromdirectory Tombstone lifetime (180 days)

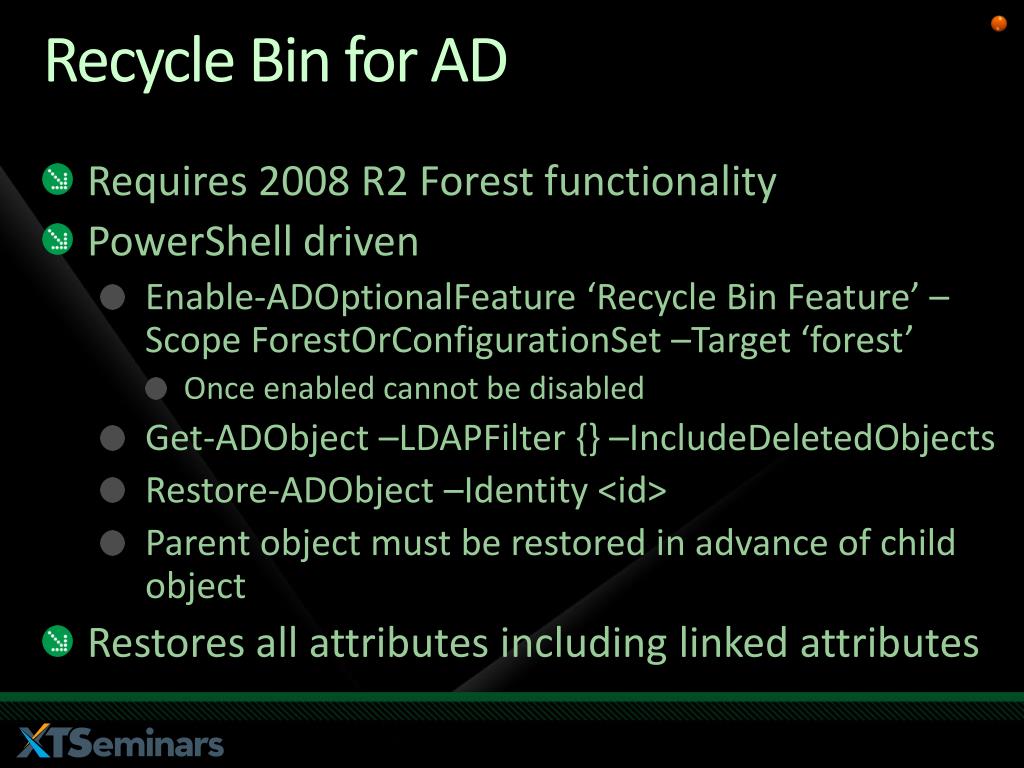

30. Recycle Bin for AD • Requires 2008 R2 Forest functionality • PowerShell driven • Enable-ADOptionalFeature ‘Recycle Bin Feature’ –Scope ForestOrConfigurationSet –Target ‘forest’ • Once enabled cannot be disabled • Get-ADObject –LDAPFilter {} –IncludeDeletedObjects • Restore-ADObject –Identity <id> • Parent object must be restored in advance of child object • Restores all attributes including linked attributes

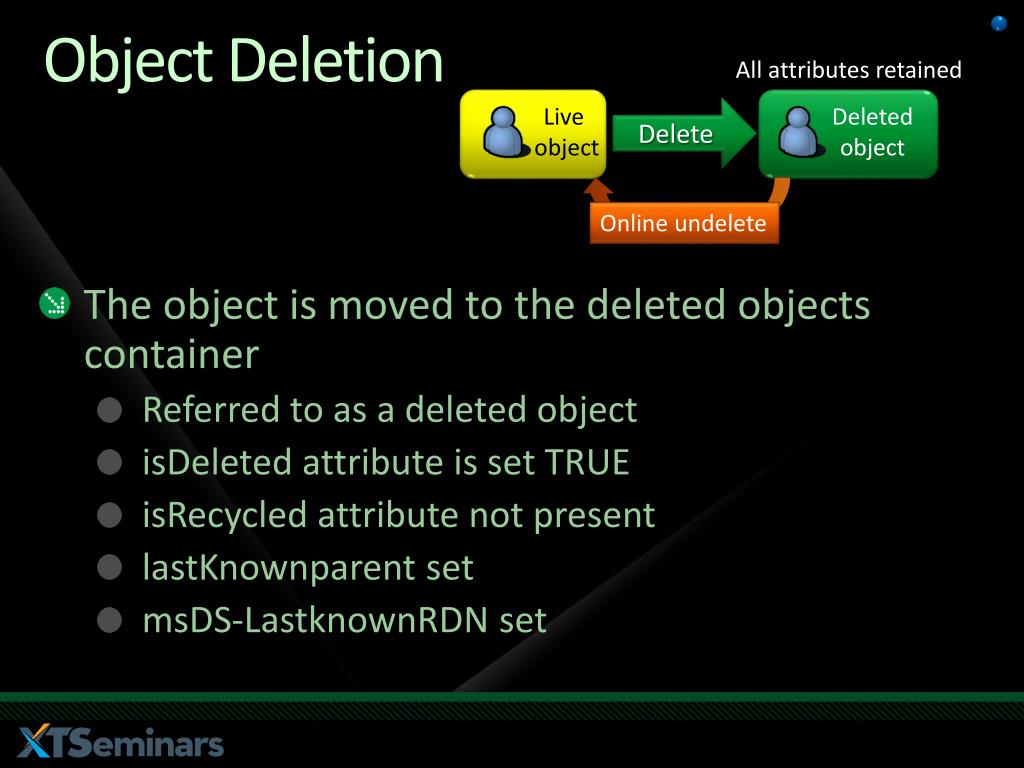

31. Object Deletion All attributes retained Live object Deletedobject Delete • The object is moved to the deleted objects container • Referred to as a deleted object • isDeleted attribute is set TRUE • isRecycled attribute not present • lastKnownparent set • msDS-LastknownRDN set Online undelete

32. Object Deletion (continued) • The RDN of the object is changed to a "delete-mangled RDN” • All attribute values with the exception objectCategory and sAMAccountType are retained • If the object is undeleted these are automatically restored from the defaultObjectCategory and userAccountControl attributes

33. Object Deletion (continued) • Linked-attribute values (references) to and from the object are retained • Not visible to LDAP with out special control • The object remains as a deleted object for the Deleted Object Lifetime (DOL = 180 days) • After this period the Garbage Collection service converts the object to a Recycled Object

34. Recycled Object • Similar characteristics to a pre-recycle bin tombstone object • The majority of attribute values are removed • Linked-attribute values (references) to and from the object are deleted • isRecycled set TRUE • A recycled object cannot be reanimated • Retained to allow replication to occur

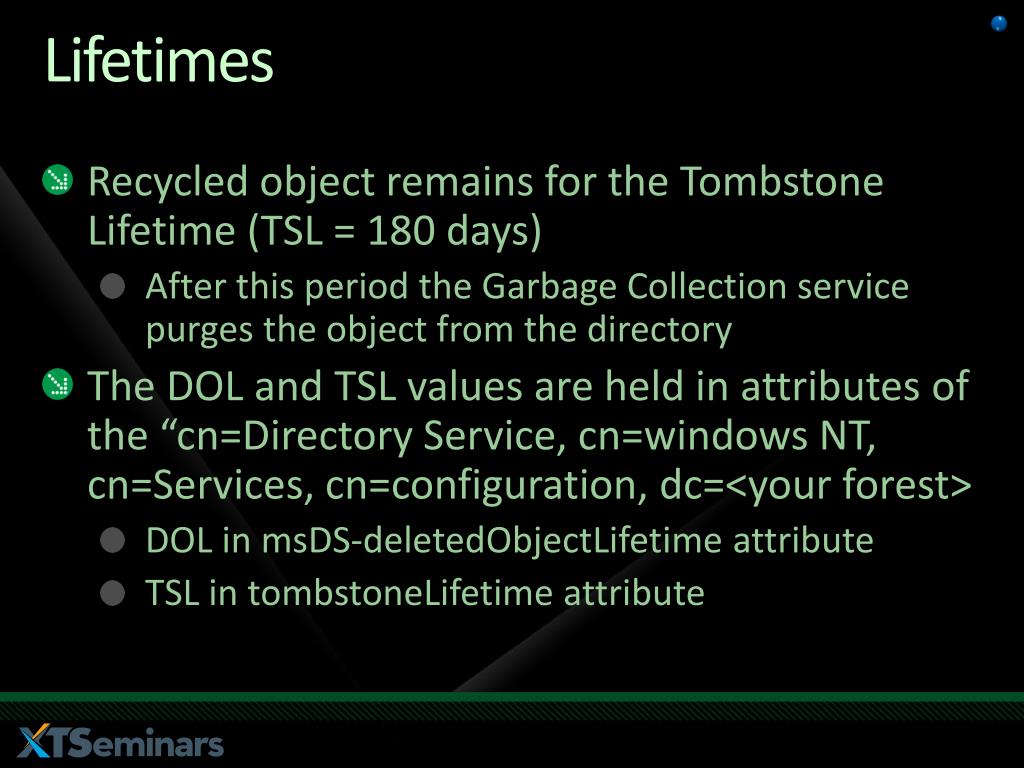

35. Lifetimes • Recycled object remains for the Tombstone Lifetime (TSL = 180 days) • After this period the Garbage Collection service purges the object from the directory • The DOL and TSL values are held in attributes of the “cn=Directory Service, cn=windows NT, cn=Services, cn=configuration, dc=<your forest> • DOL in msDS-deletedObjectLifetime attribute • TSL in tombstoneLifetime attribute

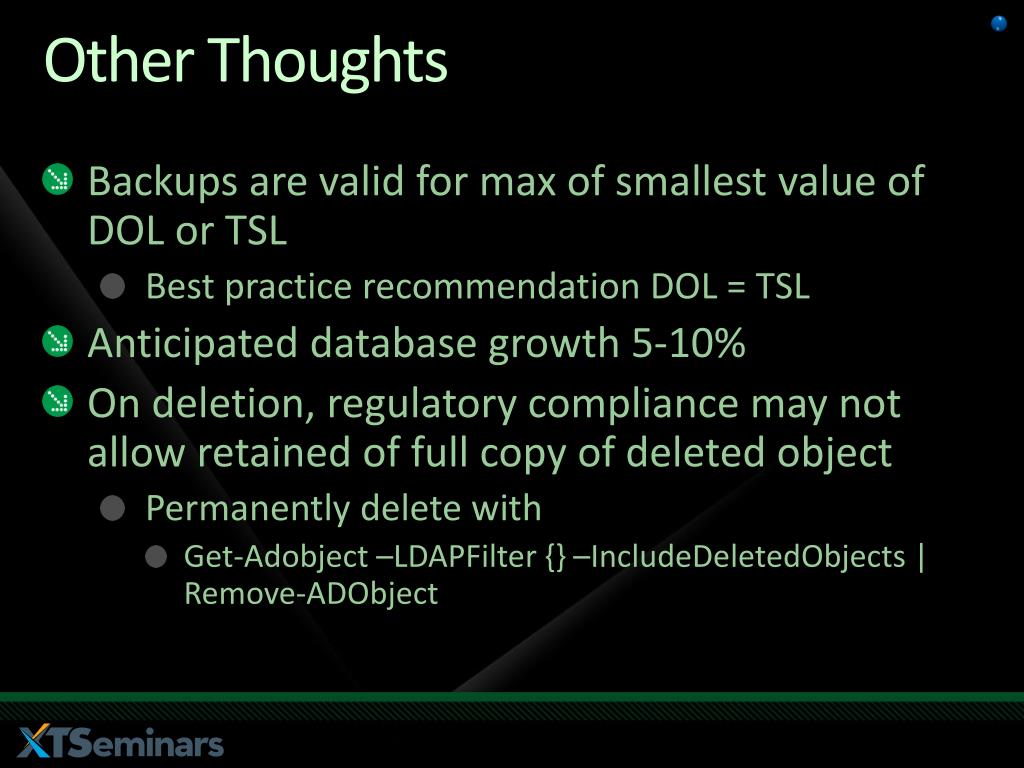

36. Other Thoughts • Backups are valid for max of smallest value of DOL or TSL • Best practice recommendation DOL = TSL • Anticipated database growth 5-10% • On deletion, regulatory compliance may not allow retained of full copy of deleted object • Permanently delete with • Get-Adobject –LDAPFilter {} –IncludeDeletedObjects | Remove-ADObject

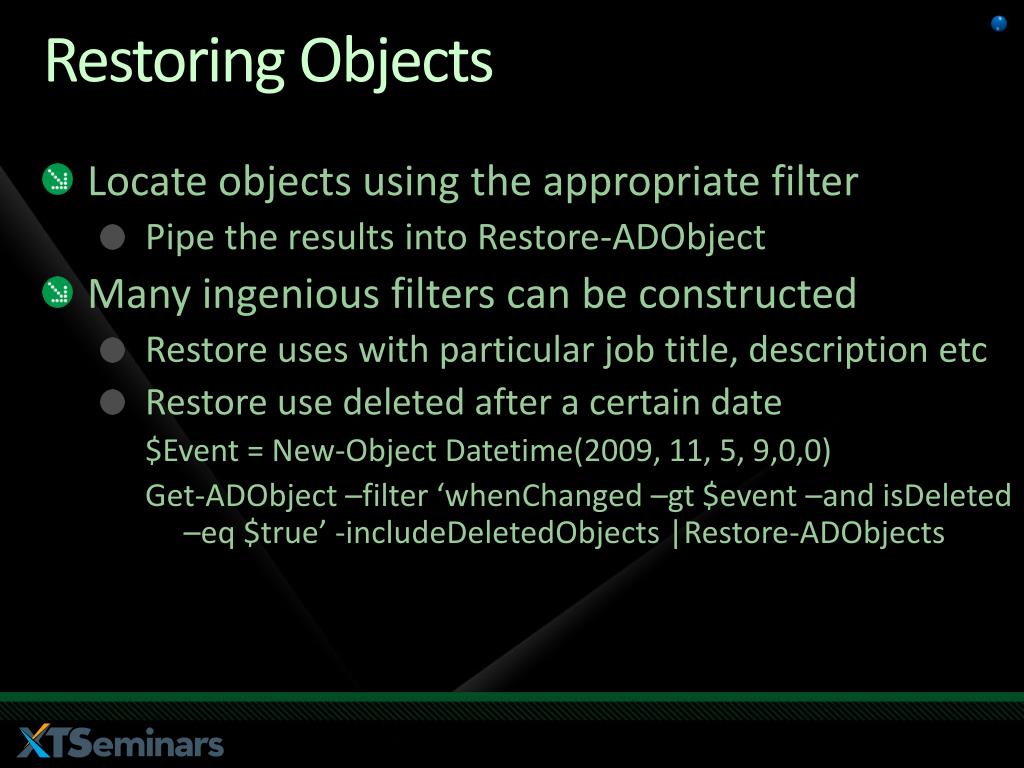

37. Restoring Objects • Locate objects using the appropriate filter • Pipe the results into Restore-ADObject • Many ingenious filters can be constructed • Restore uses with particular job title, description etc • Restore use deleted after a certain date $Event = New-Object Datetime(2009, 11, 5, 9,0,0) Get-ADObject –filter ‘whenChanged –gt $event –and isDeleted –eq $true’ -includeDeletedObjects |Restore-ADObjects

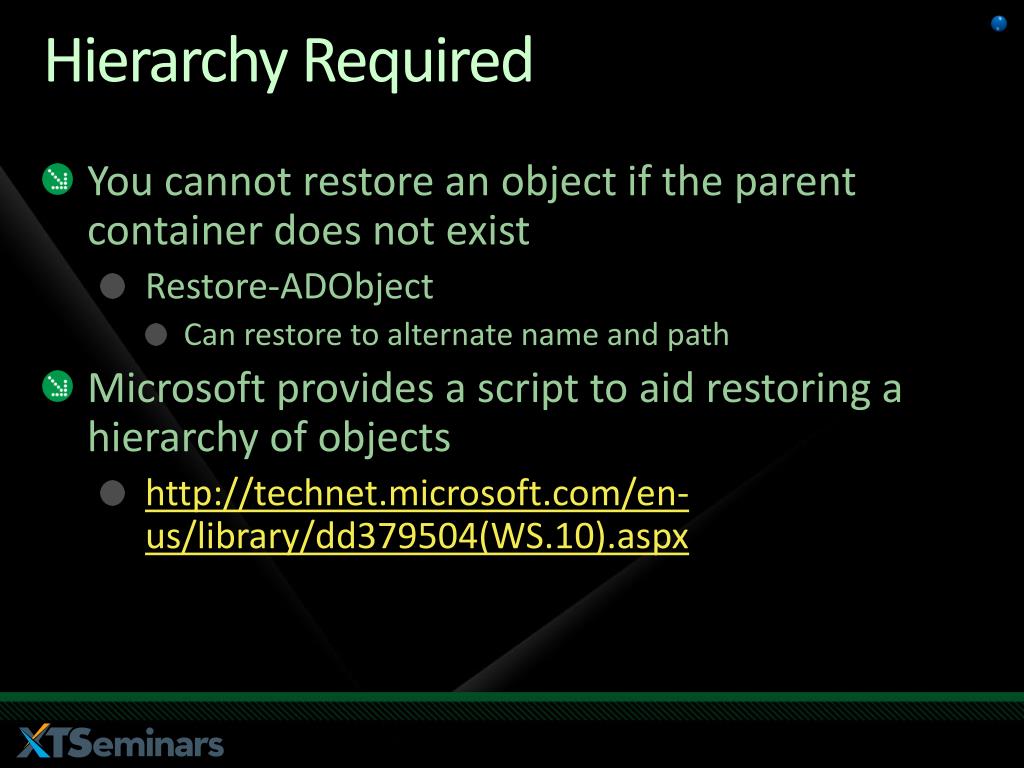

38. Hierarchy Required • You cannot restore an object if the parent container does not exist • Restore-ADObject • Can restore to alternate name and path • Microsoft provides a script to aid restoring a hierarchy of objects • http://technet.microsoft.com/en-us/library/dd379504(WS.10).aspx

39. And Now Live Object Delete Restore

41. Thanks for comingHave a good trip back

42. Required Slide Complete an evaluation on CommNet and enter to win an Xbox 360 Elite!

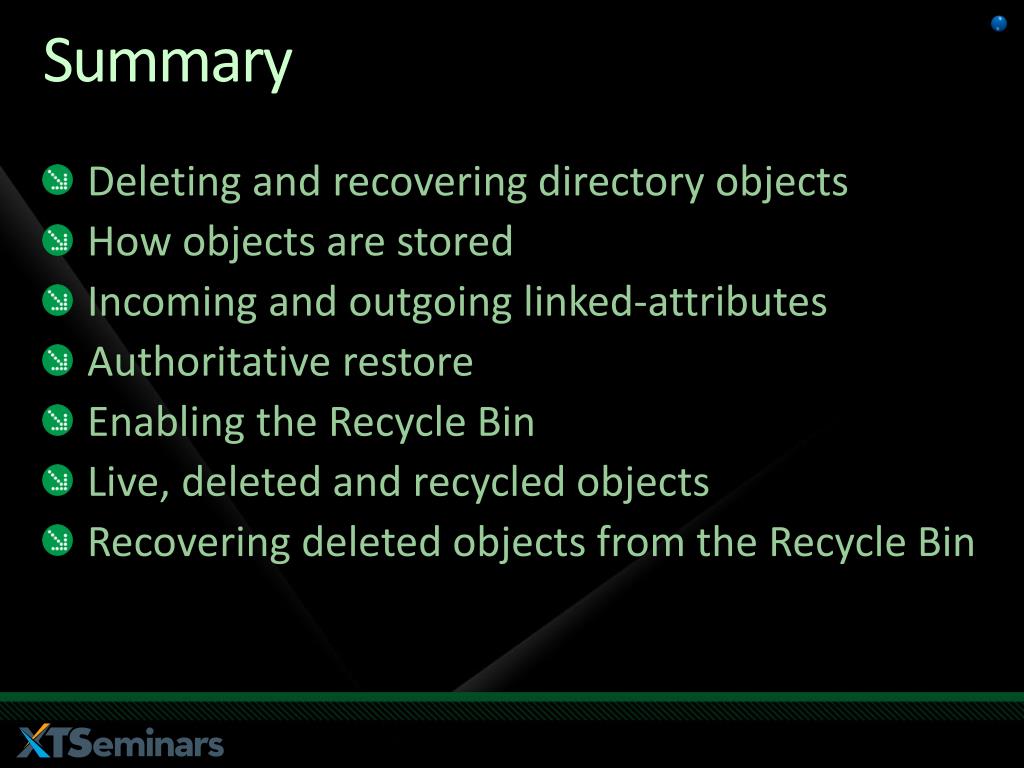

43. Summary • Deleting and recovering directory objects • How objects are stored • Incoming and outgoing linked-attributes • Authoritative restore • Enabling the Recycle Bin • Live, deleted and recycled objects • Recovering deleted objects from the Recycle Bin

44. Required Slide Speakers, TechEd 2009 is not producing a DVD. Please announce that attendees can access session recordings at TechEd Online. Resources • www.microsoft.com/teched Sessions On-Demand & Community • www.microsoft.com/learning • Microsoft Certification & Training Resources • http://microsoft.com/technet • Resources for IT Professionals • http://microsoft.com/msdn Resources for Developers

45. Required Slide Speakers, please list the Breakout Sessions, TLC Interactive Theaters and Labs that are related to your session. Related Content Breakout Sessions: SIA402 Recovery of Active Directory Deleted Objects and the Windows Server 2008 R2 Recycle Bin SVR317 Managing Windows Server 2008 R2 and Windows 7 with Windows PowerShell V2 Interactive Theater Sessions : SIA02-IS Active Directory: What's New in R2 Hands-on Labs: WSV03-HOL Advanced Windows PowerShell Scripting WSV20-HOL Windows Server 2008 R2: What's New in Microsoft Active Directory

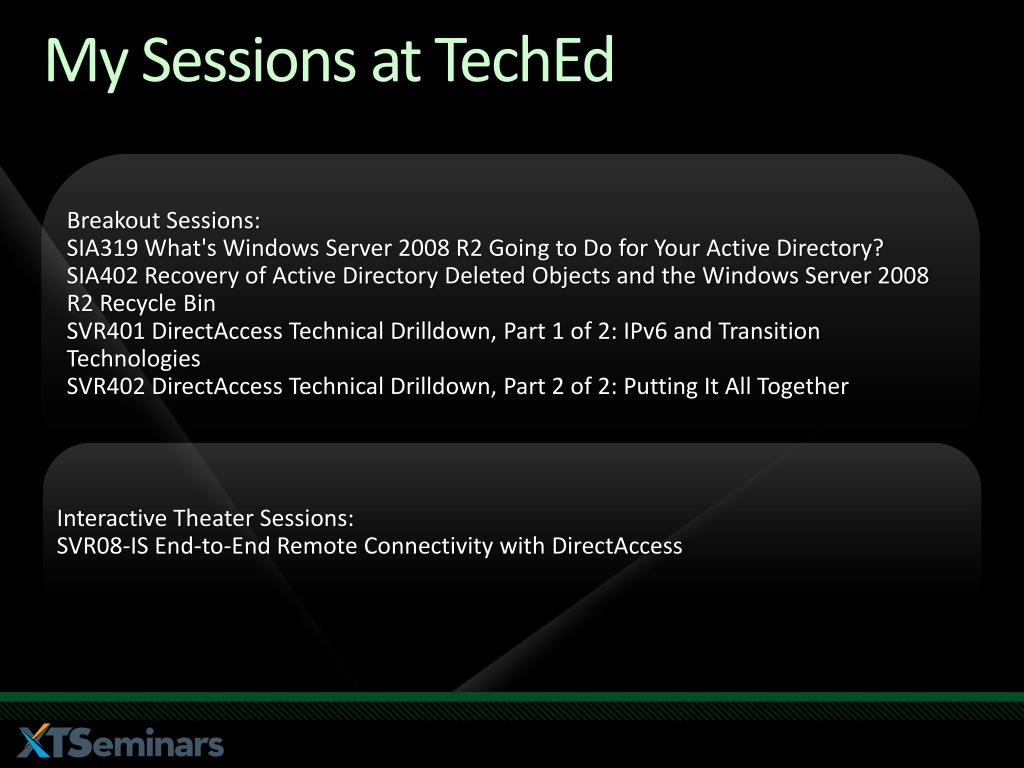

46. Required Slide Speakers, please list the Breakout Sessions, TLC Interactive Theaters and Labs that are related to your session. My Sessions at TechEd Breakout Sessions: SIA319 What's Windows Server 2008 R2 Going to Do for Your Active Directory? SIA402 Recovery of Active Directory Deleted Objects and the Windows Server 2008 R2 Recycle Bin SVR401 DirectAccess Technical Drilldown, Part 1 of 2: IPv6 and Transition Technologies SVR402 DirectAccess Technical Drilldown, Part 2 of 2: Putting It All Together Interactive Theater Sessions: SVR08-IS End-to-End Remote Connectivity with DirectAccess
