Mastering Box and Whisker Plots: A Visual Guide for Data Analysis

Learn how to create and interpret Box and Whisker Plots with this step-by-step tutorial. Discover how to order data, find quartiles, calculate the interquartile range, and plot a box-and-whisker graph. Watch the video to see an example using scores on a Math Test.

mervyn
Télécharger la présentation

Mastering Box and Whisker Plots: A Visual Guide for Data Analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Box and Whisker Plots

  2. Box and Whisker Plotshttp://www.youtube.com/watch?v=GMb6HaLXmjY • Step 1: Order your data from least to greatest • Step 2: Divide the data in half • Find lower half median (middle number) = Lower quartile (LQ) • Find upper half median (middle number)= Upper quartile (UQ) • Inter quartile range = UQ – LQ • Find median (middle number) • Find lower extreme = lowest number • Find Upper extreme = highest number • EX: Scores on a Math Test • 64, 95, 83, 80, 77, 75, 79, 86, 90, 98, 71

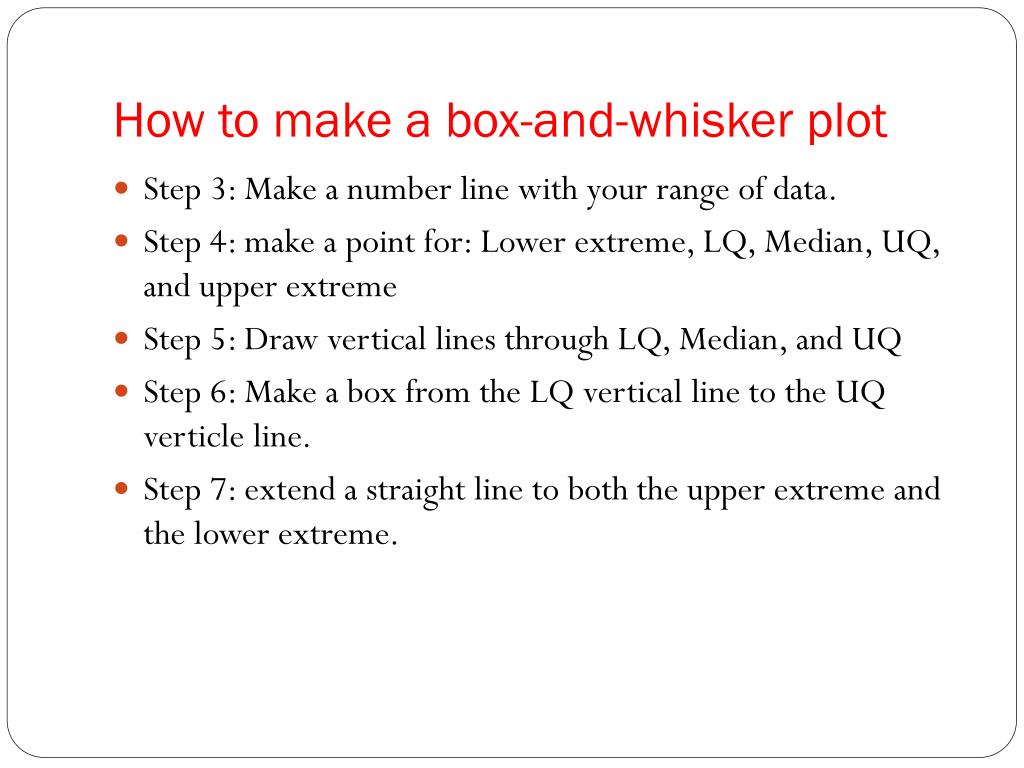

  3. How to make a box-and-whisker plot • Step 3: Make a number line with your range of data. • Step 4: make a point for: Lower extreme, LQ, Median, UQ, and upper extreme • Step 5: Draw vertical lines through LQ, Median, and UQ • Step 6: Make a box from the LQ vertical line to the UQ verticleline. • Step 7: extend a straight line to both the upper extreme and the lower extreme.
