Domain Inventory Project

This project presents a comprehensive analysis of forest data collected from 1786 sample plots from 1996 to 2001. Key metrics include tree species, diameter at breast height (dbh), canopy class, and snag classification among others. Utilizing this data, we explore the differences in vegetation and soil characteristics between plateau and cove compartments. The analysis focuses on quantifying potential timber harvesting, understanding species richness, density by species and class, and employing the Shannon-Weiner Diversity Index to assess biodiversity across compartments.

meryl
Télécharger la présentation

Domain Inventory Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Domain Inventory Project 23 March 2005

  2. Domain Compartments

  3. Points sampled, 1996-2001

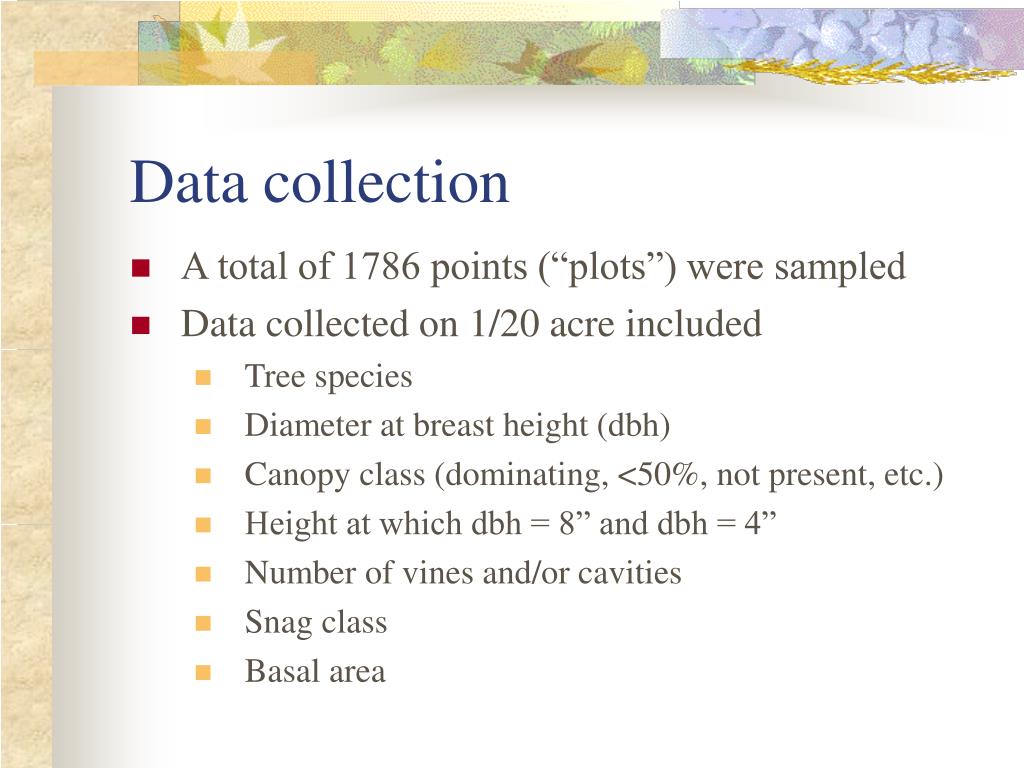

  4. Data collection • A total of 1786 points (“plots”) were sampled • Data collected on 1/20 acre included • Tree species • Diameter at breast height (dbh) • Canopy class (dominating, <50%, not present, etc.) • Height at which dbh = 8” and dbh = 4” • Number of vines and/or cavities • Snag class • Basal area

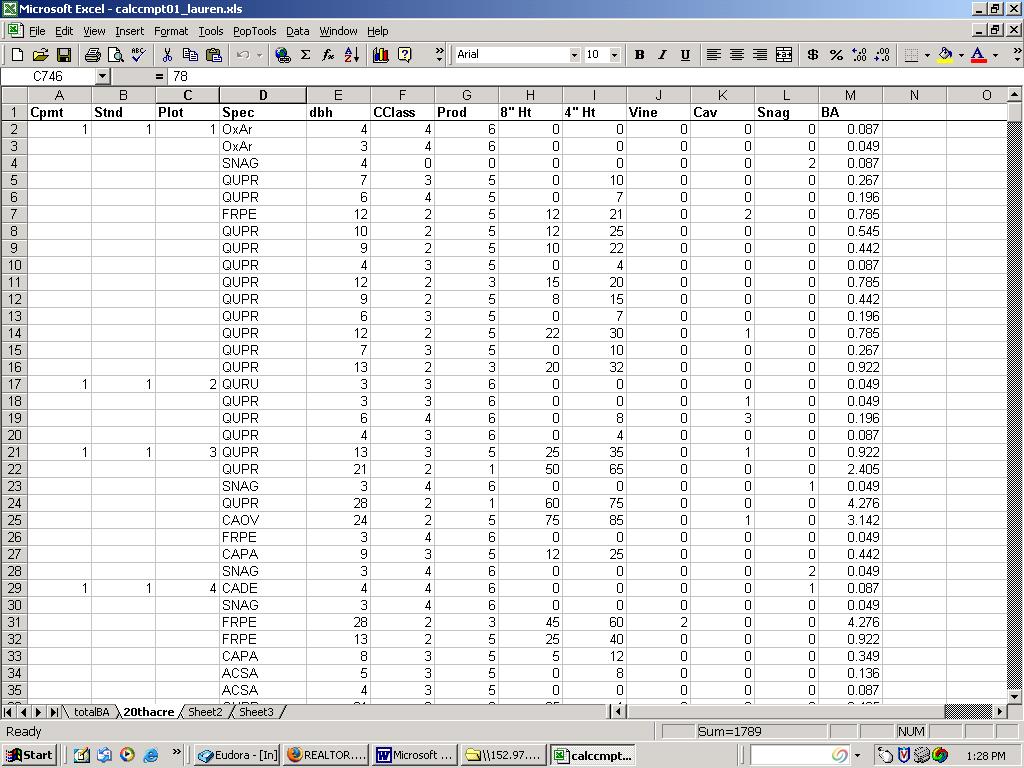

  5. Excel example

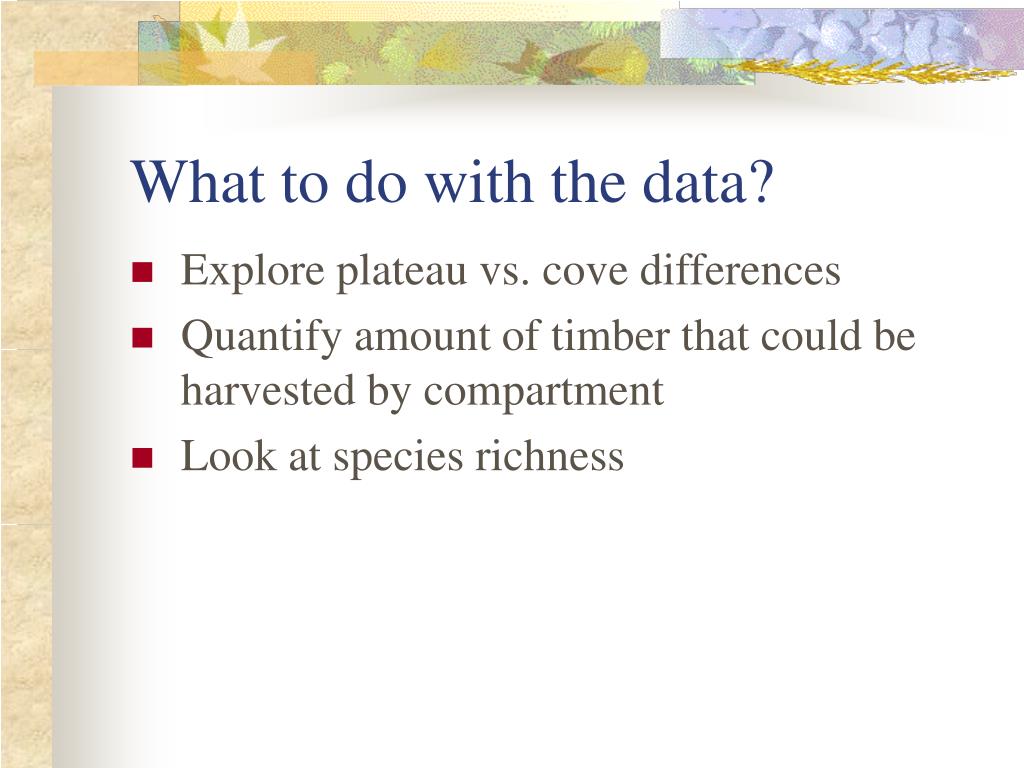

  6. What to do with the data? • Explore plateau vs. cove differences • Quantify amount of timber that could be harvested by compartment • Look at species richness

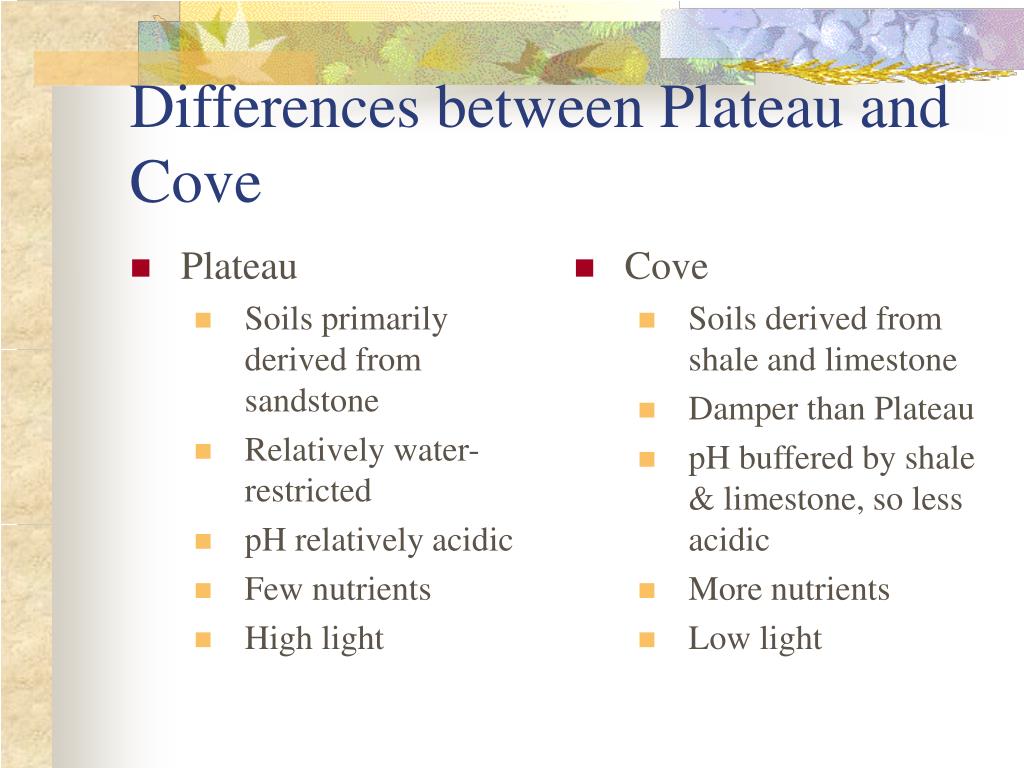

  7. Plateau Soils primarily derived from sandstone Relatively water-restricted pH relatively acidic Few nutrients High light Cove Soils derived from shale and limestone Damper than Plateau pH buffered by shale & limestone, so less acidic More nutrients Low light Differences between Plateau and Cove

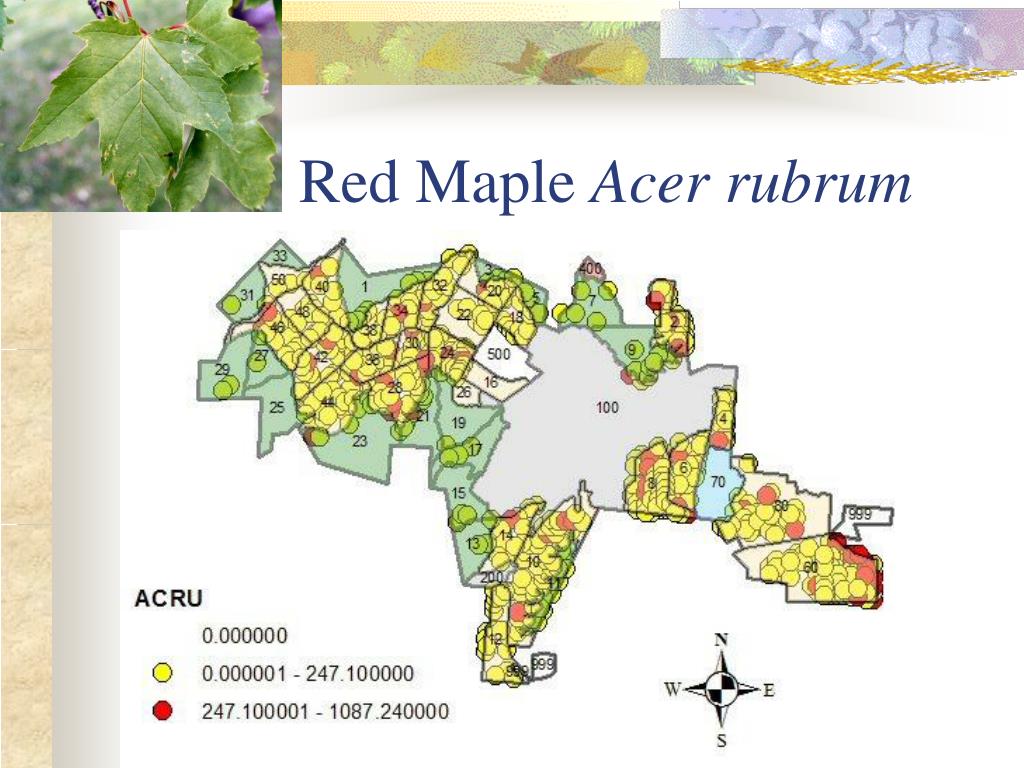

  8. Red Maple Acer rubrum

  9. Sugar Maple Acer saccharum

  10. Mean basal area

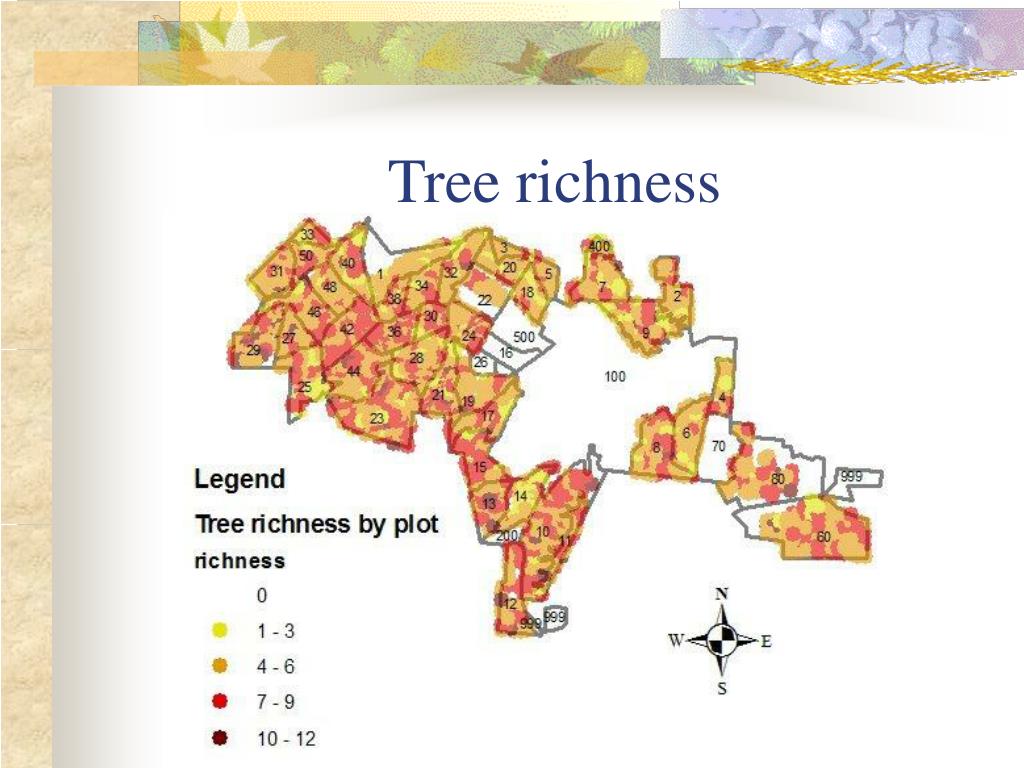

  11. Tree richness

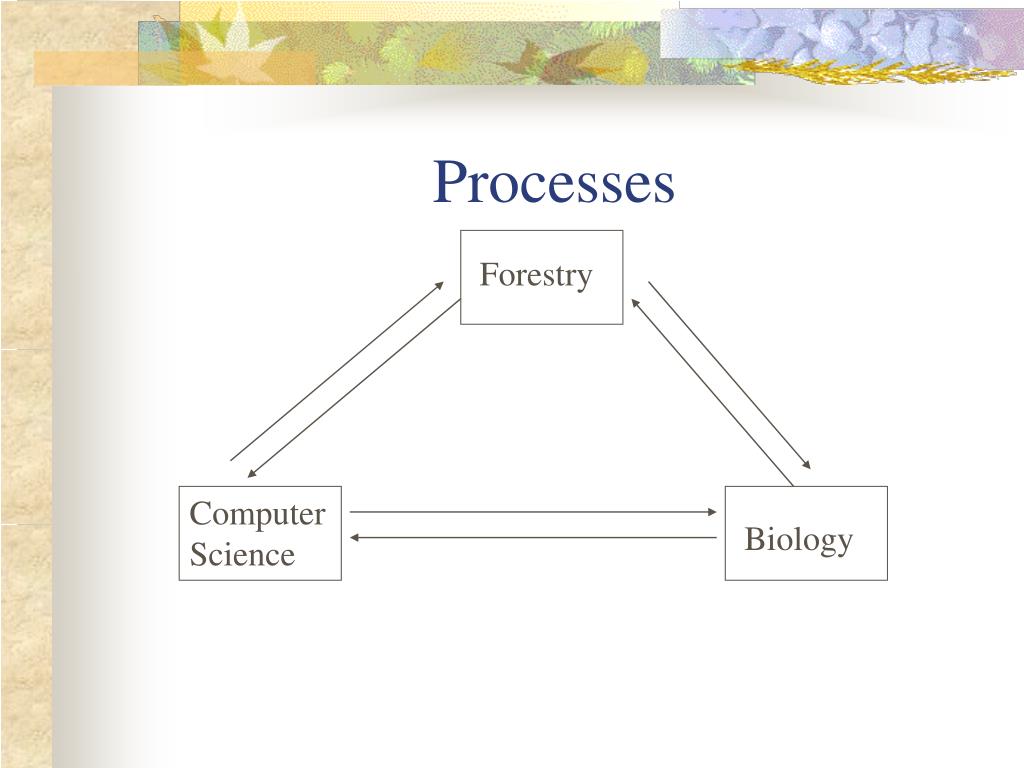

  12. Processes Forestry Computer Science Biology

  13. Attribute table matching

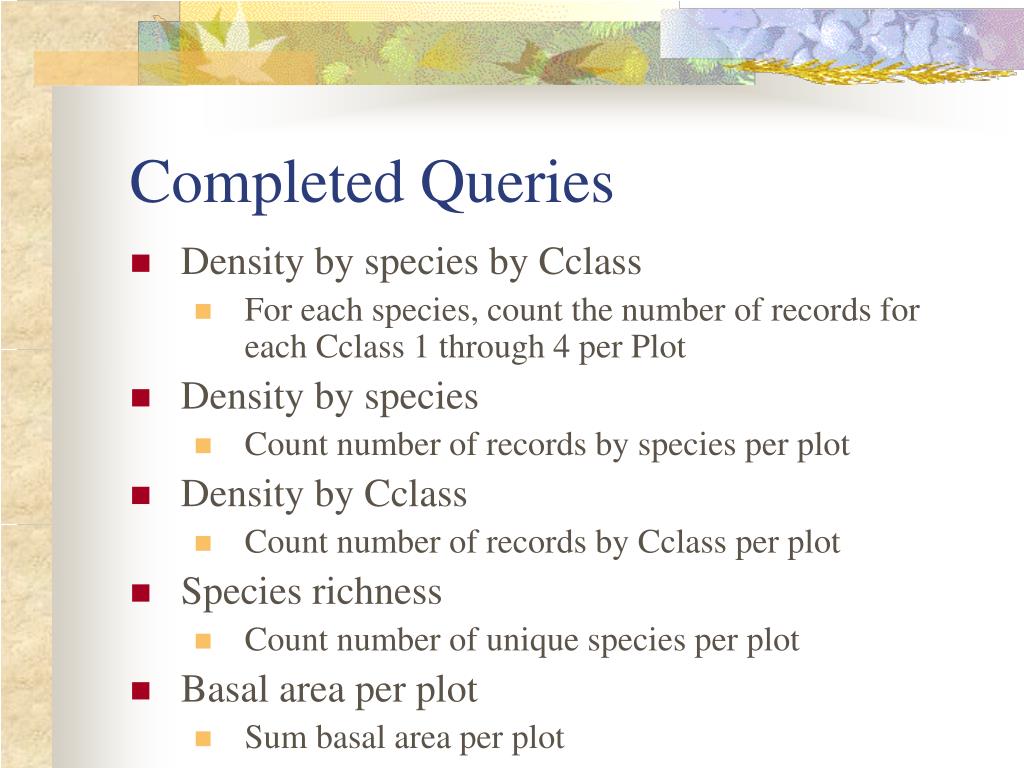

  14. Completed Queries • Density by species by Cclass • For each species, count the number of records for each Cclass 1 through 4 per Plot • Density by species • Count number of records by species per plot • Density by Cclass • Count number of records by Cclass per plot • Species richness • Count number of unique species per plot • Basal area per plot • Sum basal area per plot

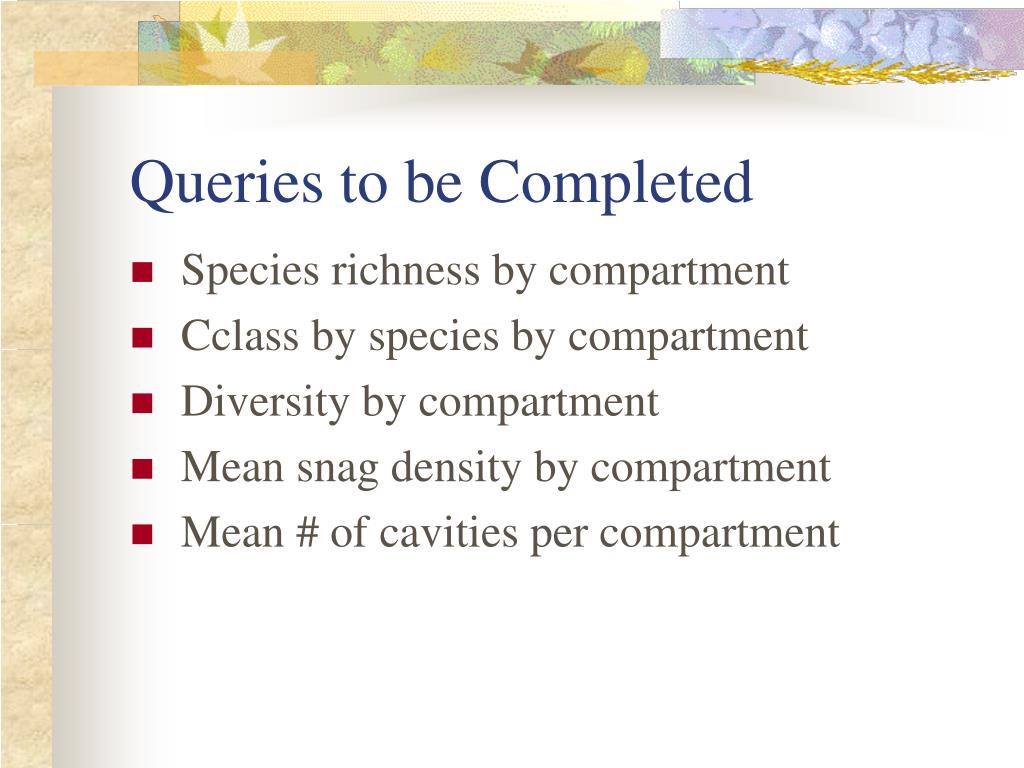

  15. Queries to be Completed • Species richness by compartment • Cclass by species by compartment • Diversity by compartment • Mean snag density by compartment • Mean # of cavities per compartment

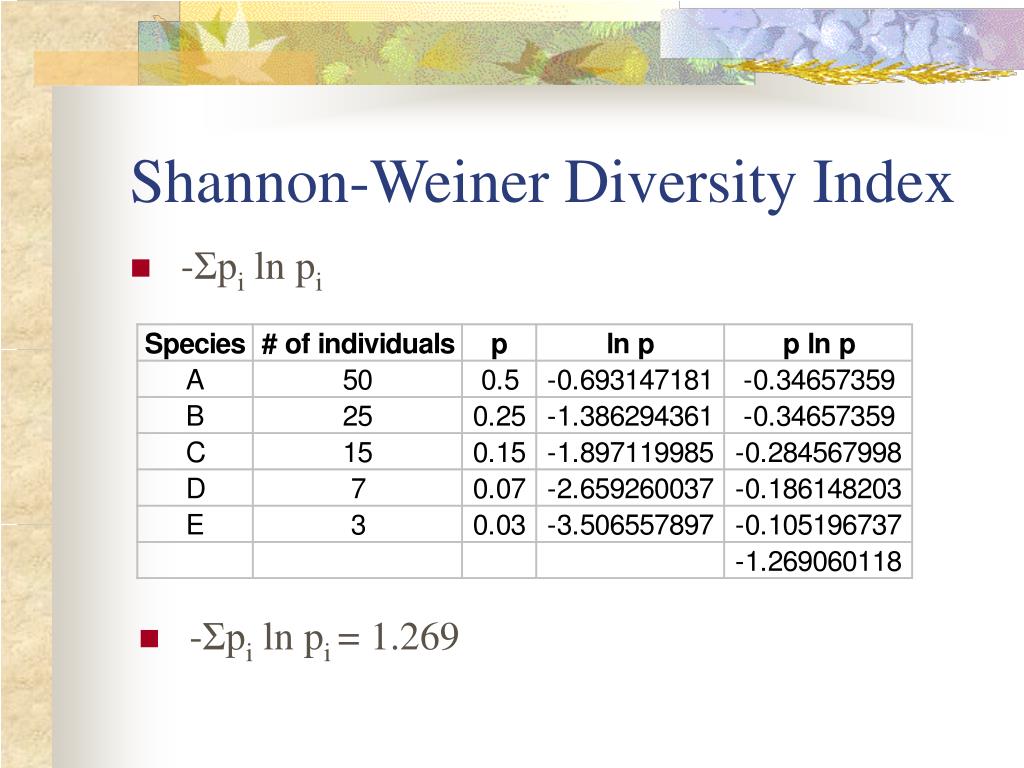

  16. -Σpi ln pi -Σpi ln pi = 1.269 Shannon-Weiner Diversity Index
