Presentation Transcript

  1. CPS 108, Spring 2006 • Object oriented programming and design, we'll use Java and C++ • Language independent concepts including design patterns, e.g., command, iterator, factory, strategy, … • Design independent concepts, e.g., coupling, cohesion, testing, refactoring, profiling, … • Non OO programming and design, we'll use C++ (and its C-subset) • From Java/ArrayList to C++/vector to C/int * • From classes to functions, from references to pointers

  2. Goals for students in CompSci 108 • Adept at solving problems requiring programming • Design, test, implement, release, revise, maintain • Reasonably facile with basic Java idioms/libraries • How to read the API, knowing what to ignore • Basic language features, basic libraries • Basic knowledge of C++ (and C) programming • Beyond the old CompSci 100 • Java-style use of STL

  3. More goals for 108 students • Know patterns catalog, vocabulary and use • HFDP rather than GOF (and more TLAs/FLAs) • Experience working in teams • How to accommodate team needs, balance against individual needs (and goals) • Comfort in working alone, how to get and use help • Peers, UTAs, TA, prof, Internet, …

  4. Administrivia • check website and bulletin board regularly • http://www.cs.duke.edu/courses/cps108/current/ • See links to bulletin board and other stuff • Grading (see web pages) • group projects: small, medium, large • mastery programs (solo or semi-solo endeavors) • readings and summaries • tests (primarily take-home)

  5. Administrivia (continued) • Evaluating team projects, role of TA, UTA, consultants • face-to-face evaluation, early feedback • Compiling, tools, environments, Linux, Windows, Mac • g++ 3.3, 3.4, 4.0?, • Java 5 (requires 10.4 on Mac) • Eclipse in all environments • Command-line tools

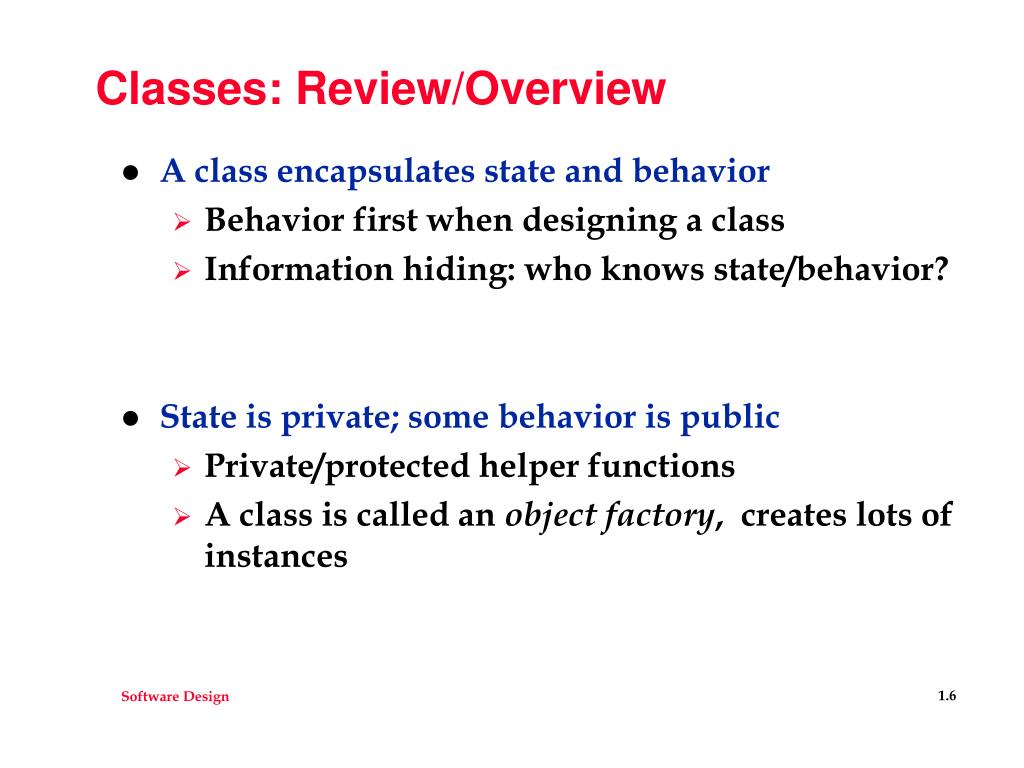

  6. Classes: Review/Overview • A class encapsulates state and behavior • Behavior first when designing a class • Information hiding: who knows state/behavior? • State is private; some behavior is public • Private/protected helper functions • A class is called an object factory, creates lots of instances

  7. How do classes and objects work? • Classes communicate and collaborate • Parameters: use-a (send and receive) • Containment: has-a (aggregate of parts, responsible for) • Inheritance: is-a (extends and specializes) • Understanding inheritance and interfaces • What is polymorphism? • When is polymorphism not appropriate? • What is an interface in Java, what about C++?

  8. Design Criteria Good design comes from experience, experience comes from bad design Fred Brooks • Design with goals: • ease of use • portability • ease of re-use • efficiency • first to market • ?????

  9. How to code • Coding/Implementation goals: • Make it run • Make it right • Make it fast • Make it small • spiral design (or RAD or !waterfall or ...) • what’s the design methodology? specification design implementation

  10. XP and Refactoring (See books by Kent Beck (XP) and Martin Fowler (refactoring)) • eXtreme Programming (XP) is an agile design process • Communication: unit tests, pair programming, estimation • Simplicity: what is the simplest approach that works? • Feedback: system and clients; programs and stories • Courage: throw code away, dare to be great/different • Refactoring • Change internal structure without changing observable behavior • Don’t worry (too much) about upfront design • Simplicity over flexibility (see XP)

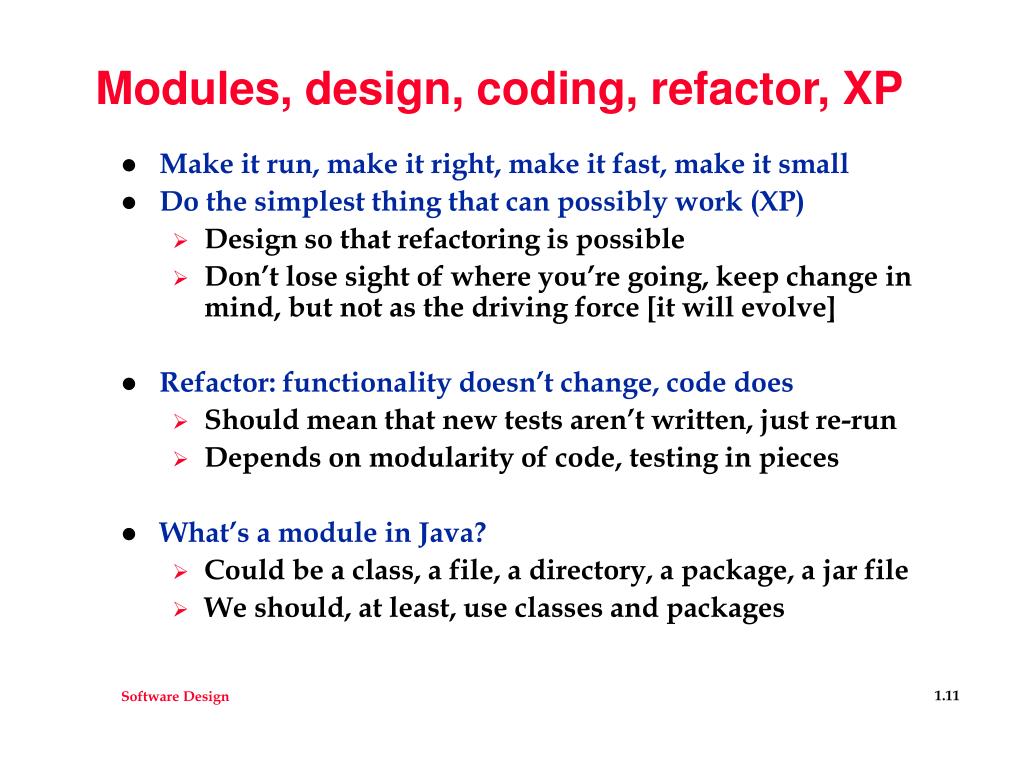

  11. Modules, design, coding, refactor, XP • Make it run, make it right, make it fast, make it small • Do the simplest thing that can possibly work (XP) • Design so that refactoring is possible • Don’t lose sight of where you’re going, keep change in mind, but not as the driving force [it will evolve] • Refactor: functionality doesn’t change, code does • Should mean that new tests aren’t written, just re-run • Depends on modularity of code, testing in pieces • What’s a module in Java? • Could be a class, a file, a directory, a package, a jar file • We should, at least, use classes and packages

  12. Design Heuristics: class/program/function (see text by Arthur Riel) • Coupling • classes/modules are independent of each other • goal: minimal, loose coupling • do classes collaborate and/or communicate? • Cohesion • classes/modules capture one abstraction/model • keep things as simple as possible, but no simpler • goal: strong cohesion (avoid kitchen sink) • The open/closed principle • classes/programs: open to extensibility, closed to modification
