  1. ECE 4006C – N4 Status Report David Moreland Trenton Dunn Sabrina Vellino

  2. Order of Events • Ordered parts and supplies • Played the waiting game • Worked on other areas of the project • Encountered Problem • Solved Problem and Started Testing

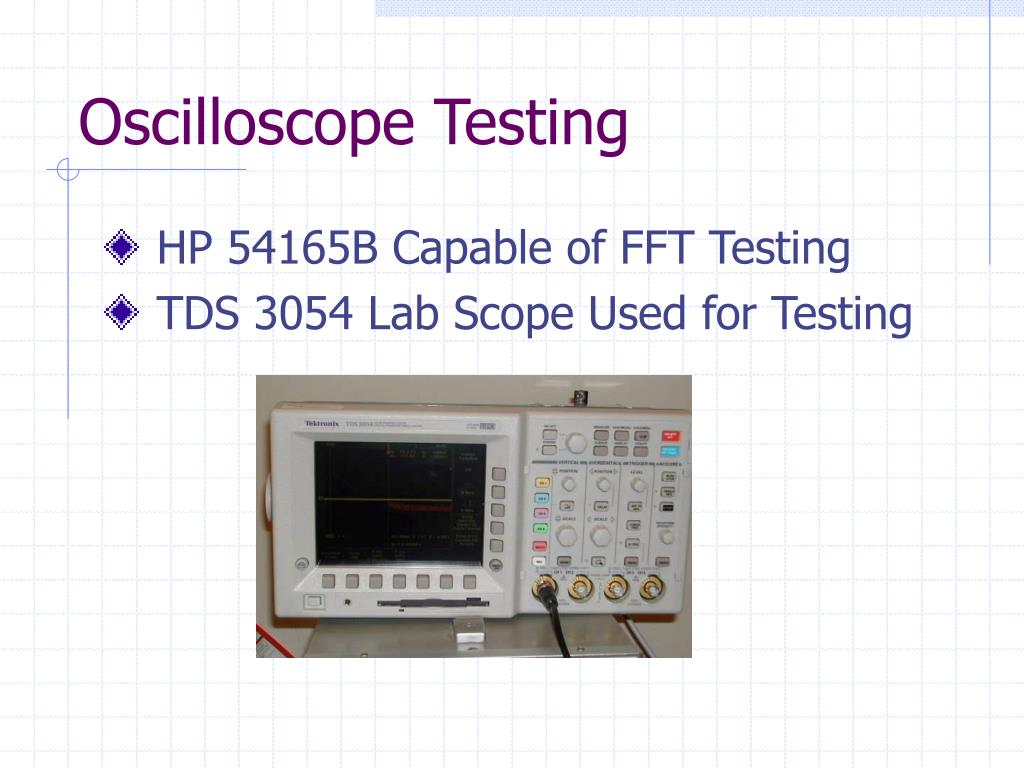

  3. Oscilloscope Testing • HP 54165B Capable of FFT Testing • TDS 3054 Lab Scope Used for Testing

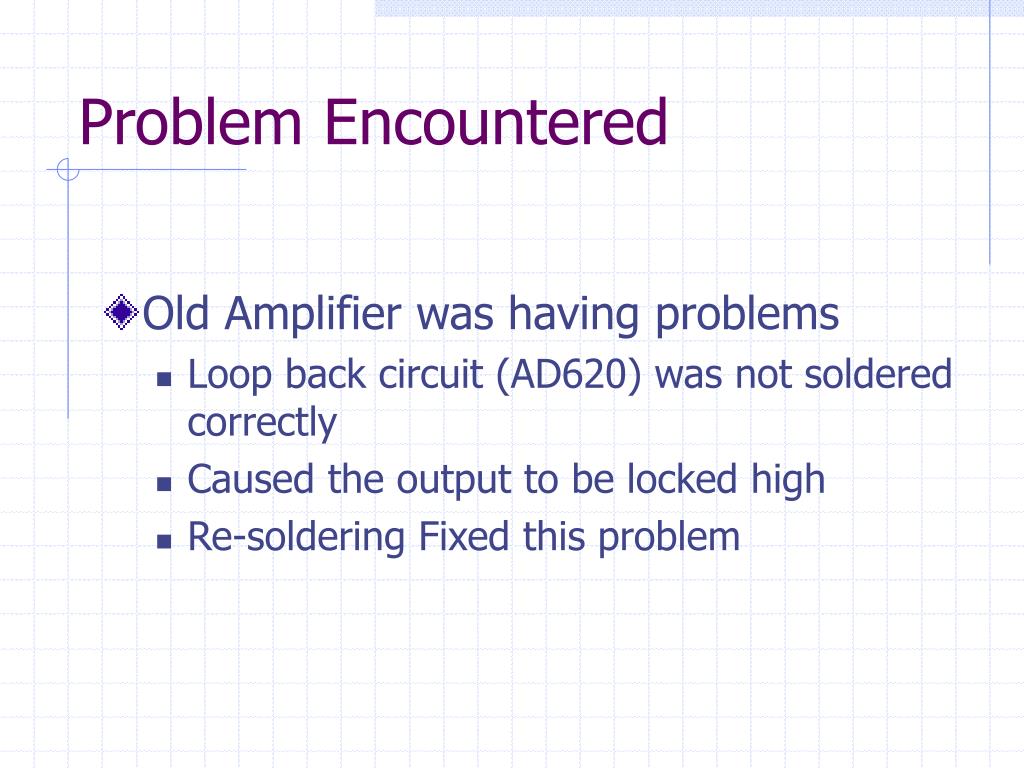

  4. Problem Encountered • Old Amplifier was having problems • Loop back circuit (AD620) was not soldered correctly • Caused the output to be locked high • Re-soldering Fixed this problem

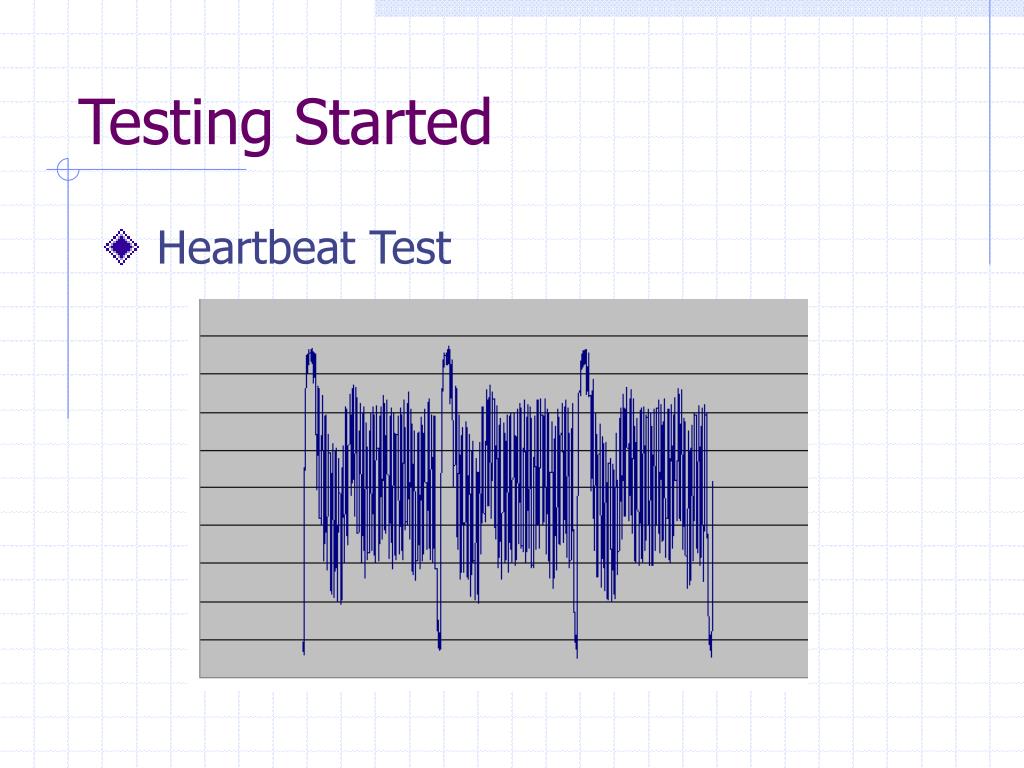

  5. Testing Started • Heartbeat Test

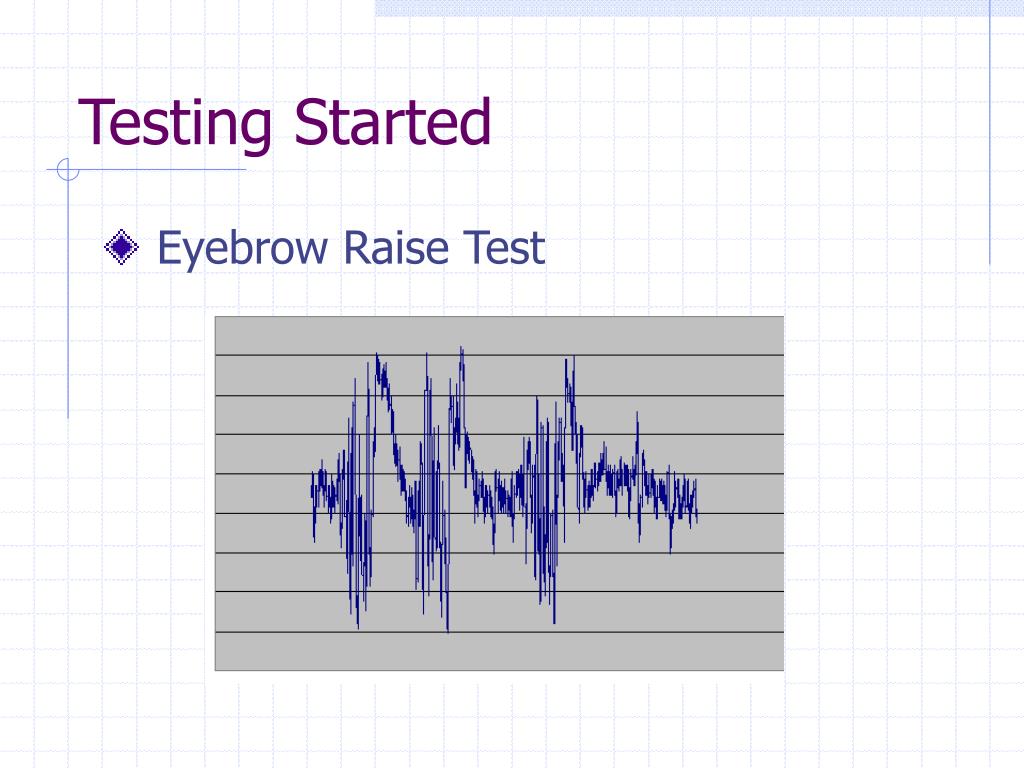

  6. Testing Started • Eyebrow Raise Test

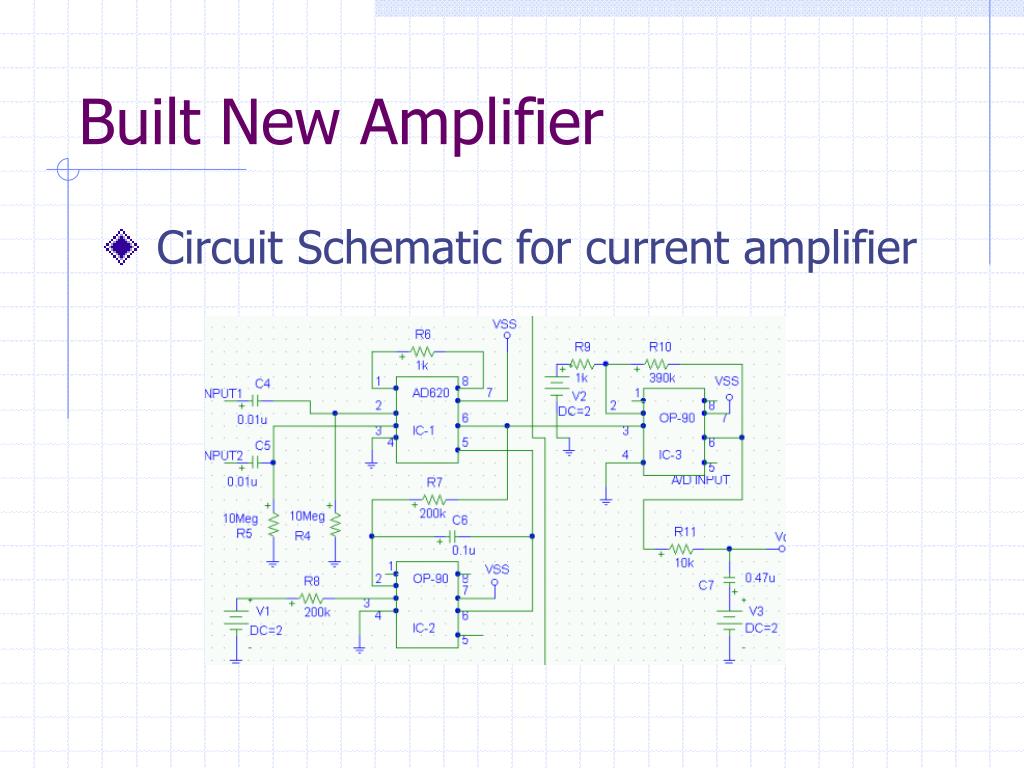

  7. Built New Amplifier • Circuit Schematic for current amplifier

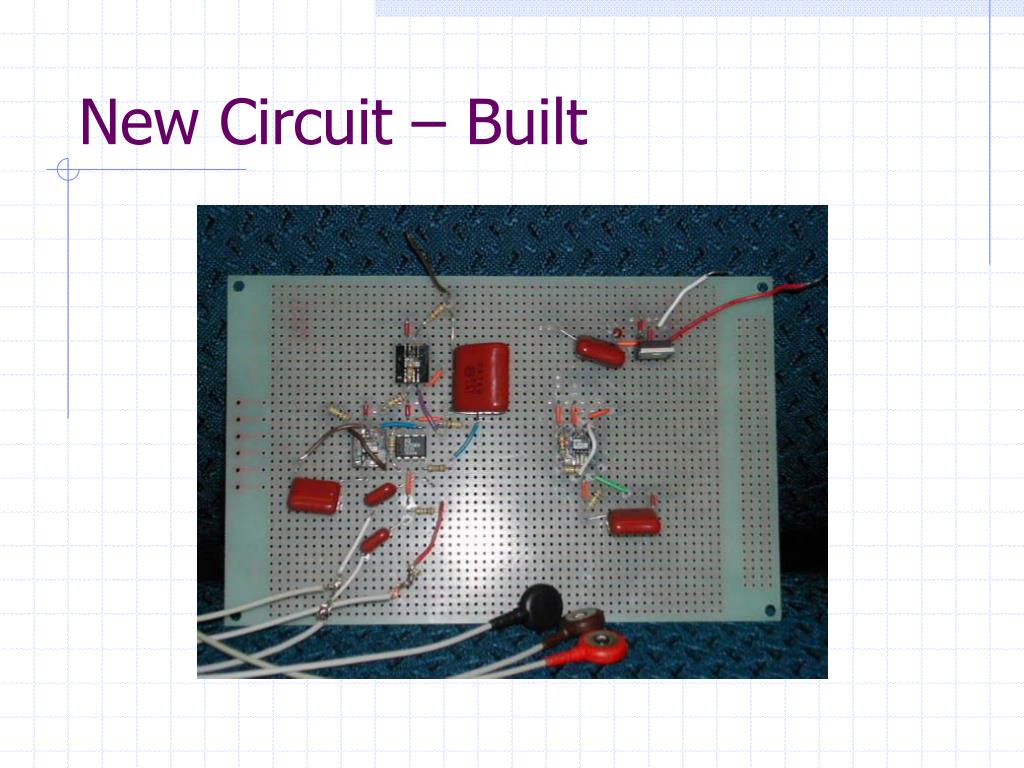

  8. New Circuit – Built

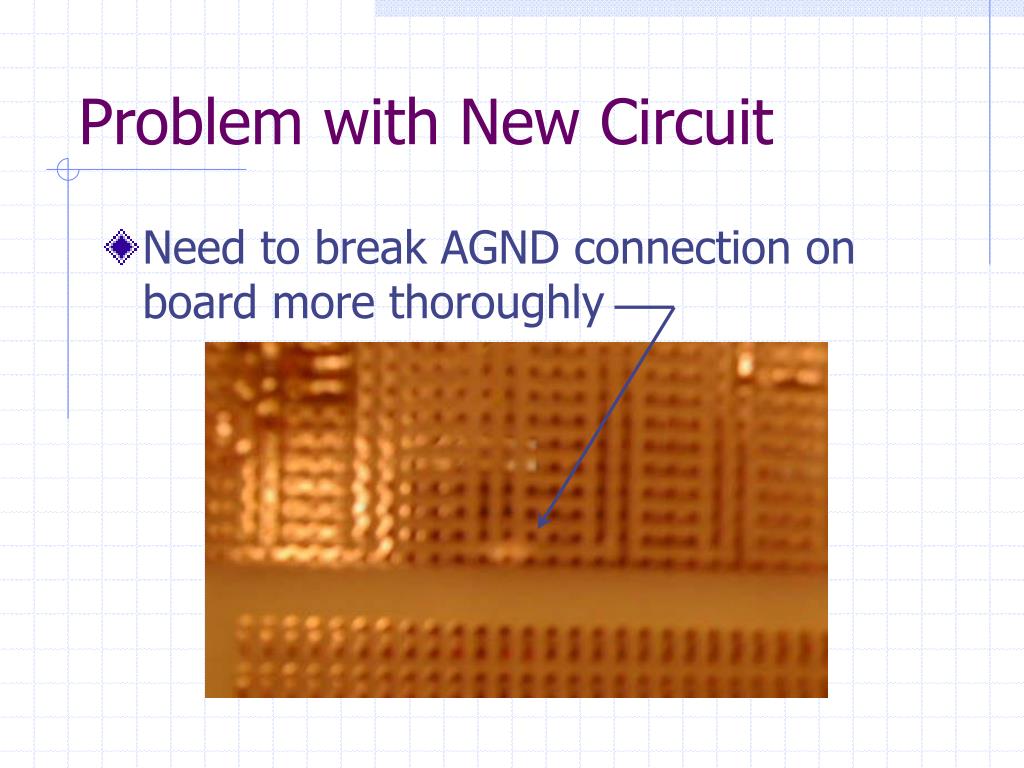

  9. Problem with New Circuit • Need to break AGND connection on board more thoroughly

  10. Moving Forward • We will make sure that our new board works and continue testing. • We will focus on FFT results and see if we can correlate FFT measurements with certain brain waves. • We will work with the digital groups to implement a system for using the brain waves.

  11. THE END Yeah, can you take these friggin things off my head? • Any Questions?
