  1. DBTech VET www.DBTechNet.org SQL Transactions (Basics) Disclaimer This project has been funded with support from the European Commission. This publication [communication] reflects the views only of the authors, and the Commission cannot be held responsible for any use which may be made of the information contained therein. Martti Laiho

  2. Contents • [ Introduction of the Virtual Laboratory, DB2, Oracle, ... ] • SQL-server,SQL-client, SQL-session • Dialogue: request, result, diagnostics • SQL transaction • SQLcode, SQLSTATE , diagnostics • Autocommit mode • Implicit/explicit start of transaction • Commit/Rollback • Concurrency anomalias • ACID principle • Isolation levels • ”Best practices” • Excercises for using a DBMS product Martti Laiho

  3. VirtualBox DebianDB Martti Laiho

  4. A sample MySQL test Martti Laiho

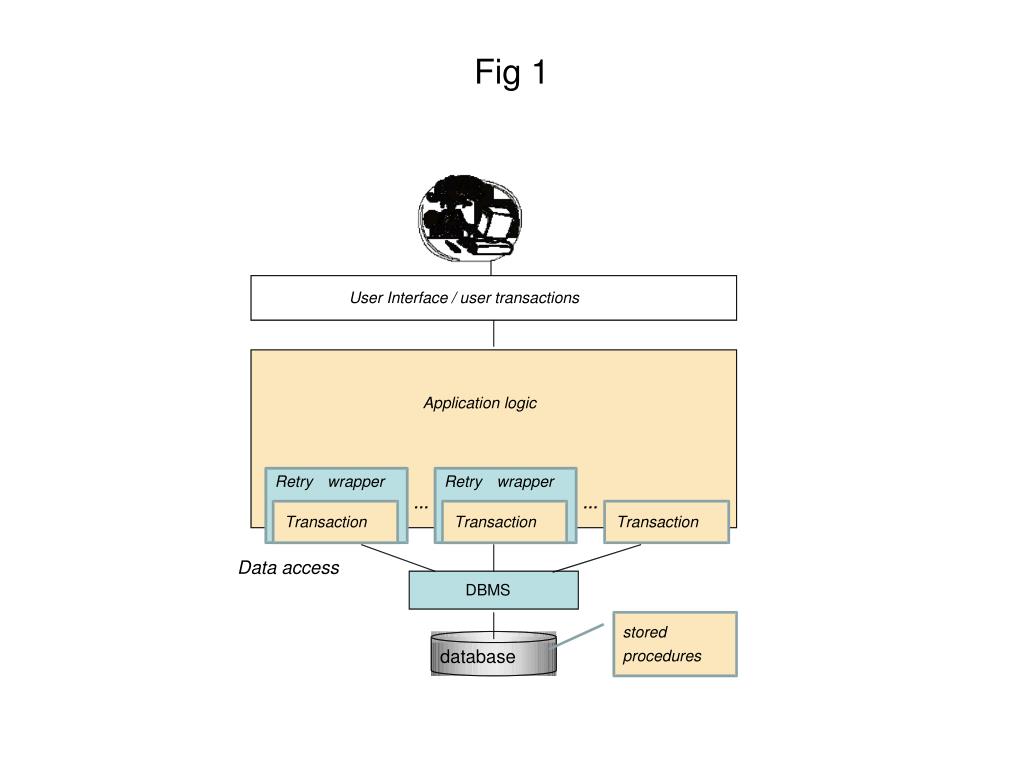

  5. Fig 1 User Interface / user transactions Application logic Retry wrapper Retry wrapper … … Transaction Transaction Transaction Data access DBMS stored database procedures

  6. Fig 2 Application Data access client Data access API exception Service processing Optimized execution plans JDBC / ODBC /.. ”Command” i.e. service request Server Data cache ”bufferpool” Driver Diagnostics as service response on errors exception Client-side data cache of resultset database Client-side cache of resultset • Data • Stored procedures • Execution plans Data row or flow of the resultset

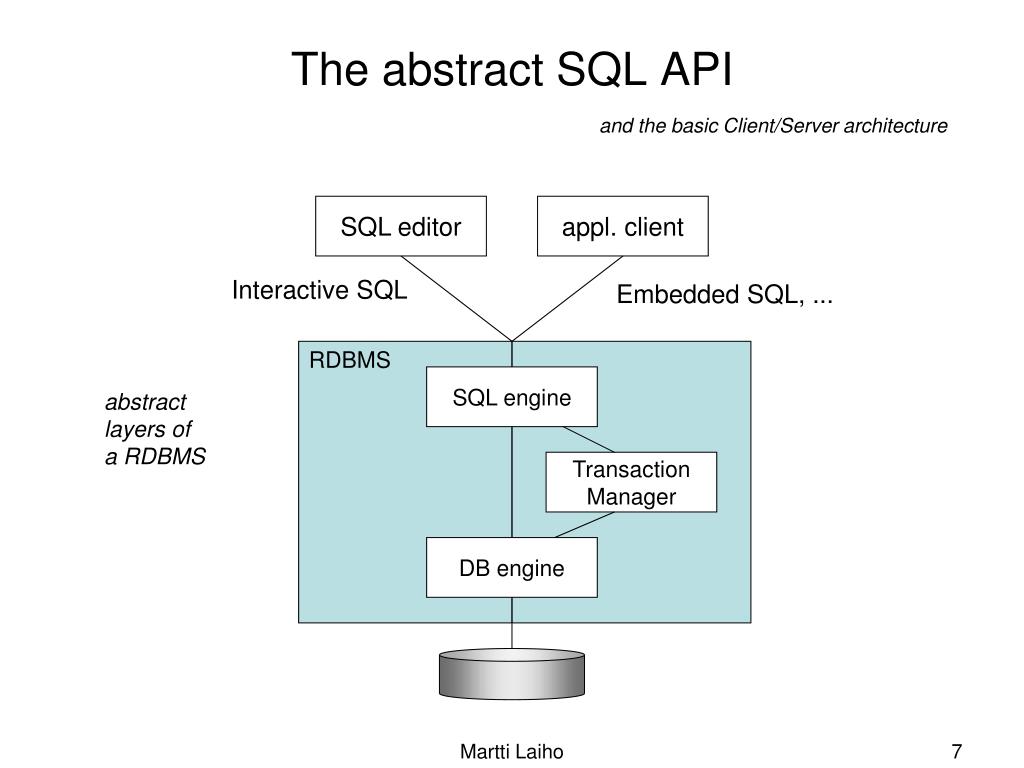

  7. The abstract SQL API and the basic Client/Server architecture SQL editor appl. client Interactive SQL Embedded SQL, ... RDBMS SQL engine abstract layers of a RDBMS Transaction Manager DB engine Martti Laiho

  8. A generic overview of a database server Database server (instance) - Processes, threads and caches DBMS services: Listener Server agents Transaction manager SQL engine (parser) Security manager Query Optimizer Concurrency manager (Lock manager) Deadlock detector Recovery manager Relational engine Memory manager OpSys: File manager Disk manager Control Buffers Data Buffer (Bufferpool) LRU • Connections • Transaction control • Locking lists • SQL cache, etc. Table pages and index pages x Database backups rewriting pages at Checkpoints Backup Log Buffer fetching needed pages before & after images Restore and Roll-forward recovery of transactions Flush to log on Commit/Rollback to transaction logs Database files Archive of log history

  9. SQL Transaction Context: Use case / User transaction / “Business transaction” Sequence of SQL transactions SQL transaction: Begin work actions .. ... Commit / Rollback Database in consistent state Database in consistent state LUW = Logical Unit of Work ACID principle‏: - Atomicity - Consistency - Isolation - Durability Martti Laiho 1998

  10. Database SQL Transaction SELECT … if .. INSERT … if ... UPDATE … if ... DELETE … if … … COMMIT | ROLLBACK Transaction log Martti Laiho

  11. SQLcode, SQLSTATE ISO SQL-89 SQLcode: Integer: 100 No data 0 successful execution < 0 errors String of 5 characters: ISO SQL-92 SQLSTATE: class subclass Successful execution 0 0 0 0 0 Warning 0 1 n n n No data 0 2 0 0 0 . . . Transaction rollback 4 0 0 0 0 0 0 1 Serialization failure 0 0 2 Integrity constraint violation 0 0 3 Statement completion unknown 0 0 4 Triggred action exception etc - lots of standardized and implementation dependent codes Martti Laiho

  12. SQL Transaction Statements SQL dialects BEGIN [ {WORK | TRANSACTION} ] ; | SET TRANSACTION ISOLATION LEVEL <isolationlevel> ; | START TRANSACTION <mode> [,…] ; <SQL statement> ; . . . [SAVEPOINT <savepointname> ; <SQL statement> ; . . . ROLLBACK TO <savepointname>; ] <SQL statement> ; . . . . . . { ROLLBACK | COMMIT } [WORK] ; ISO SQL:1999 <mode> ::= <isolationlevel> | <accessmode> | <diagnosticssize> <isolationlevel> ::= READ UNCOMMITTTED | READ COMMITTED | REPEATABLE READ | SERIALIZABLE <accessmode> ::= READ ONLY | READ WRITE <diagnosticssize> ::= DIAGNOSTICS <maxdiagnosticsdetailcount> [SAVEPOINT <savepointname> ; <SQL statement> ; . . . ROLLBACK TO <savepointname>; ] Martti Laiho

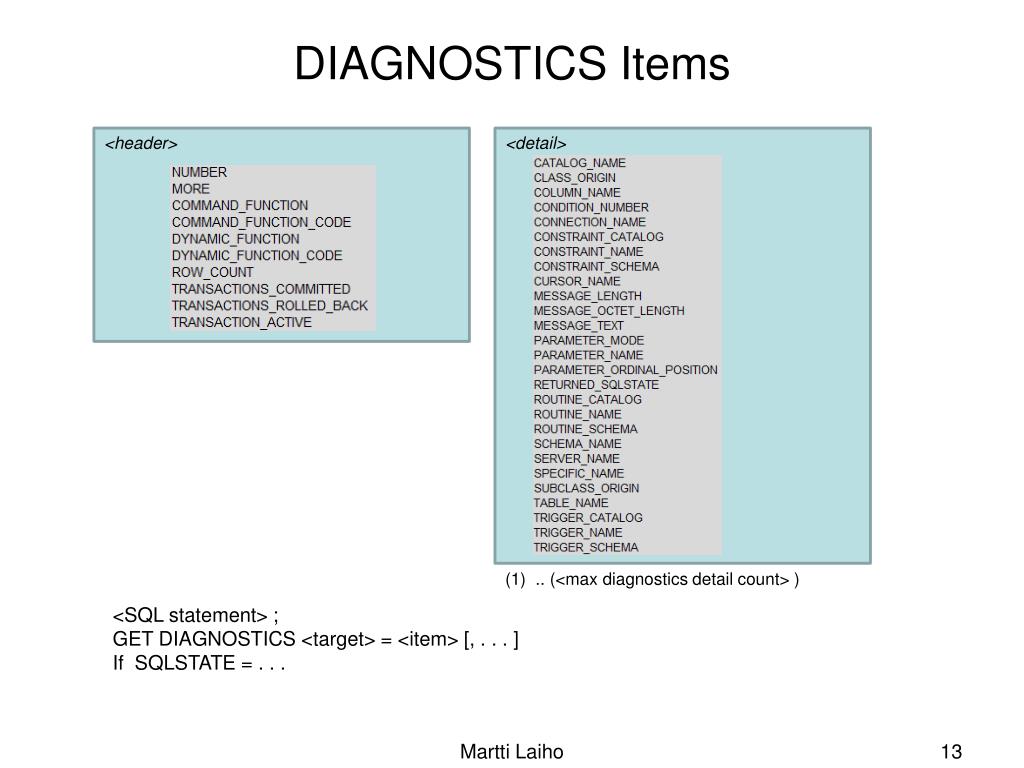

  13. DIAGNOSTICS Items <header> <detail> (1) .. (<max diagnostics detail count> ) <SQL statement> ; GET DIAGNOSTICS <target> = <item> [, . . . ] If SQLSTATE = . . . Martti Laiho

  14. Database ACID SQL transaction [{SET | START} TRANSACTION [READ ONLY | READ WRITE ] ISOLATION LEVEL {READ UNCOMMITTED | READ COMMITTED | REPEATABLE READ | SERIALIZABLE } [ if ..] ] SET {UNIQUE | REFERENCIAL} CONSTRAINTS {DEFERRED | IMMEDIATE } [ LOCK TABLE … ] SELECT … if .. INSERT … if ... UPDATE … if ... DELETE … if … SAVEPOINT spn … COMMIT | ROLLBACK if ... Isolation Consistency - by DBMS - logical Atomicity Durability Transaction log Martti Laiho

  15. Differently behaving products • As default in AUTOCOMMIT mode ? • Implicit or explicit starts of transactions • Implicit COMMIT on DDL ? • Default isolation • What is considered as error or Warning ? • Value truncation, value overflow, … • Error in command • Rolls back the command • Rolls back the command and discards commands until end of transaction • Rolls back the transaction • Concurrency control mechanism Martti Laiho

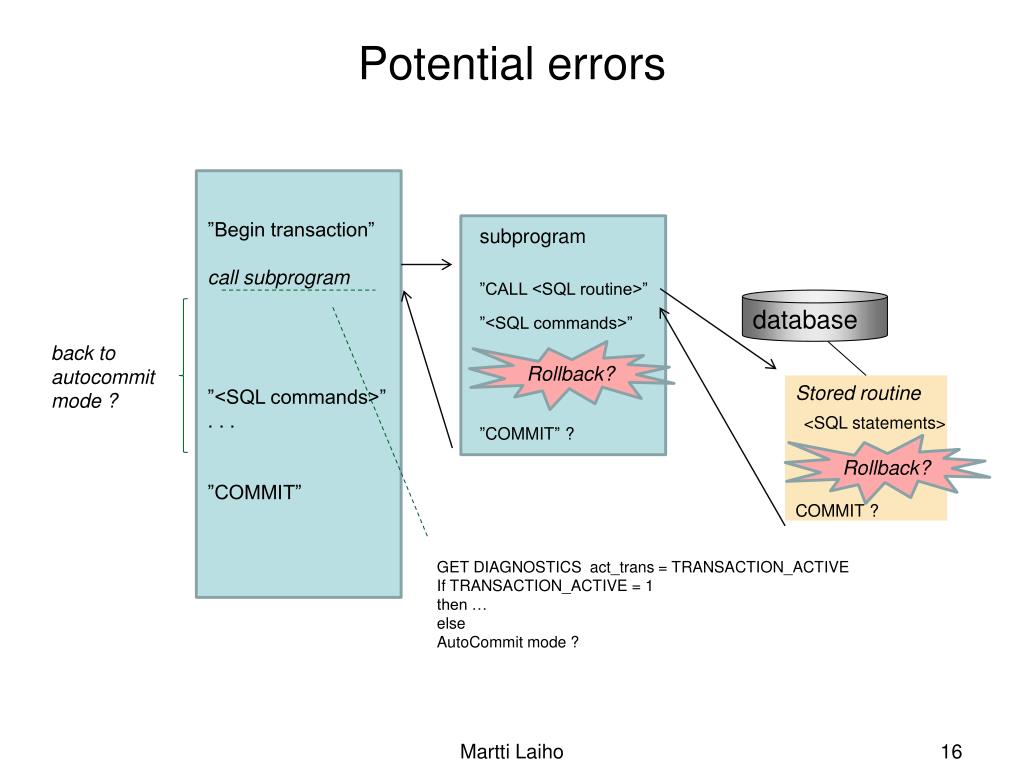

  16. Potential errors ”Begin transaction” call subprogram ”<SQL commands>” . . . ”COMMIT” subprogram ”CALL <SQL routine>” database ”<SQL commands>” back to autocommit mode ? Rollback? Stored routine <SQL statements> ”COMMIT” ? Rollback? COMMIT ? GET DIAGNOSTICS act_trans = TRANSACTION_ACTIVE If TRANSACTION_ACTIVE = 1 then … else AutoCommit mode ? Martti Laiho

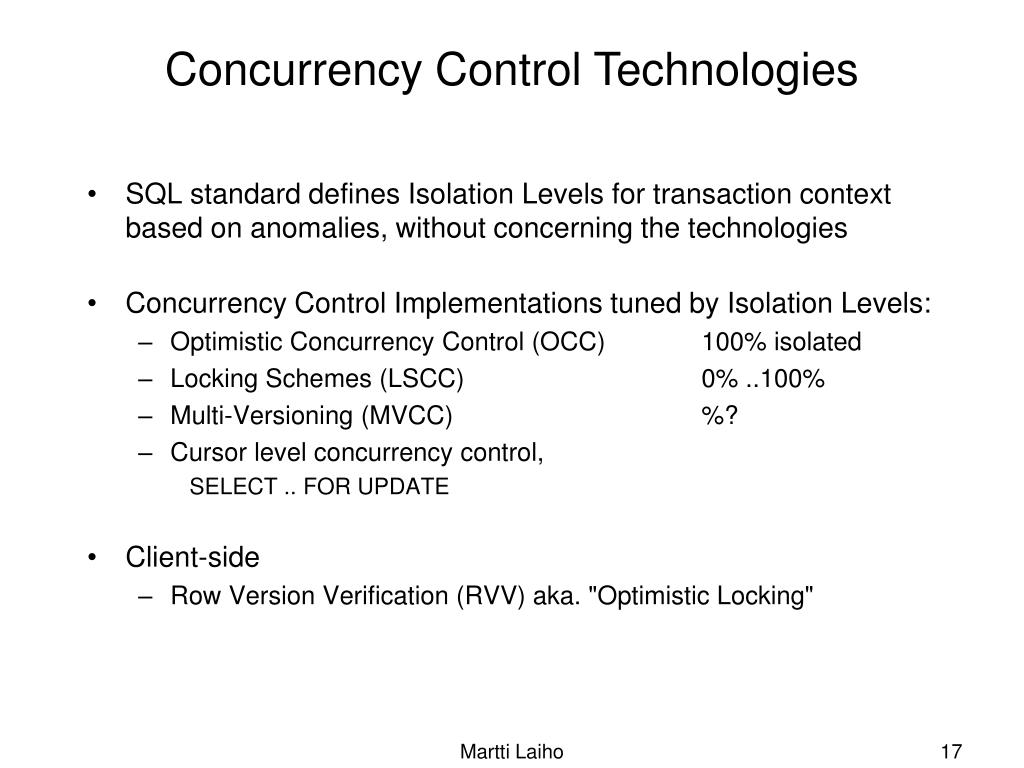

  17. Concurrency Control Technologies • SQL standard defines Isolation Levels for transaction context based on anomalies, without concerning the technologies • Concurrency Control Implementations tuned by Isolation Levels: • Optimistic Concurrency Control (OCC) 100% isolated • Locking Schemes (LSCC) 0% ..100% • Multi-Versioning (MVCC) %? • Cursor level concurrency control, SELECT .. FOR UPDATE • Client-side • Row Version Verification (RVV) aka. "Optimistic Locking" Martti Laiho

  18. Concurrency Problems Typical anomalies‏(C J Date, Milton, SQL-92 )‏ 1 Lost Update Problem 2 Uncommitted Dependency Problem (Dirty Read)‏ 3 Inconsistent Analysis Problems a) Decreasing Read Set (Nonrepeatable Read)‏ b) Increasing Read Set (Phantoms) ‏ Martti Laiho

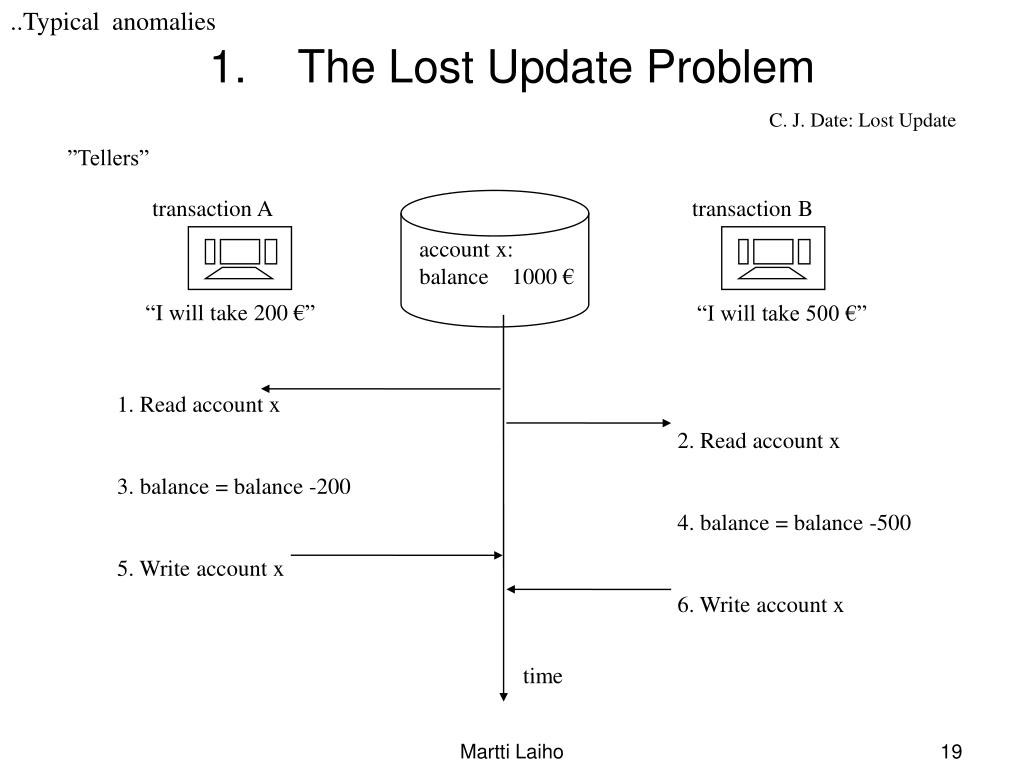

  19. ..Typical anomalies 1. The Lost Update Problem C. J. Date: Lost Update ”Tellers” transaction A transaction B account x: balance 1000 € “I will take 200 €” “I will take 500 €” 1. Read account x 3. balance = balance -200 5. Write account x 2. Read account x 4. balance = balance -500 6. Write account x time Martti Laiho

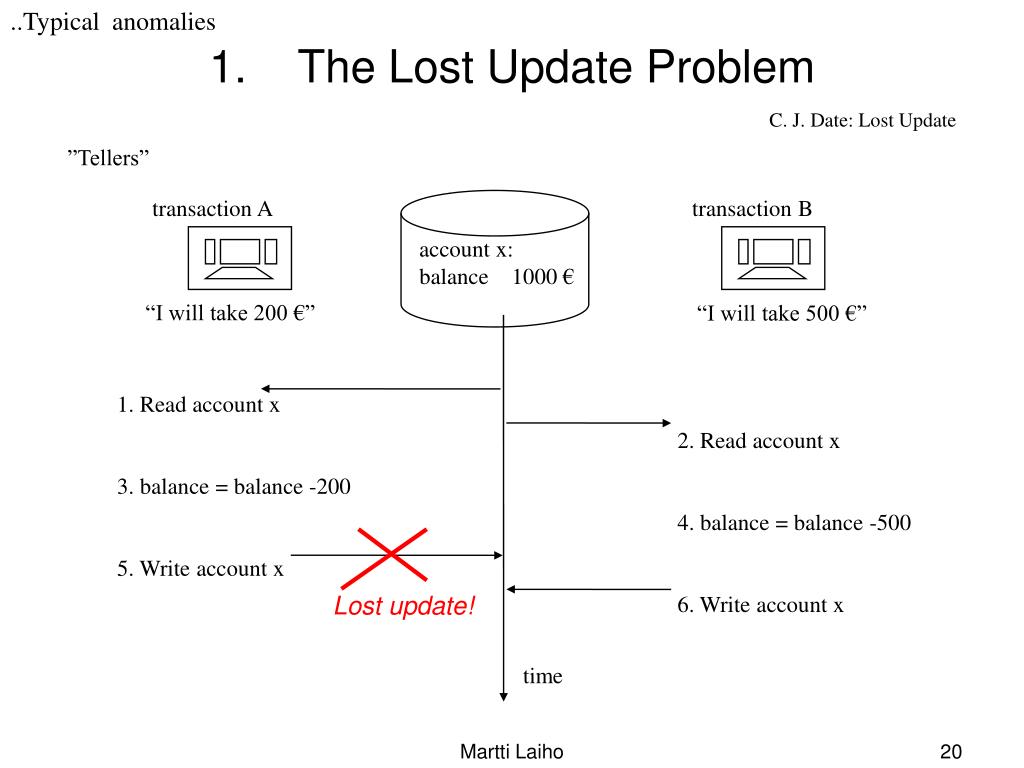

  20. ..Typical anomalies 1. The Lost Update Problem C. J. Date: Lost Update ”Tellers” transaction A transaction B account x: balance 1000 € “I will take 200 €” “I will take 500 €” 1. Read account x 3. balance = balance -200 5. Write account x 2. Read account x 4. balance = balance -500 6. Write account x Lost update! time Martti Laiho

  21. Locking Scheme Concurrency Control (LSCC)‏ Compatibility of S and X locks Locking granularity: Lock of transaction A to object o table page row Shared eXclusive SharedGrantWait ! eXclusive Wait !Wait ! . . . Lock request of transaction B to object o - S-lock grants read access to object - X-lock grants write access to object - X-lock request after getting S-lock is called as lock promotion‏ Martti Laiho

  22. ..Typical anomalies 1. The Lost Update Problem C. J. Date: Lost Update - Applying the locking scheme: ”Tellers” transaction A transaction B account x: balance 1000 € “I will take 200 €” “I will take 500 €” S-lock S-lock 1. Read account x 3. balance = balance -200 5. Write account x 2. Read account x 4. balance = balance -500 6. Write account x Wait ! Wait ! X-lock? X-lock? time Martti Laiho

  23. Deadlock Wait T1 T2 A Cycle of Lock Waits Modern DBMS systems will detect the deadlock in some seconds (deadlock detection)‏ and solve the waiting cycle - selecting the victim - making automatic Rollback (not Oracle)‏ - send error message to the application => Application must react on the deadlock ! Wait Wait T1 T2 Wait Rollback Martti Laiho 1998

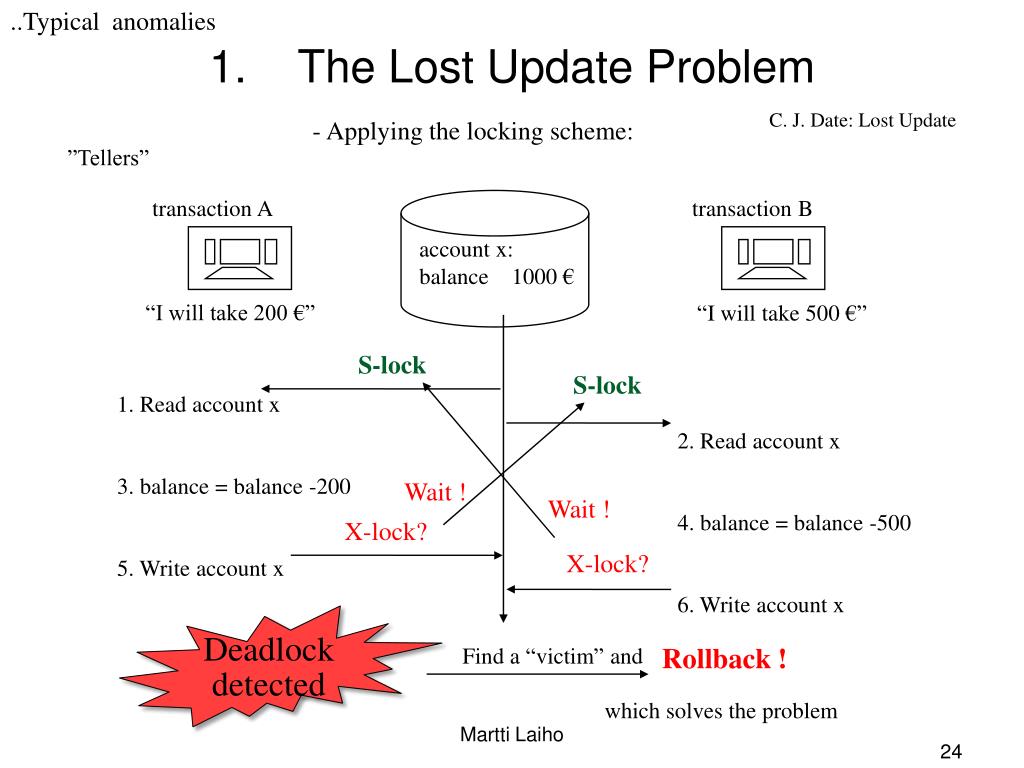

  24. ..Typical anomalies 1. The Lost Update Problem C. J. Date: Lost Update - Applying the locking scheme: ”Tellers” transaction A transaction B account x: balance 1000 € “I will take 200 €” “I will take 500 €” S-lock S-lock 1. Read account x 3. balance = balance -200 5. Write account x 2. Read account x 4. balance = balance -500 6. Write account x Wait ! Wait ! X-lock? X-lock? Deadlock detected Find a “victim” and which solves the problem Rollback ! Martti Laiho

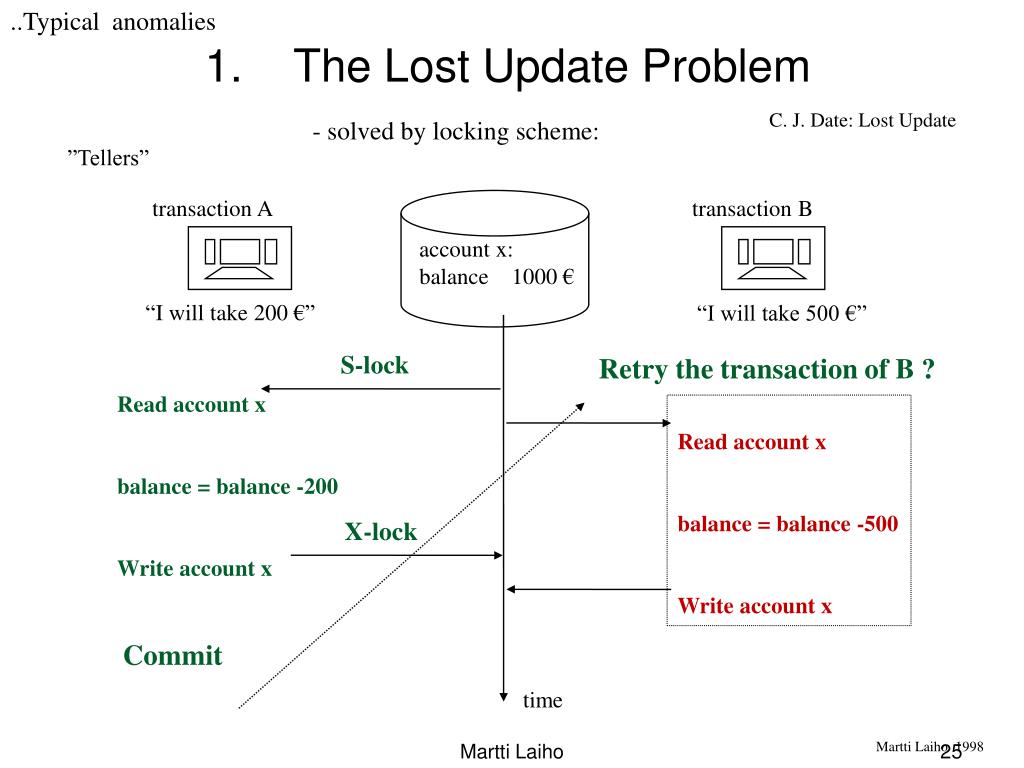

  25. ..Typical anomalies 1. The Lost Update Problem C. J. Date: Lost Update - solved by locking scheme: ”Tellers” transaction A transaction B account x: balance 1000 € “I will take 200 €” “I will take 500 €” S-lock Retry the transaction of B ? Read account x balance = balance -200 Write account x Read account x balance = balance -500 Write account x X-lock Commit time Martti Laiho 1998 Martti Laiho

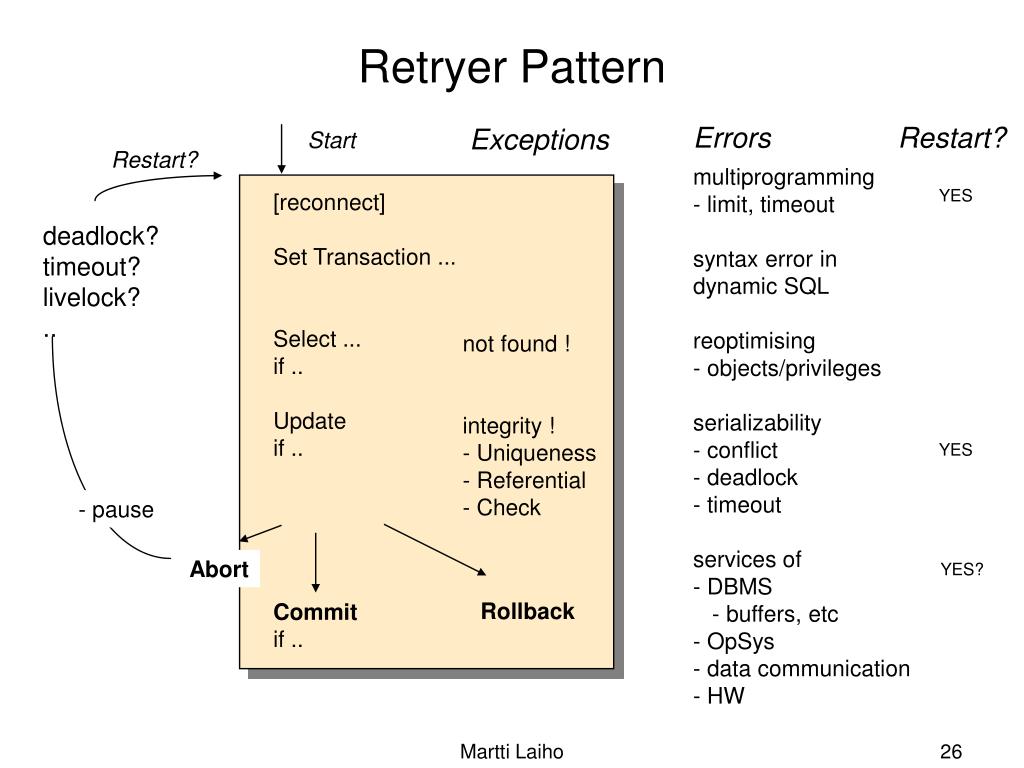

  26. Retryer Pattern Errors Restart? Exceptions Start Restart? multiprogramming - limit, timeout syntax error in dynamic SQL reoptimising - objects/privileges serializability - conflict - deadlock - timeout services of - DBMS - buffers, etc - OpSys - data communication - HW YES [reconnect] Set Transaction ... Select ... if .. Update if .. Commit if .. deadlock? timeout? livelock? .. not found ! integrity ! - Uniqueness - Referential - Check YES - pause Abort YES? Rollback Martti Laiho

  27. Non-Repeatable Read‏ C.J. Date transaction A transaction B 1. SELECT ... FROM table WHERE ... ; result set1 2. UPDATE table SET c = ... WHERE ... ; DELETE FROM table WHERE ... ;… COMMIT; xxx 3. SELECT ... FROM table WHERE ... ; result set2 4. COMMIT;

  28. Phantom Read‏ transaction A transaction B 1. SELECT ... FROM table WHERE ... ; result set1 • INSERT INTO table (..)VALUES ( ... ) ; • UPDATE … SET col = <matching value> • WHERE .. • COMMIT; 3. SELECT ... FROM table WHERE ... ; result set2 Phantom row(s) 4. COMMIT

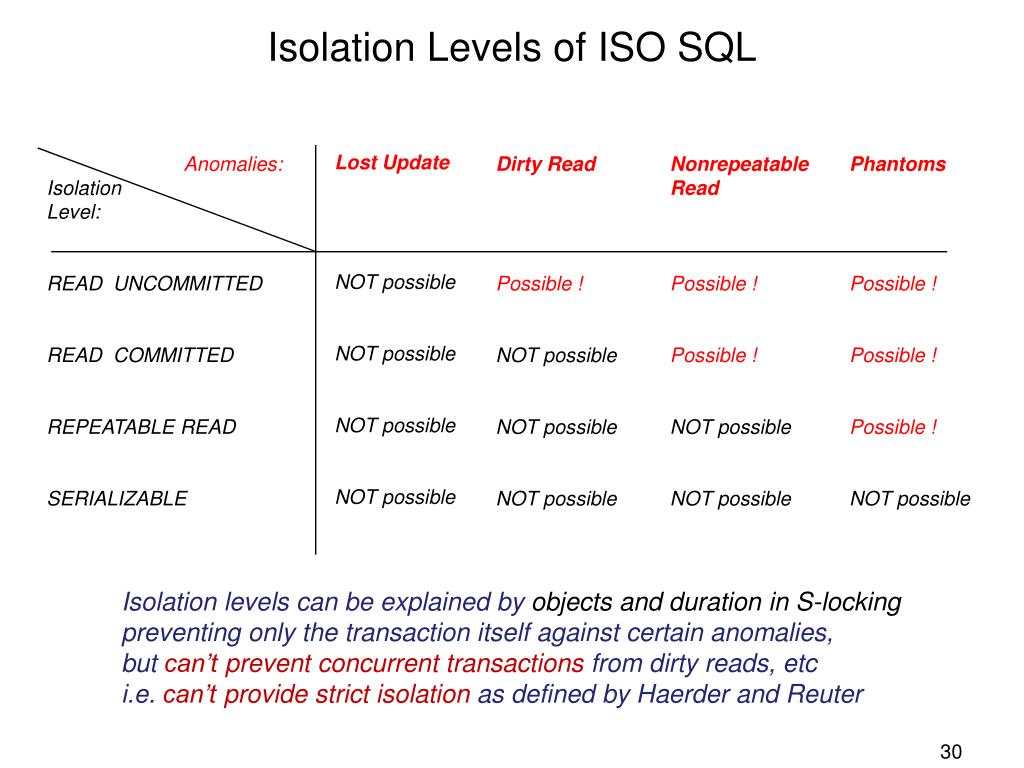

  29. Isolation Levels of ISO SQL Lost Update NOT possible NOT possible NOT possible NOT possible Anomalies: Isolation Level: READ UNCOMMITTED READ COMMITTED REPEATABLE READ SERIALIZABLE Dirty Read Possible ! NOT possible NOT possible NOT possible Nonrepeatable Read Possible ! Possible ! NOT possible NOT possible Phantoms Possible ! Possible ! Possible ! NOT possible Isolationlevelscanbeexplainedbyobjects and duration in S-lockingpreventingonly the transactionitselfagainstcertainanomalies, butcan’tpreventconcurrenttransactionsfromdirtyreads, etc i.e. can’tprovidestrictisolationas definedbyHaerder and Reuter

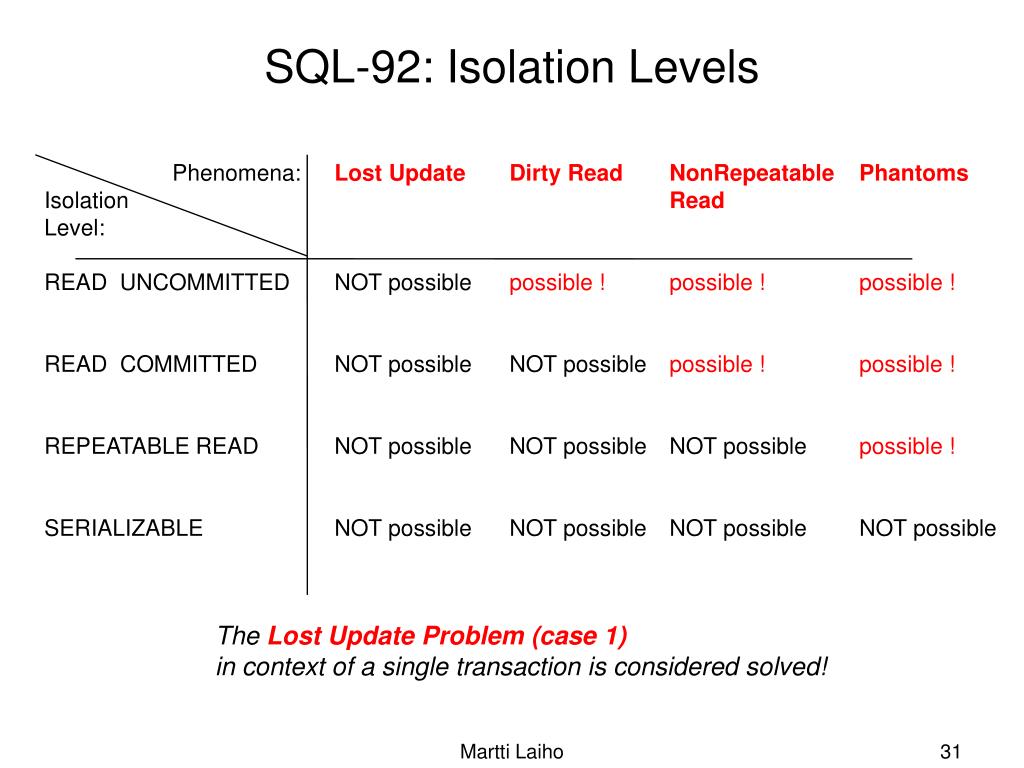

  30. SQL-92: Isolation Levels Phenomena: Isolation Level: READ UNCOMMITTED READ COMMITTED REPEATABLE READ SERIALIZABLE Lost Update NOT possible NOT possible NOT possible NOT possible Dirty Read possible ! NOT possible NOT possible NOT possible NonRepeatable Read possible ! possible ! NOT possible NOT possible Phantoms possible ! possible ! possible ! NOT possible The Lost Update Problem(case 1) in context of a single transaction is considered solved! Martti Laiho

  31. Cursor Processing • Solves the paradigm mismatch between • Procedural Programming and • (”Relational”) SQL databases • Scrolling / Forward only • Sensitive / insensitive (snapshot) • Server-side / client-side cache • Optimistic concurrency • Scope: transaction / (holdable) multiple transactions • Options (hints) Martti Laiho
