Unified Management Architecture

Management Applications. Interactive. Programmatic. Access (Interface Service). Repository (Database). Providers (Translators). FW. HW/FW. Dell CIM. Unified Management Architecture. Management Interfaces Remotely accessible. Existing and emerging standards. Repository Interface

micah
Télécharger la présentation

Unified Management Architecture

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

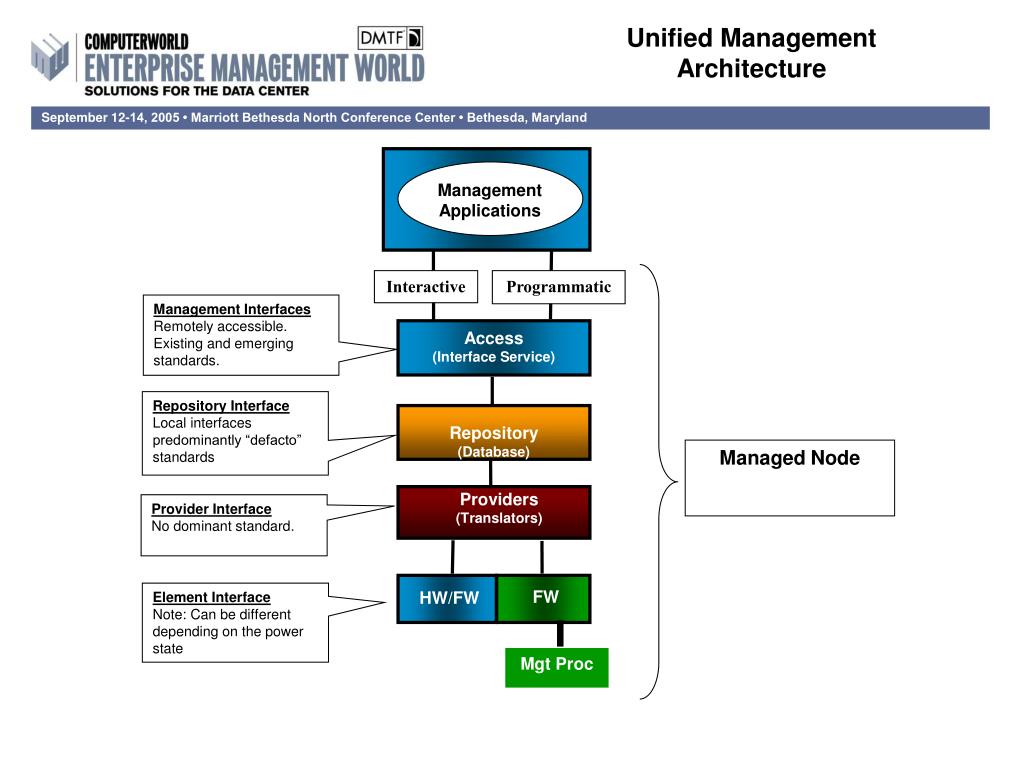

  1. Management Applications Interactive Programmatic Access (Interface Service) Repository (Database) Providers (Translators) FW HW/FW Dell CIM Unified Management Architecture Management Interfaces Remotely accessible. Existing and emerging standards. Repository Interface Local interfaces predominantly “defacto” standards Managed Node Provider Interface No dominant standard. Element Interface Note: Can be different depending on the power state Mgt Proc

  2. Standards Based Layered Architecture Management Apps Access via Standard Interfaces Suppliers Provide Standard Components Providers Any Node Client Printer Server Storage In-Band Management Interfaces (e.g. SMASH-CLP, WS-CIM, WBEM, WIMS) Access Repository Interfaces Out-of-Band OS-Present Pre-OS Repository (e.g. CIM, CIM Profile, SMI-S) Provider Interfaces (e.g. CMPI) Providers Platform Interfaces (e.g. ACPI, ASF, IPMI) HW/FW(e.g. EFI) The Managed Node

  3. Standardization Requirements • Access Layer • Coordinate Web Services Interfaces • Complete Command Line protocol • Repository • CIM Based • Object Repository • Provider Layer • Sensor Interface (power + thermal) • Asset Management • Firmware • Software/firmware “delivery” packaging • Configuration management • Update/Patch management
