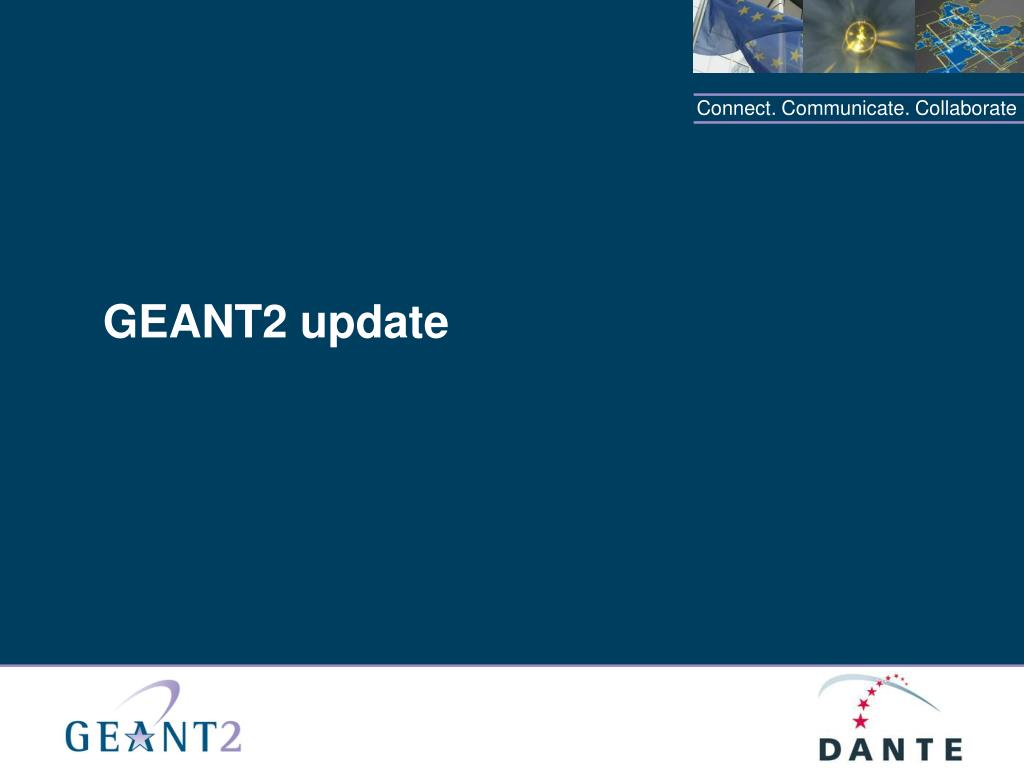

  1. GEANT2 update

  2. GÉANT2 Topology

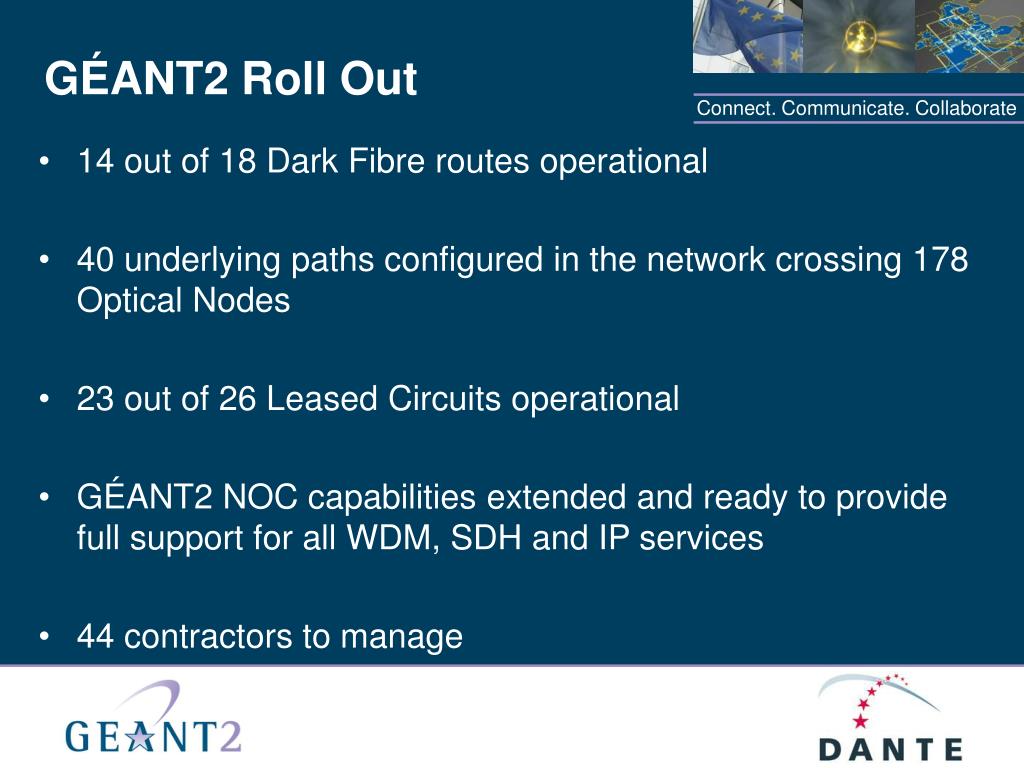

  3. GÉANT2 Roll Out • 14 out of 18 Dark Fibre routes operational • 40 underlying paths configured in the network crossing 178 Optical Nodes • 23 out of 26 Leased Circuits operational • GÉANT2 NOC capabilities extended and ready to provide full support for all WDM, SDH and IP services • 44 contractors to manage

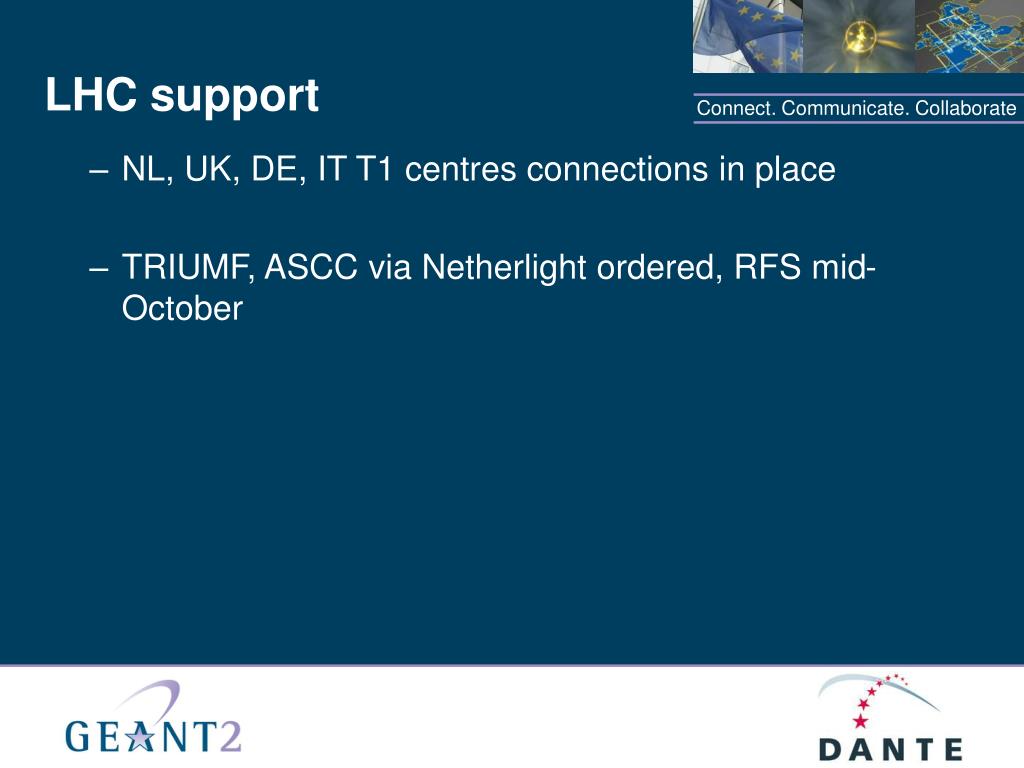

  4. LHC support • NL, UK, DE, IT T1 centres connections in place • TRIUMF, ASCC via Netherlight ordered, RFS mid-October

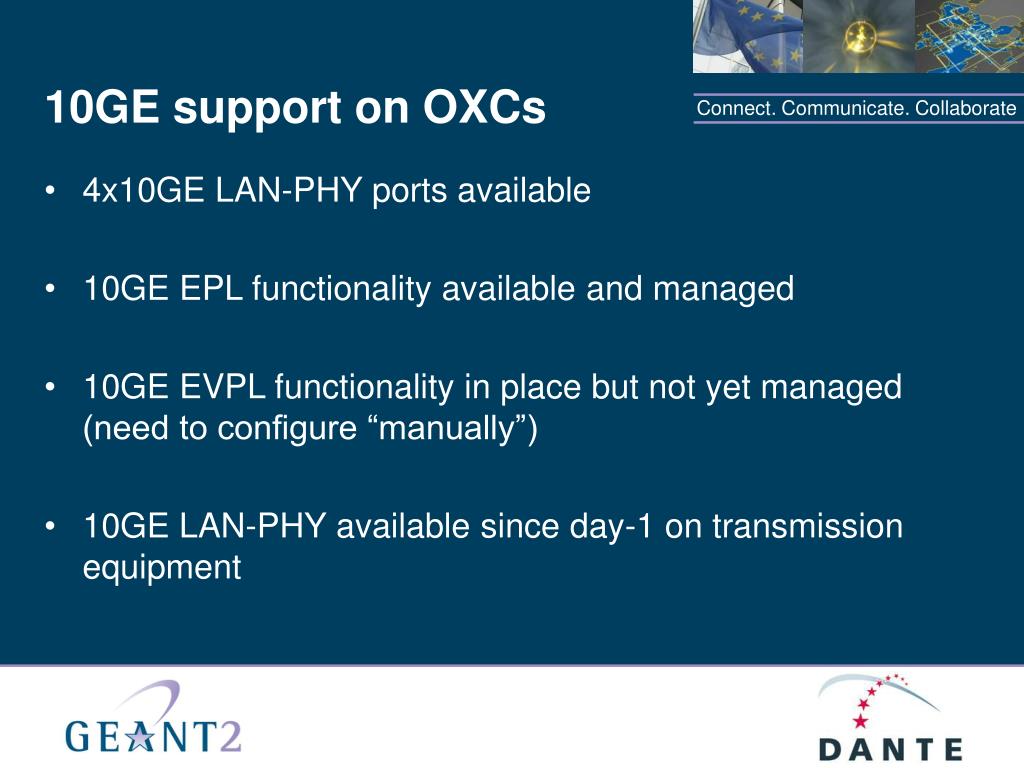

  5. 10GE support on OXCs • 4x10GE LAN-PHY ports available • 10GE EPL functionality available and managed • 10GE EVPL functionality in place but not yet managed (need to configure “manually”) • 10GE LAN-PHY available since day-1 on transmission equipment

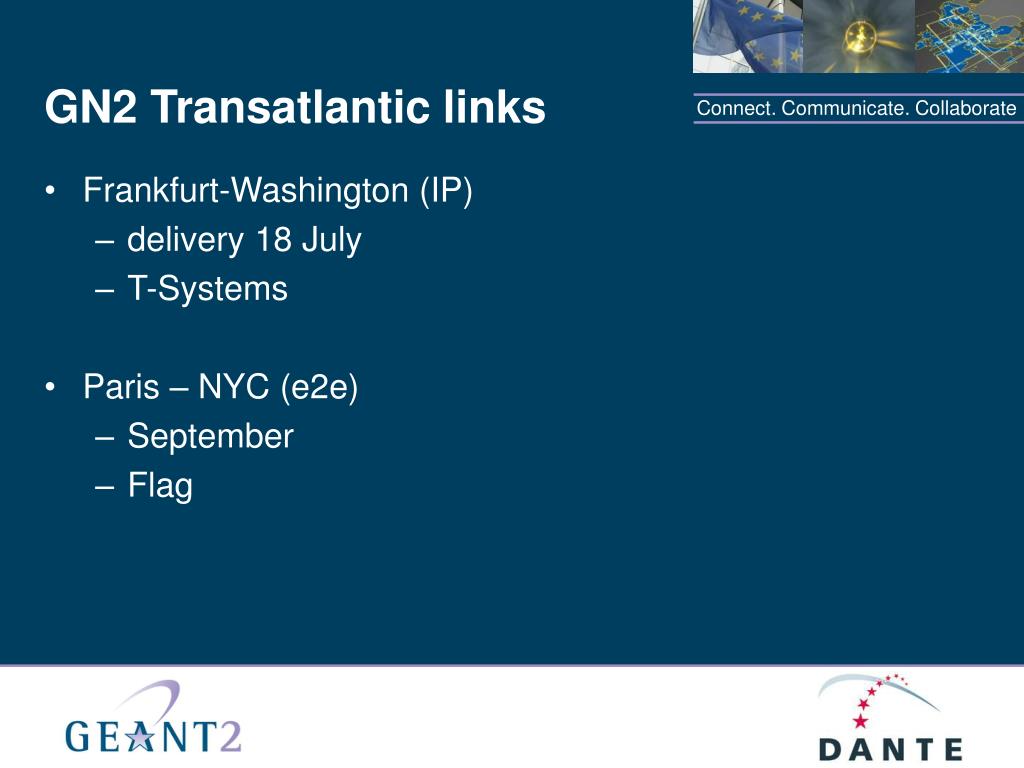

  6. GN2 Transatlantic links • Frankfurt-Washington (IP) • delivery 18 July • T-Systems • Paris – NYC (e2e) • September • Flag

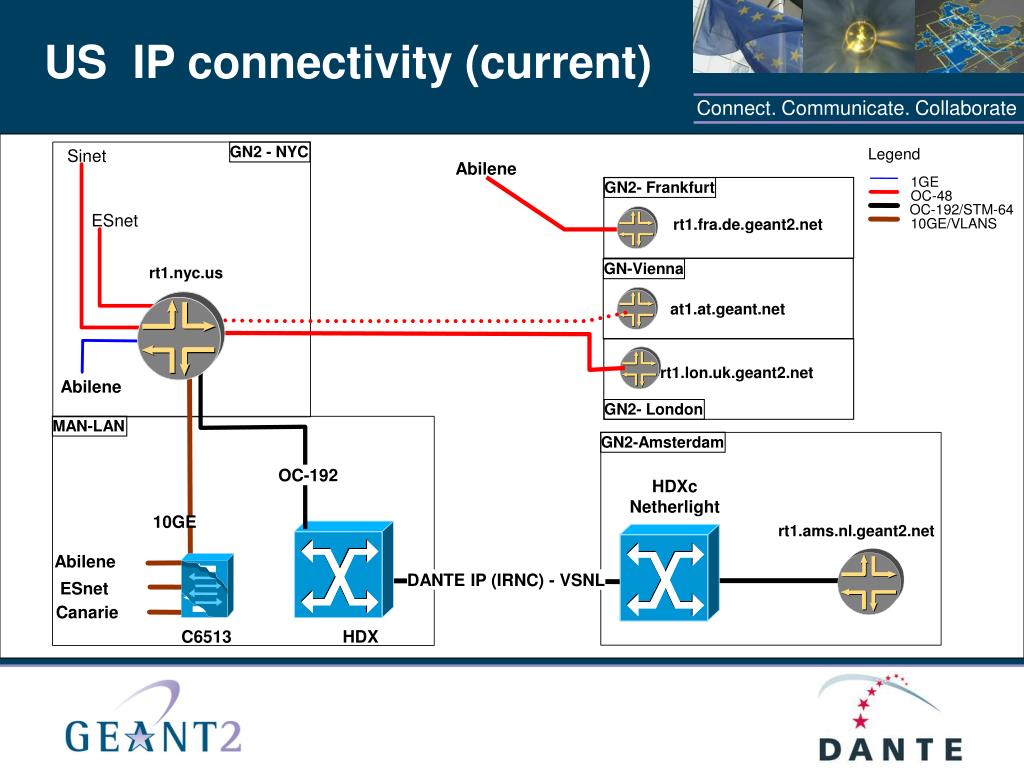

  7. Legend 1GE OC-48 OC-192/STM-64 10GE/VLANS US IP connectivity (current) GN2 - NYC Sinet Abilene GN2- Frankfurt ESnet rt1.fra.de.geant2.net GN-Vienna rt1.nyc.us at1.at.geant.net rt1.lon.uk.geant2.net Abilene GN2- London MAN-LAN GN2-Amsterdam OC-192 HDXc Netherlight 10GE rt1.ams.nl.geant2.net Abilene DANTE IP (IRNC) - VSNL ESnet Canarie C6513 HDX

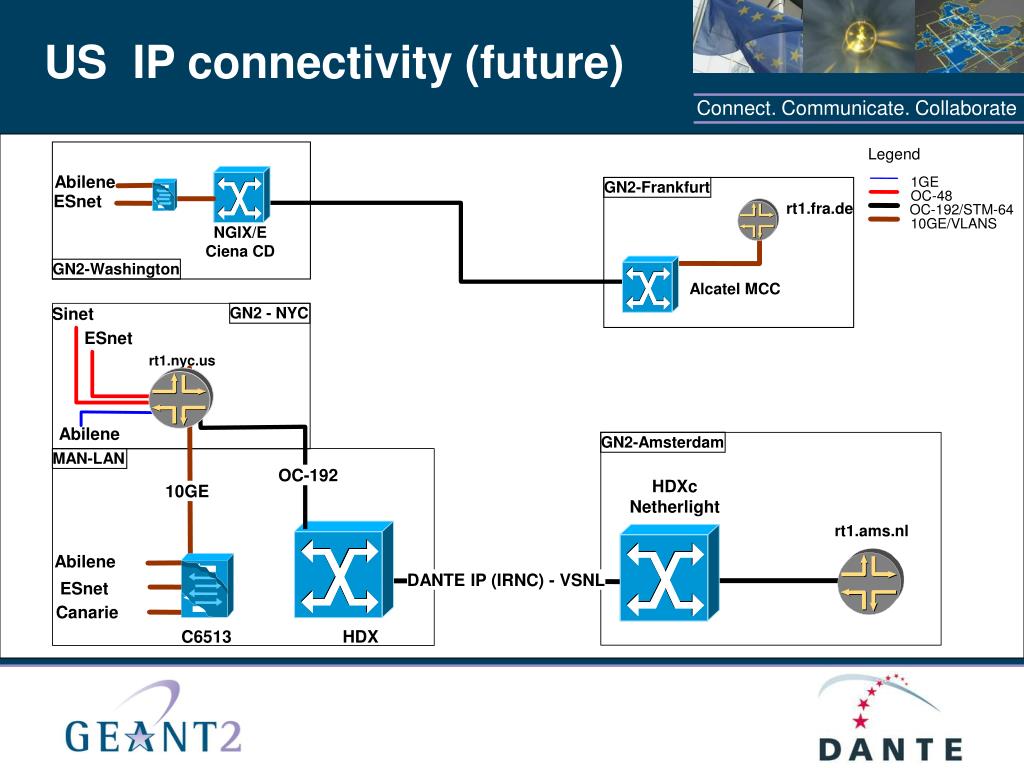

  8. Legend 1GE OC-48 OC-192/STM-64 10GE/VLANS US IP connectivity (future) Abilene GN2-Frankfurt ESnet rt1.fra.de NGIX/E Ciena CD GN2-Washington Alcatel MCC Sinet GN2 - NYC ESnet rt1.nyc.us Abilene GN2-Amsterdam MAN-LAN OC-192 HDXc 10GE Netherlight rt1.ams.nl Abilene DANTE IP (IRNC) - VSNL ESnet Canarie C6513 HDX

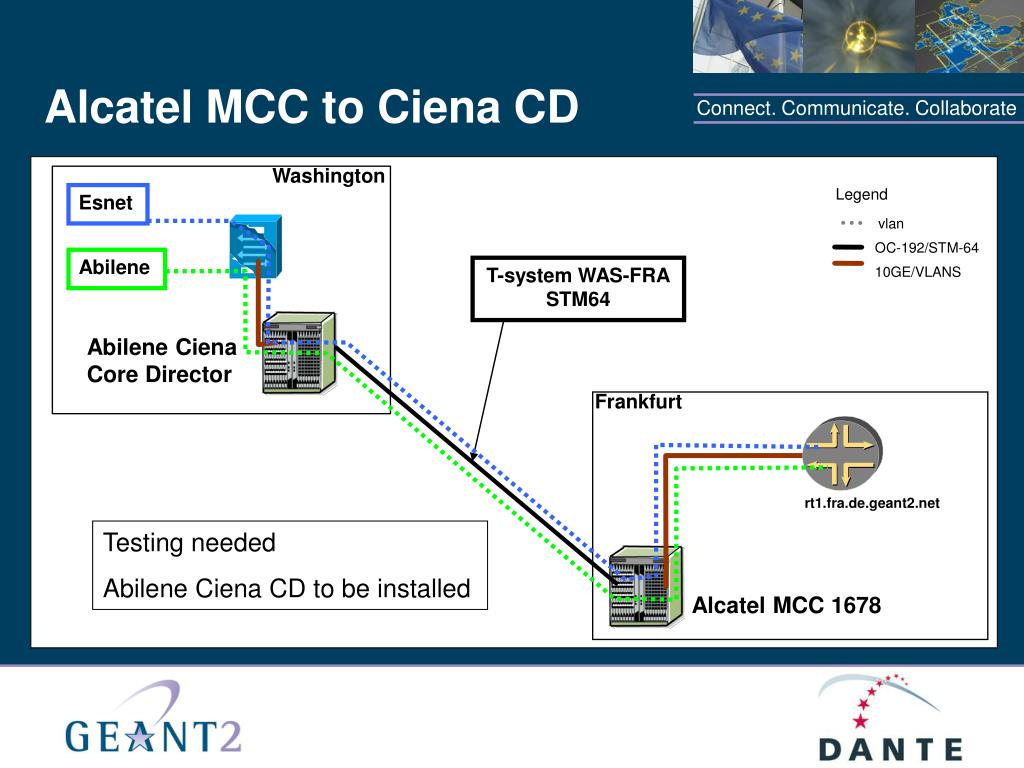

  9. Legend vlan OC-192/STM-64 10GE/VLANS Alcatel MCC to Ciena CD Washington Esnet Abilene T-system WAS-FRA STM64 Abilene Ciena Core Director Frankfurt rt1.fra.de.geant2.net Testing needed Abilene Ciena CD to be installed Alcatel MCC 1678

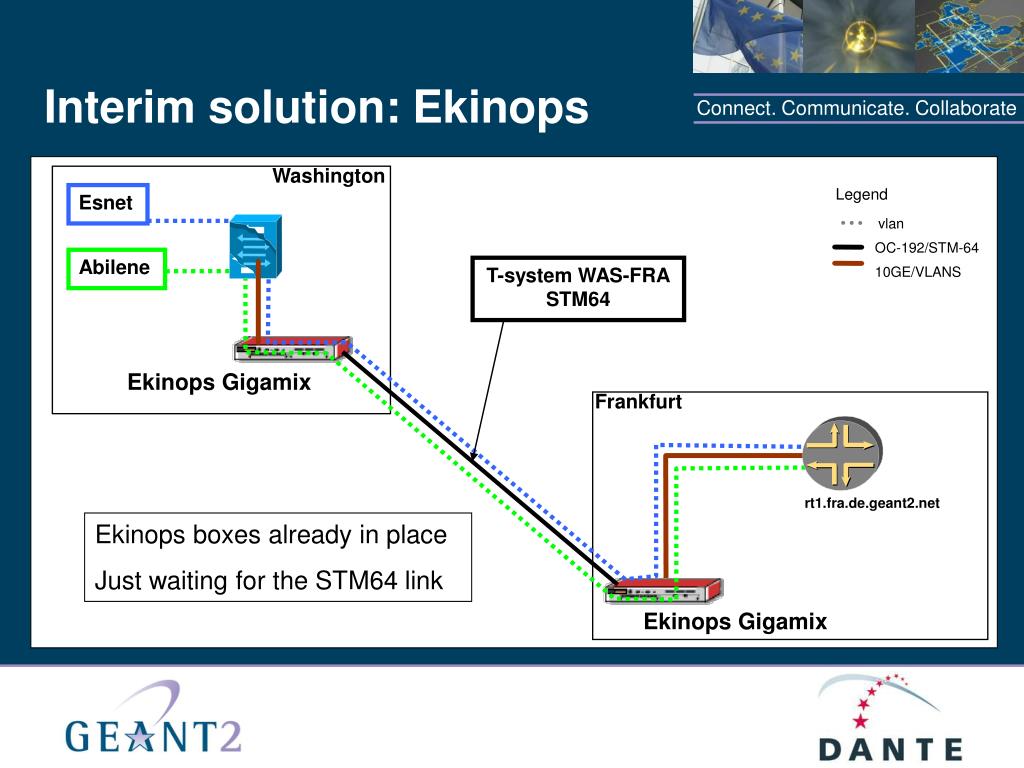

  10. Legend vlan OC-192/STM-64 10GE/VLANS Interim solution: Ekinops Washington Esnet Abilene T-system WAS-FRA STM64 Ekinops Gigamix Frankfurt rt1.fra.de.geant2.net Ekinops boxes already in place Just waiting for the STM64 link Ekinops Gigamix

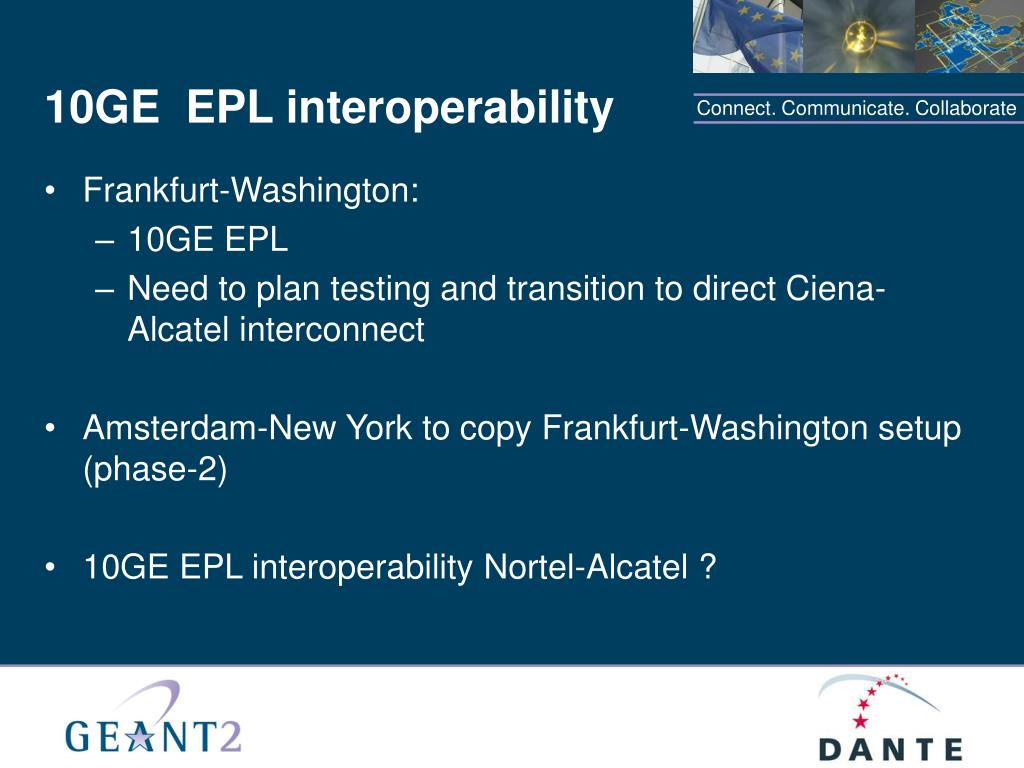

  11. 10GE EPL interoperability • Frankfurt-Washington: • 10GE EPL • Need to plan testing and transition to direct Ciena-Alcatel interconnect • Amsterdam-New York to copy Frankfurt-Washington setup (phase-2) • 10GE EPL interoperability Nortel-Alcatel ?

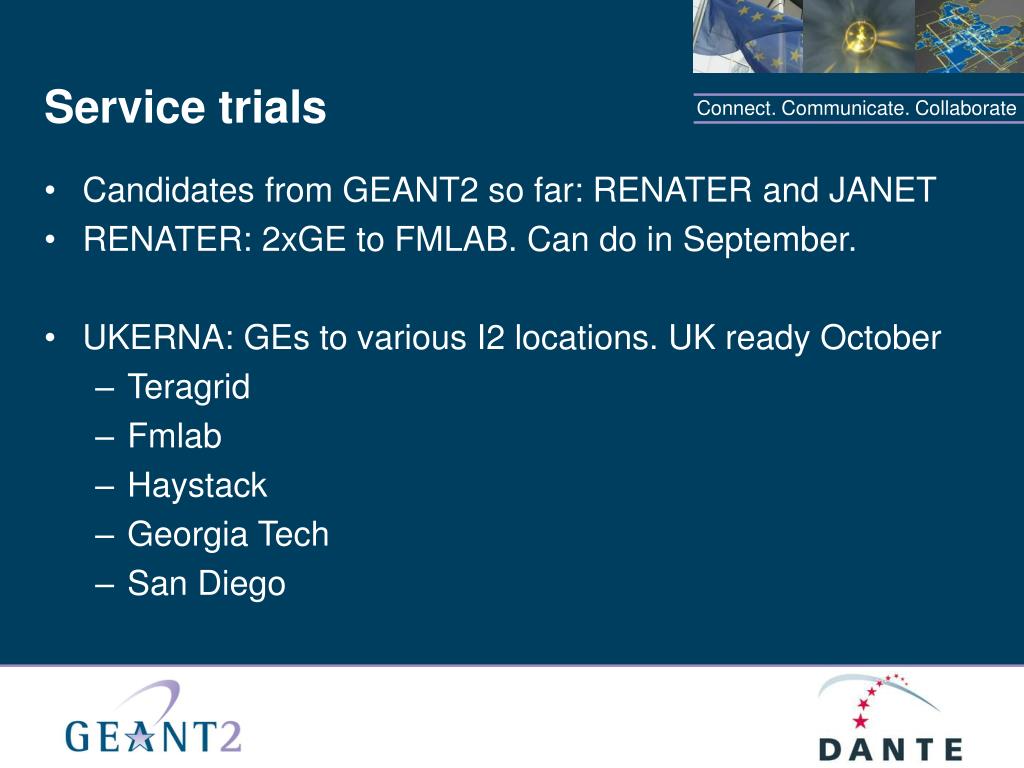

  12. Service trials • Candidates from GEANT2 so far: RENATER and JANET • RENATER: 2xGE to FMLAB. Can do in September. • UKERNA: GEs to various I2 locations. UK ready October • Teragrid • Fmlab • Haystack • Georgia Tech • San Diego

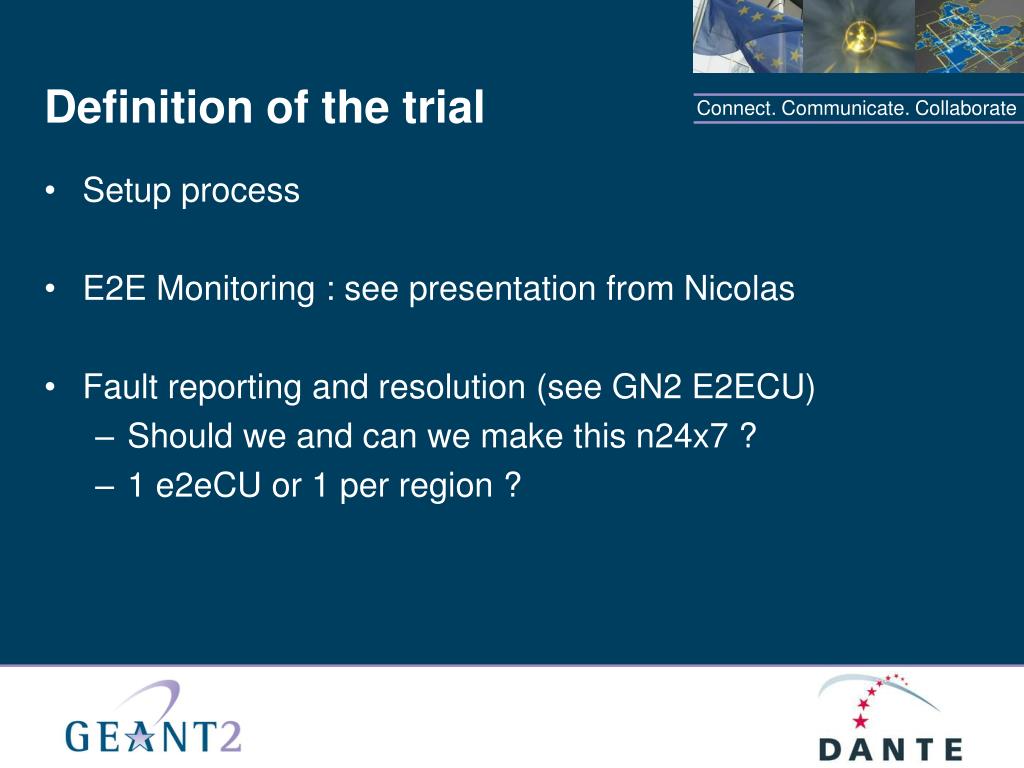

  13. Definition of the trial • Setup process • E2E Monitoring : see presentation from Nicolas • Fault reporting and resolution (see GN2 E2ECU) • Should we and can we make this n24x7 ? • 1 e2eCU or 1 per region ?

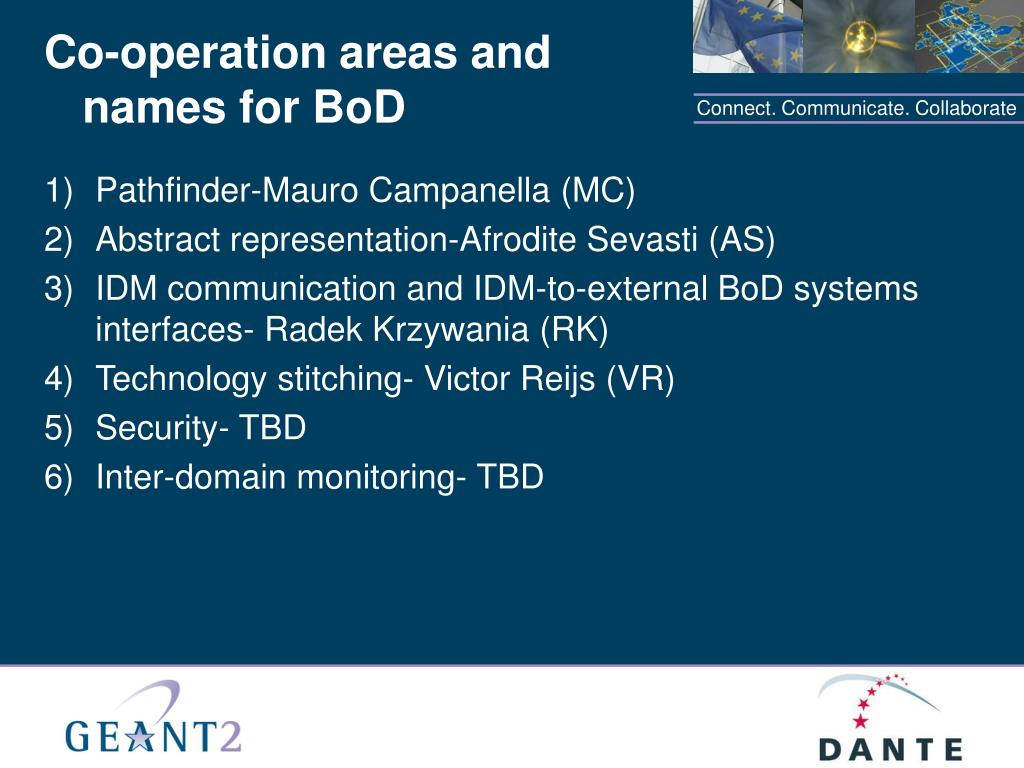

  14. Co-operation areas and names for BoD • Pathfinder-Mauro Campanella (MC) • Abstract representation-Afrodite Sevasti (AS) • IDM communication and IDM-to-external BoD systems interfaces- Radek Krzywania (RK) • Technology stitching- Victor Reijs (VR) • Security- TBD • Inter-domain monitoring- TBD
